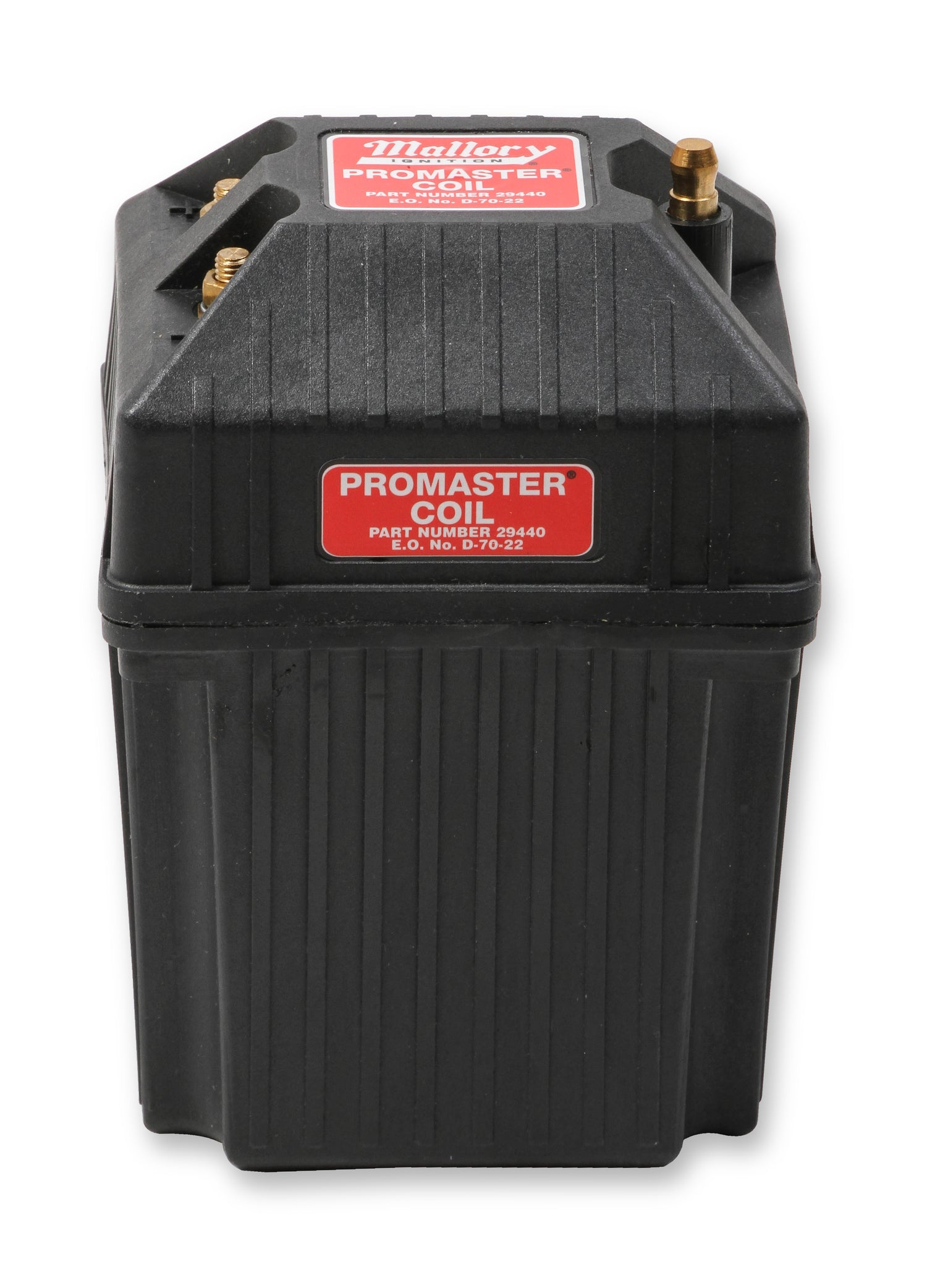

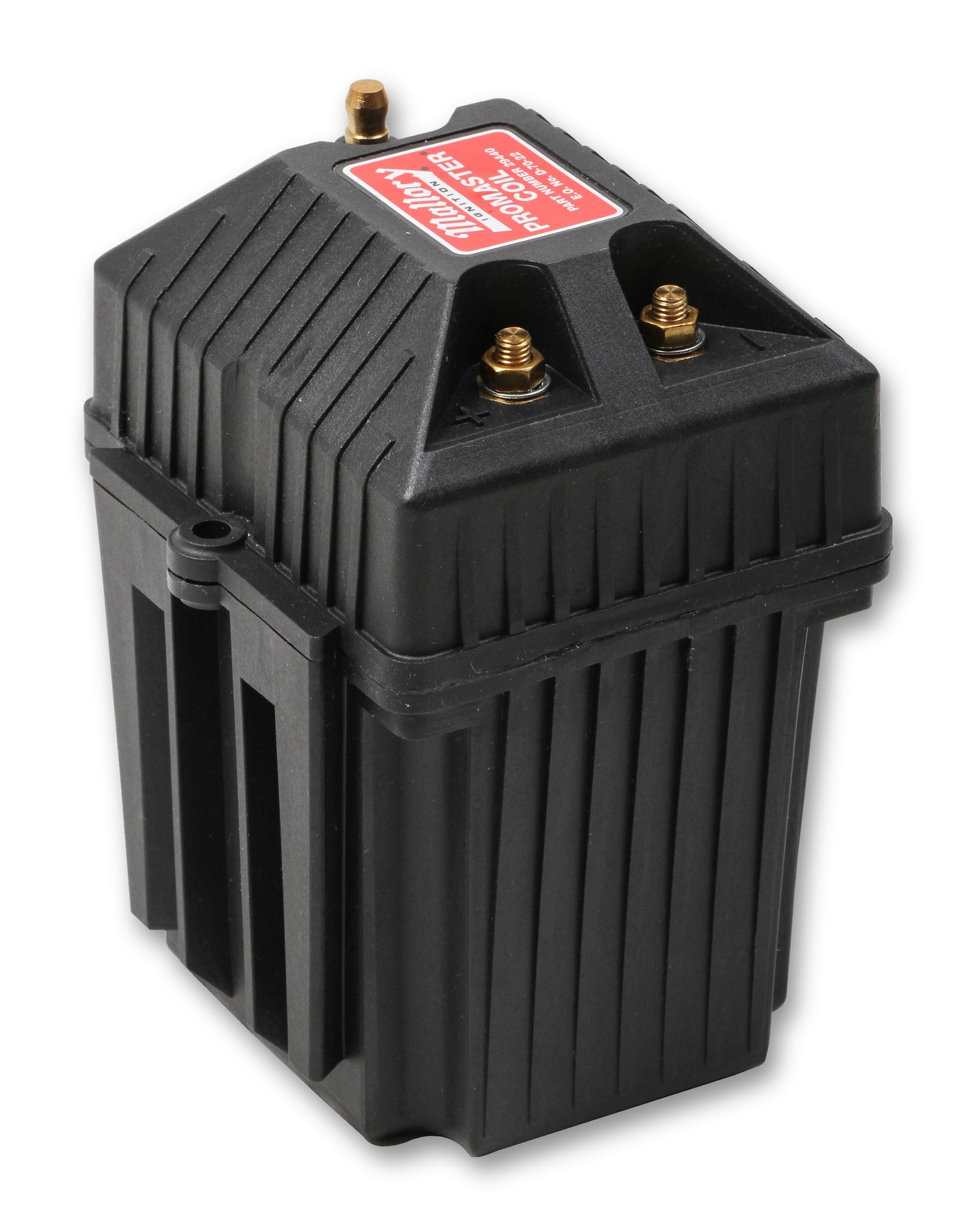

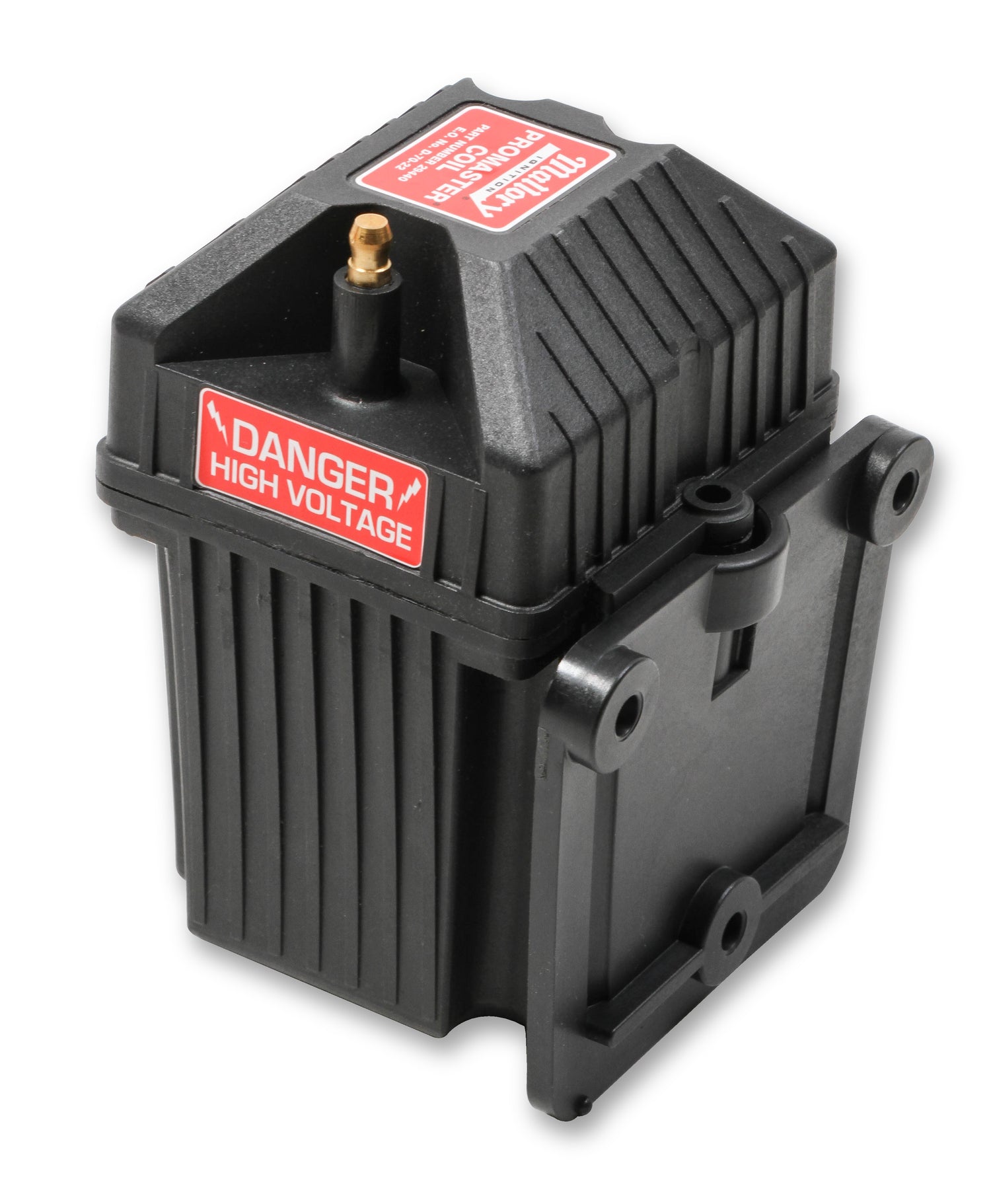

Mallory Promaster Classic Series Coil - 29440
A powerful, reliable coil from Mallory Ignition with classic good looks
Regular price
$384.70 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Mallory Promaster Classic Series Coil - 29440 is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
A powerful, reliable coil from Mallory Ignition with classic good looks
Part Number: 29440
The Mallory Promaster Classic series ignition coil is designed to meet today's specialized ignition requirements. This coil features a faster rise time and increased spark duration (compared to stock) to increase performance. It has a glass-filled polyester case and oil-filled construction to ensure a long life and no energy loss from arcing. This coil also offers excellent wire retention with a spark plug type secondary post, and brass contact terminals.
Features and Benefits
• Classic good looks
• High current / voltage output
• Spark plug style terminal for excellent coil wire retention
• Brass contact terminals

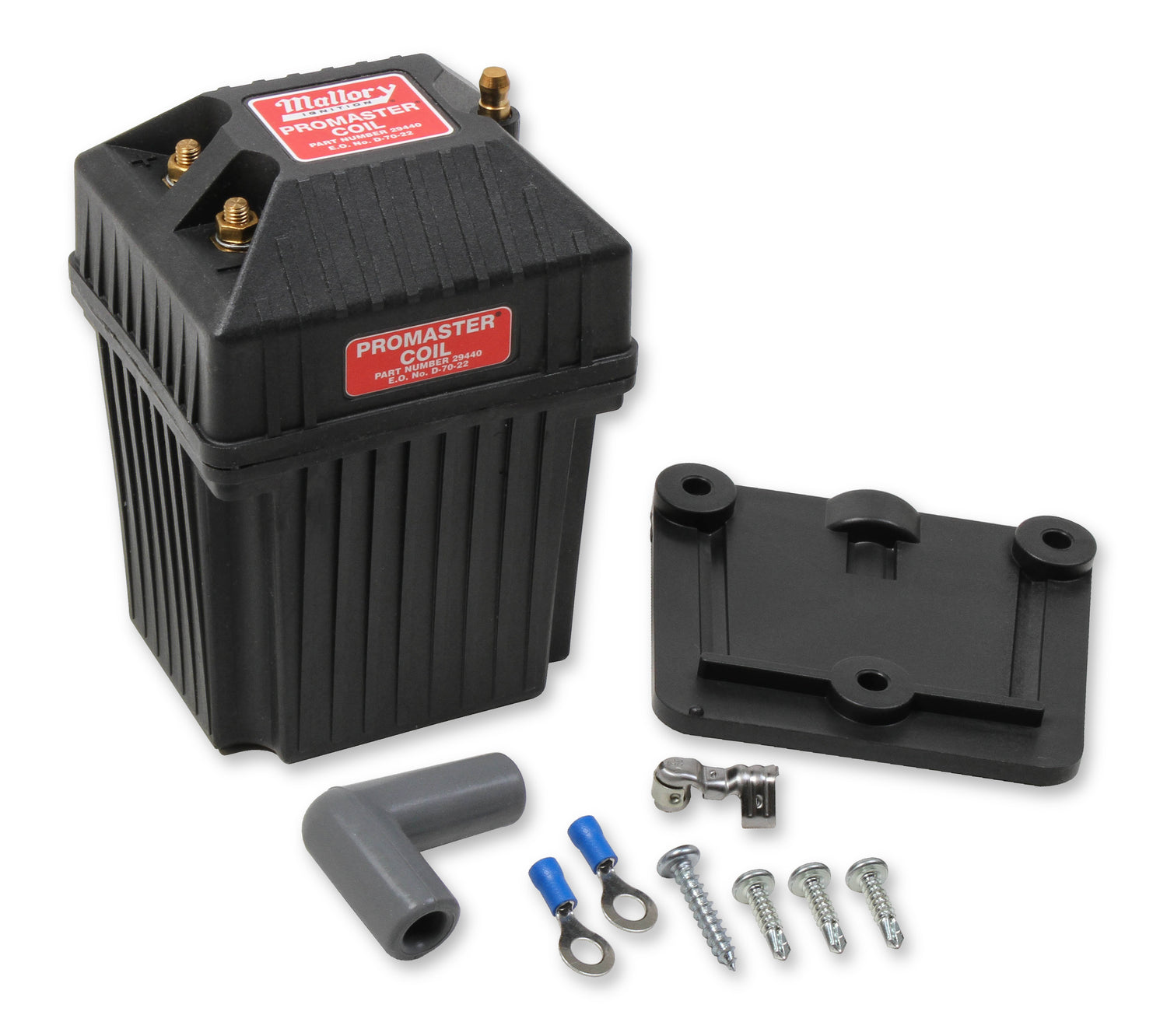

• Mounting bracket included
• Can be used on inductive and CD ignitions
Mounting bracket included_x000D_ _x000D_ CARB E.O. # D-70-22
Part Number: 29440
The Mallory Promaster Classic series ignition coil is designed to meet today's specialized ignition requirements. This coil features a faster rise time and increased spark duration (compared to stock) to increase performance. It has a glass-filled polyester case and oil-filled construction to ensure a long life and no energy loss from arcing. This coil also offers excellent wire retention with a spark plug type secondary post, and brass contact terminals.
Features and Benefits
• Classic good looks
• High current / voltage output
• Spark plug style terminal for excellent coil wire retention
• Brass contact terminals
• Mounting bracket included
• Can be used on inductive and CD ignitions
Mounting bracket included_x000D_ _x000D_ CARB E.O. # D-70-22
Specifications
Specifications
-
Specifications
Brand Mallory C.A.R.B. EO # D-70-22 Category Ignition Emission Code 1 Inductance 7.5 mH Maximum Voltage 49,000 volts part type Ignition Coil Peak Current 66 mA Primary Resistance .6 ohms Product Type Coil Secondary Resistance 11.3K OHMS Spark Duration 3,600 uS Sub Category Ignition Coil Turns Ratio 1 Warning California Proposition 65 -
