Diamond  |  SKU: D11521-R1-8-H

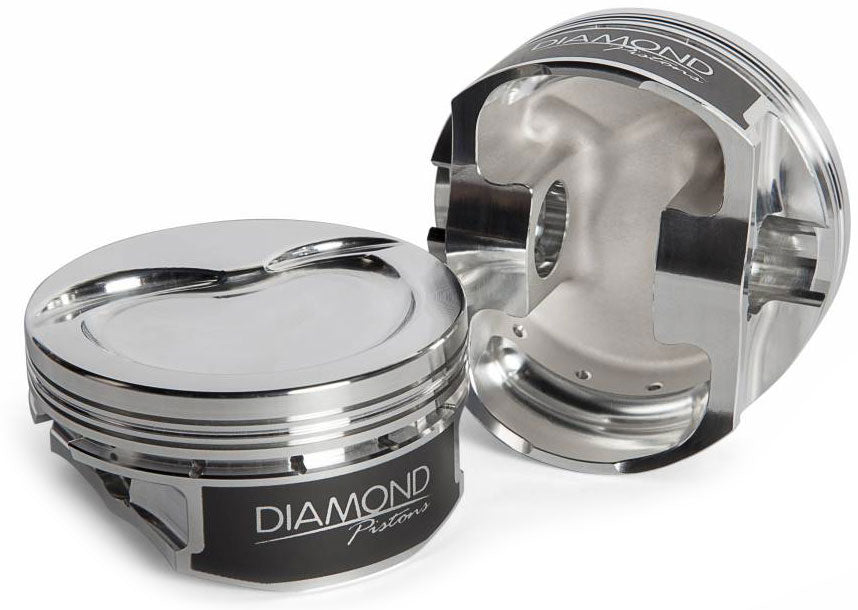

Diamond LS1/LS6 Dish Top Forged Pistons With Rings 4.030" bore, 4.000" stroke, 6.125" rod length, -15cc dome volume (D11521-R1-8-H)

4.030" bore, 4.000" stroke, 6.125" rod length, -15cc dome volume

$2,407.70 NZD + GST
Shipping calculated at checkout.

Description

LS STREET STRIP DISH PISTONS

4.030" bore, 4.000" stroke, 6.125" rod length, -15cc dome volume

Part Number: D11521-R1-8-H

Piston Specifications

  • Bore: 4.030
  • Stroke: 4.000
  • Rod: 6.125
  • Comp Height: 1.115
  • Weight: 410
  • Pin: .927 x 2.500
  • CC: -15.0cc
  • Compression Ratio: 9.8
  • Chamber CC: 70
  • Ring Thickness: 1.2mm x 1.2mm x 3.0mm
  • VP Intake Depth: 0.176
  • VP Exhaust Depth: 0.105
