Aeroflow Low Rise EFI GM LS Rectangle Port Intake ManifoldBase, Black Finish (AF6279-6003)

LOW RISE EFI GM LS BASE INTAKE

Suit Modular Intake Manifolds

Part Number: AF6279-6003

The Aeroflow Performance modular intake manifolds allowthe end user to customize their intake manifold depending on each individual application. These cast aluminium intake manifold bases perform well and offer extremely good value when paired with our modular top plates (sold separately) to make a complete intake manifold for the very popular GM LS engine family. Alternatively, a custom top plate can be custom made to suit your custom application.
Aeroflow offer either a hi rise manifold base where bonnet modifications will be required. The long runner design allows for high rpm horsepower with big cube engines for a serious drag racer. A low-rise design manifold base which allows it to fit under a stock bonnet inmost street car applications. Short intake runners with tapered top are designed to increase air velocity and moreevenly distribute airflow to all 8 cylinders improving performance and throttle response.

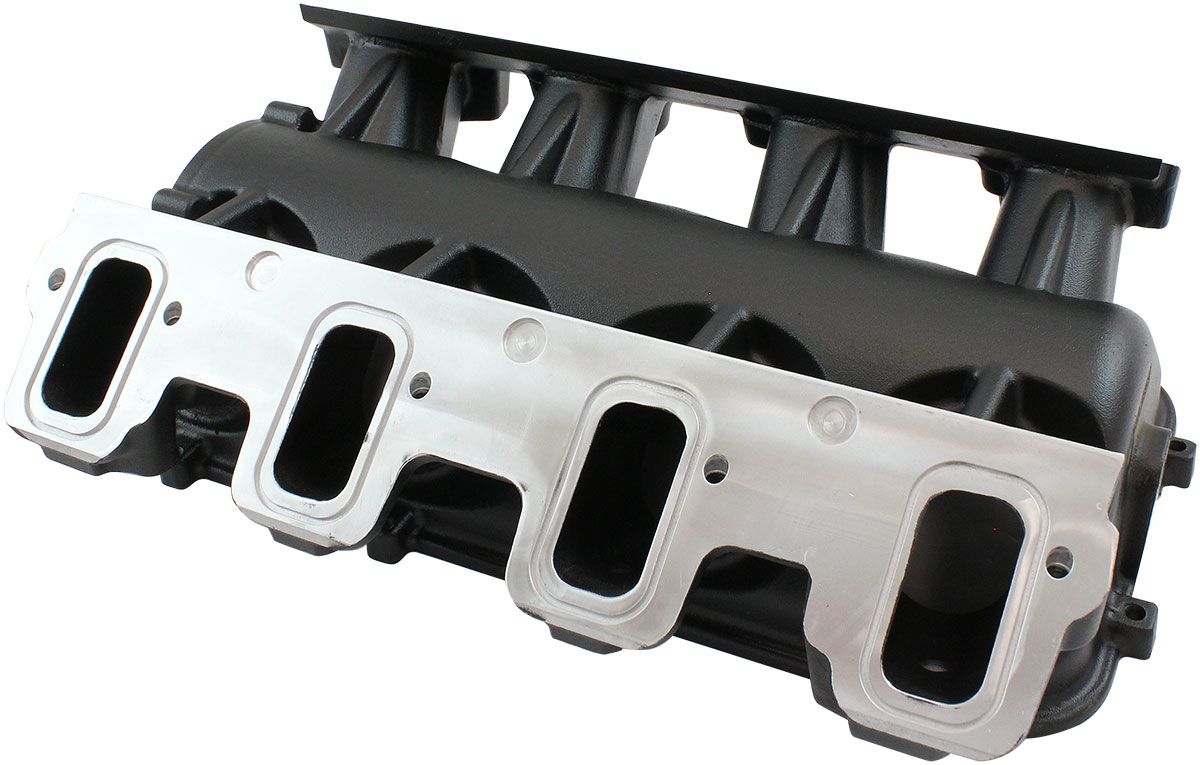

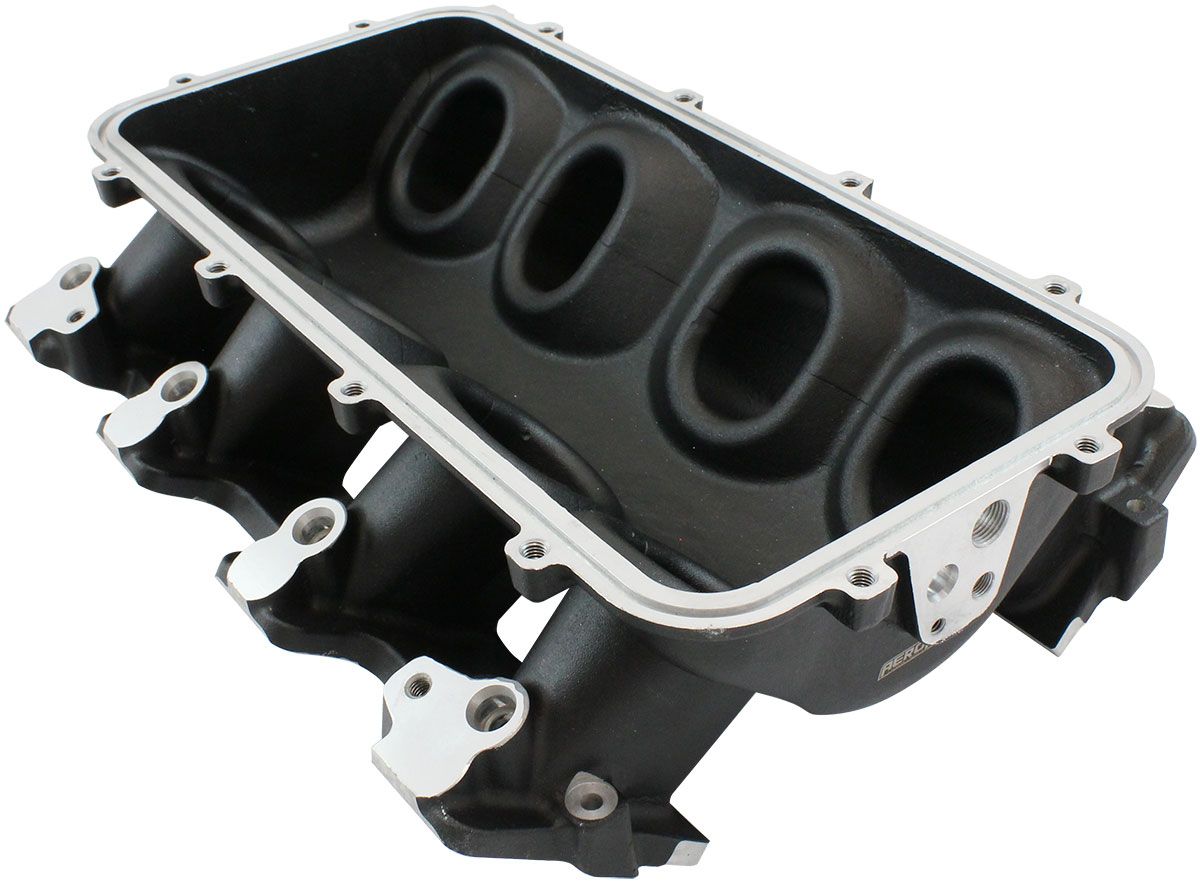

The modular design is made up of this bottom base which bolts to thecylinder heads and a top plate(sold separately) which bolts to the base with an O-ring to seal both components. Each base will fit either a cathedral port or rectangle port GM LS cylinder head. Witha choice of NON-EFI with no injector bosses or EFI with 16injector bosses (8 undrilled) complete with fuel rails and cross over, designed to suit 14mm short length (33mm) fuel injectors. All bases have a provision for a LS style map sensor on the rear along with 1 x 3/8” NPT and 1 x 1/8” NPT ports with bungs.
These intake manifold bases are sold separately (as well as in complete intake manifolds and top plates) and can be paired with our modular top plates which are sold separately. Available in either natural cast or black power coated finishes.

Specifications: Manifold
Specifications

- Port Size: 1.15" x
2.50"
- Intake
manifold gasket O-Ring
(AF6999-1000).
-
3/8" NPT port (x1)
-
1/8" NPT port (x1)

- 1 x GM LS Style Map
Sensor provision.

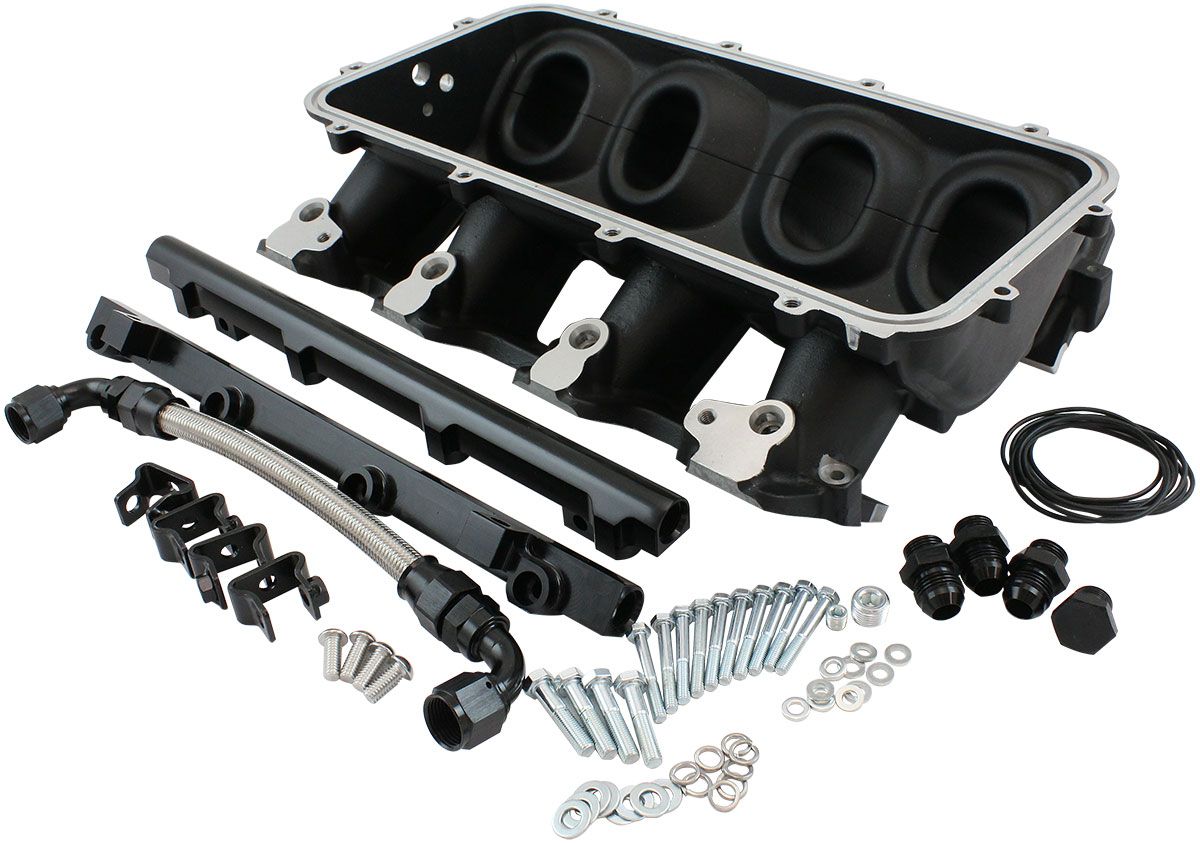

Intake Manifold
Includes
- Fuel Rail Kit
(AF6999-6003)
- 8 x
Intake Manifold O-Ring Gaskets
(AF6233-5002)
- 8 x M6 x
1.00mm Hex Screws (45mm
UHL)
- 8 x M6 Flat
Washers
- 1 x 3/8"
NPT Steel Port Plug
- 1 x
1/8" NPT Steel Port
Plug
