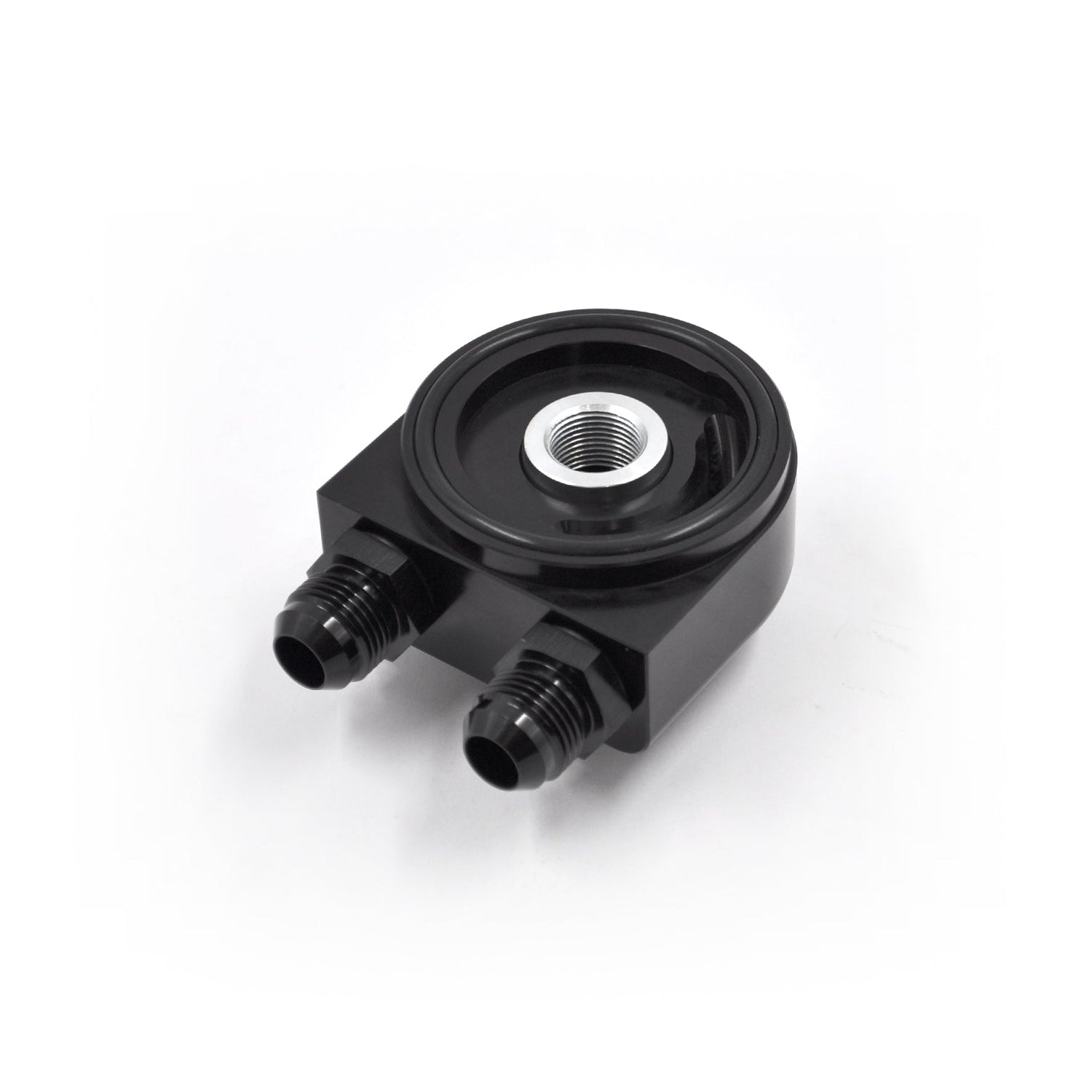

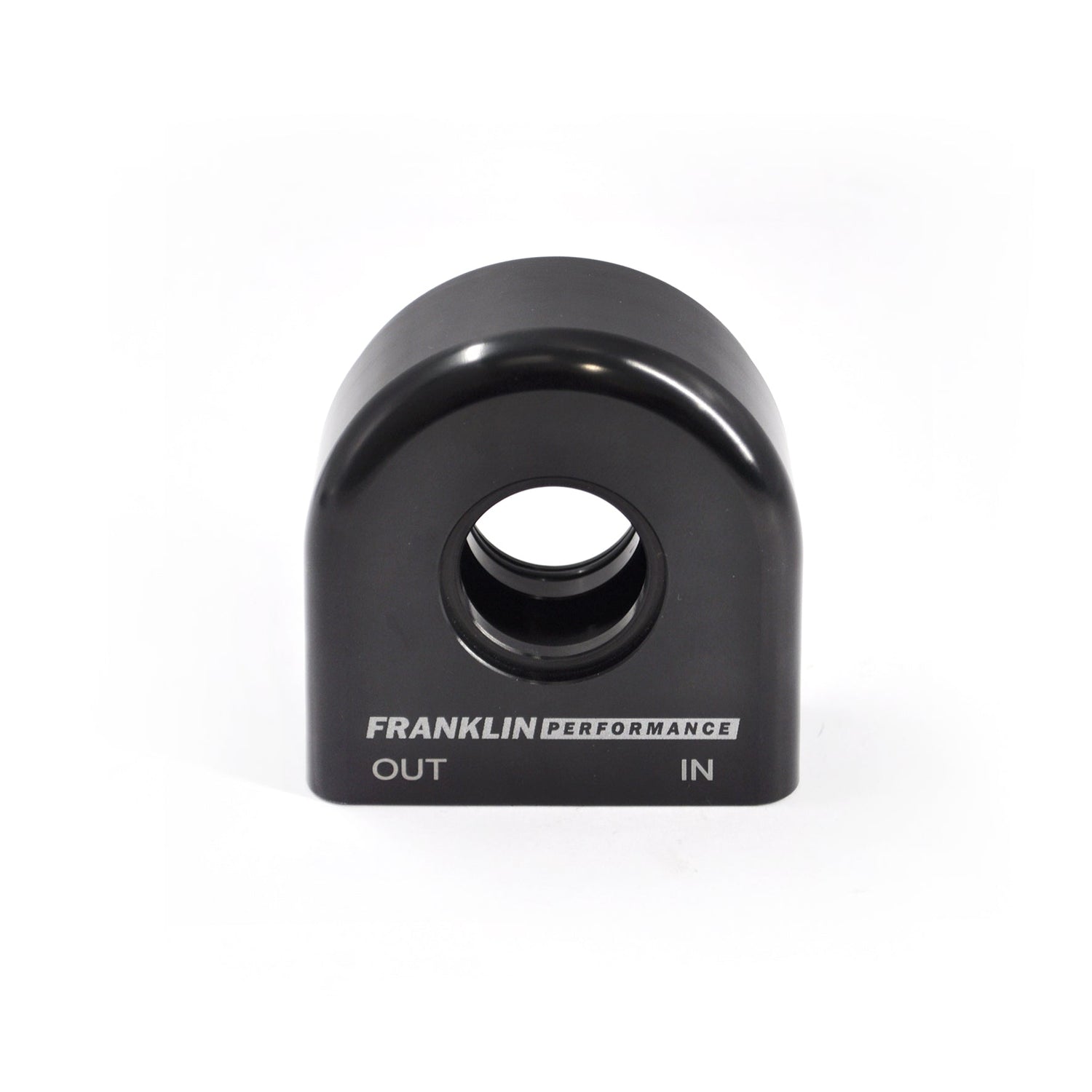

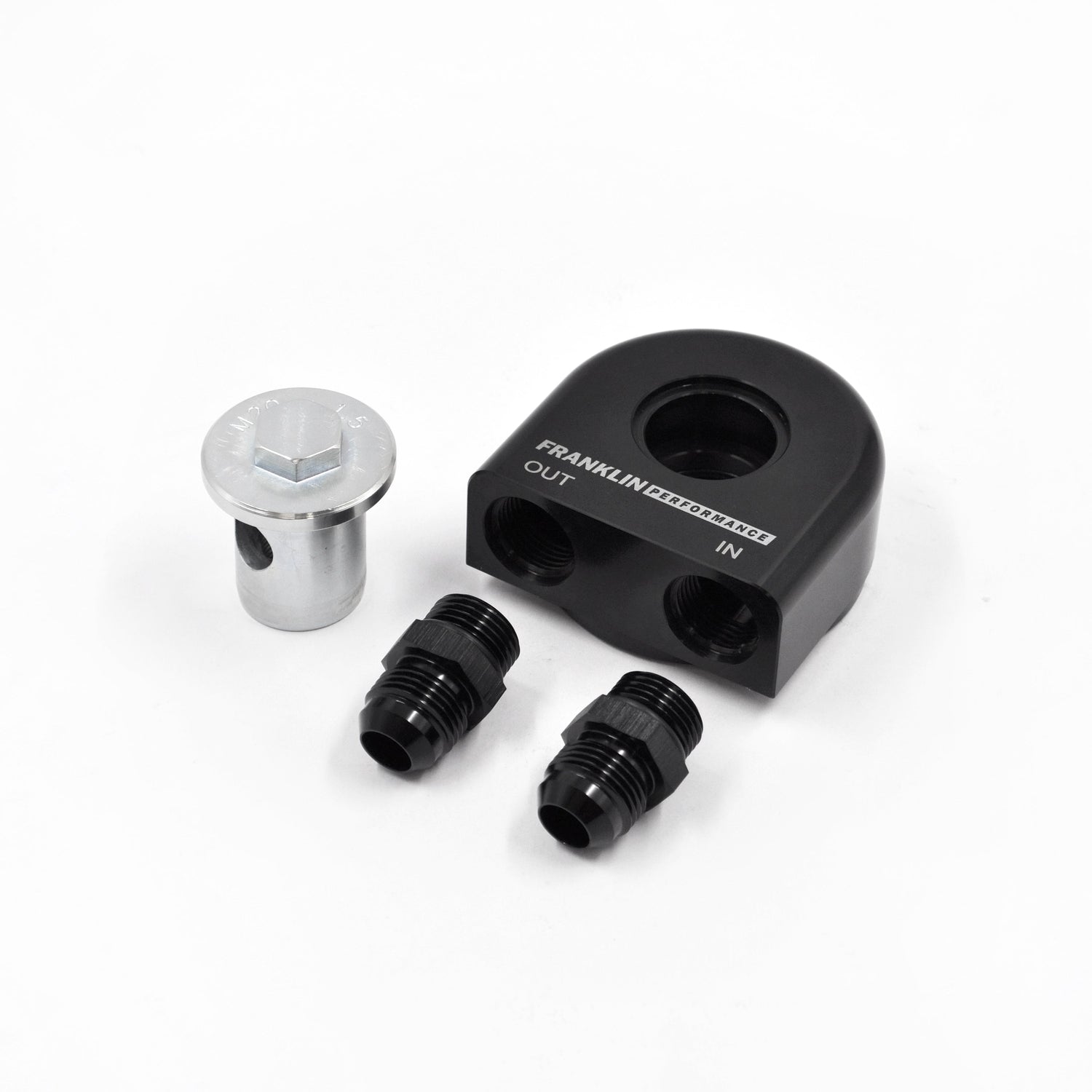

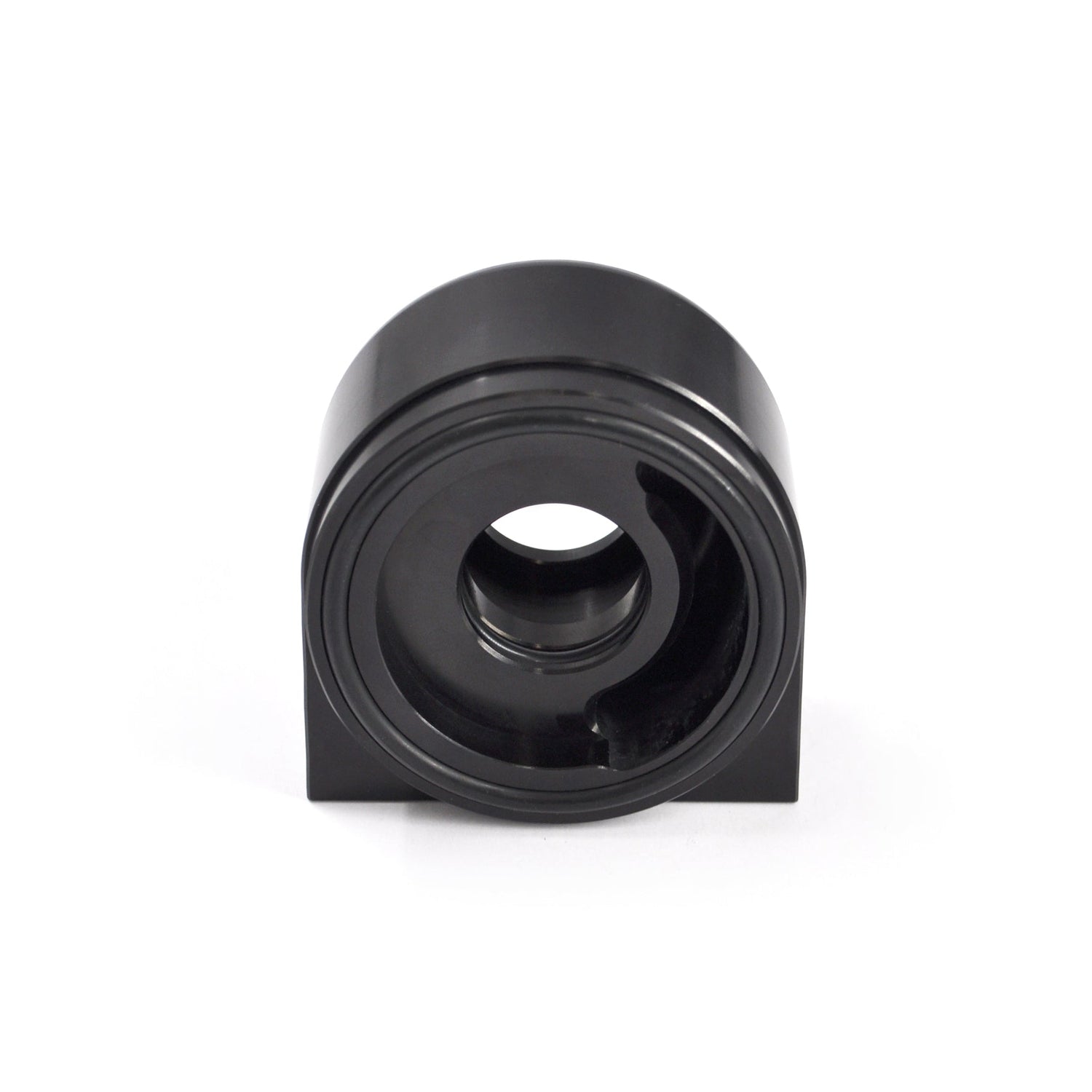

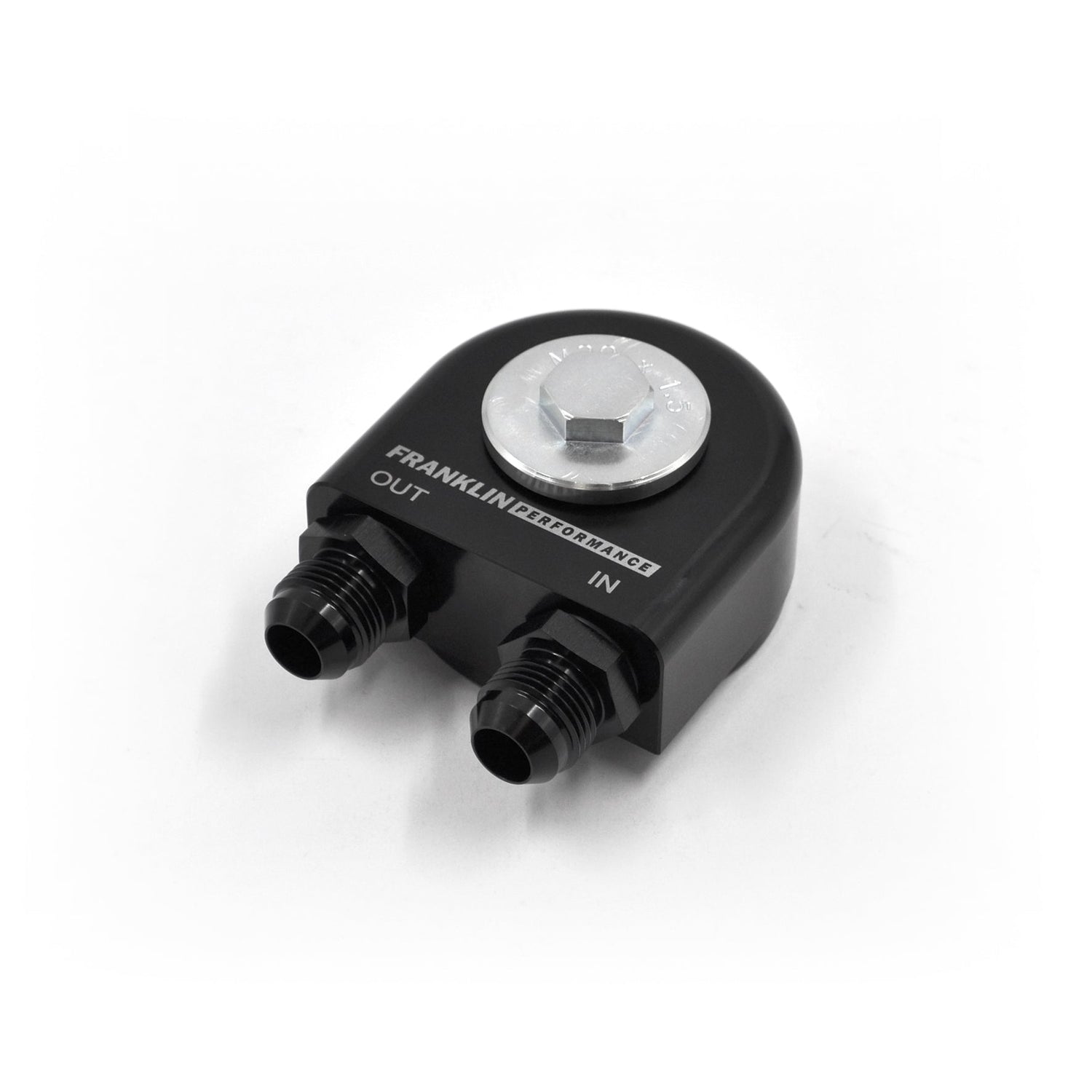

Low Profile Remote Oil Filter Adaptor

Low profile remote oil filter block fitting manufactured by Franklin Performance for plumbing a remote oil filter, making filter changes easier or where space is limited in the engine bay.

This is high quality product that we have designed and manufacture at our factory in Napier, New Zealand. The product has many features to improve oil flow that you won't find on other remote filter block fittings

10AN sized ORB ports are provided for plumbing the engine oil to and from a filter mount.

O-Ring inside diameter: 65.00 mm
O-Ring outside diameter: 73.00 mm

Overall height: 54mm

The block adaptor is available with a wide range of threads to suit many applications. Please choose the thread you require from the dropdown menu.

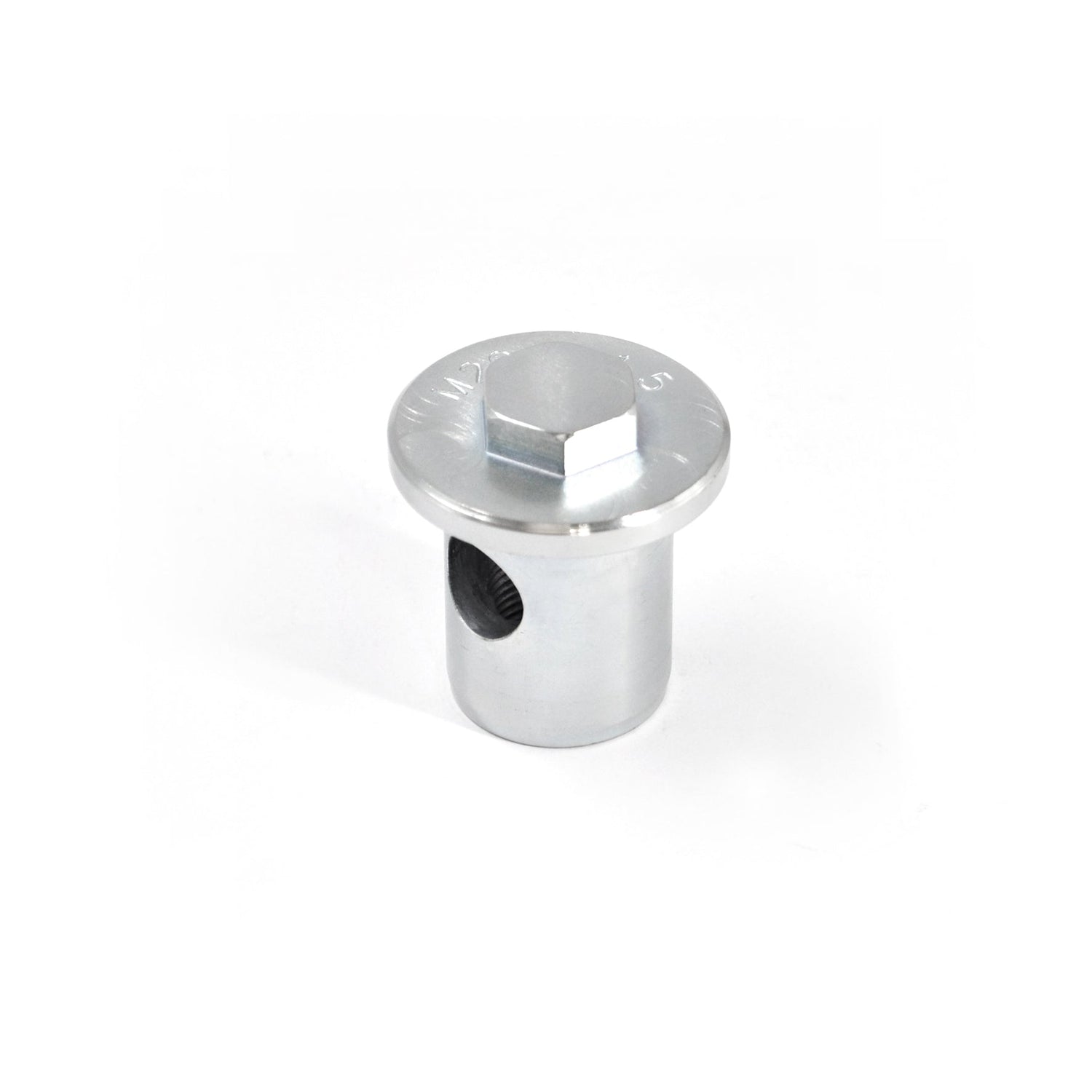

The body of the adaptor is manufactured from billet high-grade 6061 aluminium, then anodised black for great looks and corrosion resistance. The threaded adaptors are manufactured from medium tensile steel and zinc plated for corrosion resistance.

We also stock remote filter mounts, oil coolers, braided hoses and manufacture many other automotive performance parts. Please have a look at our other listings.
