Link TCC08 8 Channel EGT to CAN Module

Part Number: 101-0388

Link TCC08 8 ChannelEGT to CAN module, powered by CANchecked

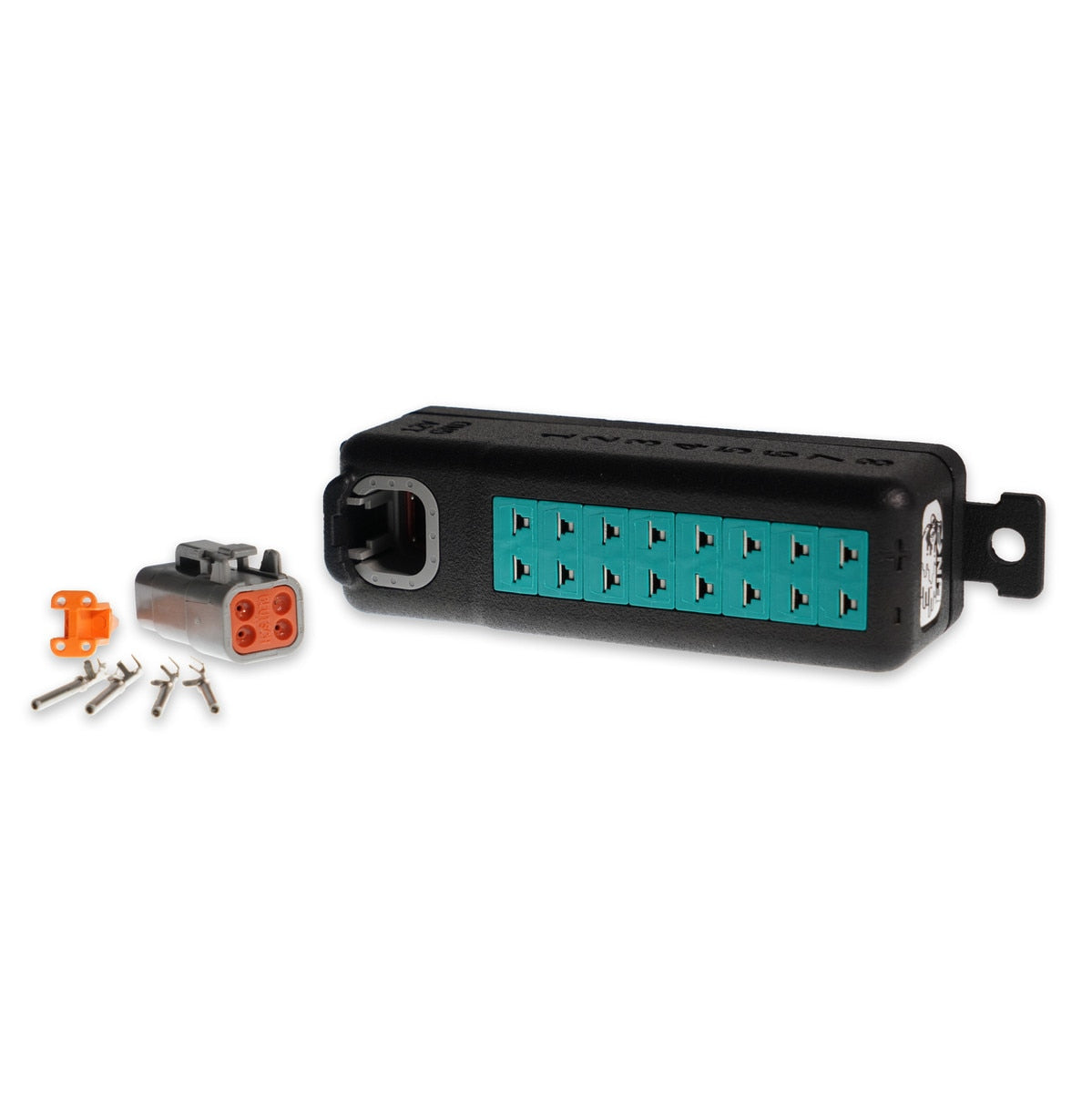

The TCC08 EGT to CAN module allows you to connect up to eight Type-K thermocouples and send the values ??via CAN bus and/or monitor them directly on your wireless enabled device.
Type-K thermocouples are suitable for various applications such as measuring exhaust gas temperature (EGT), temperatures before/after the intercooler, turbo housings, cylinder head temperatures, water temperature, oil temperature and more. All measurements are cold junction compensated with a measuring range of 0 to 1250°C in 0.25°C resolution (14bit).
The TCC08 features a four-pin DTM connector for CAN/power and miniature K-sockets. It is pin compatible with Links standard CAN pinout and CAN cables range. CAN 2.0A/B standard is supported with flexible configuration.
Wireless connectivity allows you to configure and update your module via smartphone or PC and query the current temperature and thermocouple status.
Features:

• 8 x cold junction compensated type-K inputs
• Four-pin DTM connectorminiature K-sockets.
• CAN Bus connection to ECU (Pre-Configured for Link ECU)
• Measuring range from 0 to 1250°C (32 to 2282°F) with 0.25°C resolution
• Detection of short circuit to ground or if no type-K is connected
• Standard mini k thermocouple connector
• Full configuration and monitoring over wireless
• Adjustable sample frequency up to 100Hz

Box Contents:

1 x CAN EGT Module

1 x DTM4 Mating Connector Kit

2 x Link Stickers

Set-up and Installation Guide

Specifications:

• DTM 4 CAN Pinout (Supports Links CAN pinout schema and CAN cables range)
  Pin 1: 12V Pin 2: Ground Pin 3: Can Low Pin 4: Can High
• Accuracy: maximum 2% deviation
• Dimension (L x W x H) – 129 x 31.5 x 34.6mm

Configuration Options:

The module can be configured via wireless:

• Can Speed: 125kbps, 250kbps, 500kbps, 1Mbps
• Emulation: Standard, All major aftermarket EGT/Thermocouple to CAN Modules
• Change of standard Can Bus ID
• Change Big/Little Endian
