Link G5 ECU Plug-In - GT86/Subaru BRZ/Scion FR-S - LHD
Regular price
$2,995.00 NZD
+ GST
Unit price
/
Unavailable

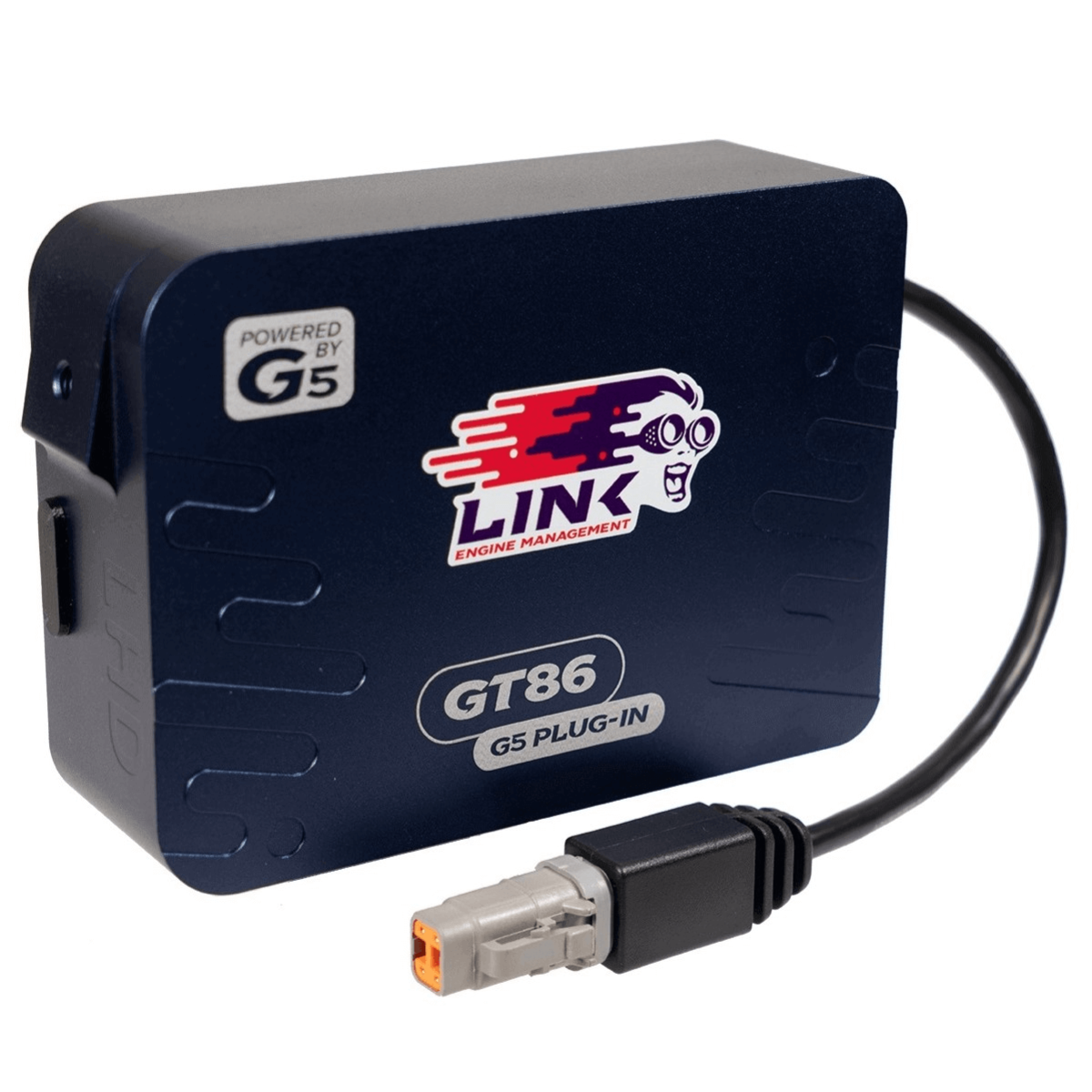

Link G5 ECU Plug-In - GT86/Subaru BRZ/Scion FR-S - LHD
Part Number: 241-4200
The GT86 G5 Plug-in is a standalone plug and play replacement for the factory ECU and plugs straight into the original wiring loom, no adapter harness needed and comes with a sample map for a tuning head start. The GT86 G5 Plug-in runs the same powerful microcontroller and firmware as the G5 Voodoo Pro.
Designed for the 2.0 L 4U-GSE/FA20 H4 Engine. Support for both Manual and Automatic Transmissions.
Models Supported:
For more technical information please see the Features and Specifications tabs.
In the box:
DTM4 CAN Connection Cable (Pre-Installed in Enclosure)
Notes:
Due to the very tight nature of the factory ECU location, the LHD and RHD mounting methods differ. This is for left-hand drive LHD vehicles.
A RHD Version is available under part number241-4000
2017+ Models have some differences to earlier cars and will not run with the sample maps supplied in PCLink and the standard plug-in ecu hardware.
*The GT86 plug-in does not support factory wide band sensors.
All Link Plug-in ECUs come with the below features as standard:
Click<a href="https://linkecu.com/documentation/GT86G5.pdf">here</a>for User Manual <br>
I/O Options:
The following expansion connector inputs/outputs are provided:
Expansion connector 1:
1: +14V Out2: AUX 15
3: AUX 164: DI 11
5: DI 106: DI 9
7: +5V Out8: GND
Expansion Connector 2:
1: +14V Out2: Not Connected
3: AN Volt 124: AN Volt 11*
5: AN Volt 6*6: AN Temp 4*
7: +5V Out8: GND
*These inputs each have a jumper to either connect them to the Expansion plug or to their normal functions on the main header.
