Link ECU | SKU: 101-5104

Link G5 CAN Connection Cable

Name: Link G5 CAN Connection Cable
Brand: Link ECU
SKU: 101-5104
Price: 79.0 NZD
Availability: InStock

G5 CAN Connector Cable

$79.00 NZD + GST

Shipping calculated at checkout.

This item may not be kept in physical stock, in some instances item will be shipped direct from supplier.

Please contact us prior to purchasing if you would like an accurate ETA.

Description

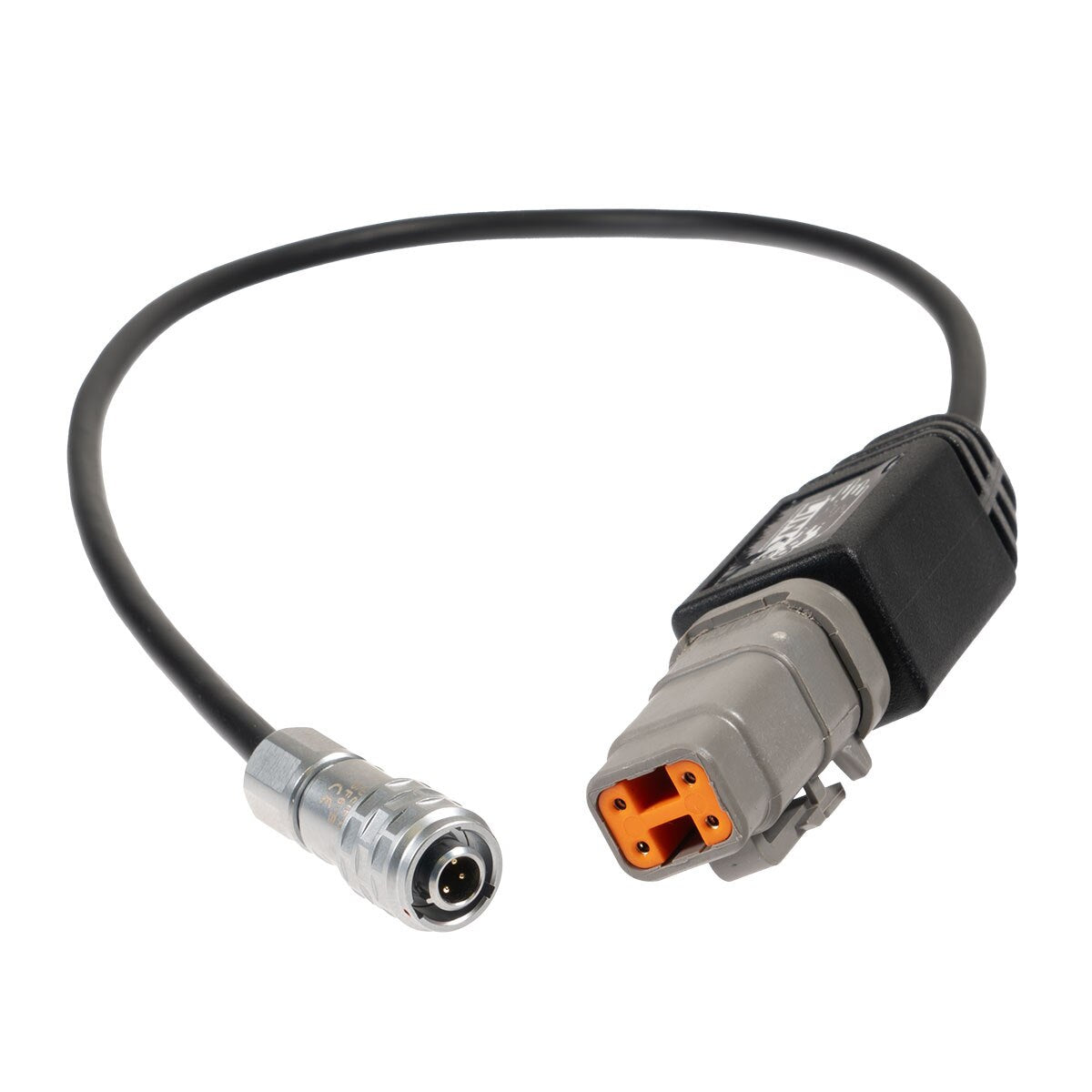

G5 CAN Connector Cable

Part Number: 101-5104

300mm CAN Cable. Required to add CAN 1 communication to G5 Voodoo Neo ECU's which have CAN accessible via the 4-Pin round Weipu CAN connector on the front of the ECU.
Compatible ECU's:
G5 Voodoo Neo (CAN1)
Specs
DTM4 Male to WEiPU SF610B/P4. CAN Loom Length 300mm. Power for CAN is supplied via this cable from the ECU.

DTM4 Pin Out
Pin 4: CAN H Pin 3: CAN L
Pin 2: Ground Pin 1: 12V
