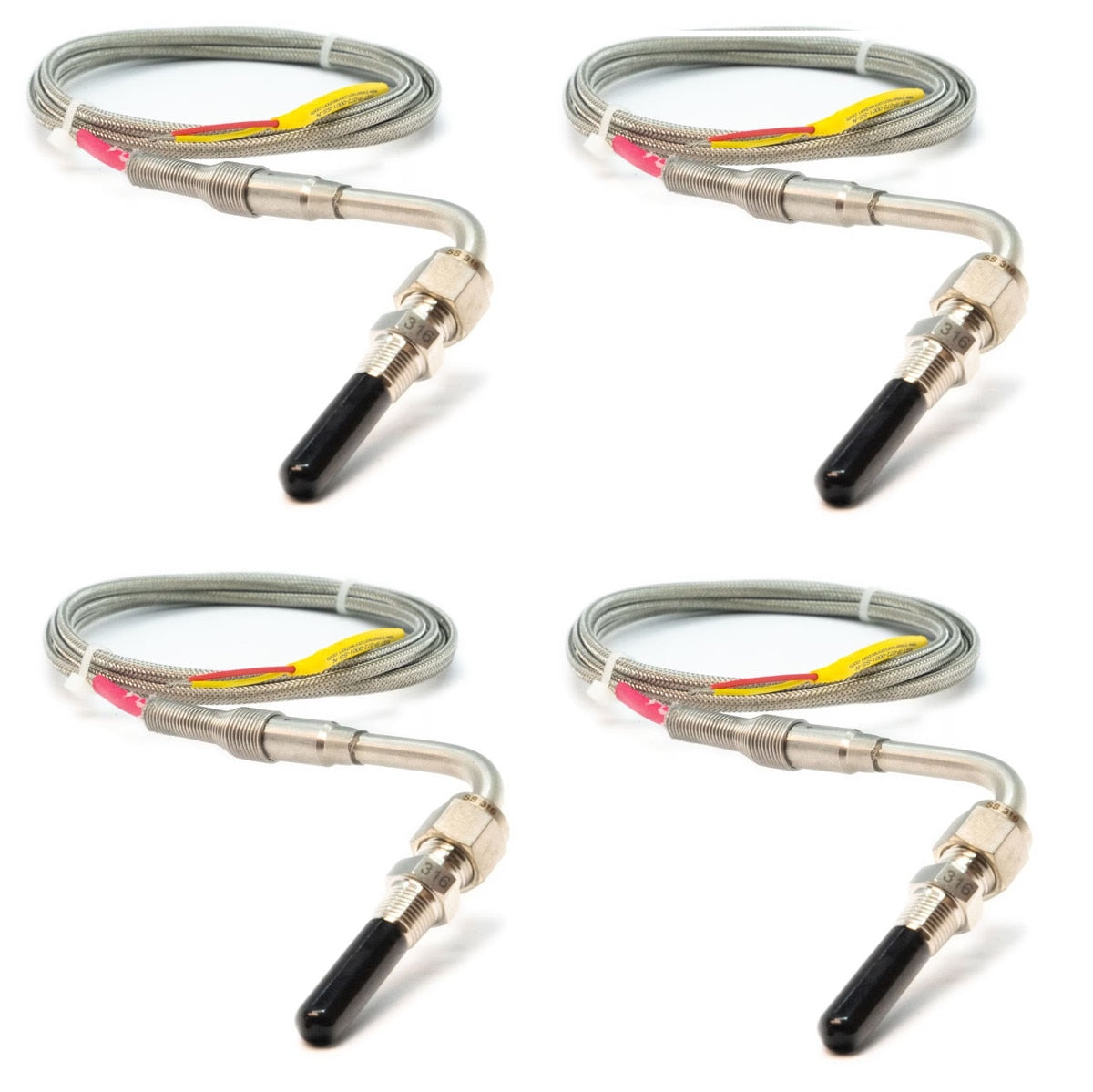

Link 4 x Exhaust Gas Temperature Probe Bundle (EGTs)

Part Number: 101-0146 - 4Bundle

Extreme Duty Fast Response EGT Temperature Probe.

This bundle includes four EGTs.

• Type K thermocouple probe
• Exposed sensing junction for fastest response
• Includes 316 SS adjustable compression fitting
• Stainless steel protected wires
• Designed for extreme engine testracing environments

Thermocouple type: K
Range: -148 to 2372°F (-100 to 1300°C) Accuracy: +/-0.4% of reading or about +/- 1.1°C (Special Limits of Error)
Probe diameter: 1/4 inch (0.250 inch) (6.35 mm) Sensing Junction: Exposed, Ungrounded
Response Time*: 150 mS*Time Constant: Defined as the time required to reach 63.2% of an instantaneous temperature change
Five time constants are required to approach 100% of the step change value Outer Sheath Material: Inconel, melting point 2550°F (1400°C)
Cable: Stainless steel overbraiding over Teflon™ insulated, stranded wires, 20 gauge. 6ft / 1.8m in length. Compression Fitting: 316 stainless steel, adjustable, 1/8 inch –27 NPT male thread
Wiring:

+ = Yellow

– = Red
