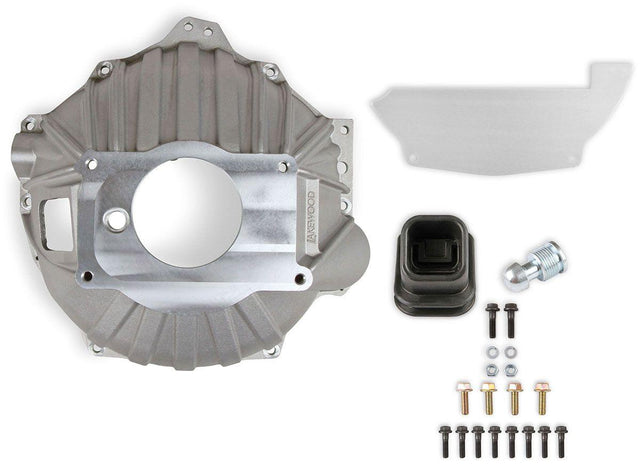

Lakewood Cast Aluminium Bellhousing Kit (LLK5000K)

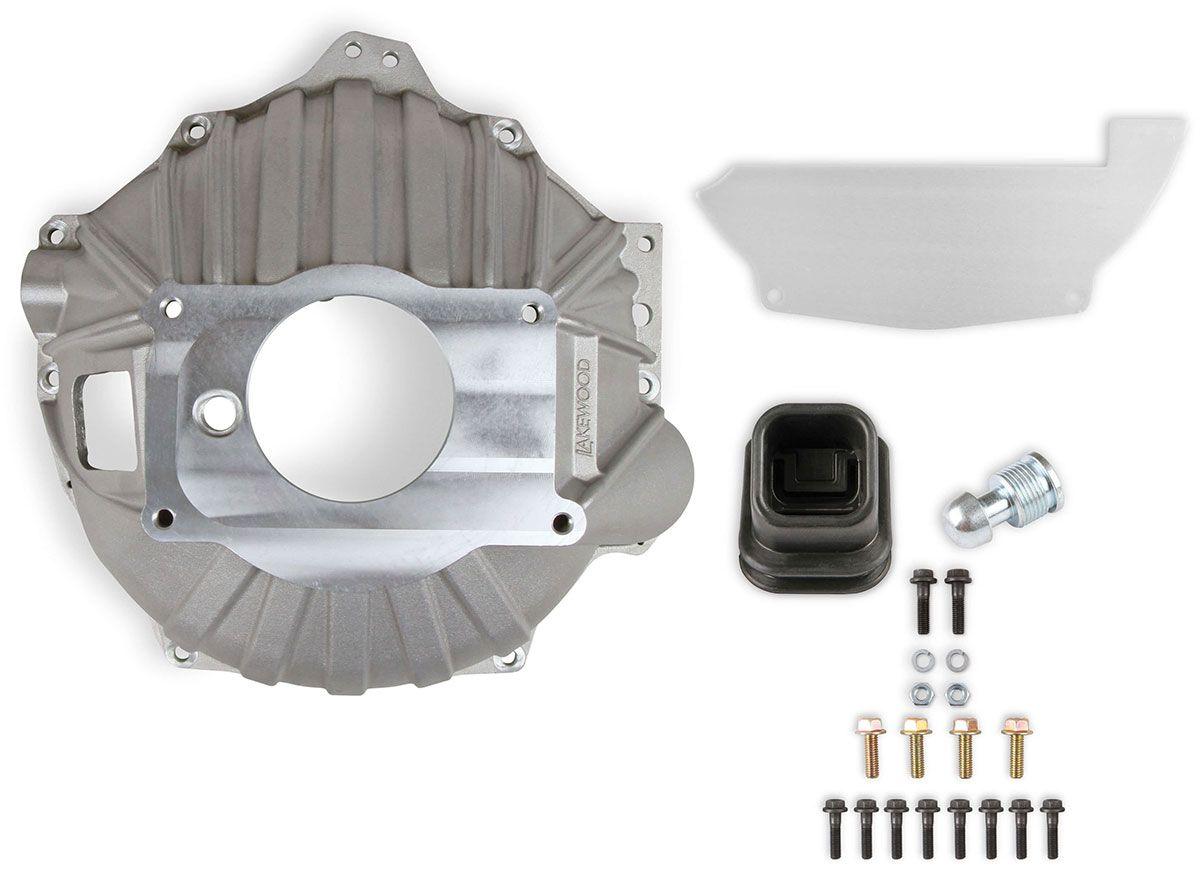

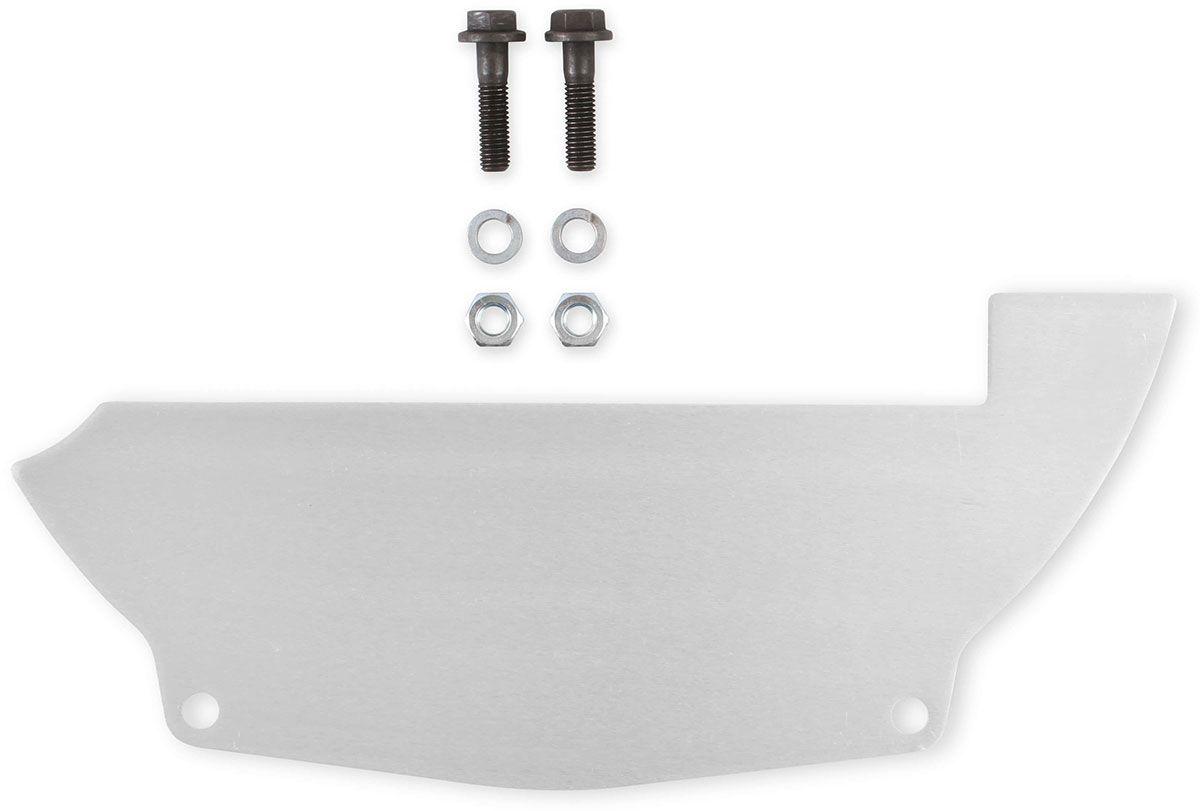

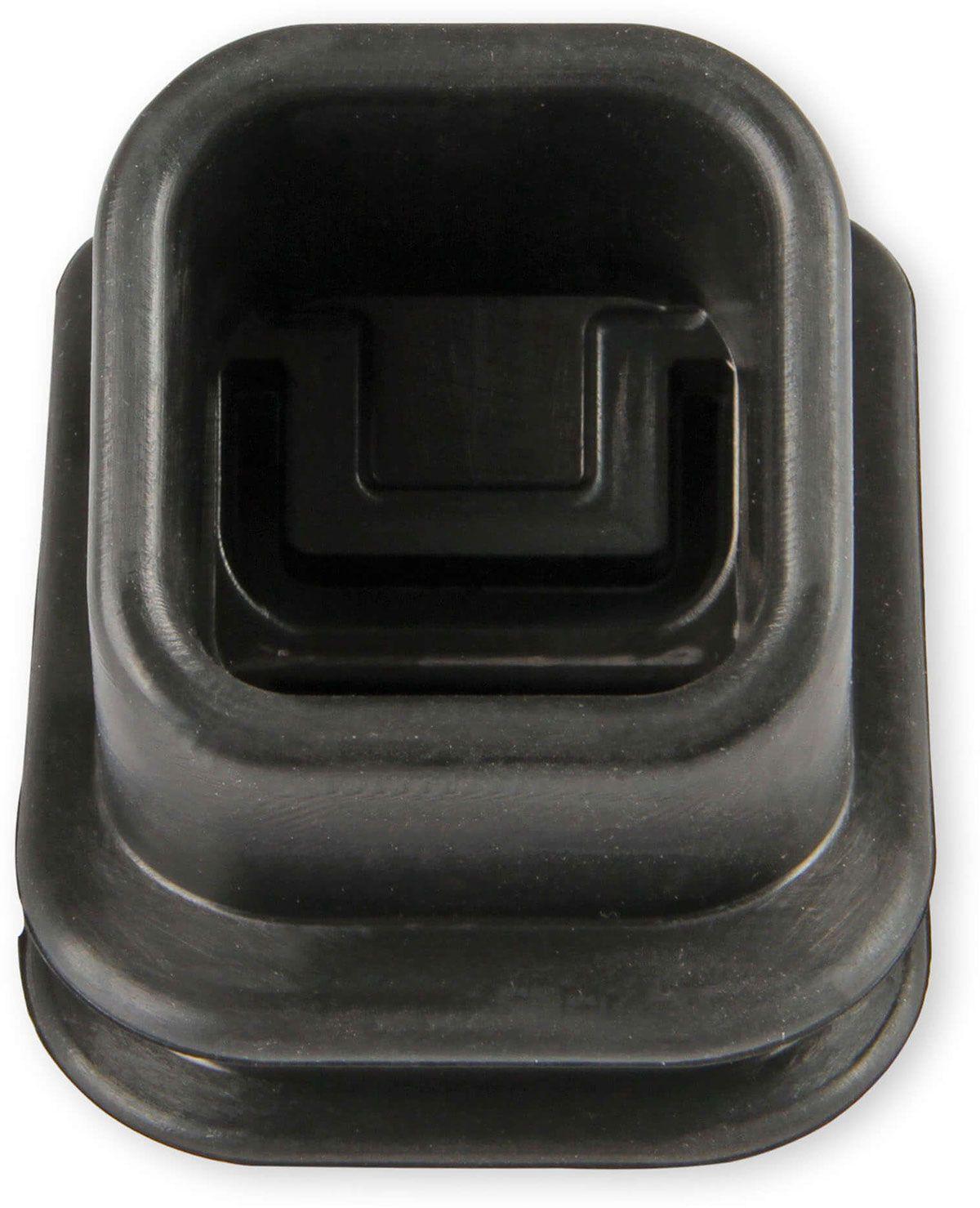

The Lakewood cast aluminiumbellhousings connect GM LS engines to transmissions utilizing the standard GM pattern such as the Muncie, Saginaw, Borg Warner T10 and Tremec TKO/TKX transmissions. The bellhousings are designed for both GM cars and trucks and other manufacturers where swap applications are being installed. These bellhousing kits come complete with clutchfork boot, inspection cover and Grade 8 mounting hardware.The bellhousing, clutch fork boot, inspection covers and mounting hardware kits are also available individually.

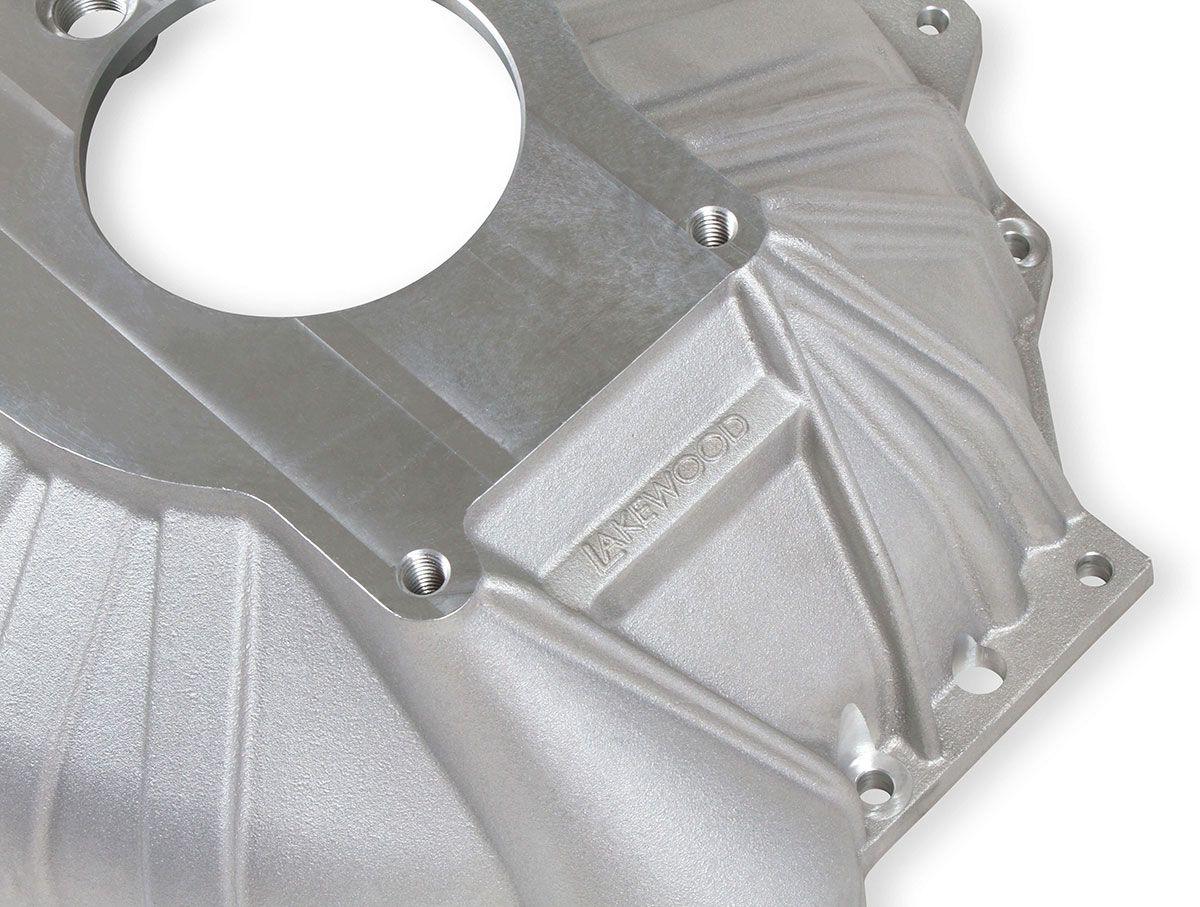

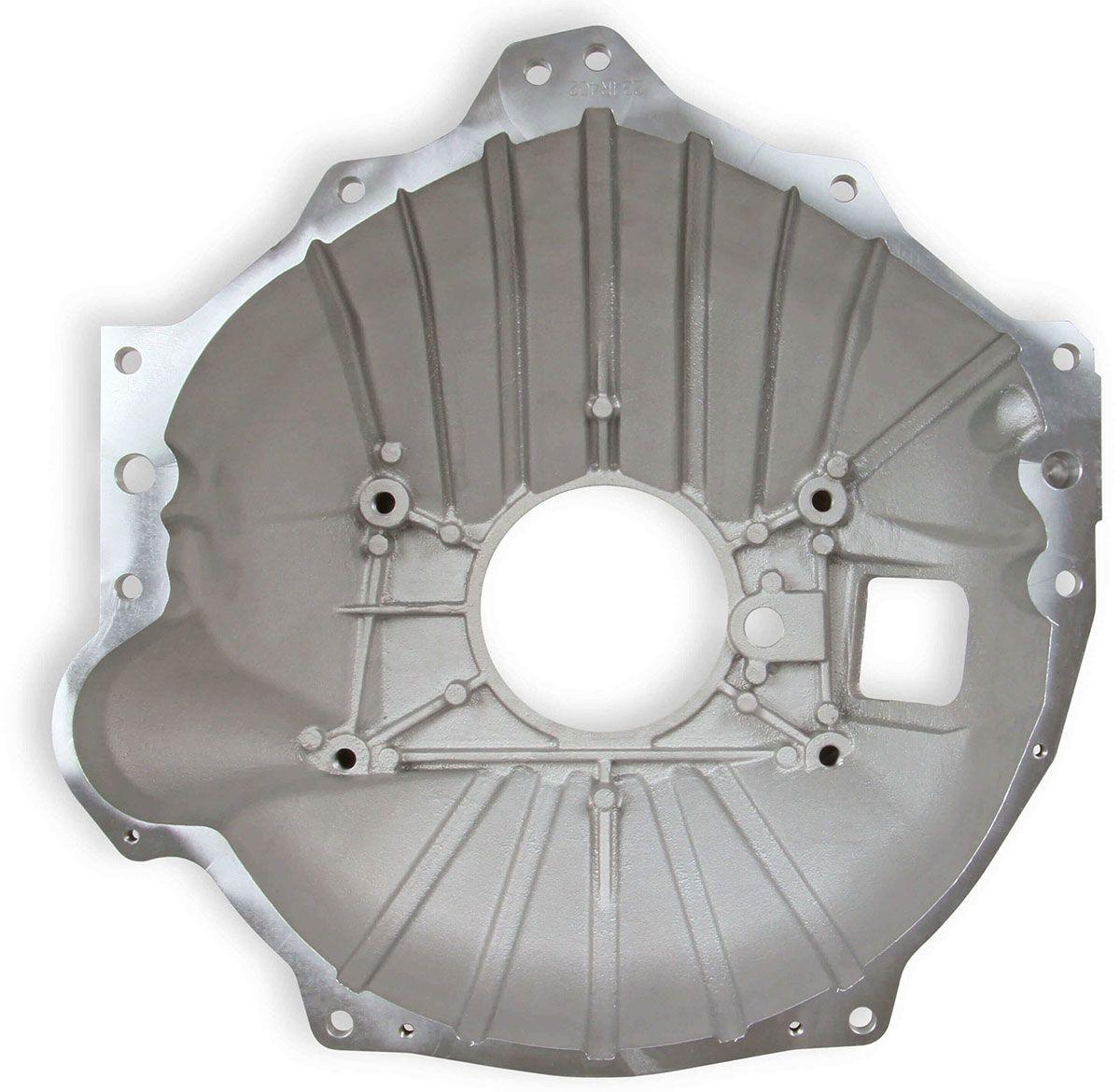

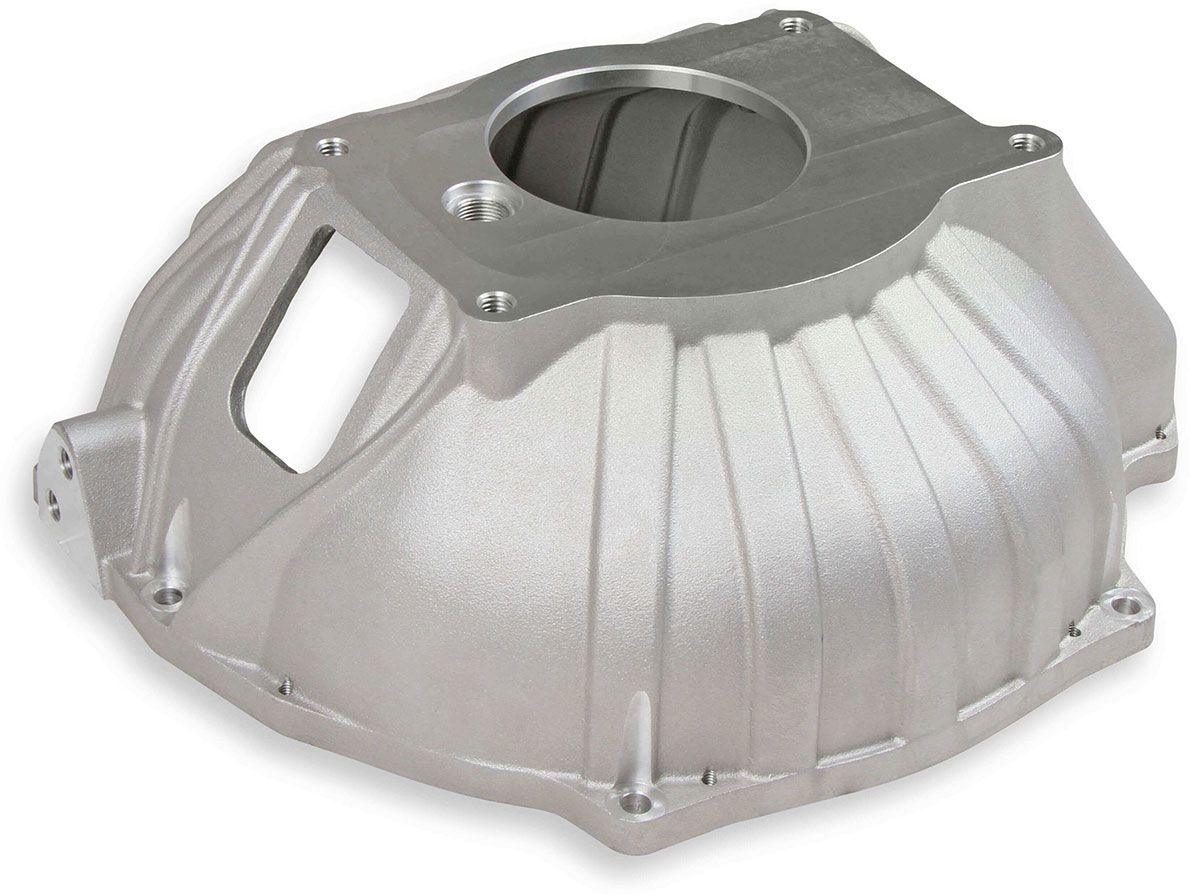

- Lightweightcast aluminium design similar to the original equipment bellhousings
- Lower costnon-SFI rated option if your project does not require the steel SFI rated unit
- Designed for hydraulic and mechanical fork throwout bearing linkage
- Bellhousing depth: 6.45"
- Clutch fork opening: 2.125" x 3.3"

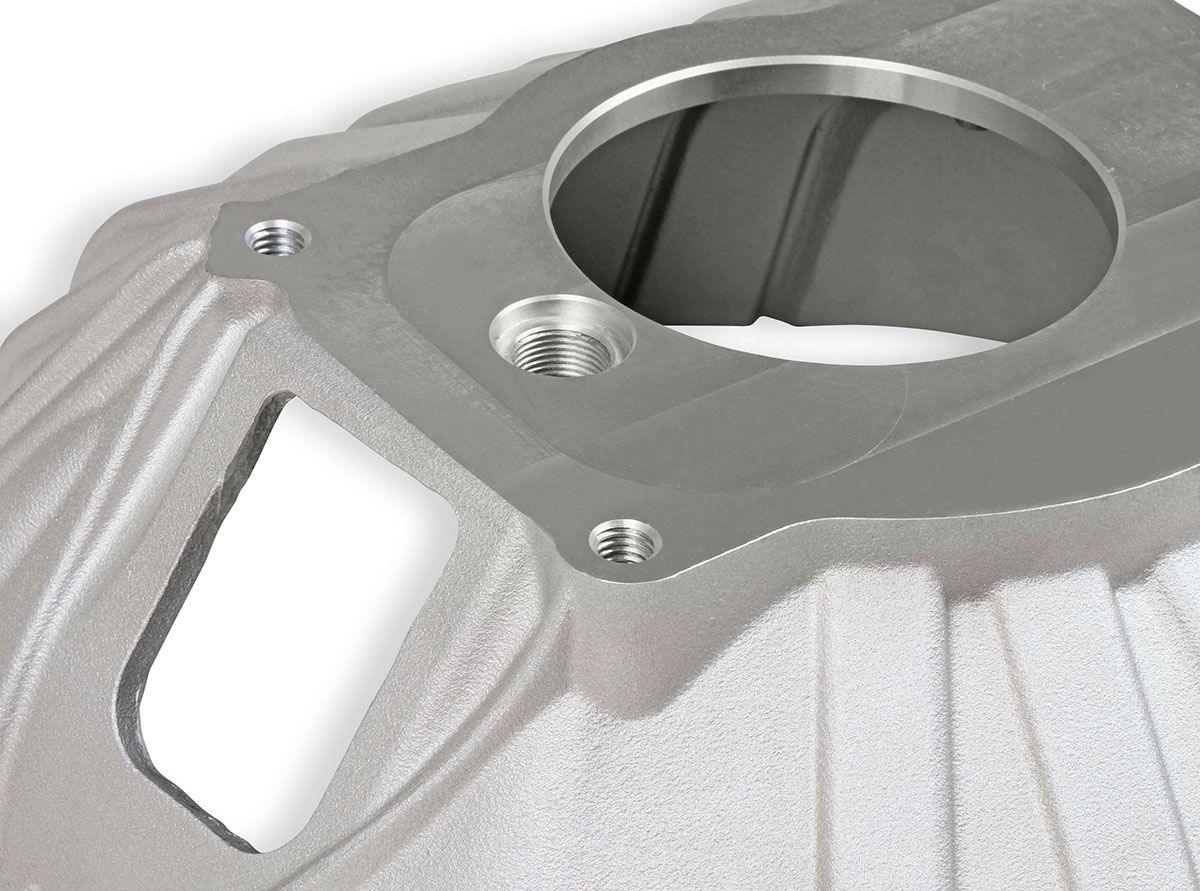

- Transmission Bore Diameter: 4.684 In

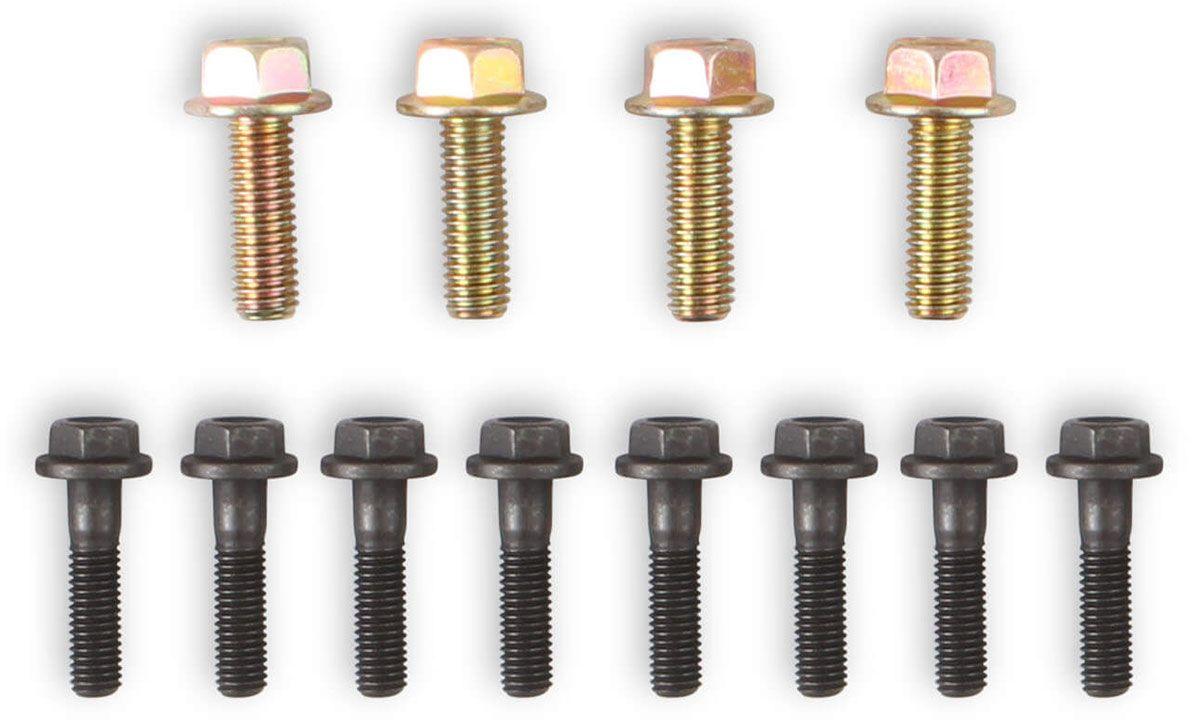

-Includes grade 8 hardware
- LK4000 bellhousing also available separately
