Lakewood | SKU:
15200

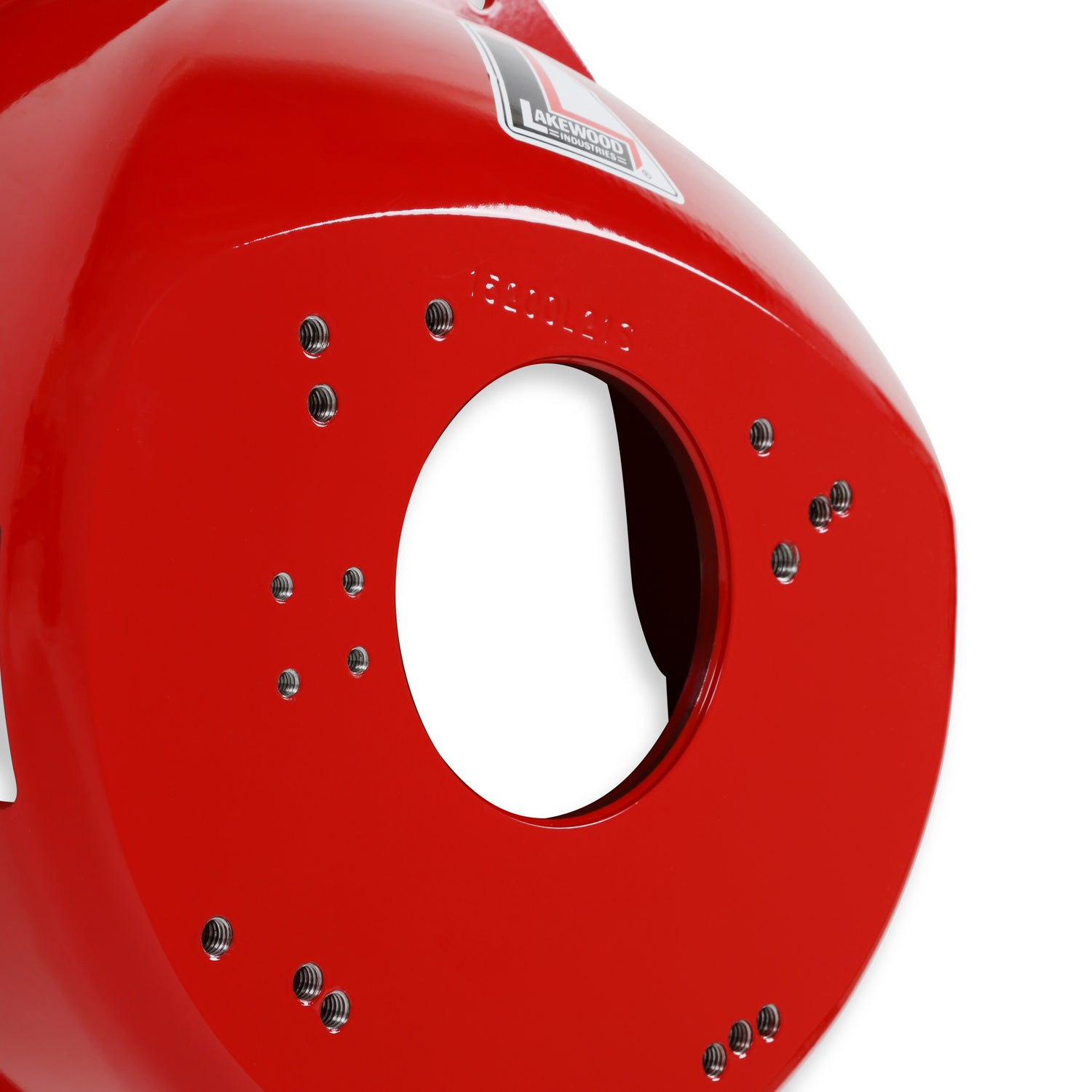

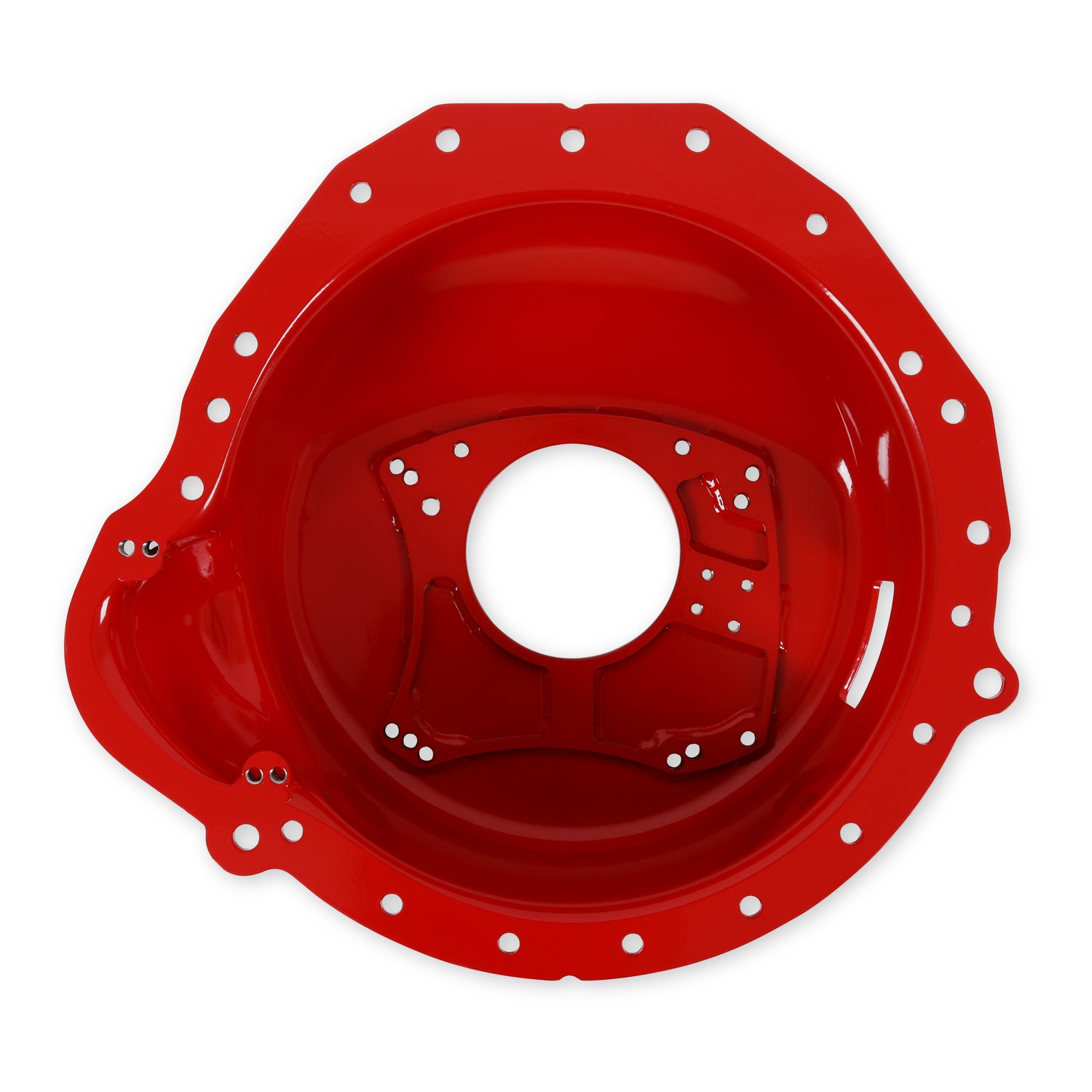

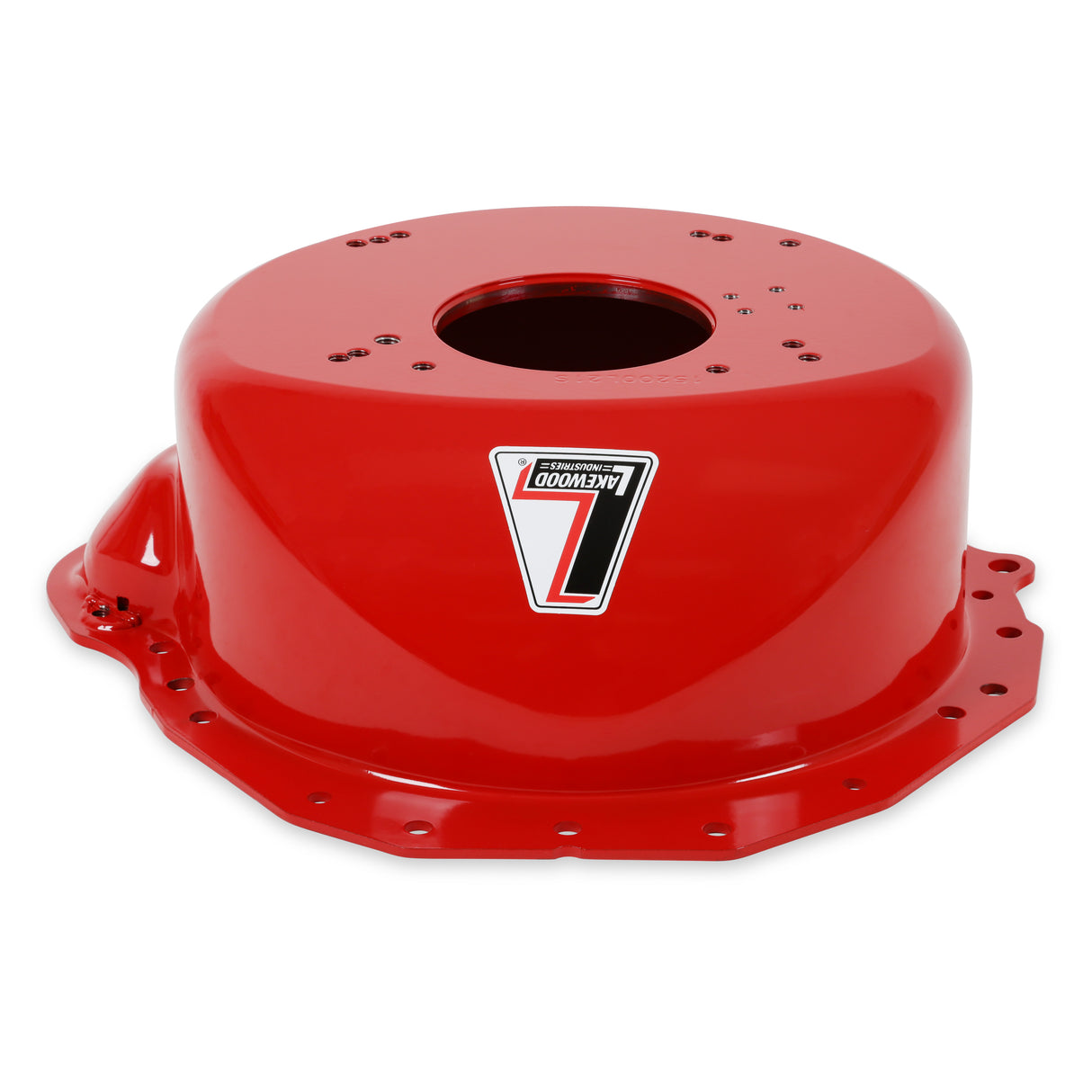

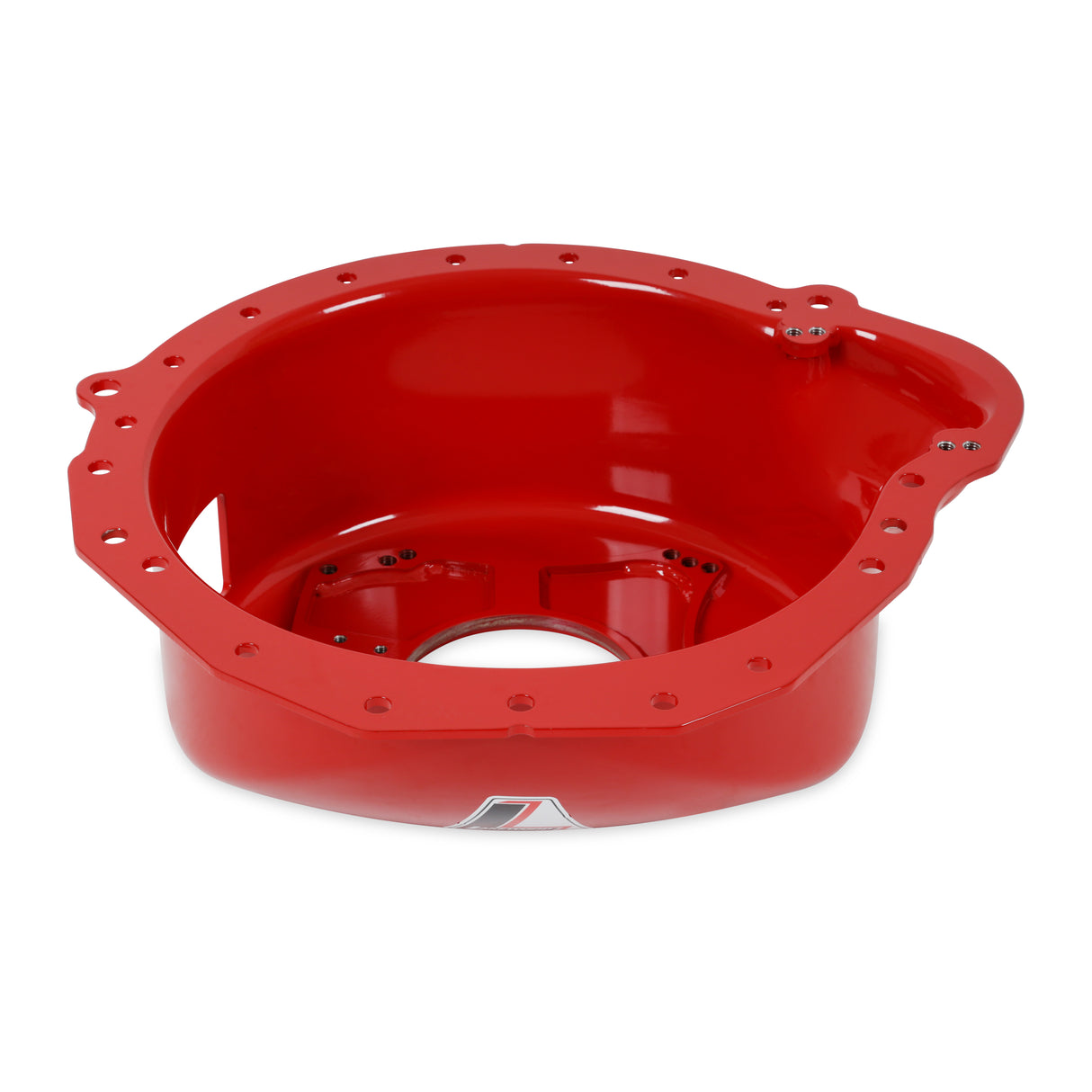

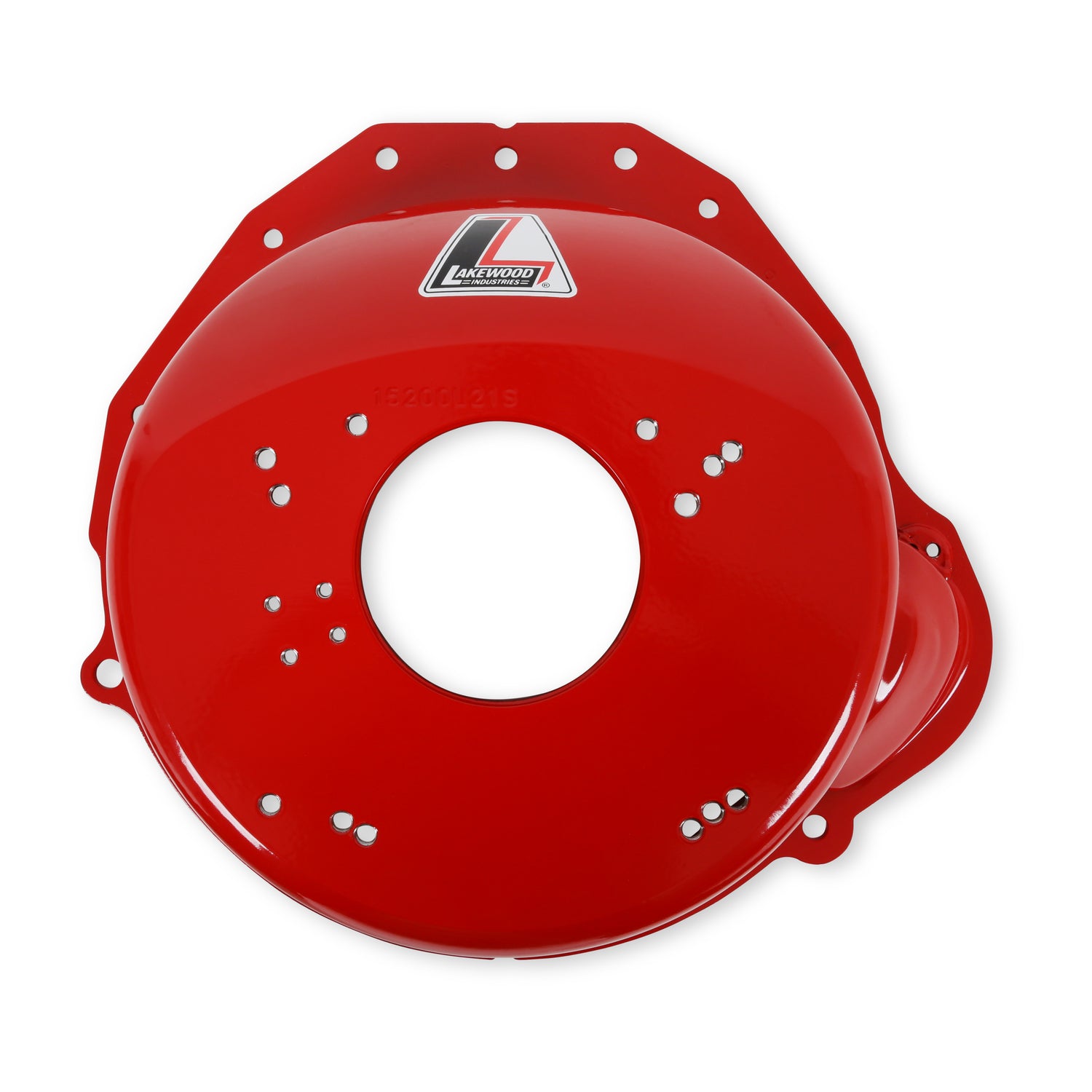

Lakewood Bellhousing - Small Block Ford - 15200
Perfect fit for Top Loader, BW T-10 and TKO (short input shaft) transmissions
Sold out
Regular price
$1,621.50 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Lakewood Bellhousing - Small Block Ford - 15200 is not in stock at Fast Lane Spares and will ship direct from supplier
Stock Status:
Description
Description
Perfect fit for Top Loader, BW T-10 and TKO (short input shaft) transmissions
Part Number: 15200

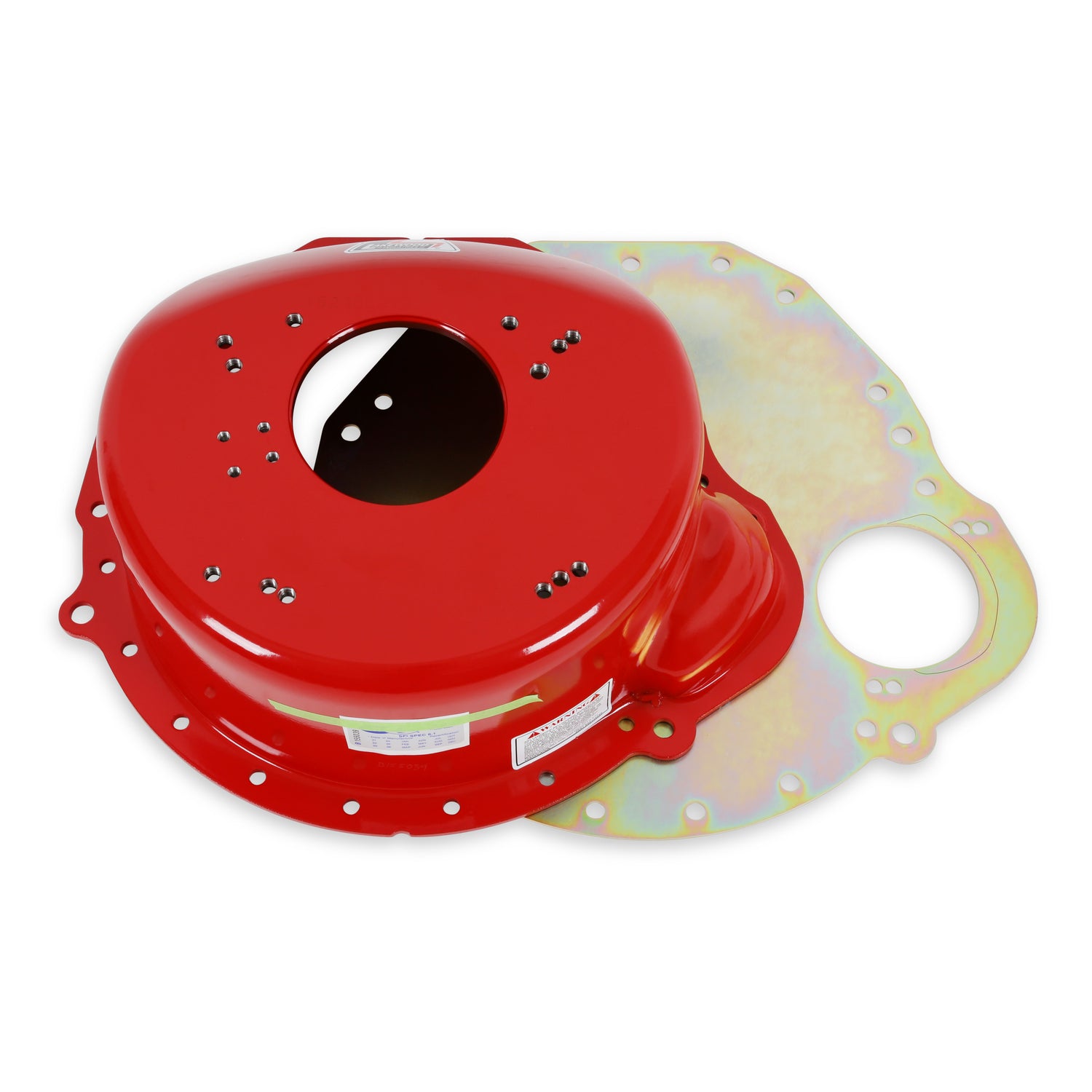

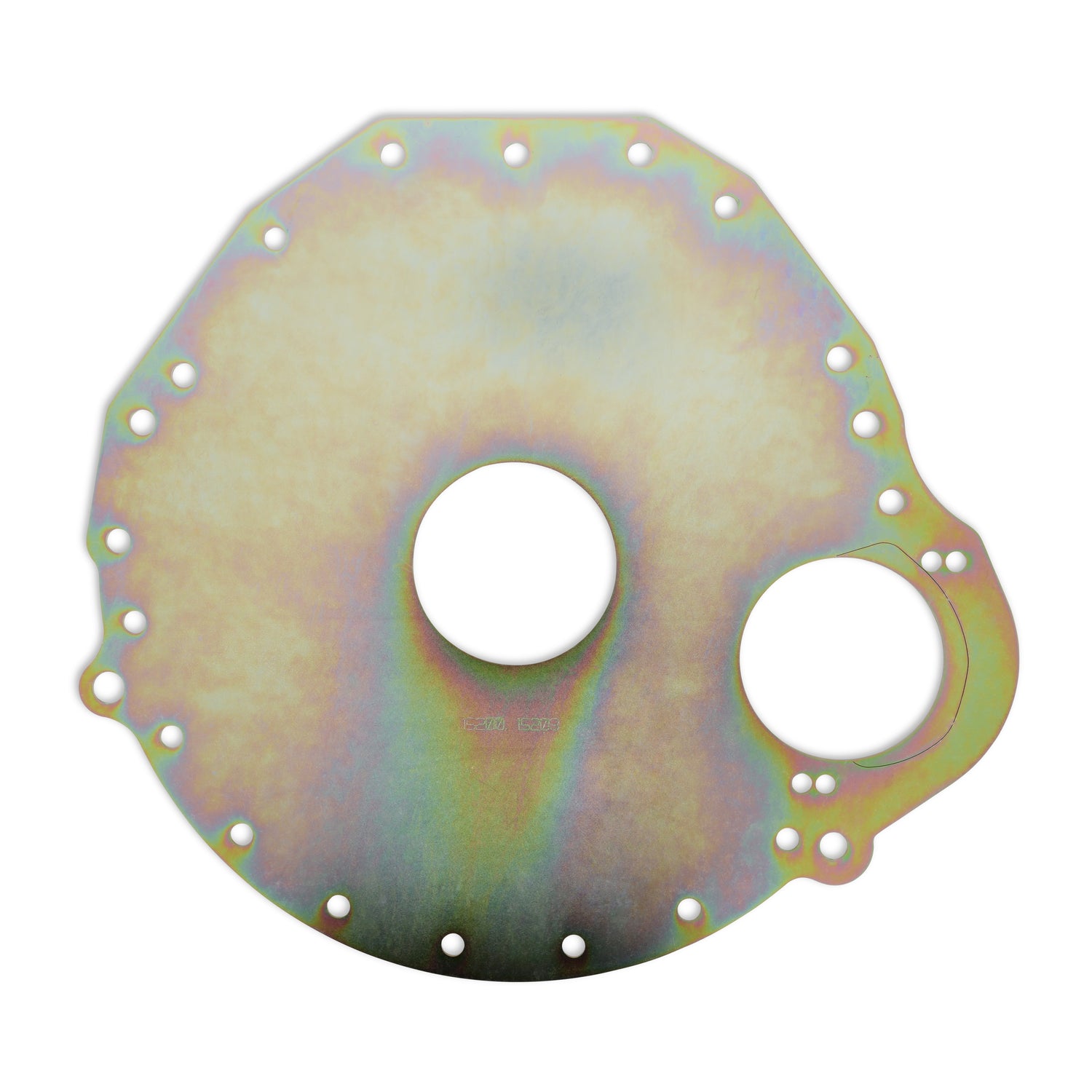

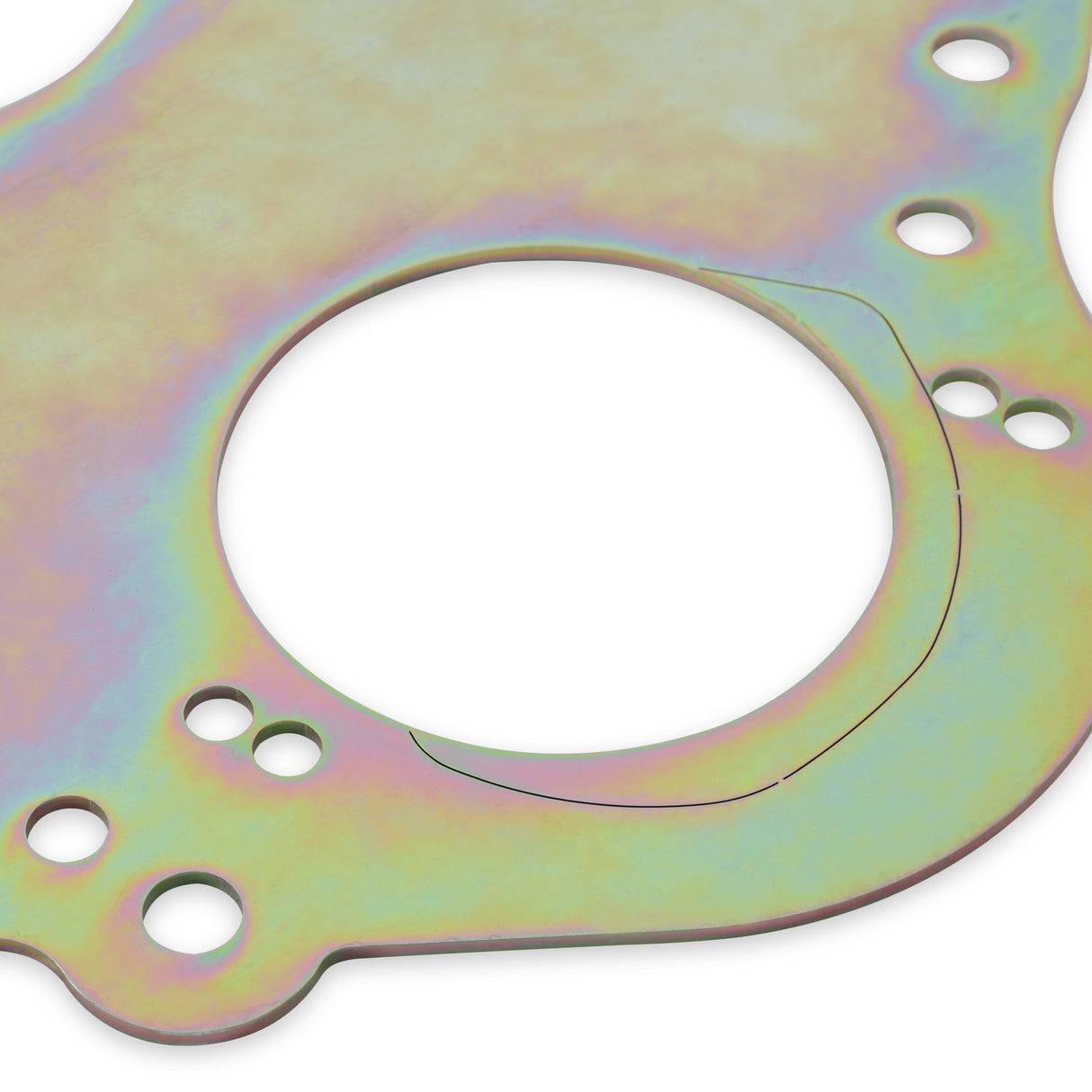

The Lakewood 15200 bellhousing connects Ford small block engines to Ford toploaders, Borg Warner T10, and Tremec TKO (short shaft) transmissions. This bellhousing is hydro formed to fit most Ford chassis. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. The Lakewood 15200 comes complete with engine block plate and Grade 8 mounting hardware. Note: (Transmission Mounting Bolts Not Included)
Features and Benefits
• Designed For Mechanical Linkage, Pull Cable or Hydraulic clutch operation
• Bellhousing Depth: 6.361 in

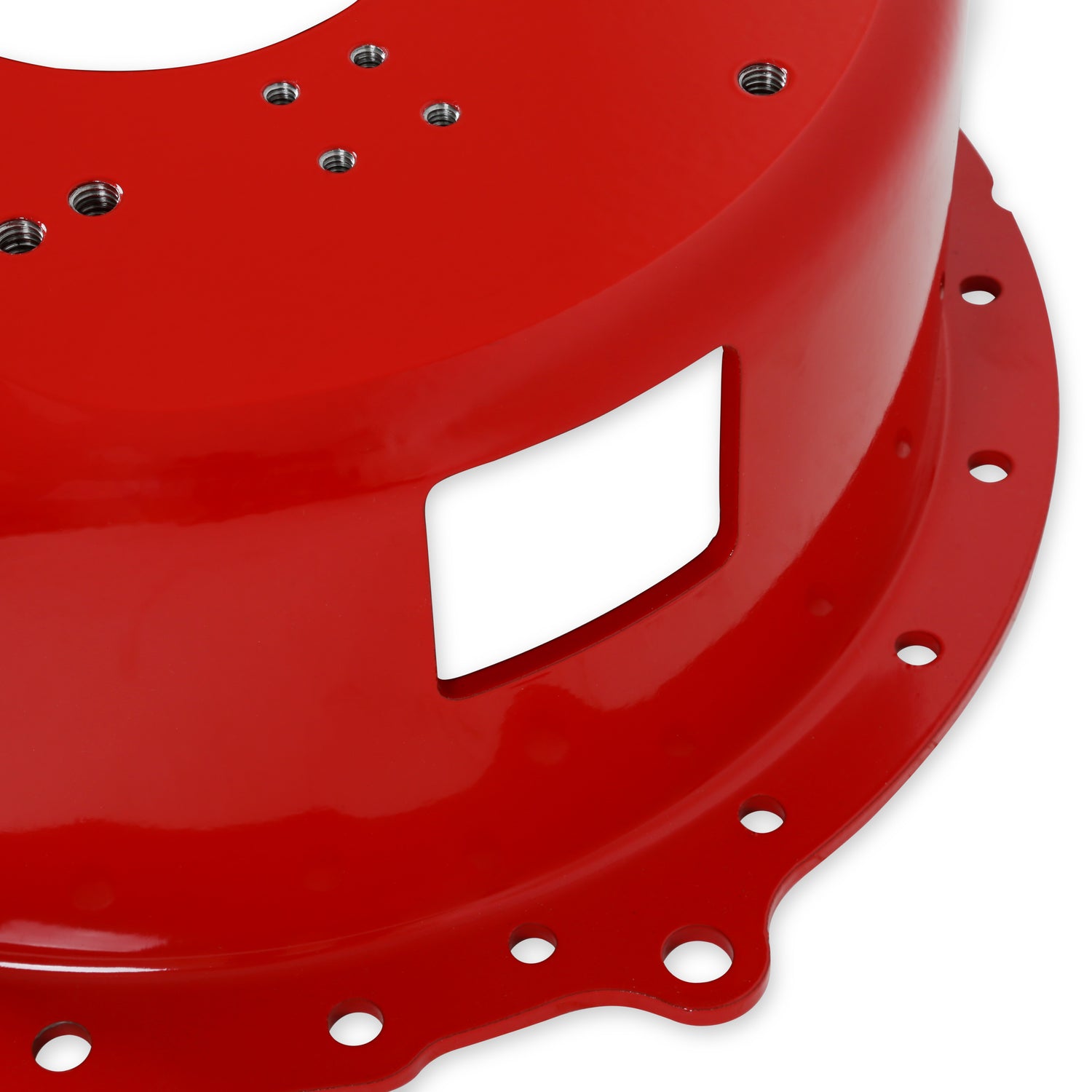

• Clutch Fork Opening: 3.00 In X 2.37 In

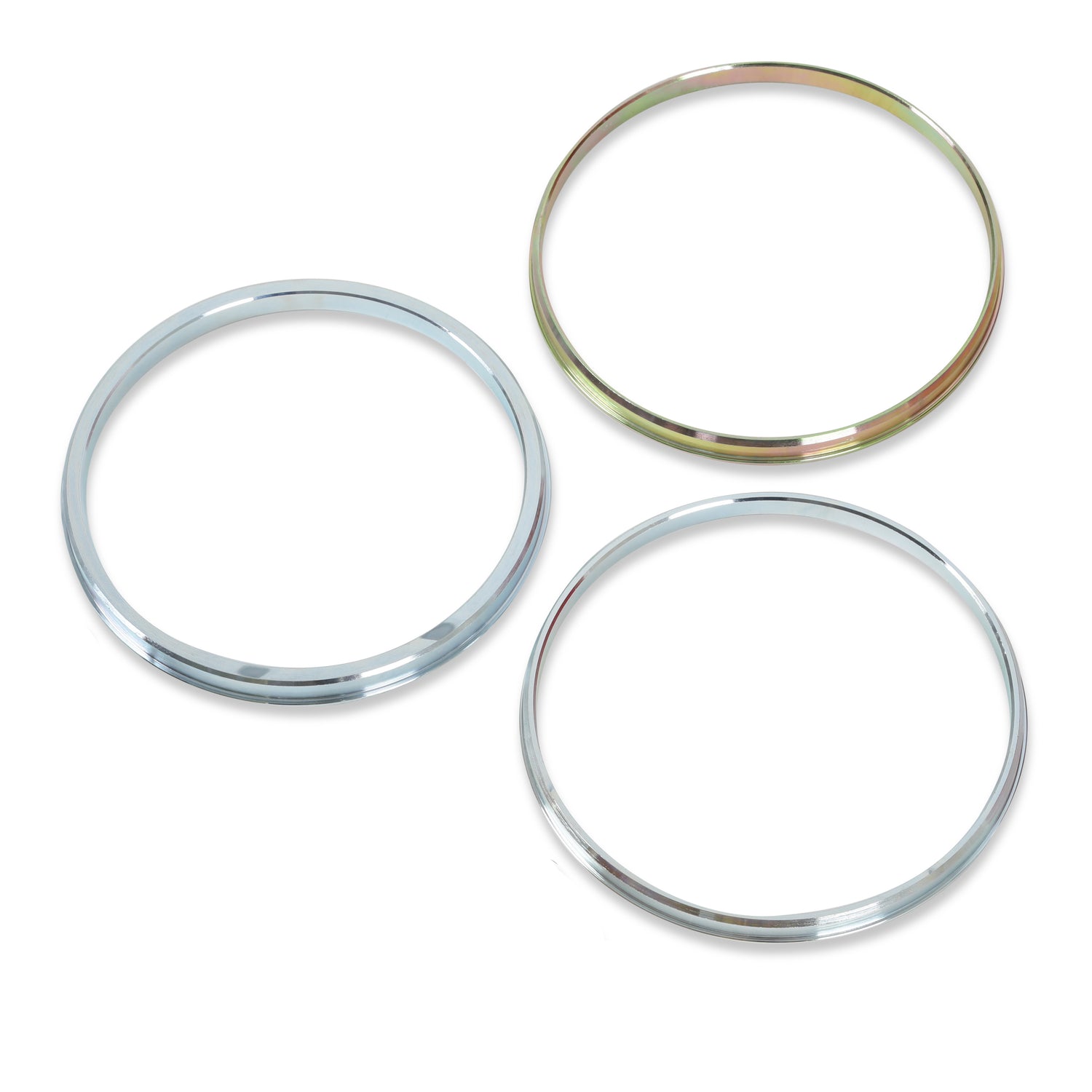

• Includes 3 Retainer Rings for Various Transmissions
• Hydro formed Construction
• Includes Grade 8 Hardware
• S.F.I. 6.1 Certification
• Made In The USA
• Fork Bracket and Pivot Ball included
T5, TKO fit with adapters Direct fit for TKO transmissions with short input shaft
Part Number: 15200
The Lakewood 15200 bellhousing connects Ford small block engines to Ford toploaders, Borg Warner T10, and Tremec TKO (short shaft) transmissions. This bellhousing is hydro formed to fit most Ford chassis. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. The Lakewood 15200 comes complete with engine block plate and Grade 8 mounting hardware. Note: (Transmission Mounting Bolts Not Included)
Features and Benefits
• Designed For Mechanical Linkage, Pull Cable or Hydraulic clutch operation
• Bellhousing Depth: 6.361 in
• Clutch Fork Opening: 3.00 In X 2.37 In
• Includes 3 Retainer Rings for Various Transmissions
• Hydro formed Construction
• Includes Grade 8 Hardware
• S.F.I. 6.1 Certification
• Made In The USA
• Fork Bracket and Pivot Ball included
T5, TKO fit with adapters Direct fit for TKO transmissions with short input shaft
Specifications
Specifications
-
Specifications
Brand Lakewood Category Transmission Clutch Diameter 11" Clutch Operation Pull Cable or Hydraulic Clutch Operation Mechanical Color Red Emission Code 5 Engine Ford Small Block Engine Ford 351C Engine Ford 351W Engine Ford 302 Engine Ford 289 Engine Make Ford Flywheel 157/164 Tooth Height 6.361 Make Ford Material Steel part type Transmission Bell Housing Product Type Bellhousing SFI Approved Yes SFI Certification 6.1 Sub Category Transmission Hard Parts Trans. Bore Diameter Universal 4.685/4.850/4.910/5.120 Transmission TKO 500/600 Ford - Short Shaft Transmission T10 Transmission Ford Toploader Transmission Type Manual Weight 44.8 -
