Lakewood | SKU:
LK8200K
Lakewood Bellhousing Kit - Ford Modular and Coyote Engines - TKX and TKO - LK8200K
Connects Ford Coyote and Modular Engines to Tremec TKX, TKO, and TR-3550 Transmissions
Regular price
$987.50 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Lakewood Bellhousing Kit - Ford Modular and Coyote Engines - TKX and TKO - LK8200K is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Connects Ford Coyote and Modular Engines to Tremec TKX, TKO, and TR-3550 Transmissions
Part Number: LK8200K

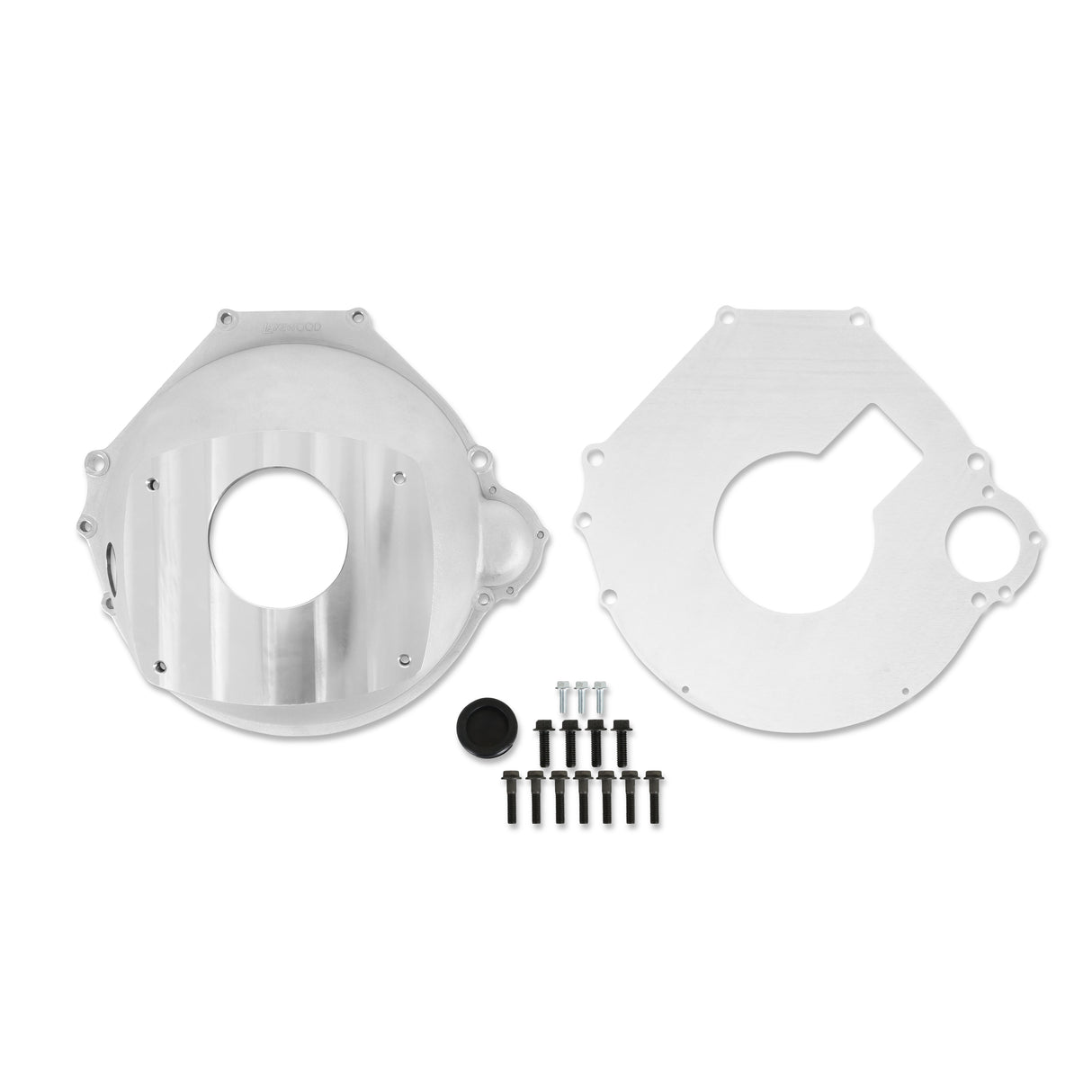

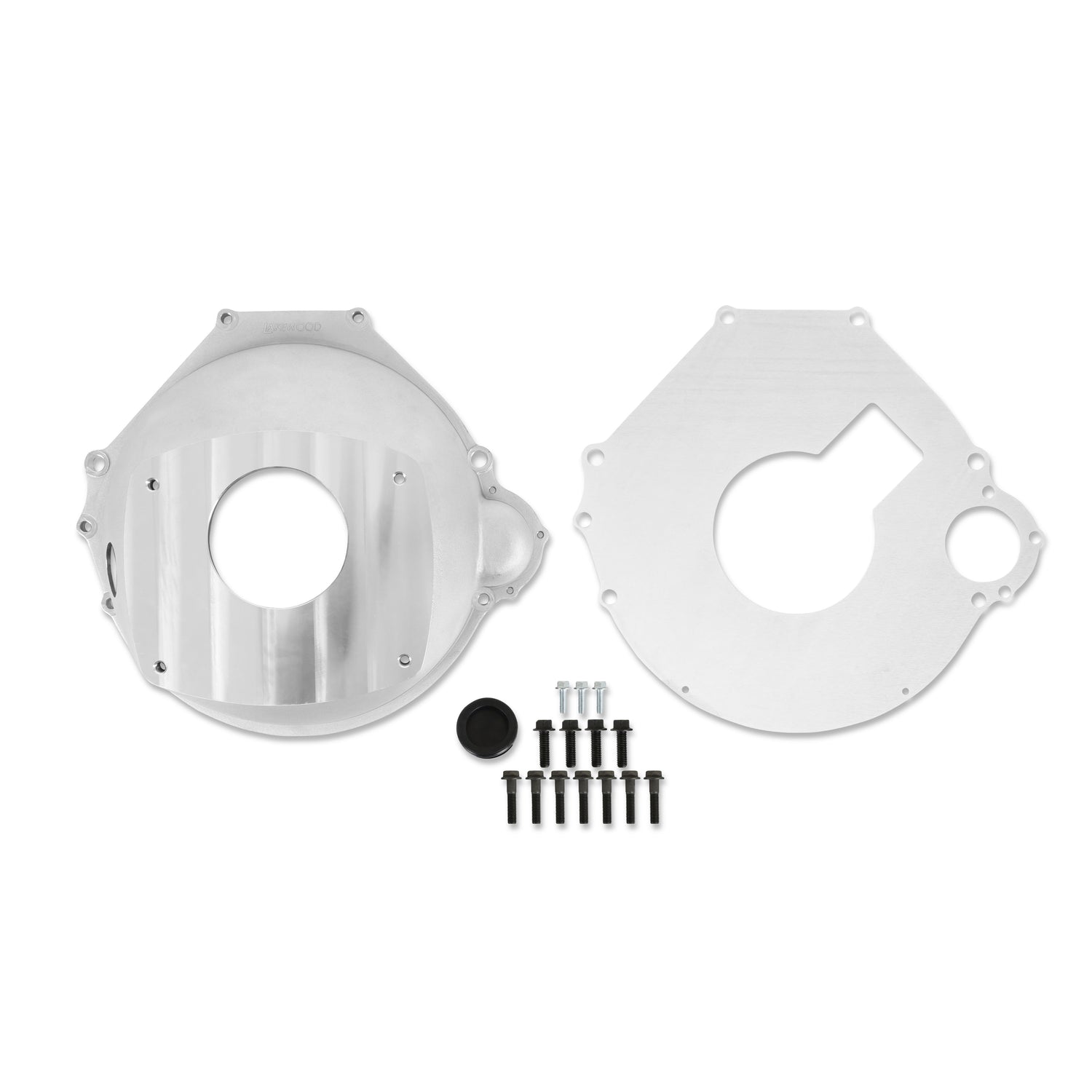

These Lakewood cast aluminum bellhousings connect Ford Coyote and Modular Engines to Ford-Style Tremec TKX, TKO, and TR-3550 transmissions. The bellhousings can be used on both Ford cars and trucks and other manufacturers where swap applications are being installed. These kits come complete with a block plate, hydraulic hose grommet, and Grade 8/10.9 mounting hardware that connects the bellhousing to both the engine and transmission.
Features and Benefits
• Lightweight cast aluminum design similar to the original equipment bellhousings
• Connects Ford Modular or Coyote engines to Ford-style Tremec TKX, TKO, and TR-3550 Transmissions
• Lower cost non-SFI rated option for projects that do not require a steel SFI rated unit
• Designed For Hydraulic Throwout/Release Bearing (recommend Hays #82-103)
• Bellhousing Depth: 7.27 in
• Transmission Bore Diameter: 4.685 In
• Includes Grade 8/10.9 Hardware for both engine and transmission
• Includes block plate and grommet for sealing off hydraulic hose opening
Part Number: LK8200K
These Lakewood cast aluminum bellhousings connect Ford Coyote and Modular Engines to Ford-Style Tremec TKX, TKO, and TR-3550 transmissions. The bellhousings can be used on both Ford cars and trucks and other manufacturers where swap applications are being installed. These kits come complete with a block plate, hydraulic hose grommet, and Grade 8/10.9 mounting hardware that connects the bellhousing to both the engine and transmission.
Features and Benefits
• Lightweight cast aluminum design similar to the original equipment bellhousings
• Connects Ford Modular or Coyote engines to Ford-style Tremec TKX, TKO, and TR-3550 Transmissions
• Lower cost non-SFI rated option for projects that do not require a steel SFI rated unit
• Designed For Hydraulic Throwout/Release Bearing (recommend Hays #82-103)
• Bellhousing Depth: 7.27 in
• Transmission Bore Diameter: 4.685 In
• Includes Grade 8/10.9 Hardware for both engine and transmission
• Includes block plate and grommet for sealing off hydraulic hose opening
Specifications
Specifications
-
Specifications
Brand Lakewood Category Transmission Clutch 10.5 inch Emission Code 5 Engine Ford Coyote Engine Ford Mod Motor Engine Make Ford Flywheel 164 Tooth Height (in) 7.27 Make Ford Material Cast Aluminum part type Transmission Bell Housing Product Type Bellhousing Kit RELEASE BEARING Hydraulic SFI Approved No Sub Category Transmission Hard Parts Trans. Bore Diameter 4.685 Transmission TKX Ford Transmission TR3550 Transmission TKO 500/600 Ford Transmission Type Manual
