Lakewood | SKU:
15000LKW
Lakewood Bellhousing - Chevrolet - 15000LKW
SFI Certified Bellhousing for 1958-1987 GM Cars with Small Block or Big Block Chevrolet Engines
Regular price
$1,889.50 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Lakewood Bellhousing - Chevrolet - 15000LKW is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–14 days shipping.
Stock Status:
Lakewood Bellhousing - Chevrolet - 15000LKW
Regular price
$1,889.50 NZD
+ GST
Unit price
/
Unavailable
Description
Description
SFI Certified Bellhousing for 1958-1987 GM Cars with Small Block or Big Block Chevrolet Engines
Part Number: 15000LKW

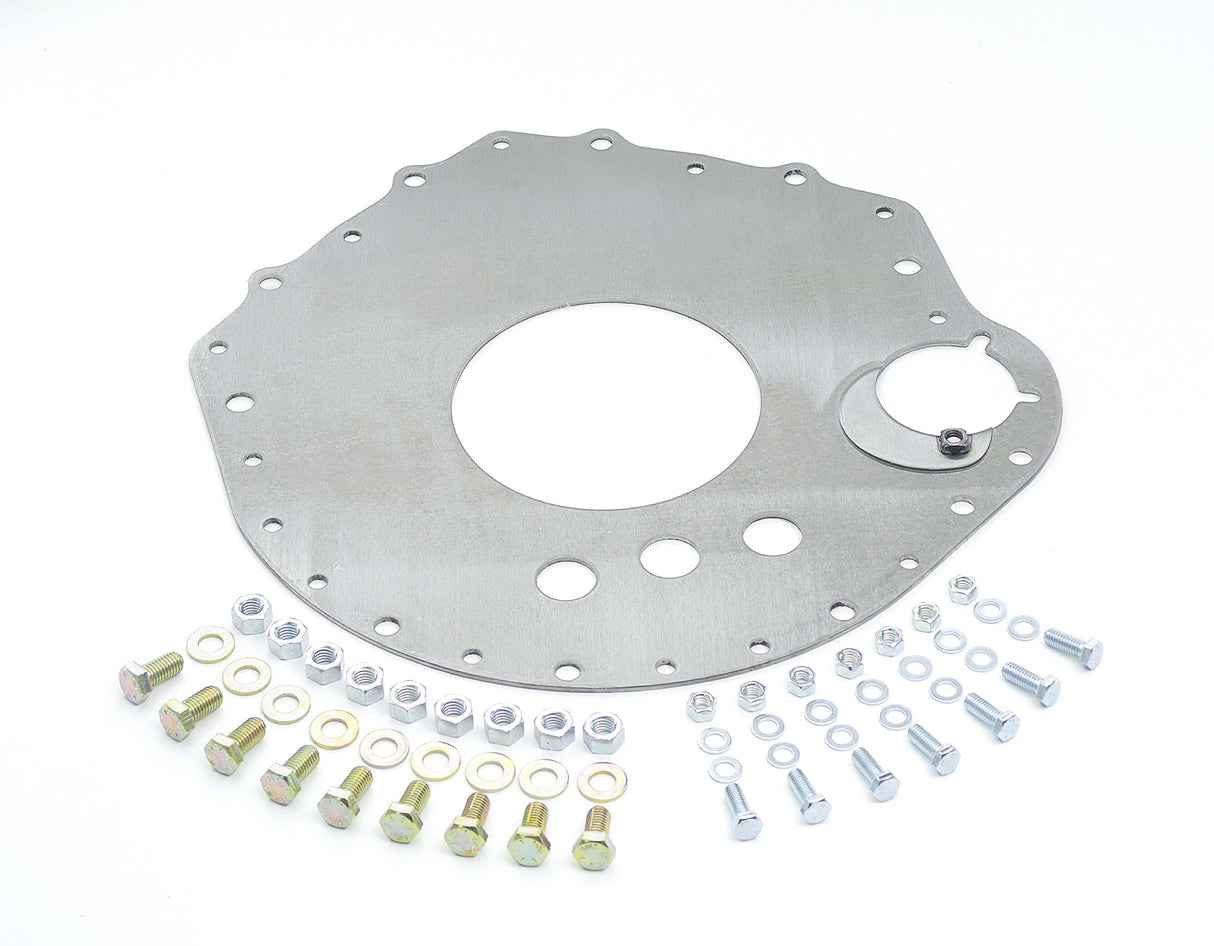

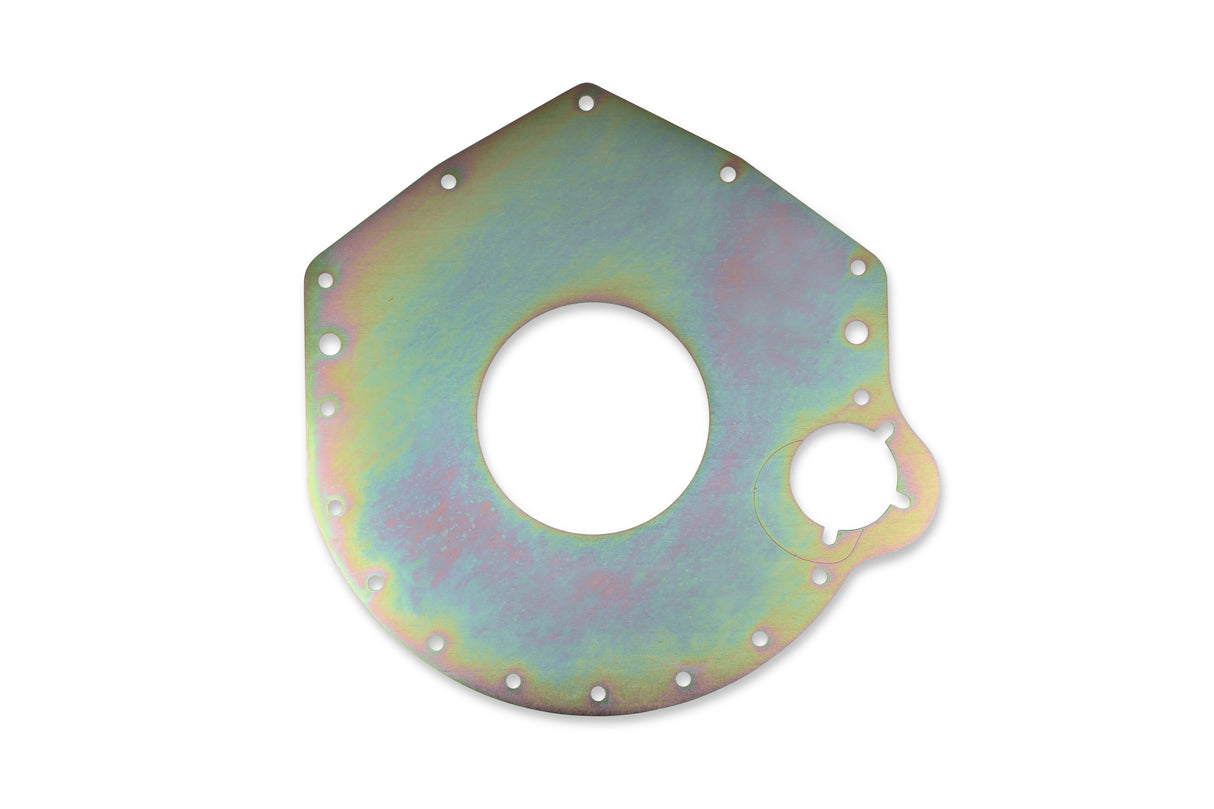

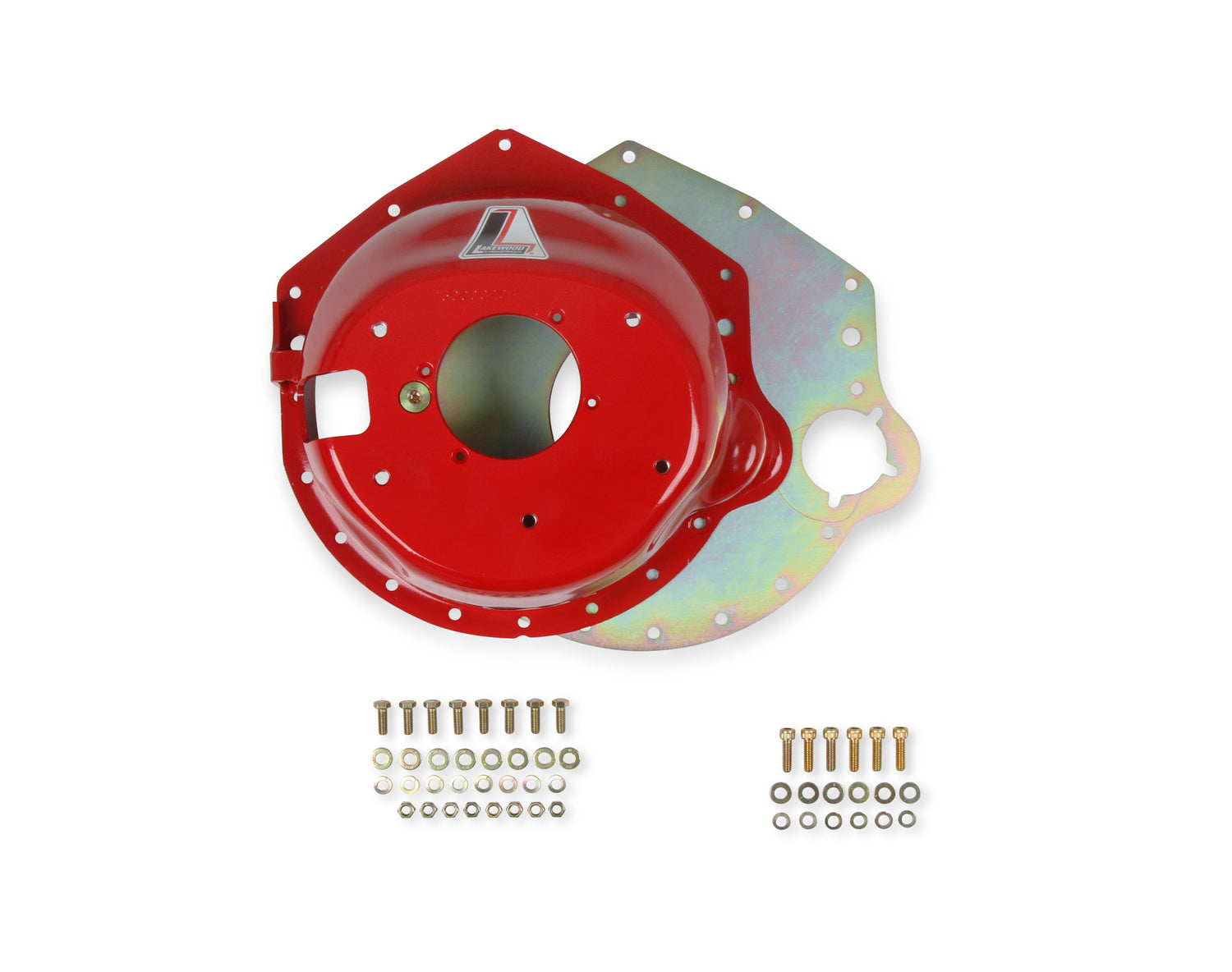

The Lakewood 15000LKW bellhousing connects Chevy small and big block engines to transmissions utilizing the standard GM pattern such as the Muncie, Saginaw, Borg Warner T10 and Tremec TKO, and TKX transmissions. This bellhousing is hydroformed to fit 1958-1987 GM full and midsized cars, 1967-1981 F-body vehicles and 1968-1979 Nova. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. Comes complete with an engine block plate and Grade 8 mounting hardware.
Features and Benefits
• Designed For Mechanical Fork Linkage
• Bellhousing Depth: 6.45 in
• Clutch Fork Opening: 2.125 In X 3.3 In
• Transmission Bore Diameter: 4.684 In
• Hydro formed Construction

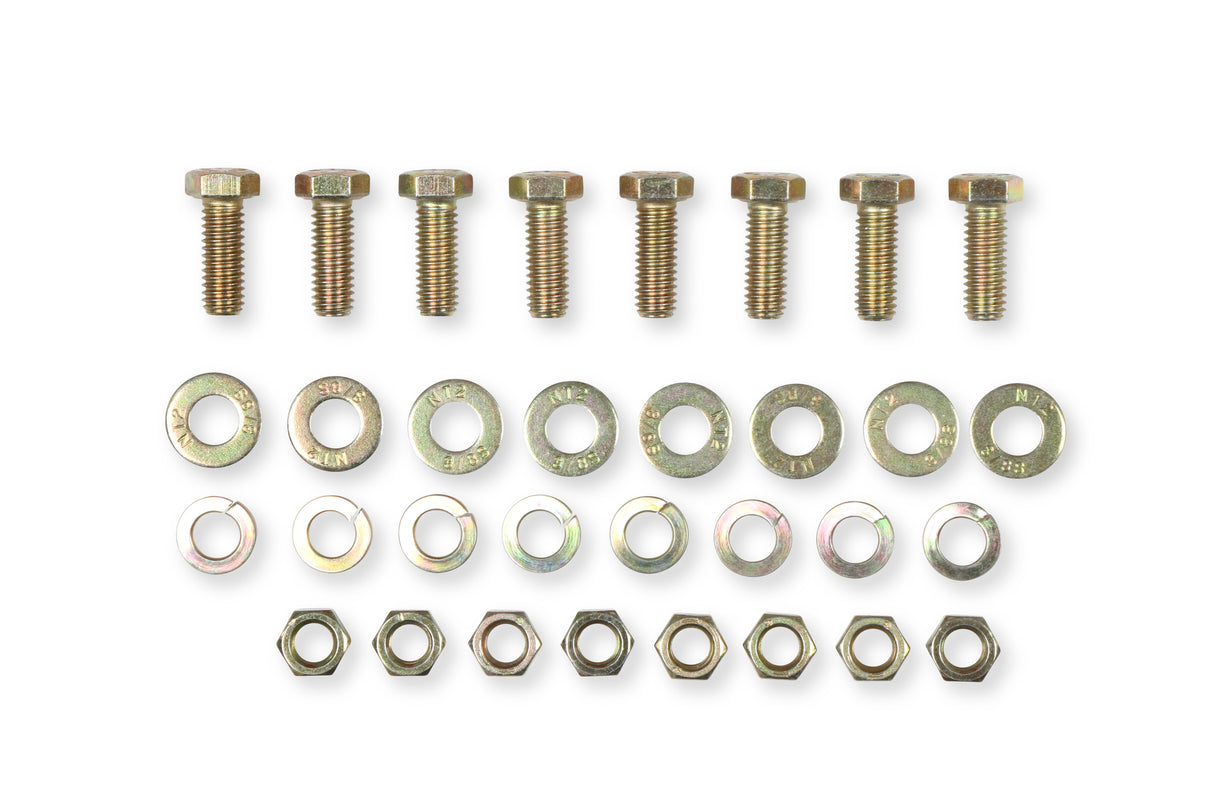

• Includes Grade 8 Hardware
• S.F.I. 6.1 Certification
• Made In The USA
Note: Transmission Mounting Bolts Not Included_x000D_ _x000D_ Side Bracket Threads: 1 x 7/16-14 and 2 x 5/16-18
Part Number: 15000LKW
The Lakewood 15000LKW bellhousing connects Chevy small and big block engines to transmissions utilizing the standard GM pattern such as the Muncie, Saginaw, Borg Warner T10 and Tremec TKO, and TKX transmissions. This bellhousing is hydroformed to fit 1958-1987 GM full and midsized cars, 1967-1981 F-body vehicles and 1968-1979 Nova. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. Comes complete with an engine block plate and Grade 8 mounting hardware.
Features and Benefits
• Designed For Mechanical Fork Linkage
• Bellhousing Depth: 6.45 in
• Clutch Fork Opening: 2.125 In X 3.3 In
• Transmission Bore Diameter: 4.684 In
• Hydro formed Construction
• Includes Grade 8 Hardware
• S.F.I. 6.1 Certification
• Made In The USA
Note: Transmission Mounting Bolts Not Included_x000D_ _x000D_ Side Bracket Threads: 1 x 7/16-14 and 2 x 5/16-18
Specifications
Specifications
-
Specifications
Brand Lakewood Category Transmission Clutch 11" Color Red Emission Code 5 Engine GM Big Block Engine Make Chevrolet Flywheel 153 or 168 Tooth Height 6.45 Make Chevrolet Material Steel Product Type Bellhousing SFI Approved Yes SFI Certification 6.1 Trans. Bore Diameter 4.685 Transmission Falcon Transmission Saginaw Transmission Bert Racing Transmission Brinn Racing Transmission Jerico Transmission Muncie Transmission Richmond Transmission T10 Transmission BorgWarner Transmission T5 GM Transmission TKO 500/600 GM Transmission TKX GM Transmission Type Manual -
