Lakewood  |  SKU: LK7000

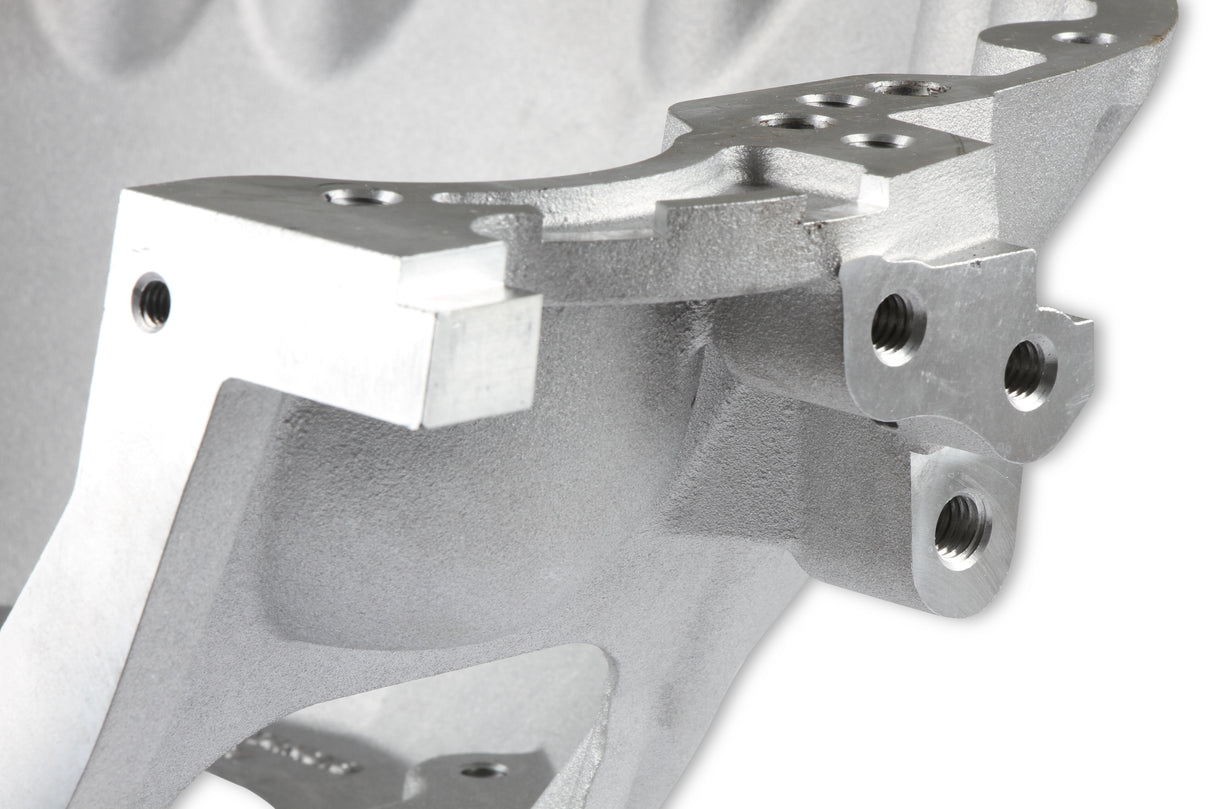

Lakewood Bellhousing - 318, 360 Small Block Mopar and Gen III Hemi - LK7000

Connects Small Block Mopar and Gen III Hemi to Mopar 3-Speed, Mopar 4-Speed, or Ford Style TKX and TKO Transmissions

Regular price $1,007.70 NZD + GST
Shipping calculated at checkout.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–14 days shipping.

Description

Connects Small Block Mopar and Gen III Hemi to Mopar 3-Speed, Mopar 4-Speed, or Ford Style TKX and TKO Transmissions

Part Number: LK7000

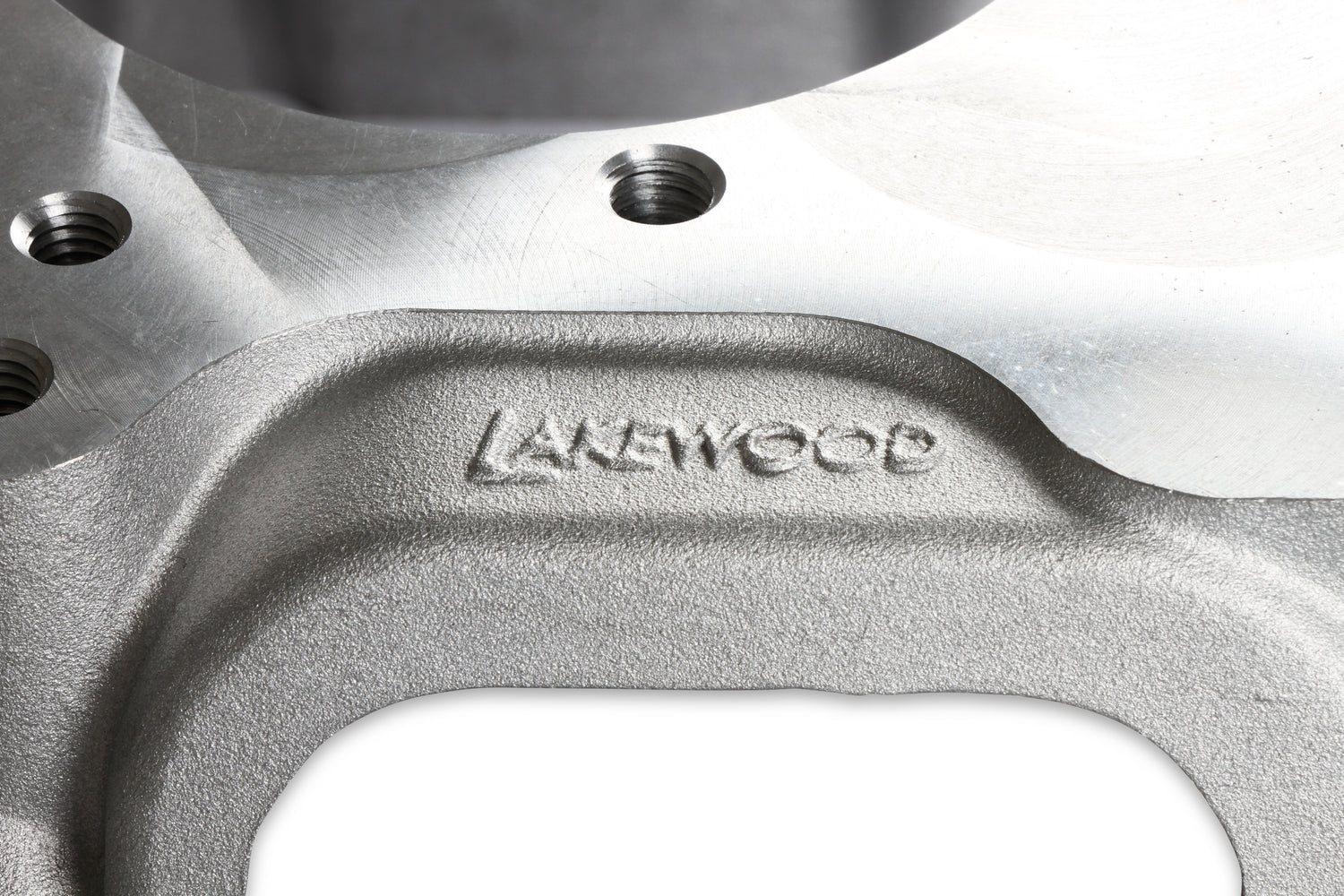

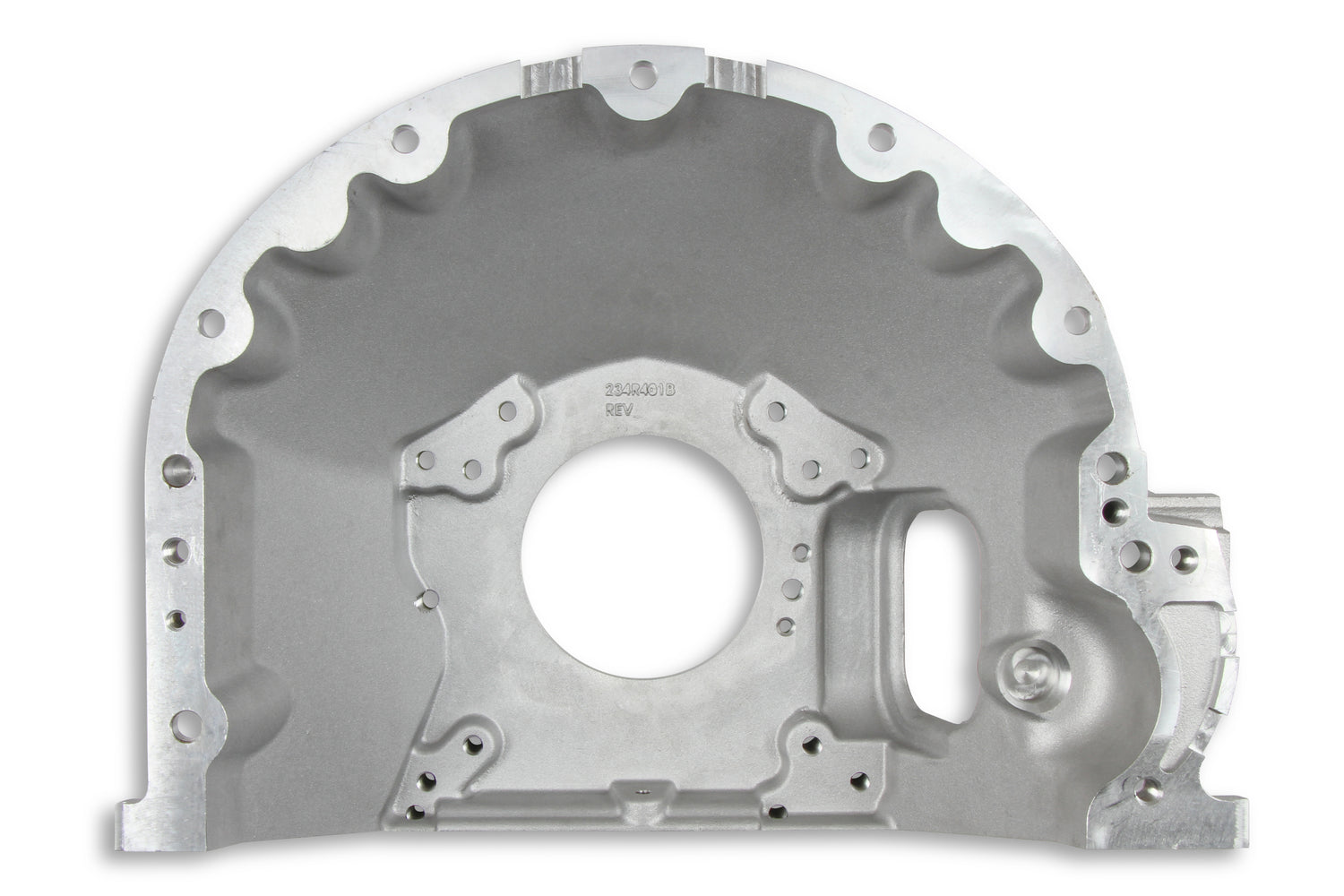

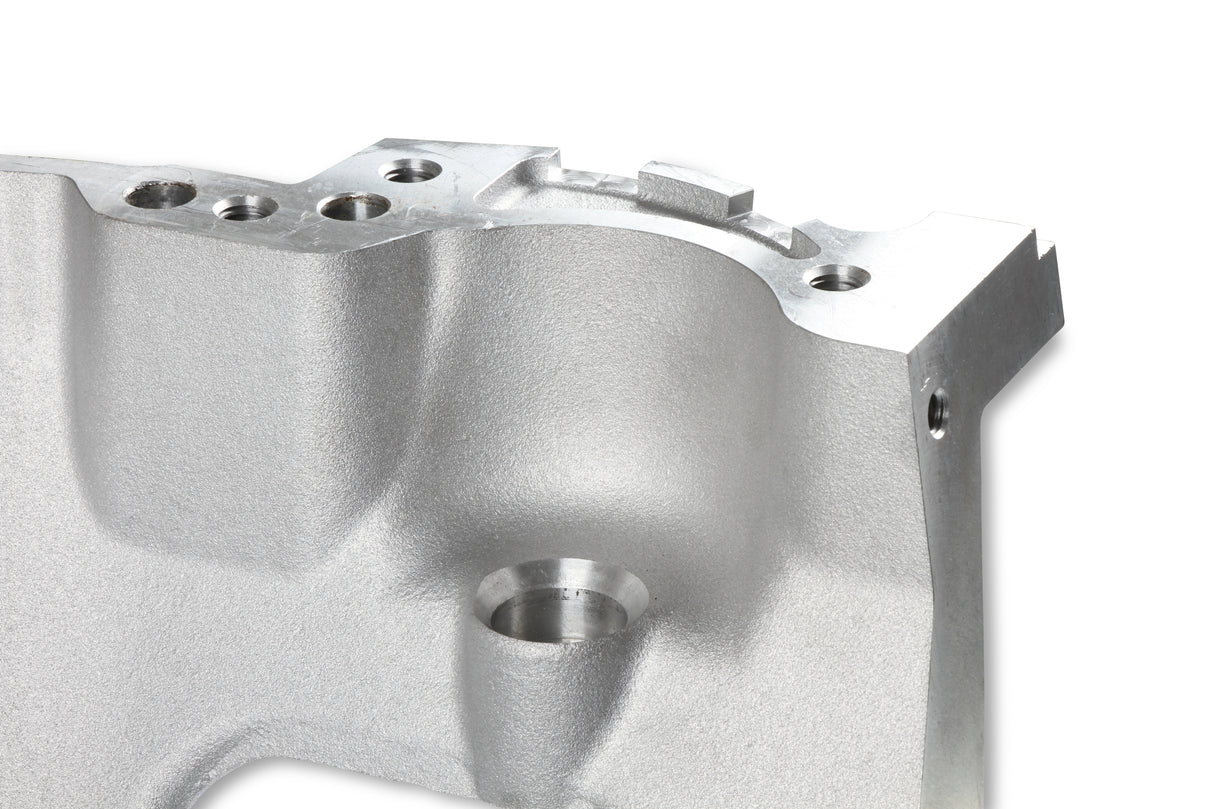

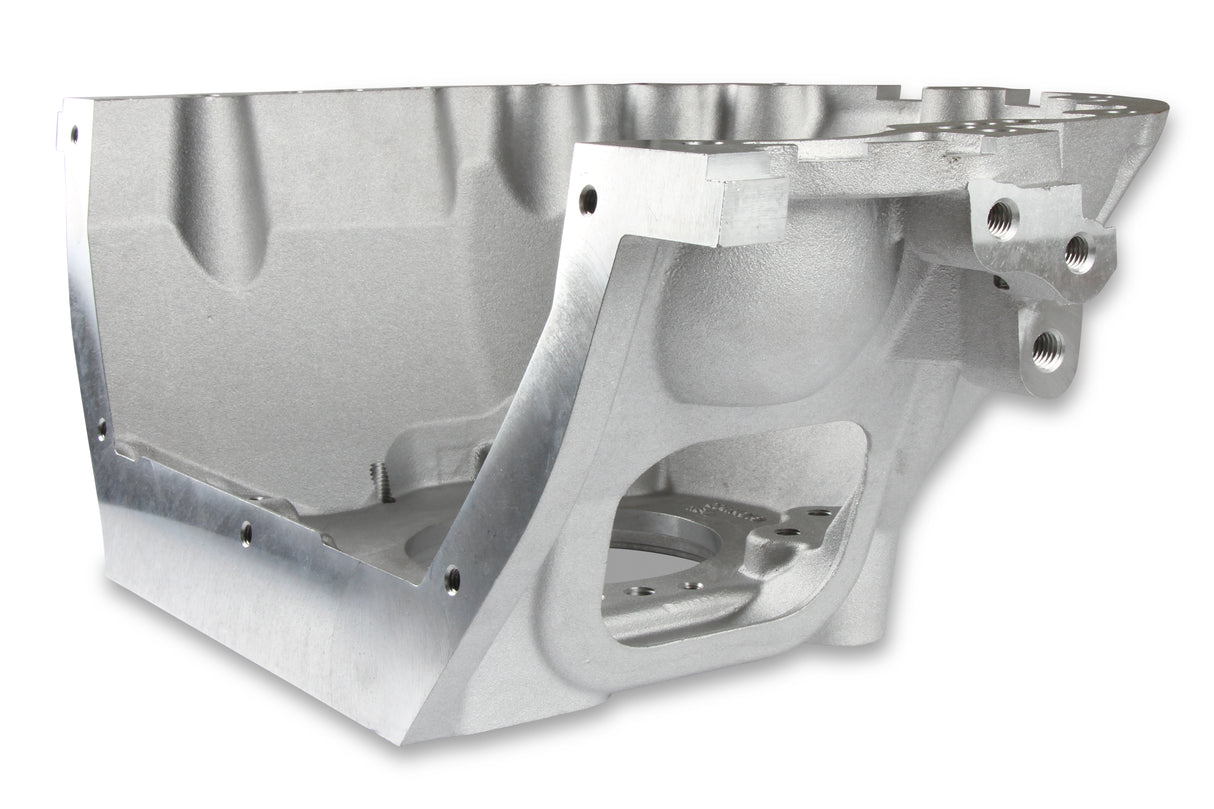

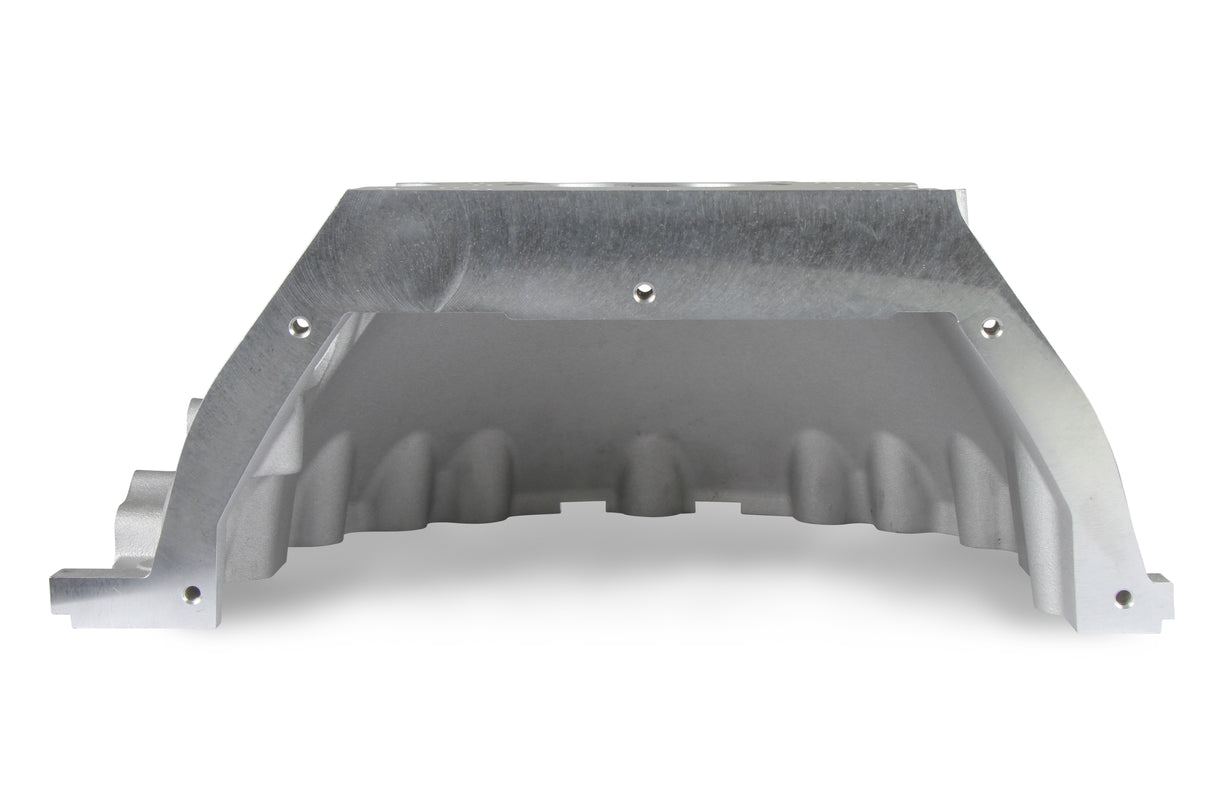

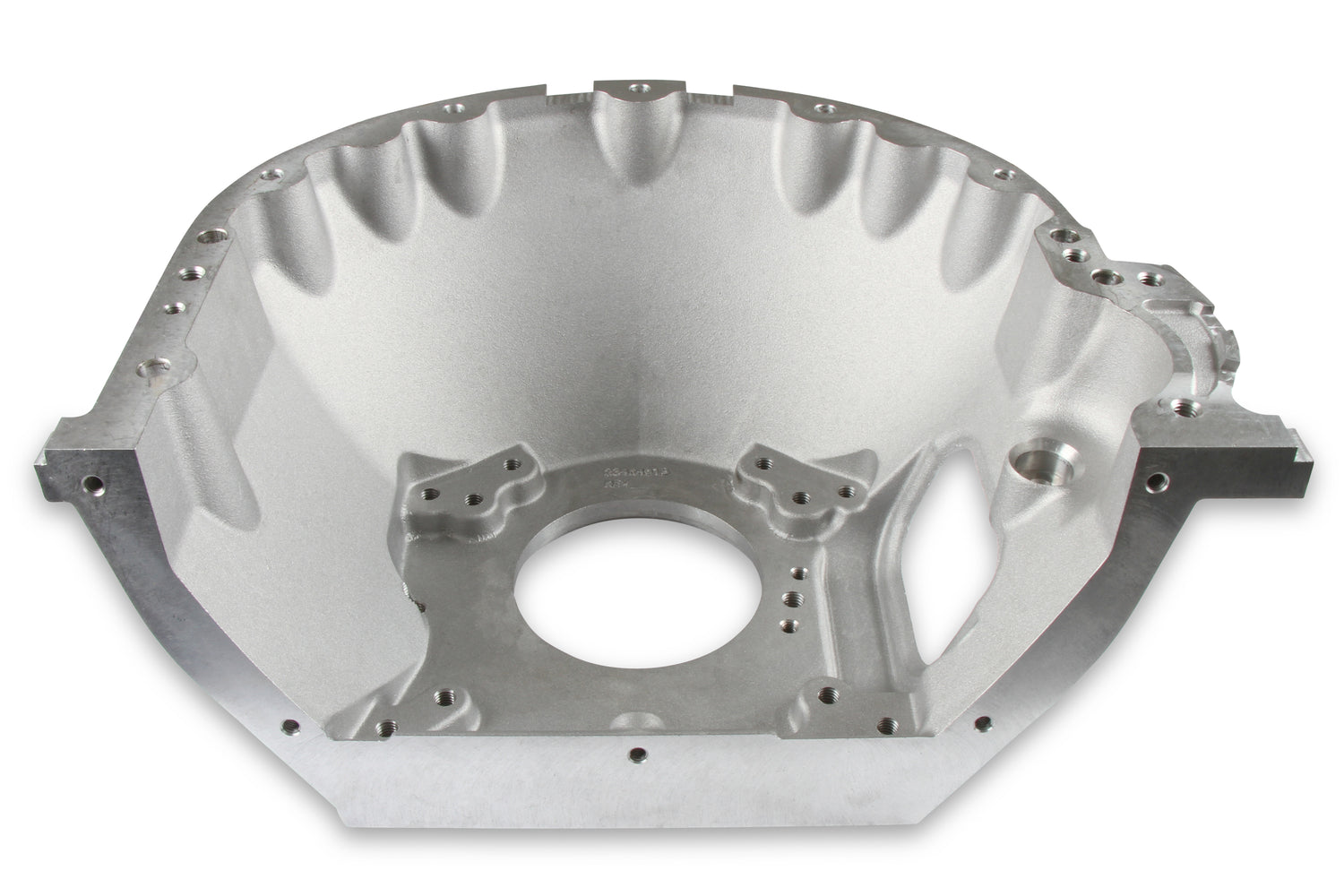

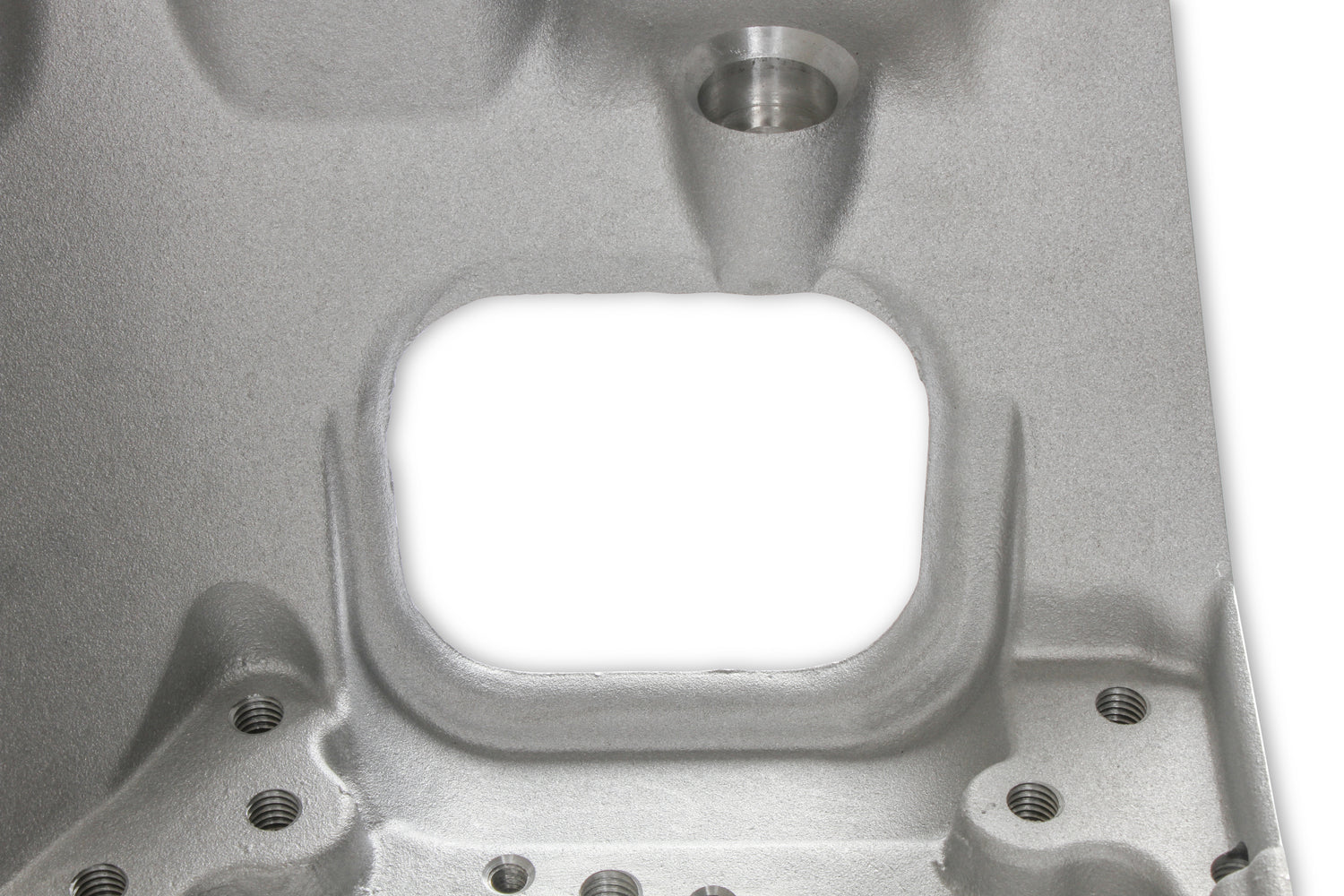

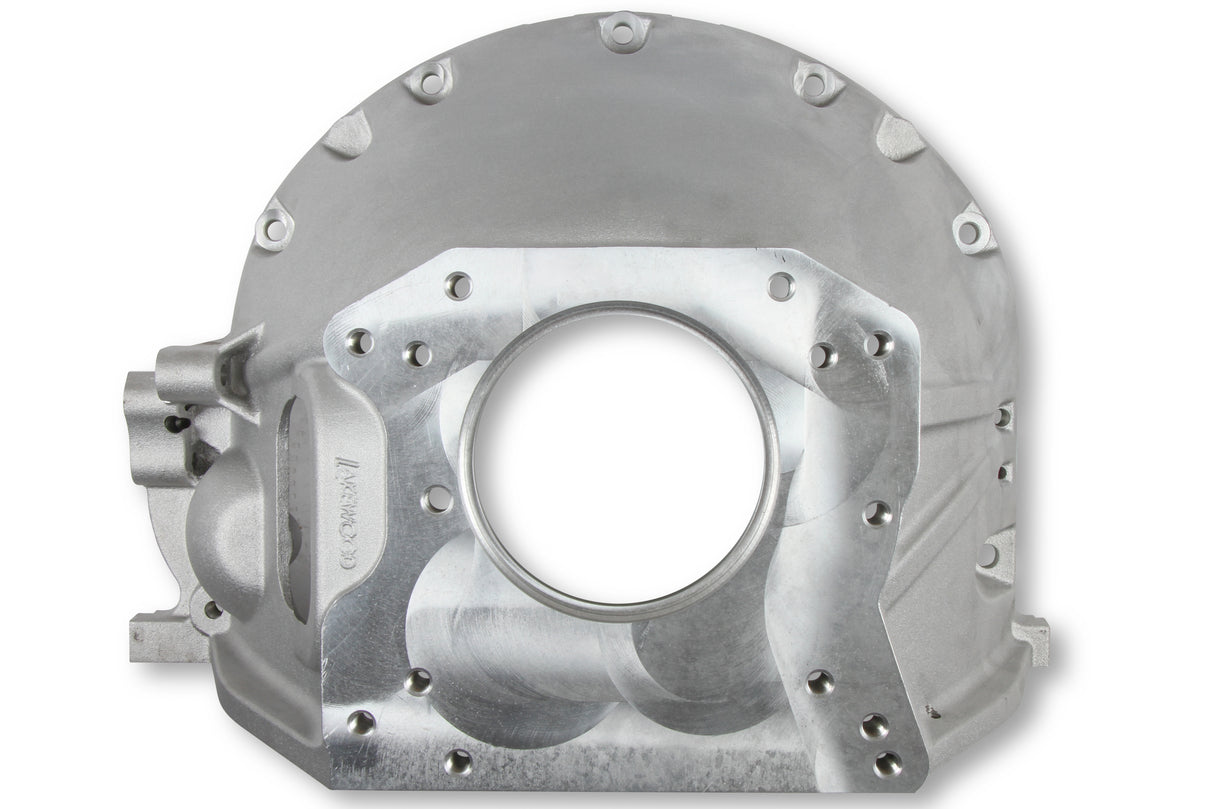

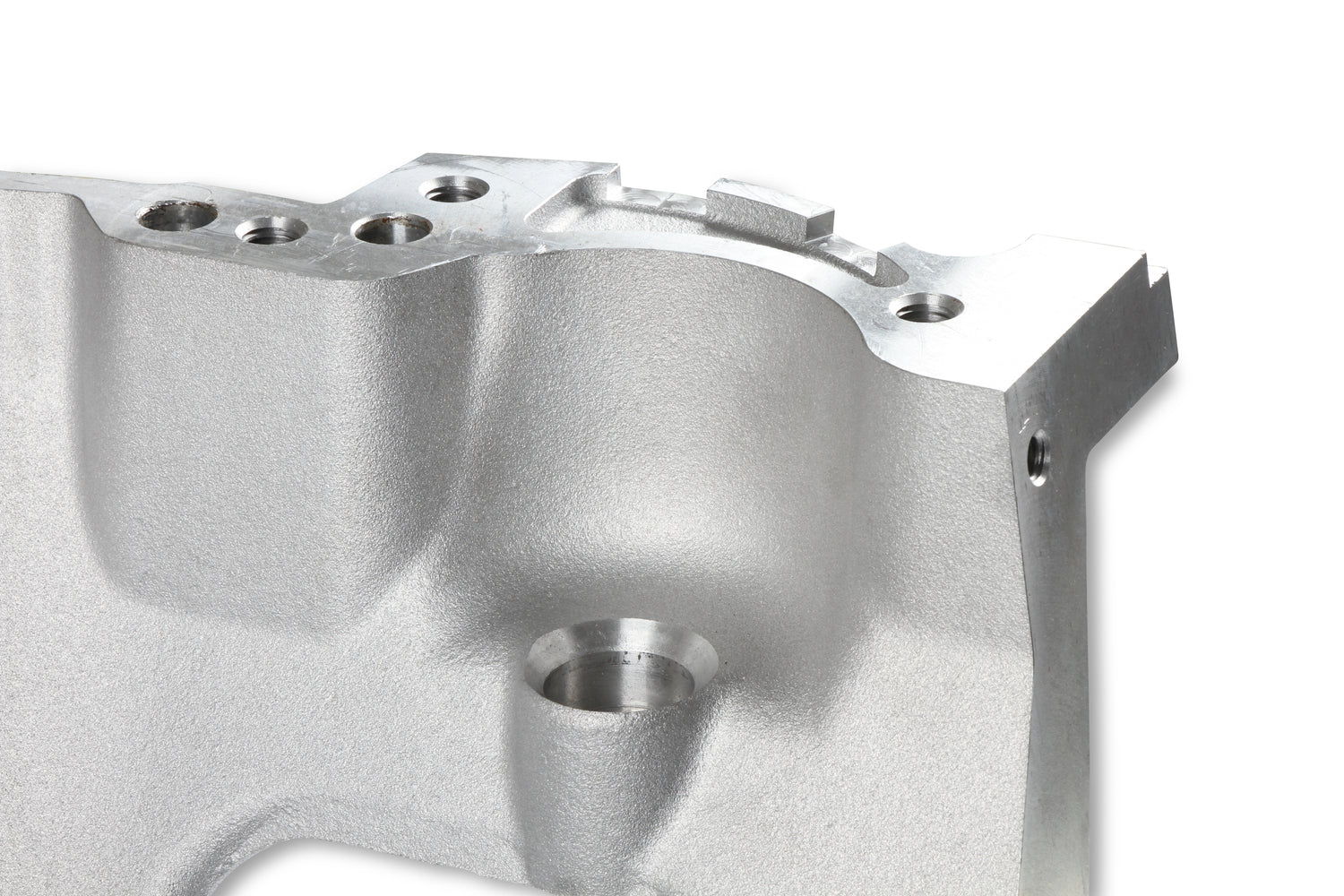

This Lakewood cast aluminum bellhousing connects Mopar 318, 360, or Gen III Hemi engines to Mopar 3-Speed and 4-Speed Transmissions (A-833, A-903, A-250, and A-230) or Ford-style TKX and TKO transmissions. Designed as a compact, lightweight option for transmission swaps. It uses a 130-tooth flywheel with a 10.5-inch clutch and is suited for mechanical or hydraulic clutch actuation. Included alignment ring sizes are 4.345 inch, 4.807 inch, and 4.850 inch I.D. (inside dimension)

Features and Benefits

• Direct Fit For Mopar 318,360 Small Block Or Gen 3 Hemi Engines Using A Mopar 3 Spd, Mopar 4 Spd Or Ford Style TKX/TKO Transmission
• Lightweight Cast Aluminum Design Similar To Original Equipment Bellhousings
• Lower Cost Option For Projects That Do Not Require A Steel SFI Rated Unit
• Designed For 130 Tooth Flywheel With 10.5 Inch Clutch For Tighter, Swap-Friendly Dimensions.
• Includes Transmission Alignment Rings For Correct Fitment Of All Applicable Transmissions.

Designed for LEFT HAND STARTERS WITH ALIGNMENT NOSE_x000D_ Designed for use with130Tooth FLYWHEEL AND 10.5-inch max diameter CLUTCH _x000D_ GEN 3 HEMI Requires EARLY TRUCK FLYWHEEL AND STARTER FOR LEFT HAND SIDE_x000D_ Included alignment ring sizes are 4.345 inch, 4.807 inch, and 4.850 inch I.D. (inside dimension)

Specifications

  • Specifications
    BrandLakewood
    CategoryTransmission and Drivetrain
    Clutch10.5 inch
    Depth (in)7.08
    Emission Code6
    EngineChrysler Small Block
    EngineChrysler Gen III Hemi
    Engine MakeMopar
    Flywheel130 Tooth
    MaterialCast Aluminum
    Product TypeBellhousing
    SFI ApprovedNo
    TransmissionTKX Ford
    TransmissionMopar 3 Speeds A230 & A250
    TransmissionTKO Ford
    TransmissionMopar 4 Speeds A833 & A903
    TransmissionTKO 500/600 Ford
    Transmission TypeManual
