JE  |  SKU: J337051

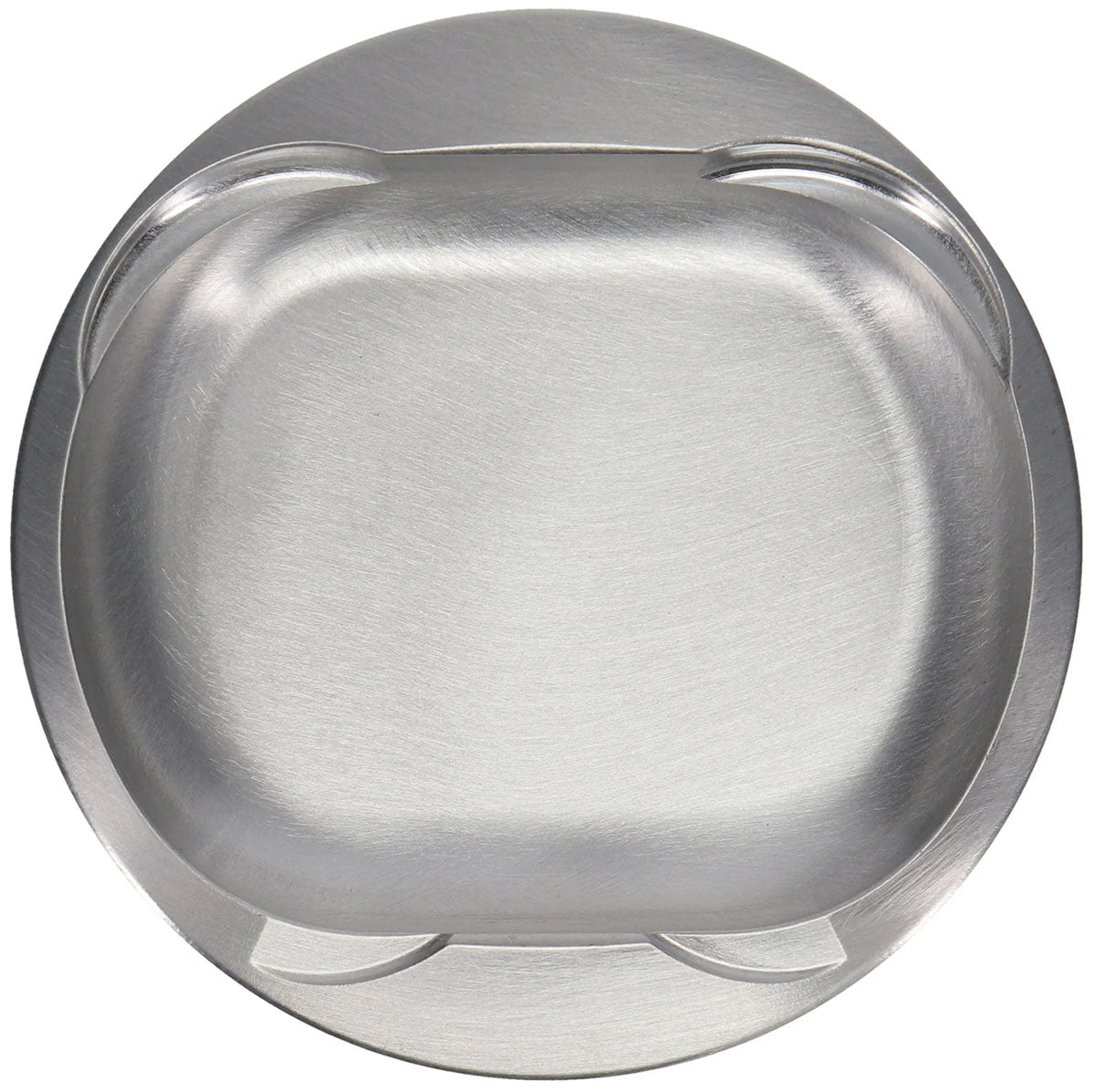

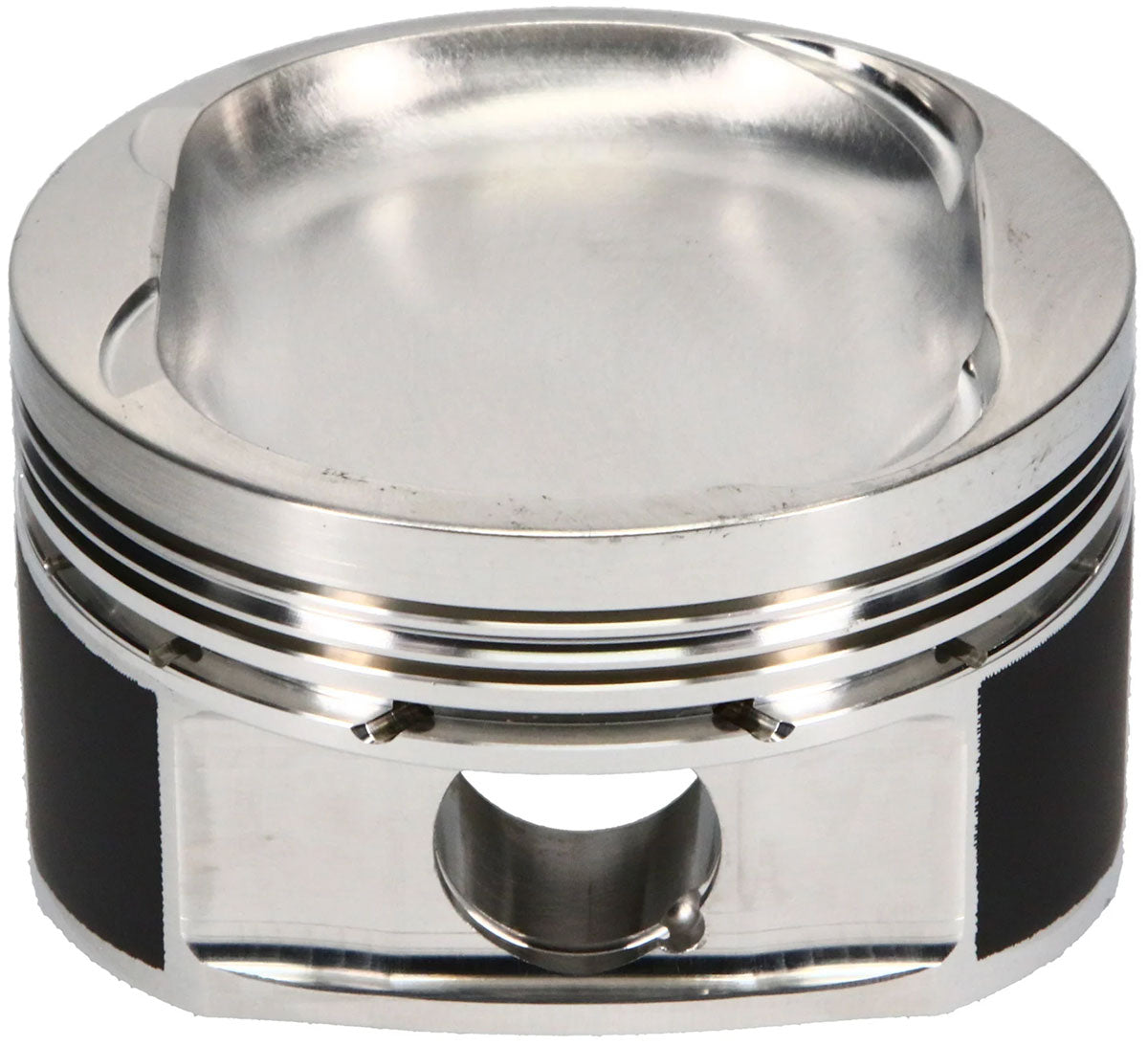

JE Toyota 2JZ-GTE Piston Kit - J337051

86.5mm bore, 94.0mm stroke, 142.0mm rod length, -14.0cc dome volume

Regular price $2,987.90 NZD + GST
Shipping calculated at checkout.

Description

TOYOTA 2JZ PISTONS 94mm STROKE

86.5mm bore, 94.0mm stroke, 142.0mm rod length, -14.0cc dome volume

Part Number: J337051

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons’ performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA

Specifications:

Piston Series: JE Pistons
Cylinder Head: 2JZ-GTE
Bore Diameter: 86.50 MM
Piston Head Type: Dish
Compression Height: 1.181 IN
Piston Volume: -14.0 CC
Piston Material: 2618
Piston Quantity: 6
Forging Type: FSR
Ring Set Included: Yes
Top Compression Ring Thickness: 0.0400 IN
Second Compression Ring Thickness: 0.0480 IN
Oil Ring Thickness: 0.141 IN
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Length: 2.250 IN
Wrist Pin Wall Thickness: 0.150 IN
