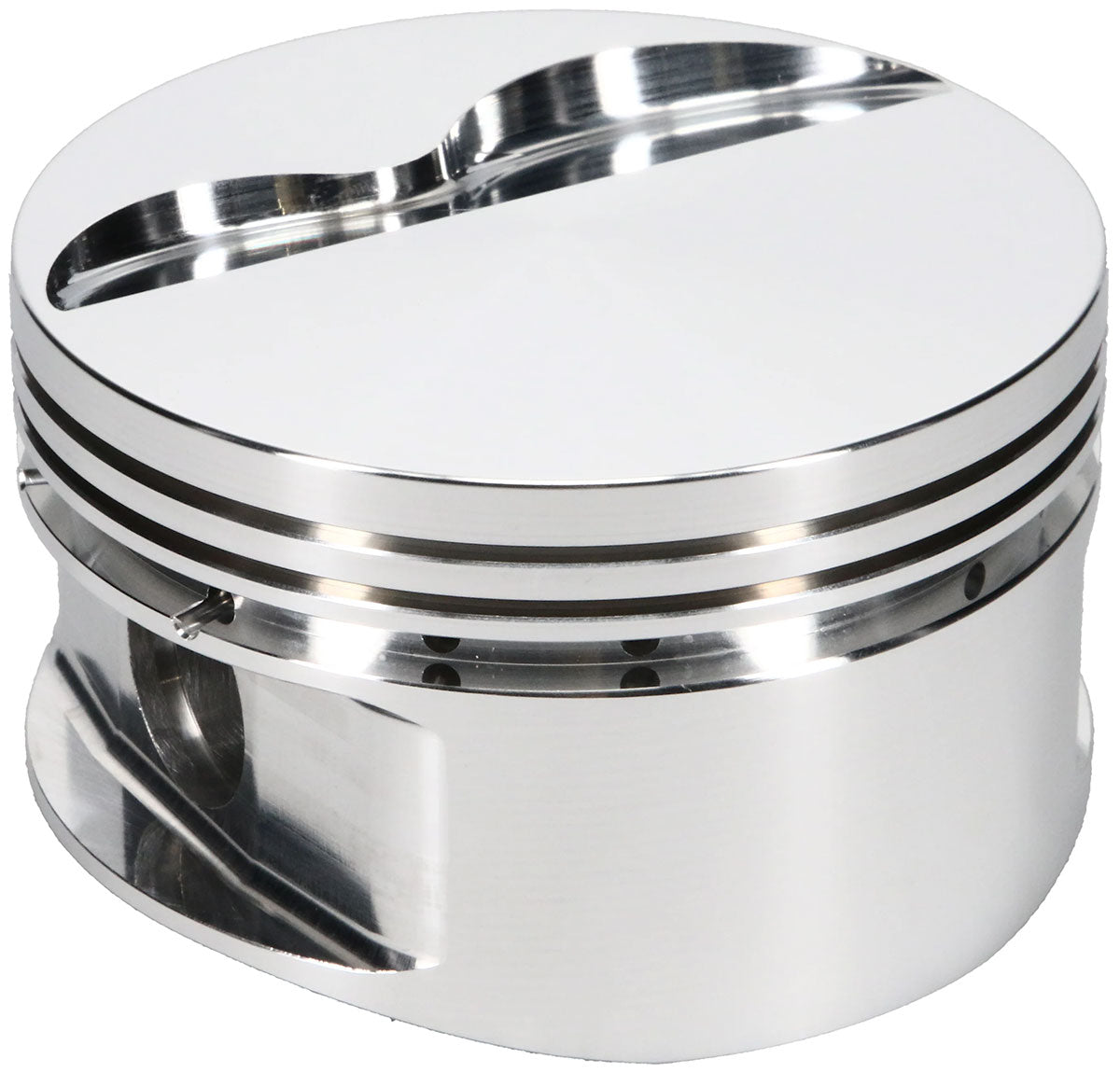

JE Small Block Chrysler 360 Stroker - Flat Top Forged Piston - J207423

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons’ performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

• Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
• Designed specifically for each engine and use application to provide optimized performance durability
• Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
• Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
• Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
• Made 100% in the USA

Piston Specifications

• Piston Series: JE Pistons
• Cylinder Head: 360 WEDGE
• Bore Diameter: 4.030"
• Piston Head Type: Flat
• Compression Height: 1.460"
• Piston Volume: -6.80 CC
• Piston Material: 2618
• Piston Quantity: 8
• Forging Type: Round
• Piston Average Weight: 476 GR
• Ring Set Included: No
• Top Compression Ring Thickness: 0.0640"
• Second Compression Ring Thickness: 0.0640"
• Oil Ring Thickness: 0.188"
• Wrist Pin Outer Diameter: 0.927"
• Wrist Pin Length: 2.750"
• Wrist Pin Wall Thickness: 0.150"
