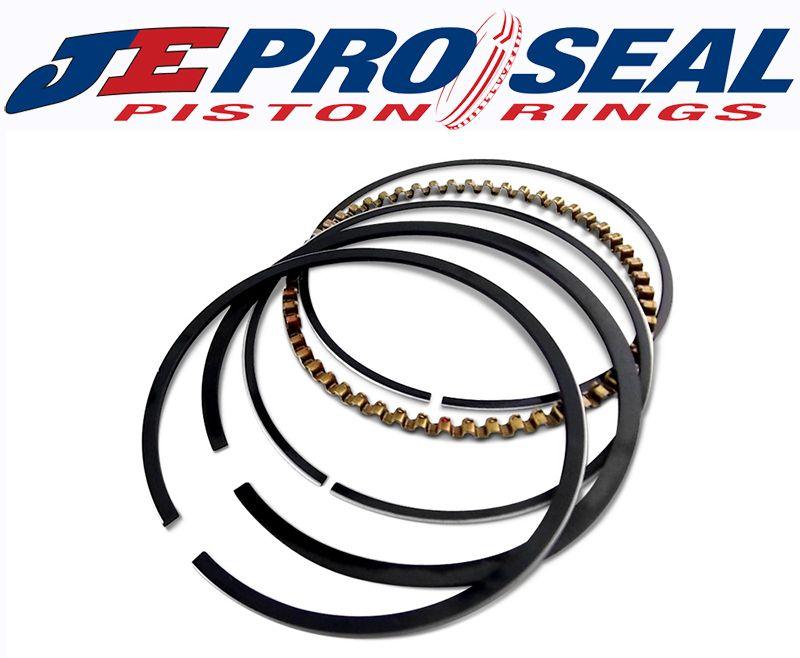

JE Replacement Ring Set (JG1001-3652)

JG1001-3652 - SINGLE RING 3.652" 6 CYL FORD

Suit Ford BA-BF XR6 4.0L 6 Cyl Turbo +.020" (Single Bore)

Part Number: JG1001-3652

JE JG Premium Race Series rings feature the highest quality ductile iron top ring with the latest technology plasma-moly inlay. Taper faced reverse torsional second rings or Gapless® seconds are combined with either standard or low tension oil control rings.

Specifications
Bore: 3.652" (92.75mm)
Top Ring: 1.0mm
Top Ring Description (Material, Coating, Shape): Carbon Steel, Nitride, Barrel Face, Back Cut, Neutral
Second Ring: 1.2mm
Second Ring Description (Material, Coating, Shape): Ductile Iron, Phospate, Napier, Back Cut, Neutral

Oil Ring:2.8mm
Oil Ring Description (Material, Coating, Shape): Carbon Steel, Nitride, Flex Vent
With over 60 years of experience, JE Pistons is the leader in high performance forged pistons. We've built a reputation that the competition can only follow. JE has a history of manufacturing the highest quality pistons and components that professional engine builders, race teams, and high performance enthusiasts trust and rely on.
The top engine builders in NASCAR, ALMS, NHRA, AMA Supercross and others choose JE Pistons over any other brand. For over 60 years, JE's position at the forefront of performance piston manufacturing has been a result of continuous research and development of unique materials, piston designs and technologies. Utilising State-Of-The-Art CNC machines for manufacturing along with purpose-designed forgings, JE is able to maintain exacting specifications on each and every piston and hold tolerances to millionths of an inch. Also available from JE is industry-leading processes like Ultra Crown, a Digital Three Dimensional piston crown machining process and Finite Element Analysis (FEA). FEA is a computer process whereby stress and fatigue are tested on a computer model before it goes into production. JE is the only performance piston manufacturer to earn the QS-9000 quality standard which confirms that JE provides customers the st standards in quality control. In addition, we also have State-Of-The-Art inspection equipment and testing equipment which enables us to constantly bring you, the customer, the very latest in piston design configurations.
