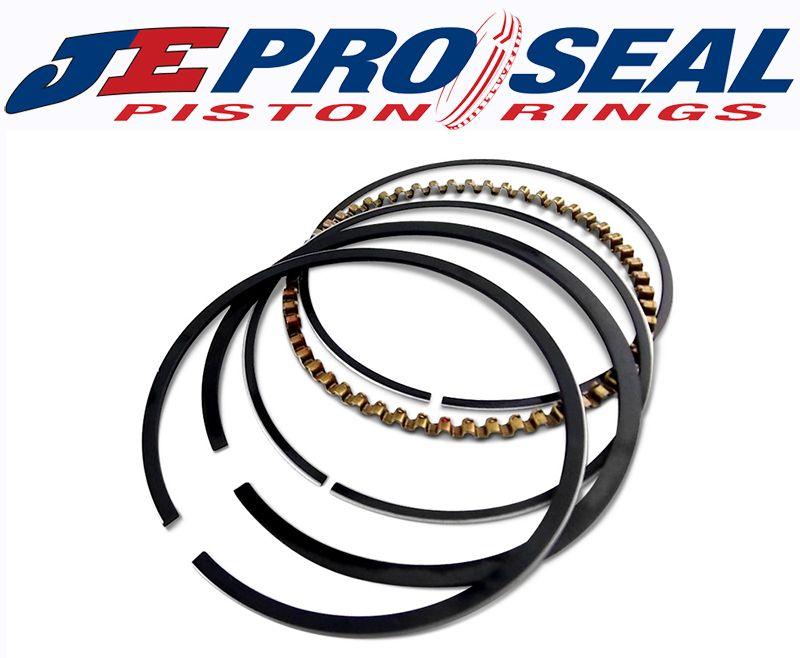

JE Pro Steel Piston Ring Set - J750 Low Tension (JJ75008-4125-5)
4.125" Bore, 1.2mm Top Ring, 1.5mm Second Ring, 3.0mm Oil RingJJ75008-4125-5 - 4.125" BORE + .005" RINGS SET
4.125" Bore, 1.2mm Top Ring, 1.5mm Second Ring, 3.0mm Oil Ring
Part Number: JJ75008-4125-5
Pro Steel ring sets utilise a high strength alloy steel top ring providing superior bore conformity, complimented by the outstanding seal and wear characteristics of a high velocity plasma moly inlay coating. Top ring weights are under 10 grams, achievable as a result of reduced ring radials and short axial heights helping to minimise cylinder wall drag. Optional 2nd ring Napier hook profile design help to improve oil control and efficiency.
Specifications
Bore: 4.125"
Top Ring Height: 1.2mm
Top Ring Description (Material, Coating, Shape): Carbon Steel, Plasma Moly, Barrel Face, Back Cut, Torsional
Second Ring Height: 1.5mm
Second Ring Description (Material, Coating, Shape): Iron, Phosphate, Napier, Back Cut, Neutral
Oil Ring Height: 3.0mm
Oil Ring Description (Material, Coating, Shape): Carbon Steel, Chrome, Full Seal, Flex Vent
With over 60 years of experience, JE Pistons is the leader in high performance forged pistons. We've built a reputation that the competition can only follow. JE has a history of manufacturing the highest quality pistons and components that professional engine builders, race teams, and high performance enthusiasts trust and rely on.
The top engine builders in NASCAR, ALMS, NHRA, AMA Supercross and others choose JE Pistons over any other brand. For over 60 years, JE's position at the forefront of performance piston manufacturing has been a result of continuous research and development of unique materials, piston designs and technologies. Utilising State-Of-The-Art CNC machines for manufacturing along with purpose-designed forgings, JE is able to maintain exacting specifications on each and every piston and hold tolerances to millionths of an inch. Also available from JE is industry-leading processes like Ultra Crown, a Digital Three Dimensional piston crown machining process and Finite Element Analysis (FEA). FEA is a computer process whereby stress and fatigue are tested on a computer model before it goes into production. JE is the only performance piston manufacturer to earn the QS-9000 quality standard which confirms that JE provides customers the highest standards in quality control. In addition, we also have State-Of-The-Art inspection equipment and testing equipment which enables us to constantly bring you, the customer, the very latest in piston design configurations.
