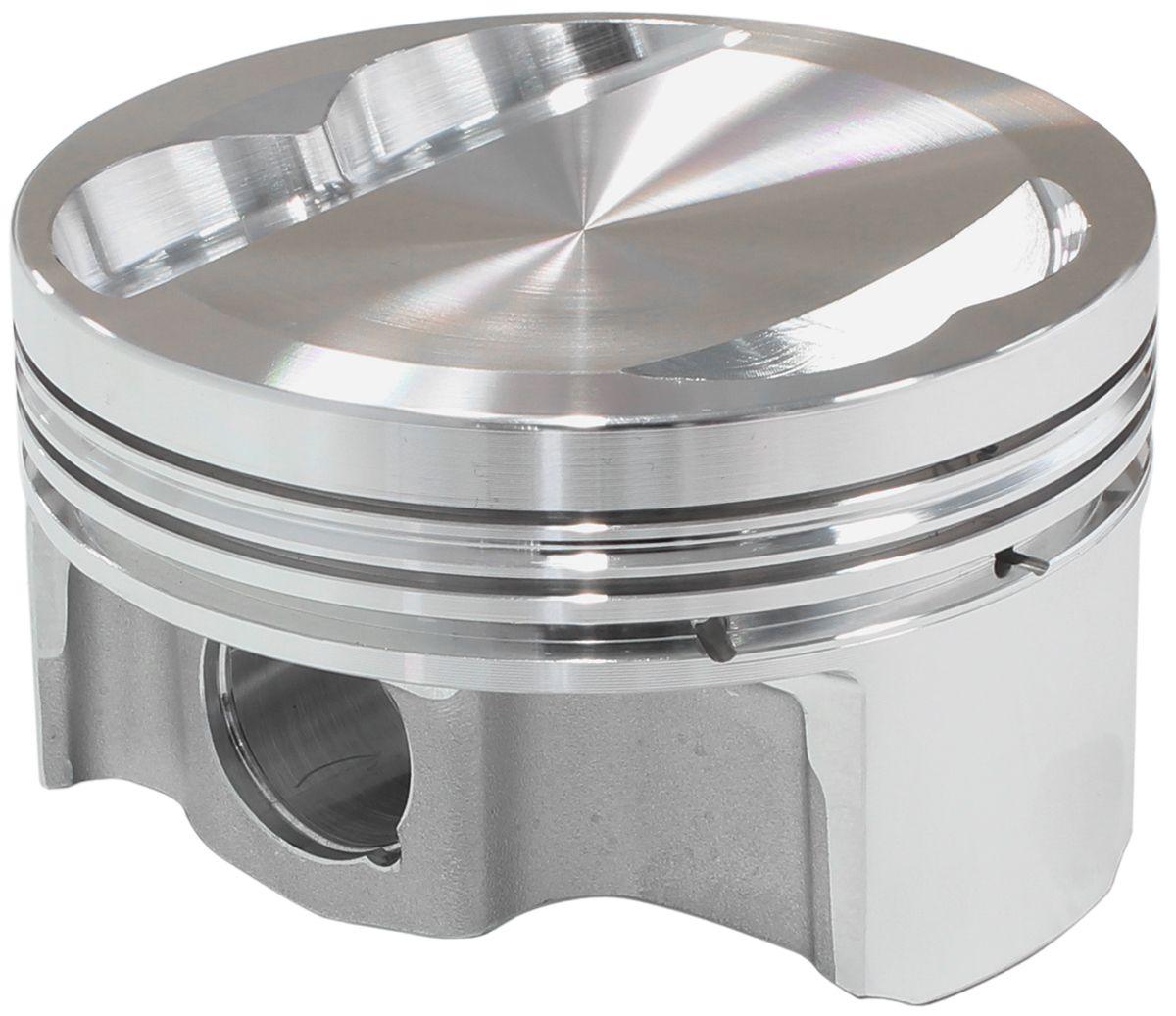

JE Nissan RB30 3.0L 6 Cyl Turbo - Dish Forged Piston (J310989)
3.425" (87mm) bore, 3.346" stroke, 6.000" rod length, -9cc dome volumeJ310989 - RB30 + 40 PISTON -9CC TURBO
3.425" (87mm) bore, 3.346" stroke, 6.000" rod length, -9cc dome volume
Part Number: J310989
Asymmetrical RB30 Piston
Piston side loads increase with boost pressure, longer stroke crankshafts and even aftermarket camshafts! JE Pistons new asymmetrical forging design maintains a larger skirt aera on the heavily stressed major thrust side, while reducing friction with a smaller skirt aera on the minor thrust side. the result is a high strength, lightweight piston that significantly reduces friction in your engine!
Includes :
Spiro Lock: 827-263-MW
Straight Wall Pin: 827-2250-15-51C
1.0 x 1.2 x 2.8mm Nitrite rings
Specifications:
Part #: J310989
CID: 3.0L
Bore: 3.425 (87mm)
Stroke: 3.346
Rod Length: 6.000
Compression Height: 1.270
Dome Volume: -9cc
Gram Weight:
Footnote: .827 Pin Diameter,
Oversize: 0.040
Recommended Ring Set (Check Proseal listing to determine oil ring tension): JG1001-3425
