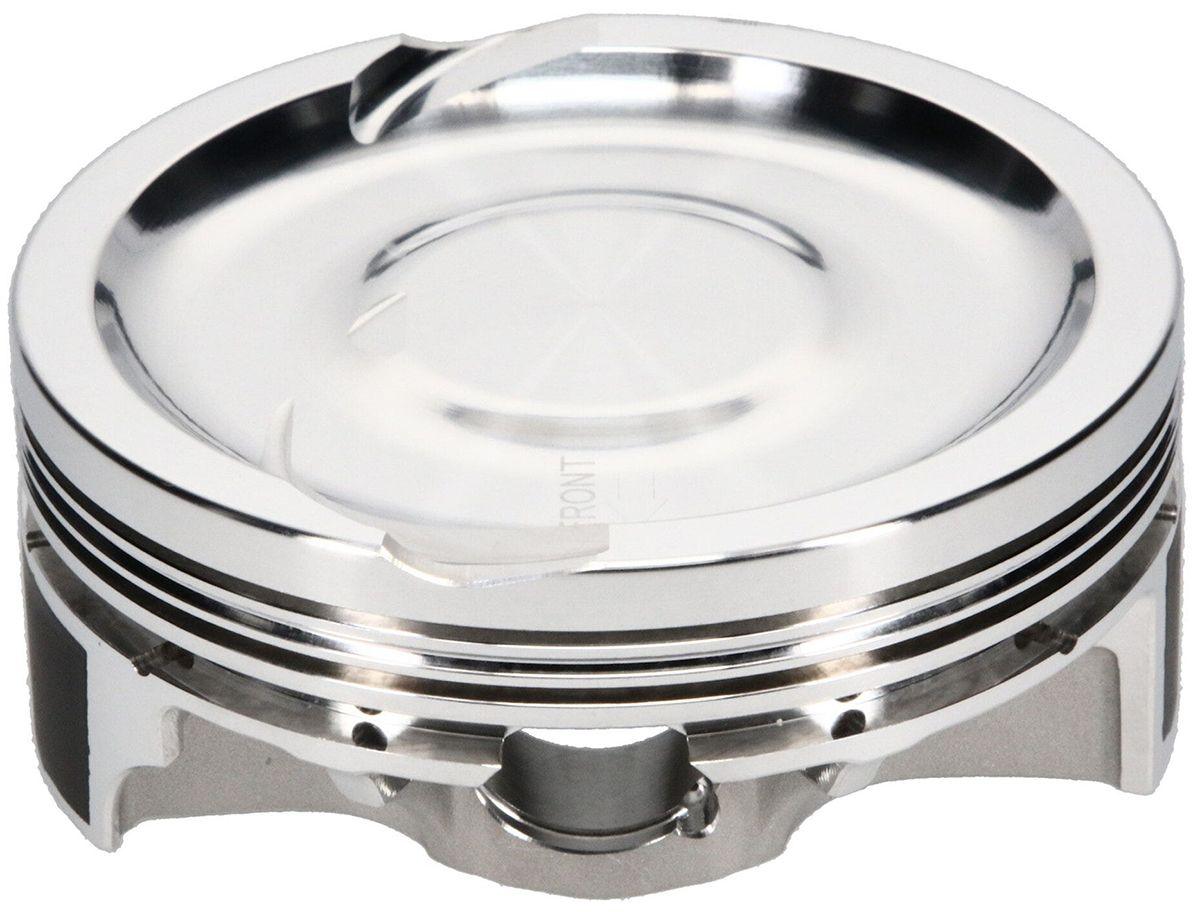

JE LS2 Asymmetrical FSR Dish Top Forged Piston (J324063)

J324063 - LS2 4.030" PISTONS -8.6cc DISH

4.030" bore, 4.000" stroke, 6.125" rod length, -8.6cc dome volume

Part Number: J324063

Hands down, the best forged piston for your high performance LS engine! Our Asymmetrical FSR (Forged Side Relief) forging is engineered for today’s high power normally aspirated and forced induction LS engines. The exclusive asymmetrical skirt maintains a larger skirt area on the heavily stressed major thrust side, while reducing friction with a smaller skirt on the minor thrust side. The result is a high strength, lightweight piston that outperforms the competition! Note: For applications over 800hp, a thicker wall wrist pin is recommended.
Inc ludes:
.927 x 2.250 straight wall carbon steel wrist pin
Wire locks
Specifications
:
Part #: J324063
Bore: 4.030"
Oversize: .030" LS2
Stroke: 4.000
Rod Length: 6.125"
Compression Height: 1.115"
Compression Ratio with 64cc chamber volume: 10.9
Compression Ratio with 68cc chamber volume: 10.5
Compression Ratio with 70cc chamber volume: 10.3
Dome Volume: -8.6cc
Gram Weight: 406
Footnote: Forged Side Relief / Forced Induction
Reconmended Ring Set: JG31F8-4030-2
