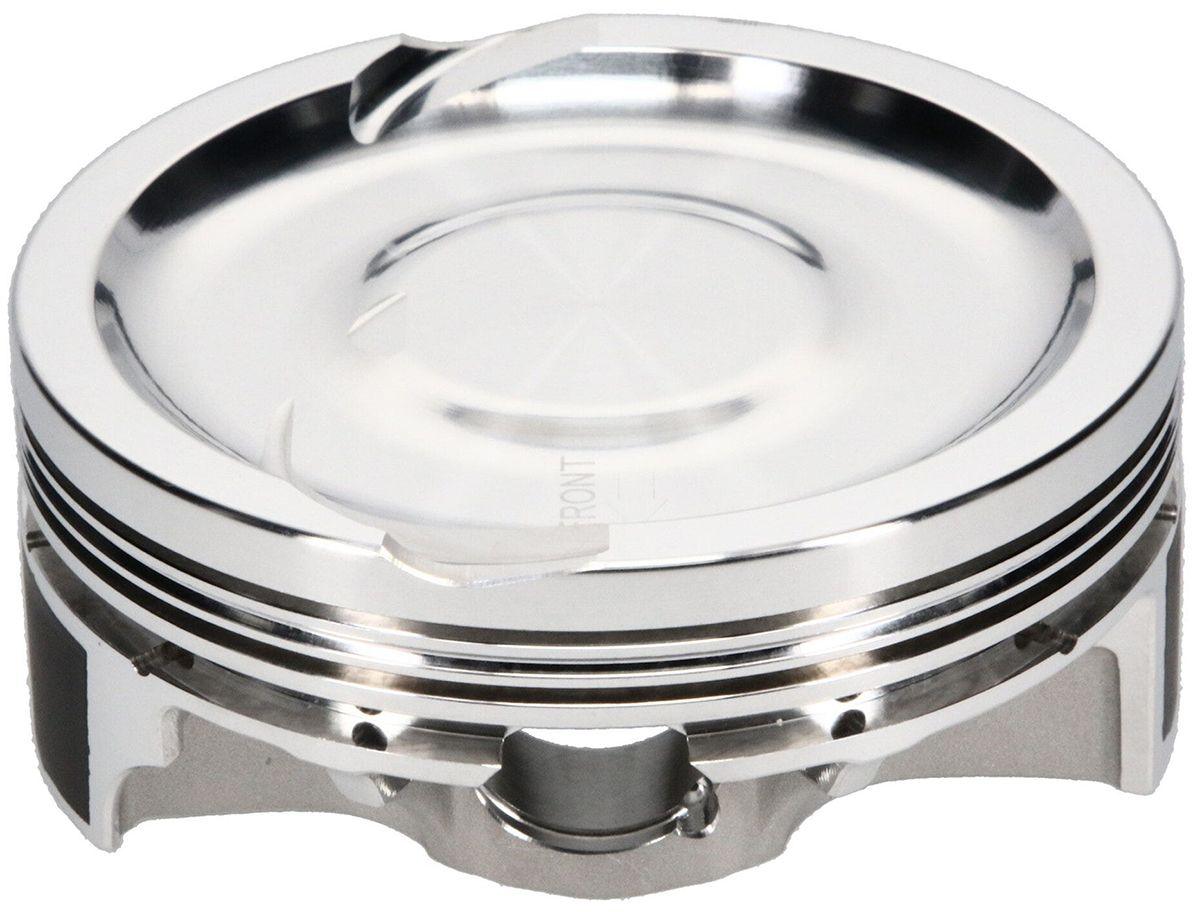

JE LS2 Asymmetrical FSR Dish Top Forged Piston (J312041)
4.010" bore, 4.000" stroke, 6.125" rod length, -26.6cc dome volumeJ312041 - LS2 4.010 PISTONS -26.6cc DISH
4.010" bore, 4.000" stroke, 6.125" rod length, -26.6cc dome volume
Part Number: J312041
GM LS Dish Top Our brand new Asymmetrical FSR (Forged Side Relief) forging design allows for the use of the most popular stroke and rod combinations while eliminating reluctor wheel clearance problems. Asymmetrical forging design maintains a larger skirt on the heavily stressed major thrust side, while reducing friction with a smaller skirt on the minor thrust side. The result is a high strength, lightweight piston that significantly reduces friction in your engine. Lightweight and extremely durable, these pistons are machined for 1.2mm, 1.5mm, 3.0mm rings.
Includes:
.927 x 2.250 straight wall carbon steel wrist pin
Wire locks
Specifications
:
Part #: J312041
Bore: 4.010"
Oversize: 010 LS2
Stroke: 4.000
Rod Length: 6.125"
Compression Height: 1.115"
Compression Ratio with 64cc chamber volume: 9.3
Compression Ratio with 68cc chamber volume: 9.0
Compression Ratio with 70cc chamber volume: 8.8
Dome Volume: -26.6cc
Gram Weight:
Footnote: Forged Side Relief / Forced Induction
Reconmended Ring Set: JG3108-4000-7
