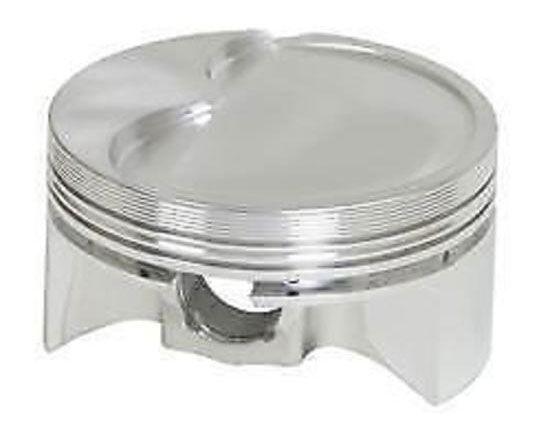

JE LS1/LS2/LS3/LS6/LS9 - FSR Inverted Dome Forged Piston (J264041)
383 c.i., 3.905" bore, 4.000" stroke, 6.125" rod length, -10.0cc dome volumeJ264041 - LS1 3.905" PISTONS -10cc DISH
383 c.i., 3.905" bore, 4.000" stroke, 6.125" rod length, -10.0cc dome volume
Part Number: J264041
These heavy duty FSR pistons are specifically designed for high horsepower forced induction applications! JE's FSR forging design allows for use of the most popular stroke and rod combinations while eliminating reluctor wheel clearance problems. Lightweight and extremely durable, these pistons are machined for either 1.2, 1.5, 3.0mm rings (Ring set prefix JG3108) or 1.5, 1.5, 3.0mm rings (Ring set prefix J60008) and have an inverted dome designed for optimum flame propagation with forced induction applications. Compression ratio calculated with .042 gasket thickness and 0.00" deck clearance.
Includes
:
Pin #927-2250-15-51C (111g)
Wire locks #927-073-MW
Smooth Finished Crown
Accumulator Grooves
Contact Reduction Grooves
Specifications
:
Part #: J264041
CID: 383
Bore: 3.905
Stroke: 4.000
Rod Length: 6.125
Block Height: 9.240
Compression Height: 1.115
Compression Ratio with 64cc chamber volume: 10.5
Compression Ratio with 66cc chamber volume: 10.3
Compression Ratio with 72cc chamber volume: 9.7
Dome Volume: -10.0cc
Gram Weight: 382
Footnote: Oil Rail Support is Included, .927 Pin Diameter
Oversize: .005
Recommended Ring Set (Check Proseal listing to determine oil ring tension): J68008-3900-3
With over 60 years of experience, JE Pistons is the leader in high performance forged pistons. We've built a reputation that the competition can only follow. JE has a history of manufacturing the highest quality pistons and components that professional engine builders, race teams, and high performance enthusiasts trust and rely on.
The top engine builders in NASCAR, ALMS, NHRA, AMA Supercross and others choose JE Pistons over any otherbrand. For over 60 years, JE's position at the forefront of performance piston manufacturing has been a result of continuous research and development of unique materials, piston designs and technologies. Utilising State-Of-The-Art CNC machines for manufacturing along with purpose-designed forgings, JE is able to maintain exacting specifications on each and every piston and hold tolerances to millionths of an inch. Also available from JE is industry-leading processes like Ultra Crown, a Digital Three Dimensional piston crown machining process and Finite Element Analysis (FEA). FEA is a computer process whereby stress and fatigue are tested on a computer model before it goes into production. JE is the only performance piston manufacturer to earn the QS-9000 quality standard which confirms that JE provides customers the highest standards in quality control. In addition, we also have State-Of-The-Art inspection equipment and testing equipment which enables us to constantly bring you, the customer, the very latest in piston design configurations.
