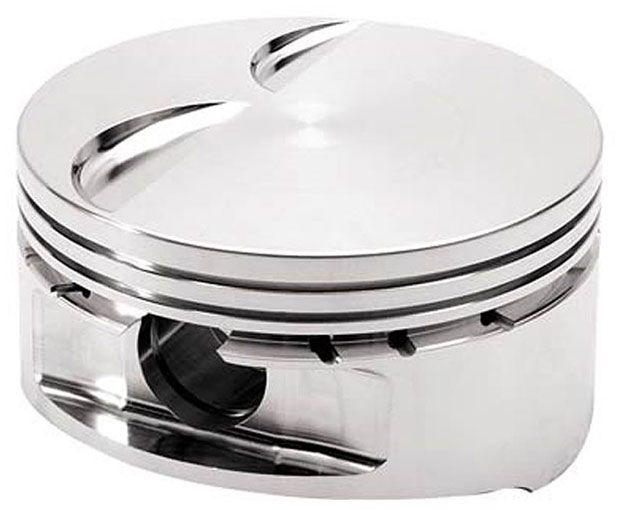

JE LS1 - 15° Forged Piston (J194883)
347 c.i., 3.905" bore, 3.622" stroke, 6.125" rod length, -2.0cc dome volumeJ194883 - LS1 3.905" PISTONS -2cc FLAT
347 c.i., 3.905" bore, 3.622" stroke, 6.125" rod length, -2.0cc dome volume
Part Number: J194883
Featuring JE's traditional style full round skirt, these pistons are designed for the aftermarket/small block Chevy (.927" diameter wrist pin) connecting rods. Flat top design achieves compression ratios suitable for normally aspirated applications Compression ratio calculated with .057" gasket thickness and +.010" deck clearance. Pistons are machined for 1.5, 1.5, 3mm rings.
Includes
:
Pin #927-2500-15-51S (118g)
Double spiro locks included, #927-042-CS
Specifications
:
Part #: J194883
CID: 347
Bore: 3.905
Stroke: 3.622
Rod Length: 6.125
Block Height: 9.240
Compression Height: 1.315
Compression Ratio with 64cc chamber volume: 10.6
Compression Ratio with 66cc chamber volume: 10.3
Compression Ratio with 72cc chamber volume: 9.6
Dome Volume: -2.0cc
Gram Weight: 428
Footnote: .927 Pin Diameter
Oversize: .005
Recommended Ring Set (Check Proseal listing to determine oil ring tension): J68008-3900-3
With over 60 years of experience, JE Pistons is the leader in high performance forged pistons. We've built a reputation that the competition can only follow. JE has a history of manufacturing the highest quality pistons and components that professional engine builders, race teams, and high performance enthusiasts trust and rely on.
The top engine builders in NASCAR, ALMS, NHRA, AMA Supercross and others choose JE Pistons over any other brand. For over 60 years, JE's position at the forefront of performance piston manufacturing has been a result of continuous research and development of unique materials, piston designs and technologies. Utilising State-Of-The-Art CNC machines for manufacturing along with purpose-designed forgings, JE is able to maintain exacting specifications on each and every piston and hold tolerances to millionths of an inch. Also available from JE is industry-leading processes like Ultra Crown, a Digital Three Dimensional piston crown machining process and Finite Element Analysis (FEA). FEA is a computer process whereby stress and fatigue are tested on a computer model before it goes into production. JE is the only performance piston manufacturer to earn the QS-9000 quality standard which confirms that JE provides customers the highest standards in quality control. In addition, we also have State-Of-The-Art inspection equipment and testing equipment which enables us to constantly bring you, the customer, the very latest in piston design configurations.
