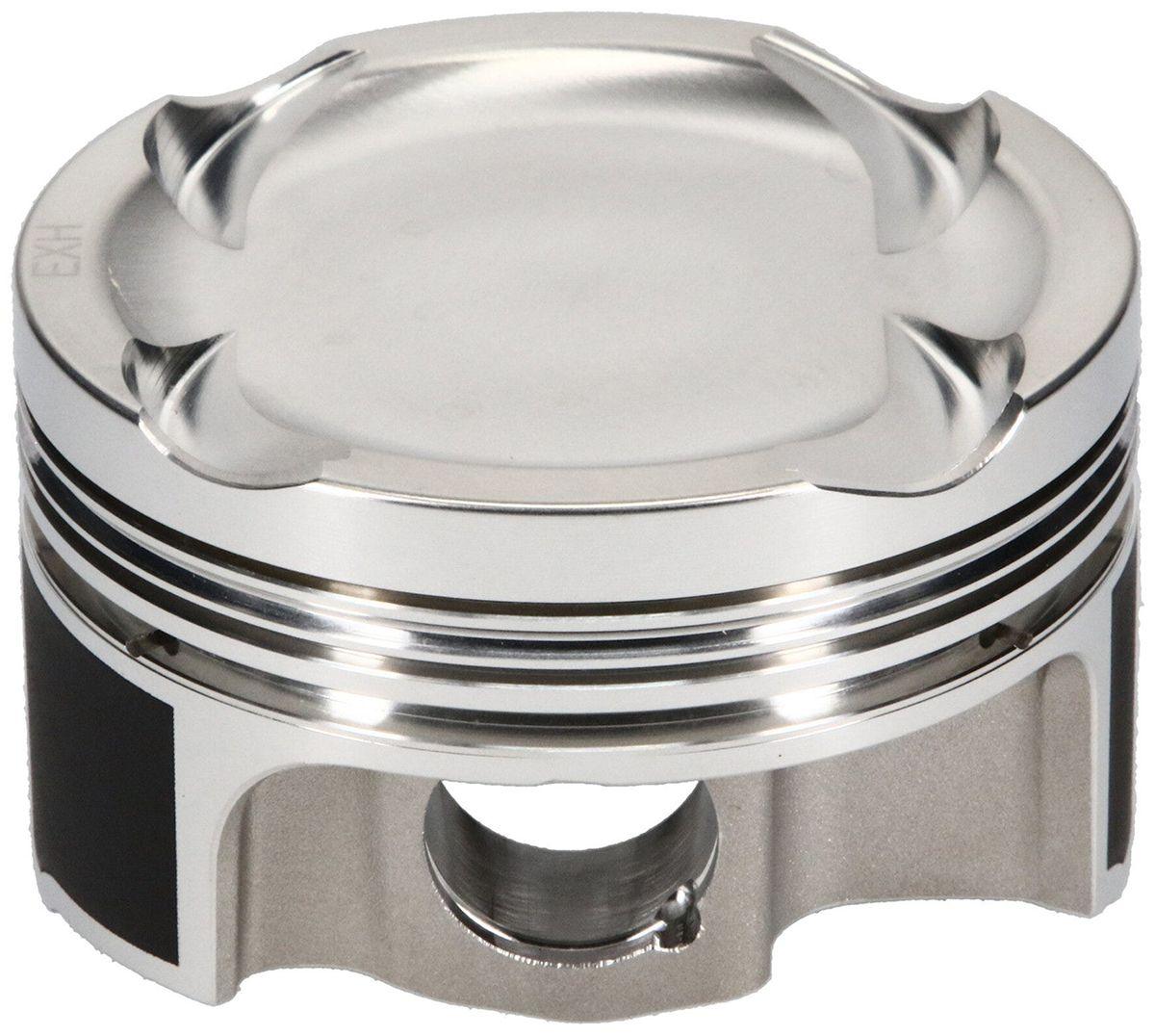

![JE Forged Piston & Ring Kit, 86mm Bore (-5.5cc Dish) (J296904)](http://fastlanespares.co.nz/cdn/shop/products/J296904_781x700.jpg?v=1688044744)
JE Forged Piston & Ring Kit, 86mm Bore (-5.5cc Dish) (J296904)
Suit Mitsubishi 4B11T, 86mm Stroke,143.5mm Rod LengthJ296904 - 4B11T 86.0mm PISTONS -5cc DOME
Suit Mitsubishi 4B11T, 86mm Stroke, 143.5mm Rod Length
Part Number: J296904
This piston set is forged from 2618 T6 high tensile strength aluminium and is engineered for extreme applications. Features include Forged Side Reliefs (FSR) and smooth flowing radii.
Includes:
.905 x 2.250 straight wall carbon steel wrist pin
1.0 x 1.2 x 2.8mm rings
Pin fitting
Wire locks
Specifications:
Part #: J296904
Bore: 86.0mm
Oversize: STD
Stroke: 86.0mm
Rod Length: 143.75mm
Compression Height: 33.35mm
Chamber Volume: 50.5cc
Compression Ratio with .040" Head Gasket: 9.0:1
Dome Volume: -5.5cc
Gram Weight: 320
Footnote: Accepts Turbo and Nitrous
Skirt: Forged Side Relief
Included Ring Set: JG1004-3386
With over 60 years of experience, JE Pistons is the leader in high performance forged pistons. We've built a reputation that the competition can only follow. JE has a history of manufacturing the highest quality pistons and components that professional engine builders, race teams, and high performance enthusiasts trust and rely on.
The top engine builders in NASCAR, ALMS, NHRA, AMA Supercross and others choose JE Pistons over any other brand. For over 60 years, JE's position at the forefront of performance piston manufacturing has been a result of continuous research and development of unique materials, piston designs and technologies. Utilising State-Of-The-Art CNC machines for manufacturing along with purpose-designed forgings, JE is able to maintain exacting specifications on each and every piston and hold tolerances to millionths of an inch. Also available from JE is industry-leading processes like Ultra Crown, a Digital Three Dimensional piston crown machining process and Finite Element Analysis (FEA). FEA is a computer processwhereby stress and fatigue are tested on a computer model before it goes into production. JE is the only performance piston manufacturer to earn the QS-9000 quality standard which confirms that JE provides customers the highest standards in quality control. In addition, we also have State-Of-The-Art inspection equipment and testing equipment which enables us to constantly bring you, the customer, the very latest in piston design configurations.
