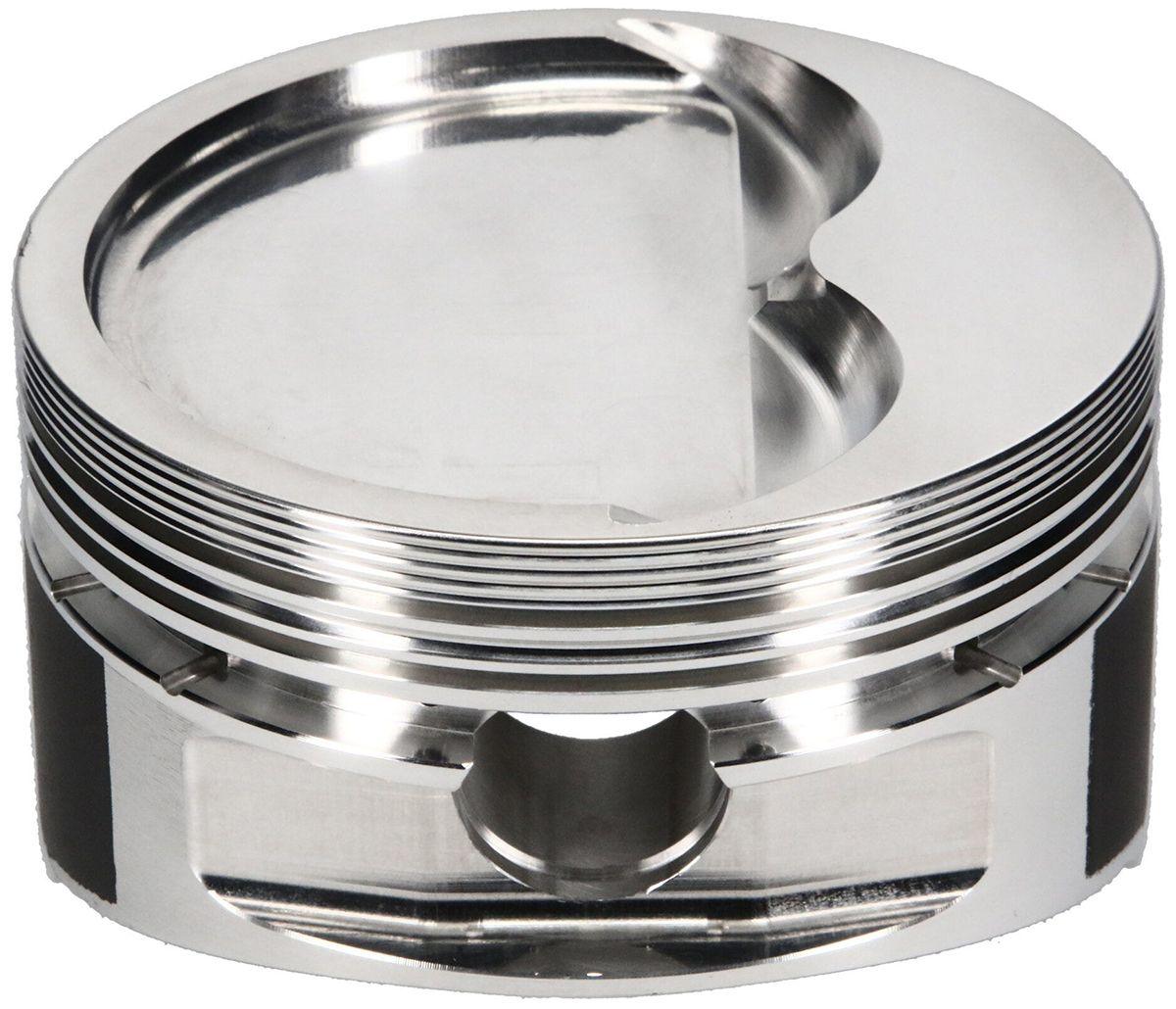

JE Extreme Duty 23° Inverted Dome Forged Piston (J170818)
Small Block Chevy 407, 4.155" bore, 6" rod length, 28cc dishJ170818 - SBC 4.155" PISTONS -28cc DISH
Small Block Chevy 407, 4.155" bore, 6" rod length, 28cc dish
Part Number: J170818
These pistons are specially designed for forced induction and nitrous applications. Pistons include .310" pocket depths and precision CNC machined ring grooves that accept 1/16, 1/16, 3/16 rings.
Includes
:
Pin #927-2950-15-51S (140g)
Contact reduction grooves
Double Spiro Locks # 927-042-CS
Double Pin Oilers
Specs
:
Part #: J170818
CID: 407
Bore: 4.155
Stroke: 3.750
Rod Length: 6.000
Block Height: 9.000
Compression Height: 1.125
Compression Ratio with 58cc chamber volume: 9.7
Compression Ratio with 64cc chamber volume: 9.2
Compression Ratio with 76cc chamber volume: 8.6
Dome Volume: -28.0cc
Gram Weight: 476
Footnote: Oil Rail Support is Included
Oversize: 0.030
Recommended Ring Set (Check Proseal listing to determine oil ring tension): J10008-4155-5
Factory GM heads are used to define standard valve spacing and angle (thus 23°) for many small block Chevy Additionally most 23° aftermarket cylinder heads incorporate what is commonly known as "60/40 Shift" in order to allow for larger valves. All JE flat top and inverted dome shelf piston set designs accommodate "60/40 Shift" and will work with most aftermarket 23° cylinder heads, including those with oversized valves and angle milled surfaces. TFS "Twisted Wedge", AFR227 and Brodix 10X cylinder heads will require custom pistons.
