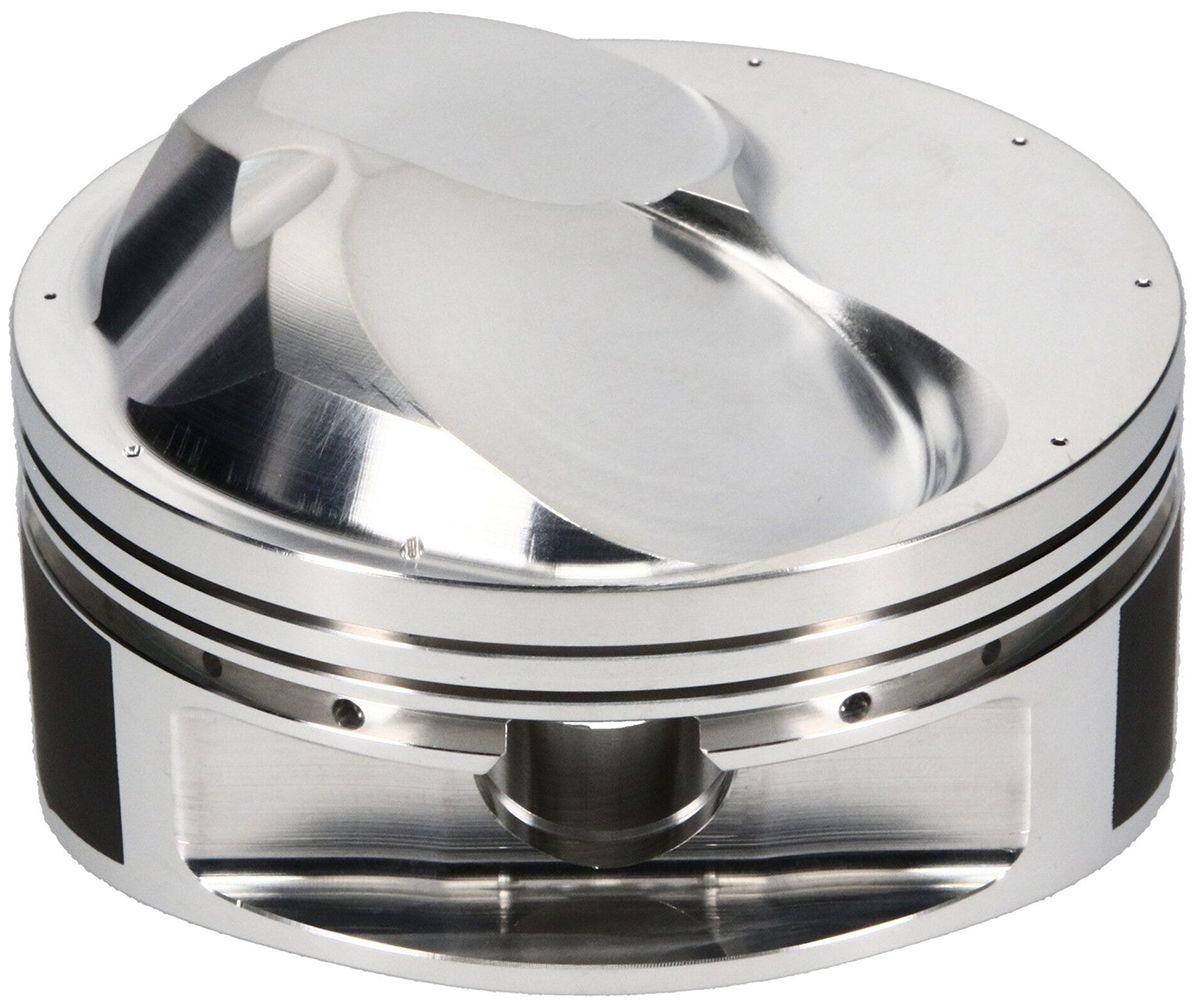

JE Big Block Chev Open Chamber Dome Gas Ported Forged Piston (J243330)
555 c.i., 4.560" bore, 6.535" rod length, 46.0cc dome volumeJ243330 - BBC 4.560" PISTONS +46cc DOME
555 c.i., 4.560" bore, 6.535" rod length, 46.0cc dome volume
Part Number: J243330
These big block pistons are the top choice for drag race applications. Pistons will not work with Edelbrock heads ED6045, ED6040, ED6055 heads. These pistons have vertical gas ports, backcut top rings, D-Wall second rings (.043, .043, 3mm) and a low tension oil ring.
Includes
:
Pin #990-2930-15-51S(150g)
Double spiro locks #990-042-CS
Double pin oilers
Specifications
:
Part #: J243330
CID: 555
Bore: 4.560
Stroke: 4.250
Rod Length: 6.535
Block Height: 9.780
Compression Height: 1.120
Compression Ratio with 110cc chamber volume: 16.0
Compression Ratio with 118cc chamber volume: 14.6
Compression Ratio with 124cc chamber volume: 13.7
Dome Volume: 46.0cc
Gram Weight: 574
Oil Rail Support is Included, Piston set also suits 4.750" stroke with 6.700" rod length
Oversize: .094
Recommended Ring Set (Check Proseal listing to determine oil ring tension): J77008-4560-5
