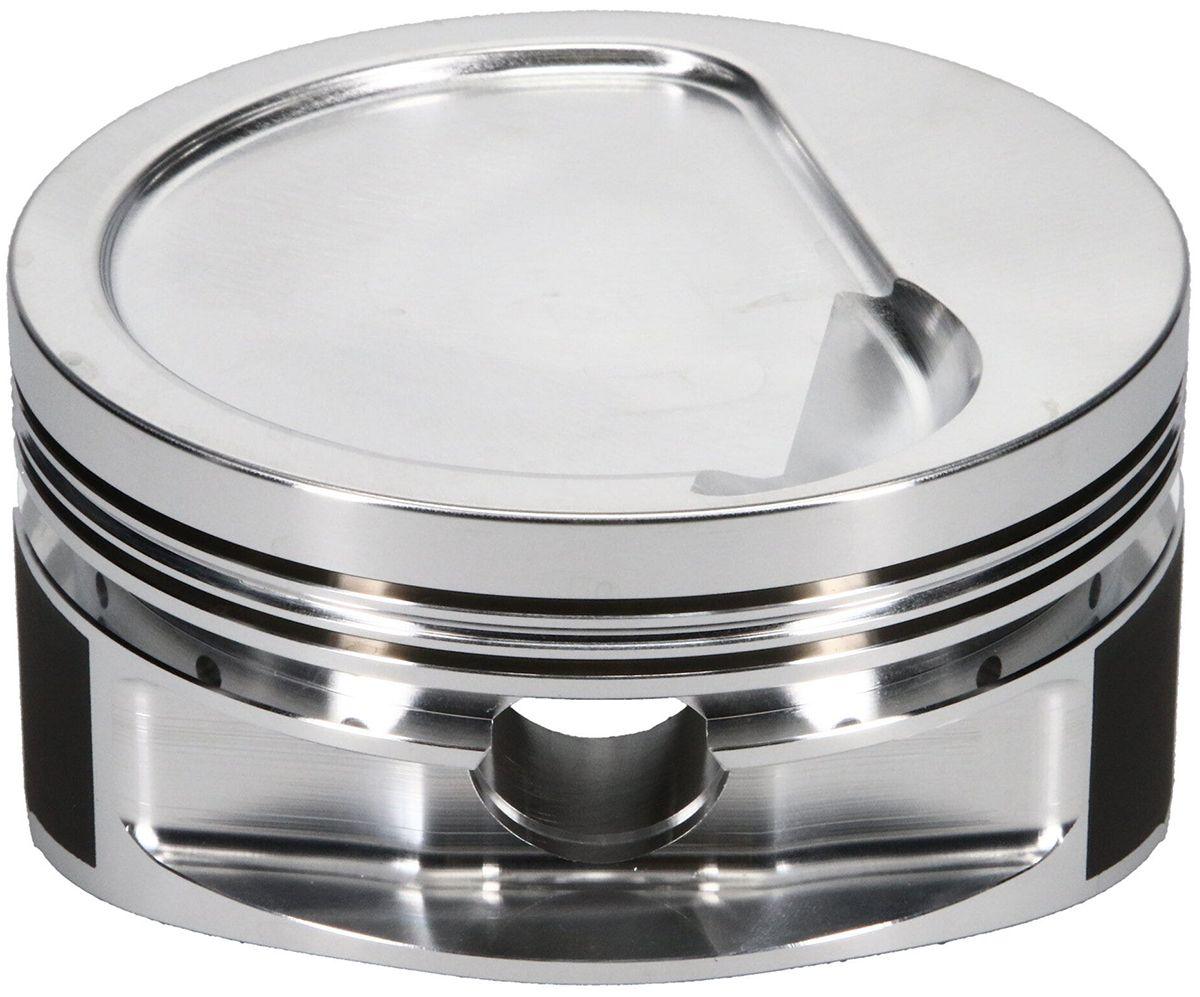

JE Big Block Chev Inverted Dome Forged Piston (J257947)

J257947 - BBC 4.500" PISTONS -28cc DISH

509 c.i., 4.500" bore, 4.000" stroke, 6.385" rod length, -28.0cc dome volume

Part Number: J257947

These big block pistons are compatible with forced induction, nitrous and angle milled heads. The inverted dome shape has been designed for maximum efficiency and horsepower. Valve reliefs will accommodate oversized valves and long duration, tight lobe separation cams. Precision CNC machined ring grooves accept 1/16, 1/16, 3/16 rings. Will fit both open and closed chamber cylinder heads.

Includes
:

Pin #990-2930-18-51S(174g)

Double spiro locks #990-042-CS

Specifications
:
Part #: J257947
CID: 509

Bore: 4.500
Stroke: 4.000
Rod Length: 6.385
Block Height: 9.780
Compression Height: 1.395

Compression Ratio with 110cc chamber volume: 8.0

Compression Ratio with 118cc chamber volume: 7.6

Compression Ratio with 124cc chamber volume: 7.4

Dome Volume: -28.0cc

Gram Weight: 591
Footnote: Oil Rail Support is Included
Oversize: .034
Recommended Ring Set (Check Proseal listing to determine oil ring tension): J100F8-4500-5
