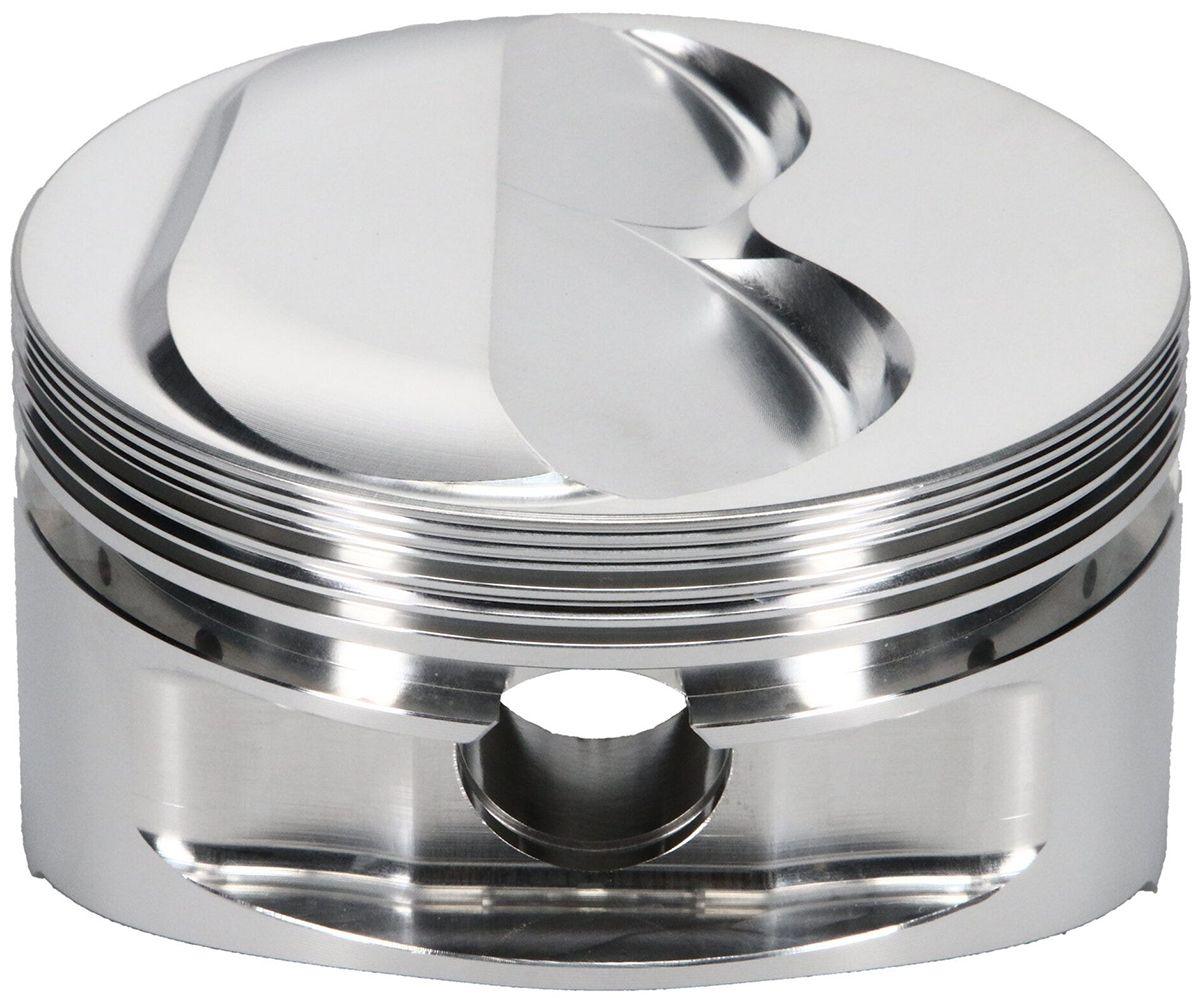

JE 400 Small Block Chevy - 23° Dome Forged Piston (J182061)

J182061 - SBC 4.155" PISTONS 10.8cc DOME

Small Block Chevy 407, 4.155", 6.000" rod length, 10.8cc dome volume

Part Number: J182061

These high-compression pistons are compatible with most aftermarket 23° heads and are ideal for drag racing and circle track applications. Valve reliefs will accommodate oversized valves and long duration, tight lobe separation cams. Precision CNC ring grooves are designed for 1/16, 1/16, 3/16 rings. Will not fit Pro Topline or Brodix 11X cylinder heads.

Includes
:

Pin #927-2750-15-51S (130g)
Contact reduction grooves
Double Spiro Locks #927-042-CS
Double pin oilers

Specifications
:
Part #: J182061
CID: 407
Bore: 4.155

Stroke: 3.750
Rod Length: 6.000
Block Height: 9.000
Compression Height: 1.125

Compression Ratio with 58cc chamber volume: 15.9

Compression Ratio with 64cc chamber volume: 14.5

Compression Ratio with 76cc chamber volume: 12.2

Dome Volume: 10.8cc

Gram Weight: 455
Footnote: Oil Rail Support is Included
Oversize: .030
Recommended Ring Set (Check Proseal listing to determine oil ring tension): J10008-4155-5
