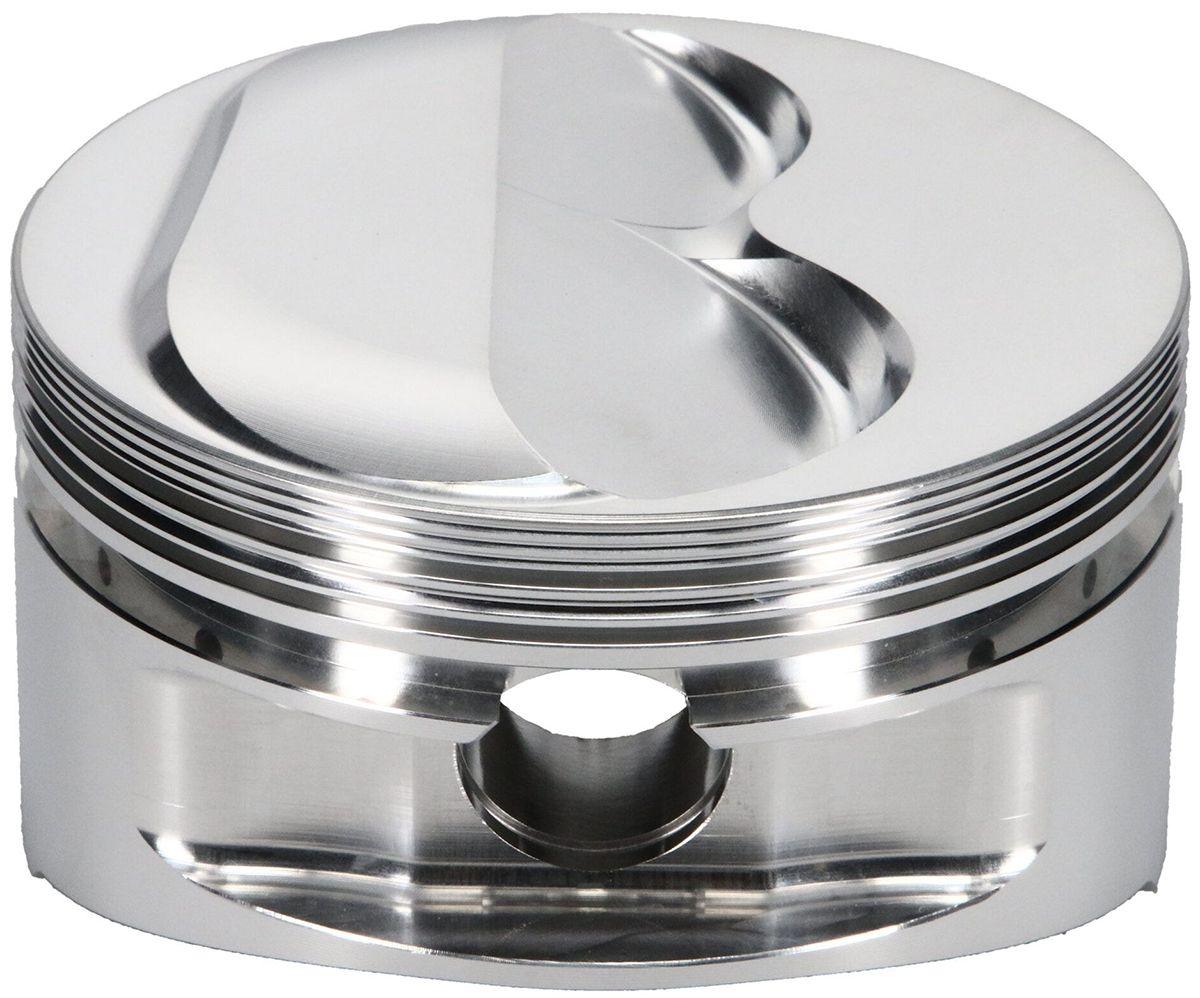

JE 350 Small Block Chevy - 23° Dome Forged Piston (J182012)
Small Block Chevy 357, 4.030", 6.000" rod length, 13.5cc dome volumeJ182012 - SBC 4.030" PISTONS +13cc DOME
Small Block Chevy 357, 4.030", 6.000" rod length, 13.5cc dome volume
Part Number: J182012
These high-compression pistons are compatible with most aftermarket 23° heads and are ideal for drag racing and circle track applications. Valve reliefs will accommodate oversized valves and long duration, tight lobe separation cams. Precision CNC ring grooves are designed for 1/16, 1/16, 3/16 rings. Will not fit Pro Topline or Brodix 11X cylinder heads.
Includes
:
Pin #927-2750-15-51S (130g)
Contact reduction grooves
Double Spiro Locks #927-042-CS
Double pin oilers
Specifications
:
Part #: J182012
CID: 357
Bore: 4.030
Stroke: 3.500
Rod Length: 6.000
Block Height: 9.000
Compression Height: 1.250
Compression Ratio with 58cc chamber volume: 14.7
Compression Ratio with 64cc chamber volume: 13.3
Compression Ratio with 76cc chamber volume: 11.2
Dome Volume: 13.5cc
Gram Weight: 453
Footnote: fits 3.480 and 3.500 stroke
Oversize: .030
Recommended Ring Set (Check Proseal listing to determine oil ring tension): J10008-4030-5
