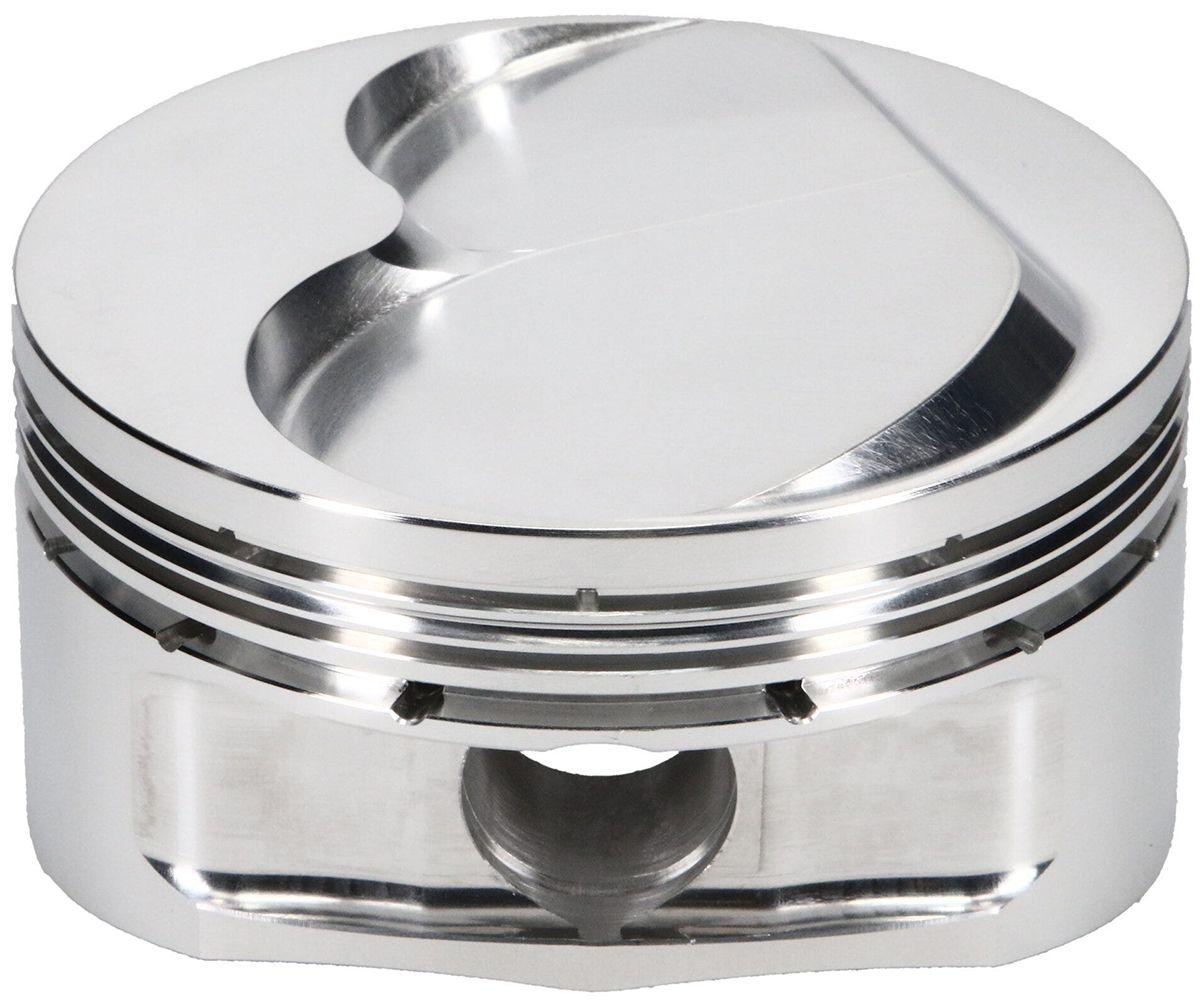

JE 13° All Pro / 13.5° GB2000 Forged Dome Piston (J281795)
Small Block Chevy 408, 4.135" bore, 6.000" rod length, -4.5cc dome volumeJ281795 - SBC 4.135" PISTONS -4.5cc FLAT
Small Block Chevy 408, 4.135" bore, 6.000" rod length, -4.5cc dome volume
Part Number: J281795
Ideal for Sprint Cars or Dirt Late Models, the deeper valve reliefs (.320" int, .260" exh) now accommodate bigger cams and smaller chambers. Precision CNC-machined ring grooves now accept 1.2, 1.5, 3.0mm rings for reduced friction, while Lateral Gas Ports have been added for improved ring seal. Pin upgrade to 927-2750-17-93S recommended for applications over 700HP. This new configuration outperforms the competition hands down!
Includes
:
Pin #927-2750-15-51S(130g)
Double spiro locks #927-042-CS
Lateral gas ports with accumulator grooves
Double pin oilers
Specifications
:
Part #: J281795
CID: 408
Bore: 4.135
Stroke: 3.800
Rod Length: 6.000
Block Height: 9.000
Compression Height: 1.100
Compression Ratio with 40cc chamber volume: 16.5
Compression Ratio with 45cc chamber volume: 15.2
Compression Ratio with 50cc chamber volume: 14.1
Dome Volume: -4.5cc
Gram Weight: 442
Footnote: Solid dome design, Oil Rail Support is Included
Oversize: .010
Recommended Ring Set (Check Proseal listing to determine oil ring tension): J75008-4135-5
