Hurst | SKU: 02-117

Hurst Engineering 5 Lug Replacement Rear Axle for GM 12-Bolt Truck - 02-117

Name: Hurst Engineering 5 Lug Replacement Rear Axle for GM 12-Bolt Truck - 02-117
Brand: Hurst
SKU: 02-117
Price: 655.0 NZD
Availability: InStock

Compatible with 1971-1980 Chevy/GMC C Series Pickup & Blazer/Jimmy/Suburban

$655.00 NZD + GST

Shipping calculated at checkout.

⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.

Description

Compatible with 1971-1980 Chevy/GMC C Series Pickup & Blazer/Jimmy/Suburban

Part Number: 02-117

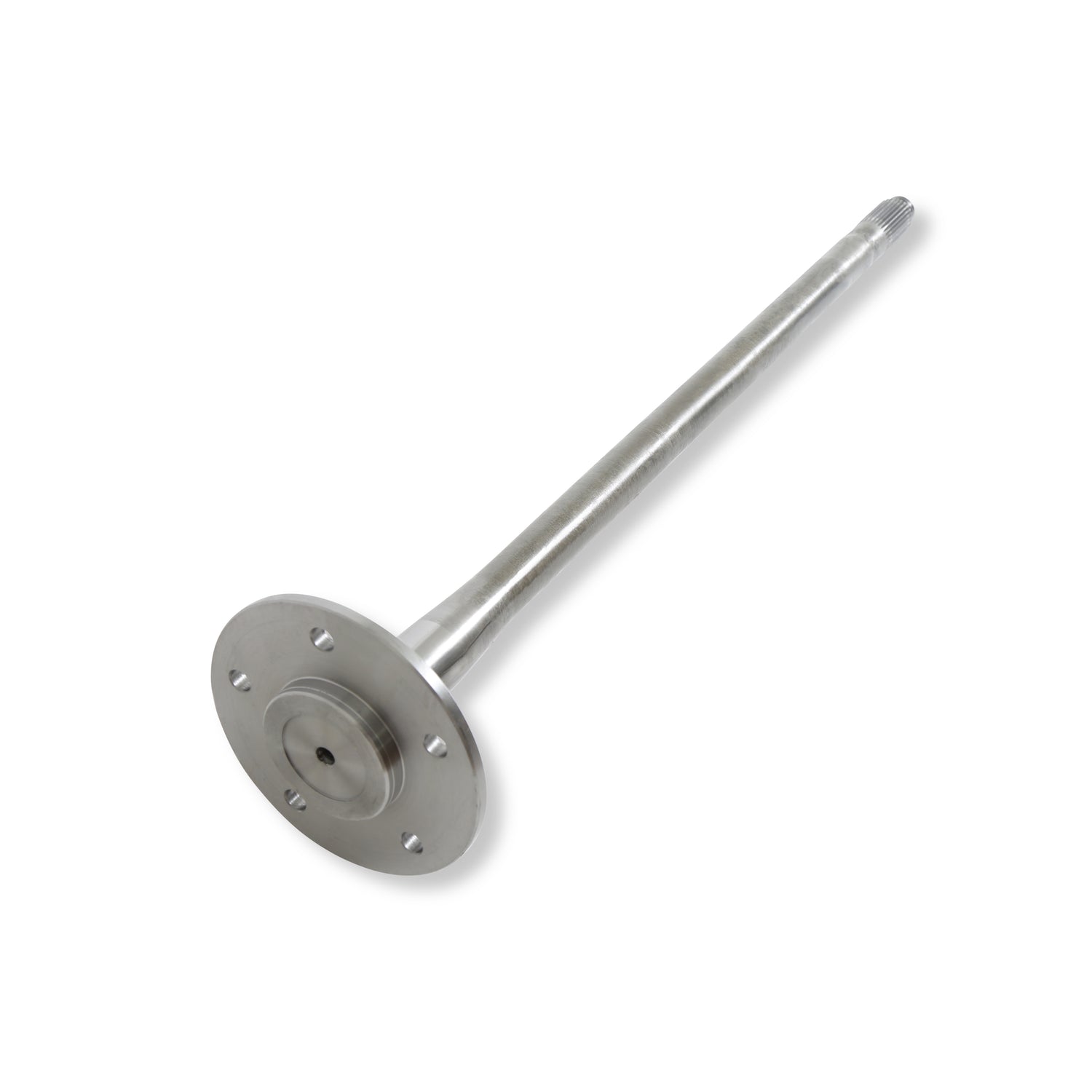

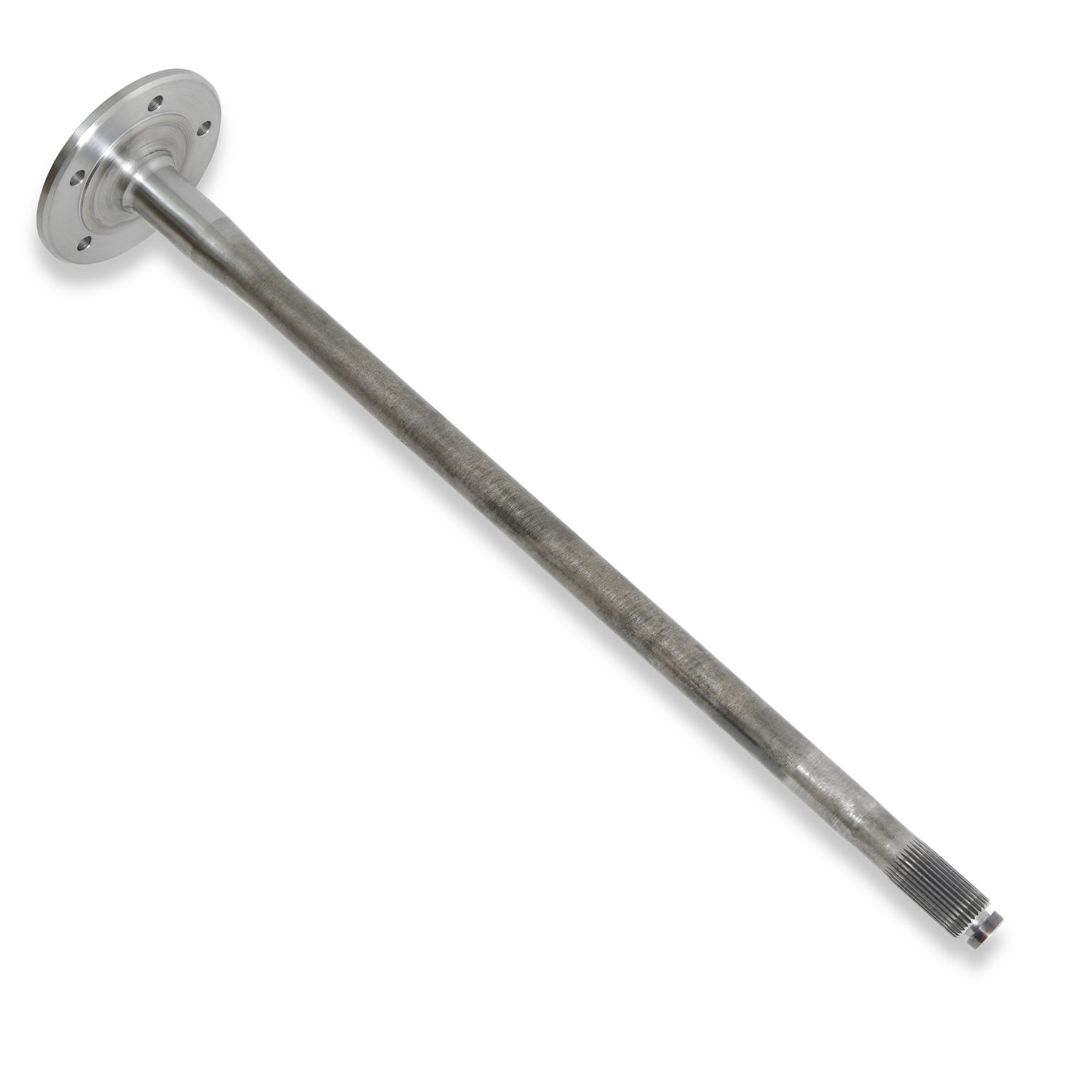

Time can be rough on your axles. Years of use and abuse can cause damage to the splines of bearing surfaces. Hurst Engineering axles are made from 1541H alloy for strength and durability. Our replacement axles for 1971-1981 C series trucks with a 8.875 12-Bolt feature 30 splines, 5 x5" lug pattern, and are 31-7/16" in length. Look to Hurst Engineering for your truck axle needs._x000D_ _x000D_ Sold individually.

Features and Benefits

• Heat treated high quality 1541H alloy for strength and durability

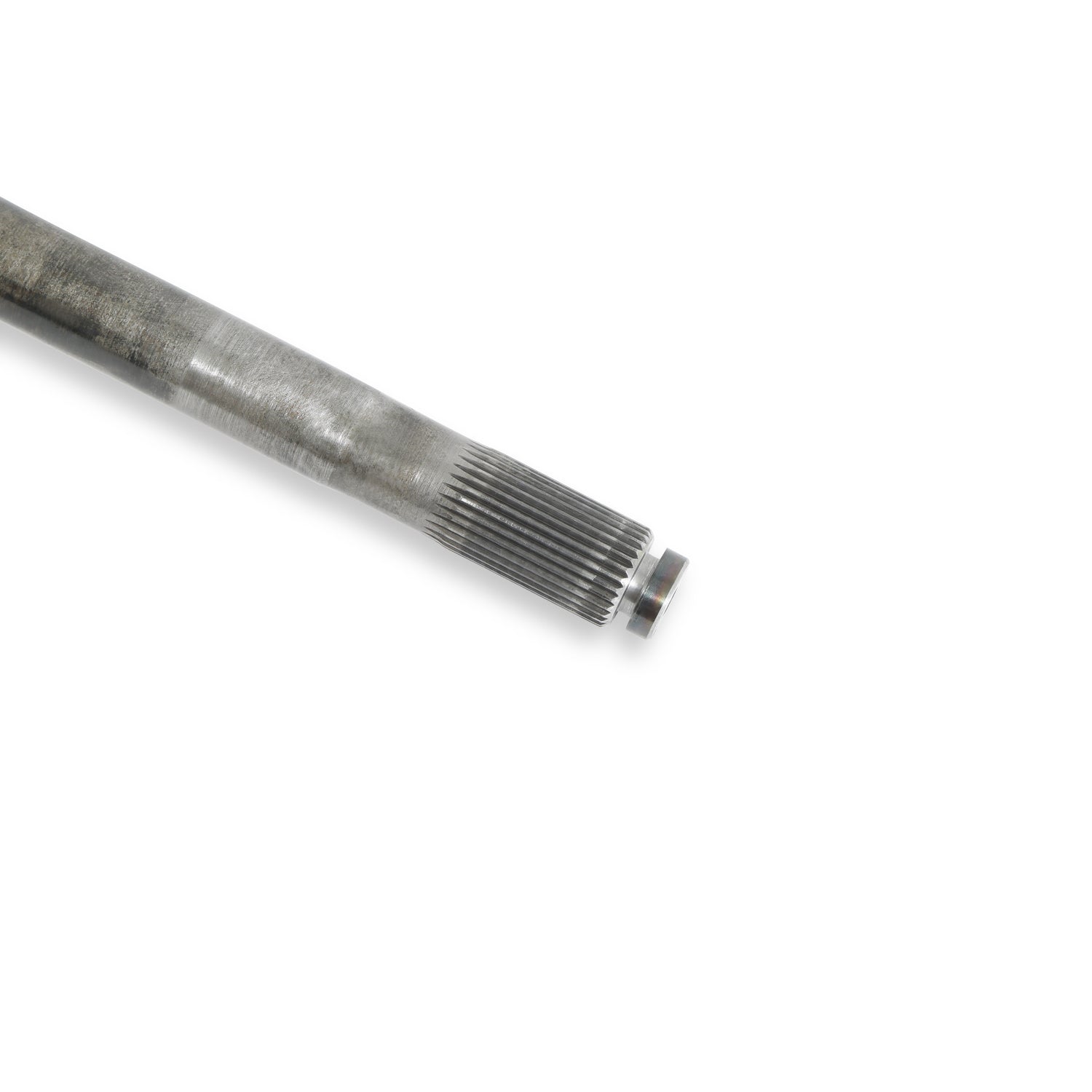

• 30 Spline and 31 7/16" long for a direct replacement

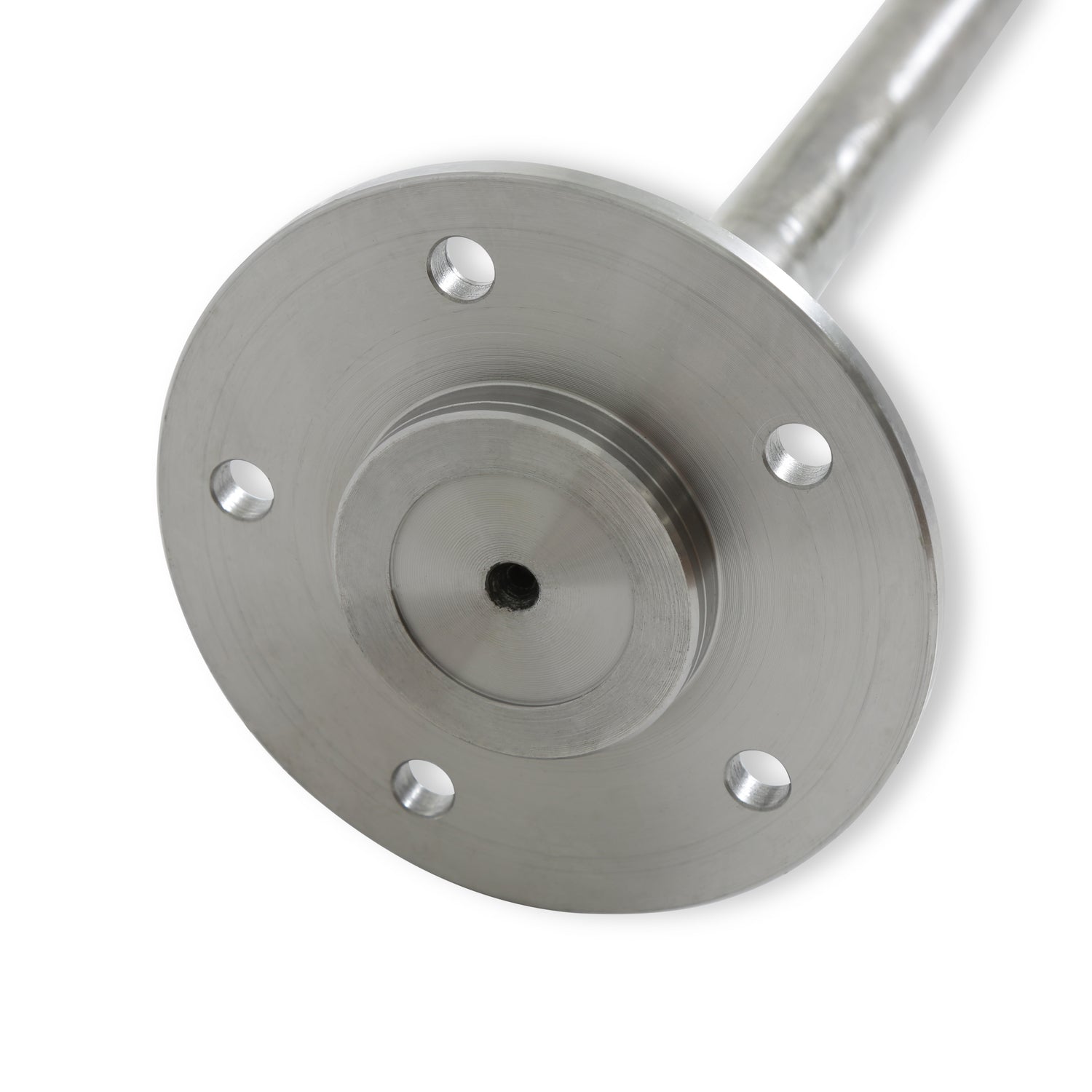

• 5 x 5" lug pattern
• Fits 8.875" GM Truck 12 Bolt

Specifications

Brand	Hurst
Category	Driveline and Axles
Emission Code	6
part type	Drive Axle Shaft
Product Type	Axles
Rear Axle Type	GM 12-Bolt (12T)
Shaft Length	31-7/16"
Spline Quantity	30
Sub Category	Axle Shaft
Warning	California Proposition 65
Wheel Bolt Pattern (in)	5x5
