Holley | SKU:
20-211

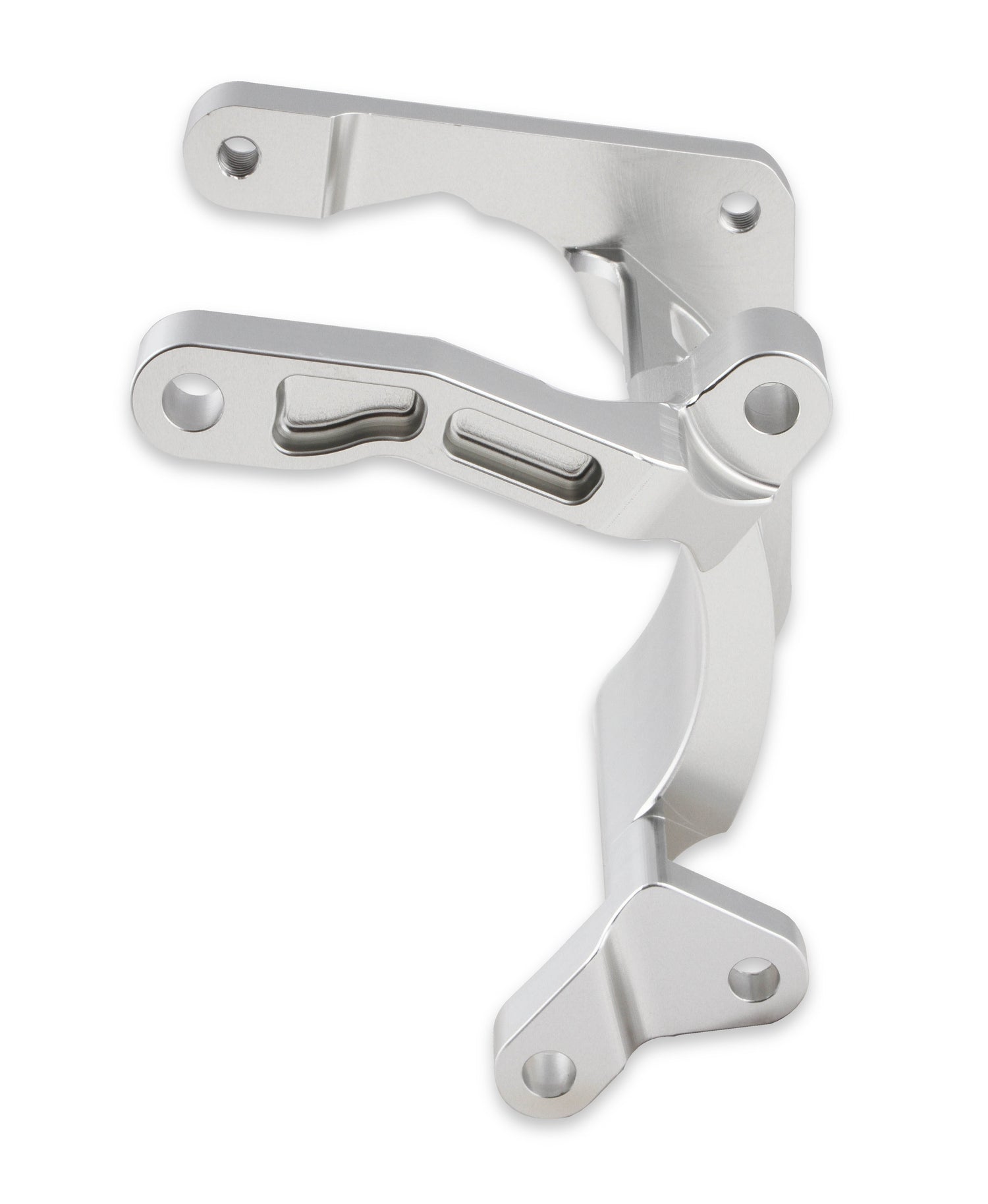

Holley Low Mount A/C Brackets for the Gen 5 LT4/LT1 Dry Sump Engines w/DSE Subframe - 20-211
CLEARANCE ITEM / ALL SALES FINAL - Clear Aluminum Finish
Regular price
$97.00 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley Low Mount A/C Brackets for the Gen 5 LT4/LT1 Dry Sump Engines w/DSE Subframe - 20-211
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
CLEARANCE ITEM / ALL SALES FINAL - Clear Aluminum Finish
Part Number: 20-211
Holley always focuses on designing new products to make engine swaps easier. The latest is the Low Mount A/C Brackets for the Gen 5 LT4/LT1 Dry Sump engines. If you are buying one of these engines new out of the crate or from your local salvage yard, you will need some extra parts designed to help install them.

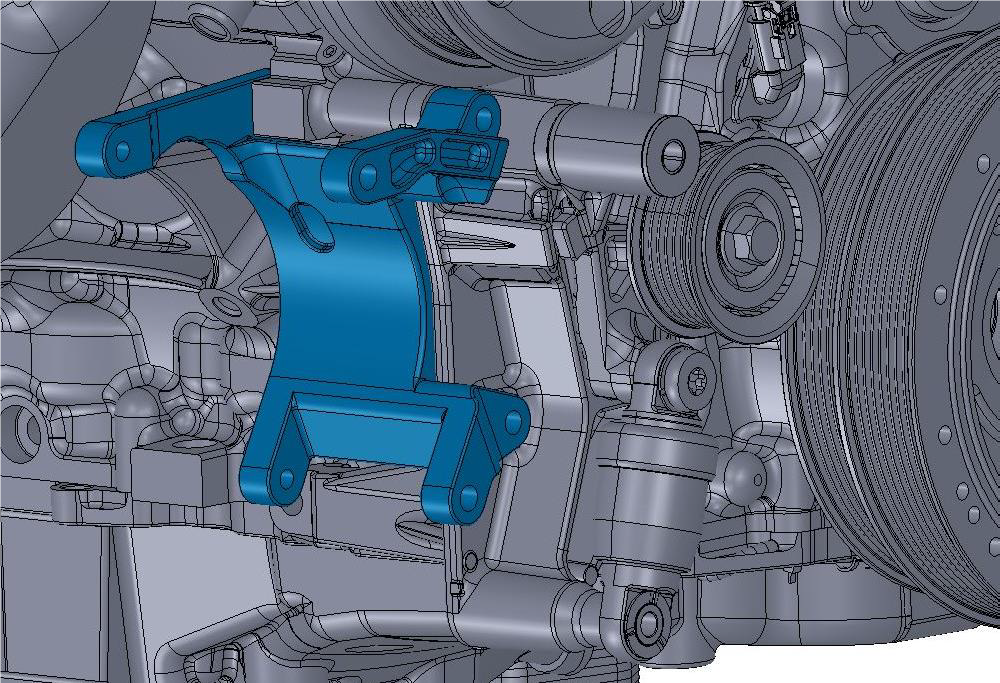

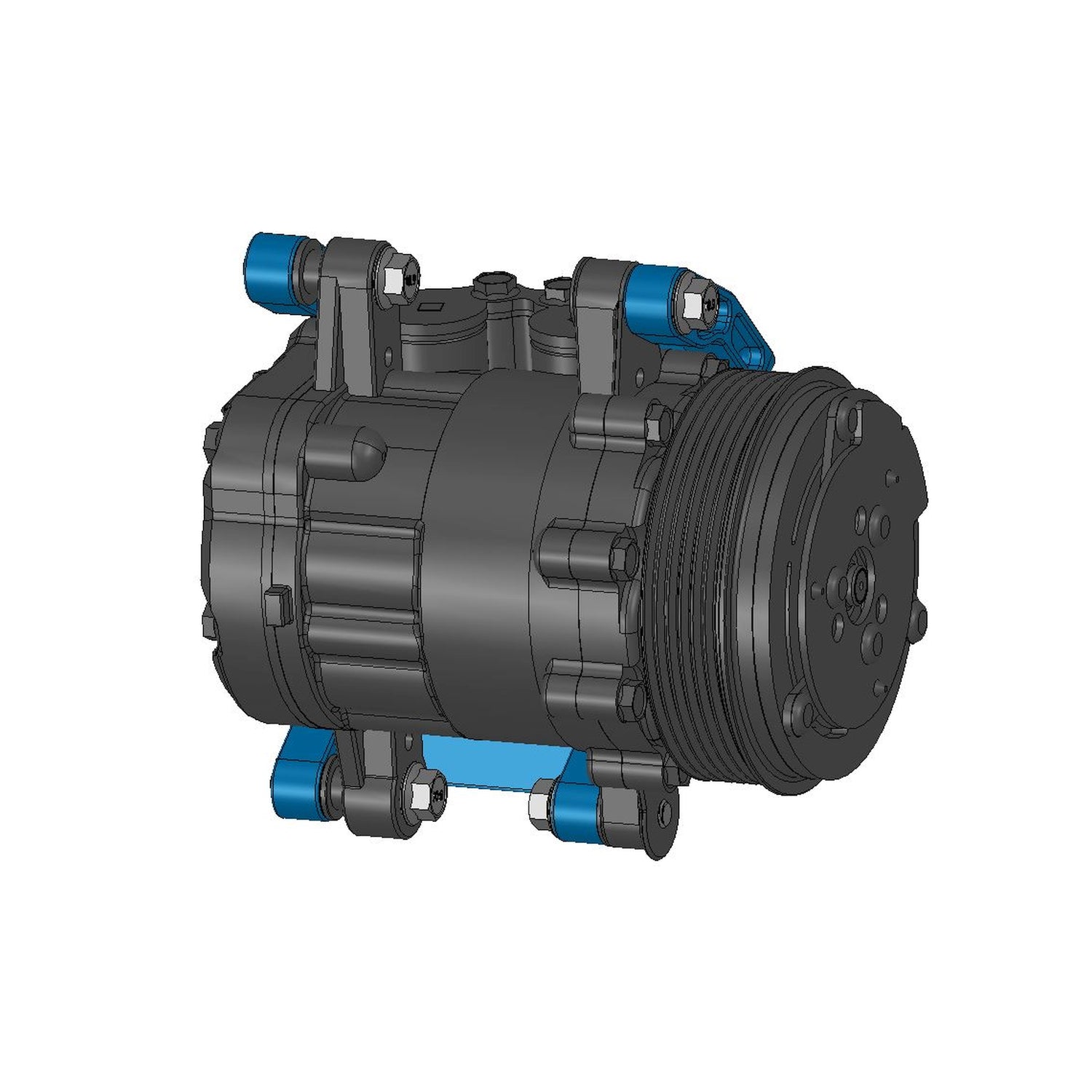

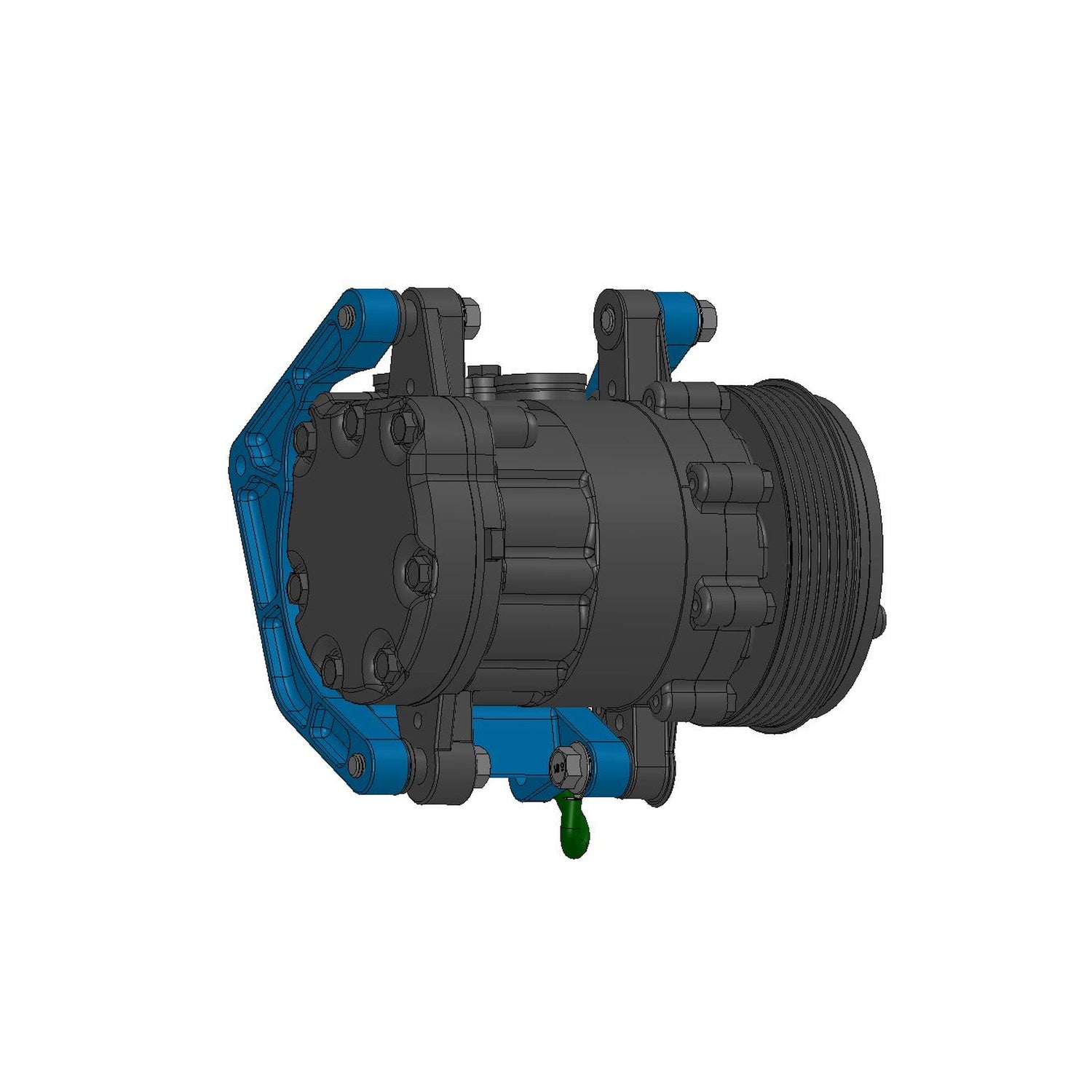

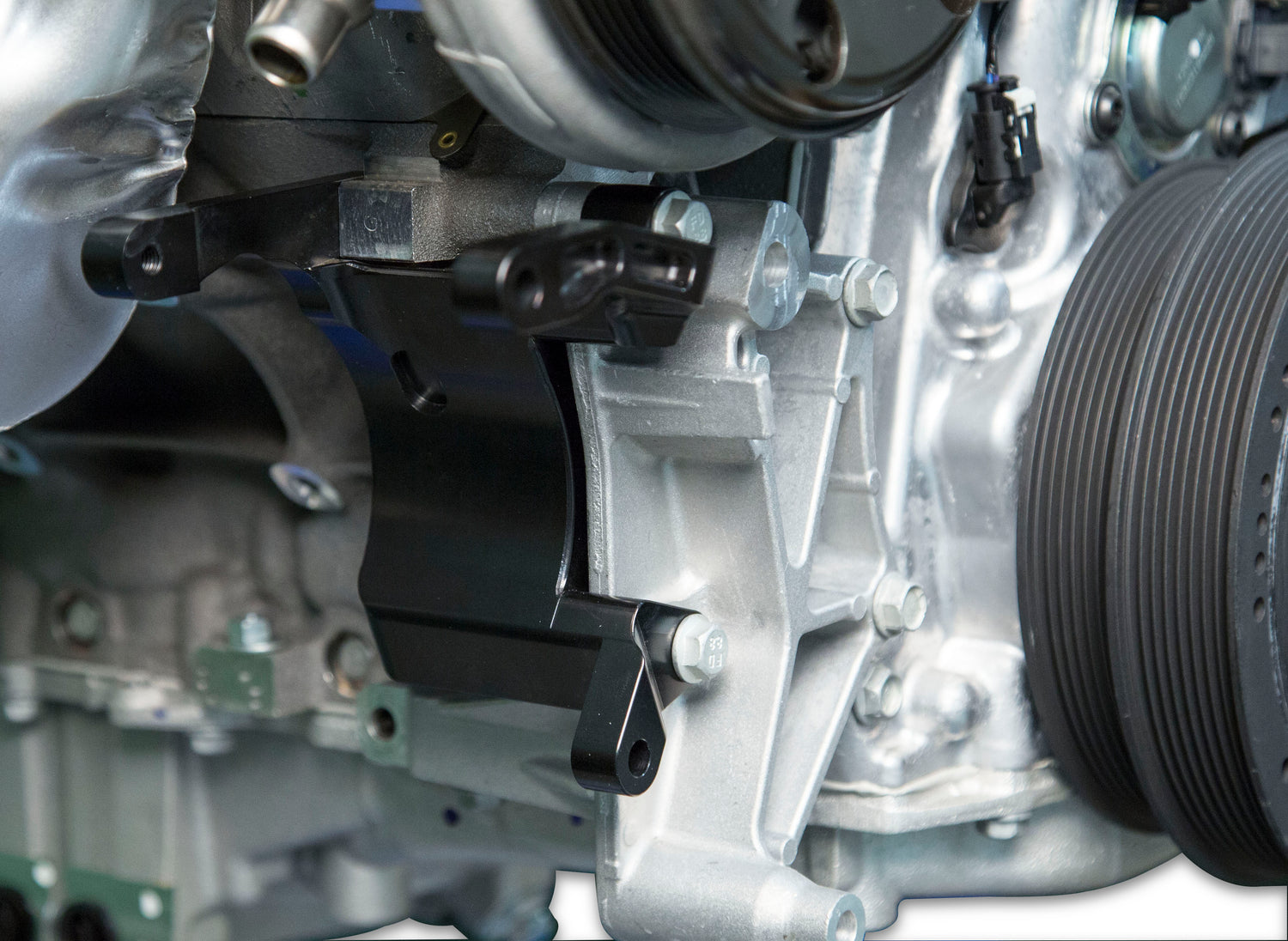

That is where Holley comes in. The new A/C brackets were designed to help you gain additional space when swapping this engine platform into older muscle cars. While there is not much room on the lower front of these dry sump engines, these brackets allow you to use the SD7 Type A/C compressor. The Bracket is designed to rotate SD7 compressor to position your A/C lines upward instead of pointing directly outward towards that frame rail area.

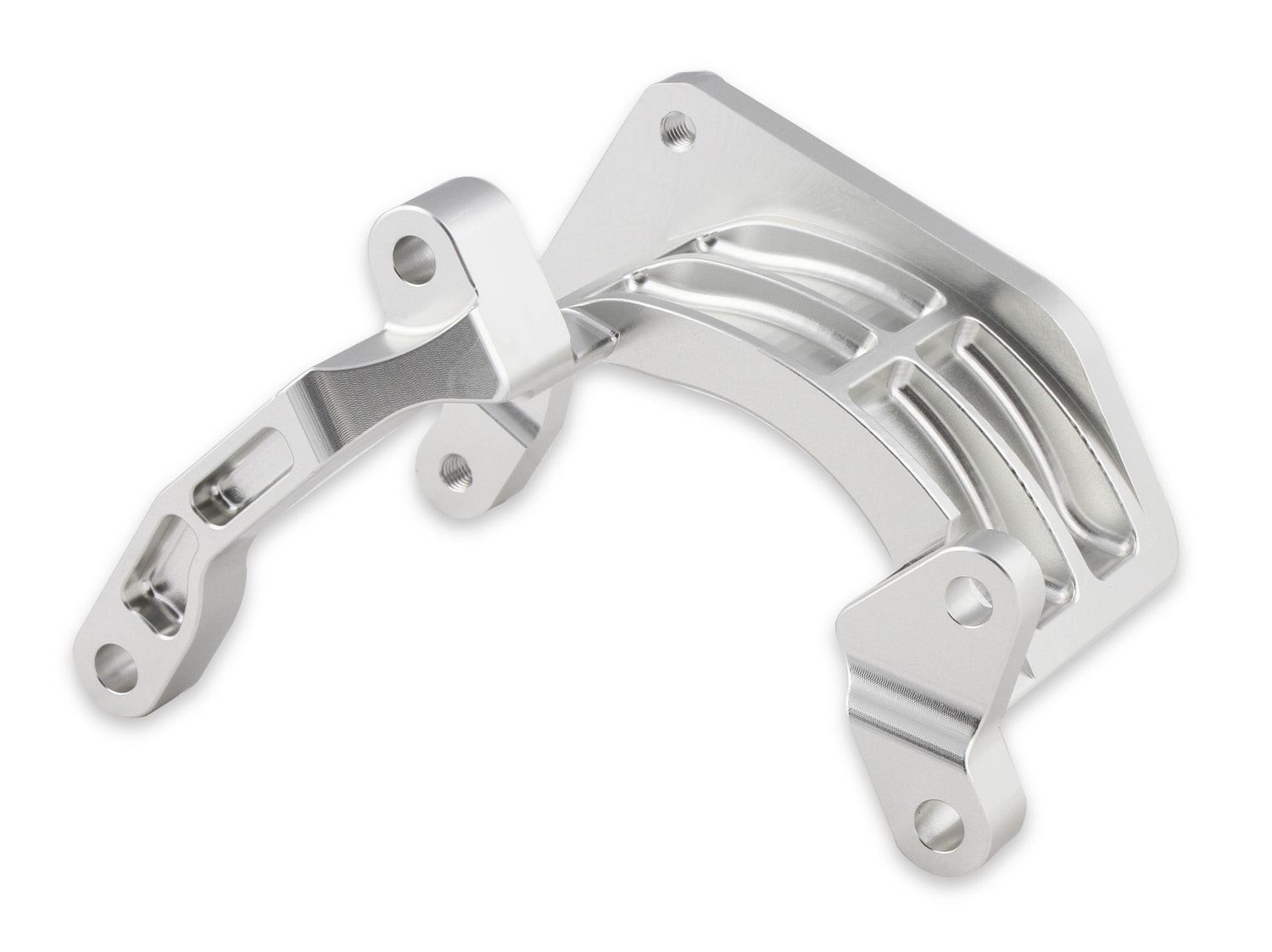

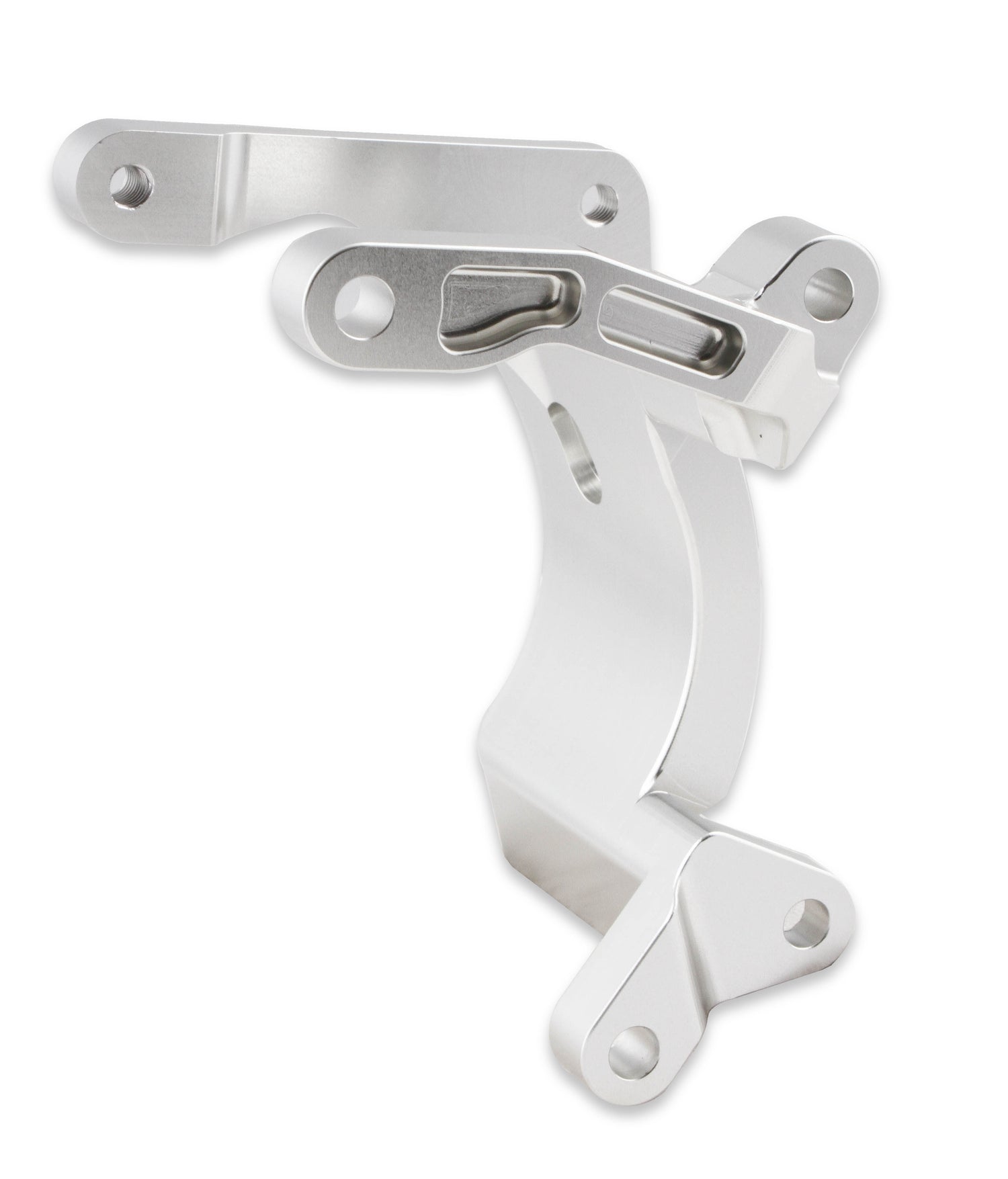

The aluminum brackets come in two finishes, clear coat and black.
This design is a modified three bolt mount for use with the DSE 67-69 F-body sub frames. The bracket was designed to allow for suspension clearance if you are using the DSE suspension components.

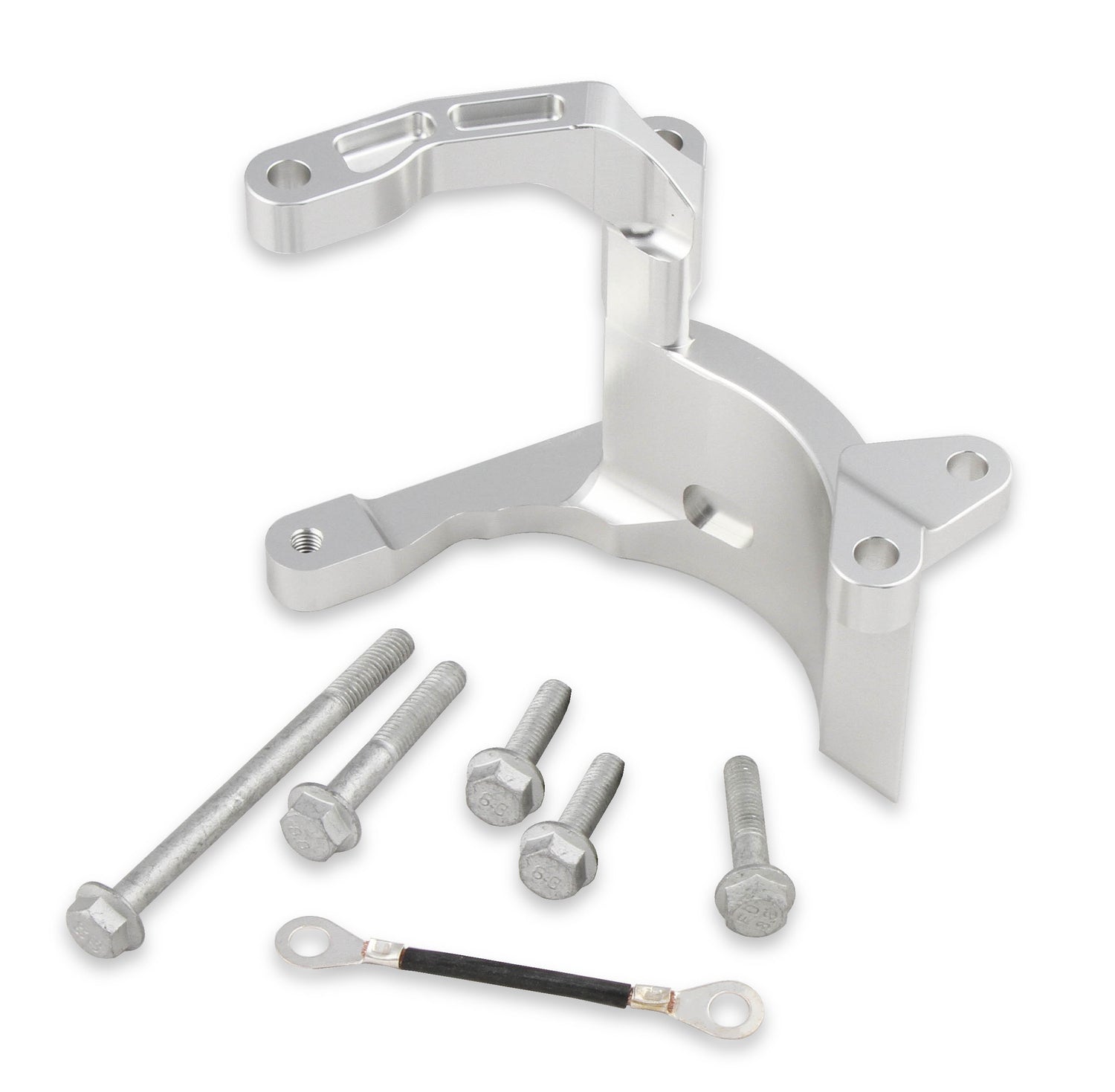

*The DSE sub-frame compatible versions (20-211 & 20-211B) do not have the lower rear mounting ear. This is for frame clearance issues and therefore only 1 rear flange bolt is included in the kit. Trimming of the lower rear mounting ear on the A/C compressor body may be necessary. * Additional GM parts could be needed for the installation of this bracket. Please refer to the product instructions.
Features and Benefits
• SD7 A/C Compressor is not included.
* Additional GM parts could be needed for the installation of this bracket. Please refer to the product instructions.
Part Number: 20-211
Holley always focuses on designing new products to make engine swaps easier. The latest is the Low Mount A/C Brackets for the Gen 5 LT4/LT1 Dry Sump engines. If you are buying one of these engines new out of the crate or from your local salvage yard, you will need some extra parts designed to help install them.
That is where Holley comes in. The new A/C brackets were designed to help you gain additional space when swapping this engine platform into older muscle cars. While there is not much room on the lower front of these dry sump engines, these brackets allow you to use the SD7 Type A/C compressor. The Bracket is designed to rotate SD7 compressor to position your A/C lines upward instead of pointing directly outward towards that frame rail area.
The aluminum brackets come in two finishes, clear coat and black.
This design is a modified three bolt mount for use with the DSE 67-69 F-body sub frames. The bracket was designed to allow for suspension clearance if you are using the DSE suspension components.
*The DSE sub-frame compatible versions (20-211 & 20-211B) do not have the lower rear mounting ear. This is for frame clearance issues and therefore only 1 rear flange bolt is included in the kit. Trimming of the lower rear mounting ear on the A/C compressor body may be necessary. * Additional GM parts could be needed for the installation of this bracket. Please refer to the product instructions.
Features and Benefits
• SD7 A/C Compressor is not included.
* Additional GM parts could be needed for the installation of this bracket. Please refer to the product instructions.
Specifications
Specifications
-
Specifications
A/C Compressor Included No A/C Compressor Type SD7 Accessory Drive Style Low-Mount Alternator Included No Application GM Gen V LT Belt Included No Brand Holley Category Engine Choose Your Part Accessory Bracket Color Clear Coat Emission Code 5 Engine GM Small Block Gen V (LT Based) Finish Clear anodized Grade Type Performance Material Billet Aluminum Mounting Hardware Included Yes part type A/C Compressor Bracket Power Steering Pump Included No Product Type Accessory Bracket Subframe Detroit Speed Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
Instructions
