Holley EFI | SKU:
12-886KIT

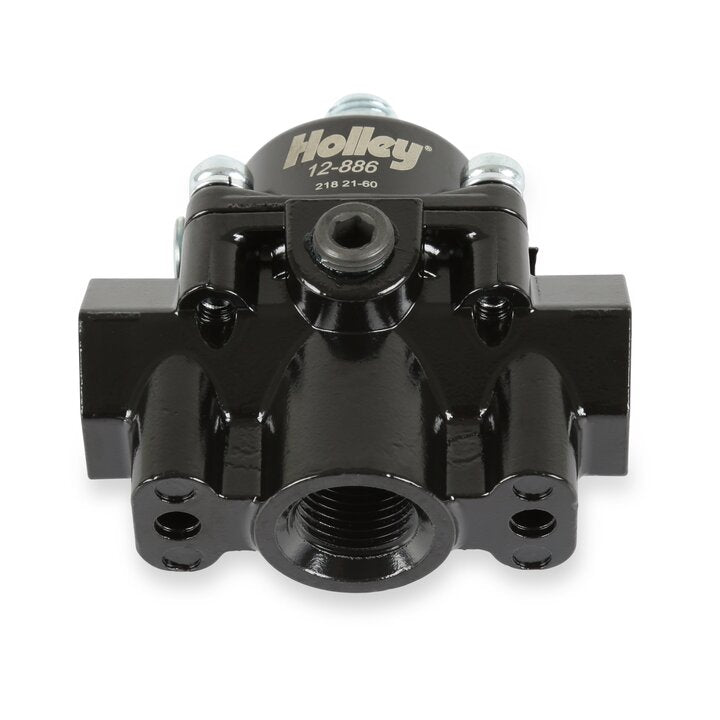

Holley EFI Holley Die Cast EFI Bypass Fuel Pressure Regulator Kit - 12-886KIT
15-60 Psi - Fittings and Gauge Included
Regular price
$337.60 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley EFI Holley Die Cast EFI Bypass Fuel Pressure Regulator Kit - 12-886KIT
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
15-60 Psi - Fittings and Gauge Included
Part Number: 12-886KIT

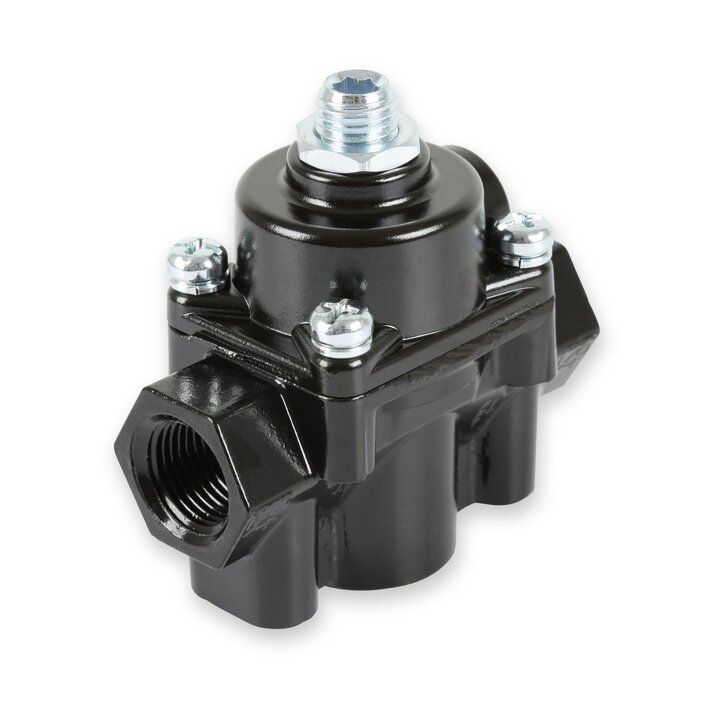

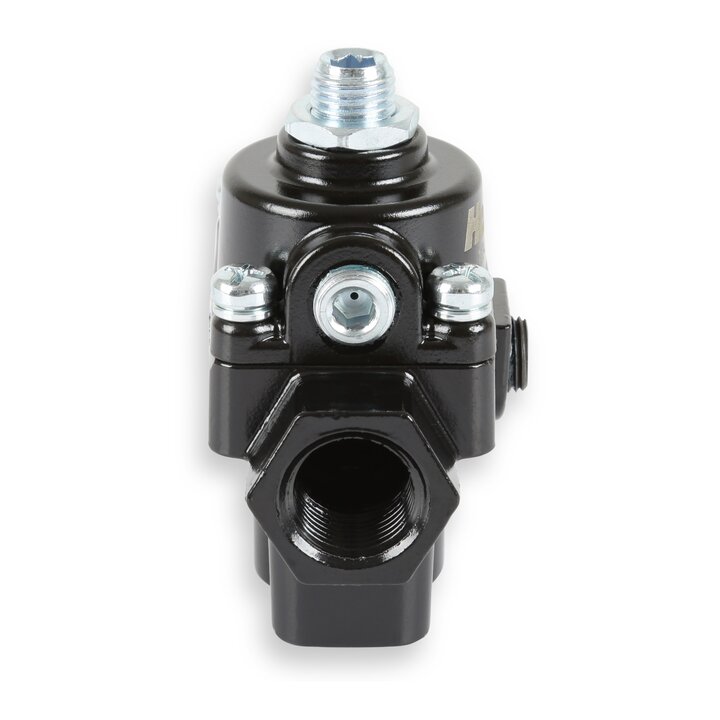

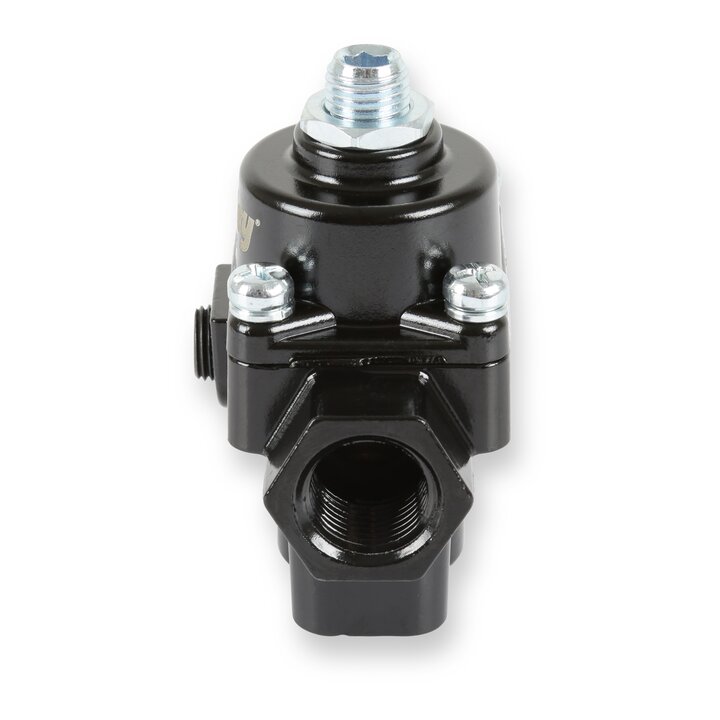

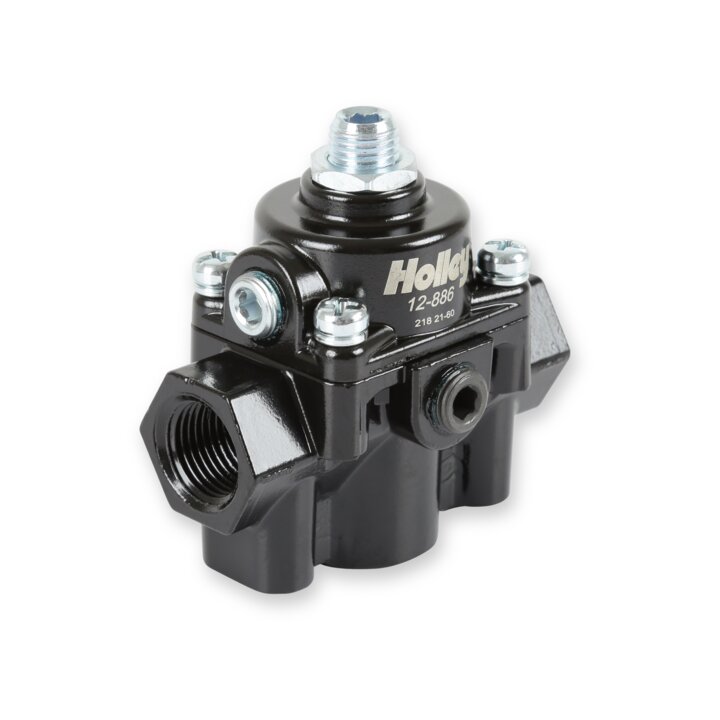

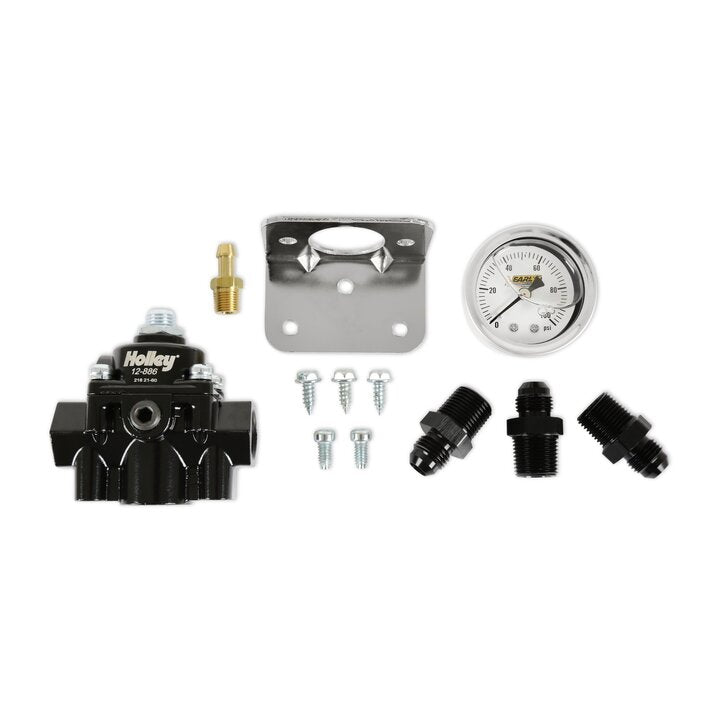

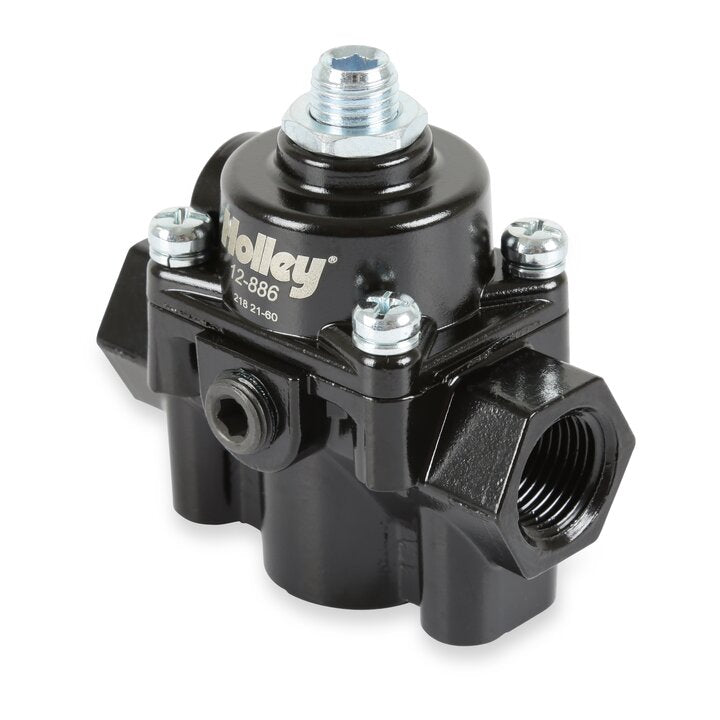

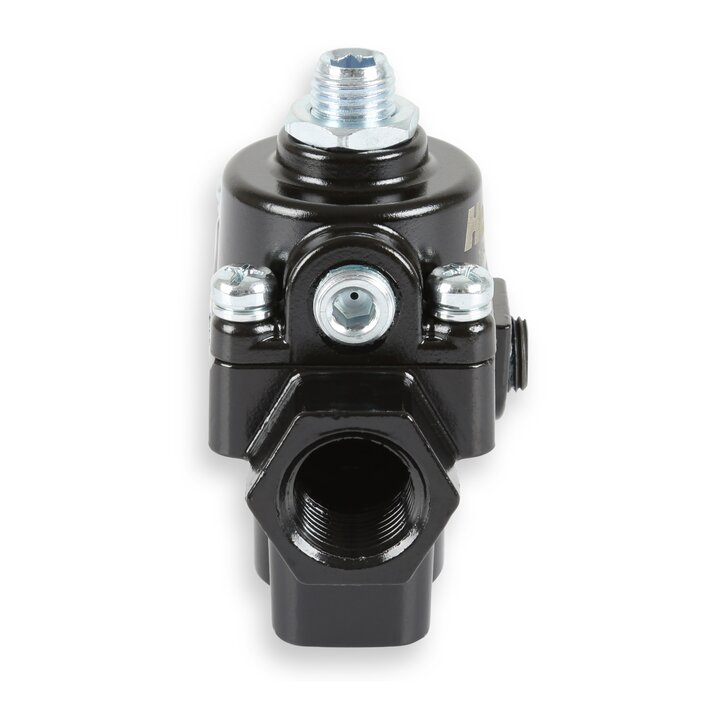

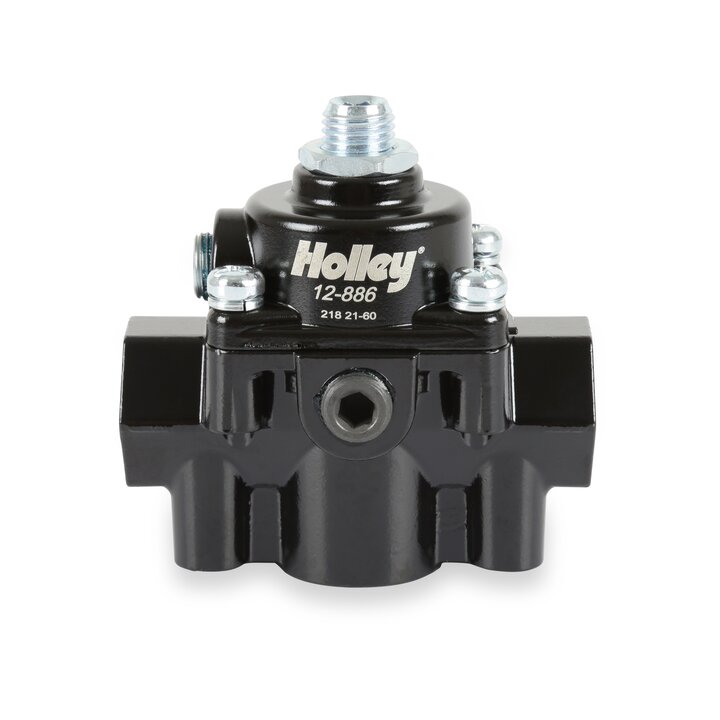

Holley Die Cast EFI Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-886 regulator features a die cast aluminum body and a black finish for corrosion resistance and good looks. The regulator contains 3/8" NPT in/out ports, a 3/8" NPT return port, a 1/8" NPT gauge port, and a 1/8" NPT vacuum port for Boost Reference (1:1). In addition, 3 Earl's 3/8" NPT to -6 AN fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included.
Features and Benefits
• Die Cast Aluminum Construction
• Adjustable from 15-60 psi for precise fuel pressure adjustments
• Used in return style systems with a line back to the fuel tank
• 3/8” NPT Inlet/Outlet Ports
• 3/8” NPT Return Port
• 1/8” NPT Gauge Port
• Earl's Fuel Pressure Gauge (100187ERL)

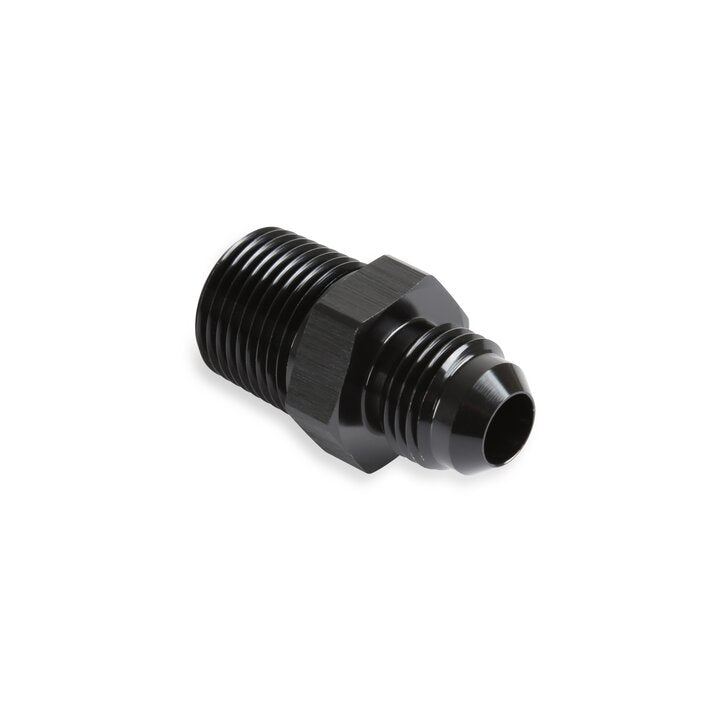

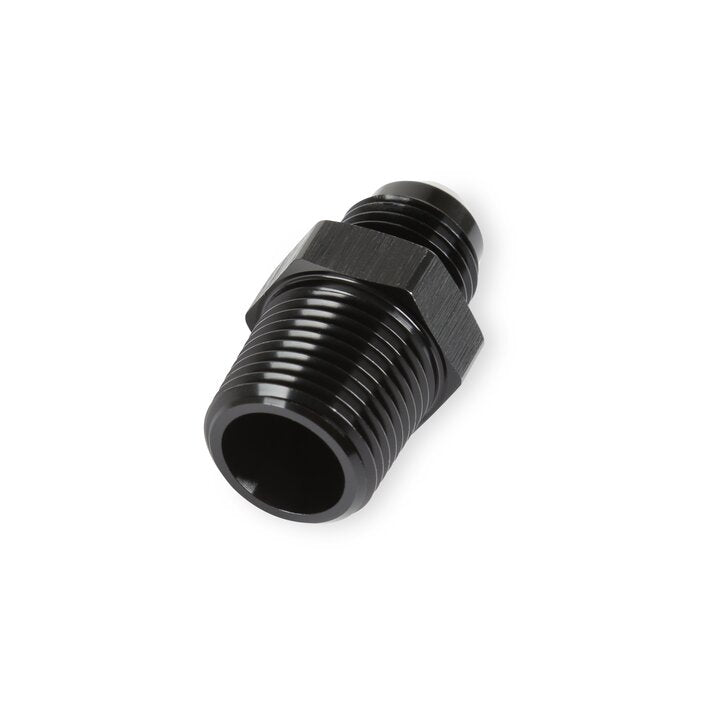

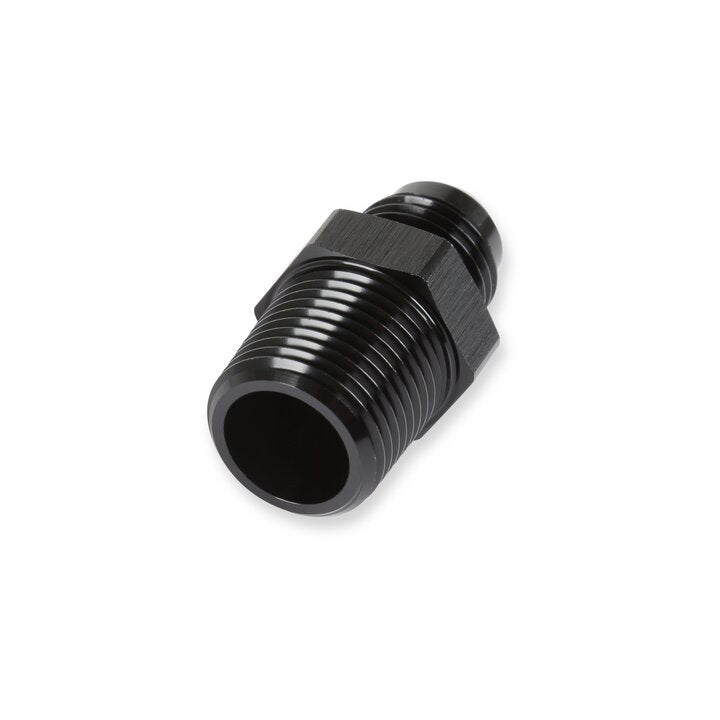

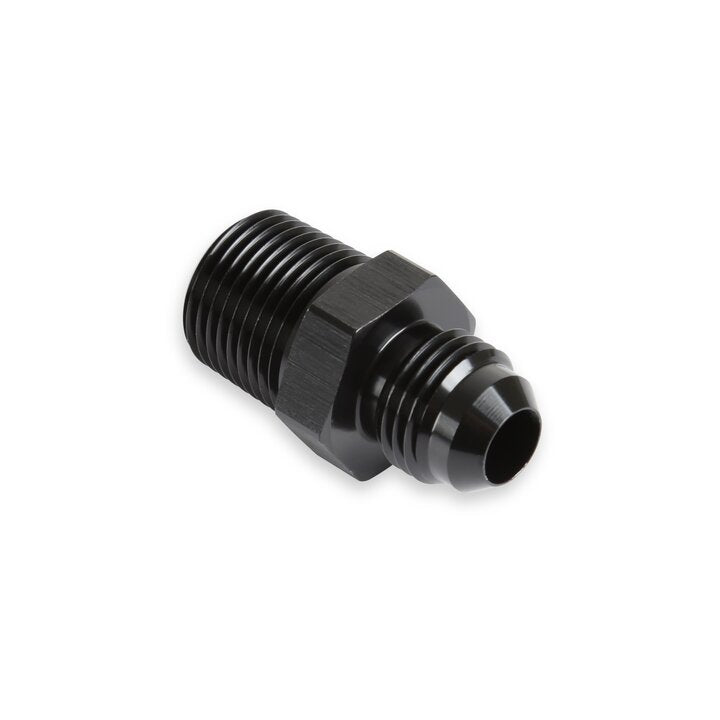

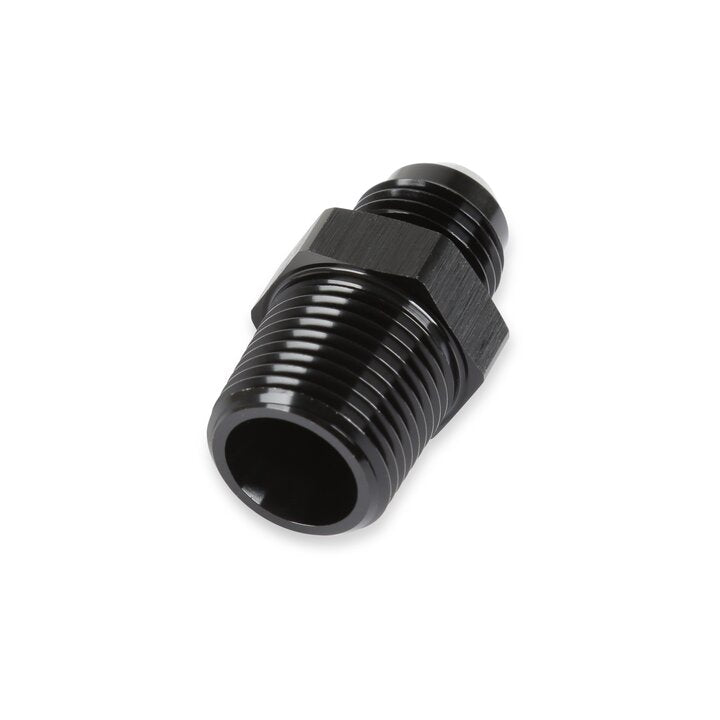

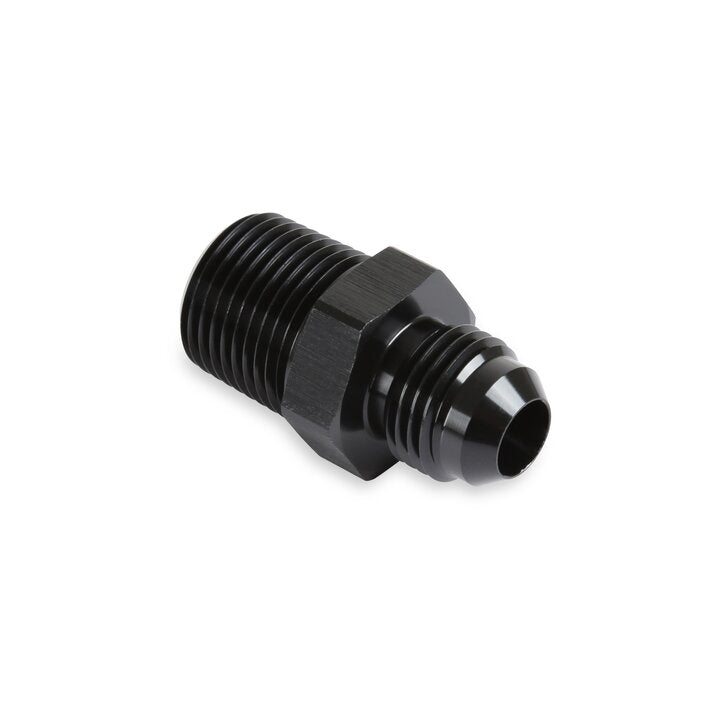

• Earl's 3/8” NPT to -6 AN fittings (AT981666ERL x3)

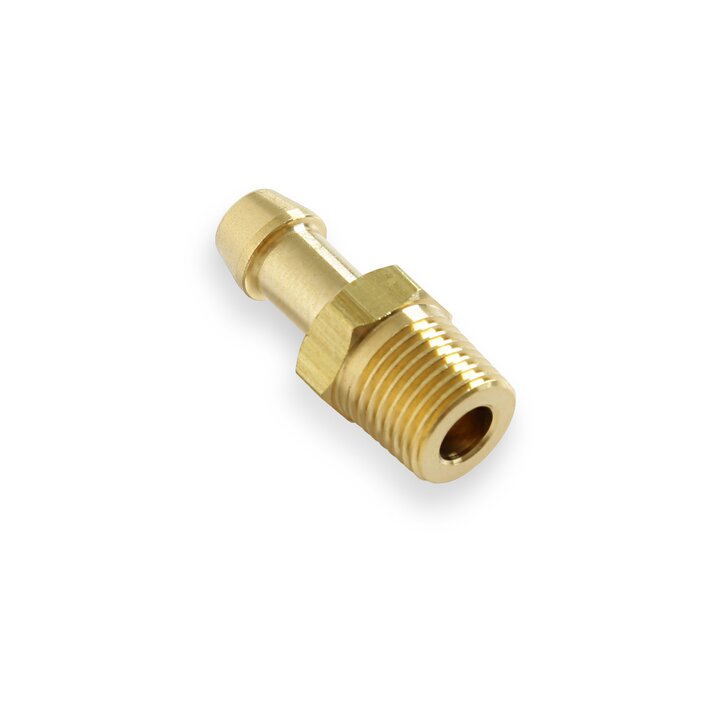

• 1/8" NPT Boost Reference (1:1) and Barbed Fitting

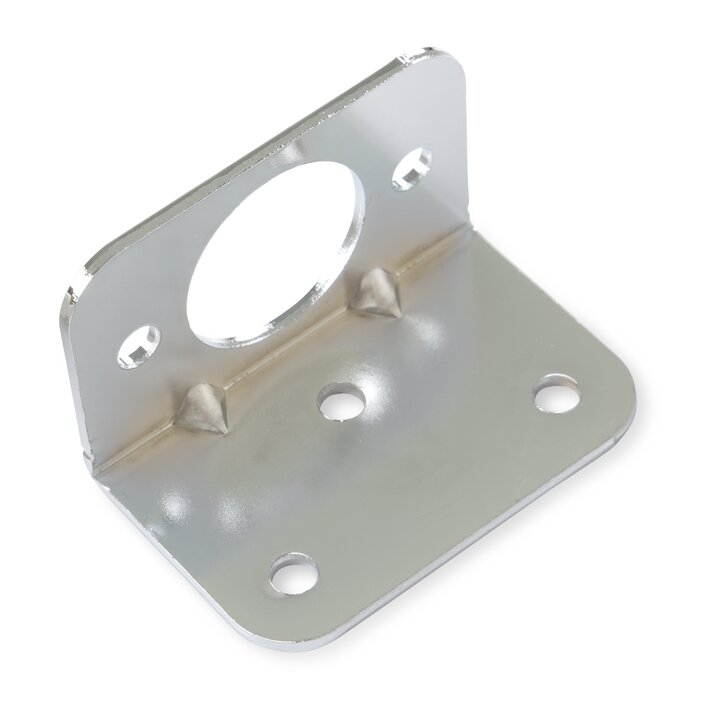

• Mounting Bracket Included
Part Number: 12-886KIT
Holley Die Cast EFI Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-886 regulator features a die cast aluminum body and a black finish for corrosion resistance and good looks. The regulator contains 3/8" NPT in/out ports, a 3/8" NPT return port, a 1/8" NPT gauge port, and a 1/8" NPT vacuum port for Boost Reference (1:1). In addition, 3 Earl's 3/8" NPT to -6 AN fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included.
Features and Benefits
• Die Cast Aluminum Construction
• Adjustable from 15-60 psi for precise fuel pressure adjustments
• Used in return style systems with a line back to the fuel tank
• 3/8” NPT Inlet/Outlet Ports
• 3/8” NPT Return Port
• 1/8” NPT Gauge Port
• Earl's Fuel Pressure Gauge (100187ERL)
• Earl's 3/8” NPT to -6 AN fittings (AT981666ERL x3)
• 1/8" NPT Boost Reference (1:1) and Barbed Fitting
• Mounting Bracket Included
Specifications
Specifications
-
Specifications
Adjustable Yes Brand Holley EFI Category Air and Fuel Delivery Color Black Emission Code 5 Fuel System EFI Fuel System Type EFI Fuel Type Gasoline Gauge Port Yes Grade Type Performance Inlet Port Diameter 3/8 NPT IN Inlet Quantity One Inlet Size 3/8 inch NPT Inlet Type NPT Material Aluminium Maximum Pressure Reading 100 PS Mounting Hardware Included Yes Mounting Type Bolt On Outlet Port Diameter 3/8 NPT IN Outlet Quantity Two Outlet Size 3/8 inch NPT Outlet Type NPT part type Fuel Injection Pressure Regulator Port Quantity 5 Pressure Range 15-60 PSI Product Type Fuel Pressure Regulator Return Size 3/8 inch NPT Style Bypass Sub Category Fuel Injection System and Related Components Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
