Holley 860008-1 Sniper EFI Throttle Body

90MM Throttle Body LS Engine, Black with GM IAC provision

Part Number: 860008-1

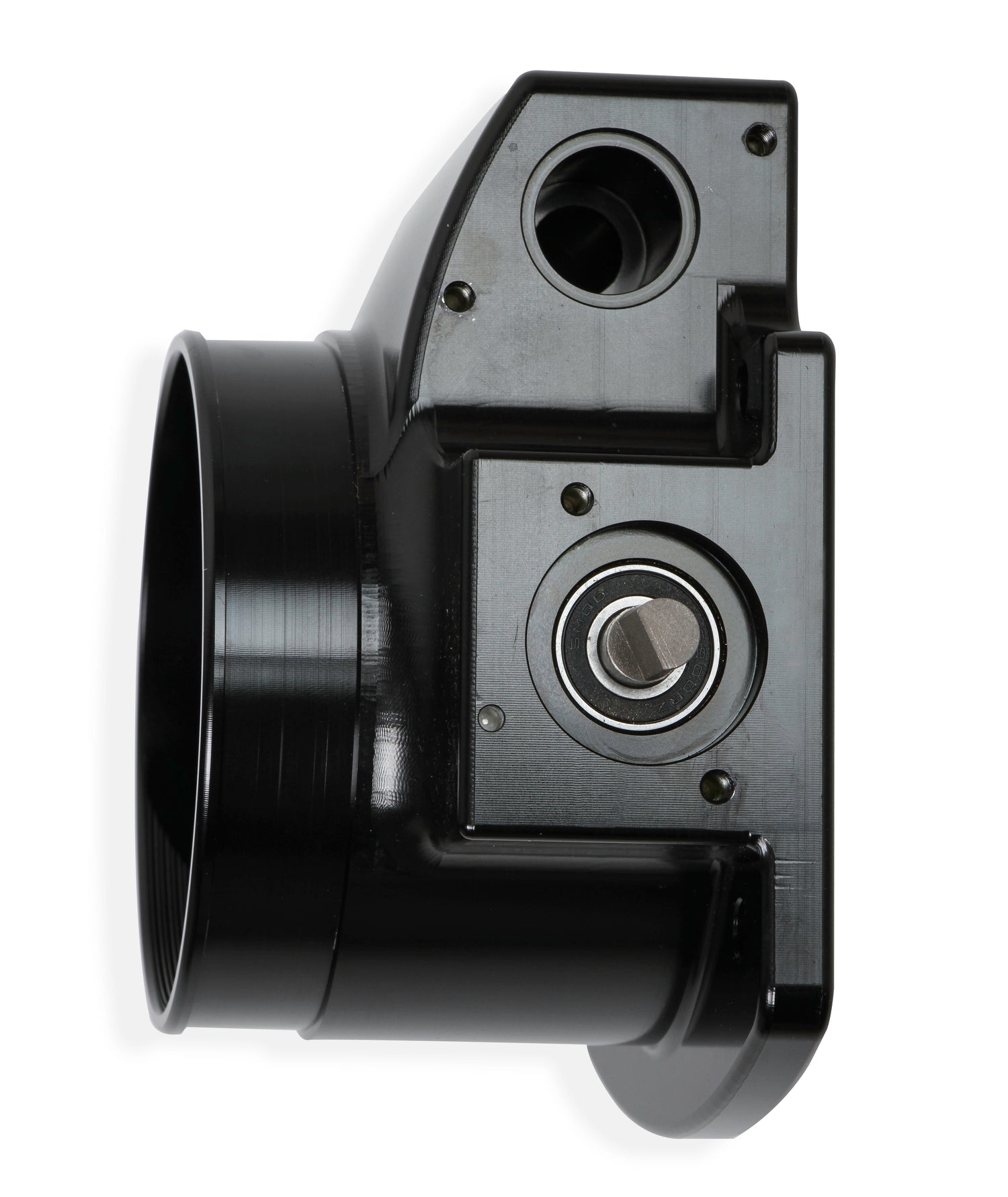

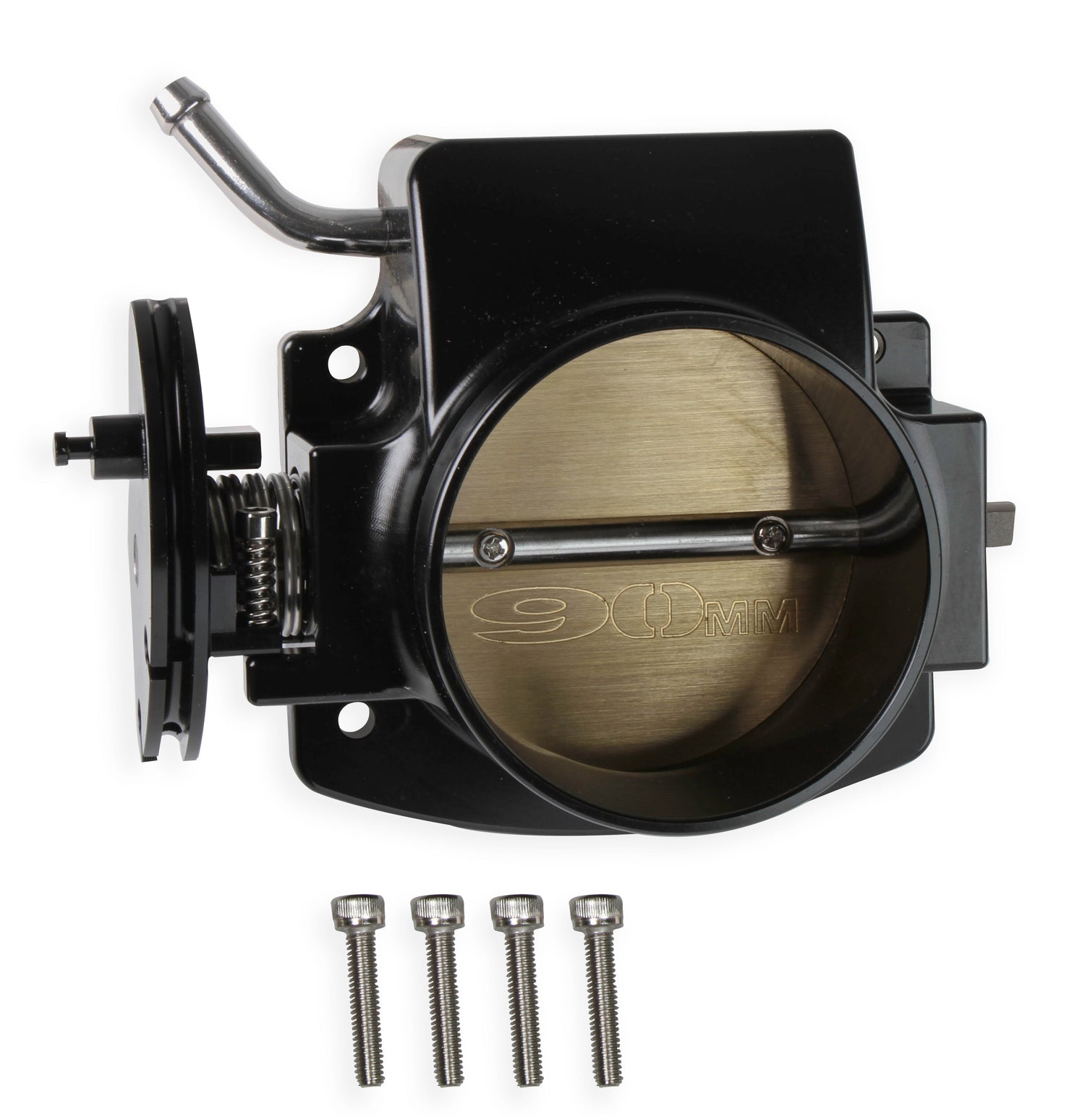

Sniper EFI's new 90mm billet aluminum throttle bodies are designed as a direct fit for the Fabricated Race intake manifolds. Don't let the low price fool you, these are feature packed throttle bodies available in both bright silver or black anodized finishes. The enlarged bore sizes allow for increased airflow to support your higher horsepower needs, a progressive throttle pulley enhances low speed drivability and a double return spring provides solid and secure throttle control feel.

Features and Benefits

• Cable operated throttle body available in 90mm opening
• Enlarged bore allows increased airflow to support higher horsepower requirements
• Built specifically for Sniper EFI Race intake manifolds
• Compatible with LS intake manifolds with 4-bolt mounting pattern
• High quality billet aluminum construction
• Choice of bright silver or black anodized finish

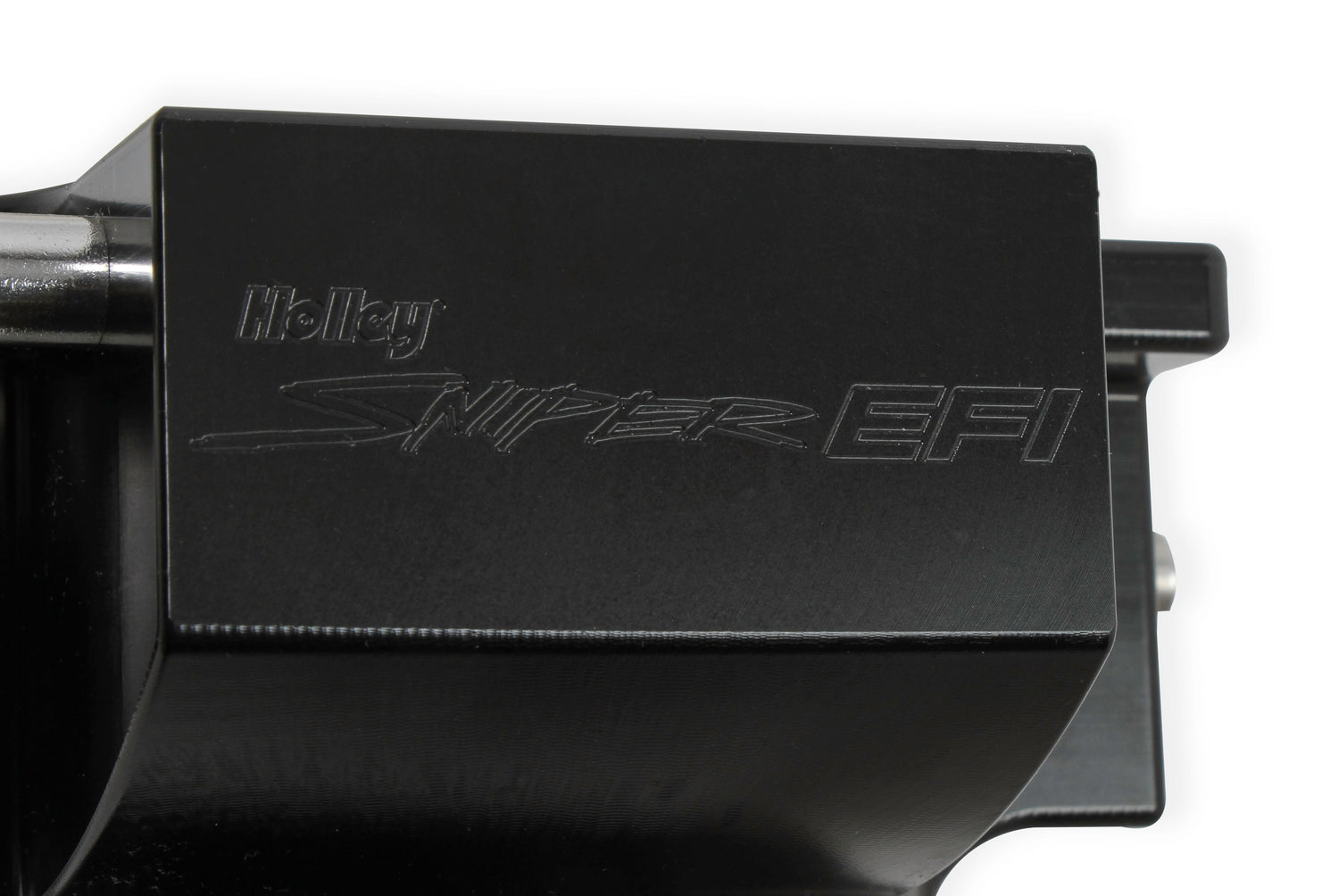

• Laser engraved Sniper EFI logo

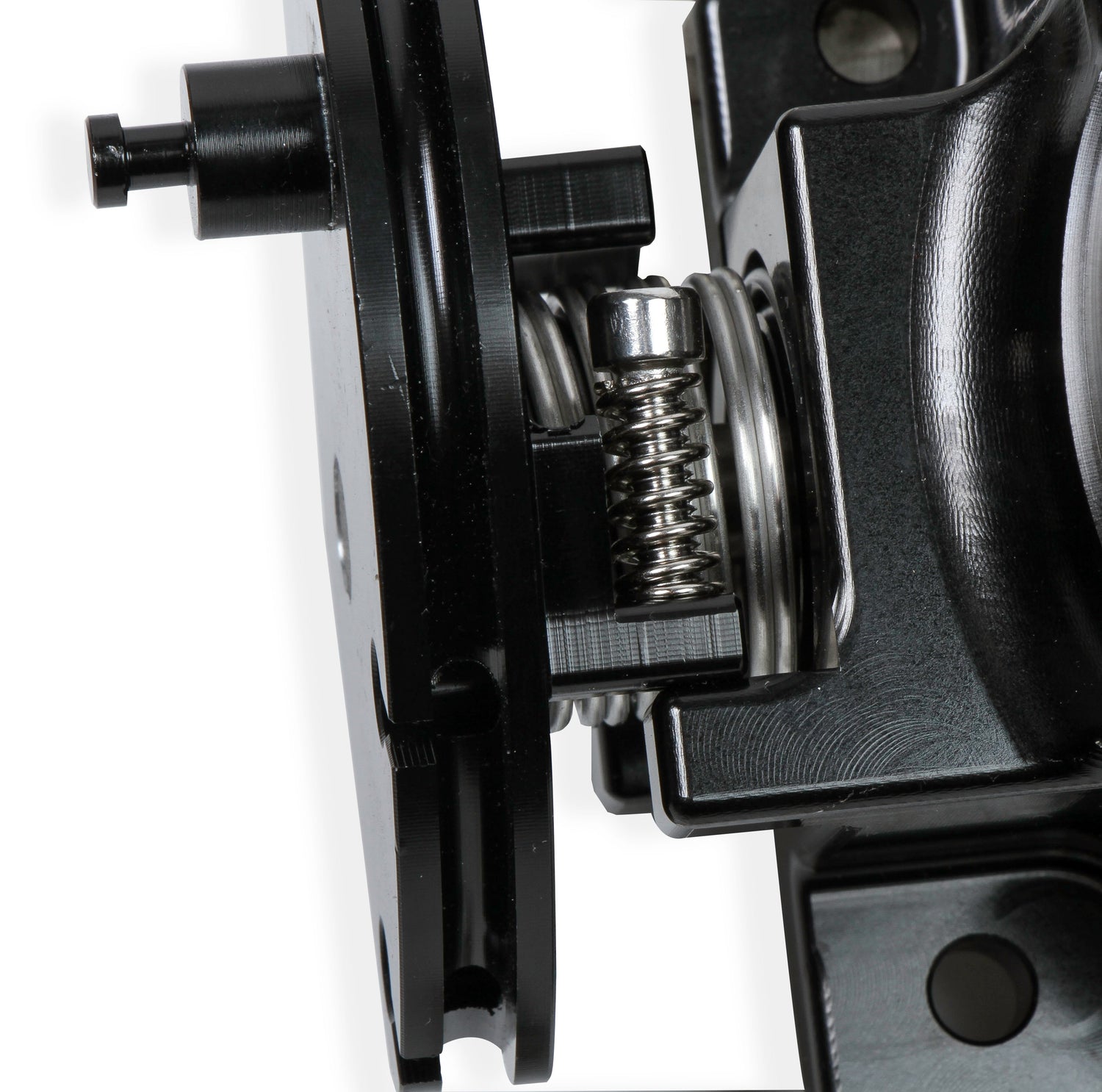

• Progressive throttle pulley and double return spring
• Adjustable throttle stop

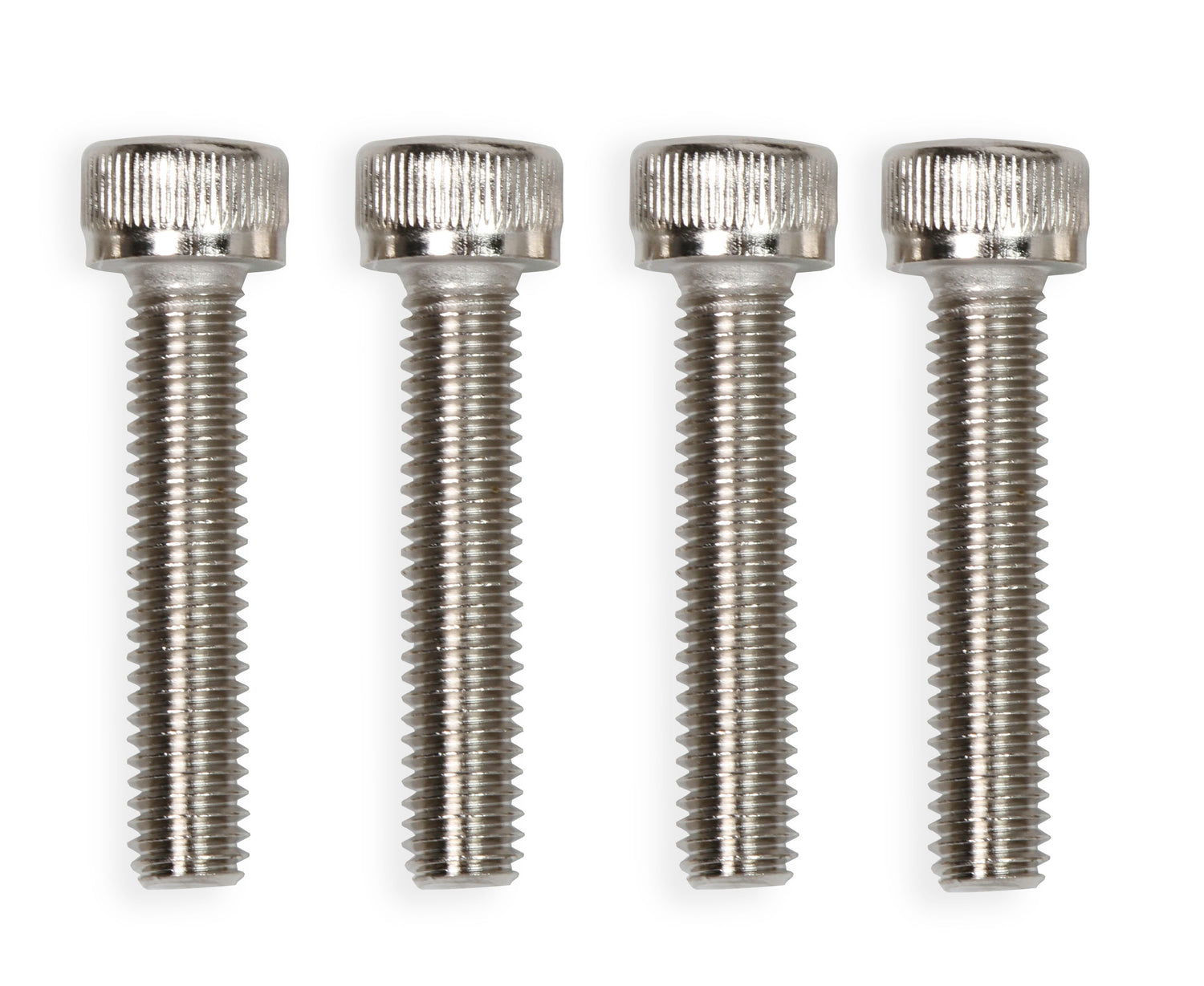

• Hardware included

Will need to use 543-34 for IAC sensor and 870001 for TPS sensor listed under Parts & Kits tab. IAC motor attaching hardware: requires (2) 8-32 UNC screws; TPS sensor attaching hardware: requires (2) M4 x 0.7 screws.
