Holley Sniper EFI | SKU:
860007-1

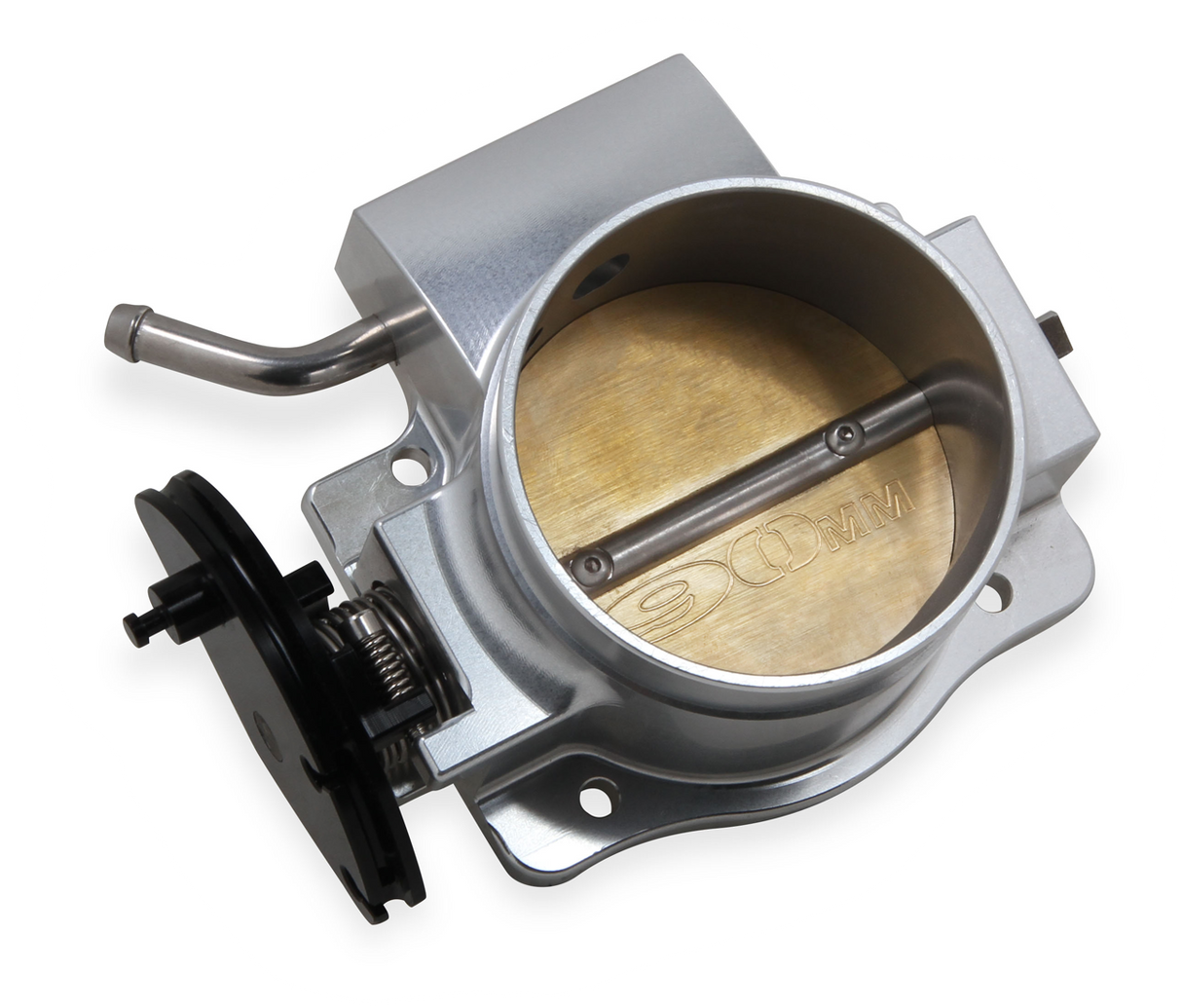

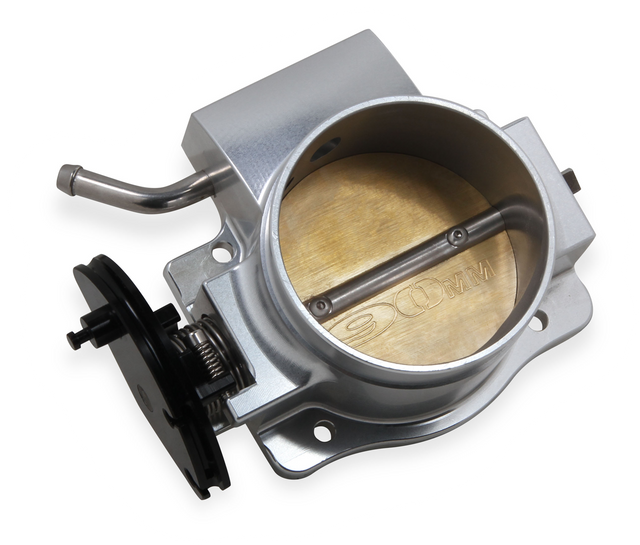

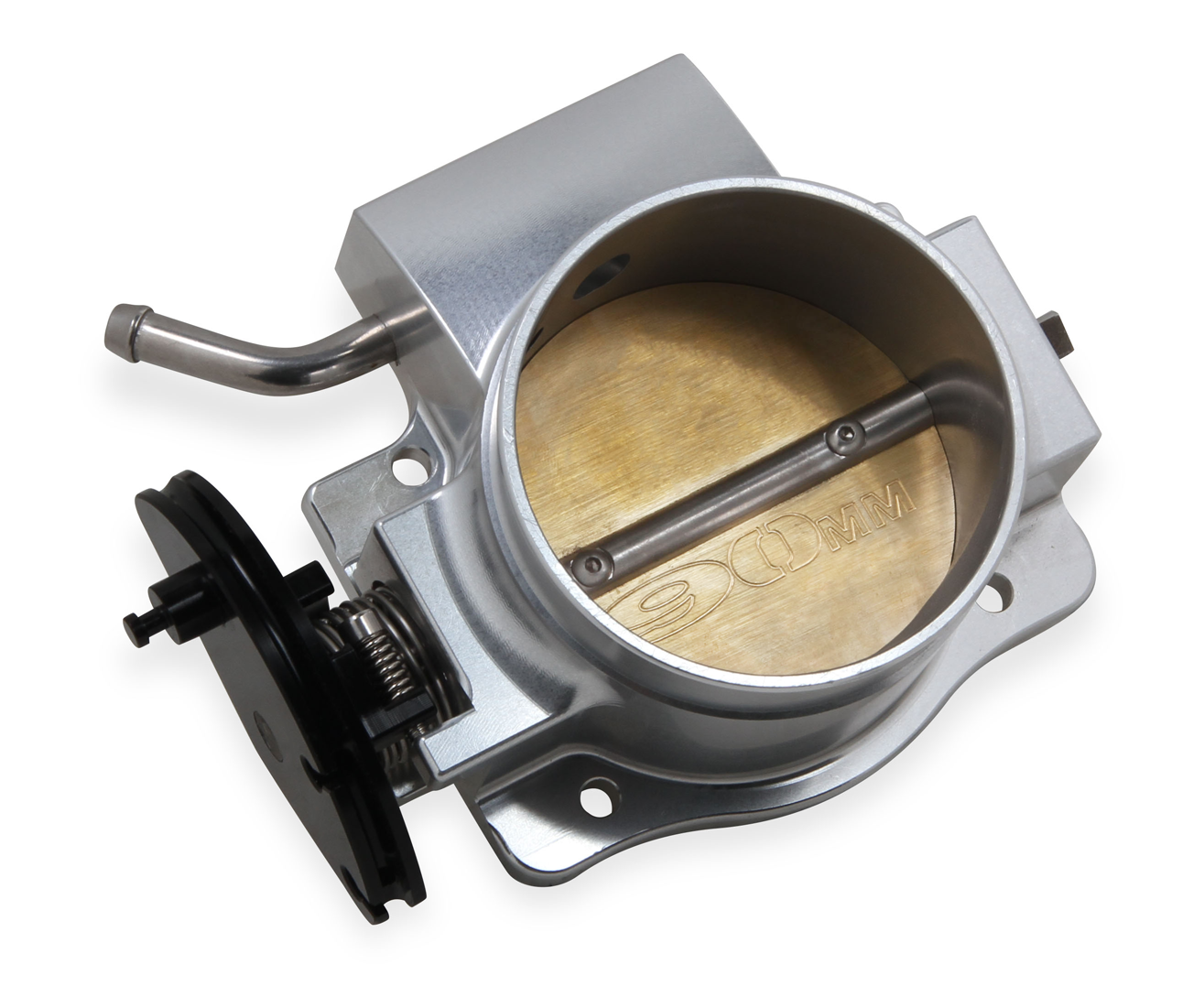

Holley 860007-1 Sniper EFI Throttle Body
90MM Throttle Body LS Engine, Silver with GM IAC provision
Regular price
$387.50 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 860007-1 Sniper EFI Throttle Body is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Holley 860007-1 Sniper EFI Throttle Body
Regular price
$387.50 NZD
+ GST
Unit price
/
Unavailable
Description
Description
90MM Throttle Body LS Engine, Silver with GM IAC provision
Part Number: 860007-1
Sniper EFI's new 90mm billet aluminum throttle bodies are designed as a direct fit for the Fabricated Race intake manifolds. Our throttle bodies are feature packed, available in both bright silver or black anodized finishes. The enlarged bore sizes allow for increased airflow to support your higher horsepower needs, a progressive throttle pulley enhances low speed drivability and a double return spring provides solid and secure throttle control feel.
Features and Benefits
• Cable operated throttle body available in 90mm opening
• Enlarged bore allows increased airflow to support higher horsepower requirements
• Built specifically for Sniper EFI Race intake manifolds
• High quality billet aluminum construction
• Choice of bright silver or black anodized finish
• Laser engraved Sniper EFI logo
• Progressive throttle pulley and double return spring
• Adjustable throttle stop
• 4-bolt style mounting pattern, bolts included
Will need to use 543-34 for IAC sensor and 870001 for TPS sensor listed under Parts & Kits tab. IAC motor attaching hardware: requires (2) 8-32 UNC screws; TPS sensor attaching hardware: requires (2) M4 x 0.7 screws.
Part Number: 860007-1
Sniper EFI's new 90mm billet aluminum throttle bodies are designed as a direct fit for the Fabricated Race intake manifolds. Our throttle bodies are feature packed, available in both bright silver or black anodized finishes. The enlarged bore sizes allow for increased airflow to support your higher horsepower needs, a progressive throttle pulley enhances low speed drivability and a double return spring provides solid and secure throttle control feel.
Features and Benefits
• Cable operated throttle body available in 90mm opening
• Enlarged bore allows increased airflow to support higher horsepower requirements
• Built specifically for Sniper EFI Race intake manifolds
• High quality billet aluminum construction
• Choice of bright silver or black anodized finish
• Laser engraved Sniper EFI logo
• Progressive throttle pulley and double return spring
• Adjustable throttle stop
• 4-bolt style mounting pattern, bolts included
Will need to use 543-34 for IAC sensor and 870001 for TPS sensor listed under Parts & Kits tab. IAC motor attaching hardware: requires (2) 8-32 UNC screws; TPS sensor attaching hardware: requires (2) M4 x 0.7 screws.
Specifications
Specifications
-
Specifications
Billet Color Silver Brand Holley Sniper EFI Category Air and Fuel Delivery Emission Code 8 Finish Silver Fuel Injectors Included No Gasket Or Seal Included No IAC hardware specs (2) 8-32 UNC Idle Air Control Motor Included No Material Billet Aluminum Mounting Hardware Included Yes part type Fuel Injection Throttle Body Product Type Throttle Body Sub Category Fuel Injection System and Related Components Throttle Body Spacer Included No Throttle Bore 90 Throttle Diameter (mm) 90 Throttle Position Sensor Included No TPS hardware specs (2) M4 x 0.7 Transmission N/A Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
Instructions
