Holley Sniper EFI | SKU:
835011
Holley 835011 Sniper Sheet Metal Fabricated Intake Manifold Big Block Chevy
Fabricated Intake Manifold BBC Single Plane 1 x 4150 Silver with Sniper Logo
Regular price
$1,634.00 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 835011 Sniper Sheet Metal Fabricated Intake Manifold Big Block Chevy is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Holley 835011 Sniper Sheet Metal Fabricated Intake Manifold Big Blo...
Regular price
$1,634.00 NZD
+ GST
Unit price
/
Unavailable
Description
Description
Fabricated Intake Manifold BBC Single Plane 1 x 4150 Silver with Sniper Logo
Part Number: 835011
Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity. They are ready to bolt on out of the box and offered in a single or dual 4150 or 4500 carb flange. Holley Sniper Fabricated Manifolds continue to push the aftermarket by introducing intakes for Big Block Chevy Engines. These Intakes are good looking, perform well, and offer an extremely good value for a performance sheet metal style intake manifold.
Features and Benefits
• Equal runner lengths designed to increase velocity and more evenly distribute airflow to all 8 cylinders
• 3mm (1/8") thick T6061 Sheet Aluminum construction, strong and durable for high horsepower and boosted conditions

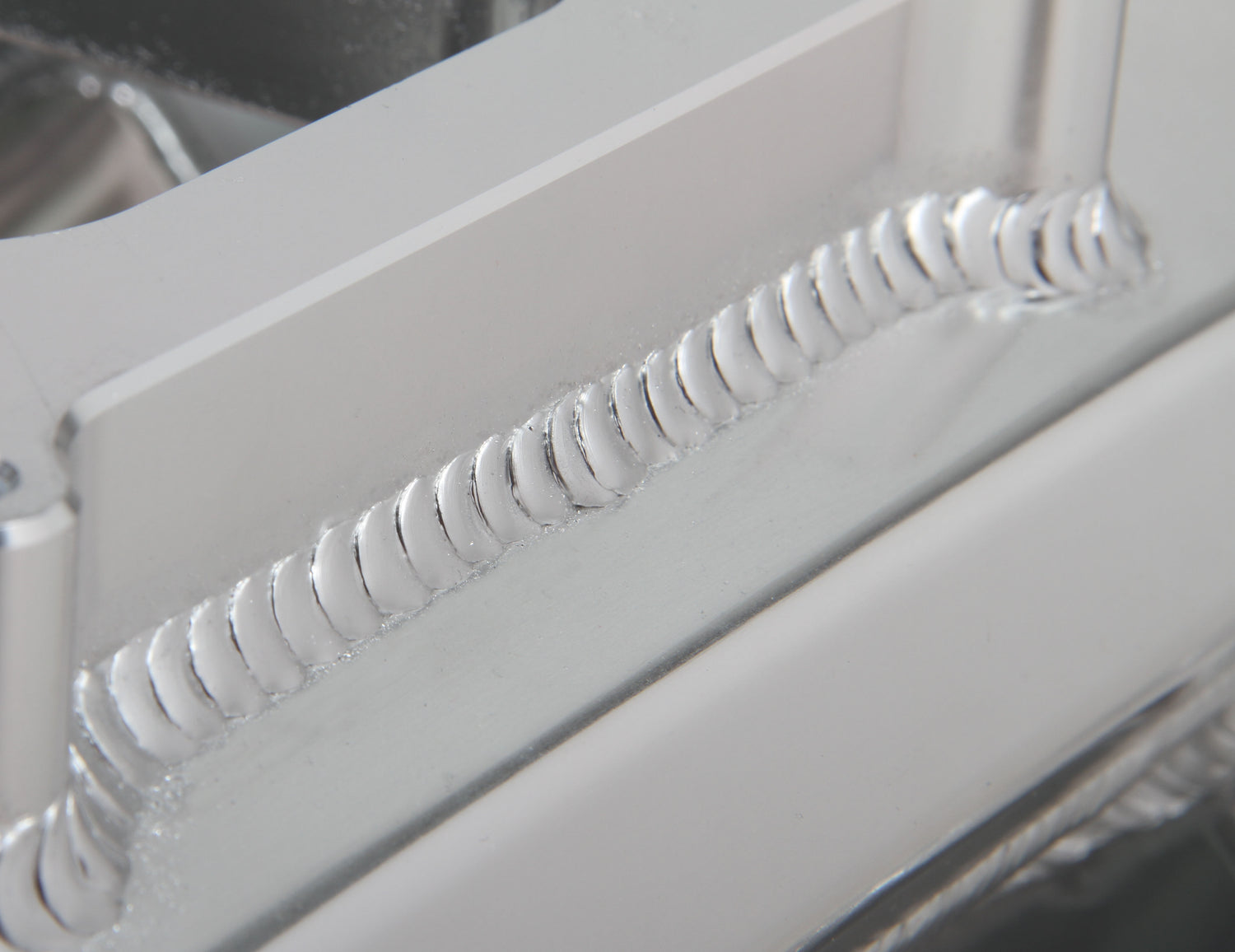

• 100% TIG welded (laser engraved Sniper logo)
• Expanded Designs to accommodate (1 or 2 x 4150) & (1 or 2 x 4500) carbureted applications.
• Choice of bright silver or black anodized finish
• Fits standard deck height blocks
Not Compatible with Large Cap HEI Distributors
Part Number: 835011
Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity. They are ready to bolt on out of the box and offered in a single or dual 4150 or 4500 carb flange. Holley Sniper Fabricated Manifolds continue to push the aftermarket by introducing intakes for Big Block Chevy Engines. These Intakes are good looking, perform well, and offer an extremely good value for a performance sheet metal style intake manifold.
Features and Benefits
• Equal runner lengths designed to increase velocity and more evenly distribute airflow to all 8 cylinders
• 3mm (1/8") thick T6061 Sheet Aluminum construction, strong and durable for high horsepower and boosted conditions
• 100% TIG welded (laser engraved Sniper logo)
• Expanded Designs to accommodate (1 or 2 x 4150) & (1 or 2 x 4500) carbureted applications.
• Choice of bright silver or black anodized finish
• Fits standard deck height blocks
Not Compatible with Large Cap HEI Distributors
Specifications
Specifications
-
Specifications
Basic Operating RPM Range 1800-7000 Brand Holley Sniper EFI Carburetor Flange Square/4150 Carburetor Quantity 1 Carburetor Studs Included No Category Sniper Intake Manifolds SP CNC Ported No Color Polished Construction Fabricated Cylinder Head Port Shape Rectangle Deck Height 9.8 EGR Port No Emission Code 4 Engine GM Big Block Flange Size 4150 Flange Style 4150 Square Bore Front Maximum Height 6.5 Fuel Injectors Included No Fuel Rail(s) Included No Gasket Or Seal Included Yes Grade Type Performance Intake Port Gasket(s) Included Yes Material Aluminum Nitrous Bung(s) Included No Plenum Finish Polished Port Shape Rectangular Port Size 1.55" x 2.21" Product Type Intake Manifold Rear Maximum Height 6.5 Removable Runners No Removable Top/Lid No Single Or Dual Plane Type Single Plane Style Carbureted Throttle Body Bore Diameter 3.6 Throttle Body Gasket Included No Throttle Body Included No Vacuum Ports None Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
