Holley Sniper EFI | SKU:
833151

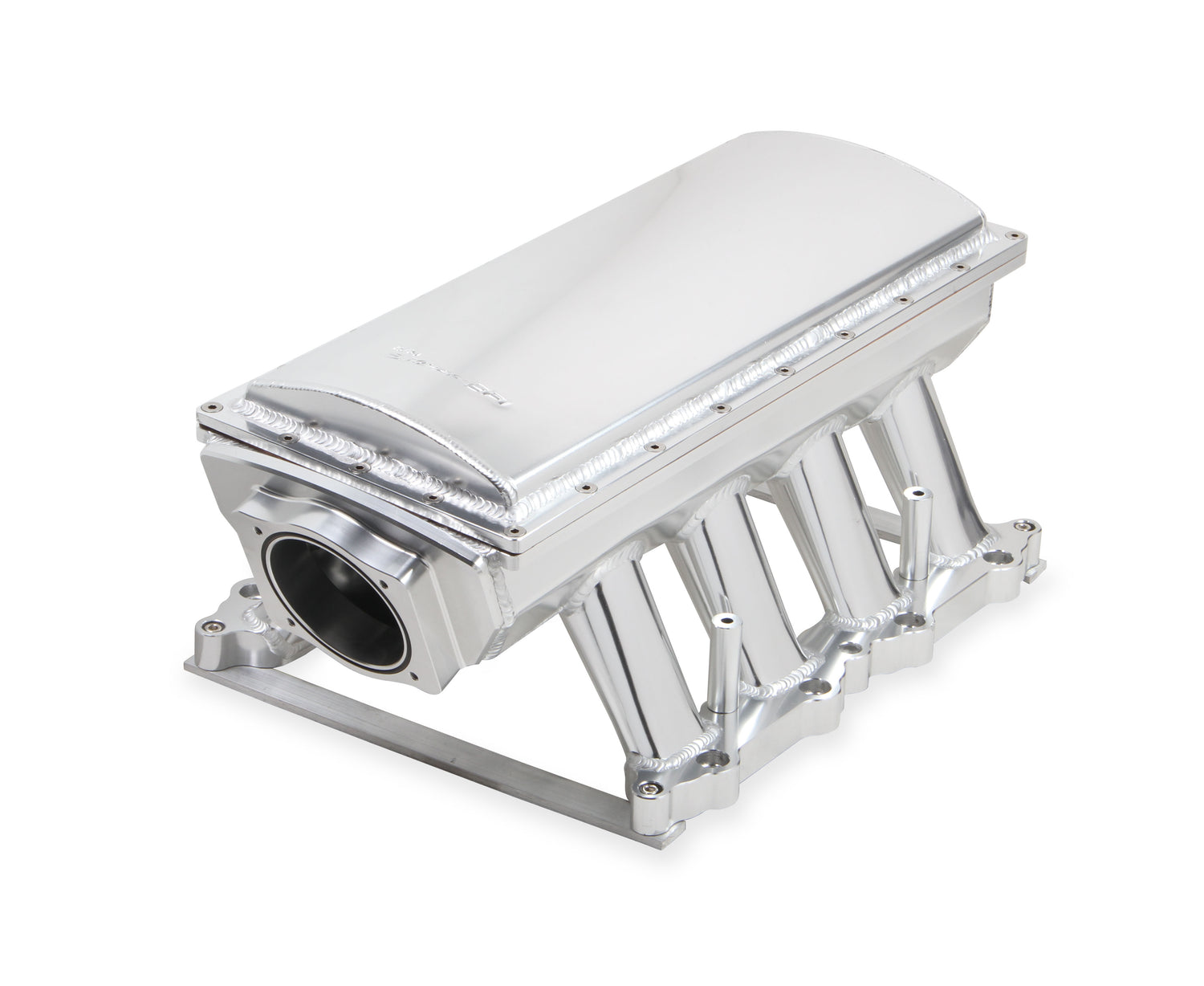

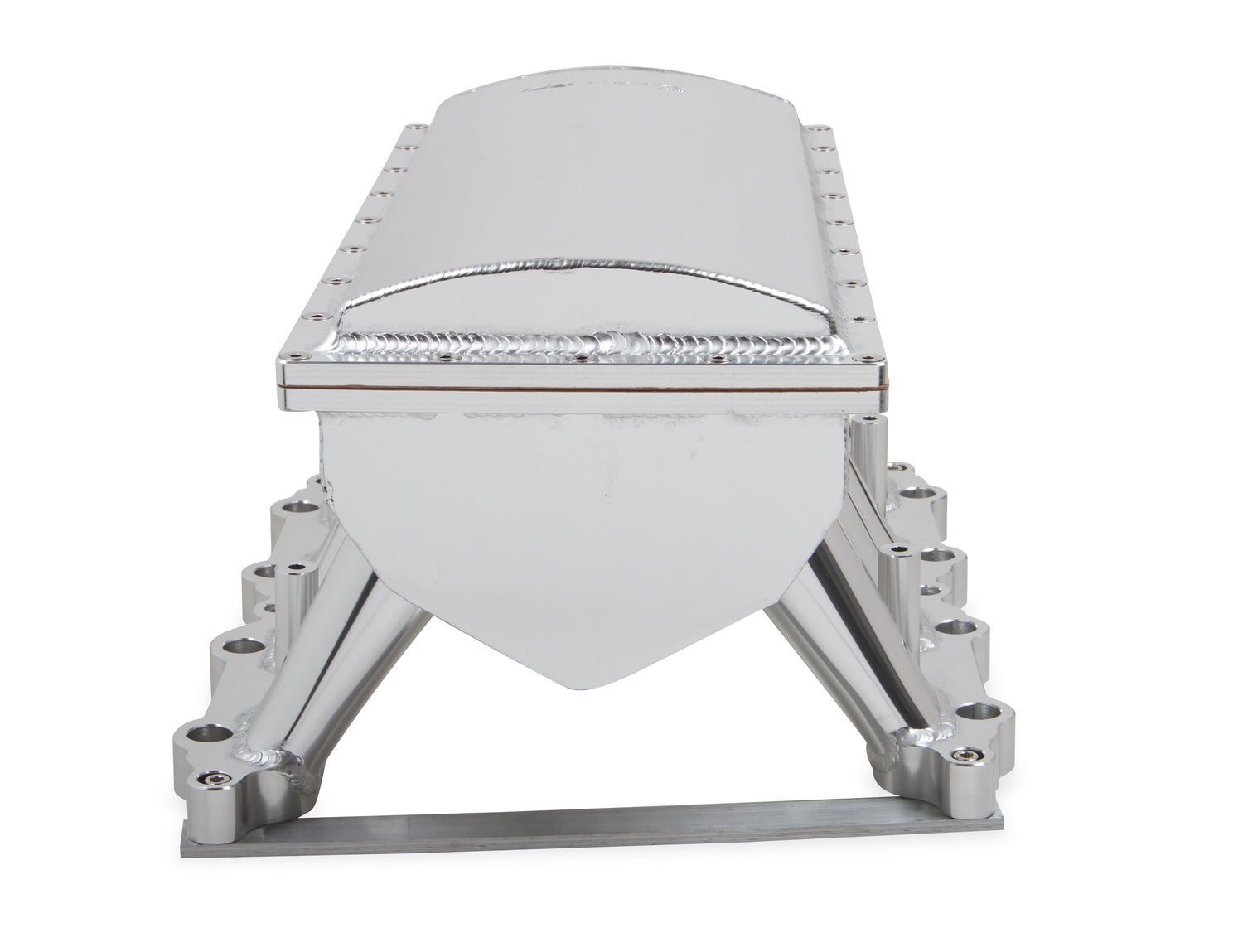

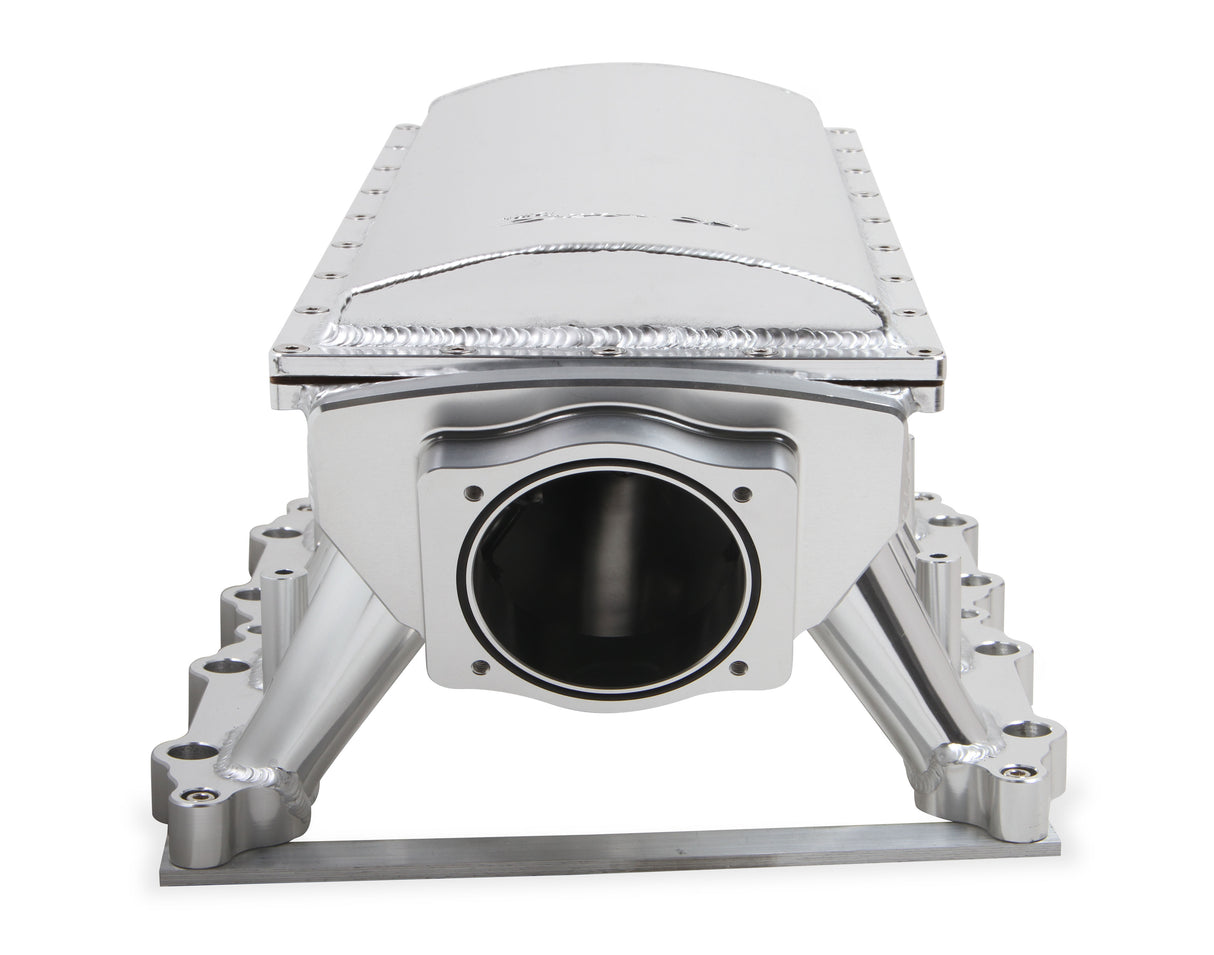

Holley 833151 Sniper EFI Fabricated Race Intake Manifold - 2011-14 Ford 5.0L Coyote - Silver
Hi-Ram Sheet Metal Fabricated Intake Manifold 90mm Race Series 2011-14 Ford 5.0L Coyote w/ Removable top, Throttle Body Spacer & Fuel Rail Kit w/ Sniper EFI Logo - Silver
Sold out
Regular price
$2,501.10 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 833151 Sniper EFI Fabricated Race Intake Manifold - 2011-14 Ford 5.0L Coyote - Silver is not in stock at Fast Lane Spares and will ship direct from supplier
Stock Status:
Description
Description
Hi-Ram Sheet Metal Fabricated Intake Manifold 90mm Race Series 2011-14 Ford 5.0L Coyote w/ Removable top, Throttle Body Spacer & Fuel Rail Kit w/ Sniper EFI Logo - Silver
Part Number: 833151
Holley Sniper EFI Fabricated Manifolds continues to push the aftermarket by introducing our latest Race Series line of intakes for GM LS 1/2/6 and Ford Coyote 5.0L engine platforms. Feedback from racers and install shops, related to our original line of EFI intakes launched in 2015, were critical in the development of these Race Series manifolds. These Intakes are more robust, good looking, perform above and beyond the original Sniper EFI series of intakes, and offer a very competitive alternative to much higher priced offerings in the marketplace making for a compelling value for those in the market for a high-performance sheet metal style intake manifold. Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit, TB Spacer, and a removable top. Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity.
Features and Benefits
• Silver finish creates high impact under-hood styling

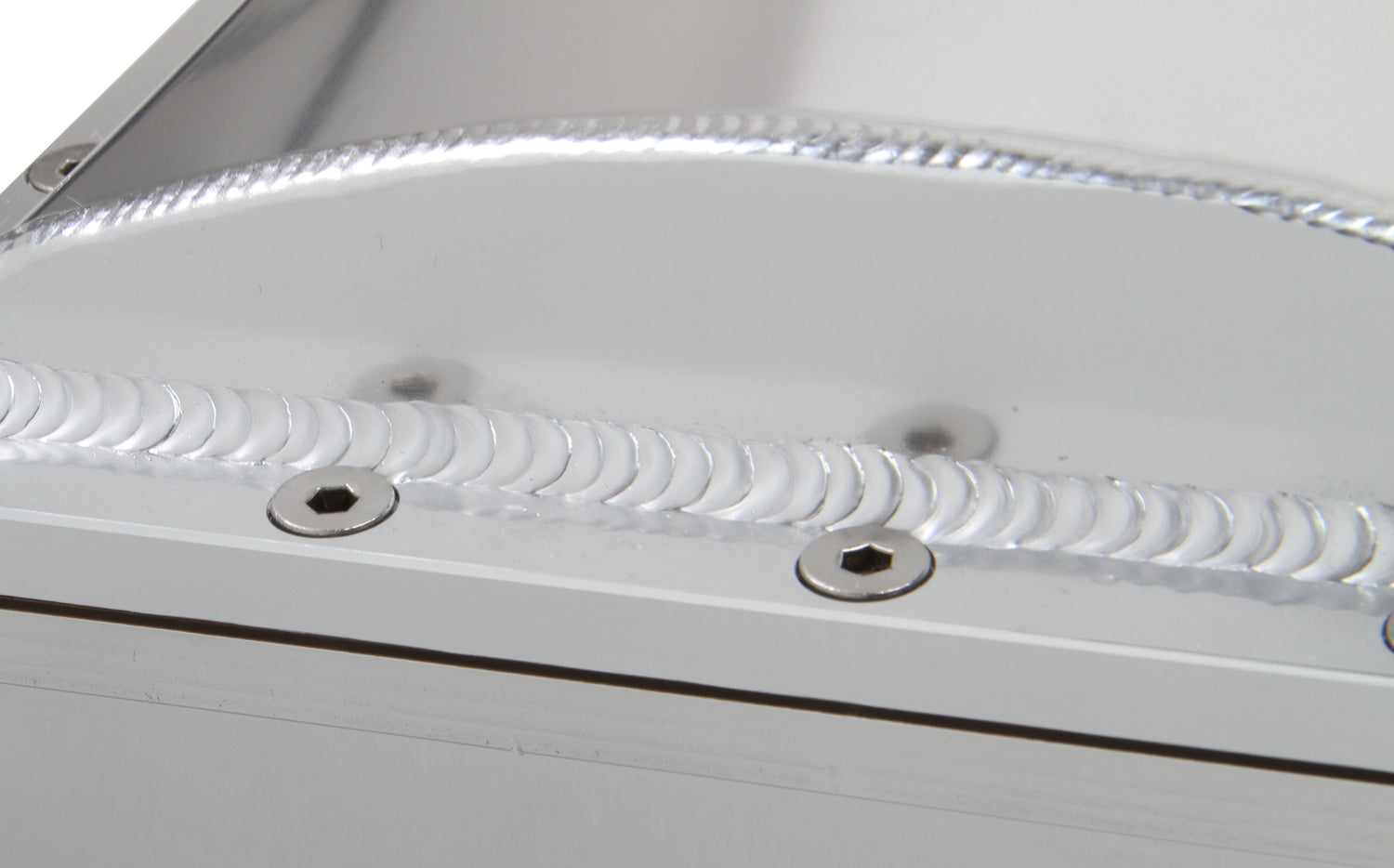

• 100% TIG welded for strength and durability

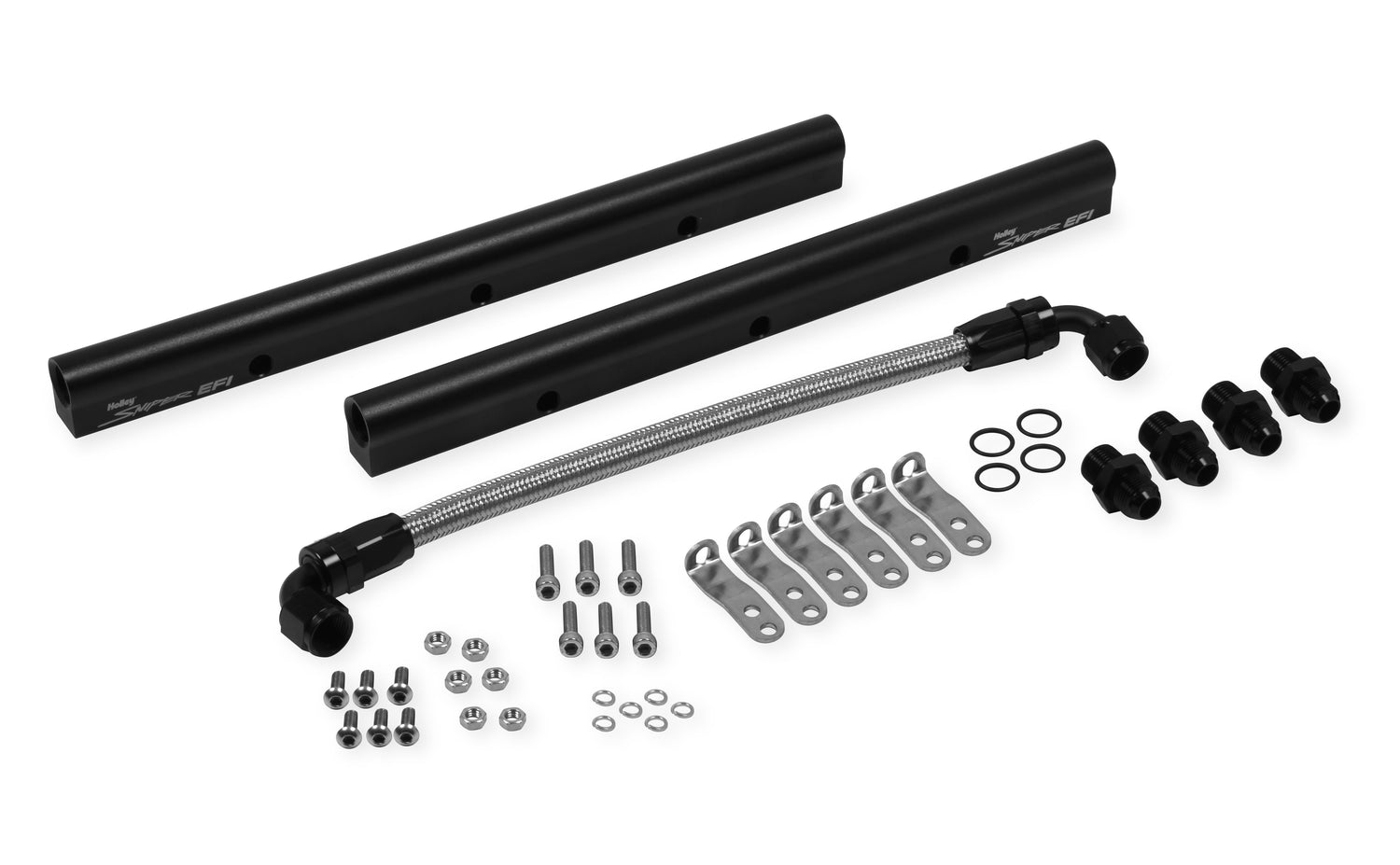

• Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
• 5mm (13/64") thick T6061 sheet aluminum construction for maximum durability

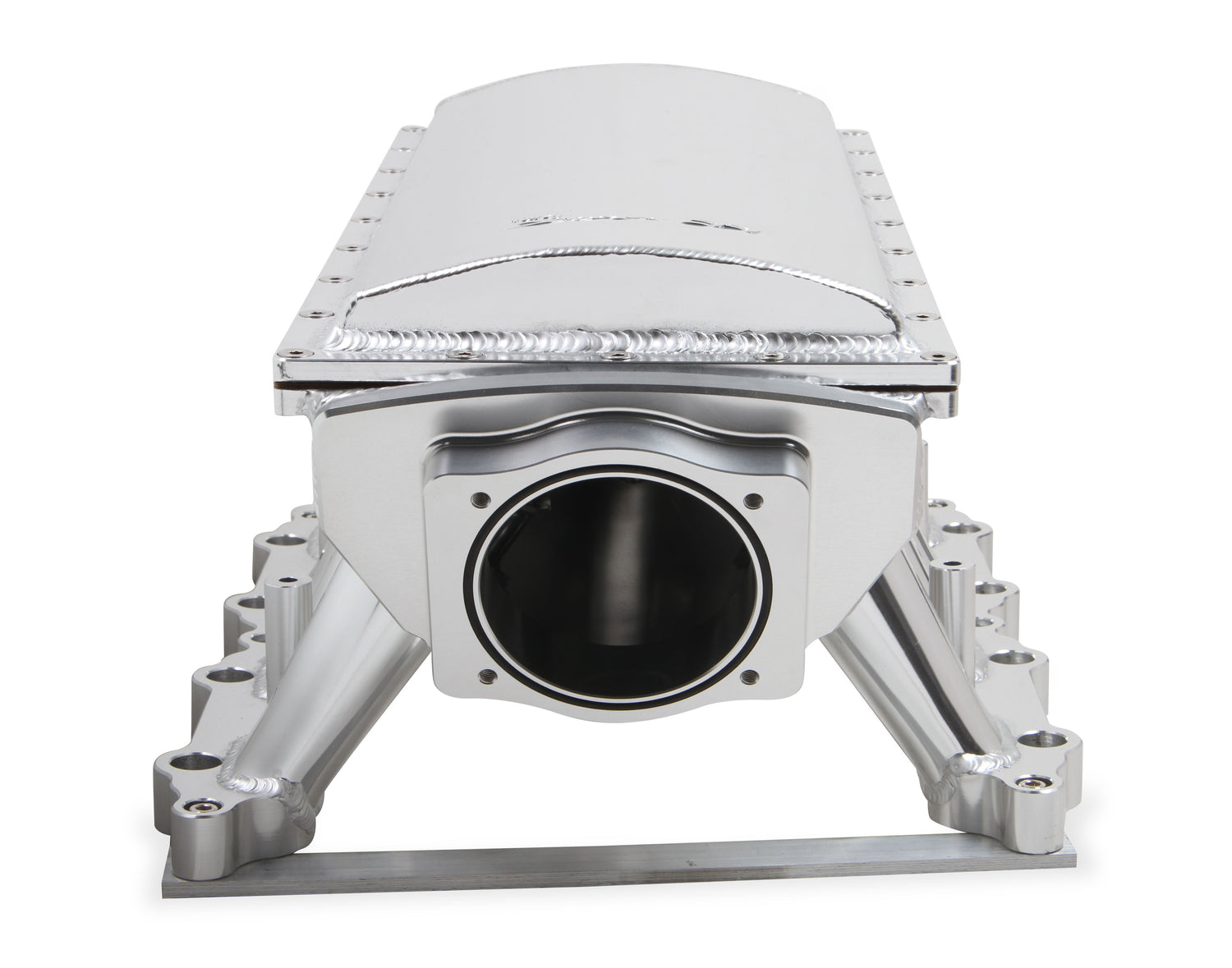

• 90mm throttle bore opening for increased air flow

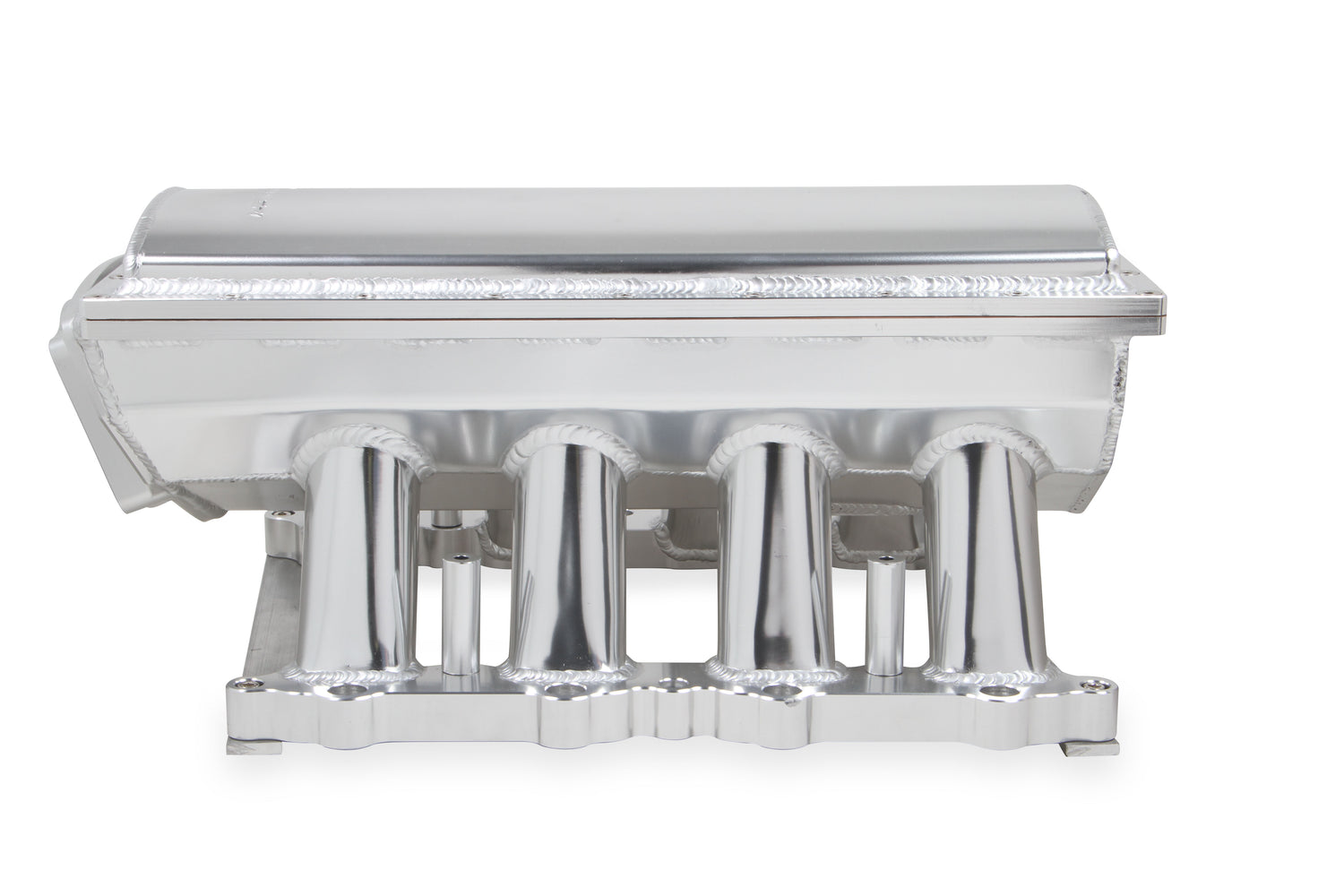

• Longer Intake runner lengths offering a wider RPM operating range of 2100-8200 RPM

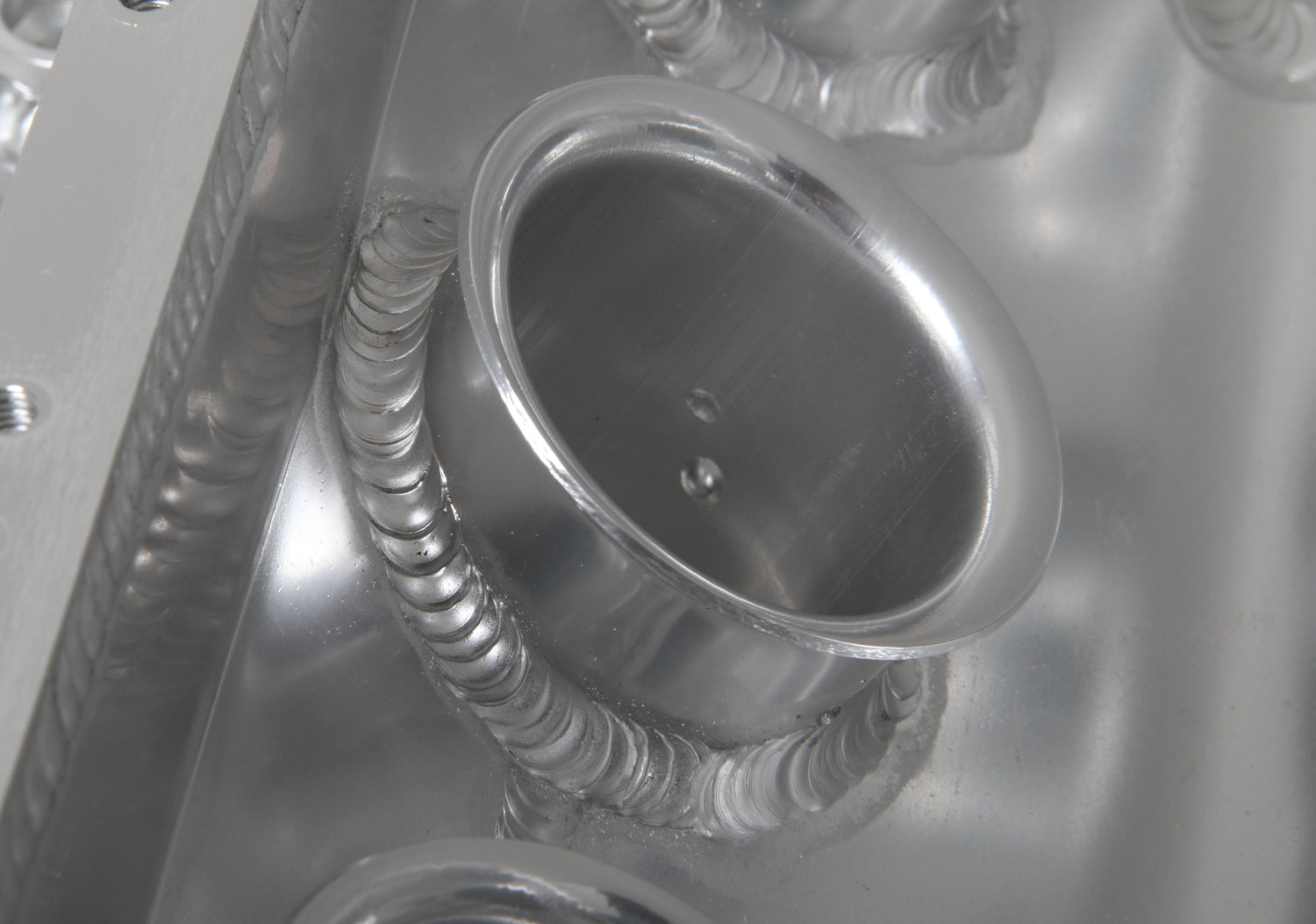

• Welded seams inside and out for added strength and durability on high horsepower, max-effort engines and boosted applications
• Larger Intake plenum vs. standard Sniper EFI manifolds for max effort engines and boosted applications

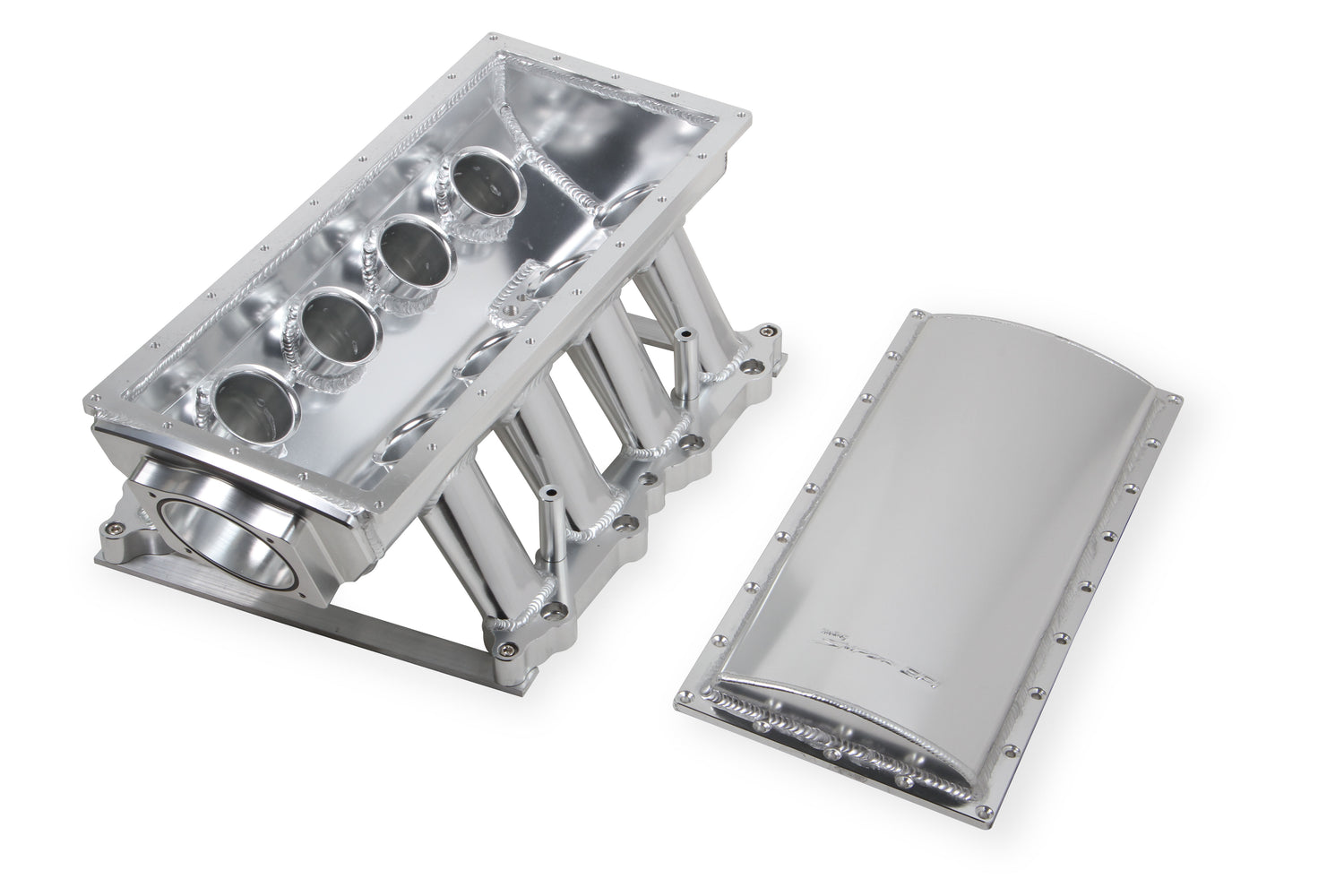

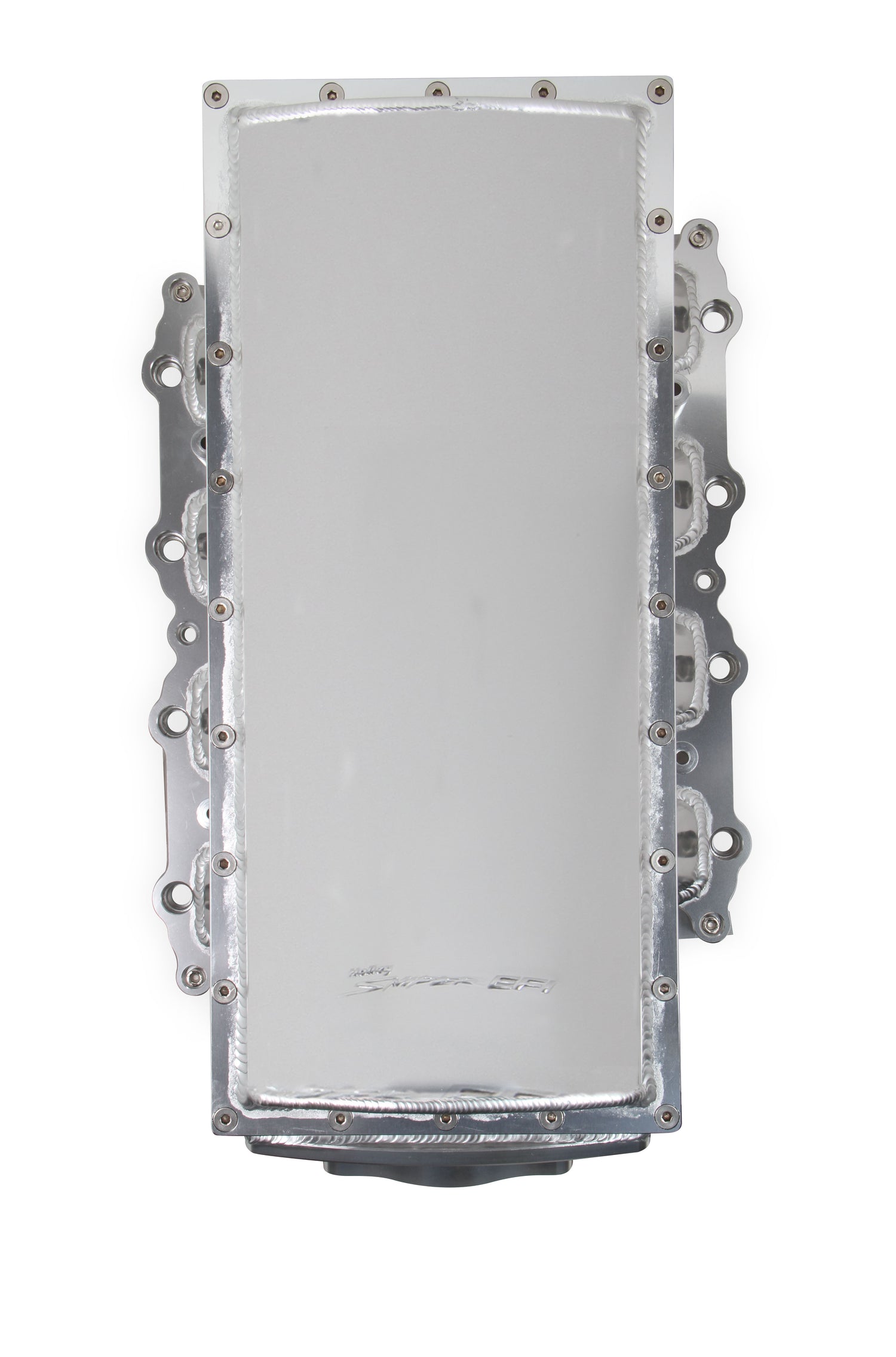

• Removable top for ease of inspection, modification, and addition of sensors

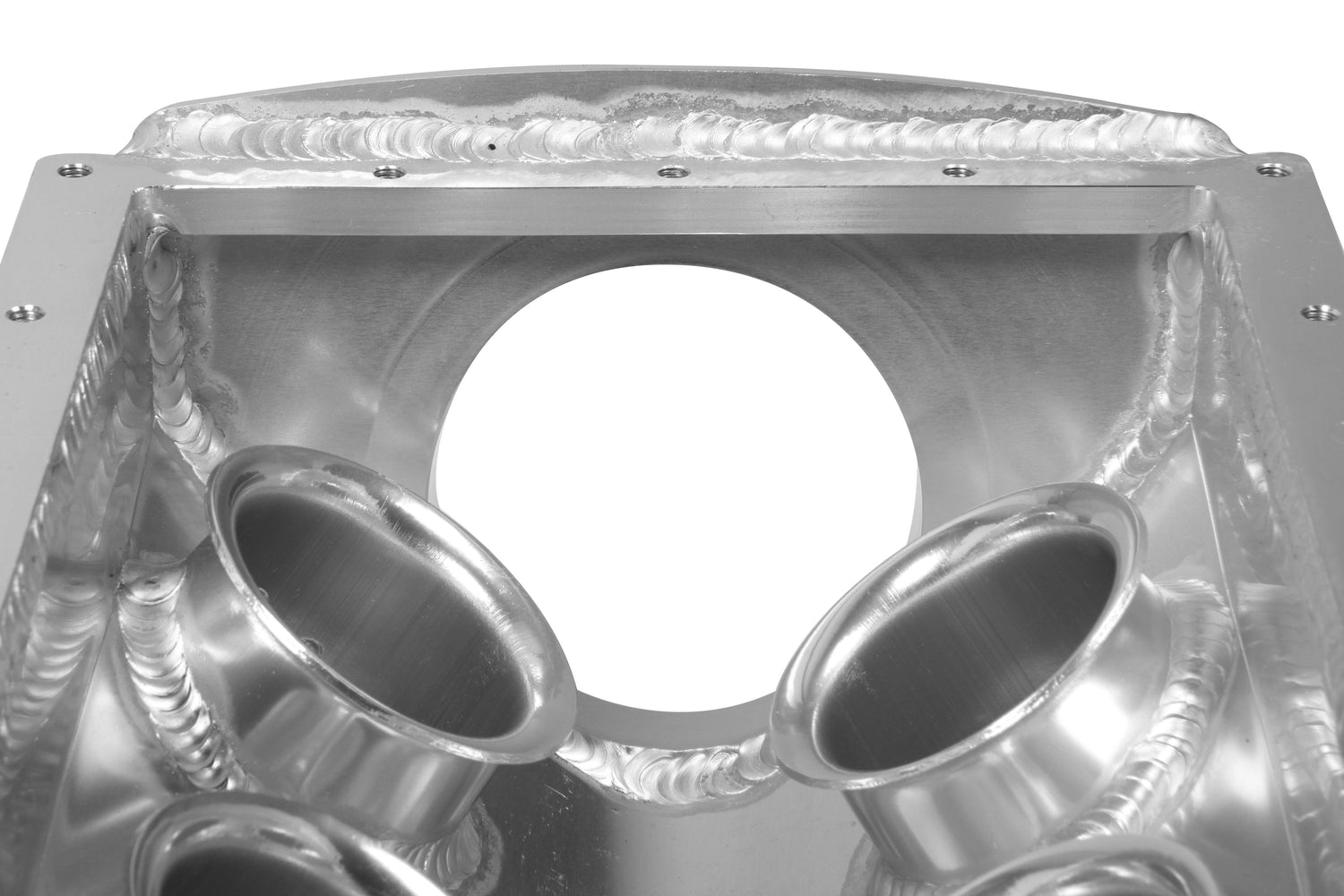

• Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response

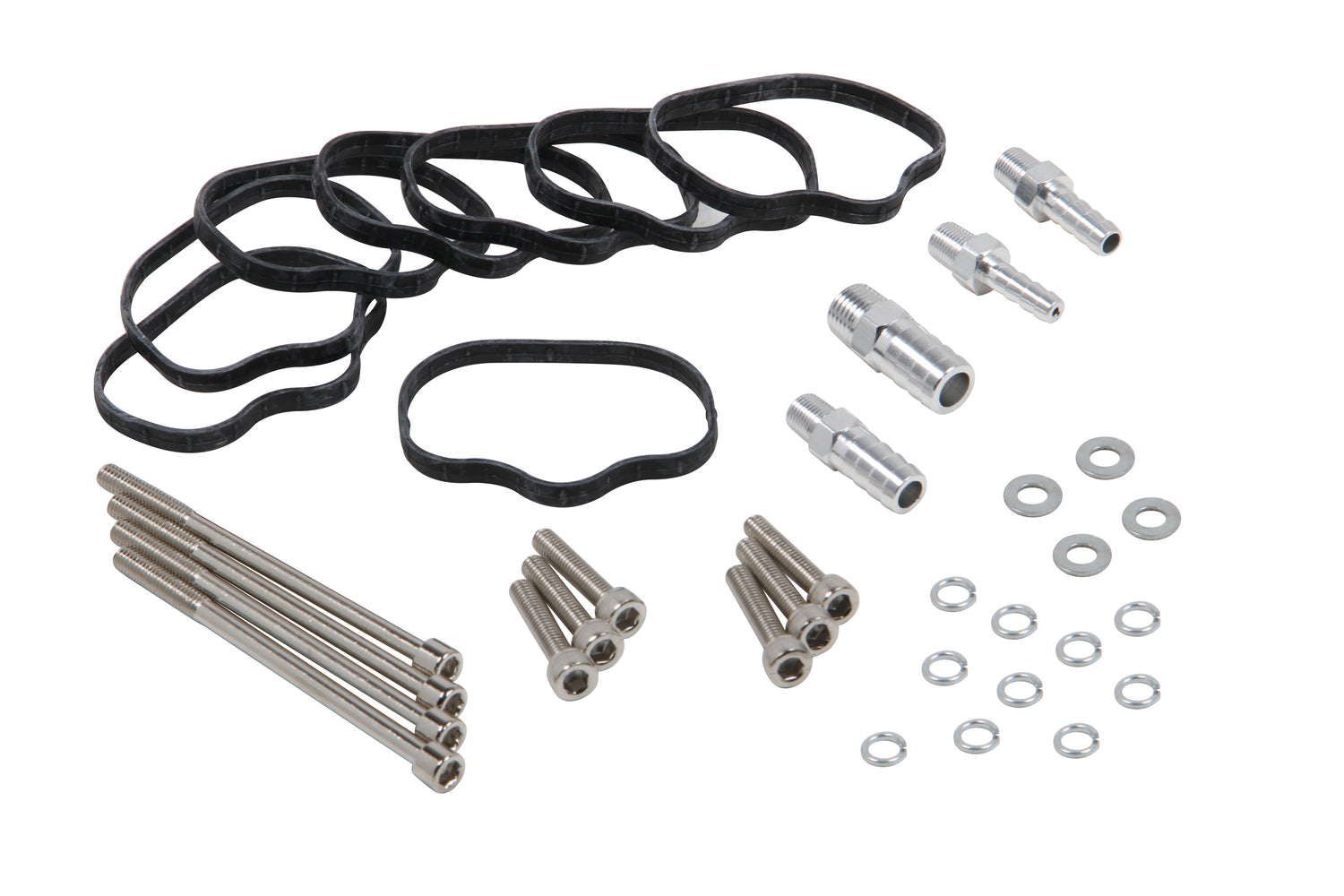

• Product includes all gaskets and hardware for a hassle-free installation
*** The Sniper EFI Fabricated Manifold for 11-14 Ford Coyote 5.0L engines require the use of (EV6 USCAR) style fuel injectors. ***
Part Number: 833151
Holley Sniper EFI Fabricated Manifolds continues to push the aftermarket by introducing our latest Race Series line of intakes for GM LS 1/2/6 and Ford Coyote 5.0L engine platforms. Feedback from racers and install shops, related to our original line of EFI intakes launched in 2015, were critical in the development of these Race Series manifolds. These Intakes are more robust, good looking, perform above and beyond the original Sniper EFI series of intakes, and offer a very competitive alternative to much higher priced offerings in the marketplace making for a compelling value for those in the market for a high-performance sheet metal style intake manifold. Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit, TB Spacer, and a removable top. Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity.
Features and Benefits
• Silver finish creates high impact under-hood styling
• 100% TIG welded for strength and durability
• Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
• 5mm (13/64") thick T6061 sheet aluminum construction for maximum durability
• 90mm throttle bore opening for increased air flow
• Longer Intake runner lengths offering a wider RPM operating range of 2100-8200 RPM
• Welded seams inside and out for added strength and durability on high horsepower, max-effort engines and boosted applications
• Larger Intake plenum vs. standard Sniper EFI manifolds for max effort engines and boosted applications
• Removable top for ease of inspection, modification, and addition of sensors
• Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
• Product includes all gaskets and hardware for a hassle-free installation
*** The Sniper EFI Fabricated Manifold for 11-14 Ford Coyote 5.0L engines require the use of (EV6 USCAR) style fuel injectors. ***
Specifications
Specifications
-
Specifications

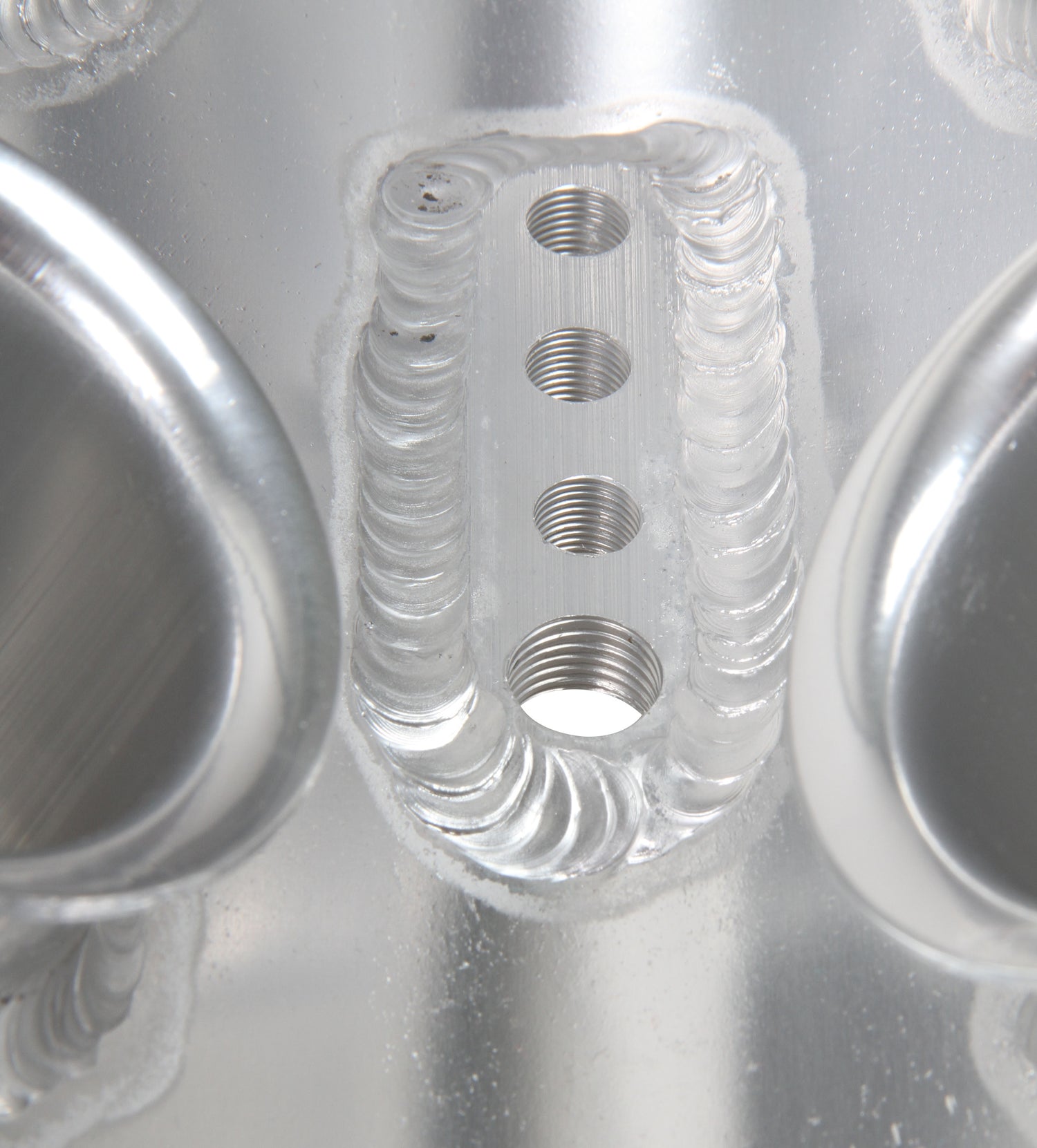

Basic Operating RPM Range 2100-8200 Brand Holley Sniper EFI Carburetor Flange N/A Carburetor Quantity N/A Carburetor Studs Included No Category Engine CNC Ported No Color Polished Construction Fabricated Cylinder Head Port Shape Oval with dimple Deck Height 8.937 EGR Port No Emission Code 4 Engine Ford Coyote Flange Style N/A Front Maximum Height 9.5 Fuel Injectors Included No Fuel Rail(s) Included Yes Gasket Or Seal Included Yes Grade Type Performance Injector Style Provision EV6 USCAR Intake Port Gasket(s) Included Yes Manifold Type Fabricated Material Aluminum Nitrous Bung(s) Included No Plenum Finish Polished Product Type Intake Manifold Rear Maximum Height 8.858 Removable Runners No Removable Top/Lid Yes Runner Length 5.709" (145mm) Single Or Dual Plane Type Single Plane Style EFI Throttle Body Bore Diameter 90 Throttle Body Gasket Included Yes Throttle Body Included No Throttle Bore 90mm Vacuum Ports (3) 1/8"-28BSPT & (1) 1/4"-19BSPT Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
