Holley Sniper EFI | SKU:
825124

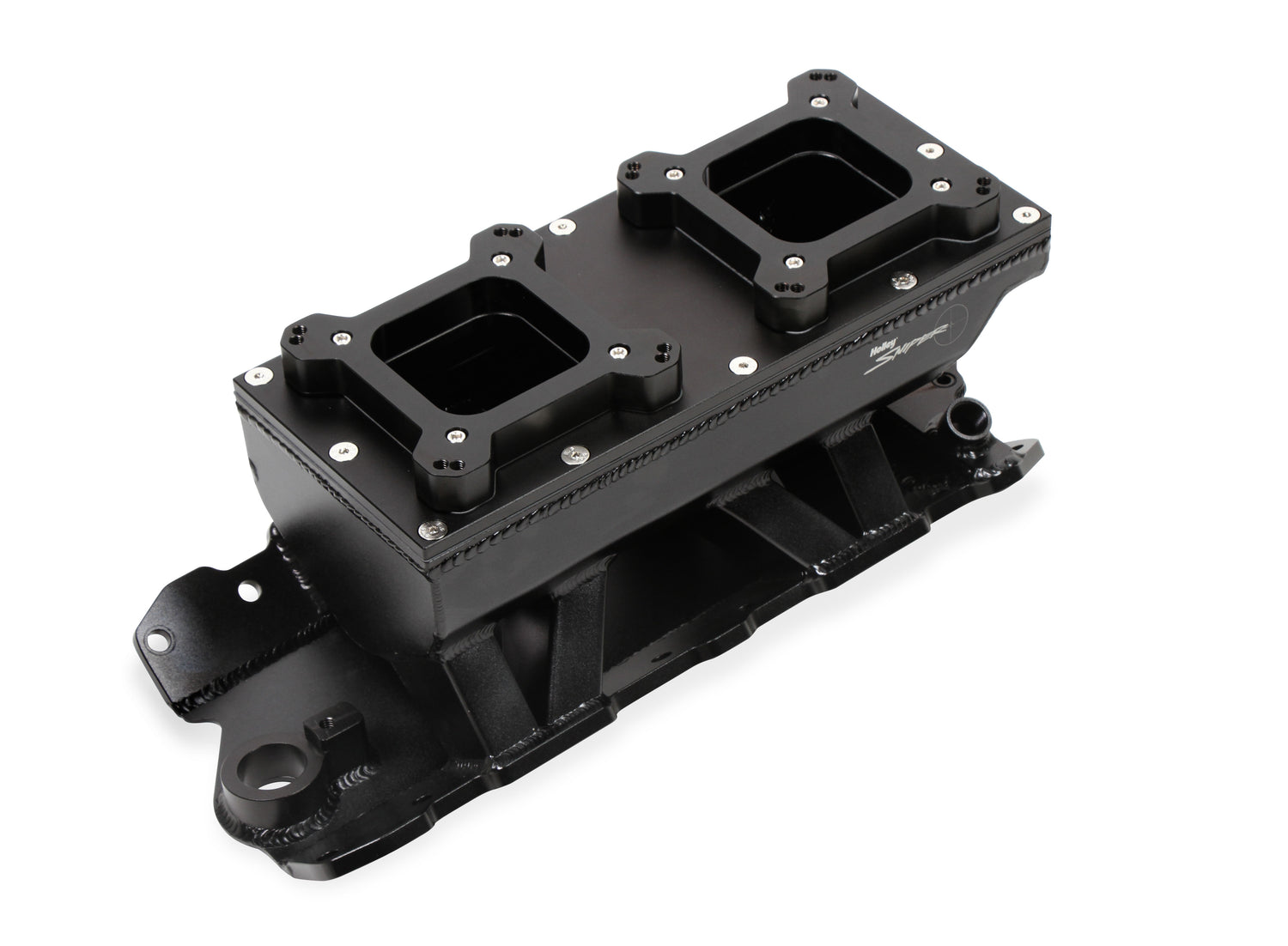

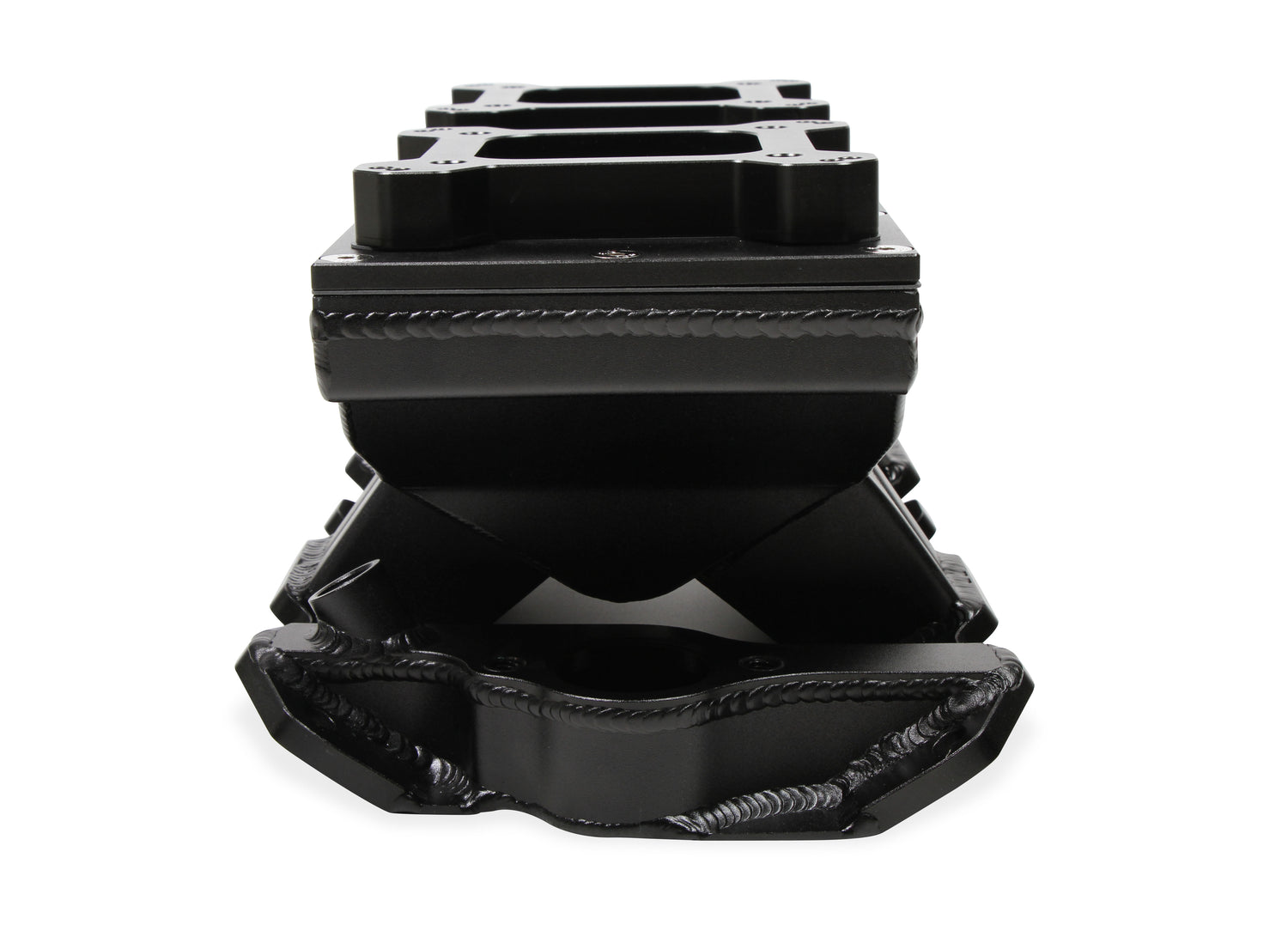

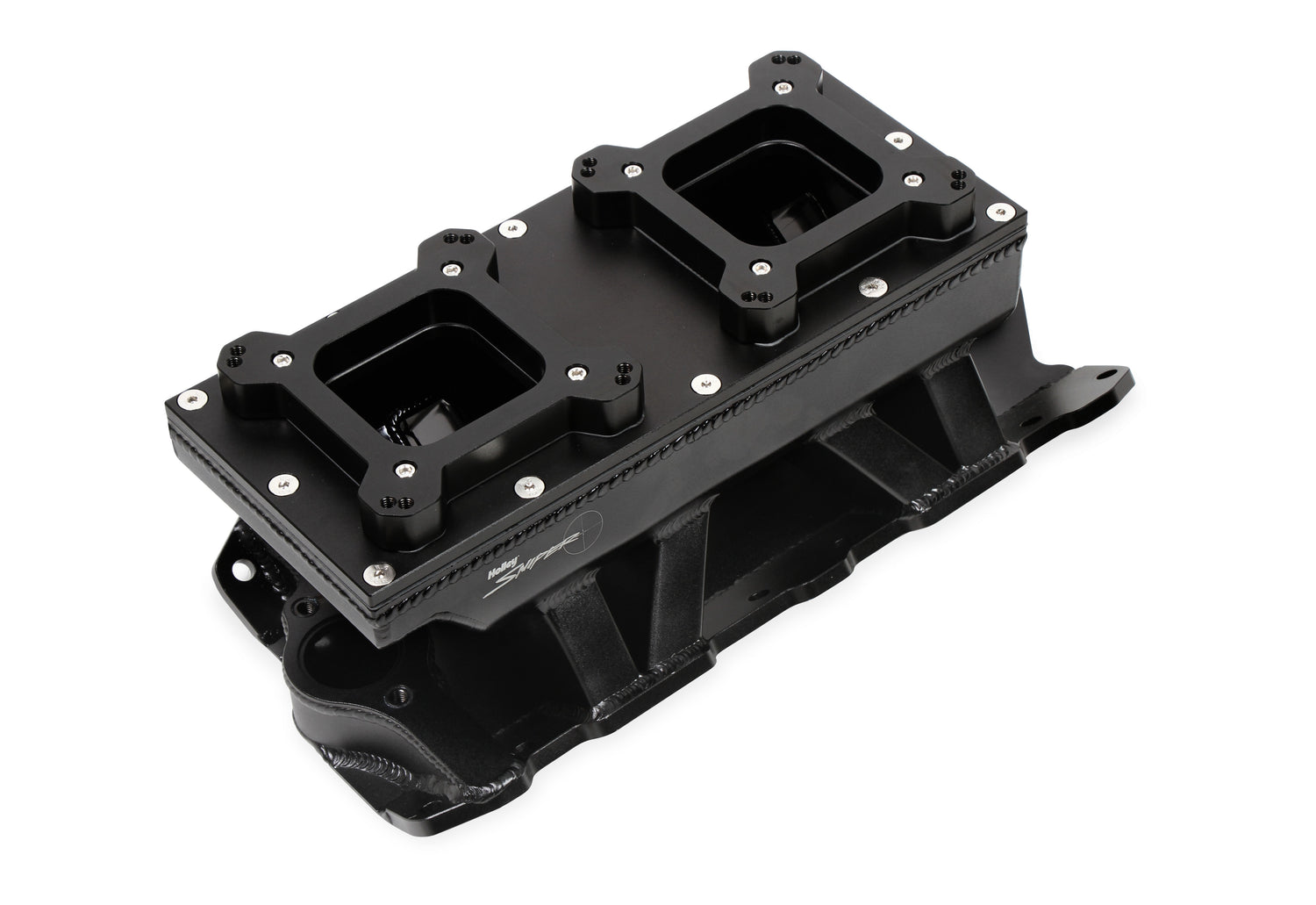

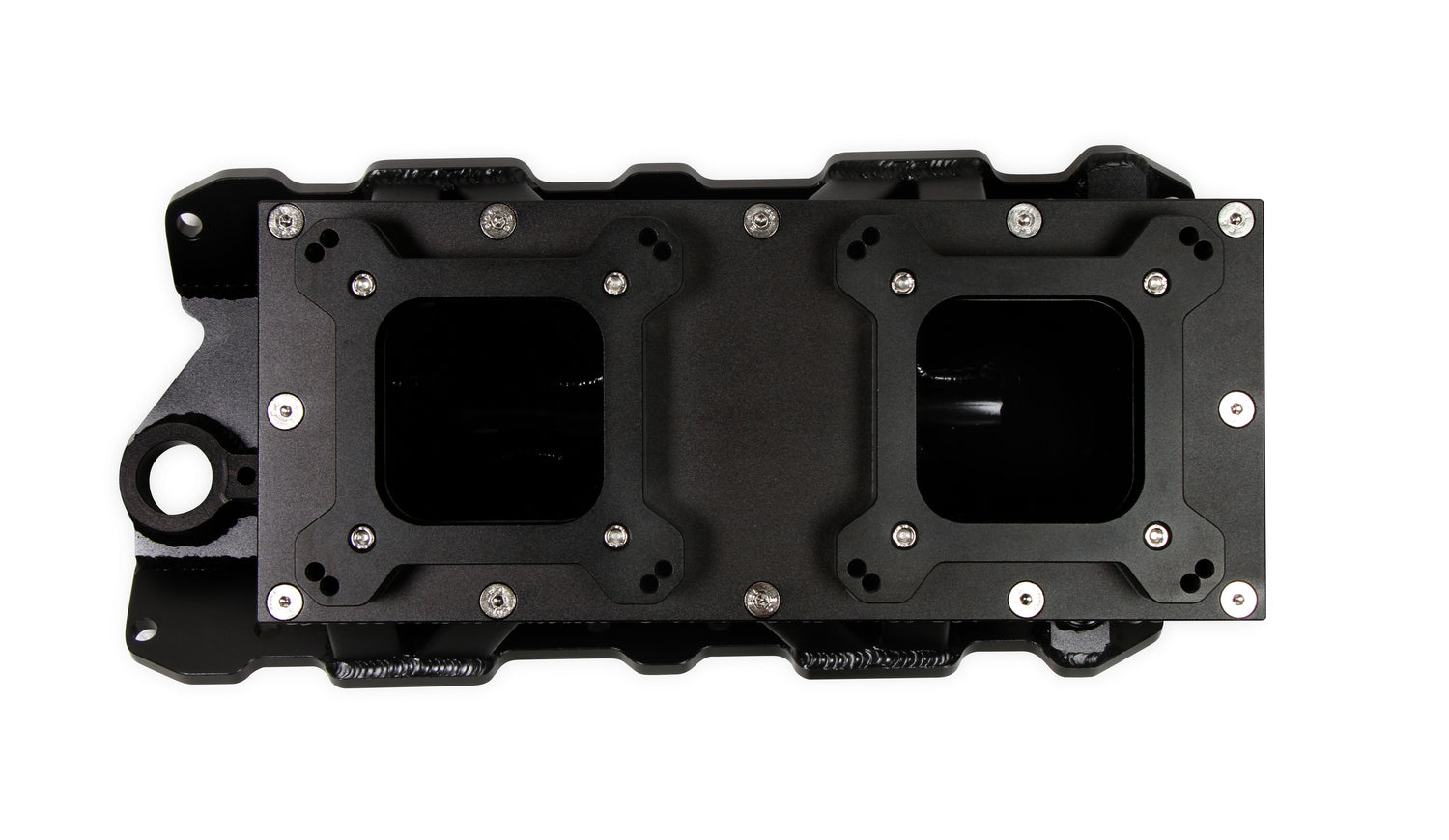

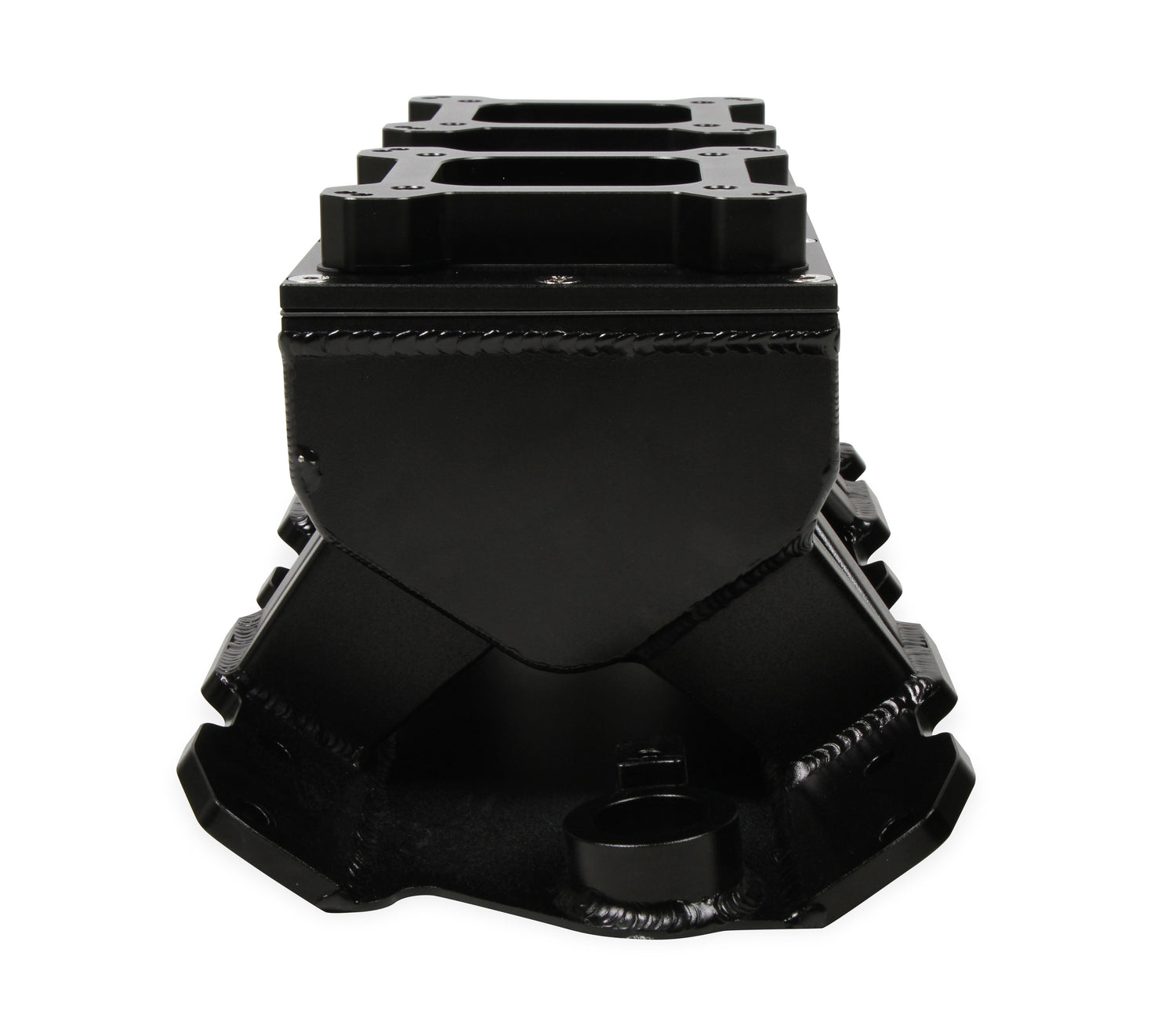

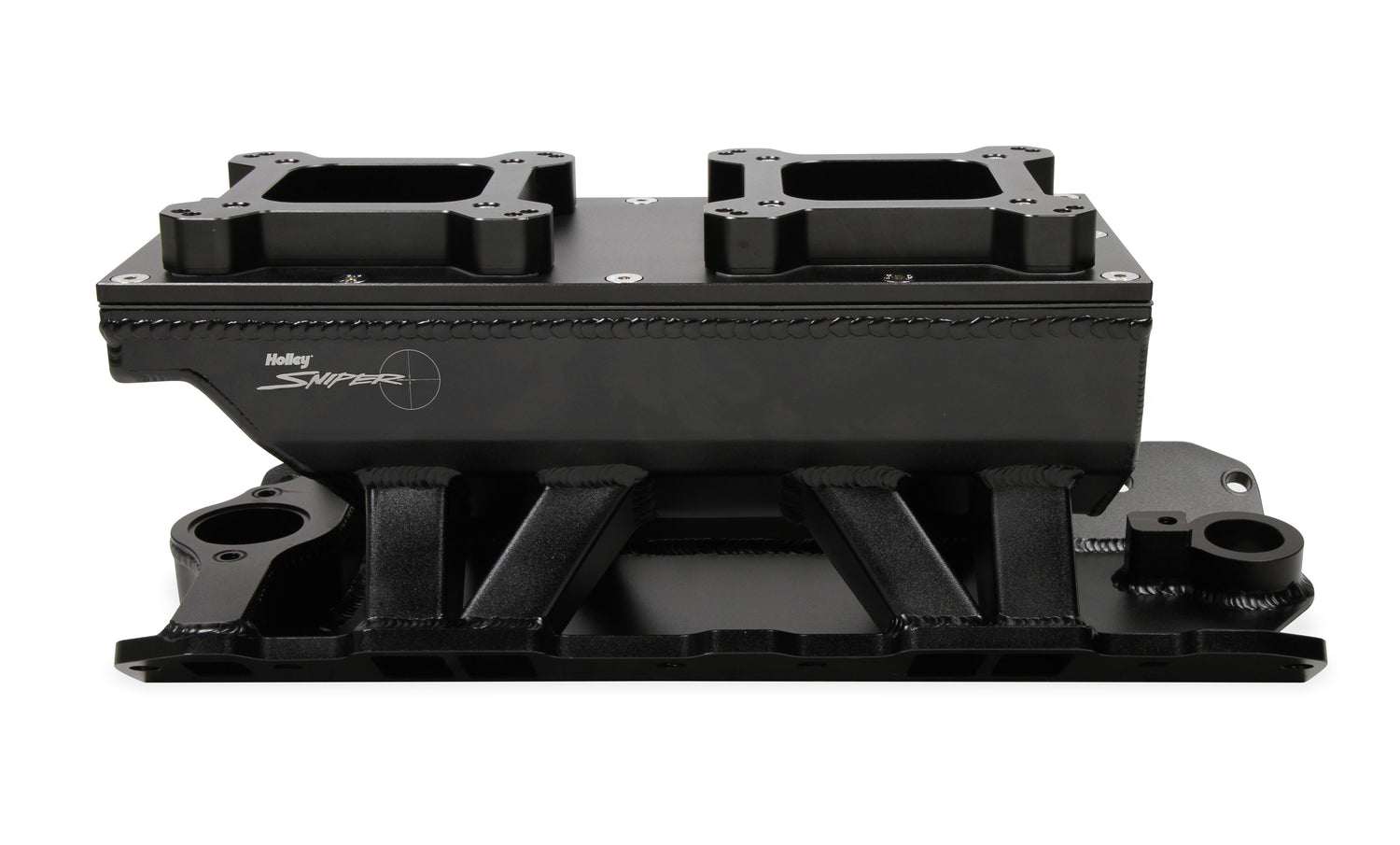

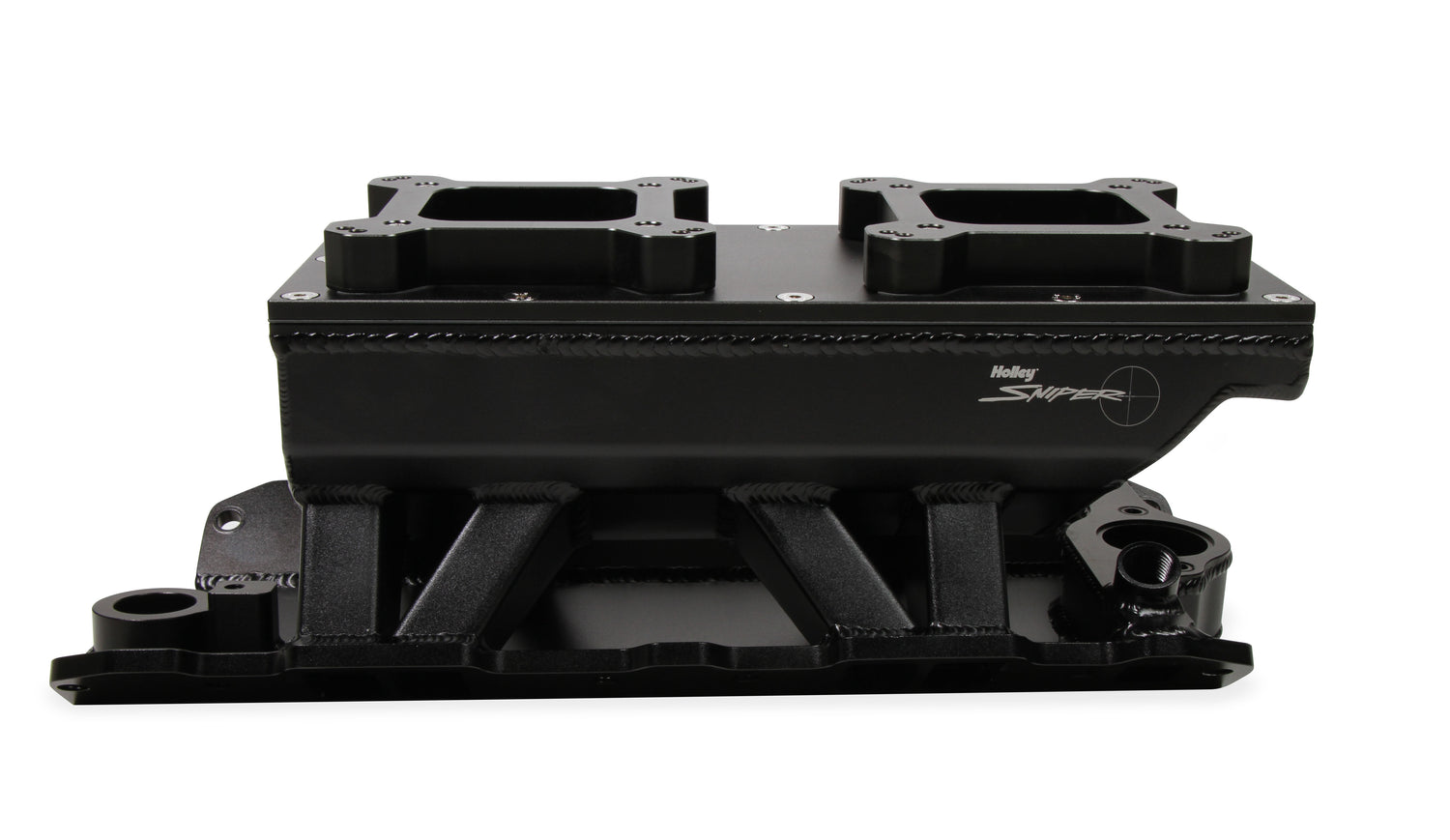

Holley 825124 Sniper Sheet Metal Fabricated Intake Manifold Small Block Chevy
Fabricated Intake Manifold SBC Single Plane Carbureted (2 x 4150 style flange changeable plate) Black with Sniper logo
Regular price
$1,039.40 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 825124 Sniper Sheet Metal Fabricated Intake Manifold Small Block Chevy is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Fabricated Intake Manifold SBC Single Plane Carbureted (2 x 4150 style flange changeable plate) Black with Sniper logo
Part Number: 825124
Each manifold is ready to bolt-on out of the box (including a high-flow fuel rail kit for EFI versions). These manifolds are precision fixtured and welded for a perfect fit and maximum structural integrity. Holley Sniper continues to push the aftermarket by introducing fabricated carbureted and EFI intake manifolds for GM Small Block and LS along with Ford 4.6 Modular 3-valve and 5.0L Coyote engines. These performance sheet metal intakes are great looking and an excellent value compared to other fabricated intake manifolds.
Features and Benefits
• Available in Silver and Black Finishes
• Runner lengths with tapered top on EFI intakes designed to increase velocity and more evenly distribute airflow to all 8 cylinders

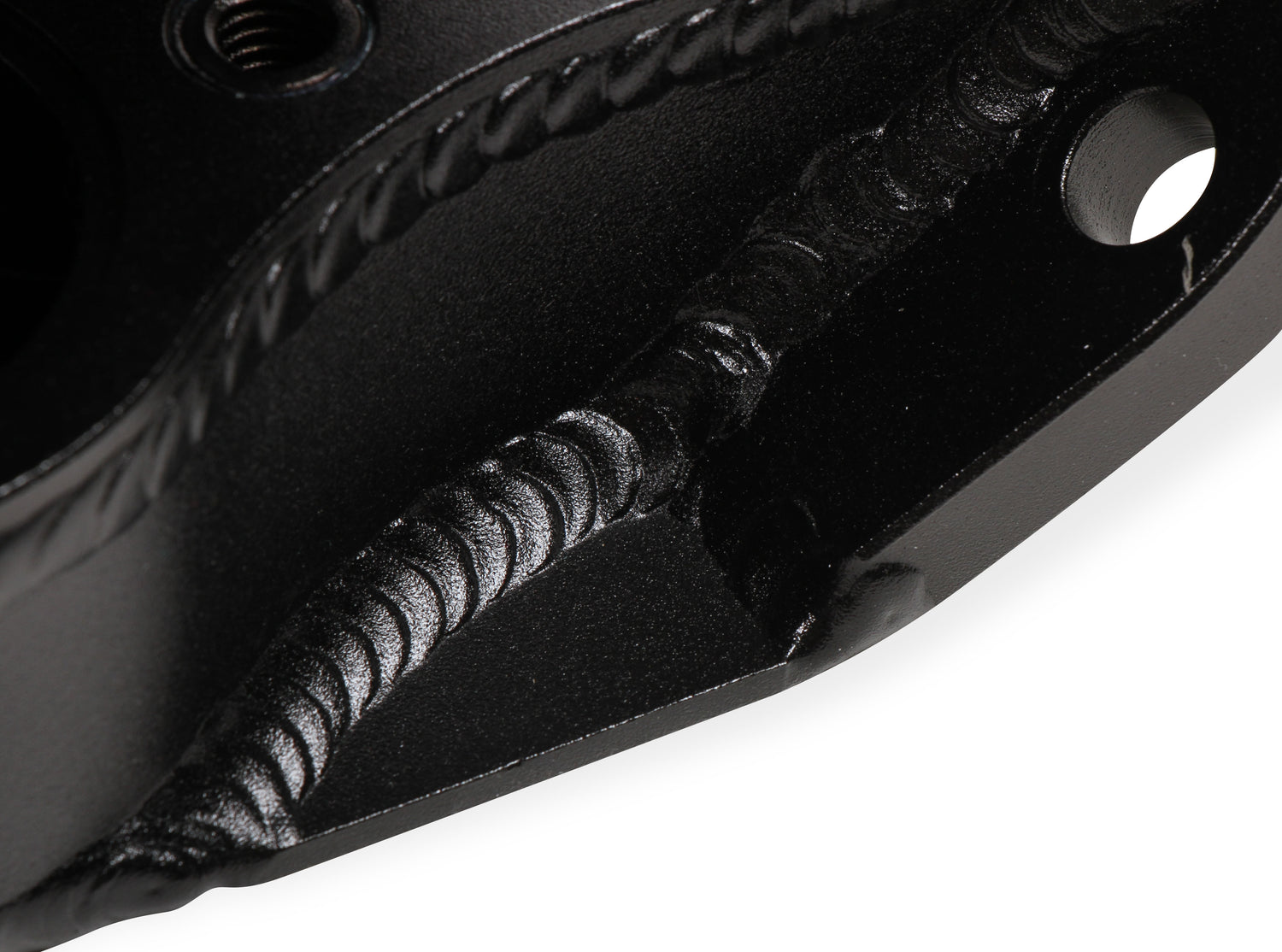

• 100% TIG welded

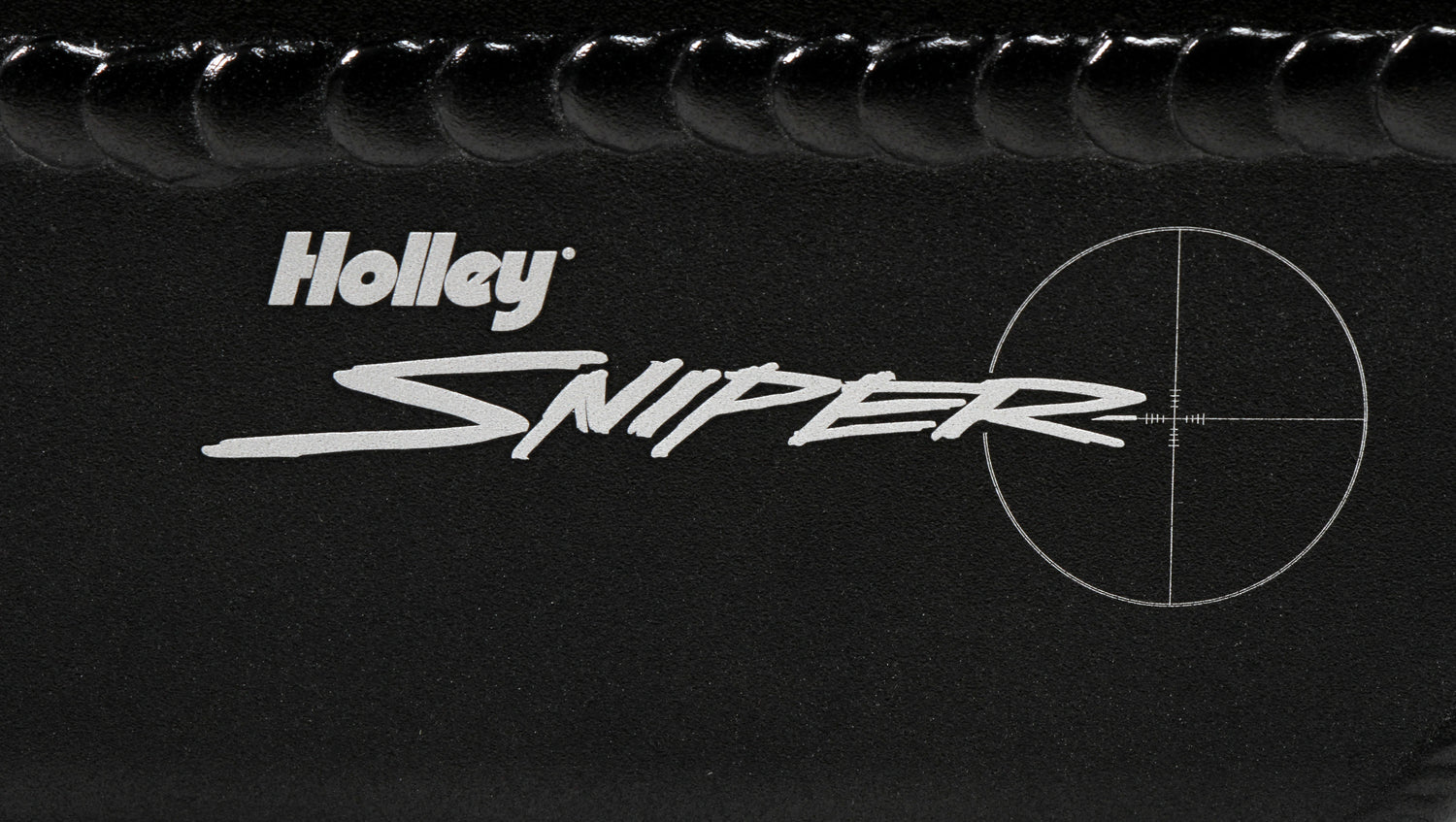

• EFI Intakes include 3/8" Fuel rail kits with -8A fittings and crossover braided line capable of supporting 750+ horsepower (w/ laser engraved Sniper EFI logo)
• Expanded Designs to accommodate (1 x 4150) & (2 x 4150) carbureted applications for GM LS7, Ford 4.6L 3-valve Mod-Motor, and Ford 5.0L Coyote platforms
• 3mm (1/8") thick T6061 Sheet Aluminum construction, strong and durable even under high horsepower and boosted conditions
• NEW “Modular” Removable Top Plates options for Small Block Chevy now available (1 x 4150, 2 x 4150, and 1 x 4500 flange options)
Not Compatible with Large Cap HEI Distributors
Part Number: 825124
Each manifold is ready to bolt-on out of the box (including a high-flow fuel rail kit for EFI versions). These manifolds are precision fixtured and welded for a perfect fit and maximum structural integrity. Holley Sniper continues to push the aftermarket by introducing fabricated carbureted and EFI intake manifolds for GM Small Block and LS along with Ford 4.6 Modular 3-valve and 5.0L Coyote engines. These performance sheet metal intakes are great looking and an excellent value compared to other fabricated intake manifolds.
Features and Benefits
• Available in Silver and Black Finishes
• Runner lengths with tapered top on EFI intakes designed to increase velocity and more evenly distribute airflow to all 8 cylinders
• 100% TIG welded
• EFI Intakes include 3/8" Fuel rail kits with -8A fittings and crossover braided line capable of supporting 750+ horsepower (w/ laser engraved Sniper EFI logo)
• Expanded Designs to accommodate (1 x 4150) & (2 x 4150) carbureted applications for GM LS7, Ford 4.6L 3-valve Mod-Motor, and Ford 5.0L Coyote platforms
• 3mm (1/8") thick T6061 Sheet Aluminum construction, strong and durable even under high horsepower and boosted conditions
• NEW “Modular” Removable Top Plates options for Small Block Chevy now available (1 x 4150, 2 x 4150, and 1 x 4500 flange options)
Not Compatible with Large Cap HEI Distributors
Specifications
Specifications
-
Specifications
Basic Operating RPM Range 1800-7000 Brand Holley Sniper EFI Carb Flange Center-to-Center 8.50" Carburetor Flange Dominator/4500 Carburetor Quantity 2 Carburetor Studs Included No Category Sniper Intake Manifolds SP CNC Ported No Color Black Construction Fabricated Cylinder Head Port Shape Rectangle Deck Height 9.025 EGR Port No Emission Code 4 Engine Chevrolet Small Block Gen I Flange Size 4150 Flange Style 4150 Square Bore Front Maximum Height 8.503 Fuel Injectors Included No Fuel Rail(s) Included No Gasket Or Seal Included No Grade Type Performance Intake Port Gasket(s) Included No Material Aluminum Nitrous Bung(s) Included No Plenum Finish Black Port Size 1.90" x 1.15" Product Type Intake Manifold Rear Maximum Height 8.503 Removable Runners No Removable Top/Lid Yes Single Or Dual Plane Type Single Plane Style Carbureted Throttle Body Bore Diameter 3.6 Throttle Body Gasket Included No Throttle Body Included No Vacuum Ports None Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
