Holley Sniper EFI | SKU:
822201

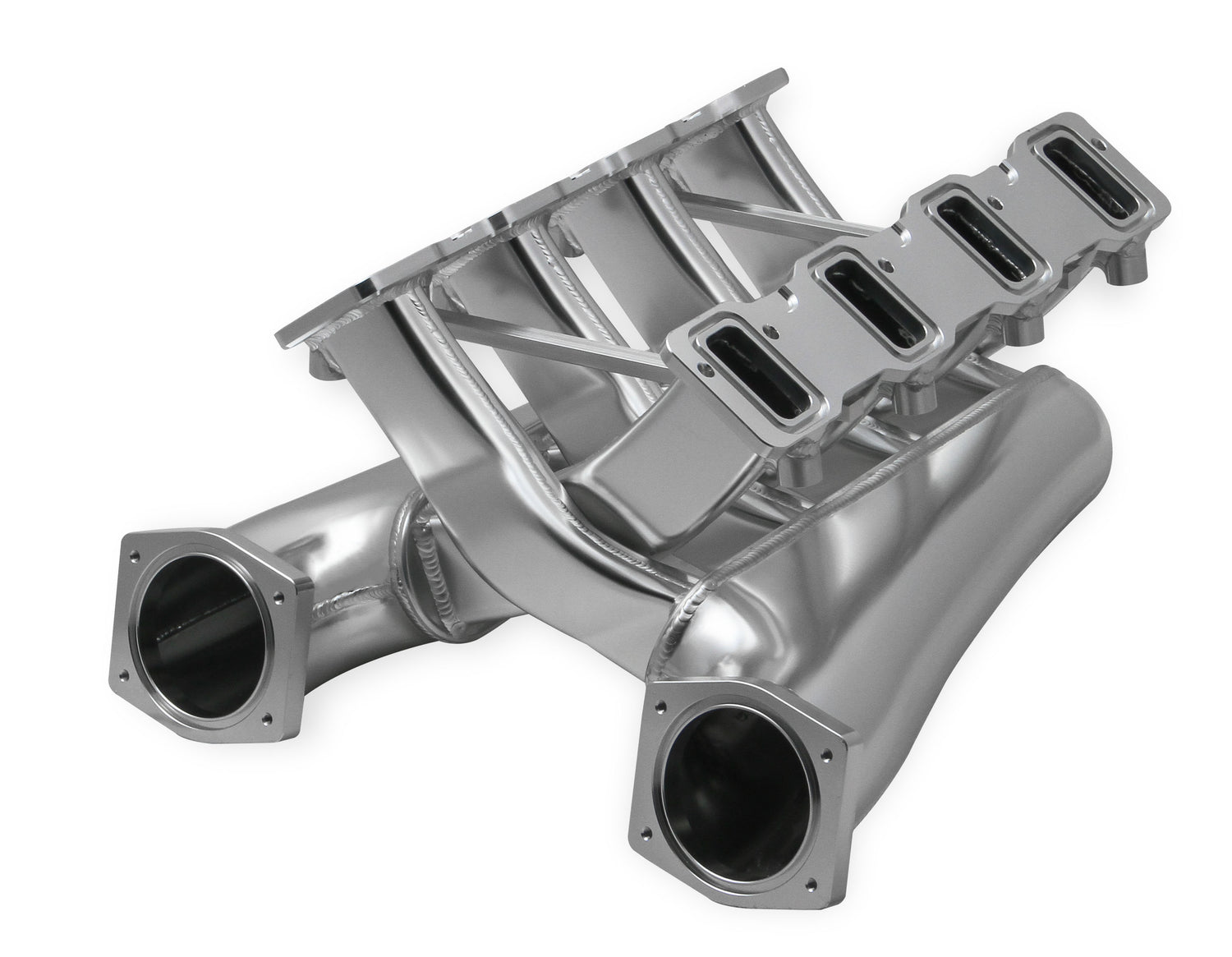

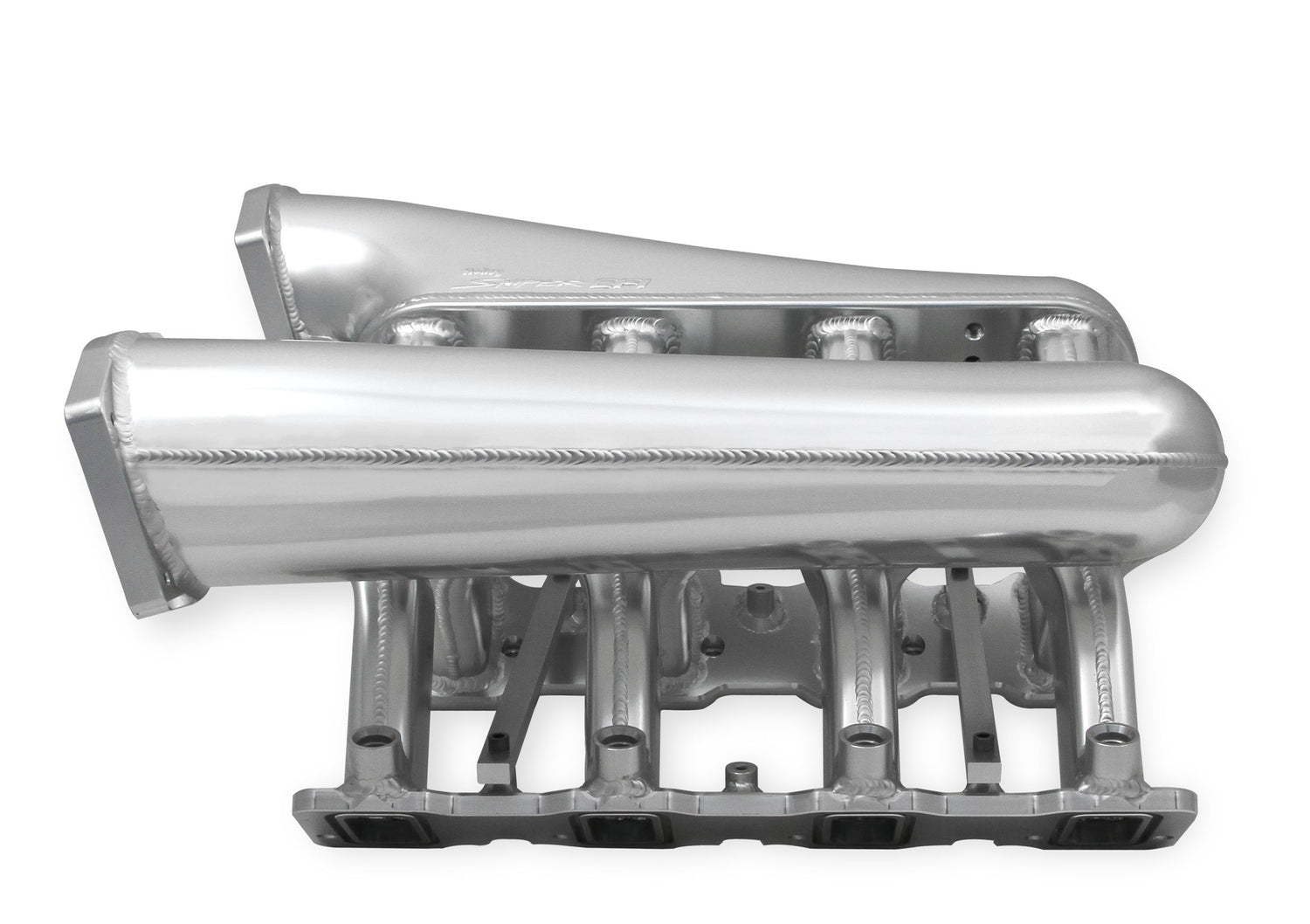

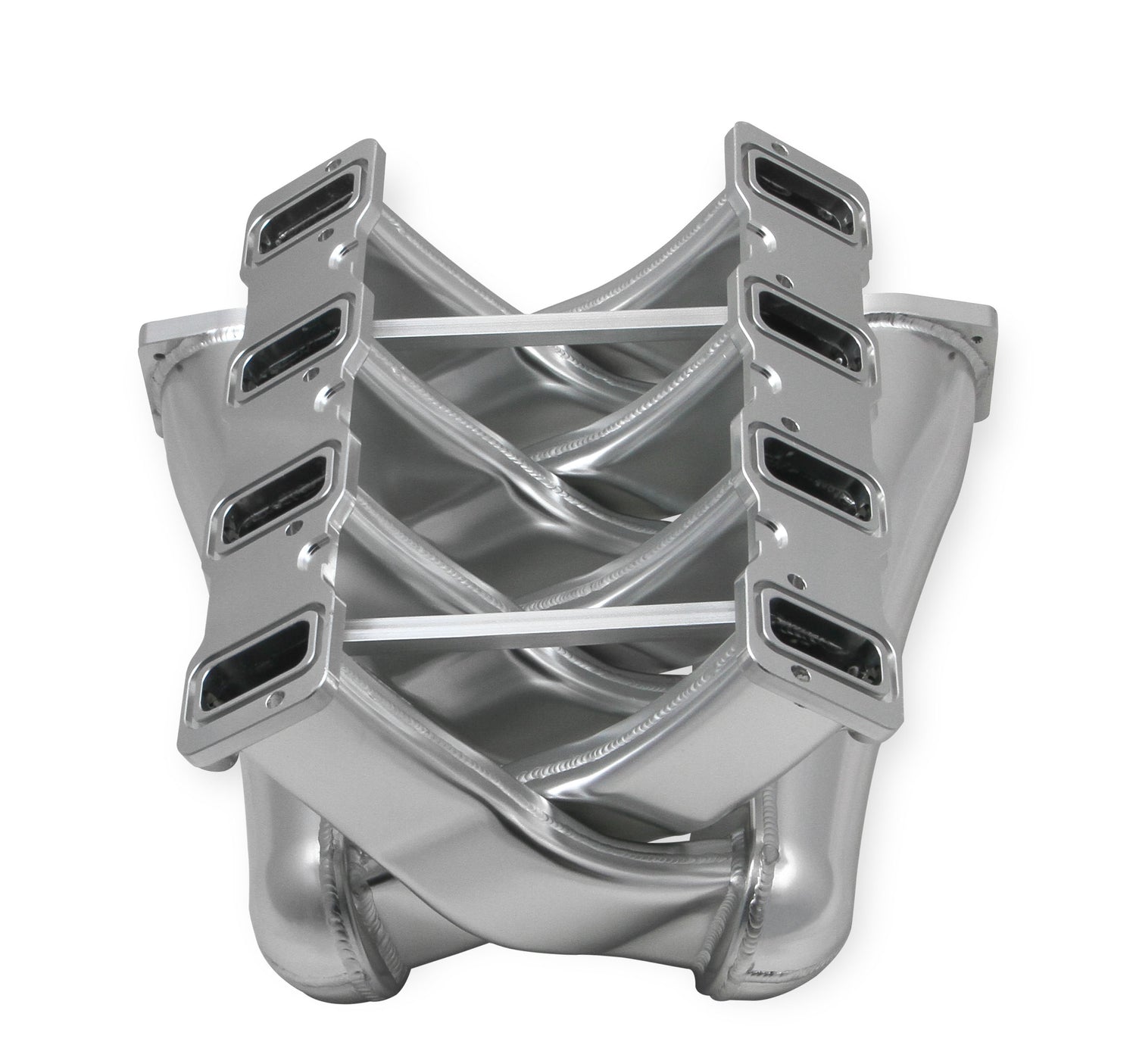

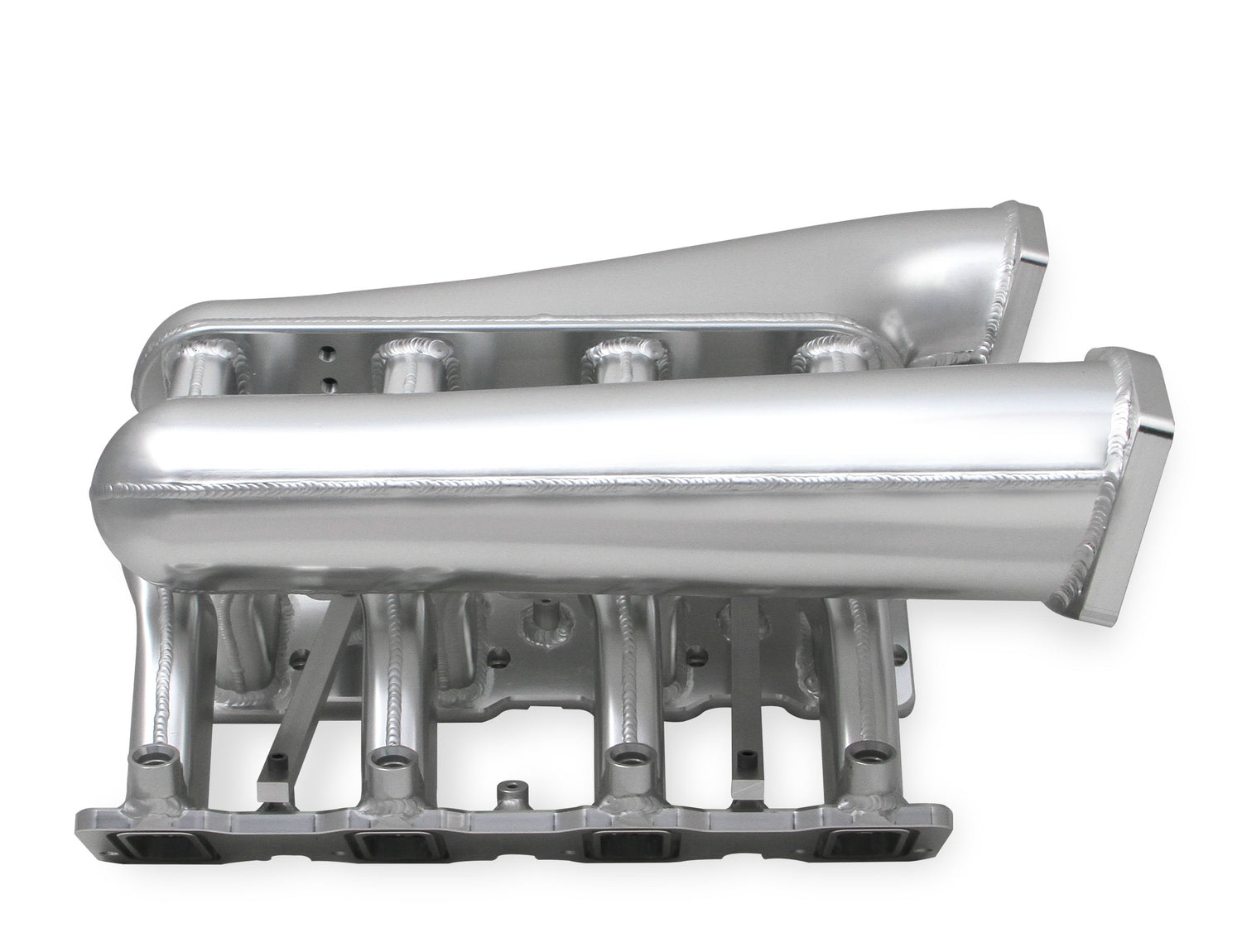

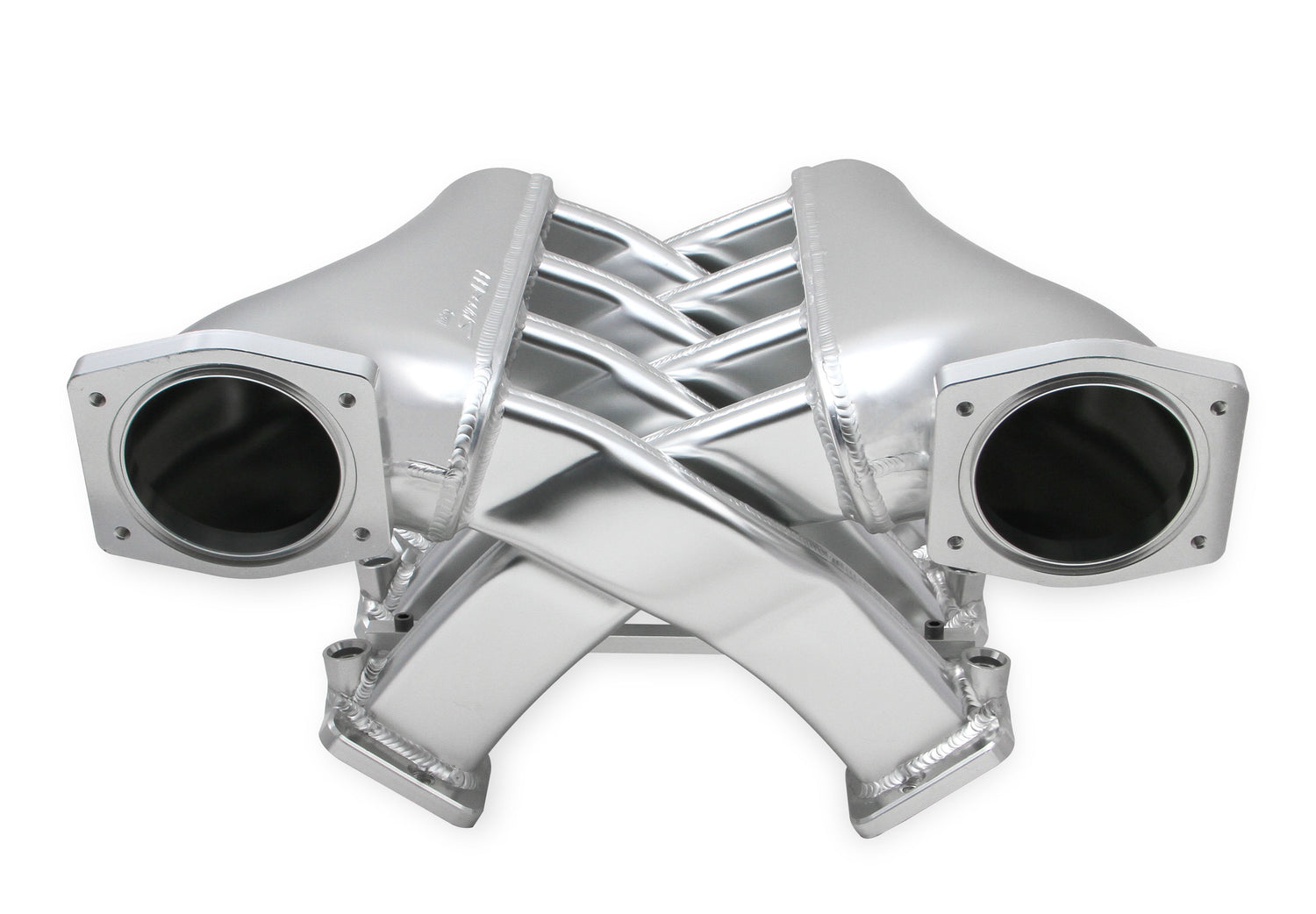

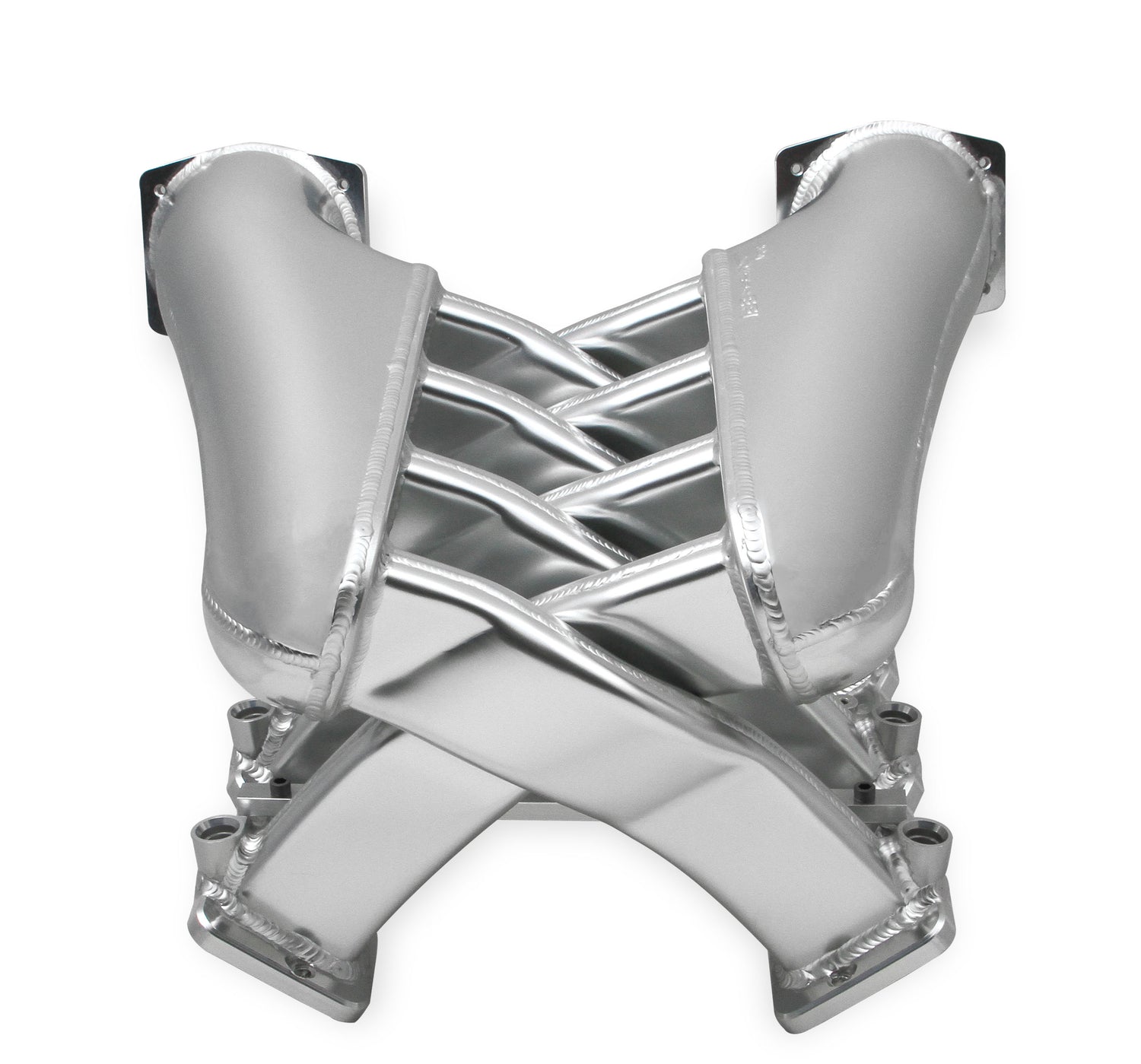

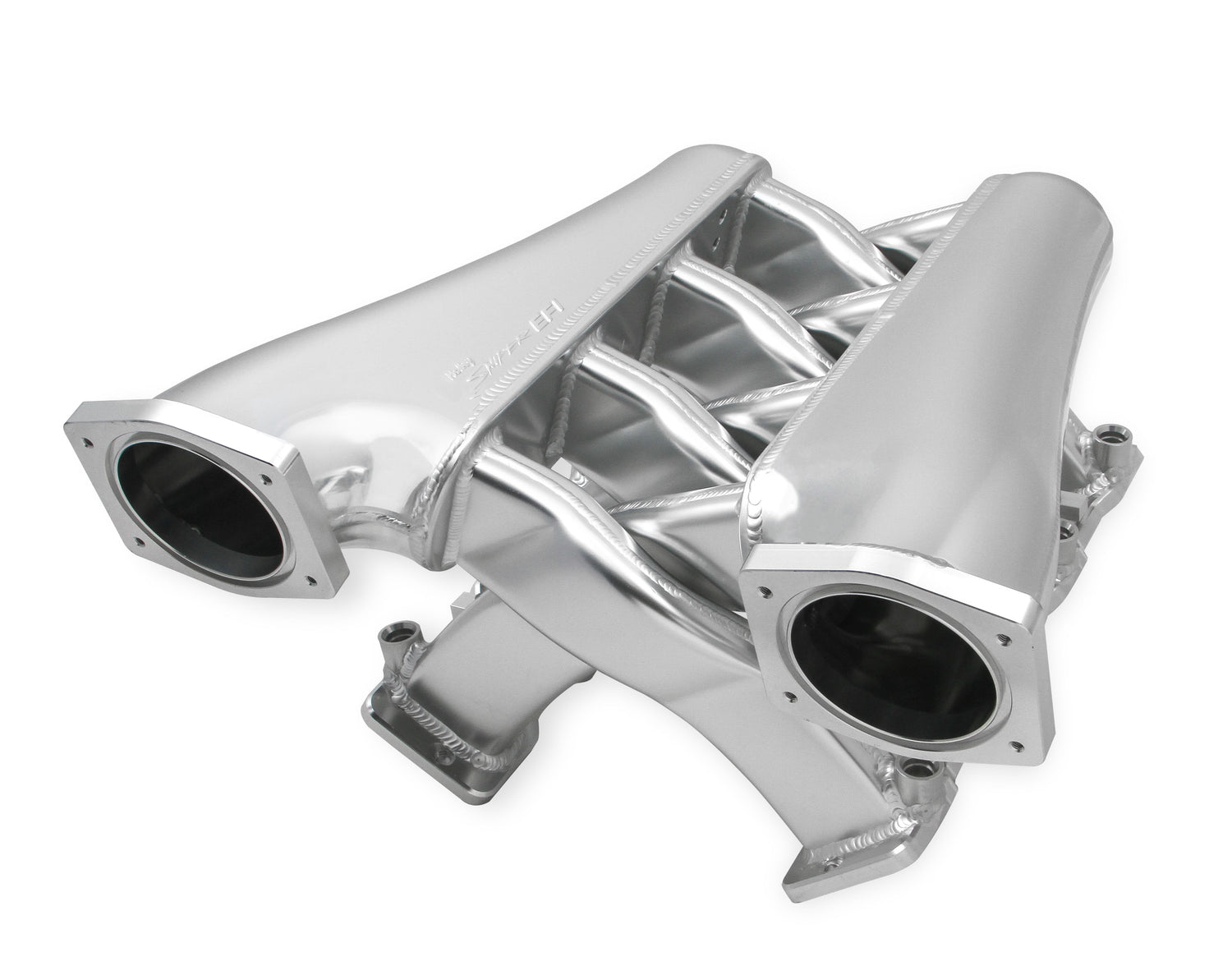

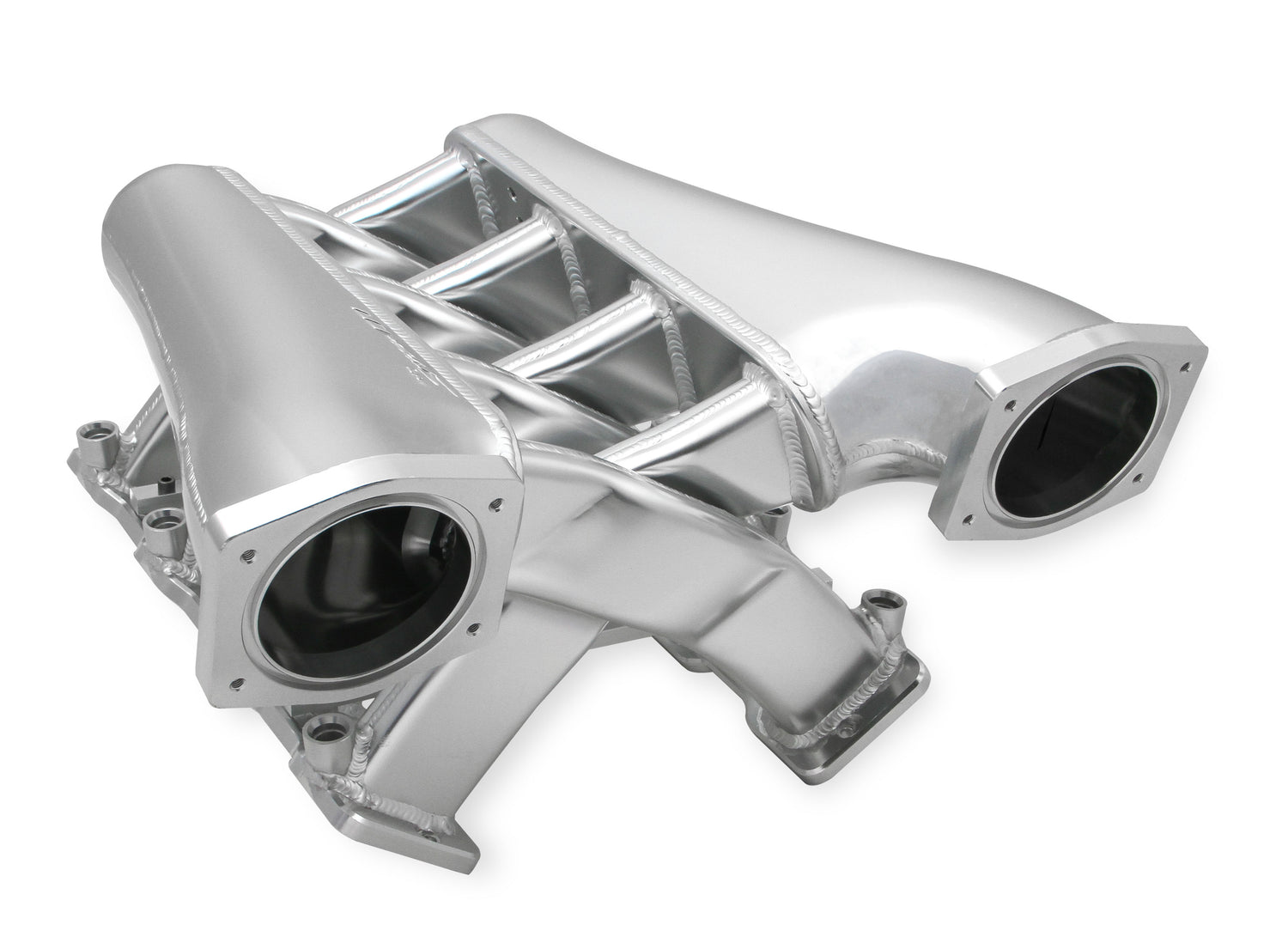

Holley 822201 Sniper EFI Fabricated Intake Manifold Dual Plenum 92mm LS3/L92, Rail Kit - Slvr
Sniper EFI "Dual Plenum" Intake Manifold 92mm throttle body bore for GM LS3/L92 engines (Includes installation kit, and fuel rail kit) Silver Finish
Regular price
$2,931.90 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 822201 Sniper EFI Fabricated Intake Manifold Dual Plenum 92mm LS3/L92, Rail Kit - Slvr is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Sniper EFI "Dual Plenum" Intake Manifold 92mm throttle body bore for GM LS3/L92 engines (Includes installation kit, and fuel rail kit) Silver Finish
Part Number: 822201
The use of one tapered plenum to accommodate one bank of cylinders accomplishes both problems. The entire volume of incoming air is distributed to only four cylinders and the tapered shape of the plenum help increased air velocity directed to each of the intake runner ports. Holley continues to push the envelope of intake design with its latest offering. The unique look of this intake will surely stand out from the crowd! Our dual plenum design features extremely long 12-3/4" runners to develop low-end torque making this intake an ideal "street" intake. Our latest release of fabricated "Dual Plenum" intake manifolds for GM LS1/2/6 and LS3/L92 engines. This unique design of utilizing two plenums solves two common problems experienced with many intakes increased airflow and even dispersion of air to intake ports. These intake are finished in our familiar silver and black anodized finishes for durability and good looks. Our 3/8" fuel rail kit include a laser engrave Sniper logo and are capable of supporting 750+ horsepower.
Features and Benefits

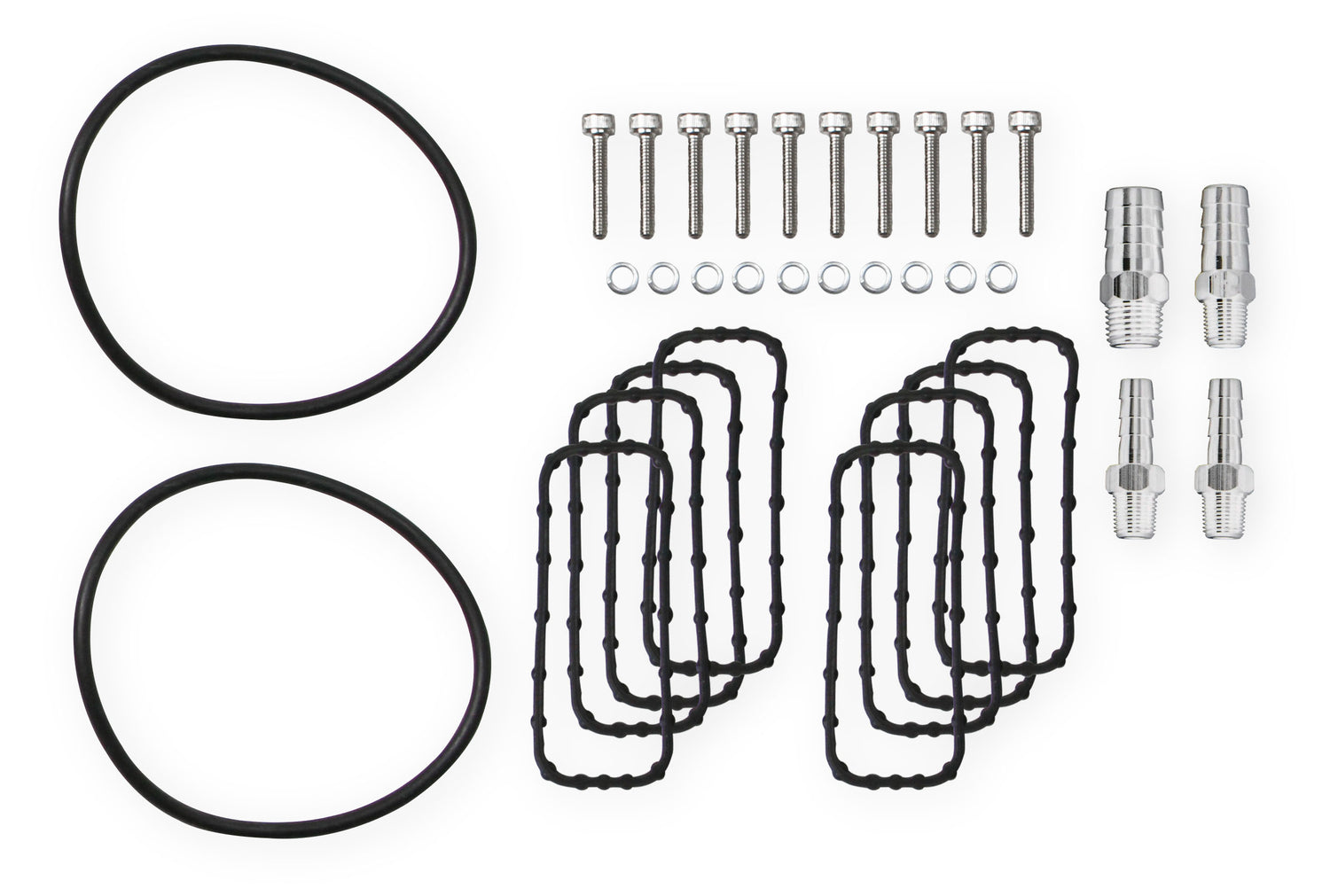

• Product includes all gaskets and hardware for a hassle-free installation
• The Sniper intake will only accept EV1 style injectors.
• Twin 92mm throttle bore openings for increased air flow
• Silver finish creates high impact under-hood styling
• Dual plenum design ideal for street max effort engines and boosted applications
• Long Intake runner lengths (12.75 inches) offering low end torque and operating range of 1600-6800 RPM

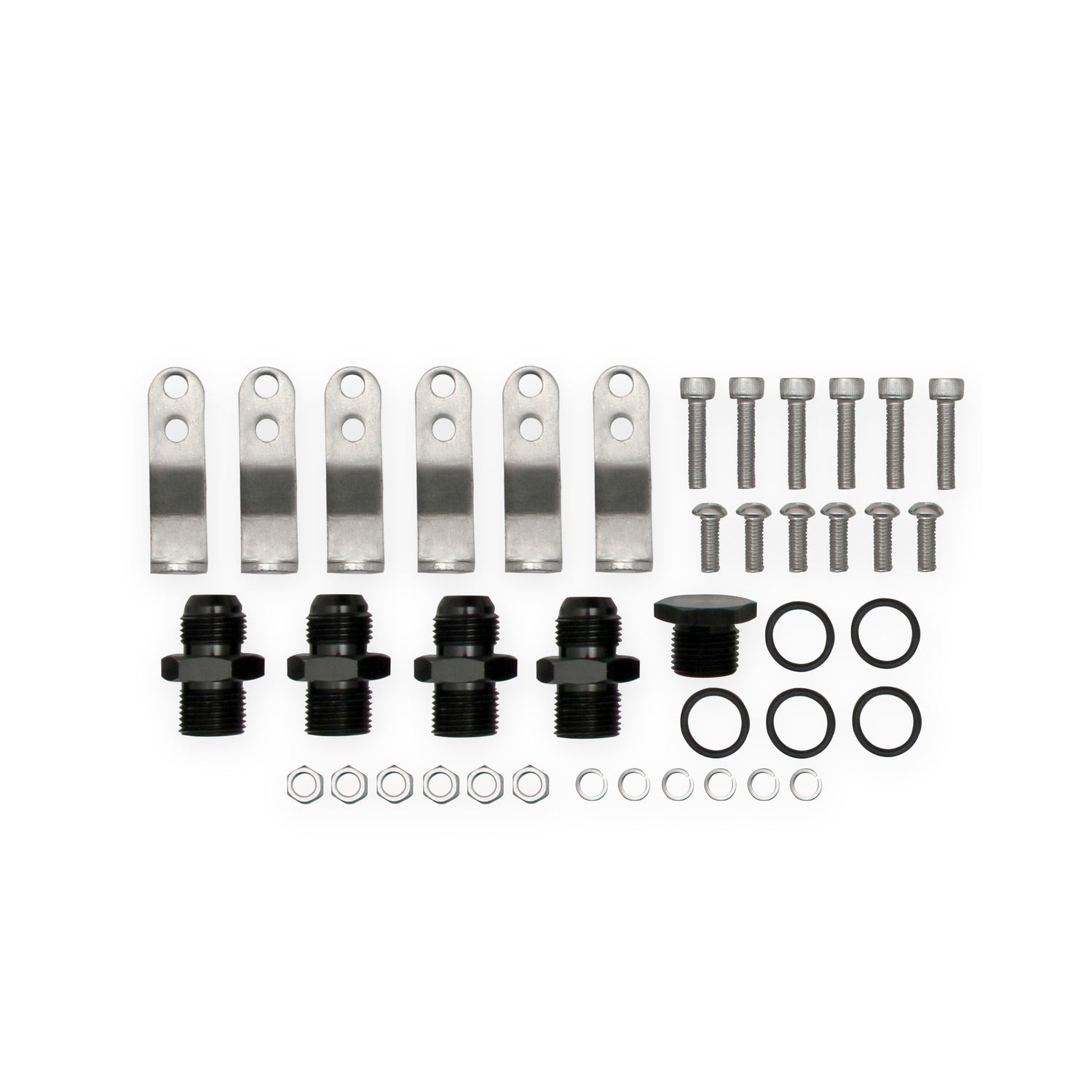

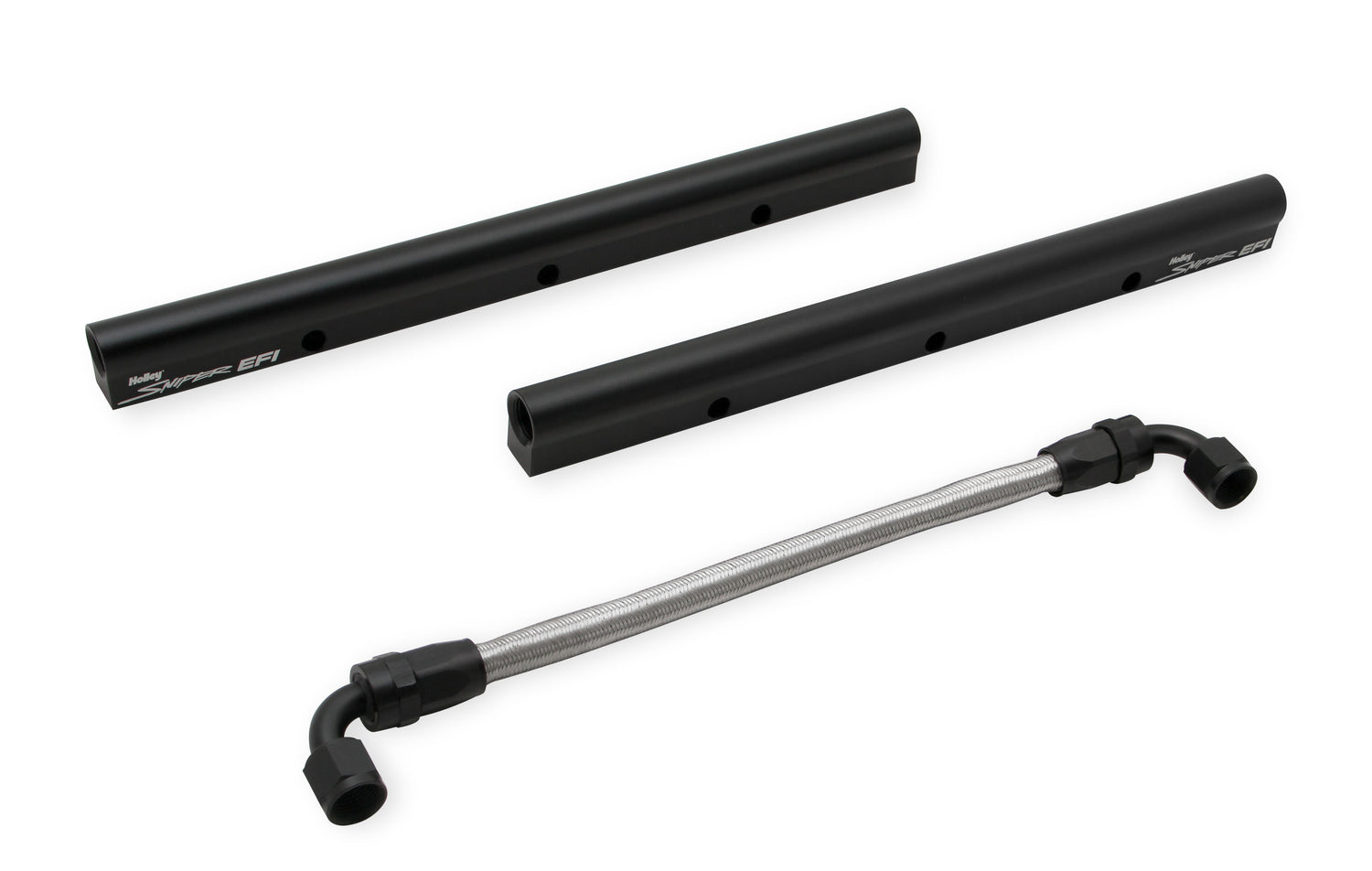

• Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
• 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability

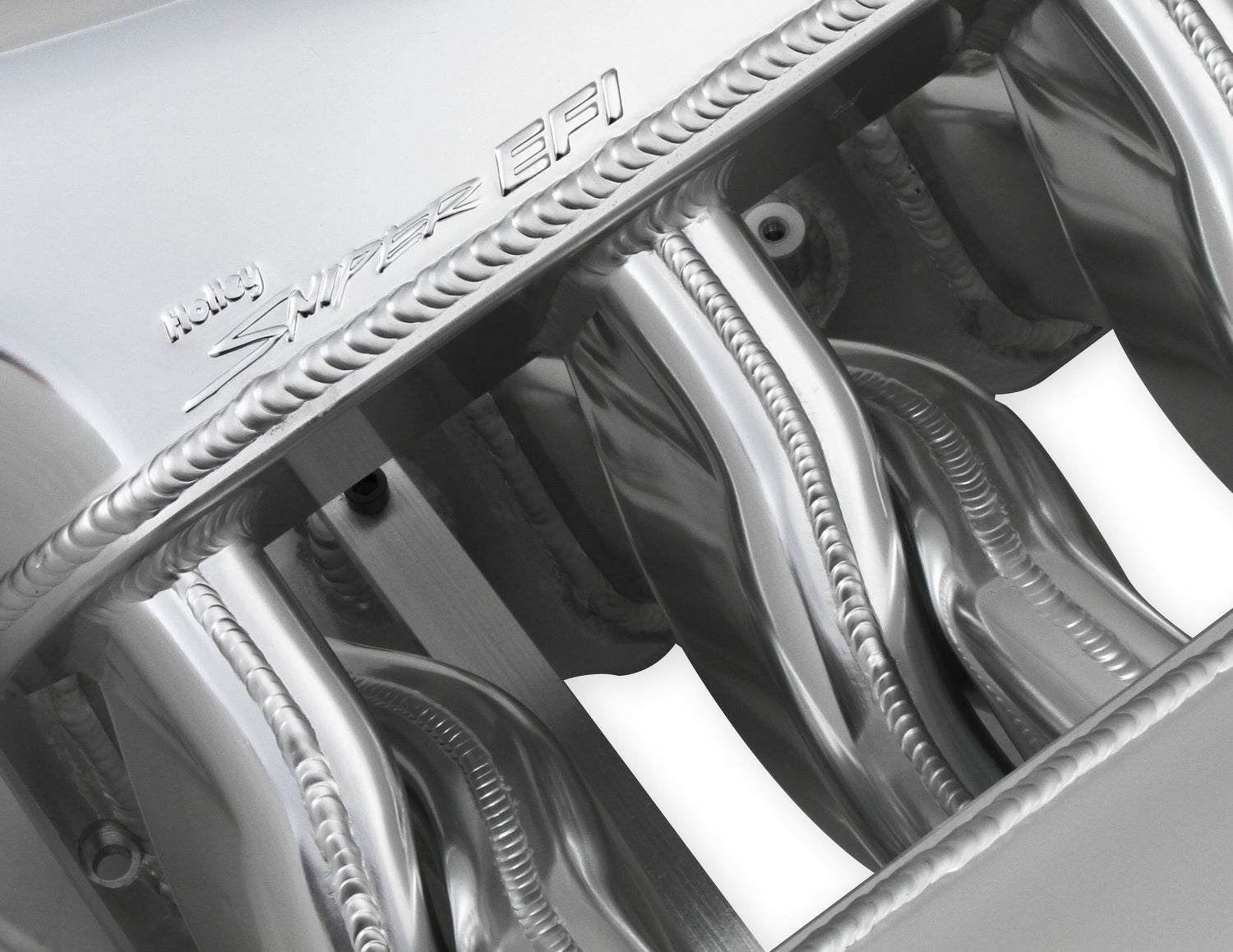

• 100% TIG welded for strength and durability
• Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
Part Number: 822201
The use of one tapered plenum to accommodate one bank of cylinders accomplishes both problems. The entire volume of incoming air is distributed to only four cylinders and the tapered shape of the plenum help increased air velocity directed to each of the intake runner ports. Holley continues to push the envelope of intake design with its latest offering. The unique look of this intake will surely stand out from the crowd! Our dual plenum design features extremely long 12-3/4" runners to develop low-end torque making this intake an ideal "street" intake. Our latest release of fabricated "Dual Plenum" intake manifolds for GM LS1/2/6 and LS3/L92 engines. This unique design of utilizing two plenums solves two common problems experienced with many intakes increased airflow and even dispersion of air to intake ports. These intake are finished in our familiar silver and black anodized finishes for durability and good looks. Our 3/8" fuel rail kit include a laser engrave Sniper logo and are capable of supporting 750+ horsepower.
Features and Benefits
• Product includes all gaskets and hardware for a hassle-free installation
• The Sniper intake will only accept EV1 style injectors.
• Twin 92mm throttle bore openings for increased air flow
• Silver finish creates high impact under-hood styling
• Dual plenum design ideal for street max effort engines and boosted applications
• Long Intake runner lengths (12.75 inches) offering low end torque and operating range of 1600-6800 RPM
• Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
• 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
• 100% TIG welded for strength and durability
• Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
Specifications
Specifications
-
Specifications

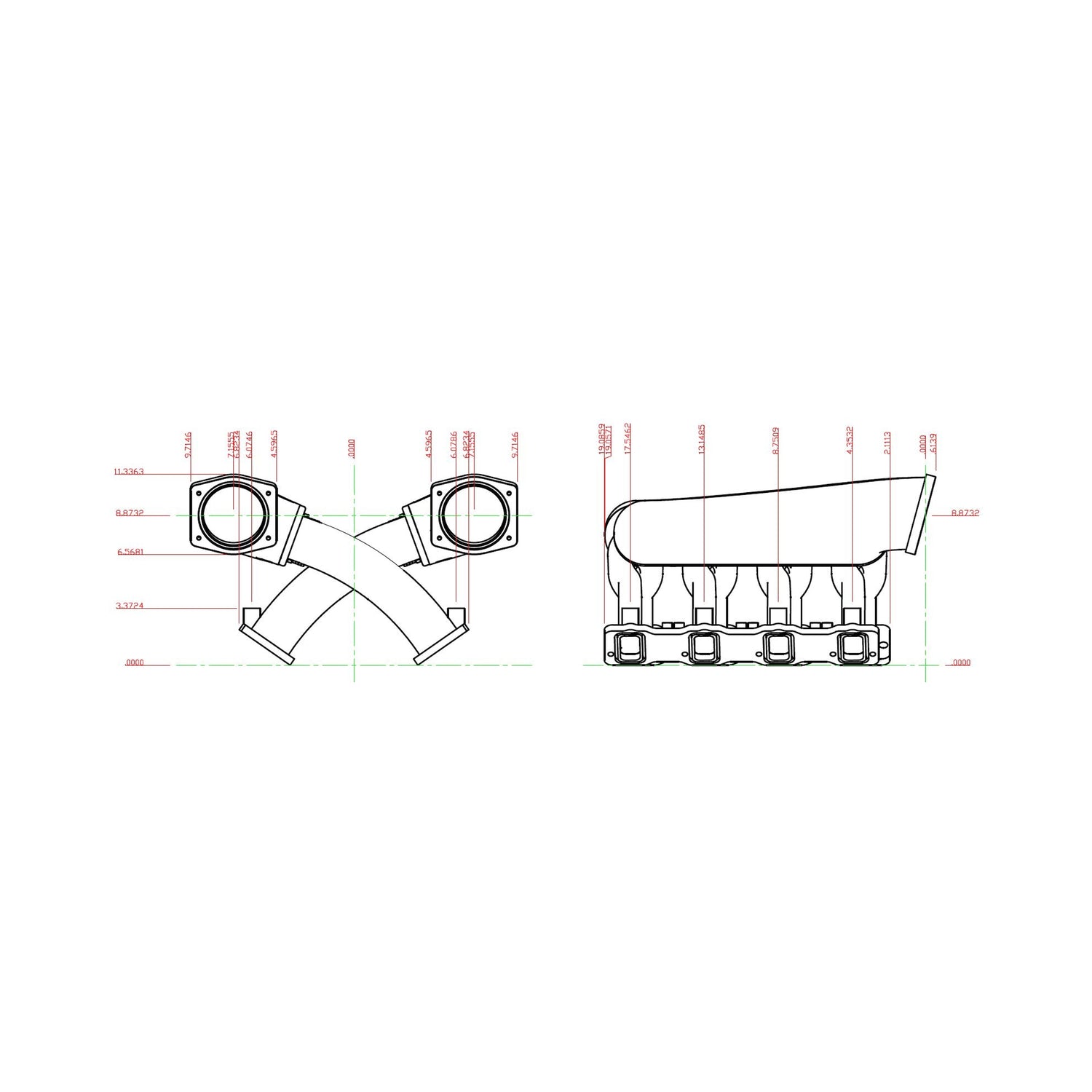

Basic Operating RPM Range 1500-6500 Brand Holley Sniper EFI Carburetor Flange N/A Carburetor Quantity N/A Carburetor Studs Included No Category Sniper EFI Intakes CNC Ported No Color Polished Construction Fabricated Cylinder Head Port Shape Rectangle Deck Height 9.24 EGR Port No Emission Code 4 Engine GM LS3/L92 Flange Style N/A Front Maximum Height 11.336 Front Width 19.4292 inch Fuel Injectors Included No Fuel Rail(s) Included Yes Fuel System Type EFI Gasket Or Seal Included Yes Grade Type Performance Injector Style Provision EV14 USCAR Intake Port Gasket(s) Included Yes Manifold Type Fabricated Material Aluminum Nitrous Bung(s) Included No Plenum Finish Polished Product Type Intake Manifold Rear Maximum Height 9.992 Rear Width 13.6468 inch Recommended Use Forced Induction Removable Runners No Removable Top/Lid No Runner Length 5.512" (140mm) Single Or Dual Plane Type Single Plane Style EFI Throttle Body Bore Diameter 92 Throttle Body Gasket Included No Throttle Body Included No Throttle Bore 92mm Vacuum Ports (3) 1/8"-28BSPT & (1) 1/4"-19BSPT Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
