Holley Sniper EFI | SKU:
822101-1

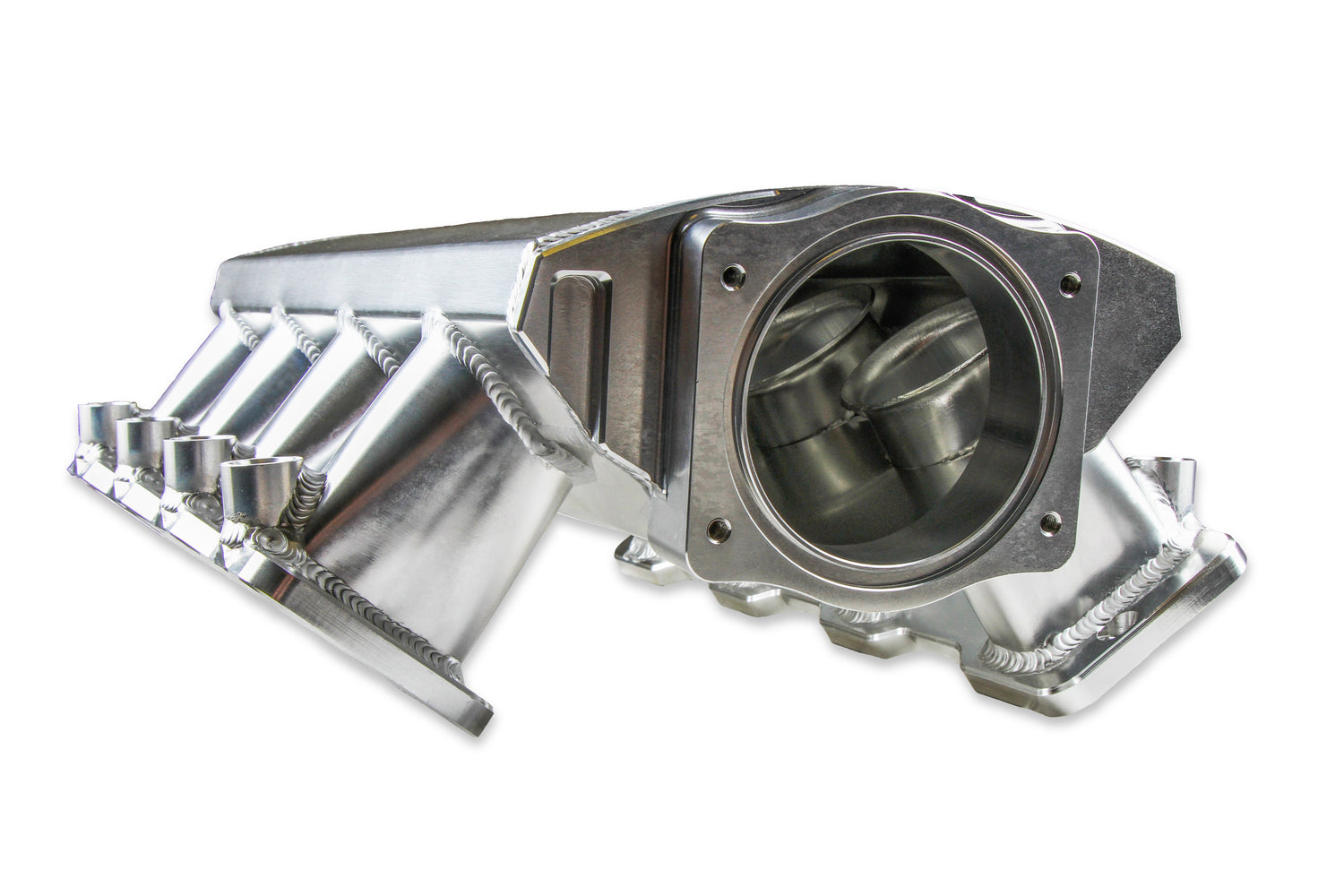

Holley 822101-1 Sniper EFI Low Profile Sheet Metal Fabricated Intake Manifold
Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 92mm Throttle Body opening + Fuel Rail Kit Silver with Sniper logo - Low Profile - Now Includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent
Regular price
$1,906.80 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 822101-1 Sniper EFI Low Profile Sheet Metal Fabricated Intake Manifold is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Holley 822101-1 Sniper EFI Low Profile Sheet Metal Fabricated Intak...
Regular price
$1,906.80 NZD
+ GST
Unit price
/
Unavailable
Description
Description
Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 92mm Throttle Body opening + Fuel Rail Kit Silver with Sniper logo - Low Profile - Now Includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent
Part Number: 822101-1

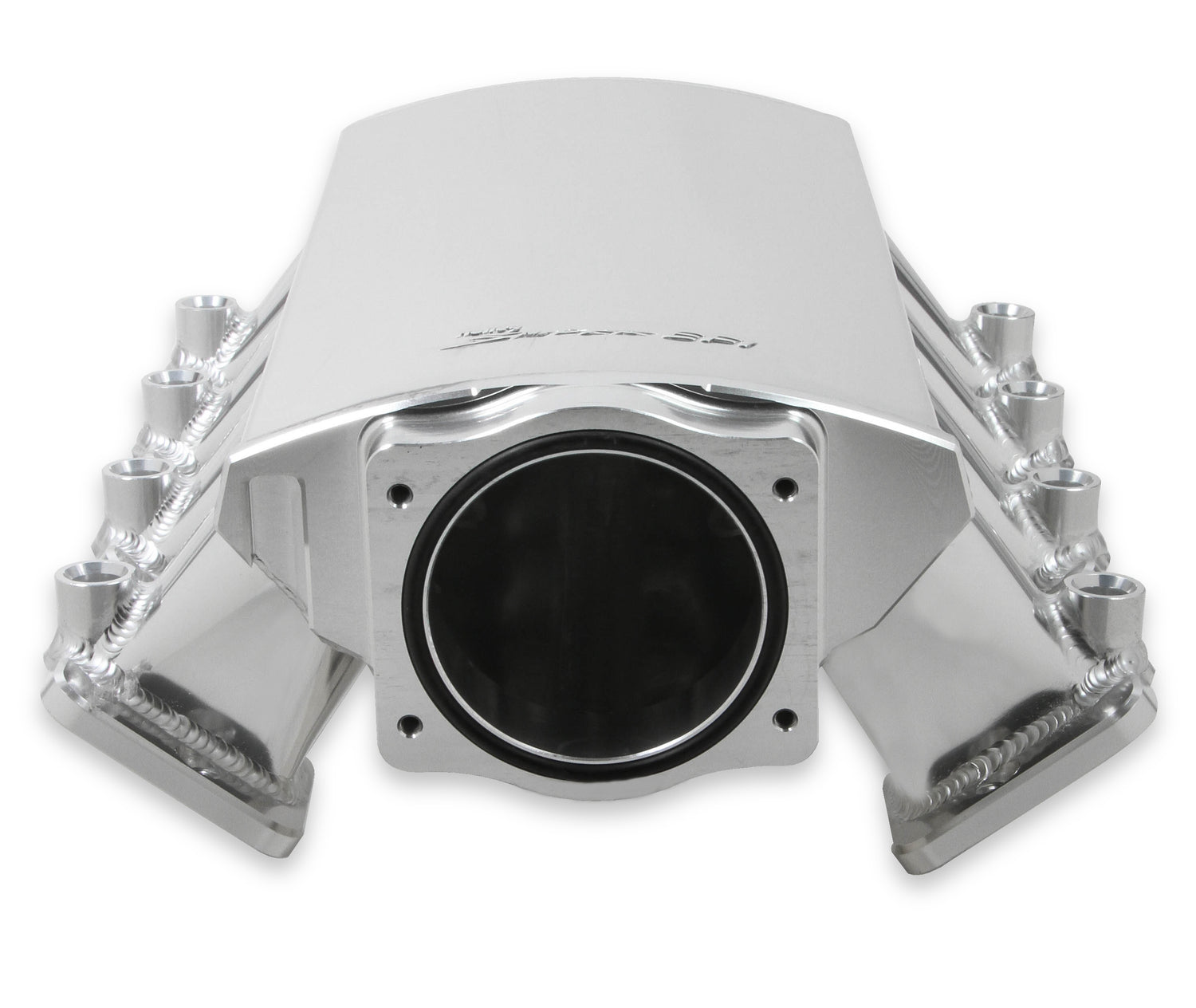

Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity. Choice of Throttle Body opening sizes of 92mm & 102mm are available Holley Sniper Fabricated Manifolds continues to push the aftermarket by introducing Low Profile intakes for GM LS Engines. These Intakes are a good looking, perform well, and offer an extremely good value for a performance sheet metal style intake manifold for the very popular GM LS engine family. Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit. This updated design was developed to allow the end user to fit under a stock hood.
Features and Benefits

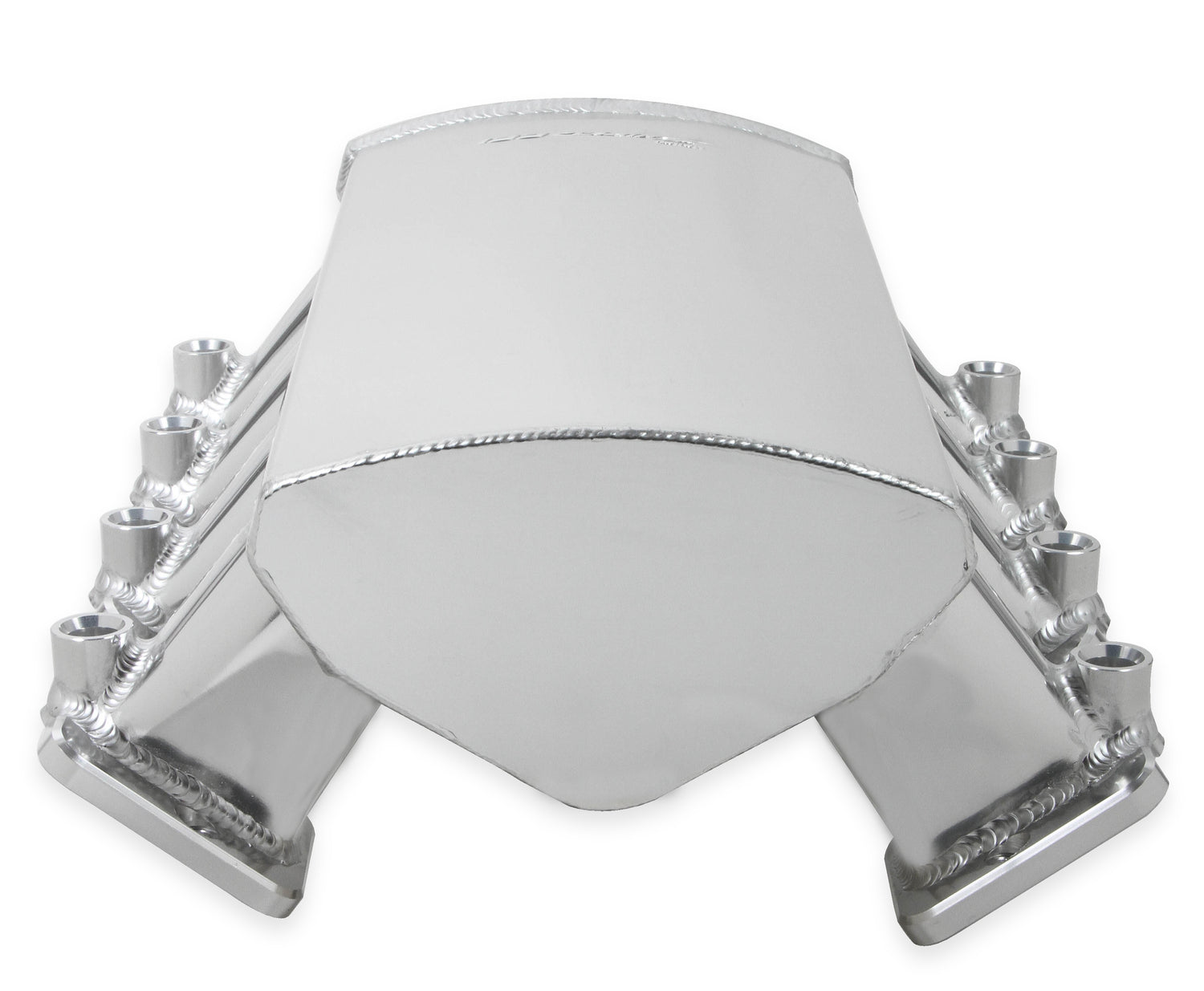

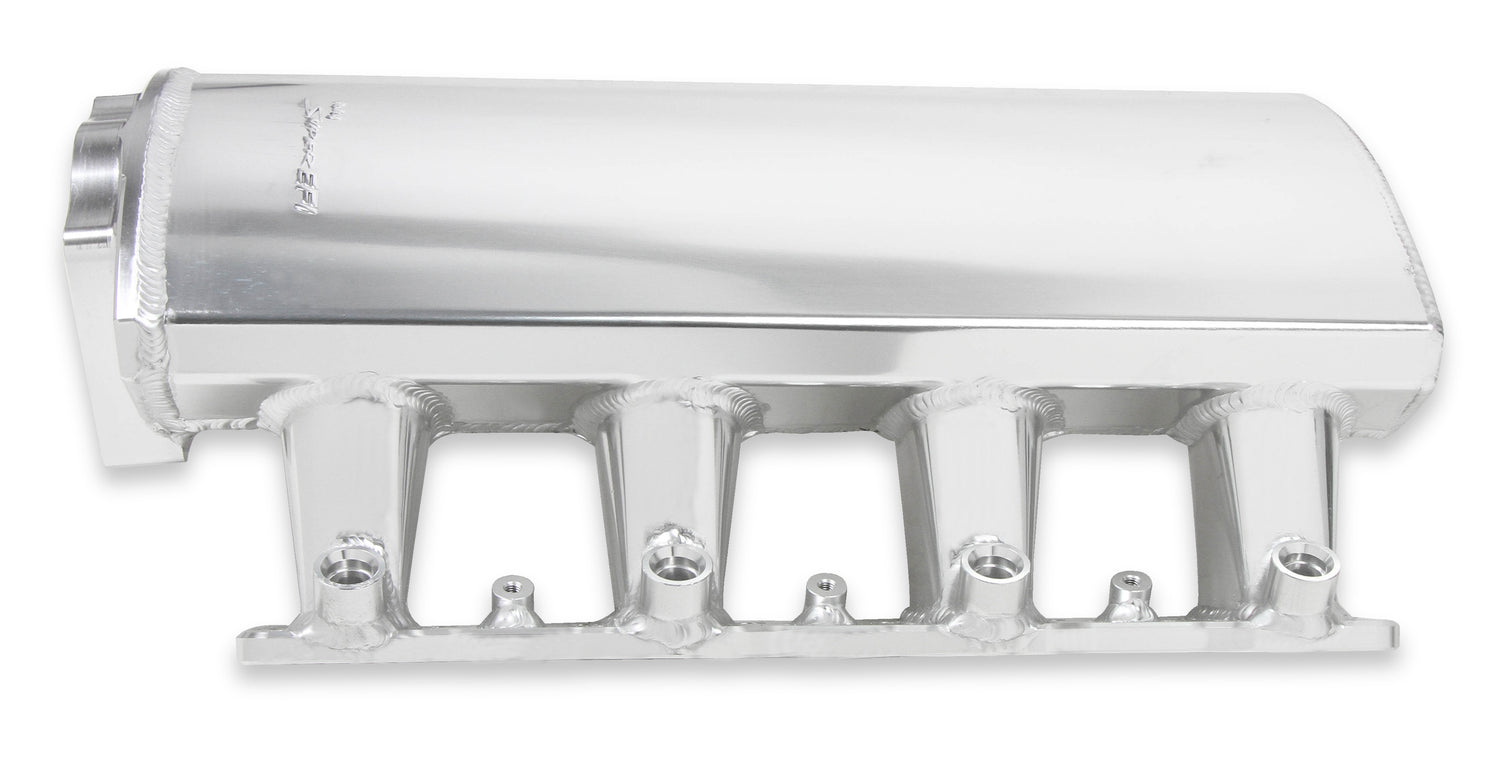

• Low Profile, Compact Design (overall 1.875 inches shorter) allows fitment under stock hoods on Corvette, Camaro, Firebird, GTO, and others where hood clearance is at a minimum

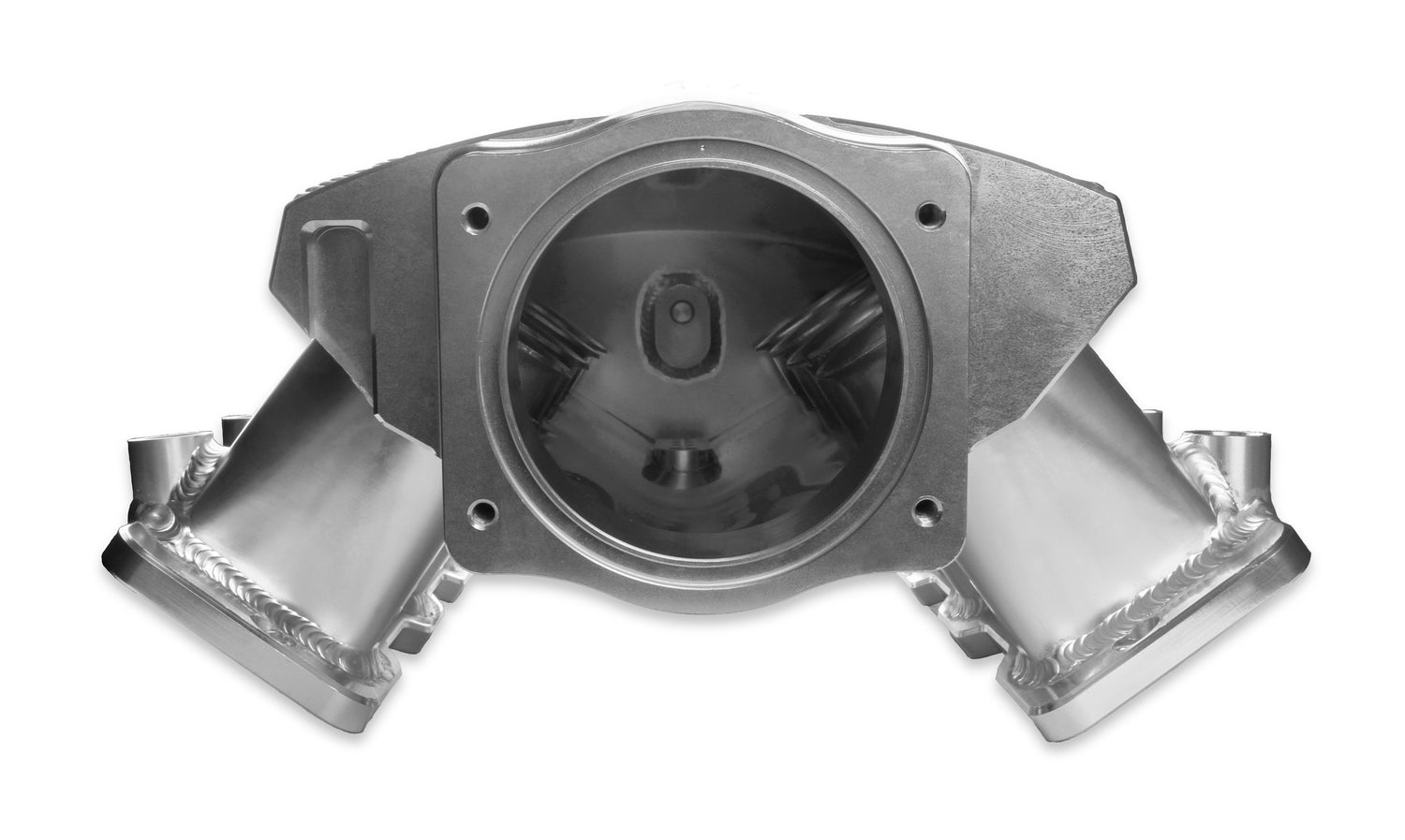

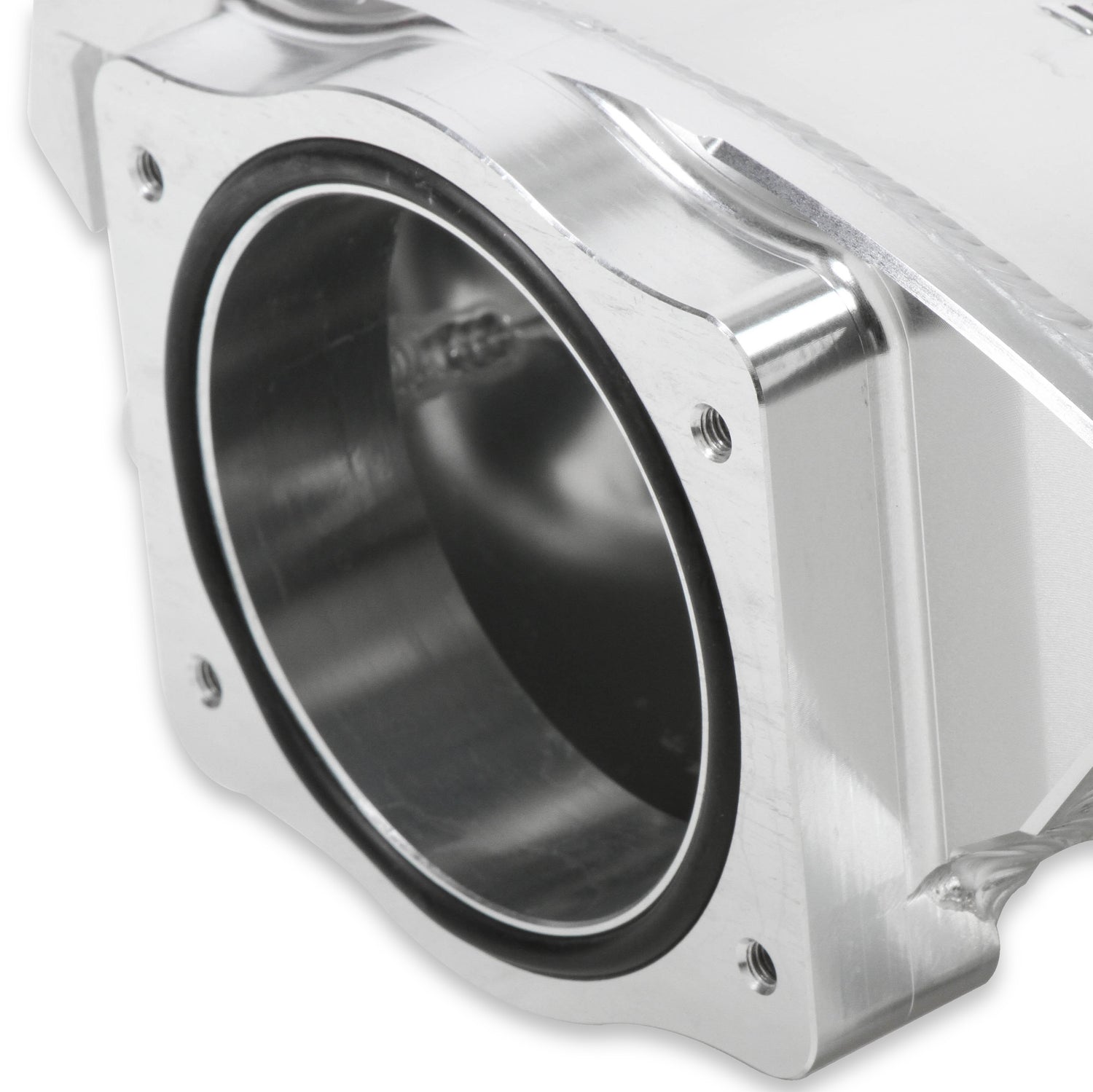

• 92mm throttle bore opening for increased air flow
• 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability

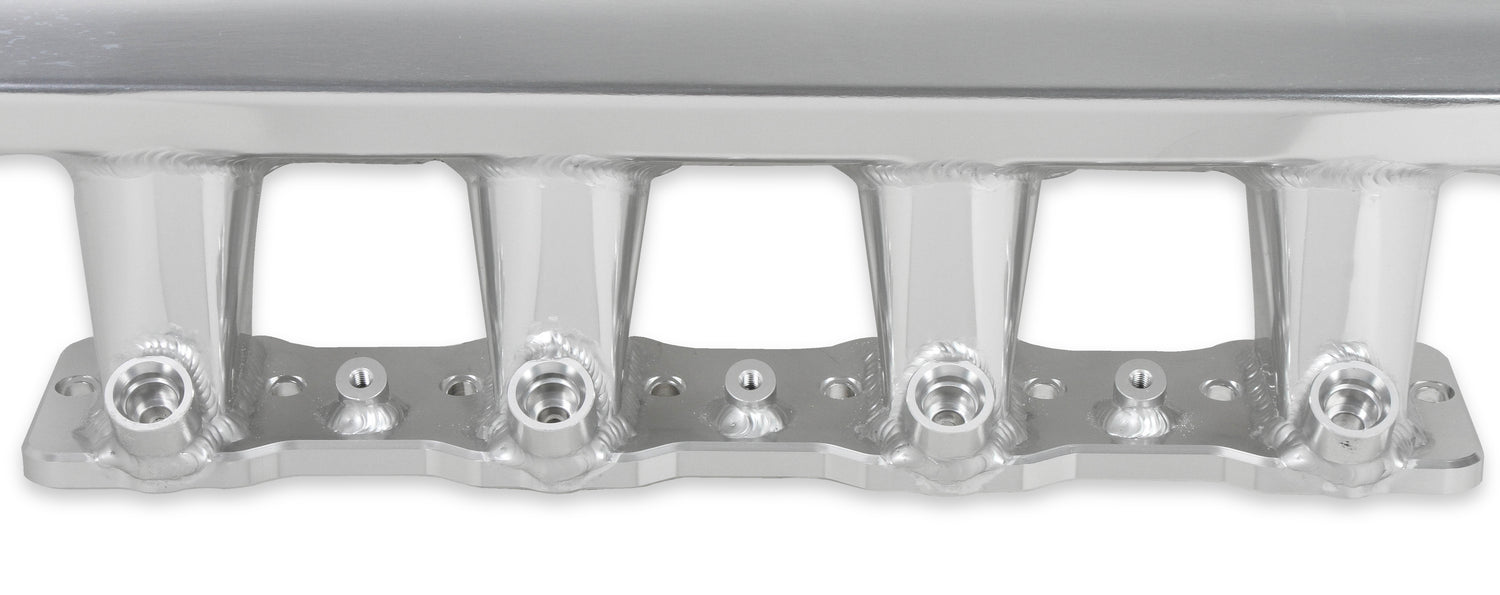

• The Sniper intake will only accept EV1 style injectors.

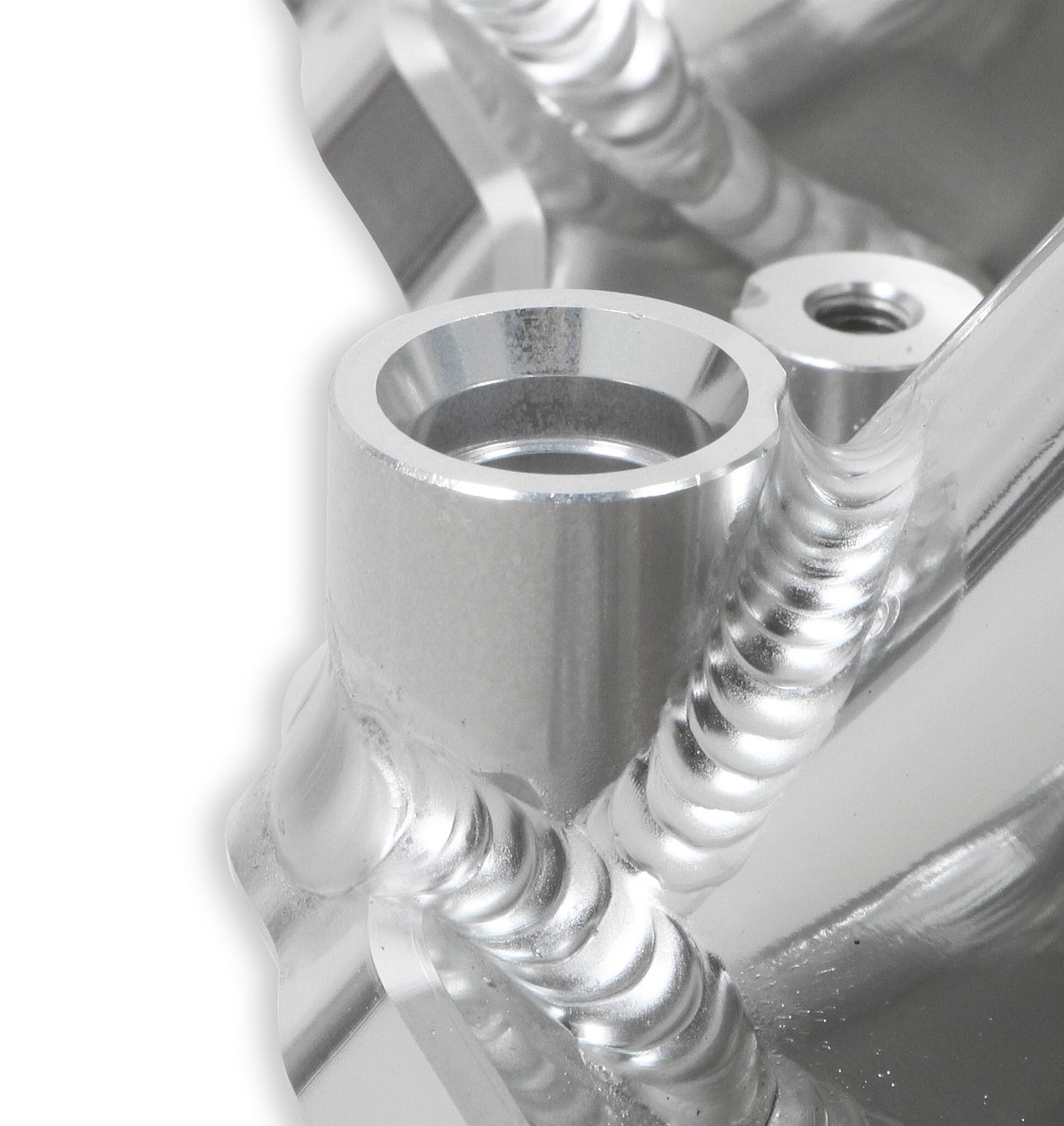

• 100% TIG welded for strength and durability

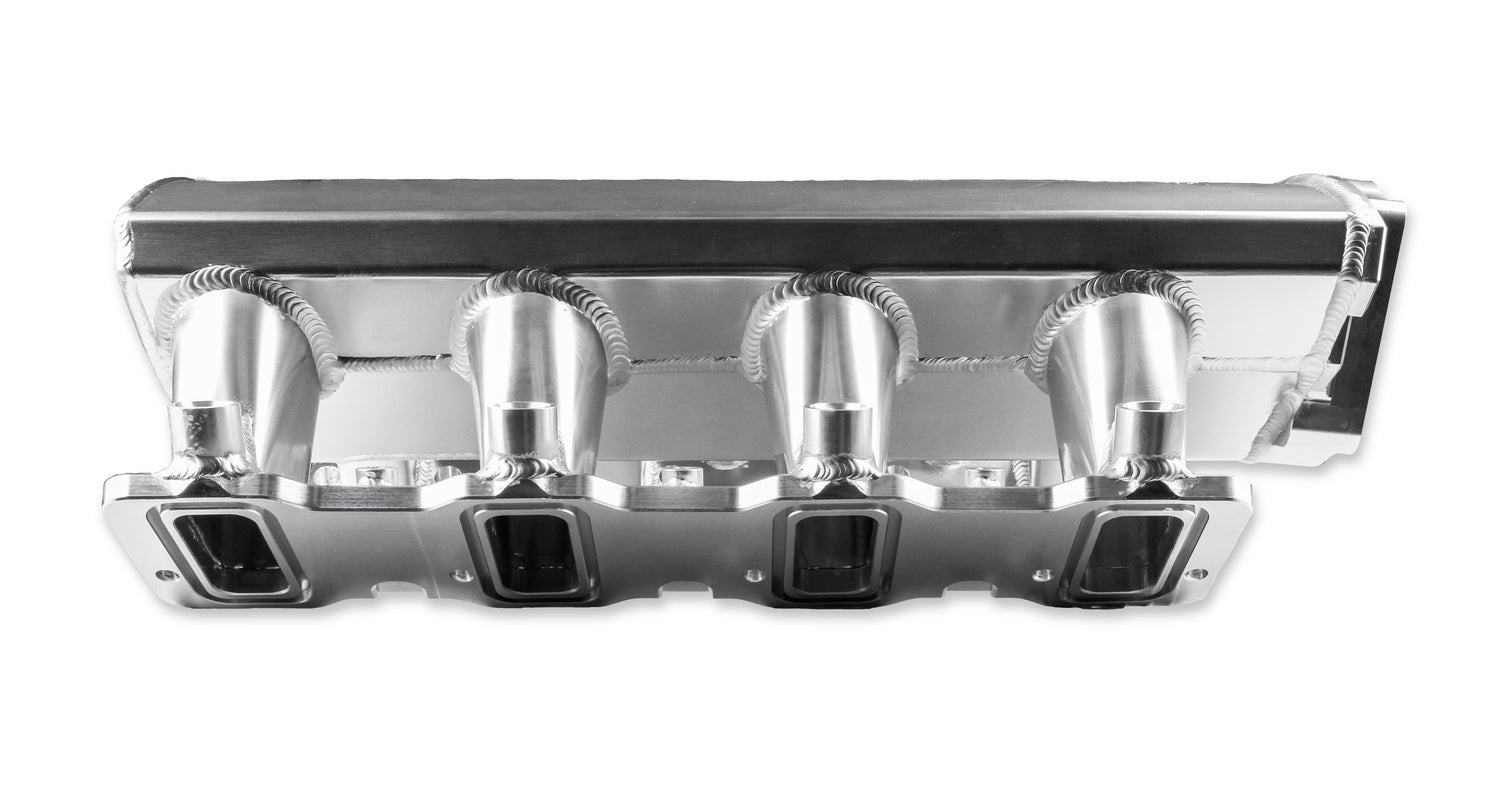

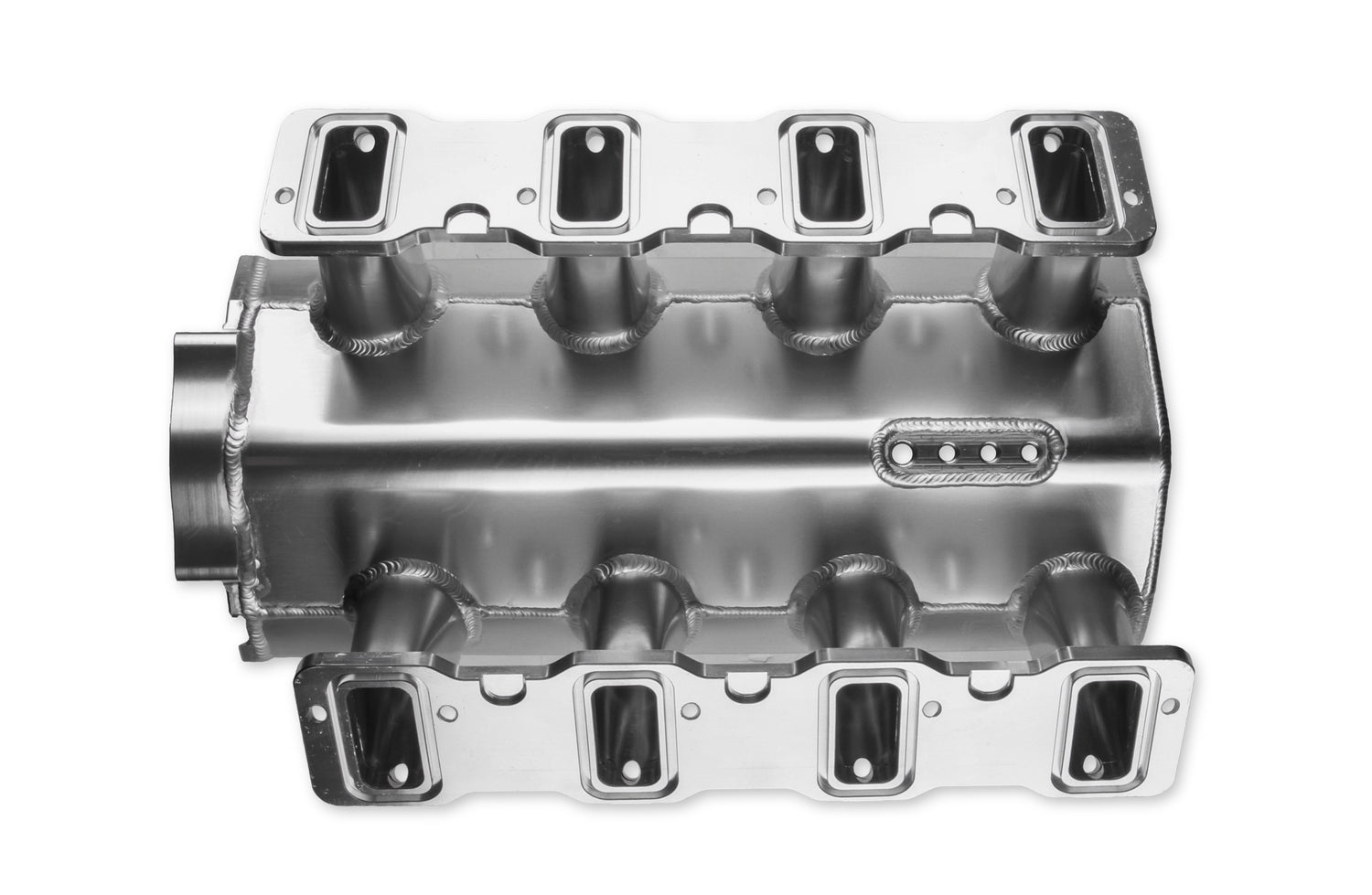

• Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
• Silver finish creates high impact under-hood styling

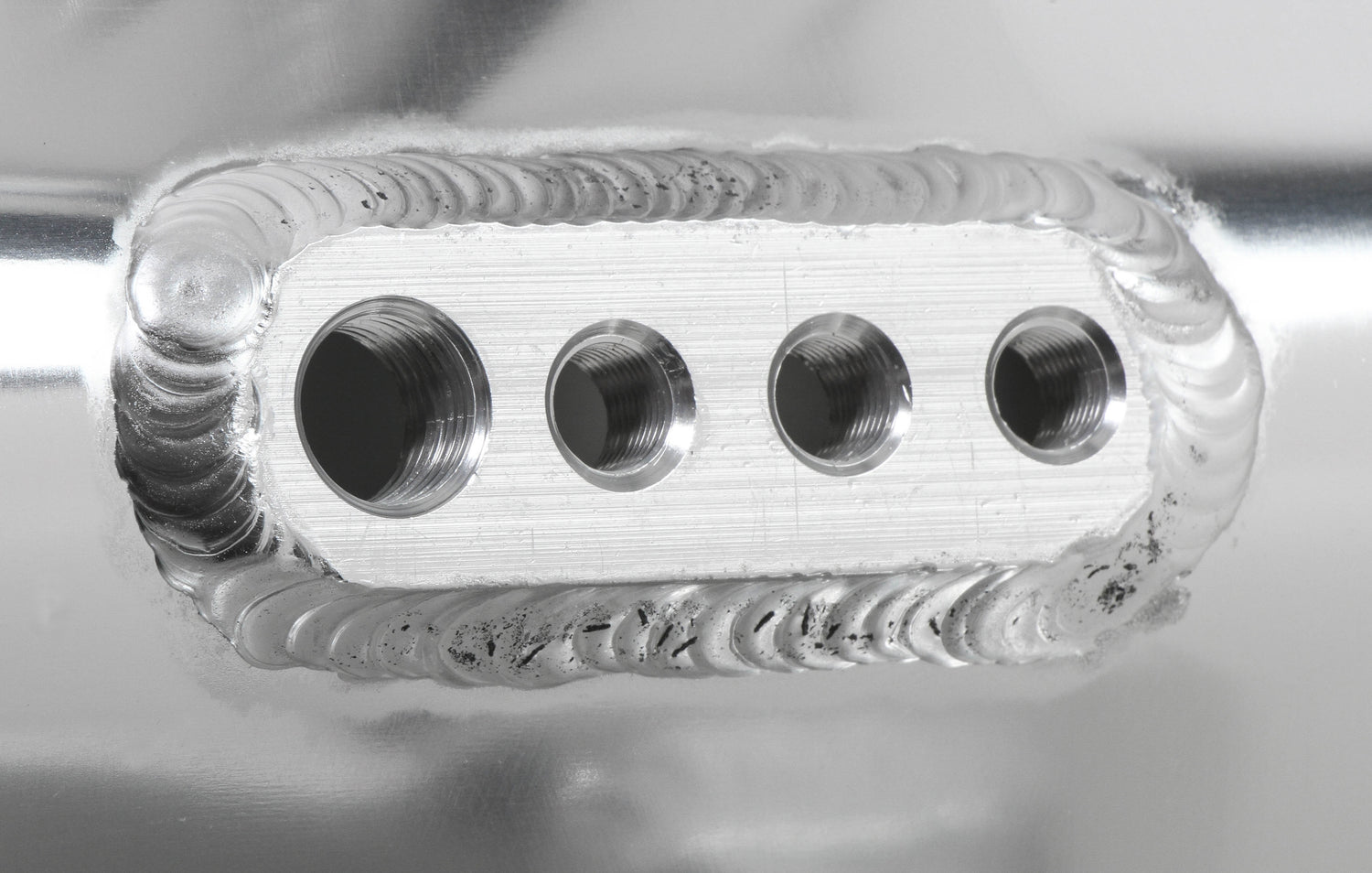

• Provision for MAP sensor located on rear of plenum

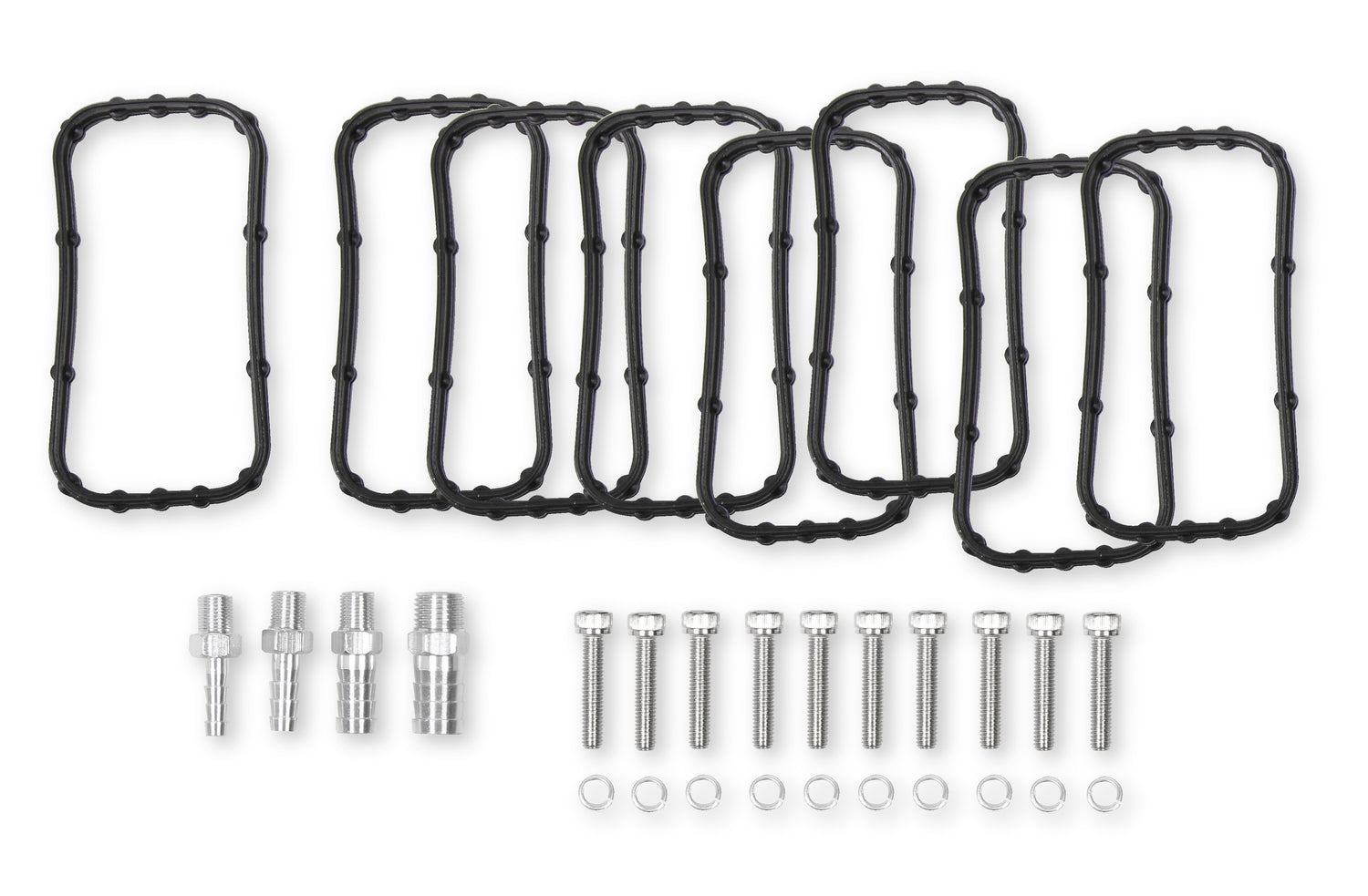

• Product includes all gaskets and hardware for a hassle-free installation

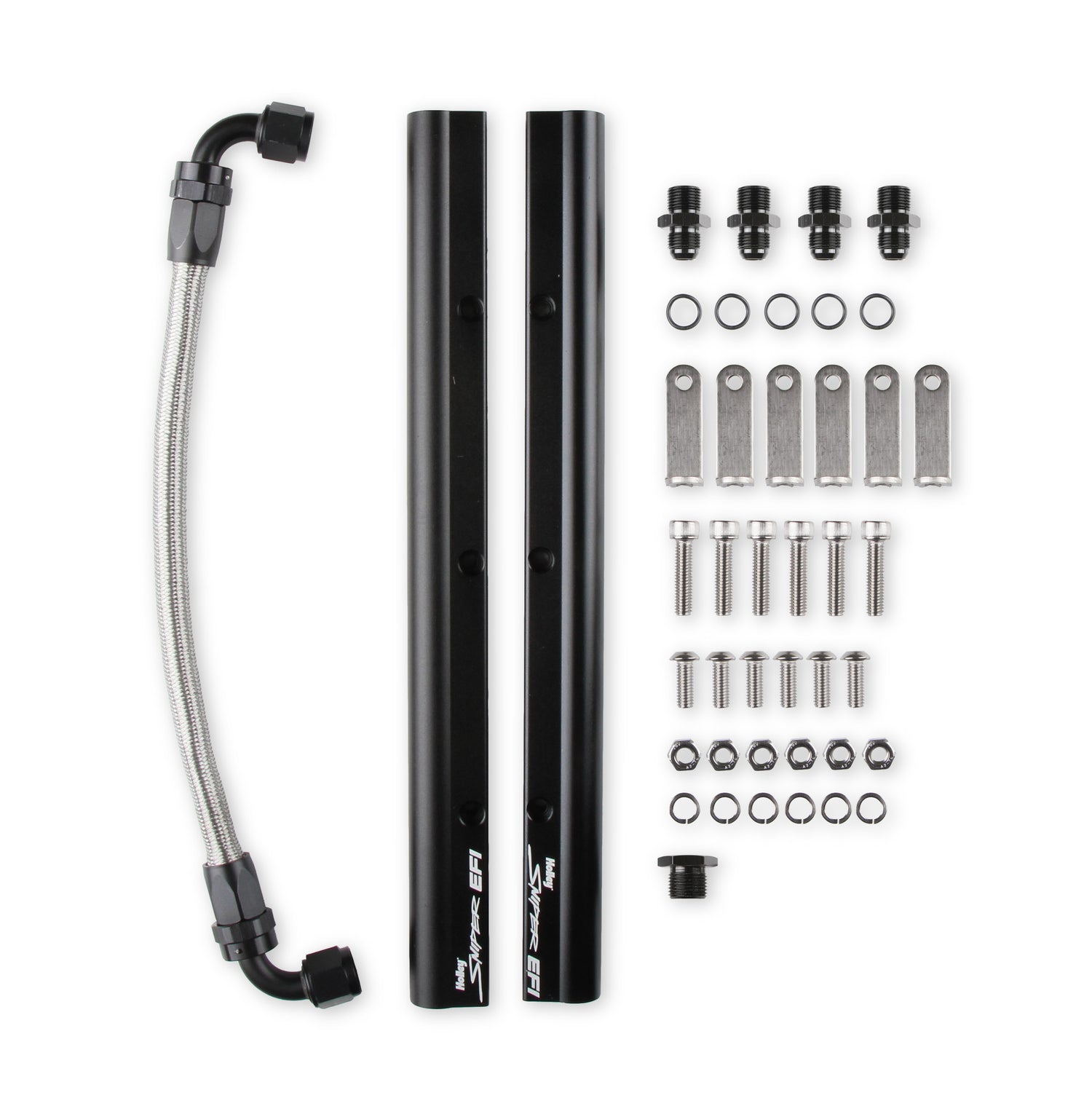

• Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
*** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment ***_x000D_ _x000D_ Designed for use with EV1 style fuel injectors.
Part Number: 822101-1
Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity. Choice of Throttle Body opening sizes of 92mm & 102mm are available Holley Sniper Fabricated Manifolds continues to push the aftermarket by introducing Low Profile intakes for GM LS Engines. These Intakes are a good looking, perform well, and offer an extremely good value for a performance sheet metal style intake manifold for the very popular GM LS engine family. Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit. This updated design was developed to allow the end user to fit under a stock hood.
Features and Benefits
• Low Profile, Compact Design (overall 1.875 inches shorter) allows fitment under stock hoods on Corvette, Camaro, Firebird, GTO, and others where hood clearance is at a minimum
• 92mm throttle bore opening for increased air flow
• 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
• The Sniper intake will only accept EV1 style injectors.
• 100% TIG welded for strength and durability
• Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
• Silver finish creates high impact under-hood styling
• Provision for MAP sensor located on rear of plenum
• Product includes all gaskets and hardware for a hassle-free installation
• Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
*** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment ***_x000D_ _x000D_ Designed for use with EV1 style fuel injectors.
Specifications
Specifications
-
Specifications

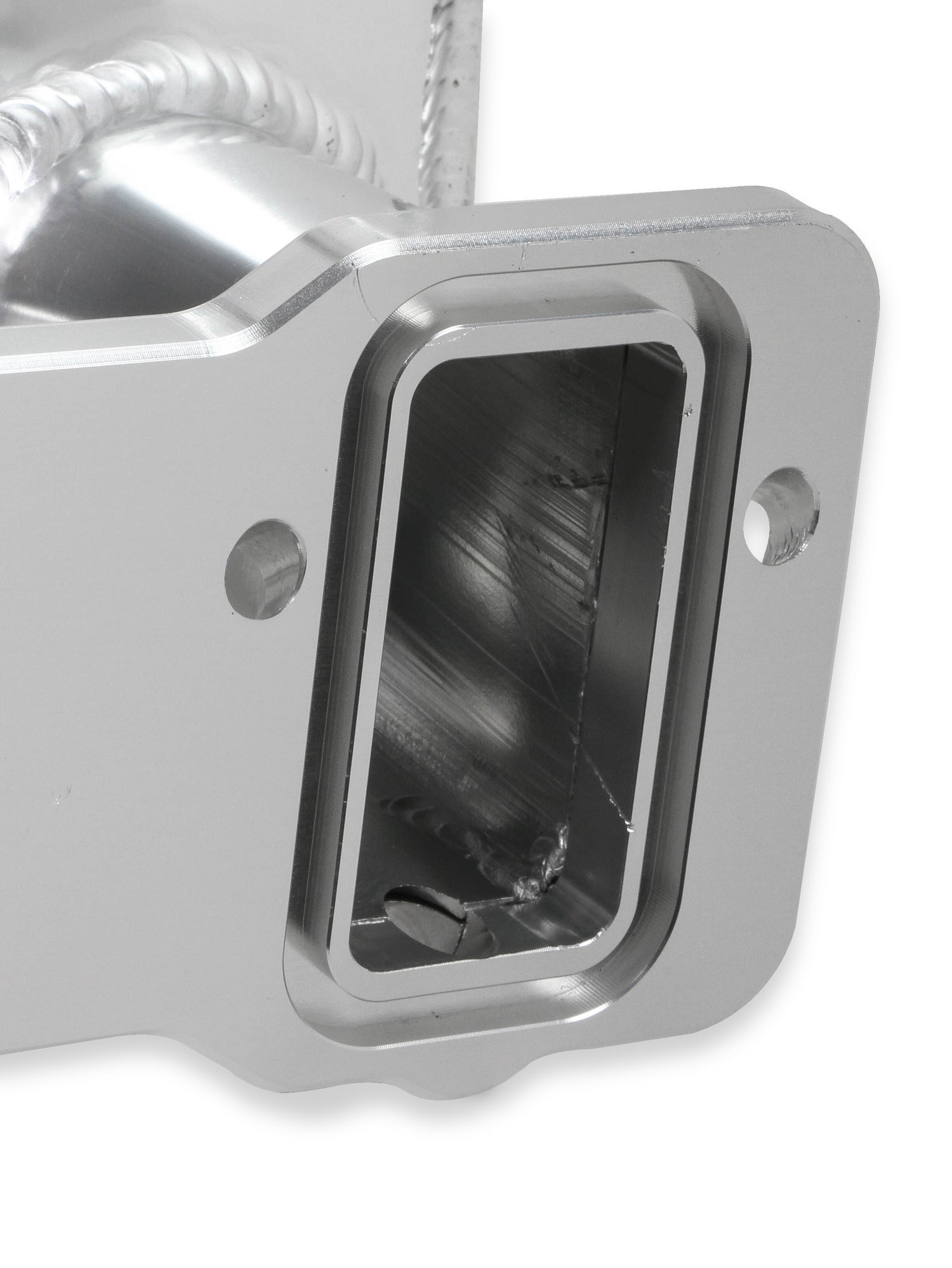

Basic Operating RPM Range 1800-6400 Brand Holley Sniper EFI Carburetor Flange N/A Carburetor Quantity N/A Carburetor Studs Included No Category Engine CNC Ported No Color Polished Construction Fabricated Cylinder Head Port Shape Rectangle Deck Height 9.24 EGR Port No Emission Code 4 Engine GM LS3/L92 Flange Style N/A Front Maximum Height 6.077 Fuel Injectors Included No Fuel Rail(s) Included Yes Fuel System Type EFI Gasket Or Seal Included Yes Grade Type Performance Injector Style Provision EV1 Intake Port Gasket(s) Included Yes Manifold Type Fabricated Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Silver Product Type Intake Manifold Rear Maximum Height 5.29 Removable Runners No Removable Top/Lid No Runner Length 4.252" (108mm) Single Or Dual Plane Type Single Style EFI Sub Category Cylinder Block Components Throttle Body Bore Diameter 92 Throttle Body Gasket Included Yes Throttle Body Included No Throttle Bore 92mm Vacuum Ports (3) 1/8"-28BSPT & (1) 1/4"-19BSPT Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
