Holley Sniper EFI | SKU:
822041-1

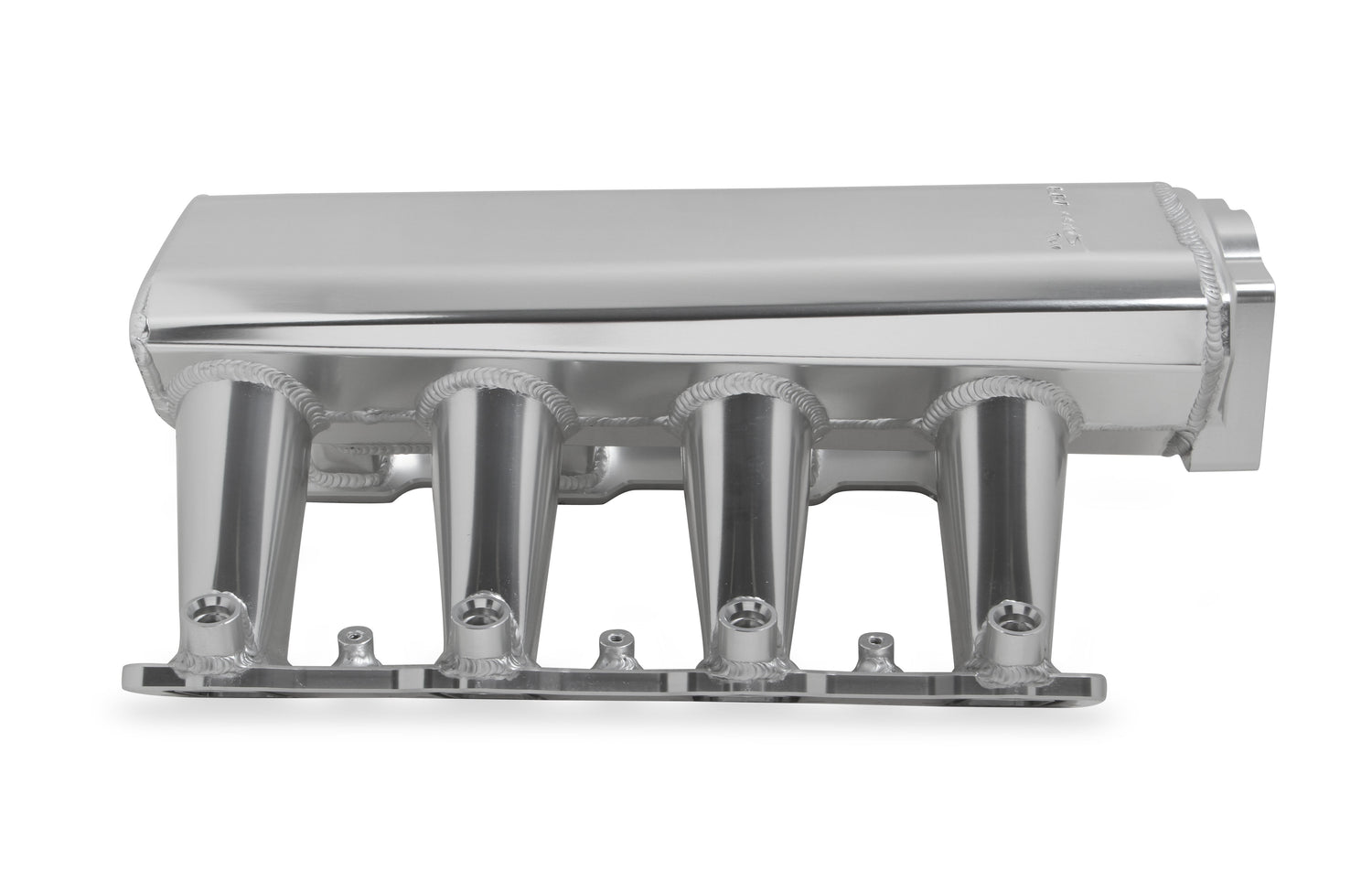

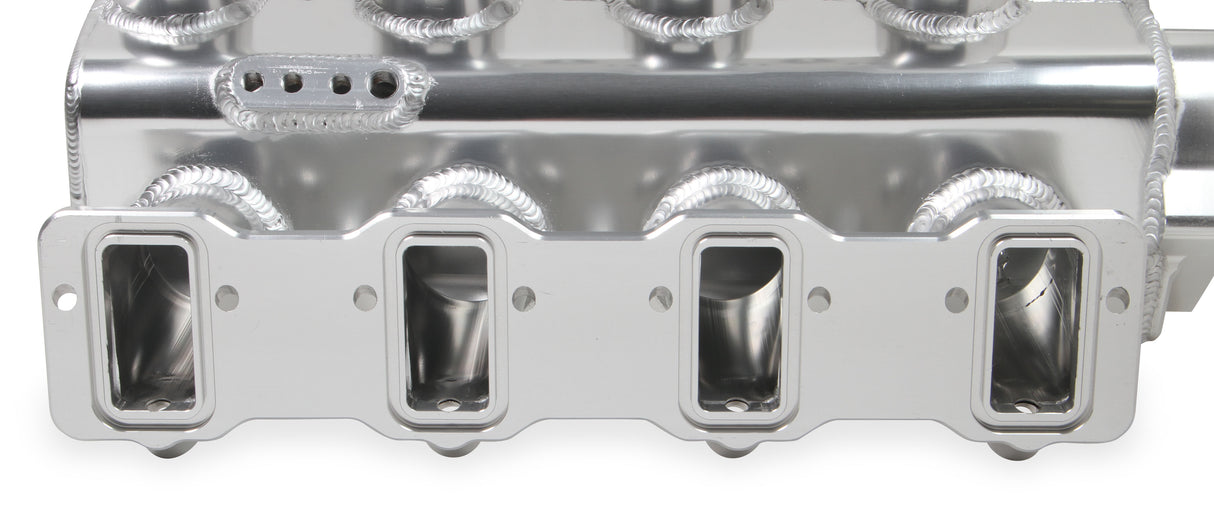

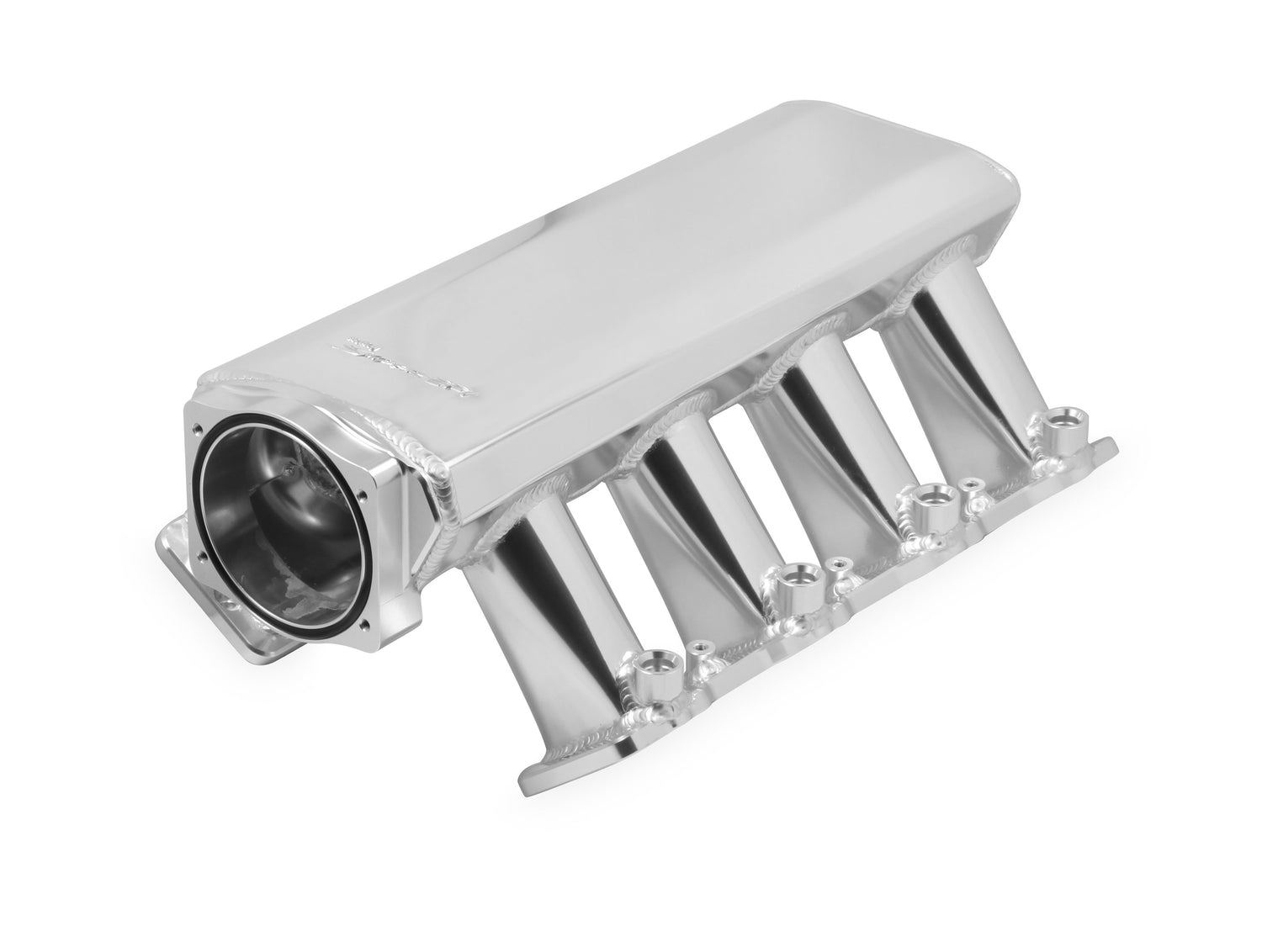

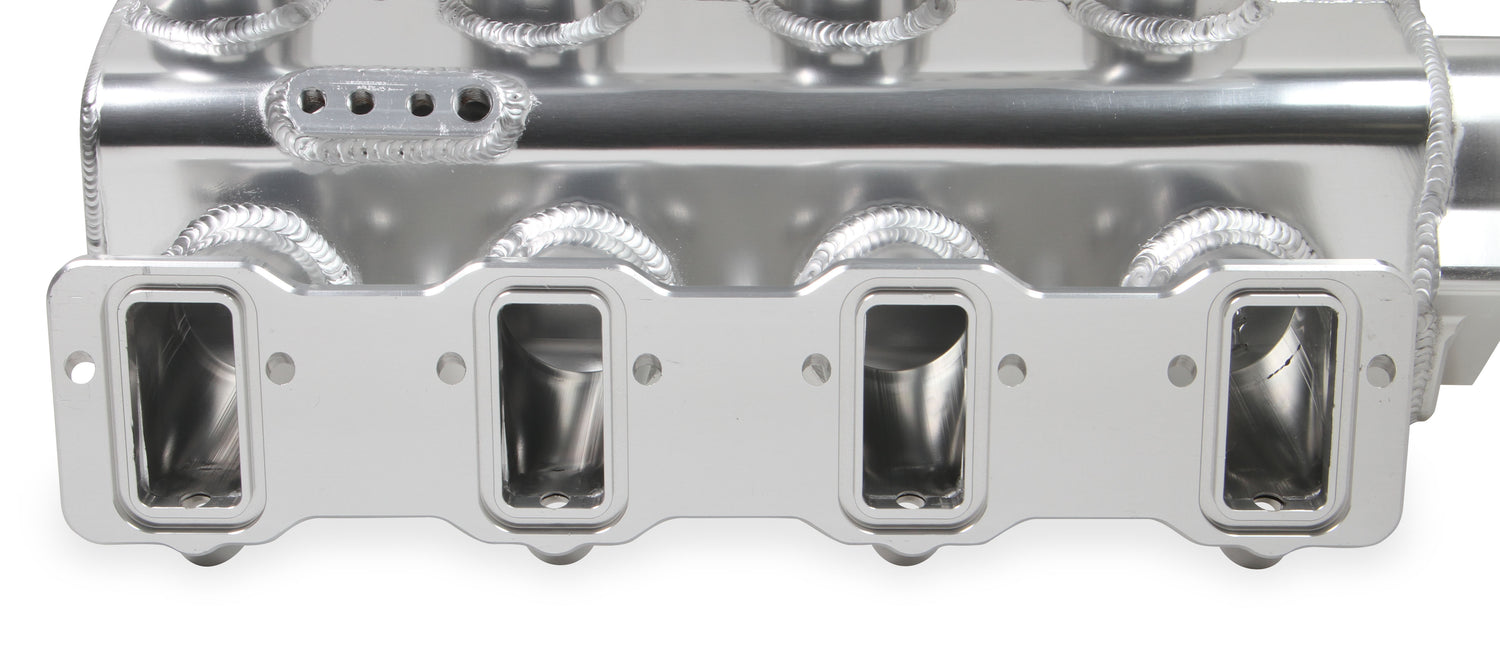

Holley 822041-1 Sniper EFI Sheet Metal Fabricated Intake Manifold GM LS3/L92
Hi-Ram Sheet Metal Fabricated Sheet Metal Intake Manifold LS3/L92 102mm Throttle Body opening + Fuel Rail Kit Silver with Sniper EFI logo
Regular price
$1,167.60 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 822041-1 Sniper EFI Sheet Metal Fabricated Intake Manifold GM LS3/L92 is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Holley 822041-1 Sniper EFI Sheet Metal Fabricated Intake Manifold G...
Regular price
$1,167.60 NZD
+ GST
Unit price
/
Unavailable
Description
Description

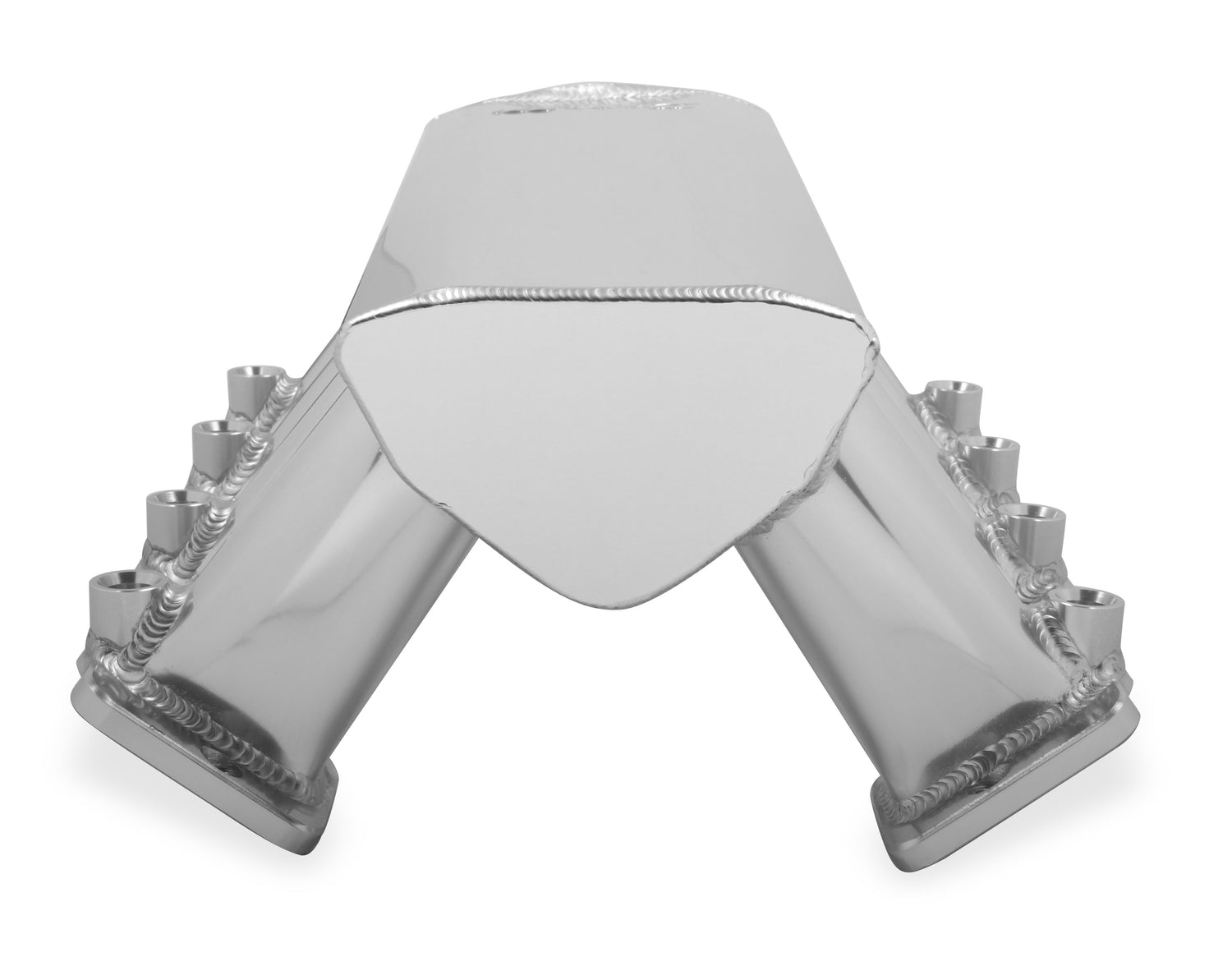

Hi-Ram Sheet Metal Fabricated Sheet Metal Intake Manifold LS3/L92 102mm Throttle Body opening + Fuel Rail Kit Silver with Sniper EFI logo
Part Number: 822041-1
Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions! Now Includes mounting provision for MAP sensor on rear of intake plenum. Use GM #12592525 or equivalent
Features and Benefits
• Silver finish creates high impact under-hood styling

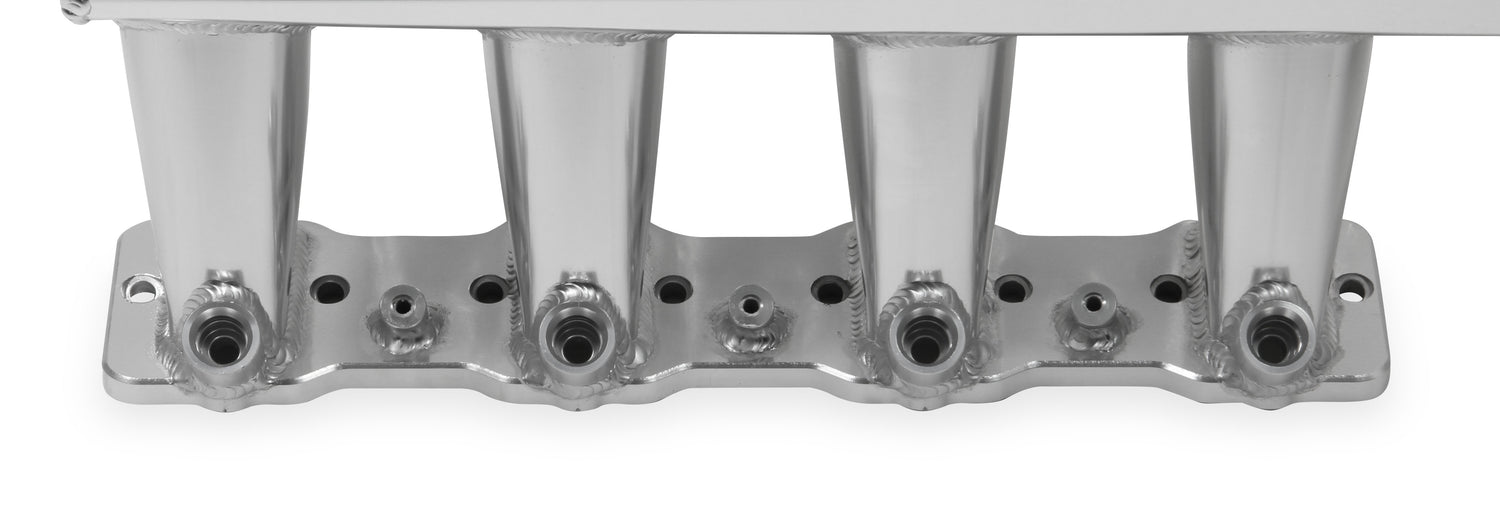

• The Sniper intake will only accept EV1 style injectors.
• Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
• 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability

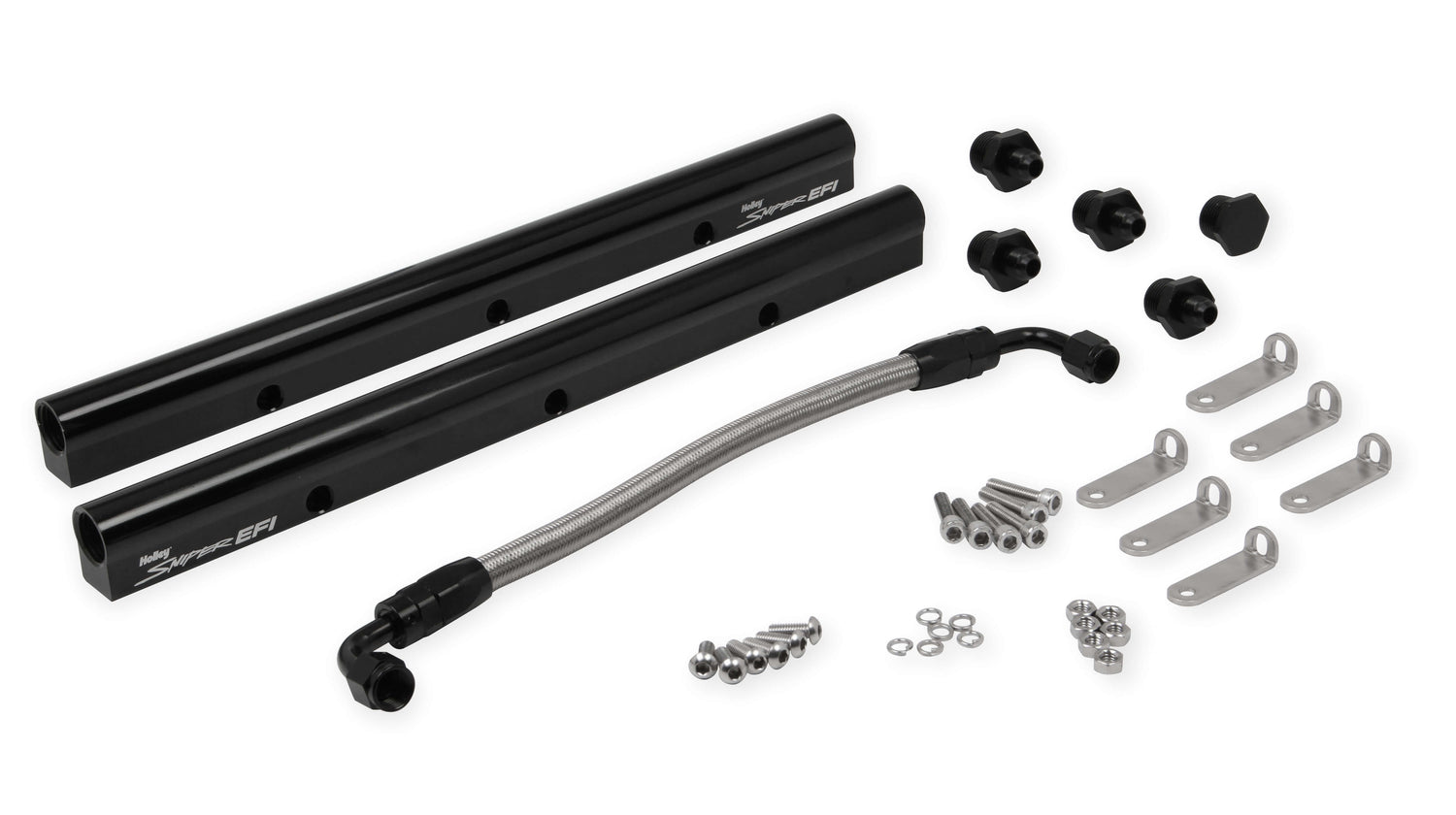

• Includes 3/8" Fuel rail kits (Sniper logo laser engraved)

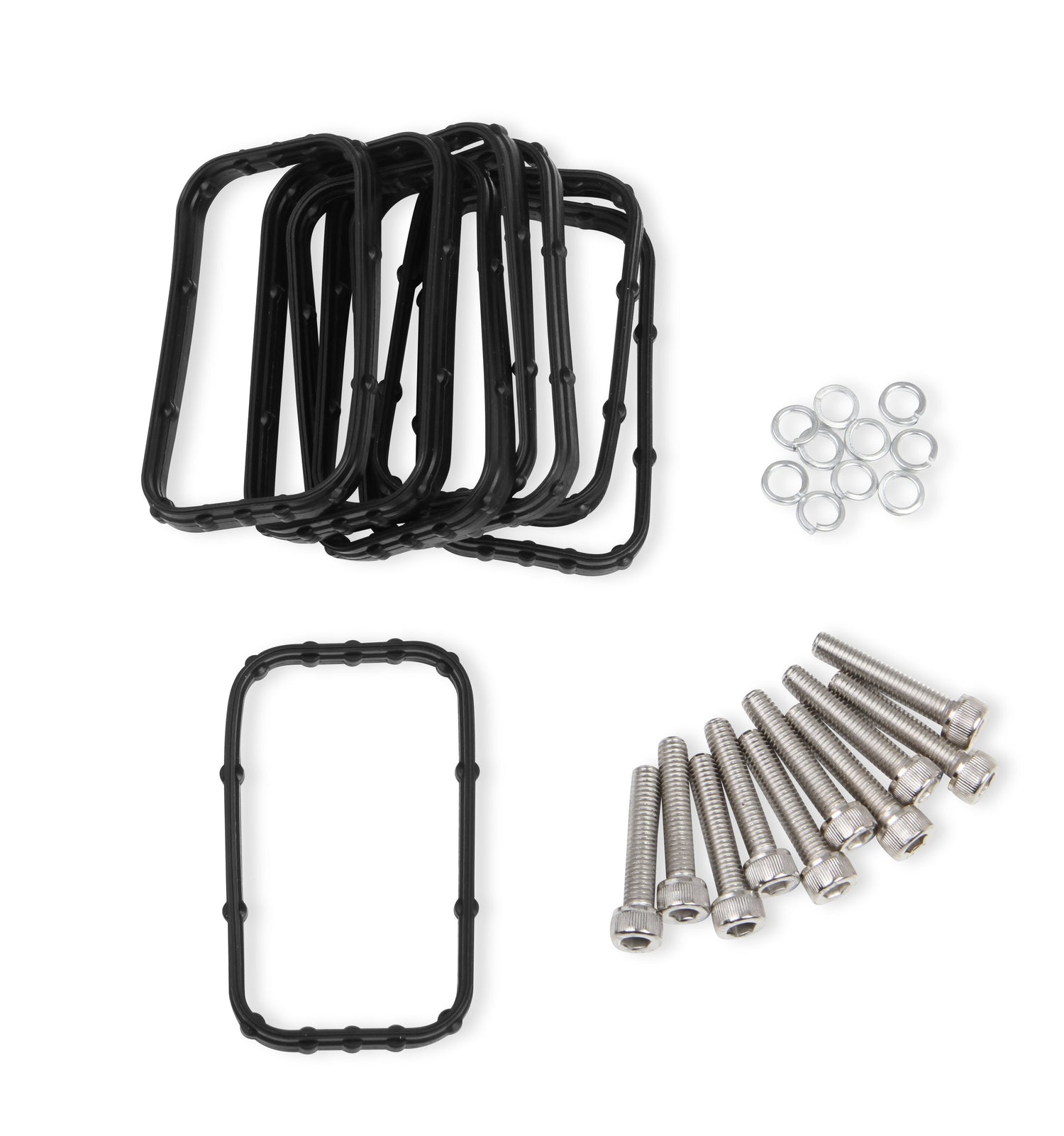

• Product includes all gaskets and hardware for a hassle-free installation

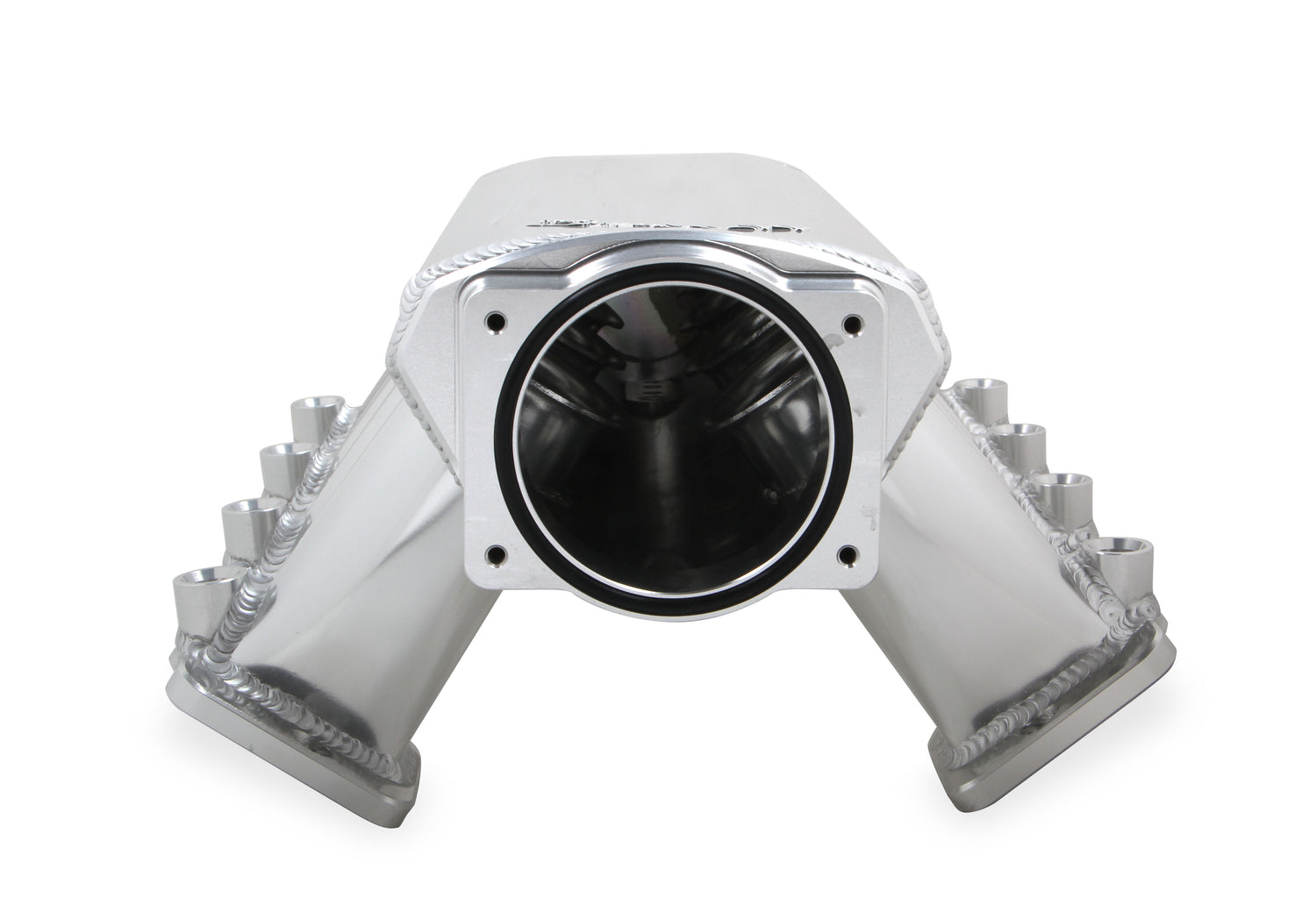

• 102mm throttle bore opening for increased air flow

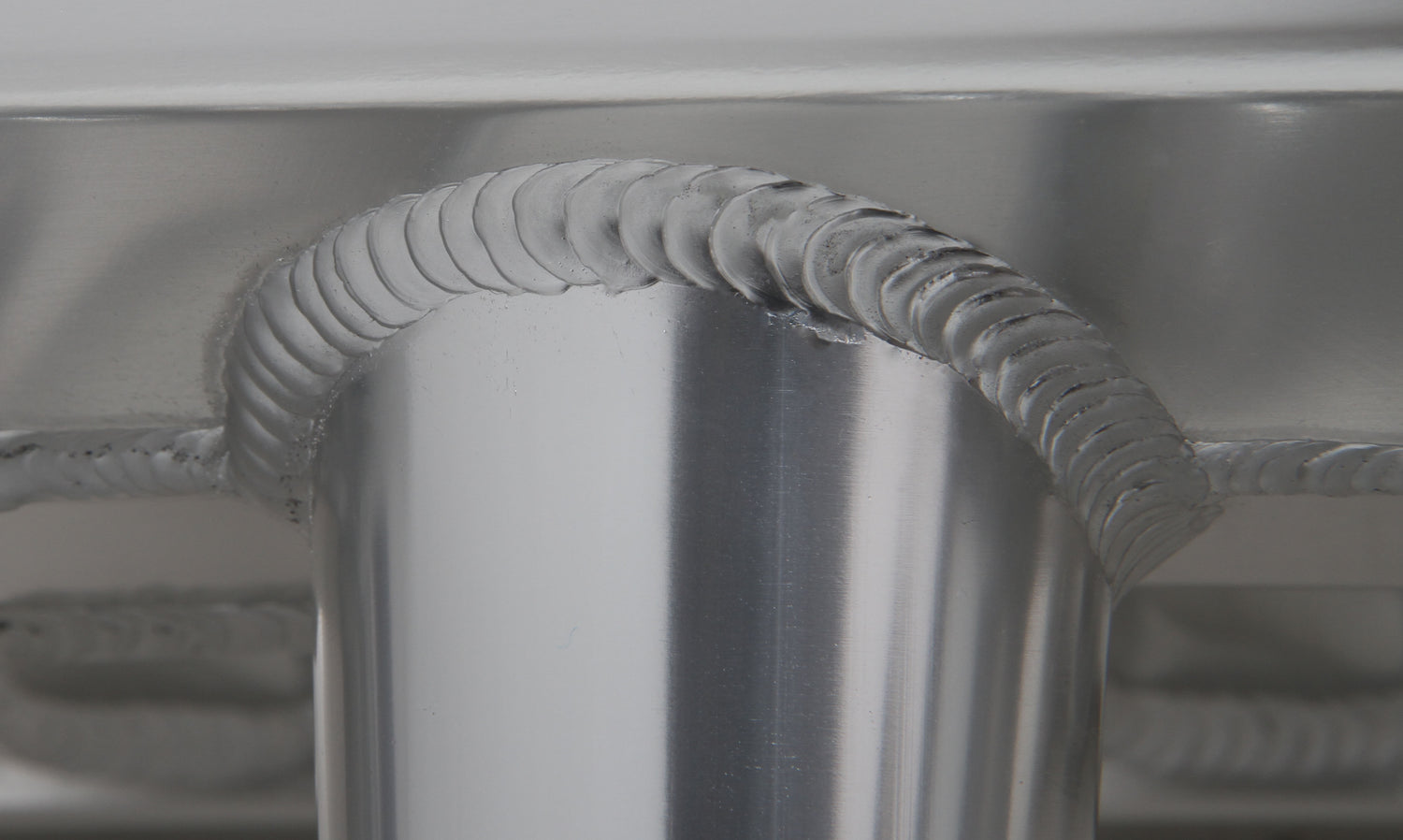

• 100% TIG welded for strength and durability

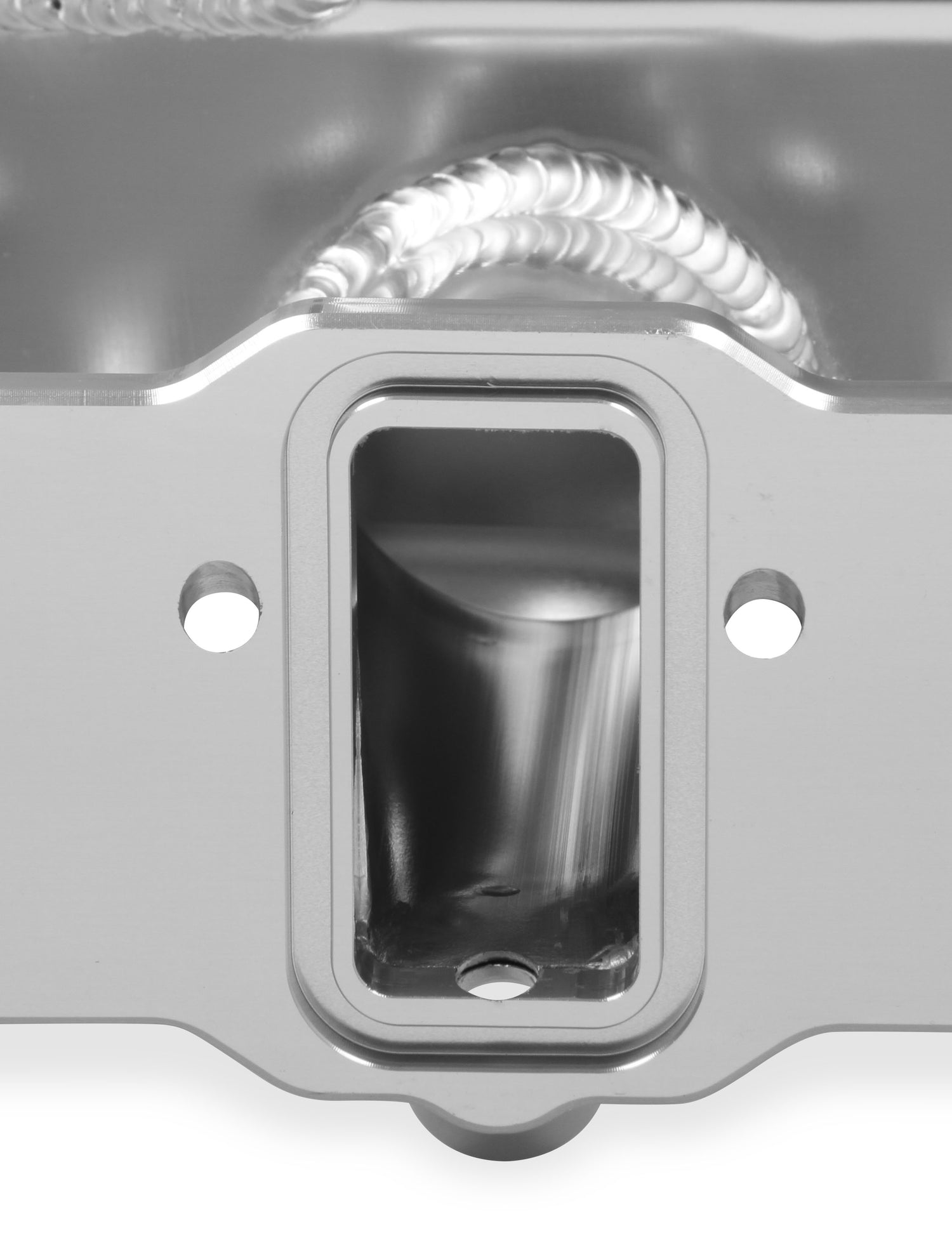

*** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment ***
Part Number: 822041-1
Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions! Now Includes mounting provision for MAP sensor on rear of intake plenum. Use GM #12592525 or equivalent
Features and Benefits
• Silver finish creates high impact under-hood styling
• The Sniper intake will only accept EV1 style injectors.
• Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
• 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
• Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
• Product includes all gaskets and hardware for a hassle-free installation
• 102mm throttle bore opening for increased air flow
• 100% TIG welded for strength and durability
*** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment ***
Specifications
Specifications
-
Specifications
Basic Operating RPM Range 2500-7000 Brand Holley Sniper EFI Carburetor Flange N/A Carburetor Quantity N/A Carburetor Studs Included No Category Engine CNC Ported No Color Silver Construction Fabricated Cylinder Head Port Shape Rectangle Deck Height 9.24 EGR Port No Emission Code 4 Engine GM LS3/L92 Flange Style N/A Front Maximum Height 7.952 Fuel Injectors Included No Fuel Rail(s) Included Yes Fuel System Type EFI Gasket Or Seal Included Yes Grade Type Performance Injector Style Provision EV1 Intake Port Gasket(s) Included Yes Manifold Type Fabricated Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Silver Product Type Intake Manifold Rear Maximum Height 7.165 Recommended Use Forced Induction Removable Runners No Removable Top/Lid No Runner Length 5.512" (140mm) Single Or Dual Plane Type Single Style EFI Sub Category Cylinder Block Components Throttle Body Bore Diameter 102 Throttle Body Gasket Included Yes Throttle Body Included No Throttle Bore 102mm Vacuum Ports (3) 1/8"-28BSPT & (1) 1/4"-19BSPT Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
