Holley Sniper EFI | SKU:
822032-1

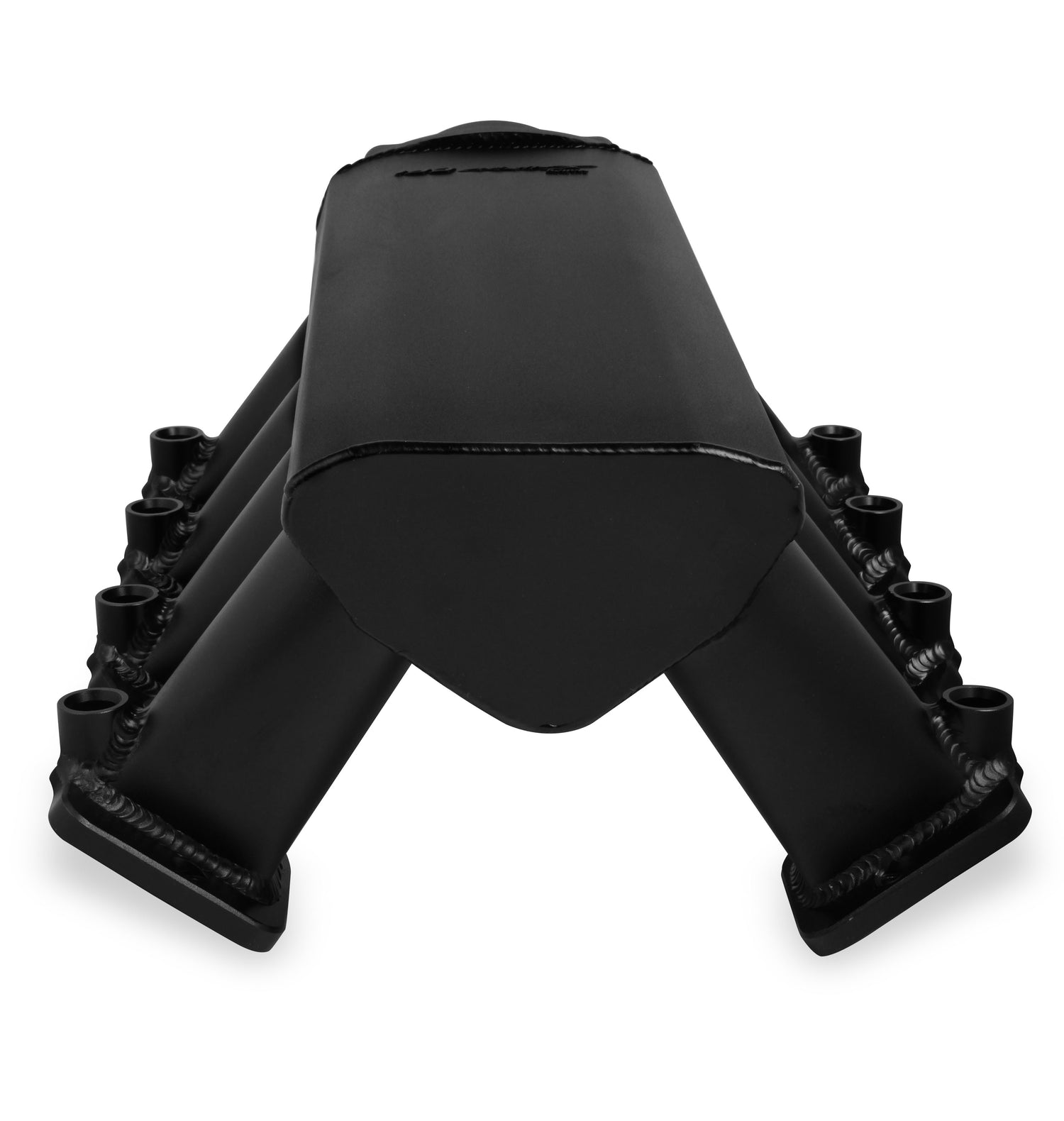

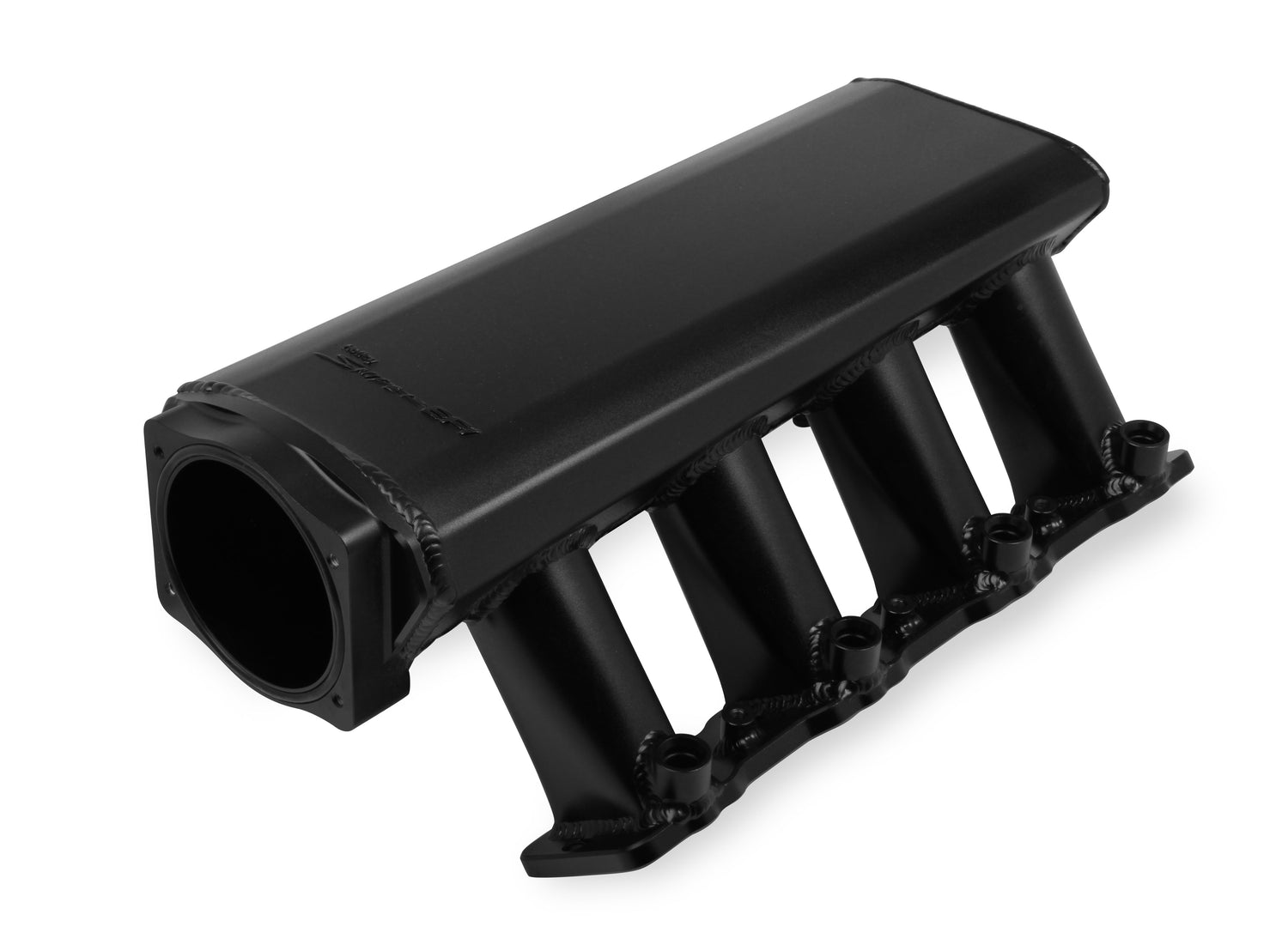

Holley 822032-1 Sniper EFI Sheet Metal Fabricated Intake Manifold
Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 92mm Throttle Body opening + Fuel Rail Kit Black with Sniper EFI logo
Sold out
Regular price
$1,706.60 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 822032-1 Sniper EFI Sheet Metal Fabricated Intake Manifold is not in stock at Fast Lane Spares and will ship direct from supplier
Stock Status:
Description
Description
Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 92mm Throttle Body opening + Fuel Rail Kit Black with Sniper EFI logo
Part Number: 822032-1

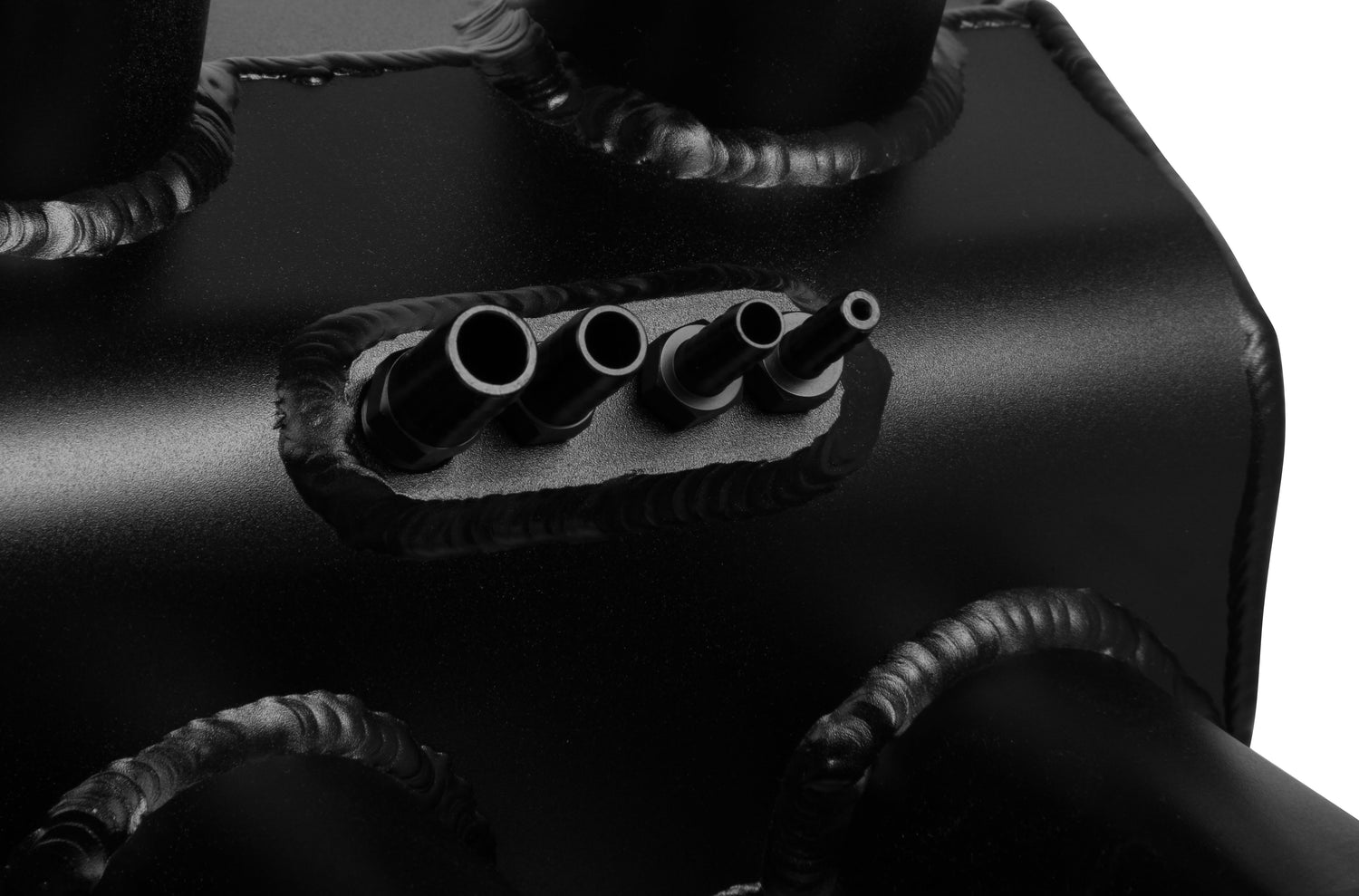

Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions! Now Includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent
Features and Benefits

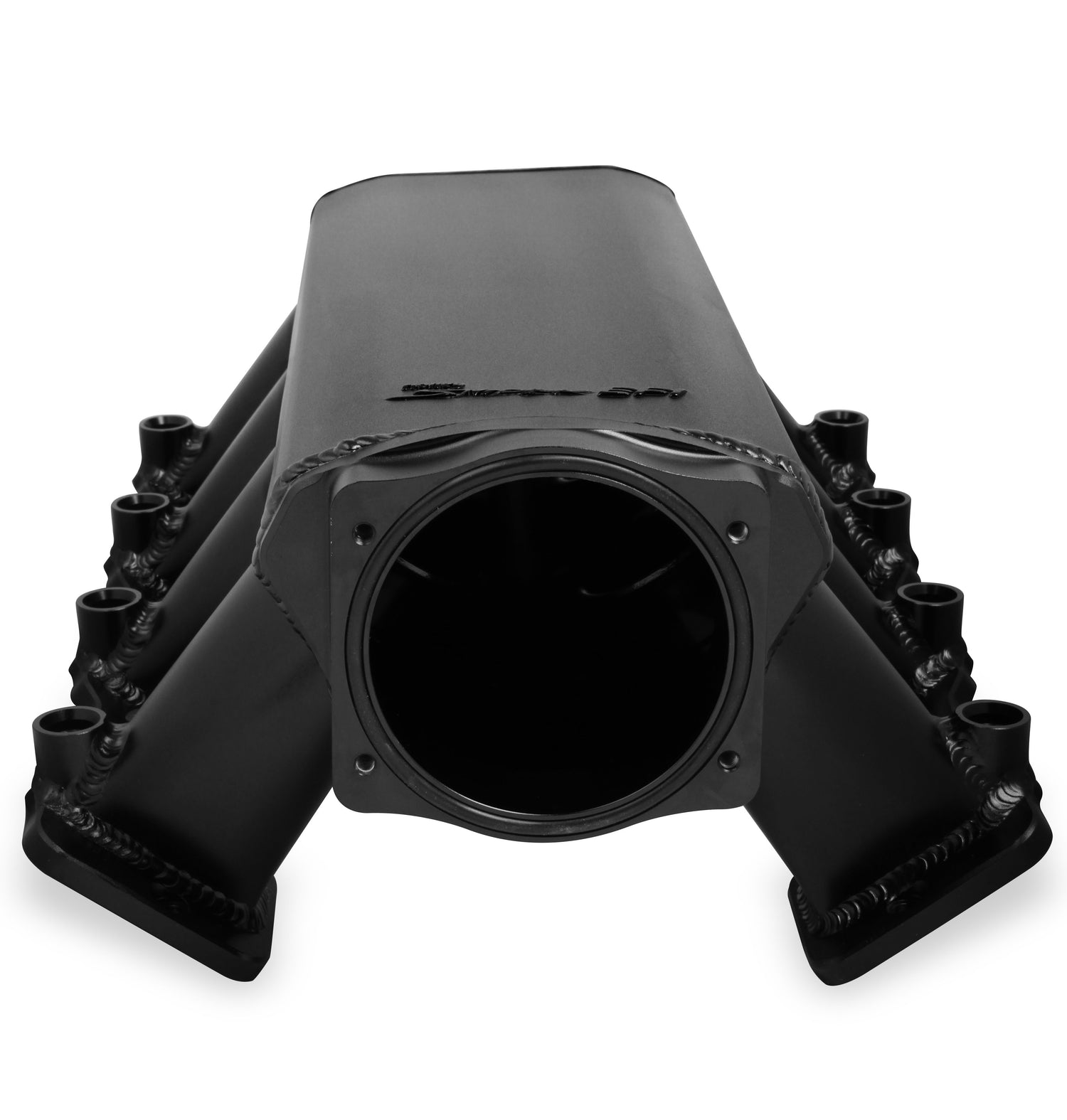

• 92mm throttle bore opening for increased air flow

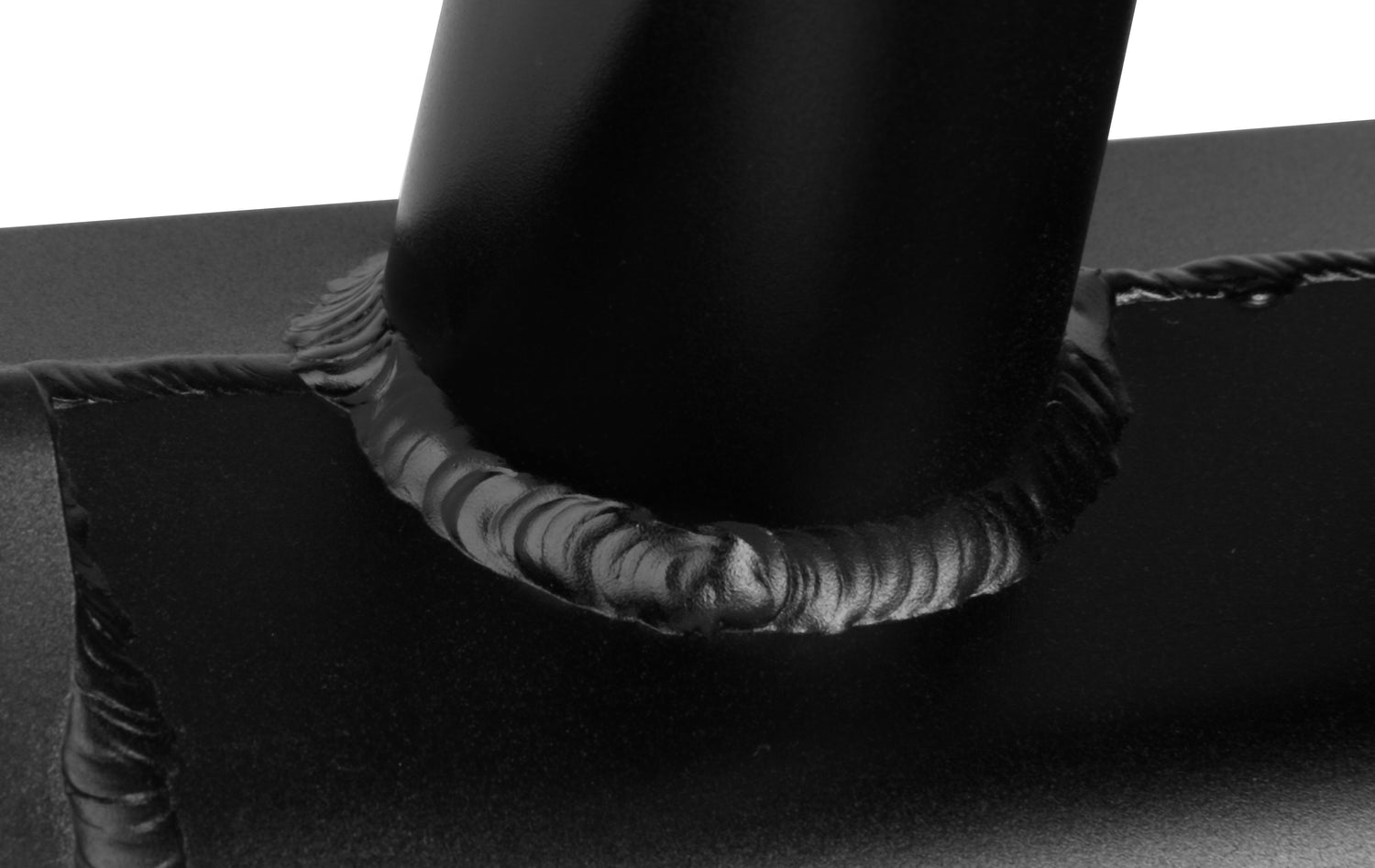

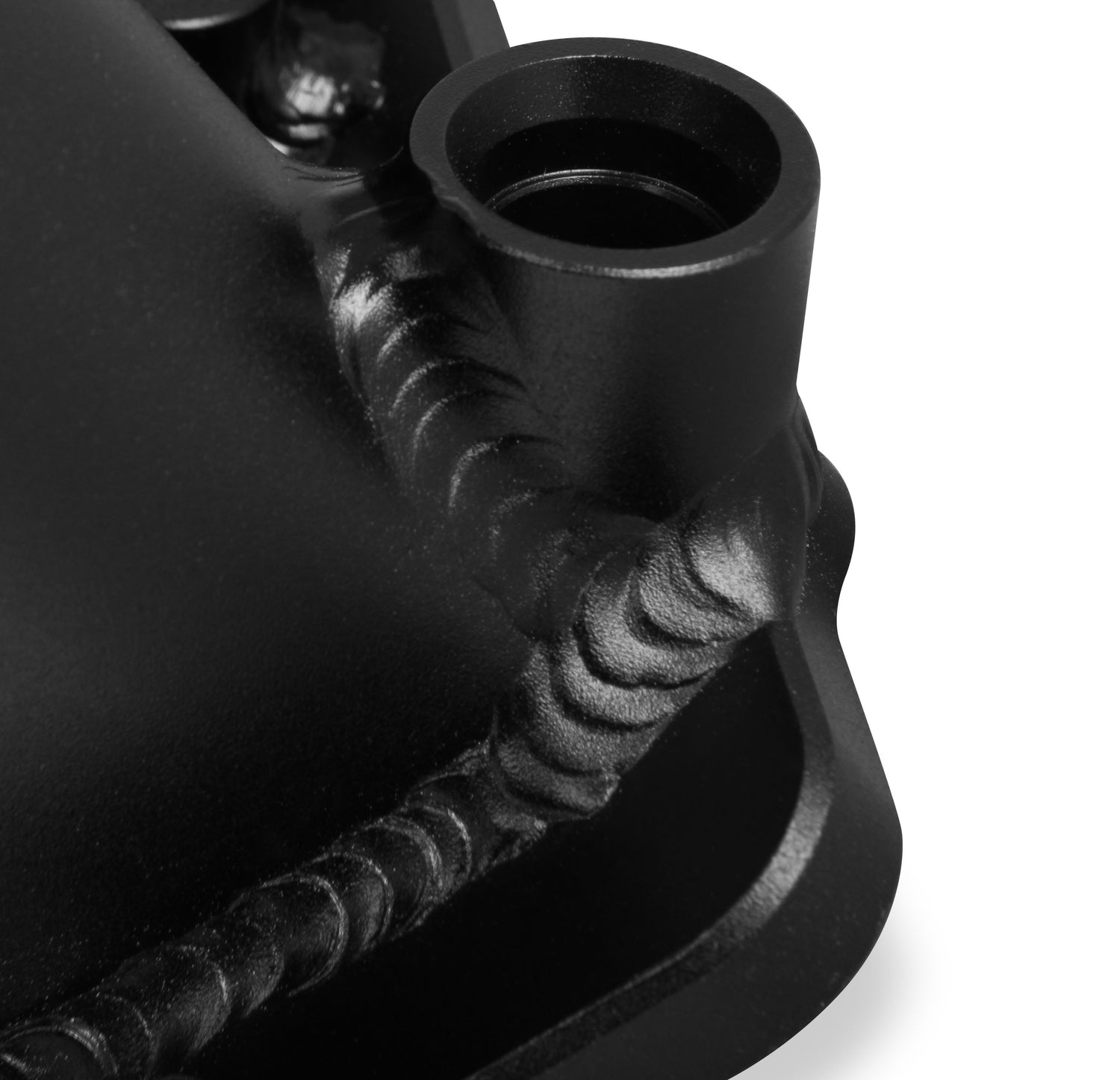

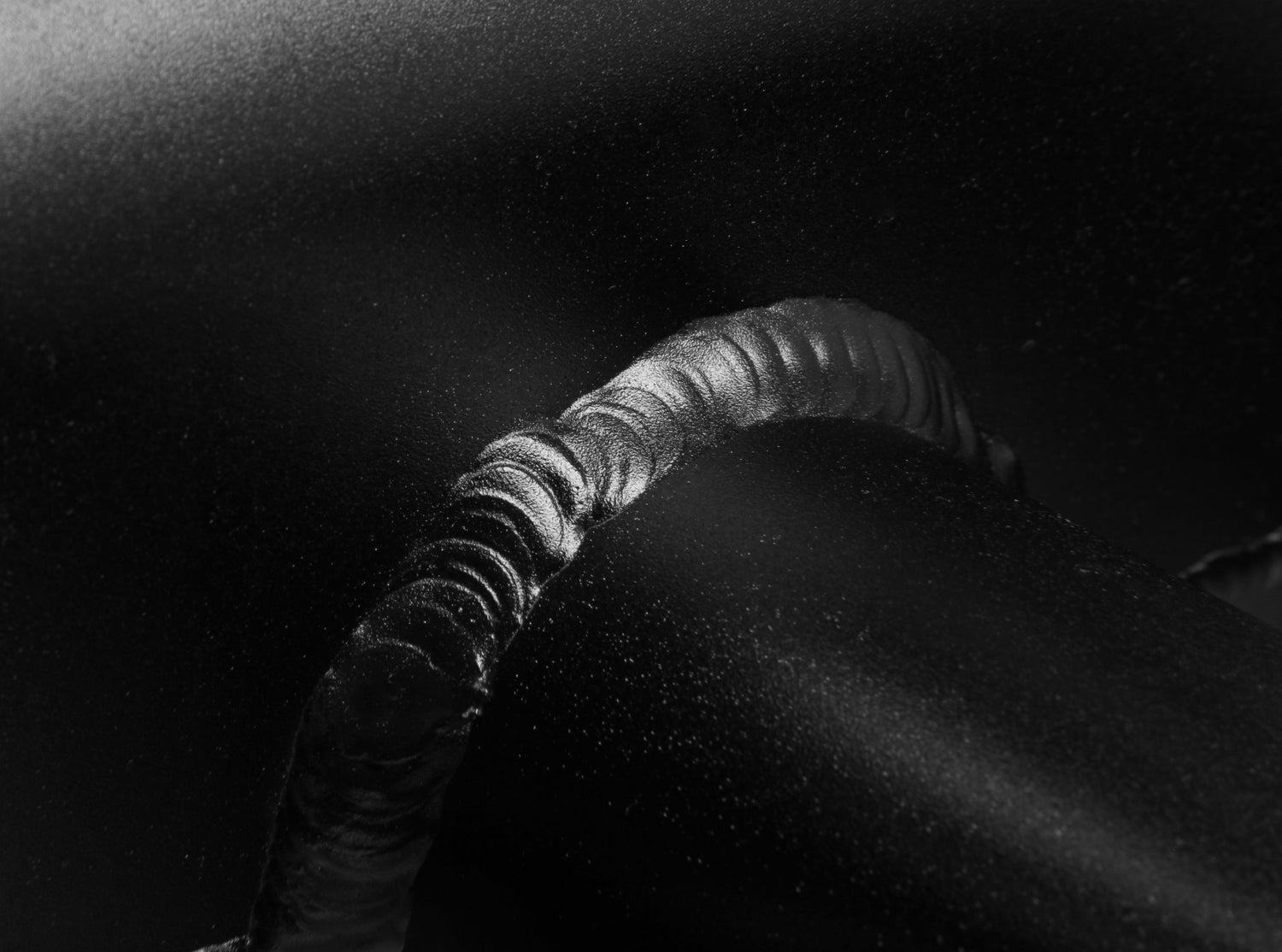

• 100% TIG welded for strength and durability

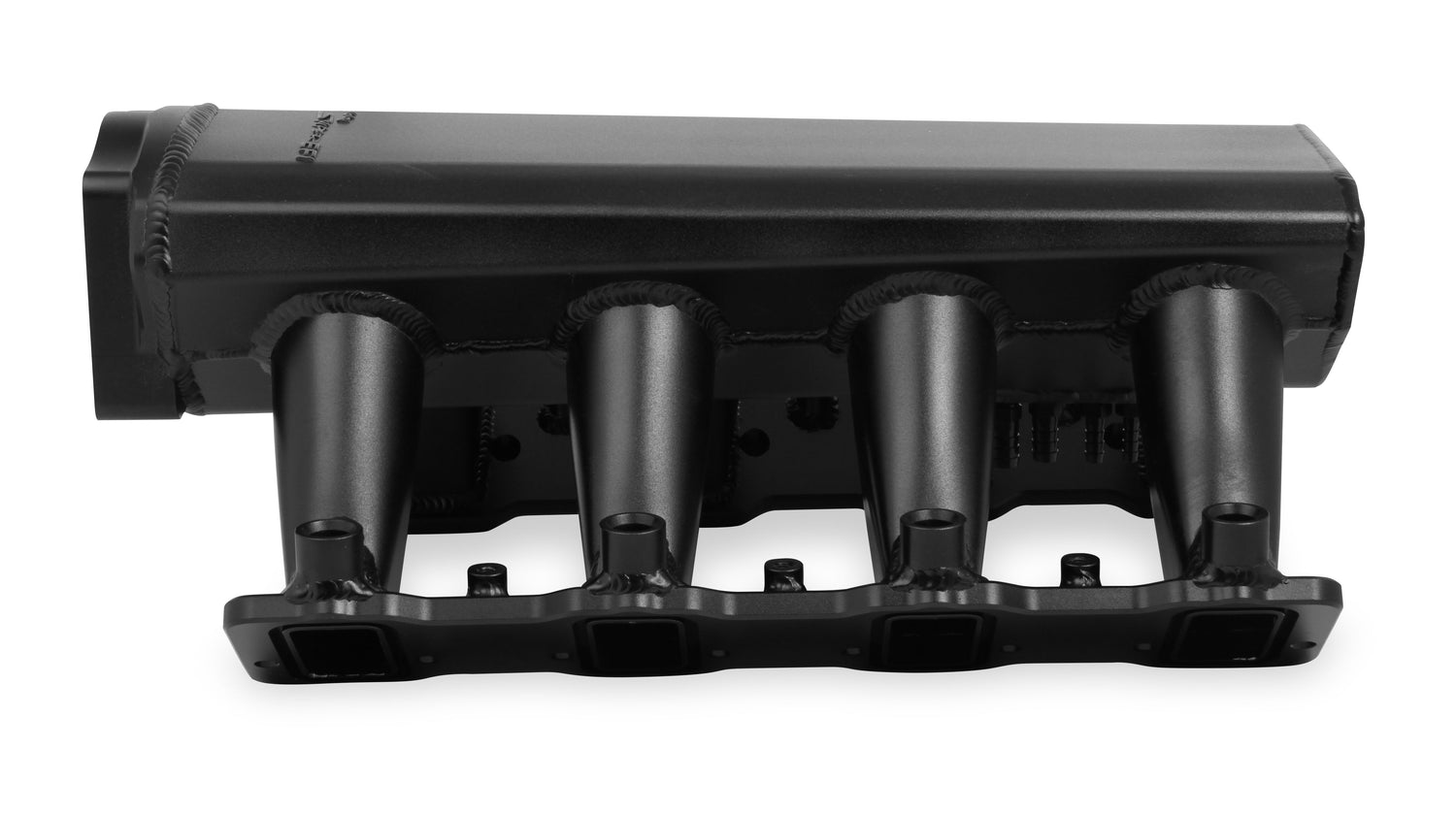

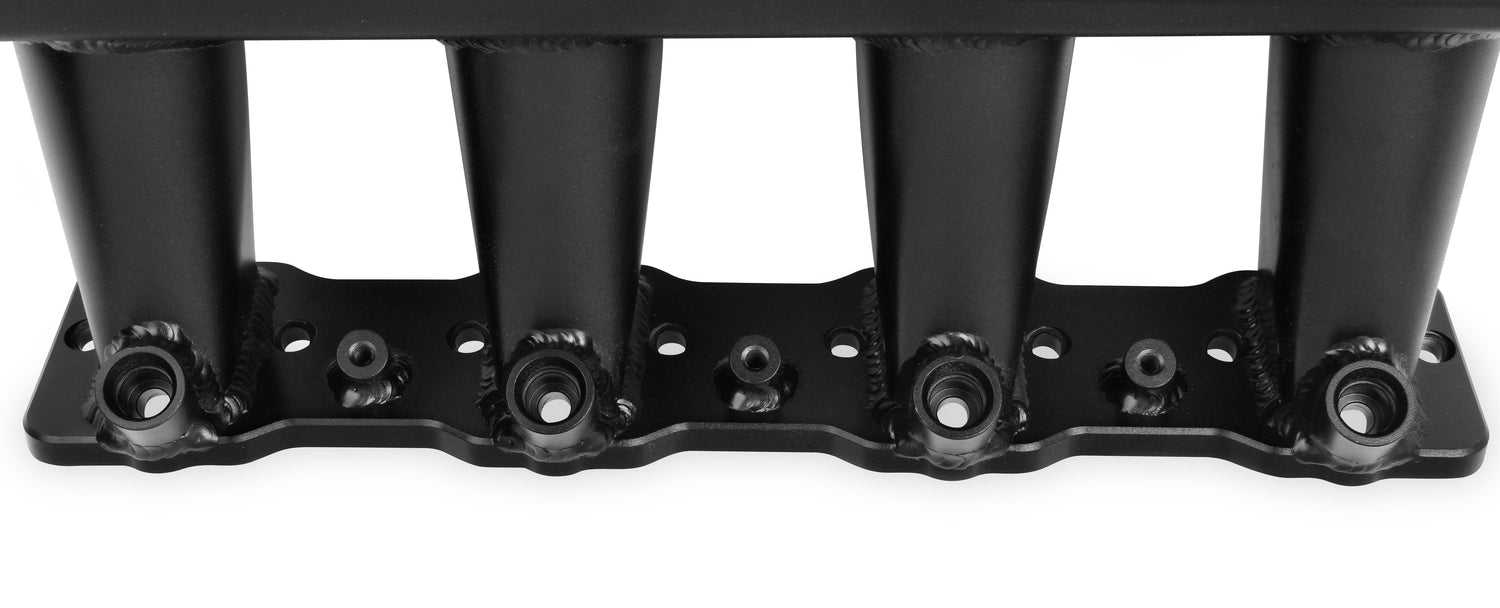

• Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
• 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability

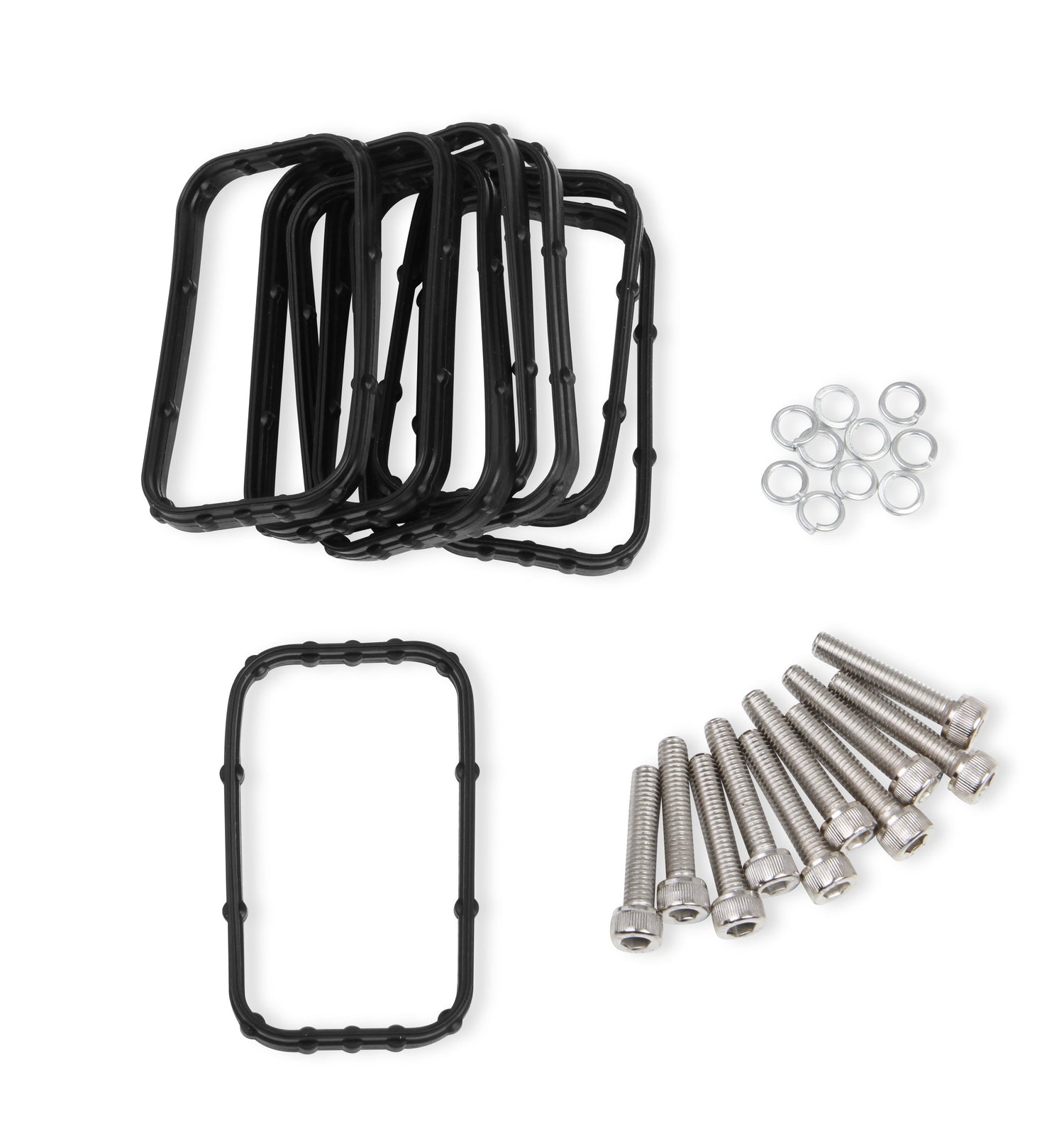

• Product includes all gaskets and hardware for a hassle-free installation

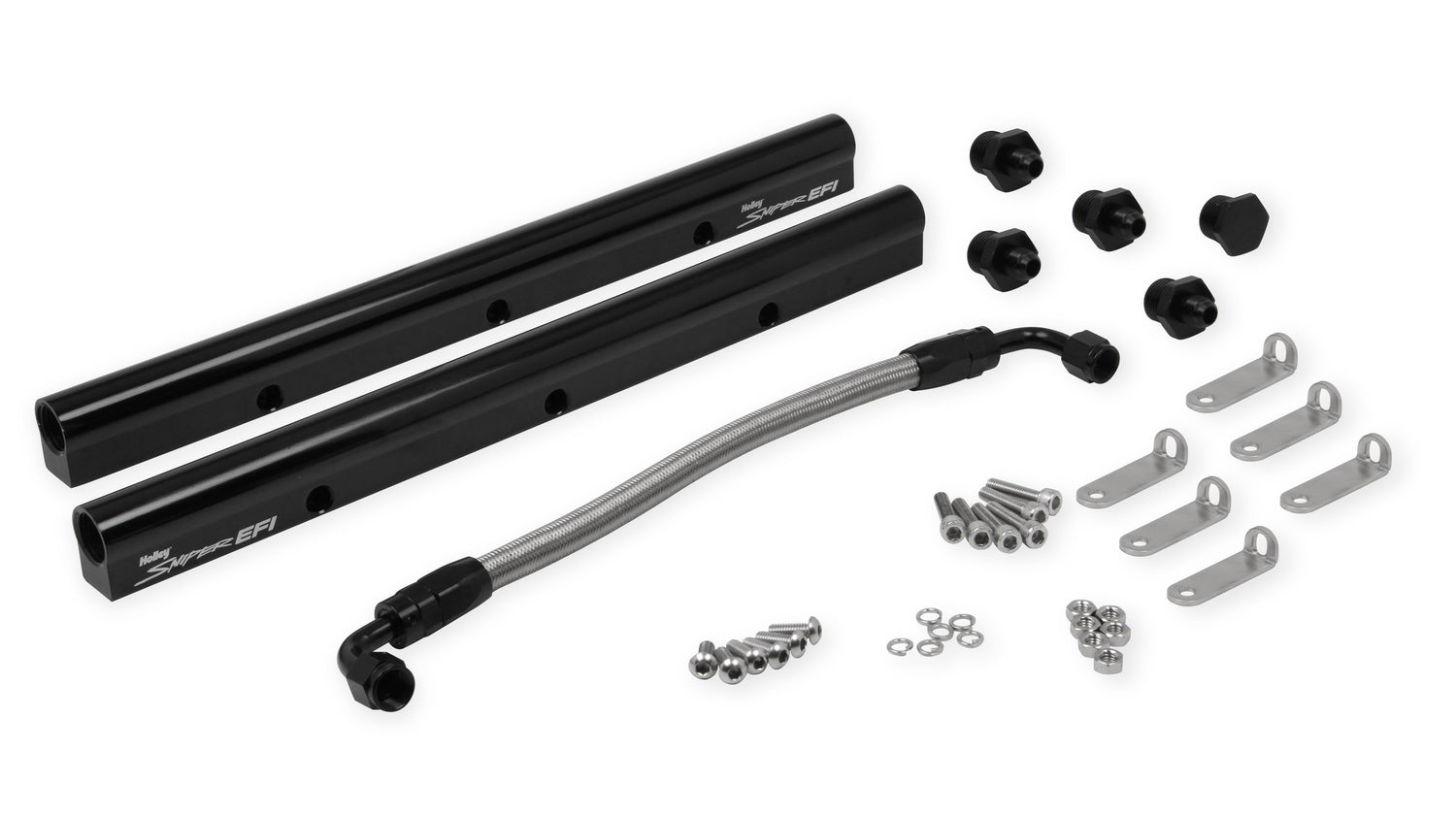

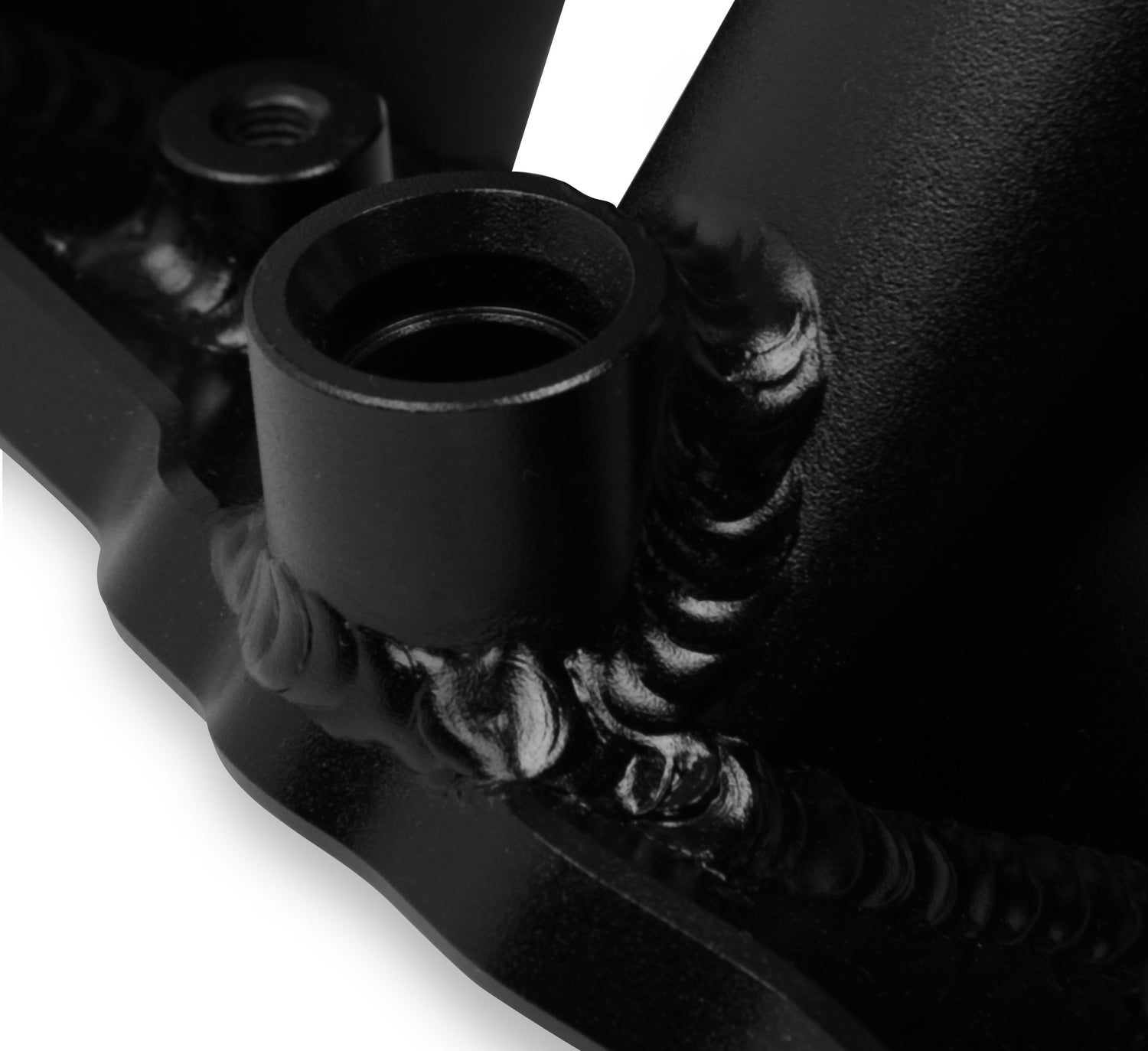

• Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
• Black Finish creates stealthy under-hood styling
• The Sniper intake will only accept EV1 style injectors.
*** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment ***
Part Number: 822032-1
Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions! Now Includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent
Features and Benefits
• 92mm throttle bore opening for increased air flow
• 100% TIG welded for strength and durability
• Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
• 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
• Product includes all gaskets and hardware for a hassle-free installation
• Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
• Black Finish creates stealthy under-hood styling
• The Sniper intake will only accept EV1 style injectors.
*** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment ***
Specifications
Specifications
-
Specifications
Basic Operating RPM Range 2200-6800 Brand Holley Sniper EFI Carburetor Flange N/A Carburetor Quantity N/A Carburetor Studs Included No Category Engine CNC Ported No Color Black Construction Fabricated Cylinder Head Port Shape Rectangle Deck Height 9.24 EGR Port No Emission Code 4 Engine GM LS3/L92 Flange Style N/A Front Maximum Height 7.952 Fuel Injectors Included No Fuel Rail(s) Included Yes Fuel System Type EFI Gasket Or Seal Included Yes Grade Type Performance Injector Style Provision EV1 Intake Port Gasket(s) Included Yes Manifold Type Fabricated Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Black Product Type Intake Manifold Rear Maximum Height 7.165 Removable Runners No Removable Top/Lid No Runner Length 5.512" (140mm) Single Or Dual Plane Type Single Style EFI Sub Category Cylinder Block Components Throttle Body Bore Diameter 92 Throttle Body Gasket Included Yes Throttle Body Included No Throttle Bore 92mm Vacuum Ports (3) 1/8"-28BSPT & (1) 1/4"-19BSPT Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
