Holley Sniper EFI | SKU:
820102-1

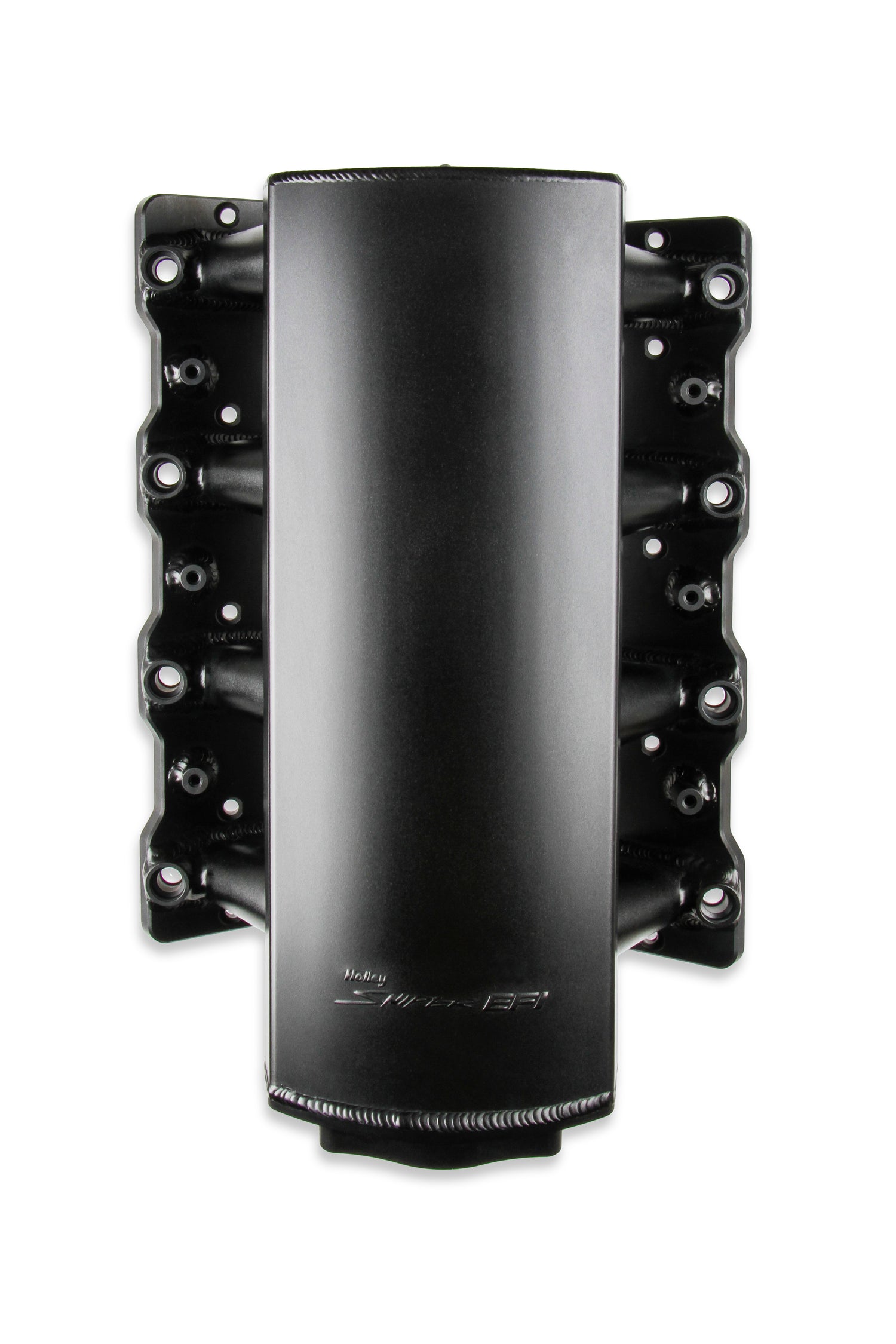

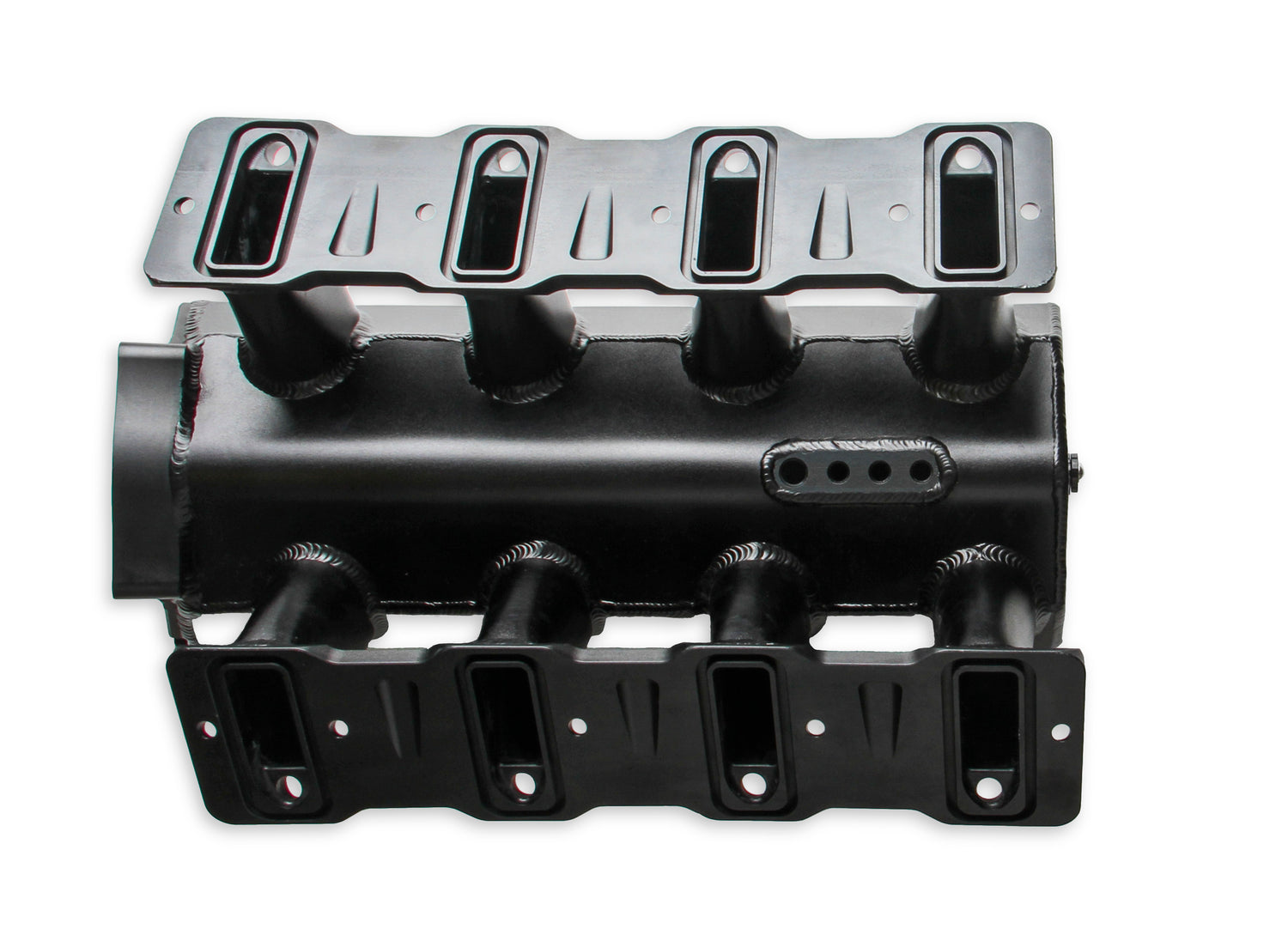

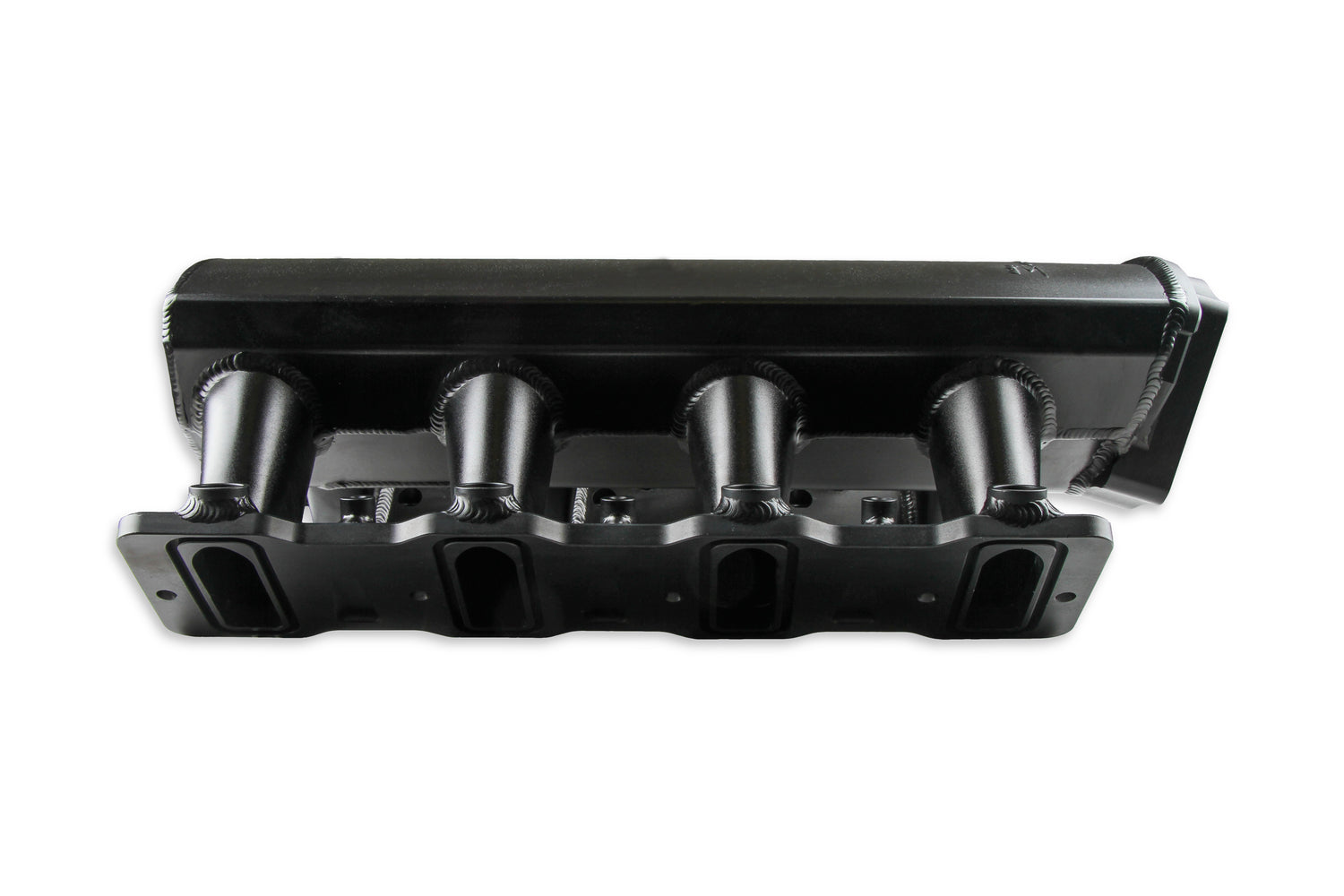

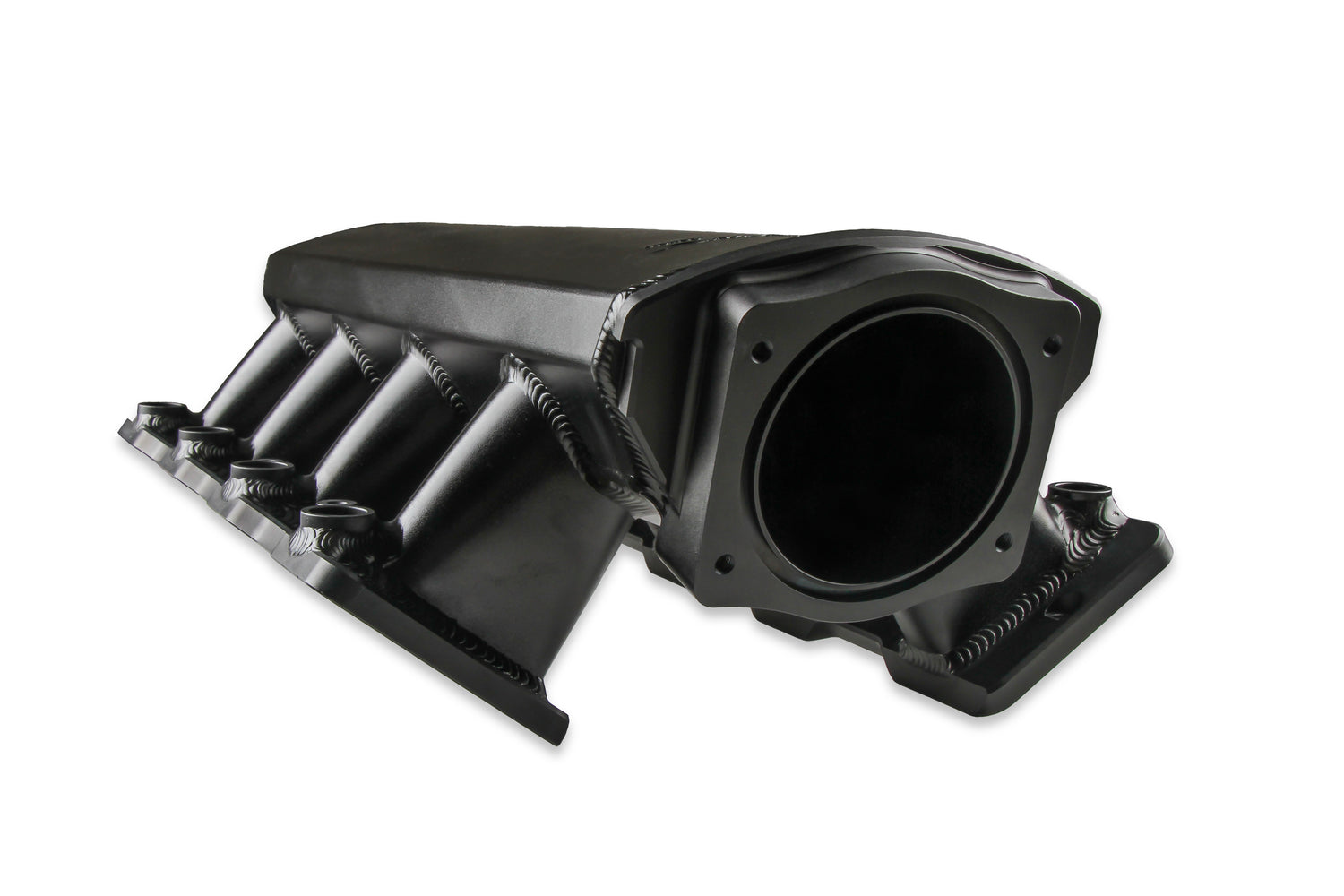

Holley 820102-1 Sniper EFI Low-Profile Sheet Metal Fabricated Intake Manifold GM LS1/LS2/LS6
Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 92mm Throttle Body opening + Fuel Rail Kit Black with Sniper logo -Low Profile- Now includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525
Regular price
$1,818.20 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 820102-1 Sniper EFI Low-Profile Sheet Metal Fabricated Intake Manifold GM LS1/LS2/LS6 is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 92mm Throttle Body opening + Fuel Rail Kit Black with Sniper logo -Low Profile- Now includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525
Part Number: 820102-1
Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit. This updated design was developed to allow the end user to fit under a stock hood. Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity. Choice of Throttle Body opening sizes of 92mm & 102mm are available Holley Sniper Fabricated Manifolds continues to push the aftermarket by introducing Low Profile intakes for GM LS Engines. These Intakes are a good looking, perform well, and offer an extremely good value for a performance sheet metal style intake manifold for the very popular GM LS engine family.
Features and Benefits
• The Sniper intake will only accept EV1 style injectors.

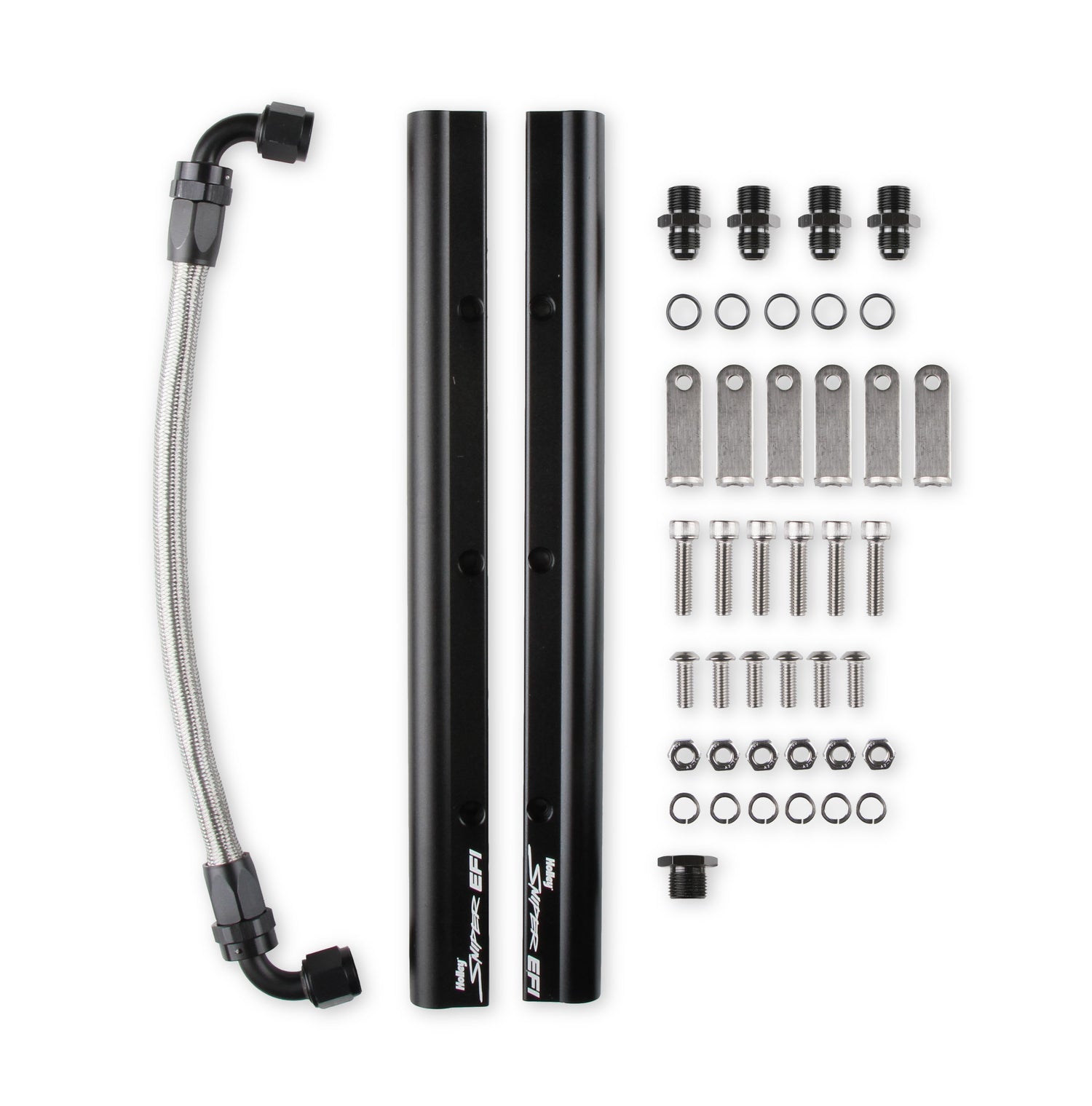

• Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
• Low Profile, Compact Design (overall 1.875 inches shorter) allows fitment under stock hoods on Corvette, Camaro, Firebird, GTO, and others where hood clearance is at a minimum
• 100% TIG welded for strength and durability

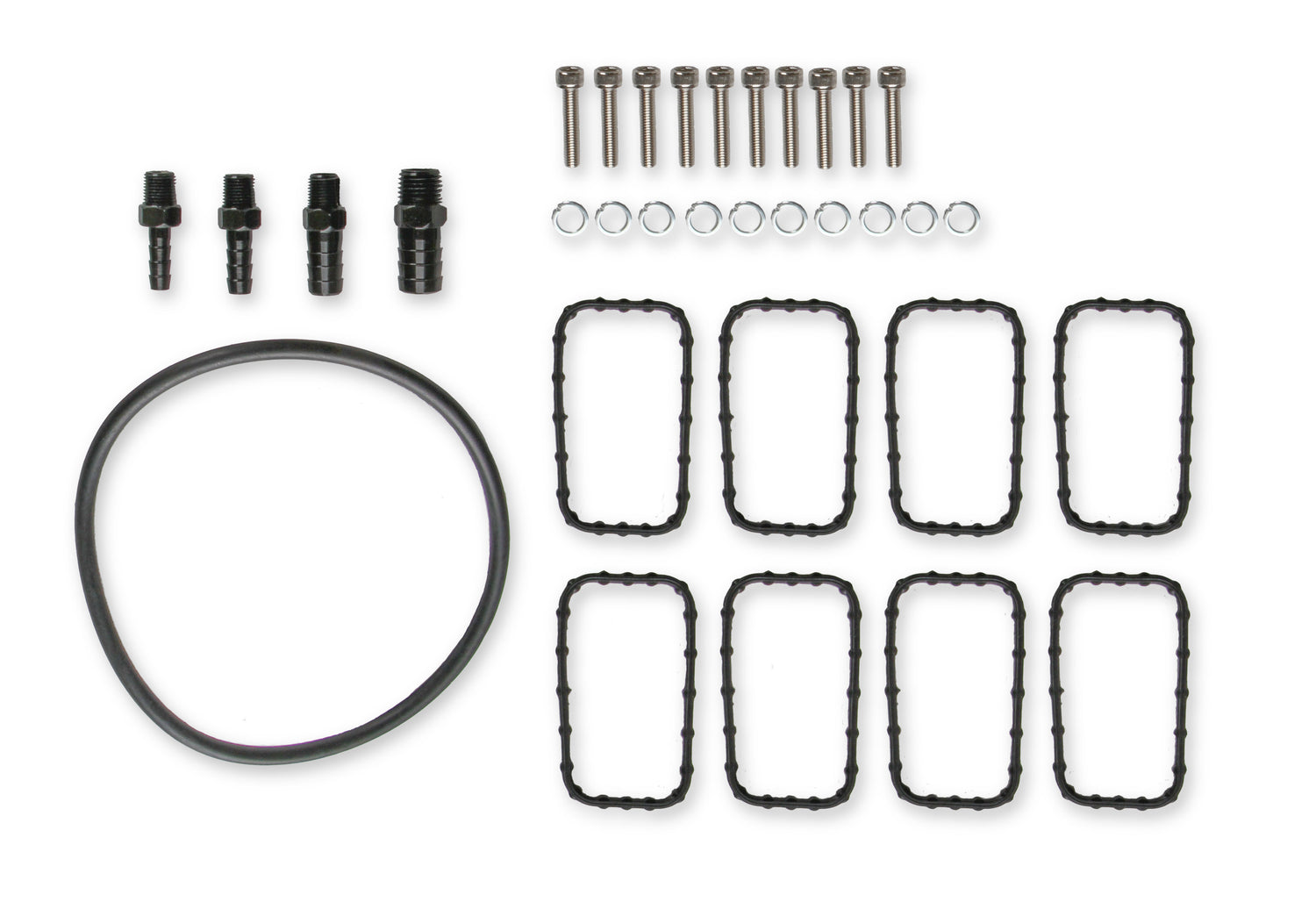

• Product includes all gaskets and hardware for a hassle-free installation

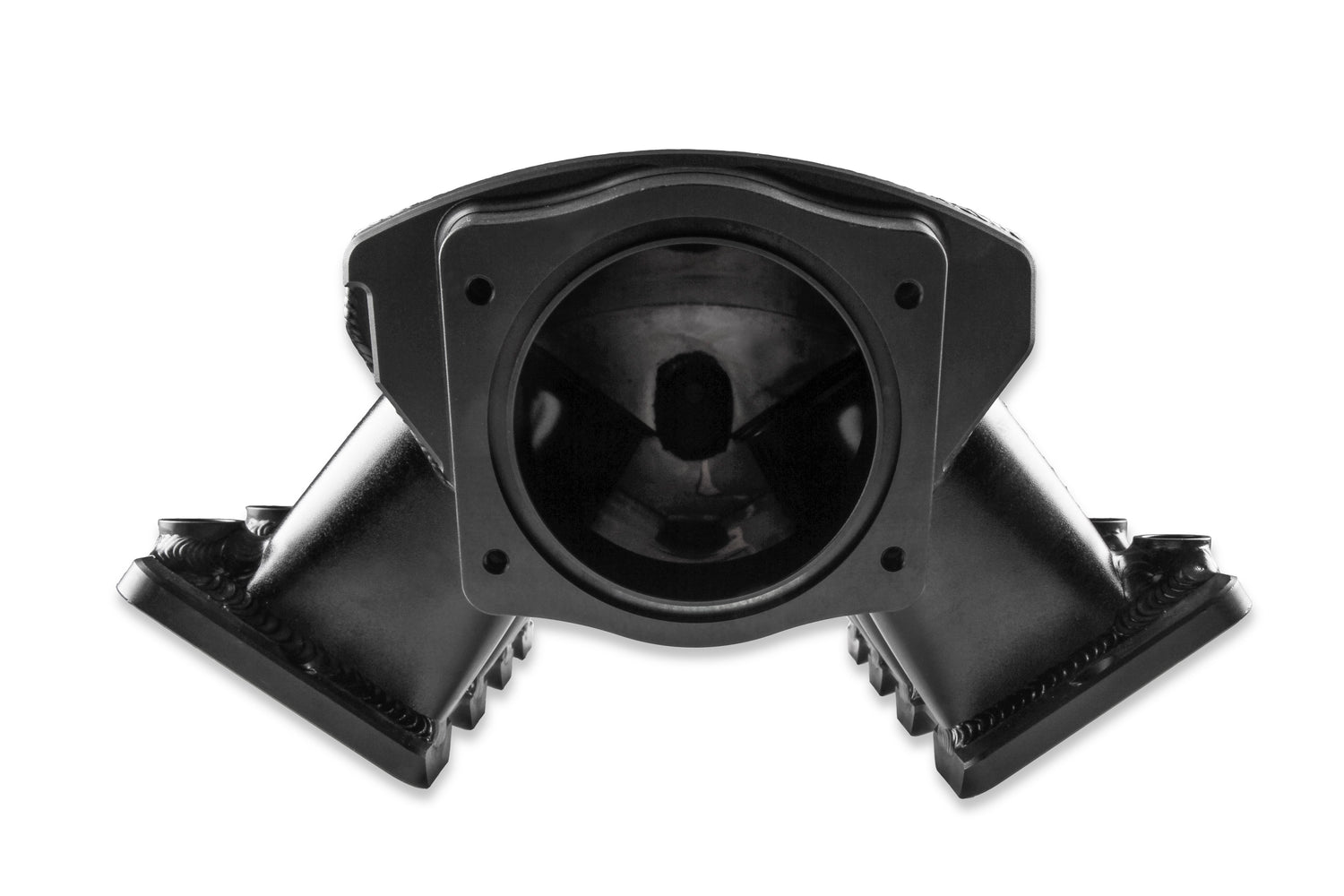

• 92mm throttle bore opening for increased air flow
• Provision for MAP sensor located on rear of plenum
• Black Finish creates stealthy under-hood styling
• 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
• Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
*** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment ***
Part Number: 820102-1
Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit. This updated design was developed to allow the end user to fit under a stock hood. Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity. Choice of Throttle Body opening sizes of 92mm & 102mm are available Holley Sniper Fabricated Manifolds continues to push the aftermarket by introducing Low Profile intakes for GM LS Engines. These Intakes are a good looking, perform well, and offer an extremely good value for a performance sheet metal style intake manifold for the very popular GM LS engine family.
Features and Benefits
• The Sniper intake will only accept EV1 style injectors.
• Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
• Low Profile, Compact Design (overall 1.875 inches shorter) allows fitment under stock hoods on Corvette, Camaro, Firebird, GTO, and others where hood clearance is at a minimum
• 100% TIG welded for strength and durability
• Product includes all gaskets and hardware for a hassle-free installation
• 92mm throttle bore opening for increased air flow
• Provision for MAP sensor located on rear of plenum
• Black Finish creates stealthy under-hood styling
• 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
• Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
*** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment ***
Specifications
Specifications
-
Specifications
Basic Operating RPM Range 1500-6500 Brand Holley Sniper EFI Carburetor Flange N/A Carburetor Quantity N/A Carburetor Studs Included No Category Engine CNC Ported No Color Black Construction Fabricated Cylinder Head Port Shape Cathedral Deck Height 9.24 EGR Port No Emission Code 4 Engine GM LS1/LS2/LS6 Flange Style N/A Front Maximum Height 6.392 Fuel Injectors Included No Fuel Rail(s) Included Yes Fuel System Type EFI Gasket Or Seal Included Yes Grade Type Performance Injector Style Provision EV1 Intake Port Gasket(s) Included Yes Manifold Type Fabricated Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Black Product Type Intake Manifold Rear Maximum Height 5.684 Recommended Use Forced Induction Removable Runners No Removable Top/Lid No Runner Length 4.527" (115mm) Single Or Dual Plane Type Single Style EFI Sub Category Cylinder Block Components Throttle Body Bore Diameter 92 Throttle Body Gasket Included Yes Throttle Body Included No Throttle Bore 92mm Vacuum Ports (3) 1/8"-28BSPT & (1) 1/4"-19BSPT Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
