Holley Sniper EFI | SKU:
820042-1

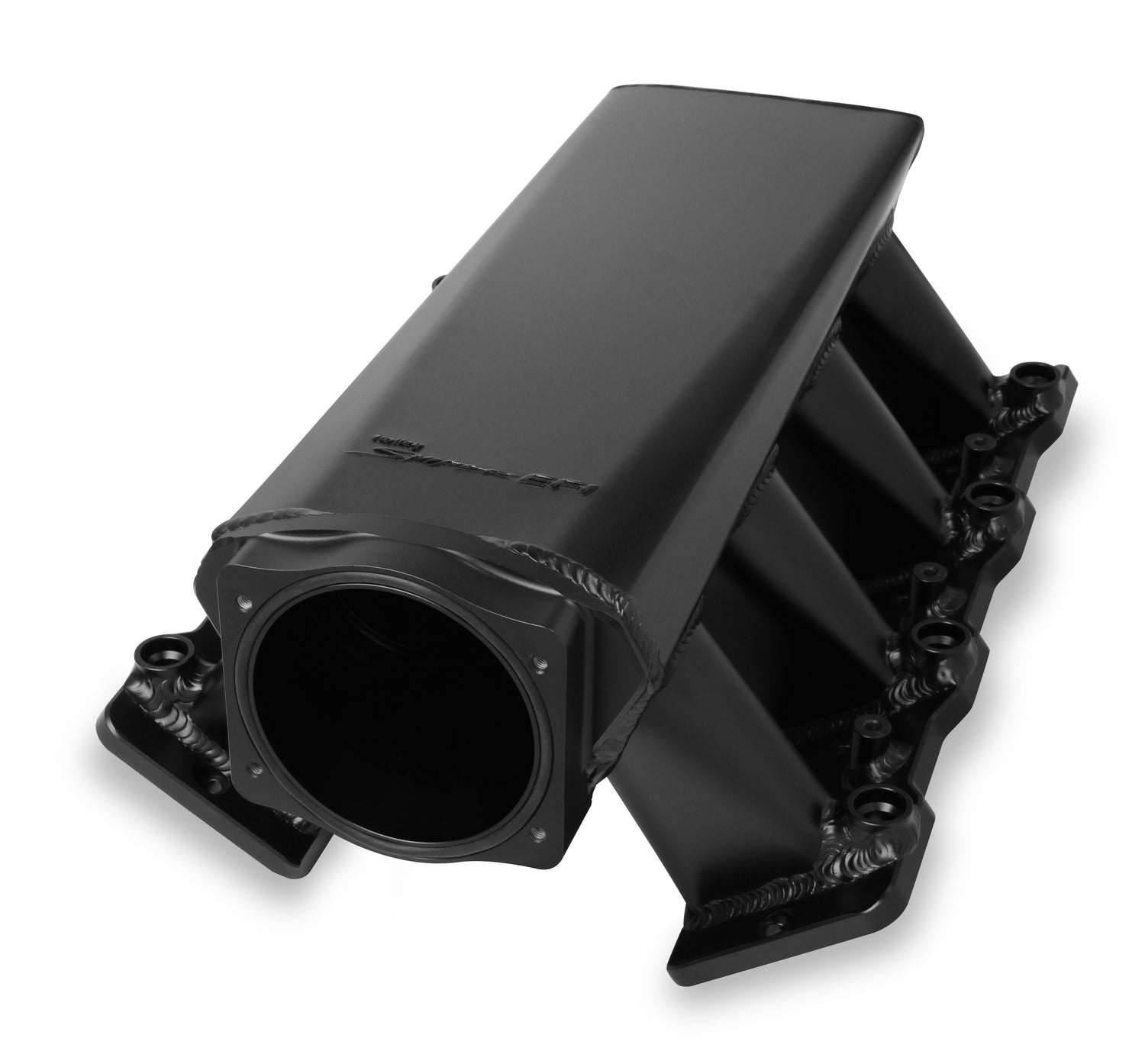

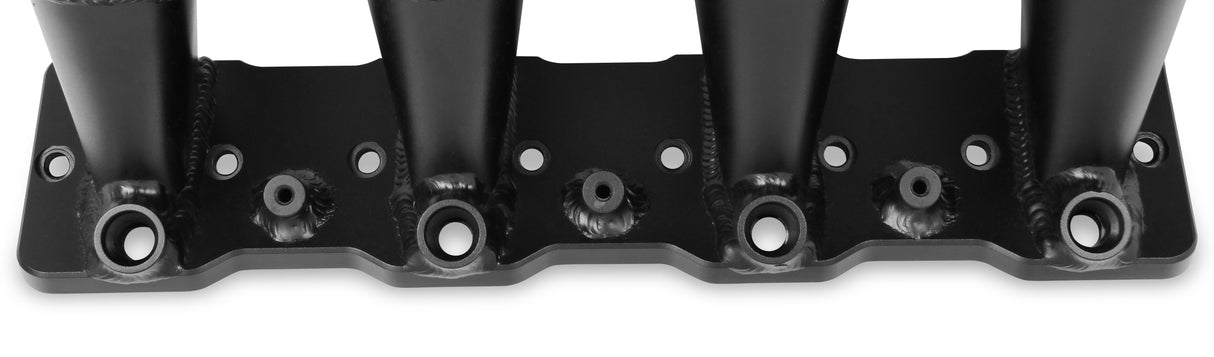

Holley 820042-1 Sniper EFI Sheet Metal Fabricated Intake Manifold
Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 102mm Throttle Body opening + Fuel Rail Kit Black with Sniper logo
Regular price
$1,637.20 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 820042-1 Sniper EFI Sheet Metal Fabricated Intake Manifold is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Holley 820042-1 Sniper EFI Sheet Metal Fabricated Intake Manifold
Regular price
$1,637.20 NZD
+ GST
Unit price
/
Unavailable
Description
Description
Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 102mm Throttle Body opening + Fuel Rail Kit Black with Sniper logo
Part Number: 820042-1

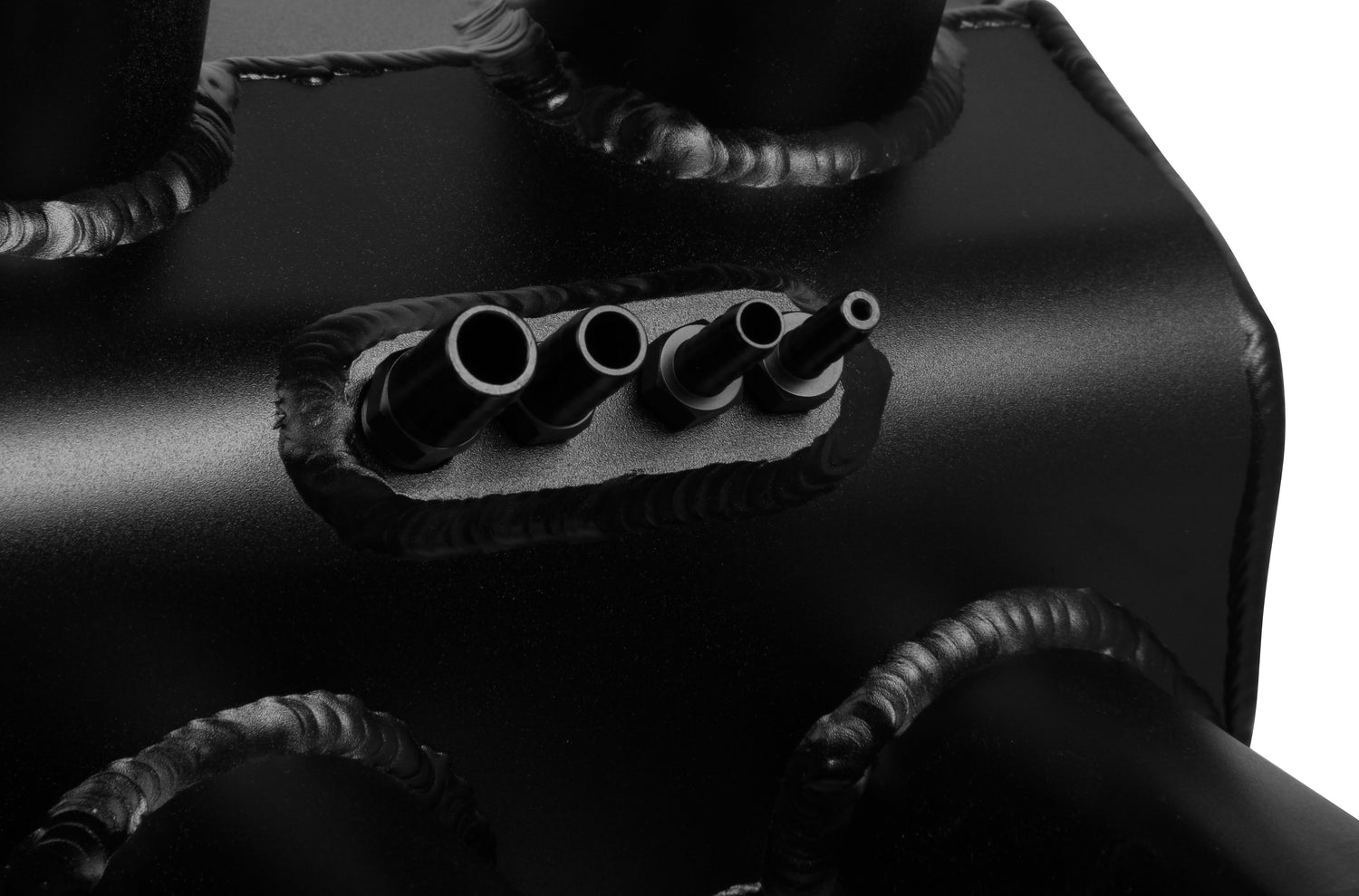

Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions! Now Includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent
Features and Benefits

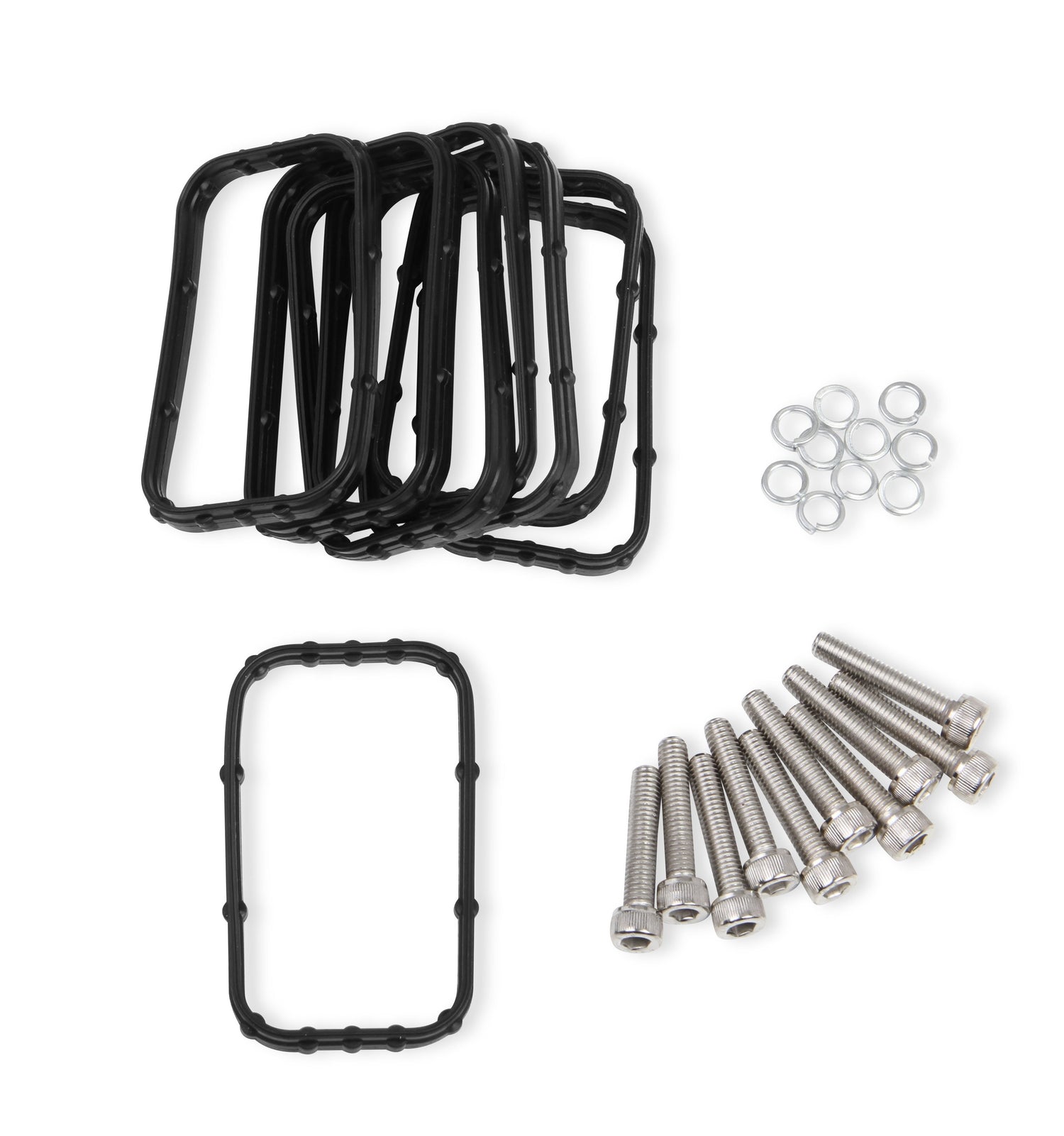

• Product includes all gaskets and hardware for a hassle-free installation
• Black Finish creates stealthy under-hood styling

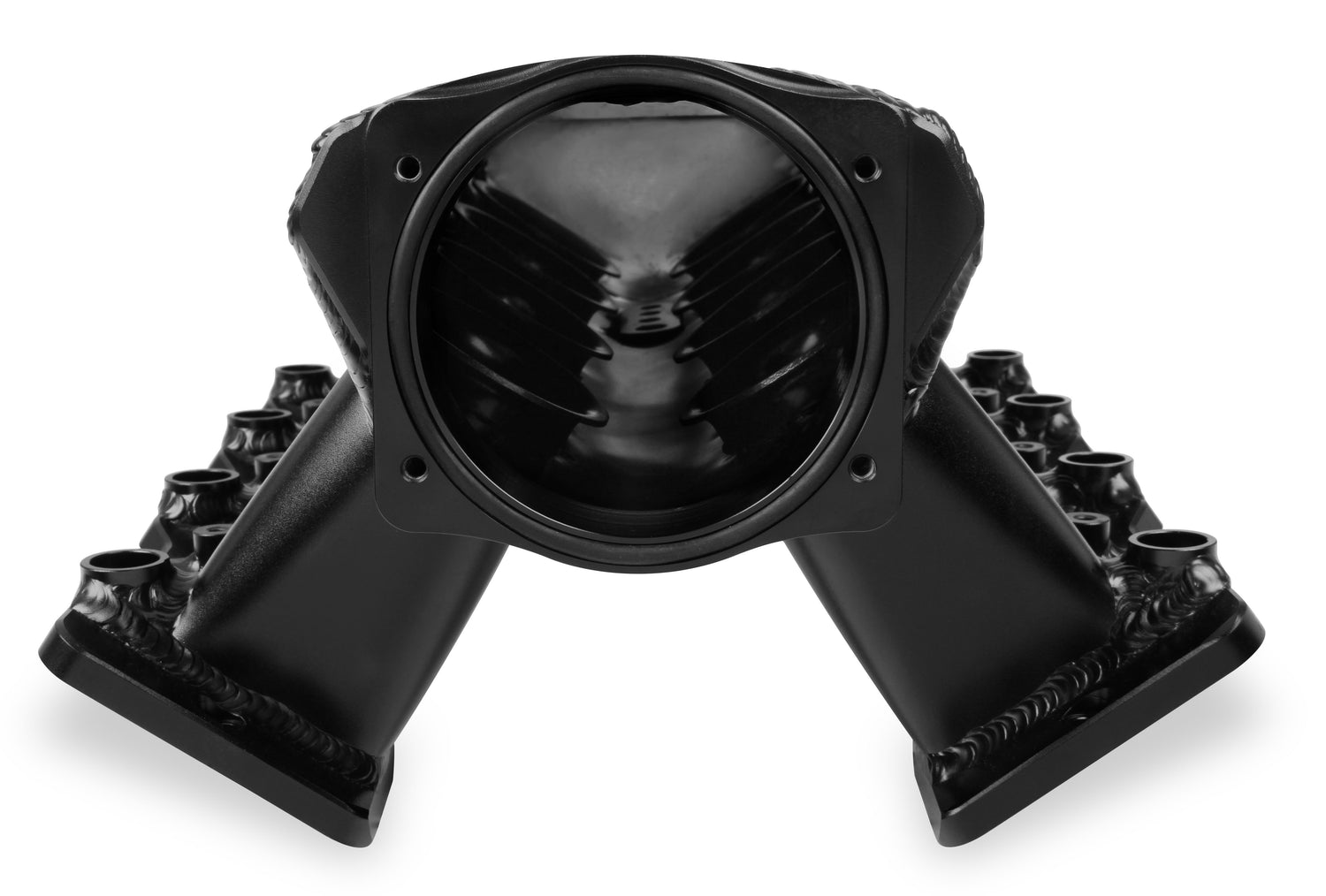

• 102mm throttle bore opening for increased air flow

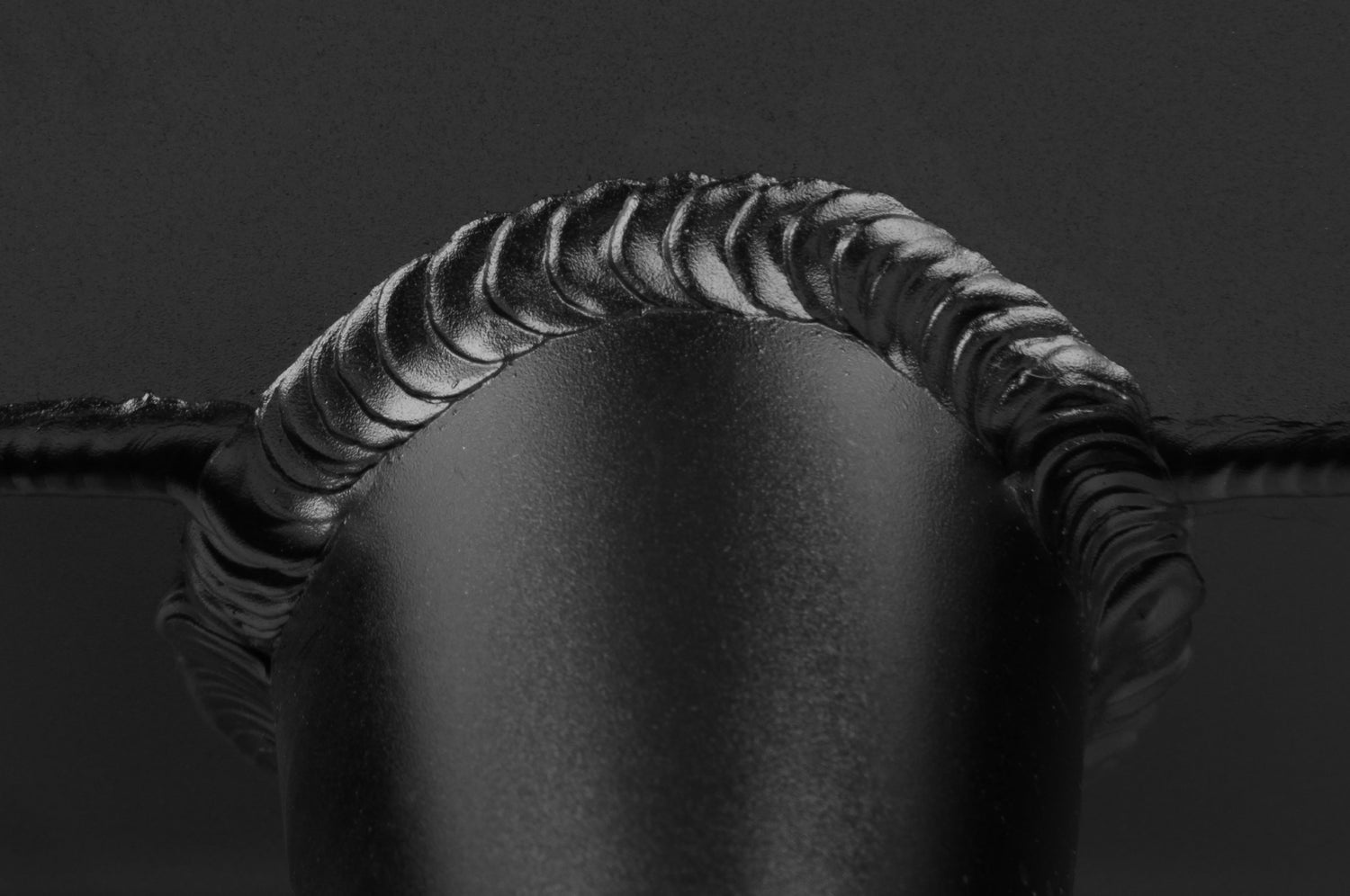

• 100% TIG welded for strength and durability
• 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
• The Sniper intake will only accept EV1 style injectors.

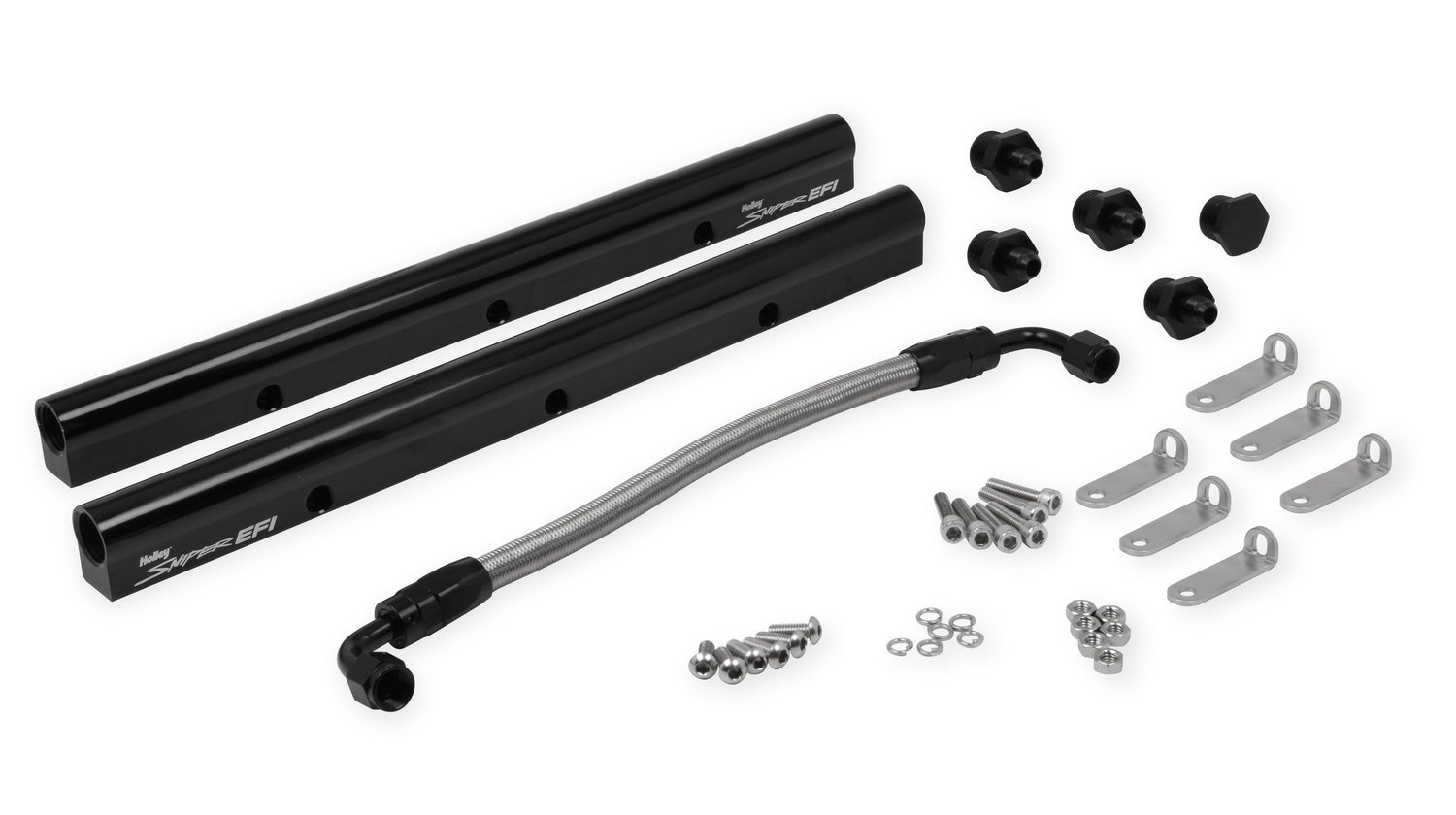

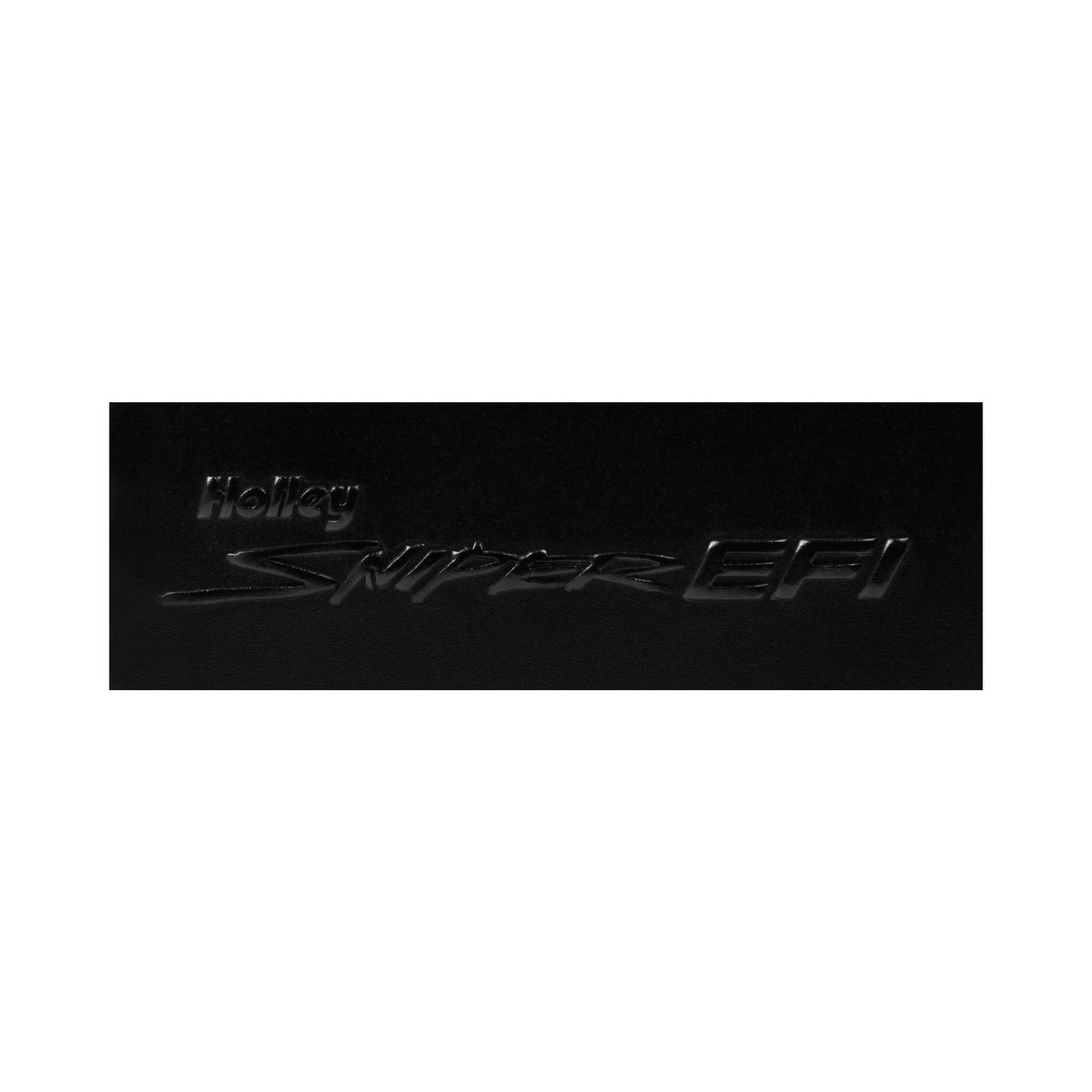

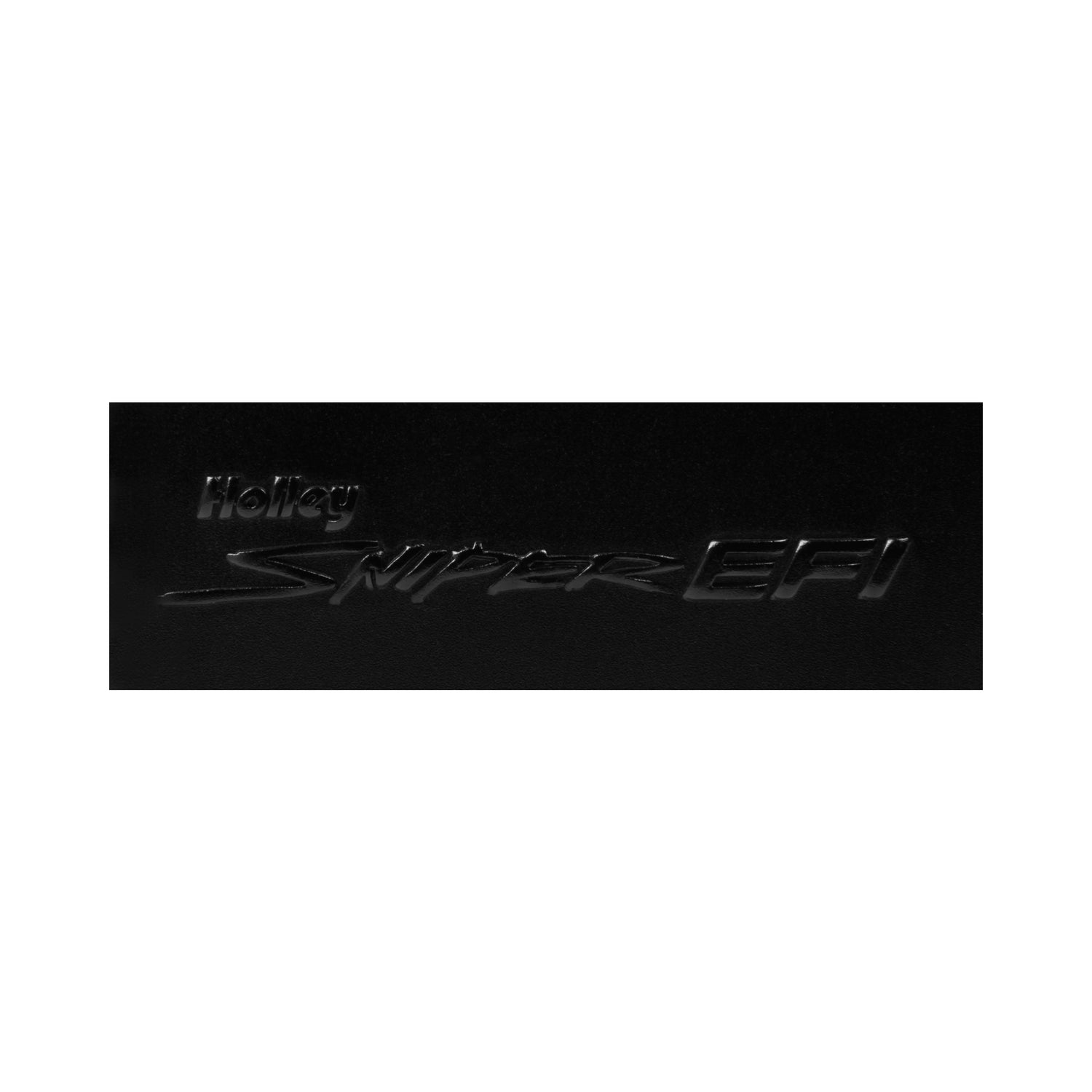

• Includes 3/8" Fuel rail kits (Sniper logo laser engraved)

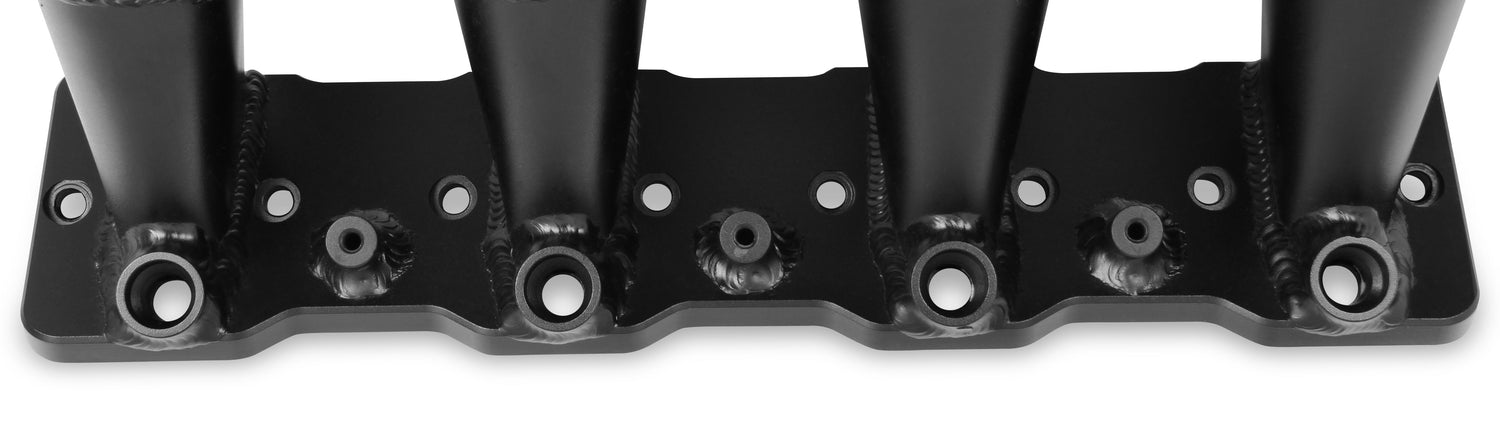

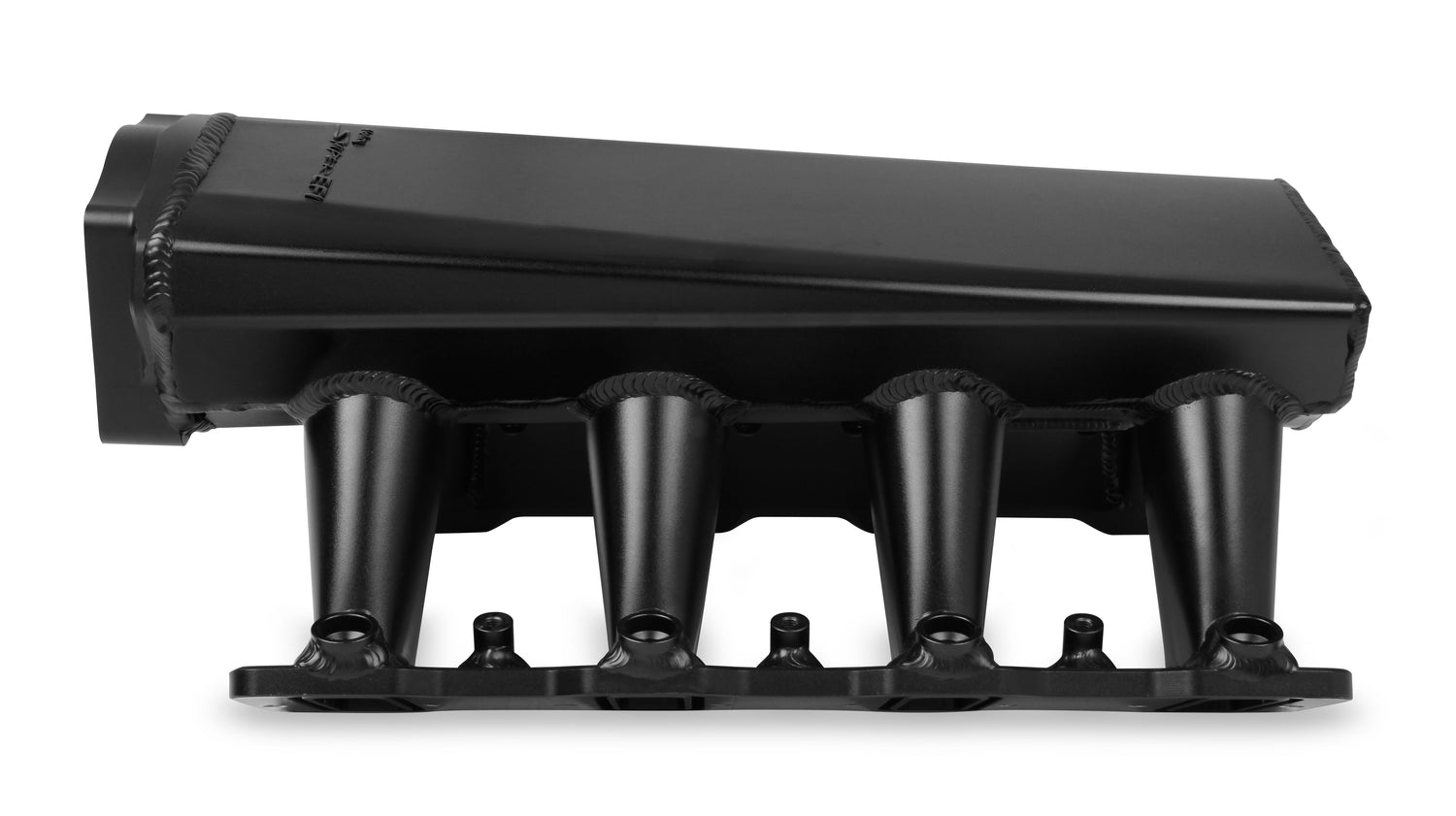

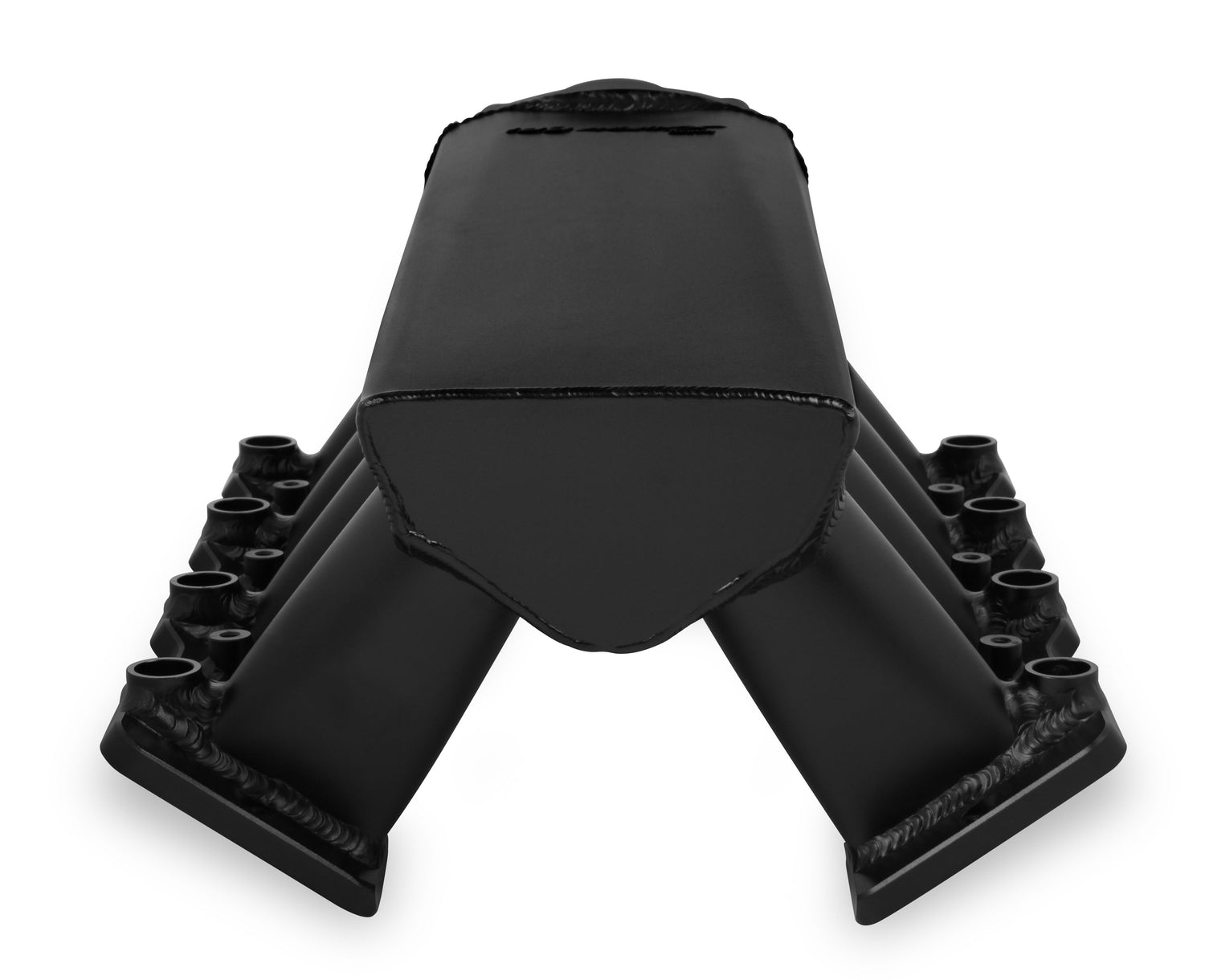

• Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response

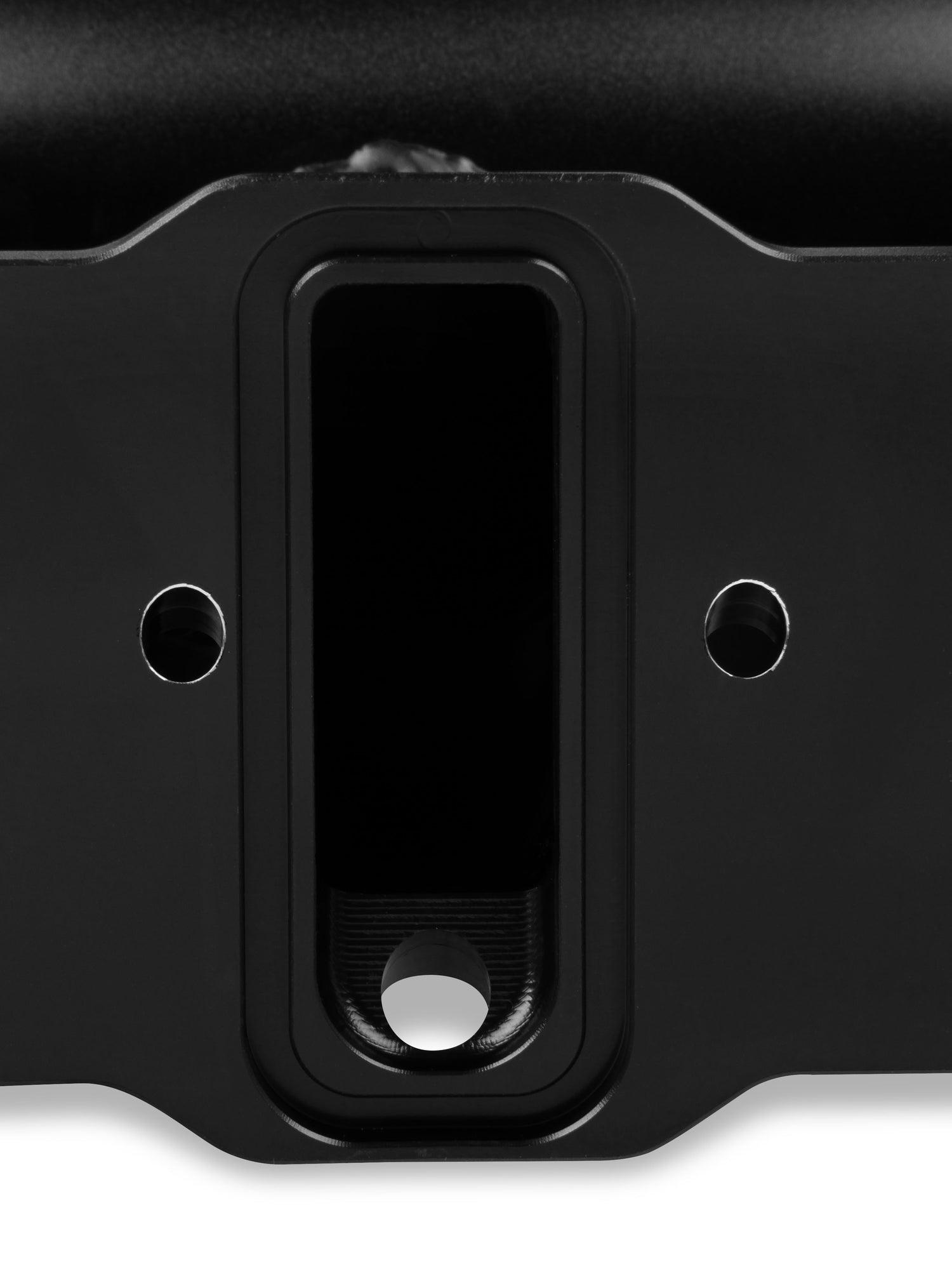

*** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment ***
Part Number: 820042-1
Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions! Now Includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent
Features and Benefits
• Product includes all gaskets and hardware for a hassle-free installation
• Black Finish creates stealthy under-hood styling
• 102mm throttle bore opening for increased air flow
• 100% TIG welded for strength and durability
• 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
• The Sniper intake will only accept EV1 style injectors.
• Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
• Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
*** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment ***
Specifications
Specifications
-
Specifications
Basic Operating RPM Range 2200-6800 Brand Holley Sniper EFI Carburetor Flange N/A Carburetor Quantity N/A Carburetor Studs Included No Category Engine CNC Ported No Color Black Construction Fabricated Cylinder Head Port Shape Cathedral Deck Height 9.24 EGR Port No Emission Code 4 Engine GM Gen III/IV (LS) Flange Style N/A Front Maximum Height 8.267 Fuel Injectors Included No Fuel Rail(s) Included Yes Fuel System Type EFI Gasket Or Seal Included Yes Grade Type Performance Injector Style Provision EV1 Intake Port Gasket(s) Included Yes Manifold Type Fabricated Material Aluminum Nitrous Bung(s) Included No part type Engine Intake Manifold Plenum Finish Black Product Type Intake Manifold Rear Maximum Height 7.559 Removable Runners No Removable Top/Lid No Runner Length 4.921" (125mm) Single Or Dual Plane Type Single Plane Sub Category Cylinder Block Components Throttle Body Bore Diameter 102 Throttle Body Gasket Included Yes Throttle Body Included No Throttle Bore 102mm Vacuum Ports (3) 1/8"-28BSPT & (1) 1/4"-19BSPT Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
