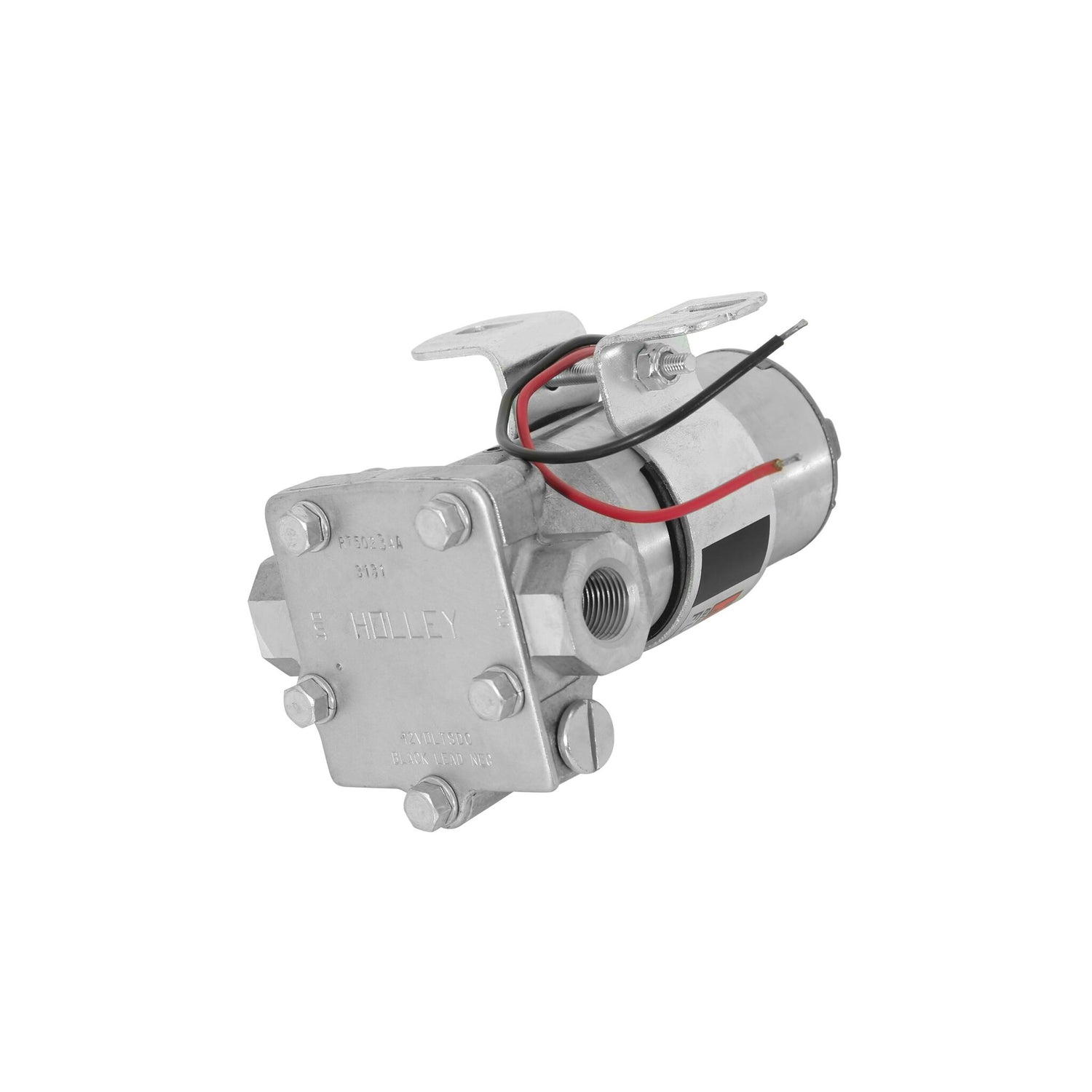

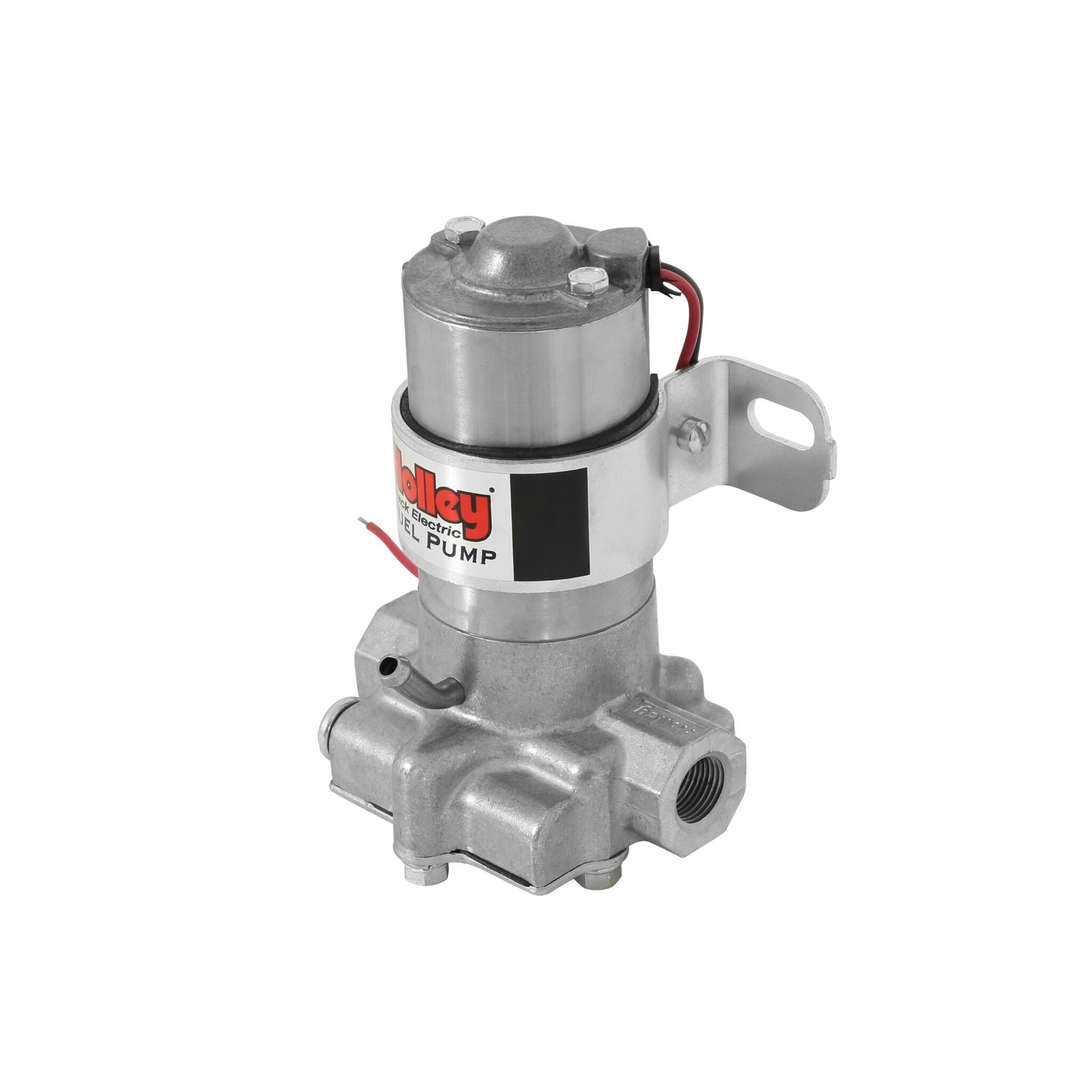

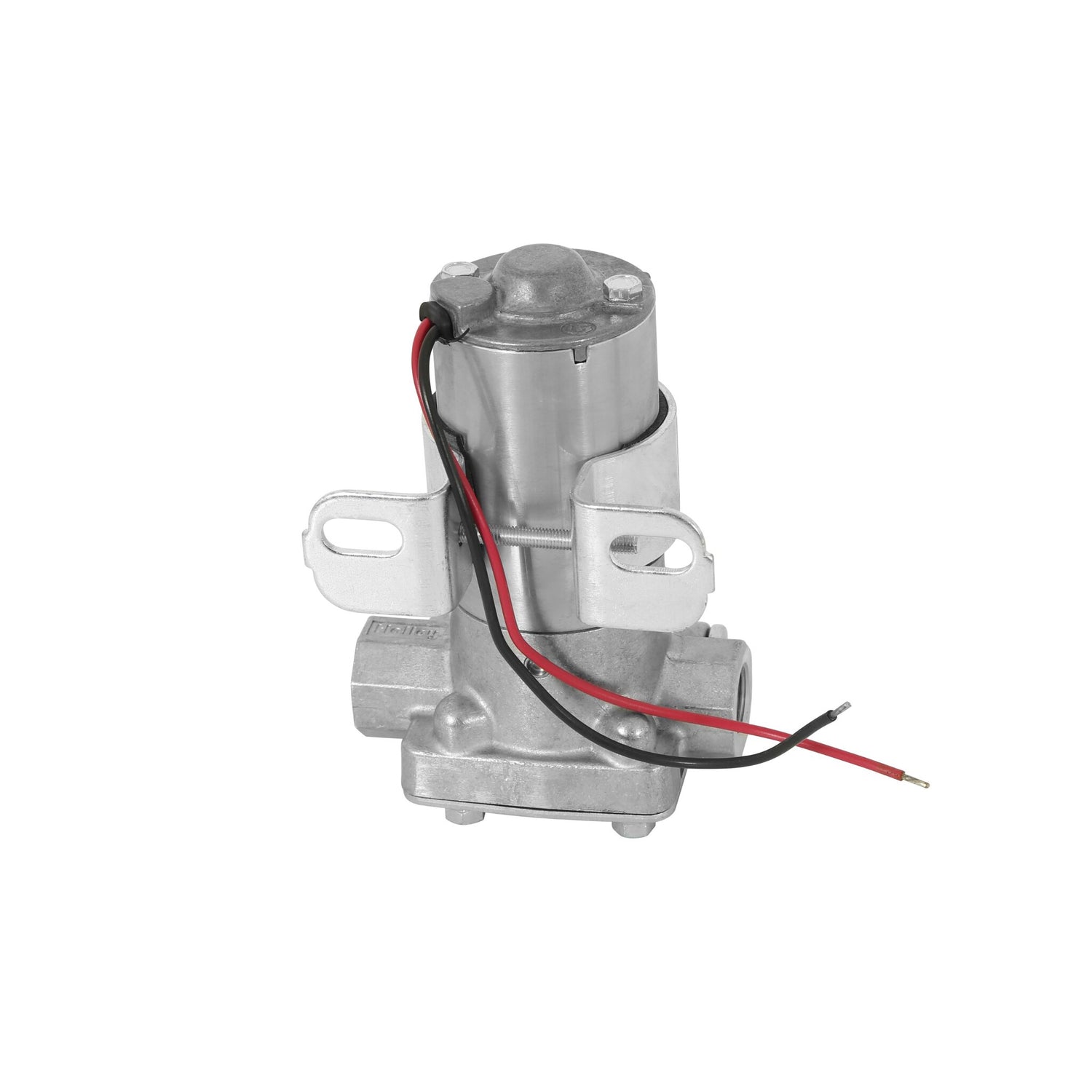

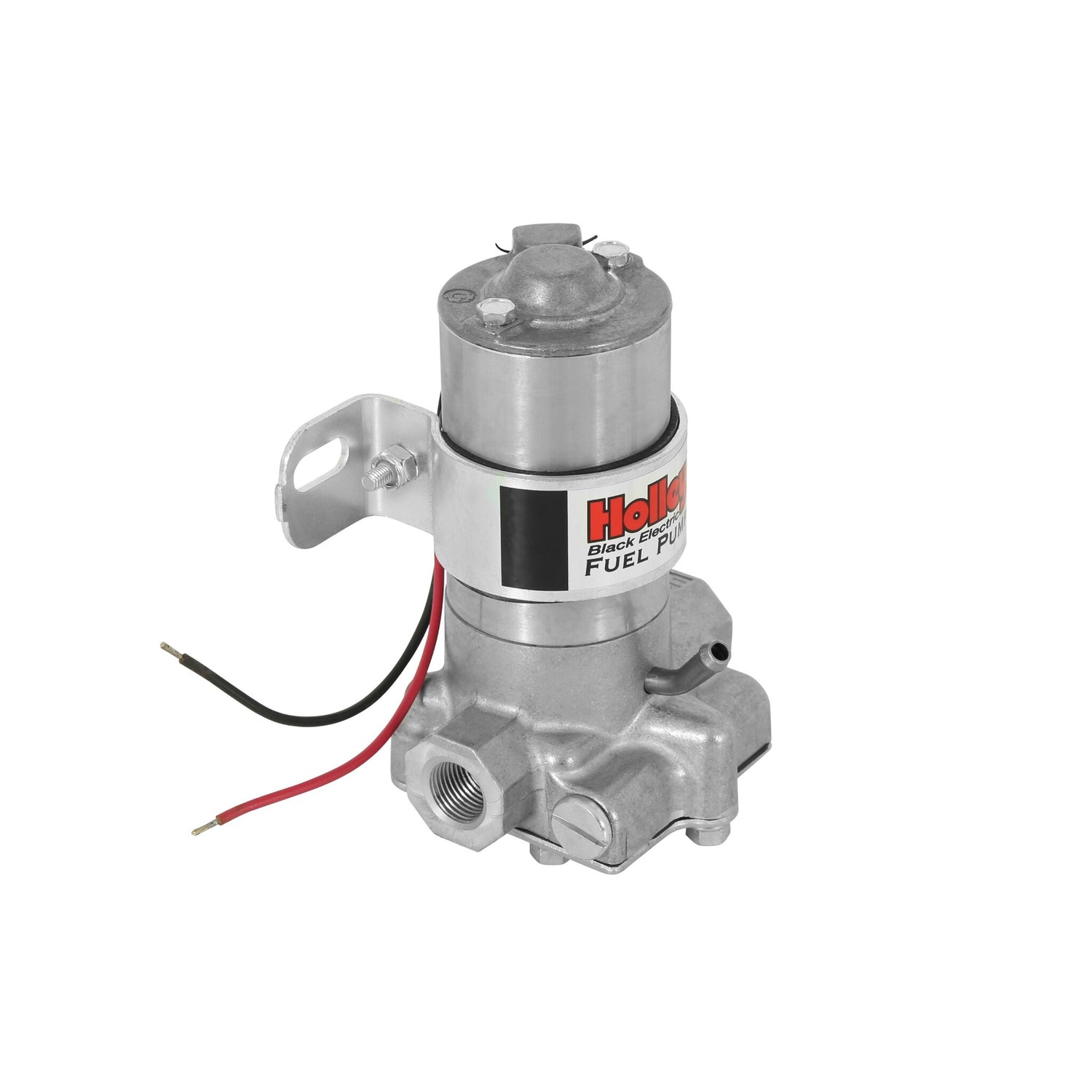

Holley 712-815-1 140 GPH Black® Electric Fuel Pump

Marine Carbureted Applications Compatible with Gasoline Only

Part Number: 712-815-1

The world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70's. Their time proven rotor/vane design is known to get the job done in an affordable package. Designed with a fume tube for marine use and meets U.S. Coast Guard regulations.

Features and Benefits

• Tumble polished billet look
• Lower housing casting designed for enhanced fuel flow.
• Improved design for street/strip applications
• Distinctive “Black” logo
• Not designed for use on aircraft of any type.
• Flows 140 GPH (free flow)
• Flows 120 GPH at 9 psi
• Maximum pressure is 14 psi
• 3/8” NPT inlet and outlet ports
• Fuel pressure regulator is required (recommend Holley P/N 12-704 for gasoline)
• Motor draws only 4 amps current
• 7 1/2 amp fuse recommended
• Provides constant fuel flow with no pulsation
• Has externally accessible pressure relief valve (max 14 psi)
• Rotor/vane pump design is more tolerant of contaminated fuels
• Weighs only 3 lbs

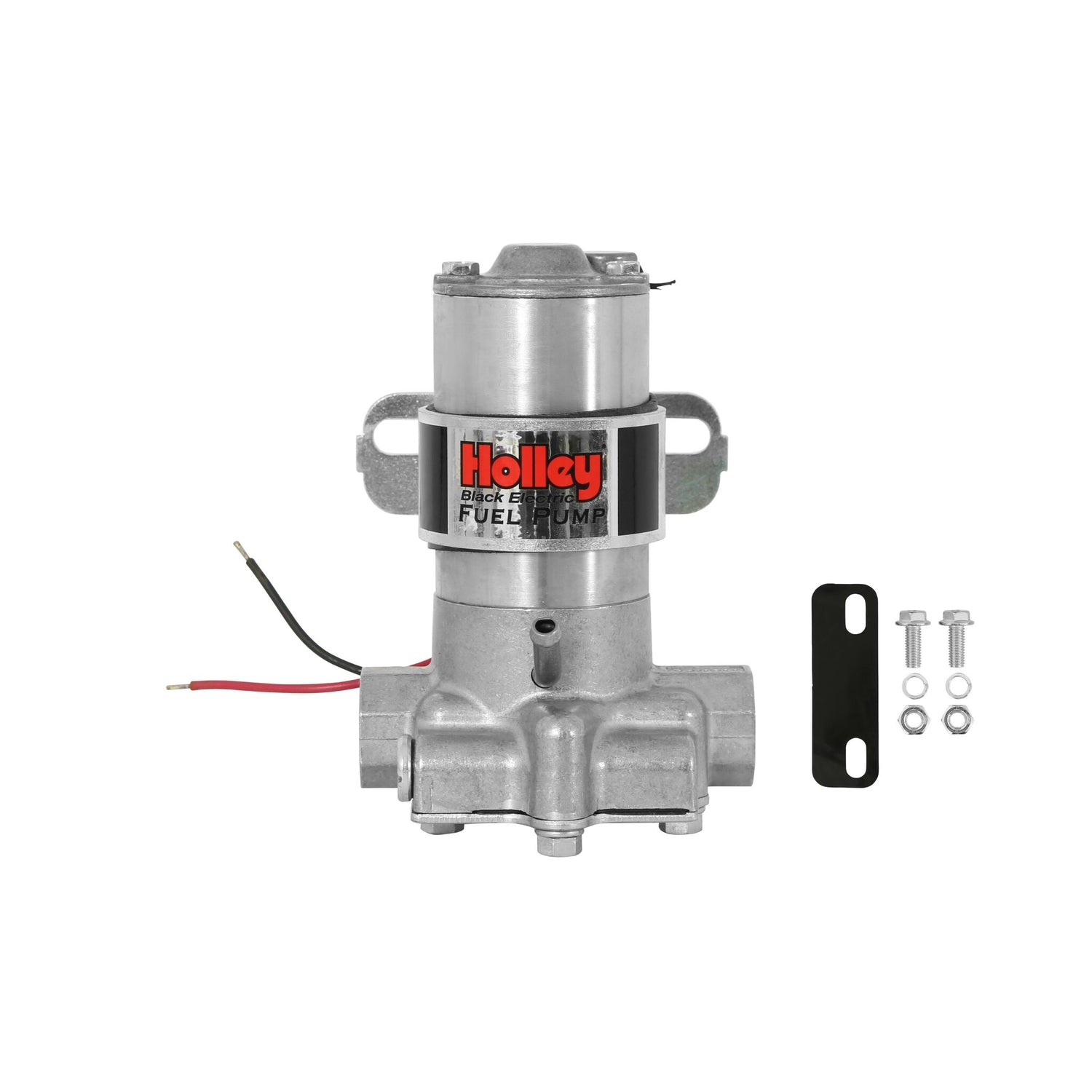

• Includes mounting bracket
• Repair kits are readily available
• Can be serviced from the pump end
• Use of safety shut-off switch, P/N 12-810, strongly recommended
• Not designed or recommended for use with fuel injection systems
• Meets U.S. Coast Guard regulations
• Includes Fuel/vapor tube

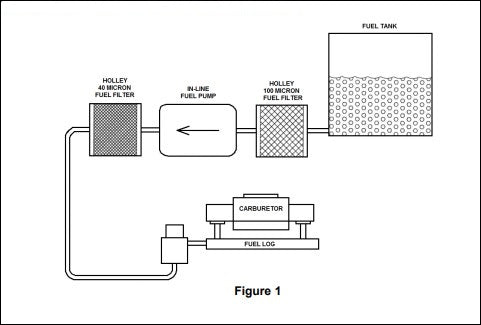

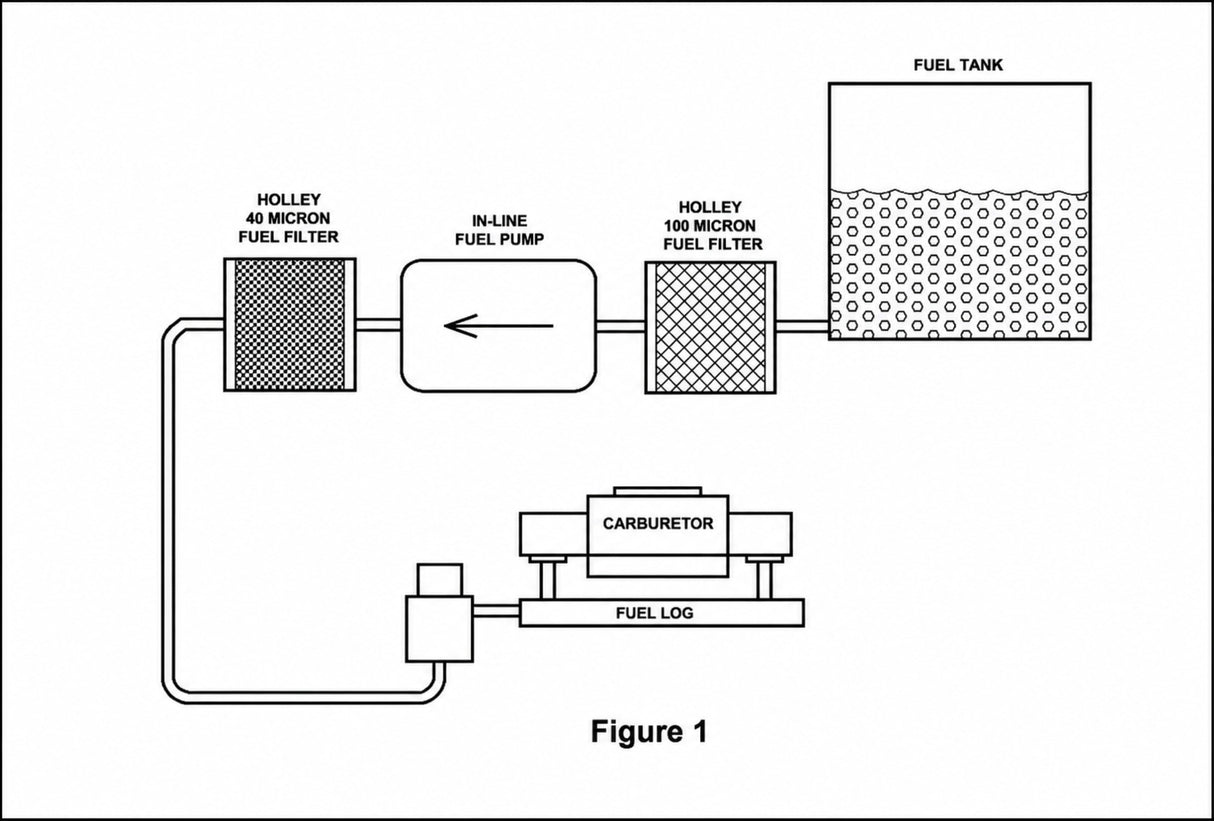

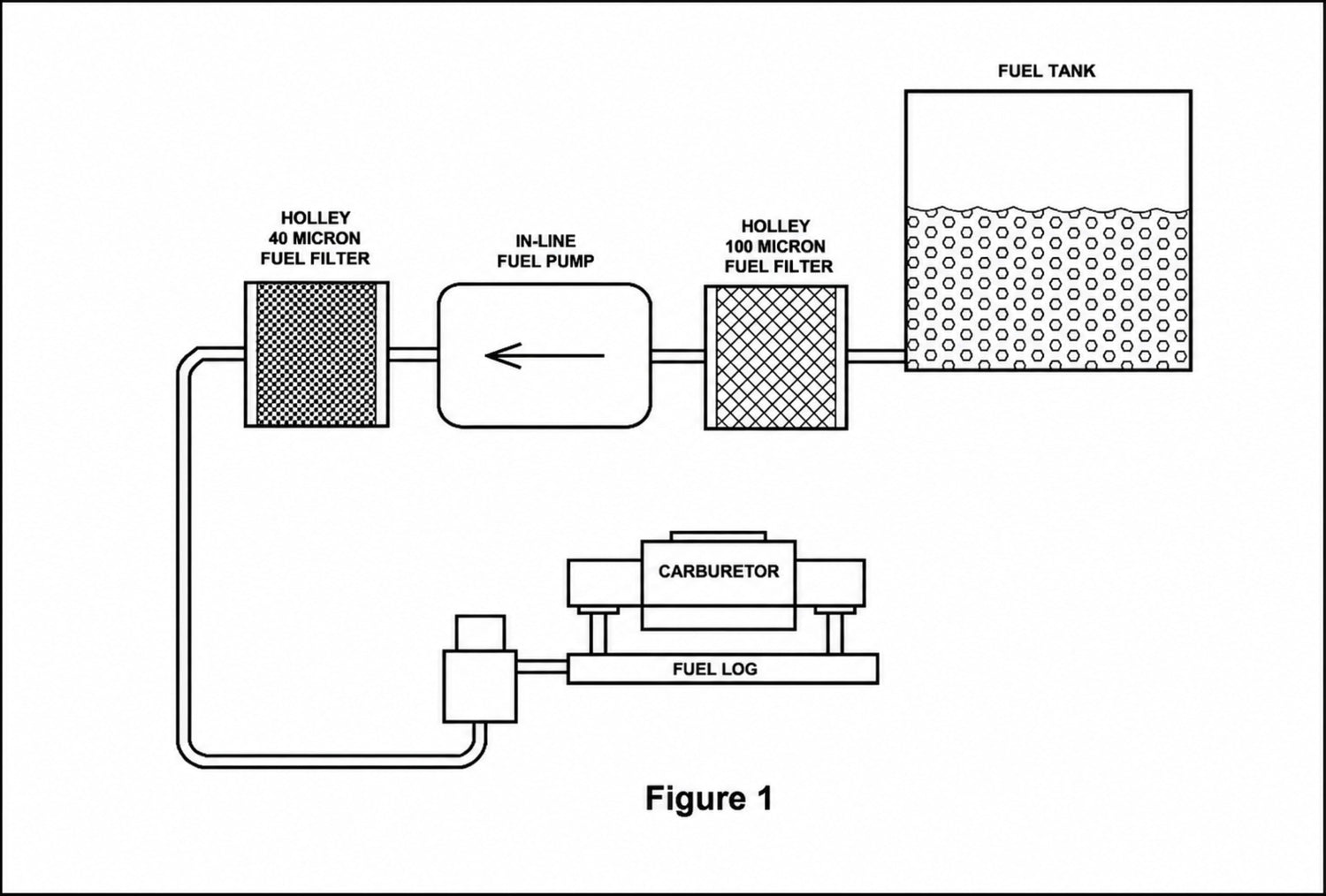

Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. These should be used with 12 volt systems only.
