Holley EFI | SKU:
558-469

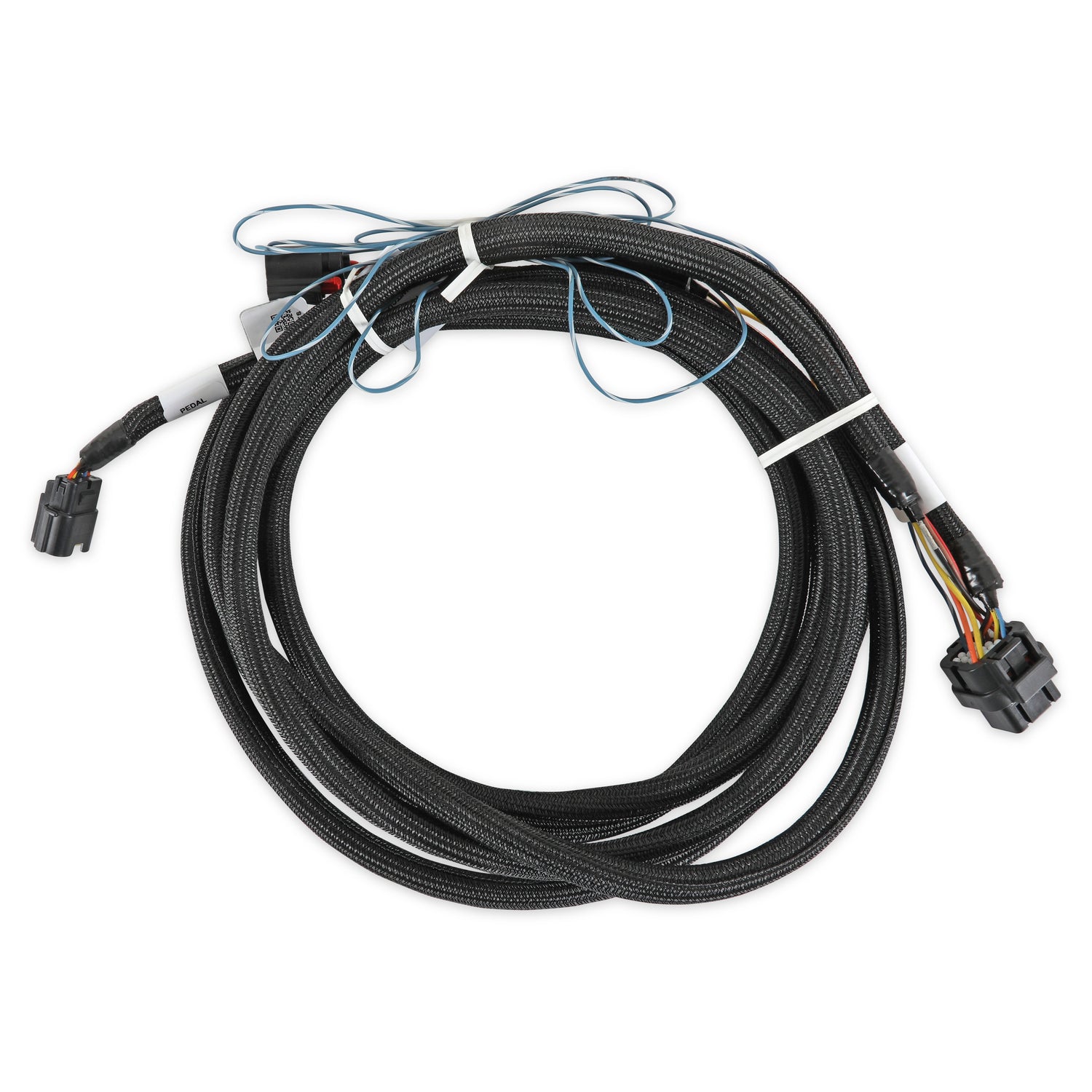

Holley 558-469 2018-2022 Ford DBW Harness
Throttle Body - JL3E-9F991-AA - Throttle Pedal - BR3Z-9F836-D
Regular price
$633.70 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 558-469 2018-2022 Ford DBW Harness
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Throttle Body - JL3E-9F991-AA - Throttle Pedal - BR3Z-9F836-D
Part Number: 558-469
The Holley Dominator and Terminator X Max ECU’s have built-in capability to control the Drive-By-Wire throttle pedals and throttle bodies used on most 2018-2022 Ford Coyote and 2020-2022 Ford Godzilla applications. To ensure a safe and reliable installation, there are certain hardware requirements that must be followed: Golden Rule: These are plug-and-play harnesses. If they don’t plug, don’t play. Only the factory drive-by-wire throttle body has been pre-calibrated and approved for use with these harnesses. Some applications have different connectors, have not been tested, and are therefore not approved for use with the Holley ECU. The 558-469 DBW harness is made for compatibility with the stock pedal assembly. The following pedal part numbers are compatible: BR3Z-9F836-D, BR3Z-9F836-C, and CR33-9F836-BA. This harness is made for compatibility with the stock throttle body assembly (Part number: JL3E-9F991-AA). Earlier software versions will not have this part number listed in the throttle body type. However, it is acceptable to use the “Ford PN M9926-M52/FR3E-9F991- AA (15-17 Coyote)” Throttle Body option if “Ford PN M9926-M52/FR3E-9F991-AA/JL3E-9F991-AA (15-22 Coyote/Godzilla)” is not an option in your version of software.
Part Number: 558-469
The Holley Dominator and Terminator X Max ECU’s have built-in capability to control the Drive-By-Wire throttle pedals and throttle bodies used on most 2018-2022 Ford Coyote and 2020-2022 Ford Godzilla applications. To ensure a safe and reliable installation, there are certain hardware requirements that must be followed: Golden Rule: These are plug-and-play harnesses. If they don’t plug, don’t play. Only the factory drive-by-wire throttle body has been pre-calibrated and approved for use with these harnesses. Some applications have different connectors, have not been tested, and are therefore not approved for use with the Holley ECU. The 558-469 DBW harness is made for compatibility with the stock pedal assembly. The following pedal part numbers are compatible: BR3Z-9F836-D, BR3Z-9F836-C, and CR33-9F836-BA. This harness is made for compatibility with the stock throttle body assembly (Part number: JL3E-9F991-AA). Earlier software versions will not have this part number listed in the throttle body type. However, it is acceptable to use the “Ford PN M9926-M52/FR3E-9F991- AA (15-17 Coyote)” Throttle Body option if “Ford PN M9926-M52/FR3E-9F991-AA/JL3E-9F991-AA (15-22 Coyote/Godzilla)” is not an option in your version of software.
Specifications
Specifications
-
Specifications
Brand Holley EFI Category Electrical, Lighting and Body Emission Code 3 Harness Type Drive-By-Wire part type Throttle Body Wiring Harness Product Type Drive By Wire Harness Sub Category Wire, Cable and Related Components Warning California Proposition 65 -
Instructions
