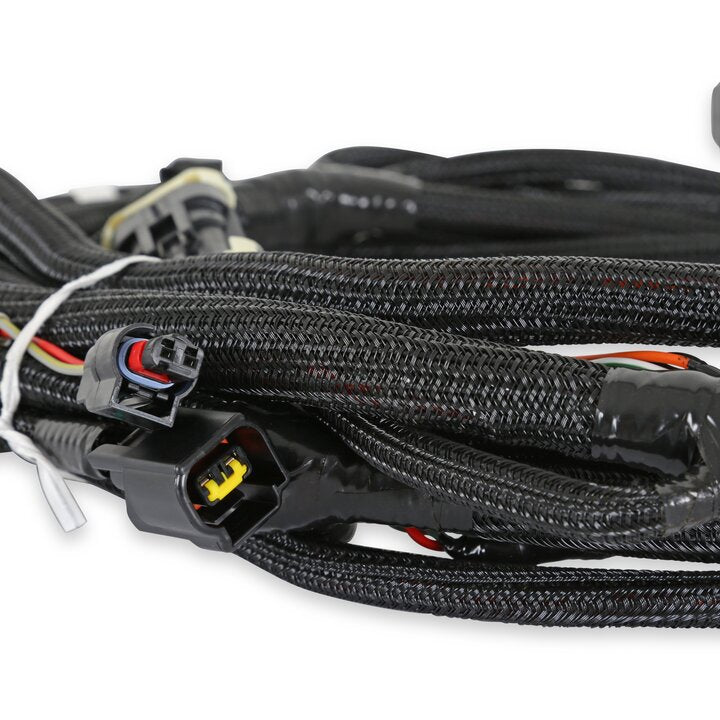

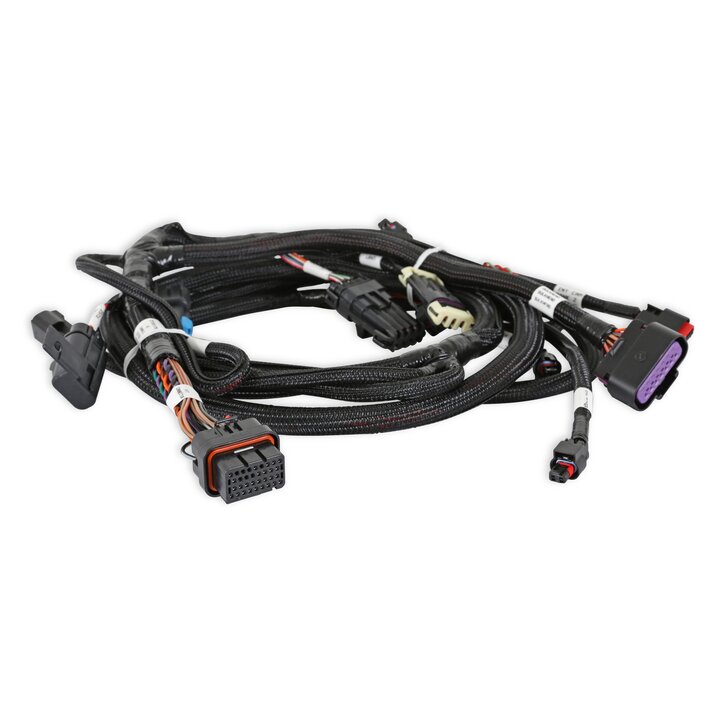

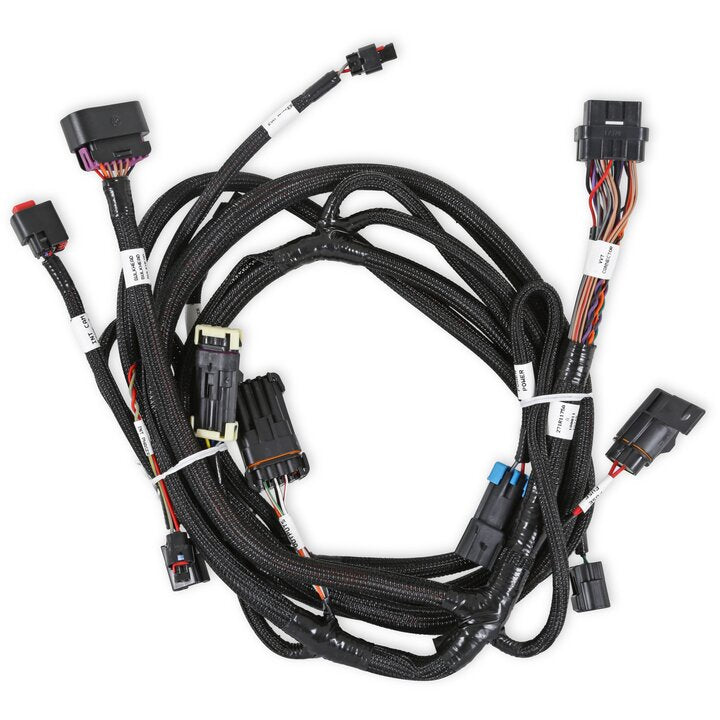

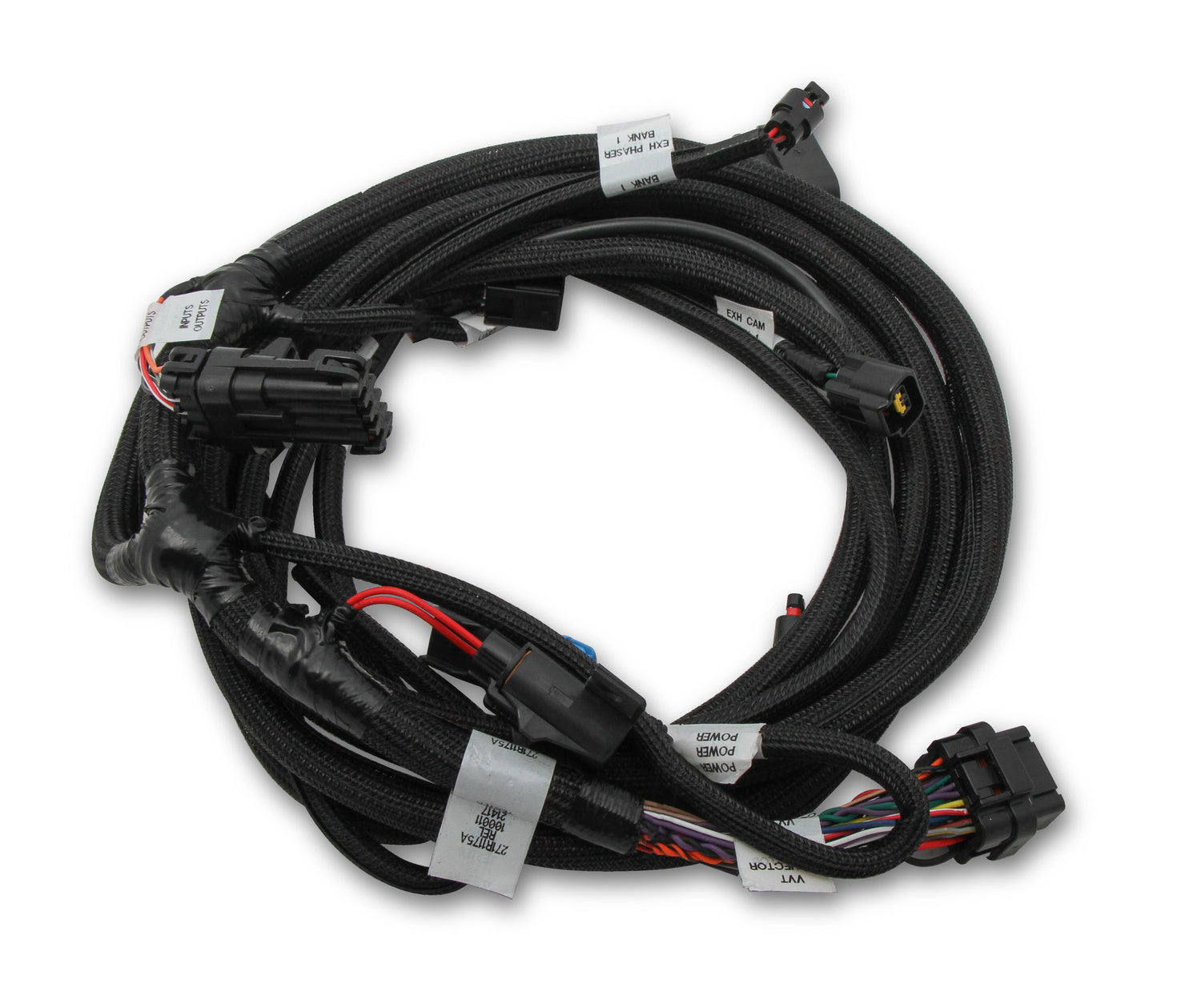

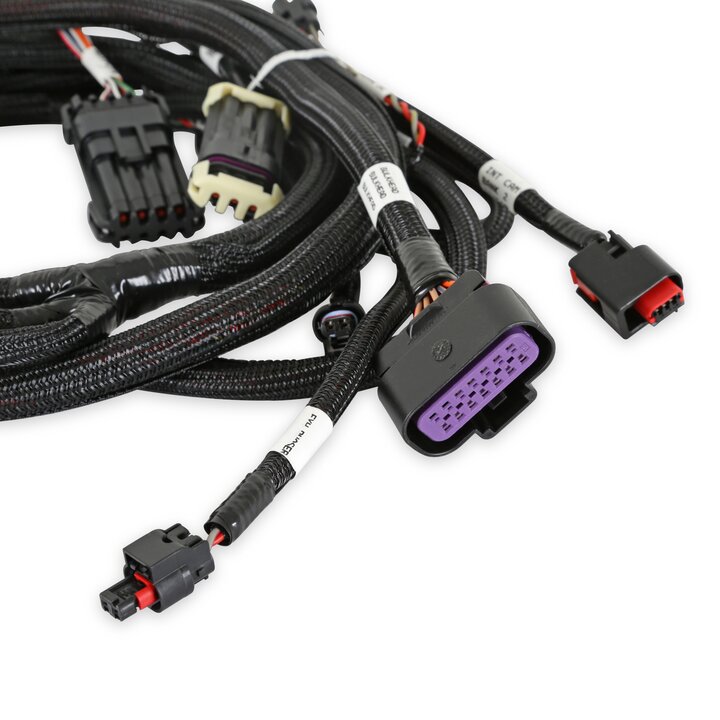

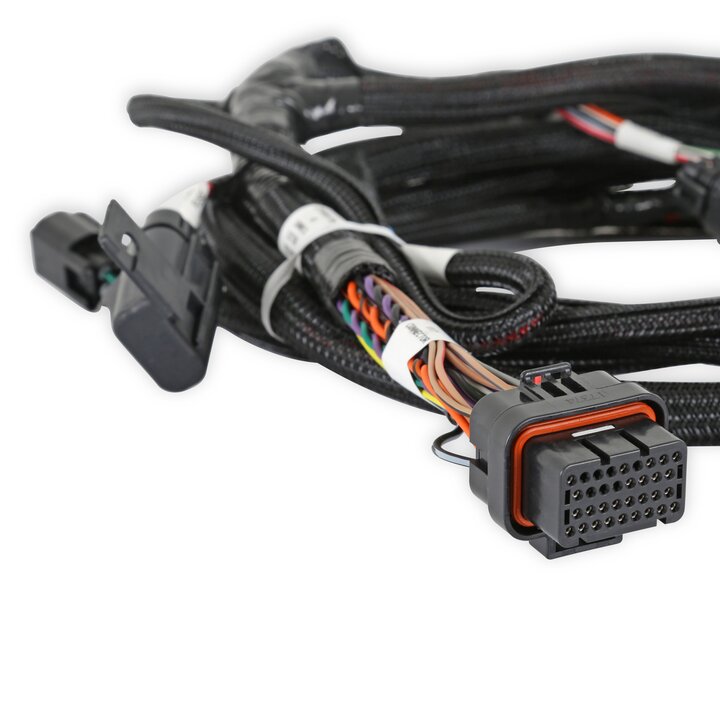

Holley 558-124 EFI Ford Coyote Ti-VCT Sub Harness (2011-2012)

Coyote Ti-VCT Sub Harness for 2011-2012 Engines with Stock Camshafts

Part Number: 558-124

Introducing Coyote Twin Independent Variable Cam Timing Control from Holley EFI! Do you have a coyote crate engine going in your dream car? Is your weekend road race warrior powered by a coyote junkyard engine with locked cams? Unlock the full potential of your high revving power plant with the Holley EFI Plug and Play Coyote Ti-VCT Control Module.

Features and Benefits

• Compatible with HP or Dominator EFI
• Ti-VCT Cam control down to 400 RPM
• Designed for Stock Camshafts Profiles
• Commanded Timing matched within 1 degree
• 4 Built in Diagnostic LEDS make diagnostics easy in the event of a cam or crank sensor failure
• Integrated Stock Cam Position Tables – eliminate tuning guess work, optimal drive-ability and power right out of the box
• Installation of an external MAP sensor is required, we recommend part number 538-24 for N/A applications
• CANBus communication between Coyote Ti-VCT and Holley EFI ECU for high speed data transfer and diagnostics
• Pre-calibrated Ford sensor drop downs in the Holley EFI Software
• Plug and Play Ti-VCT Sub Harness designed specifically for 2011-2012 Coyote Engines

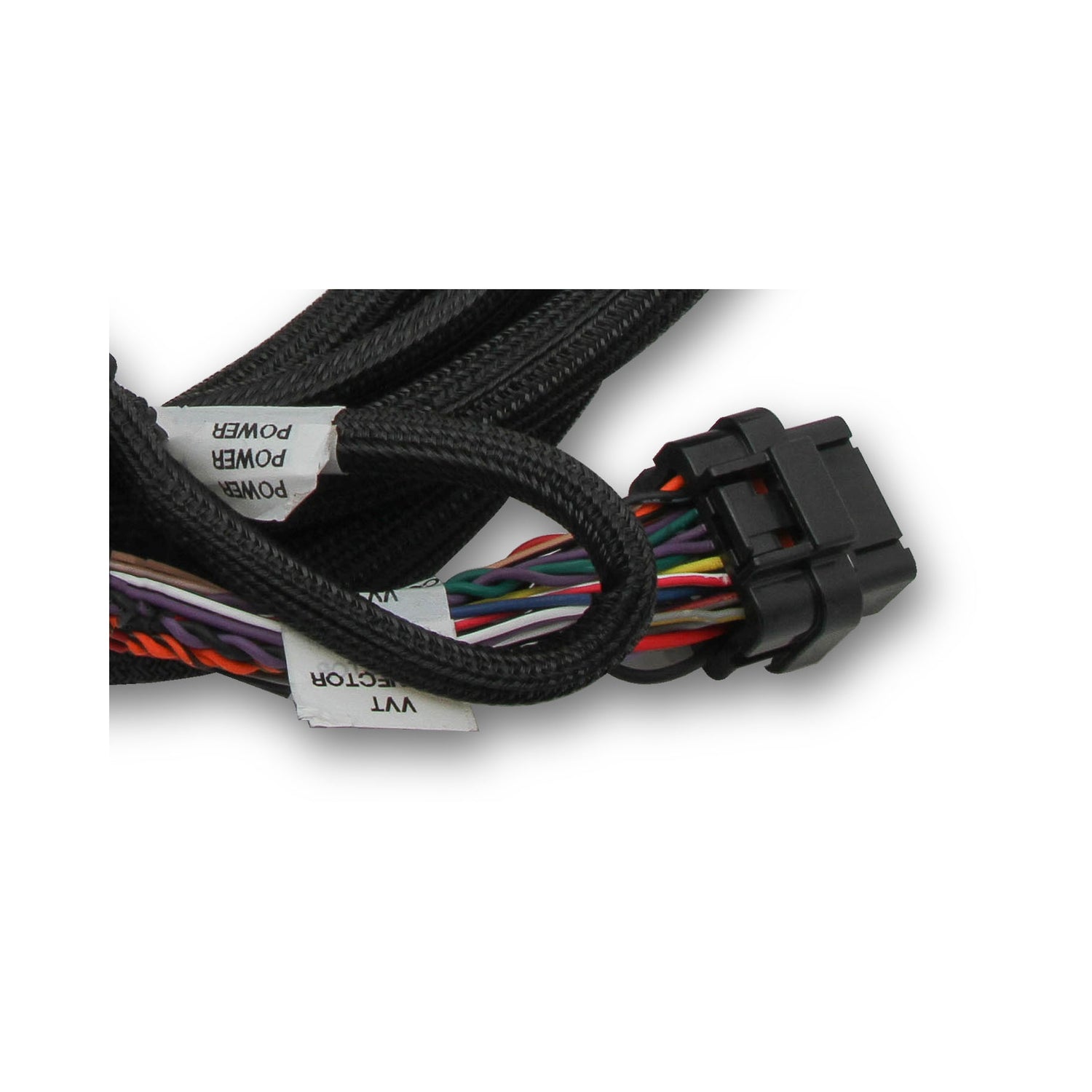

• Connectors are labeled for easy identification

Designed to be used with 558-319 Main Power Harness
