Holley EFI | SKU:
558-110

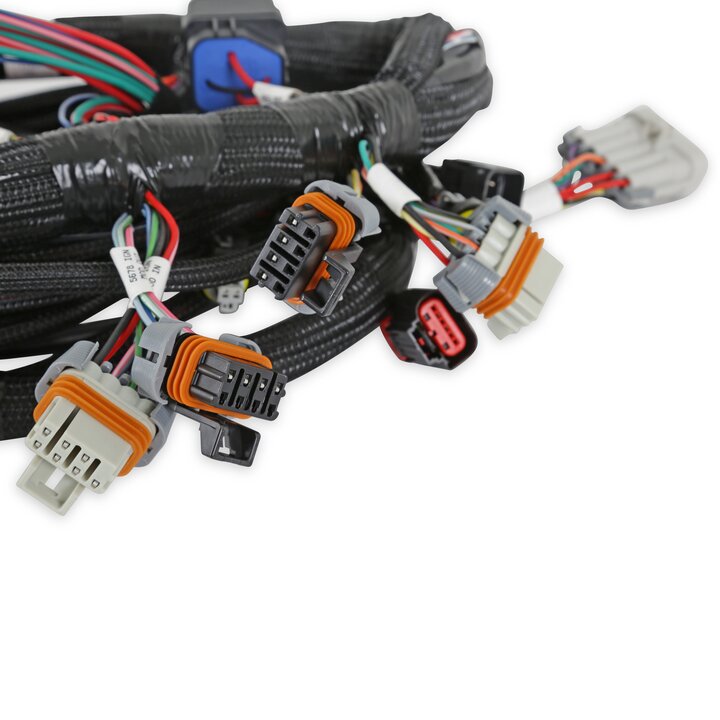

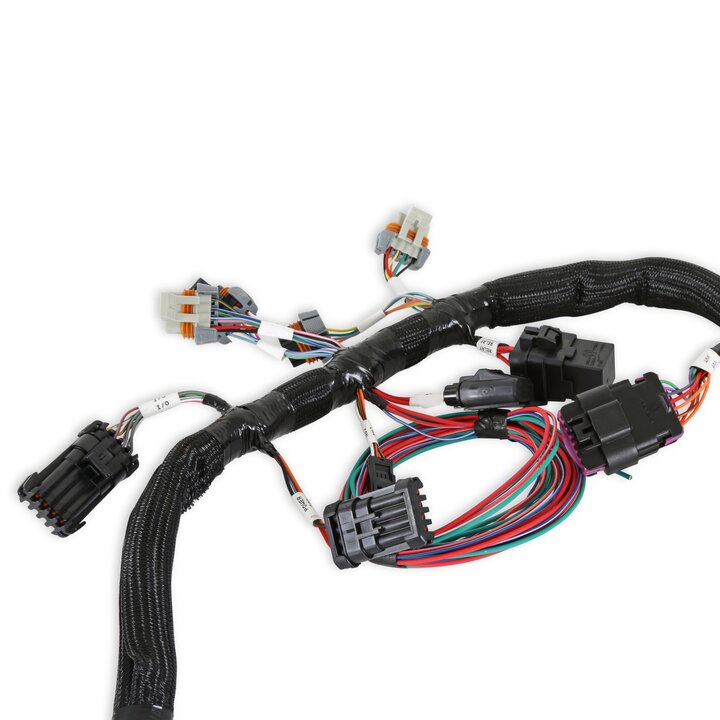

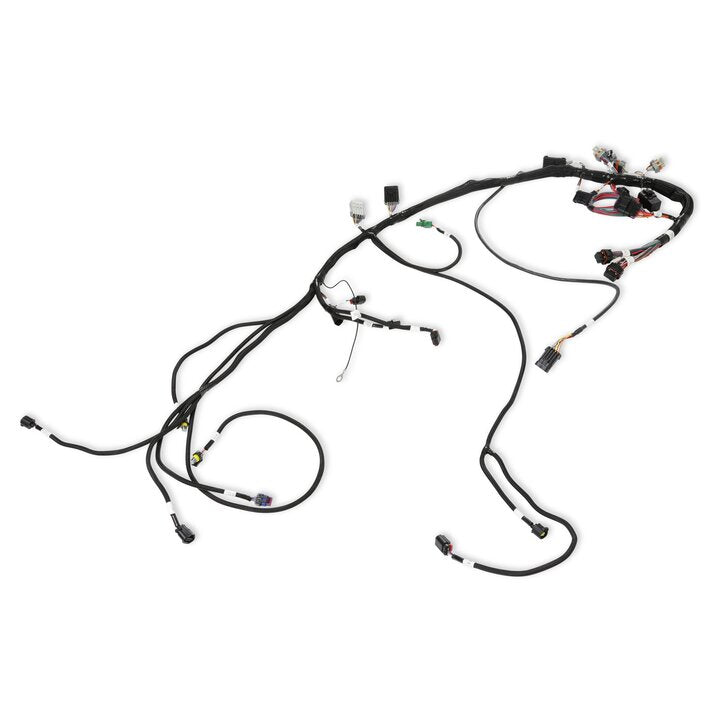

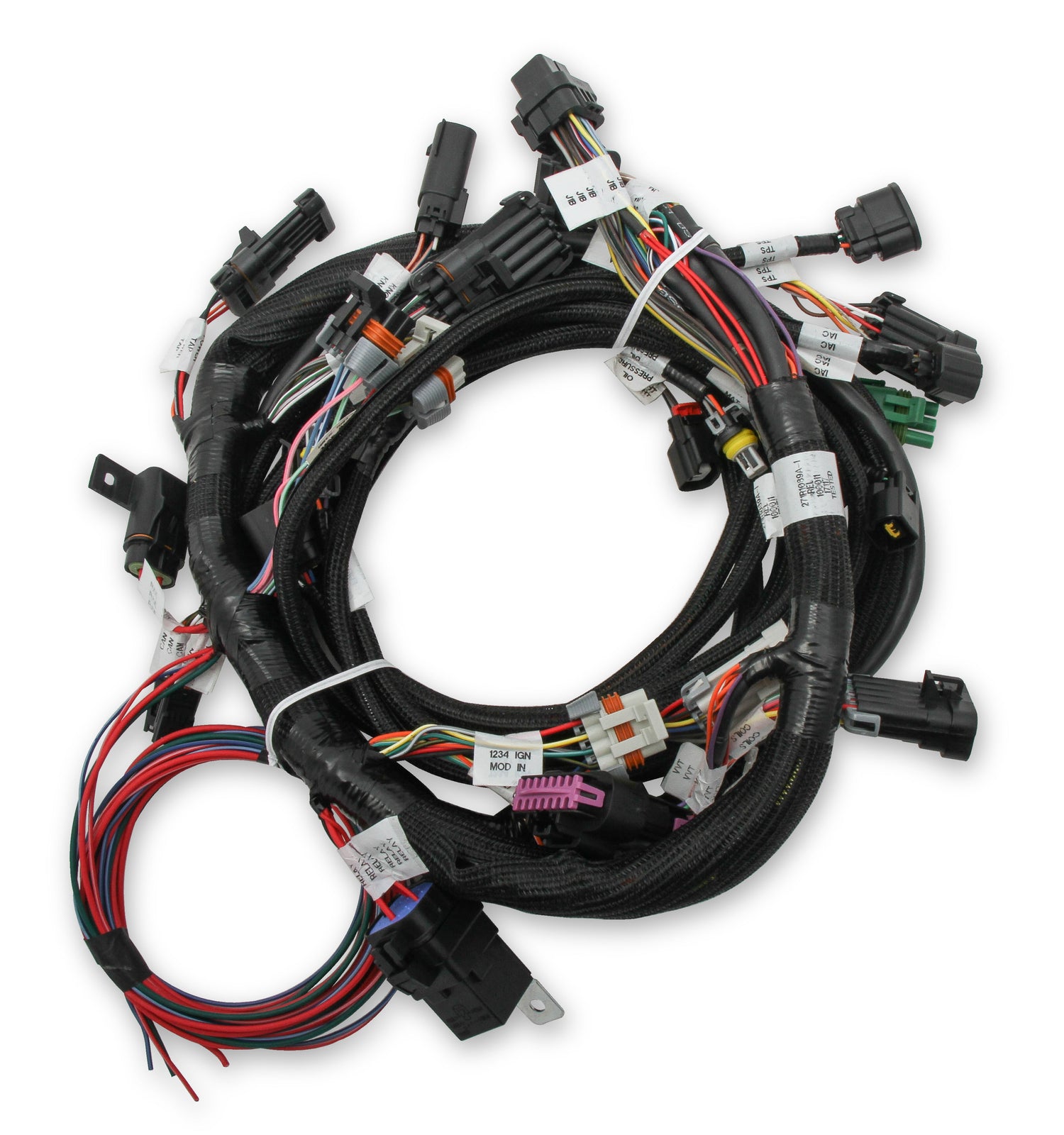

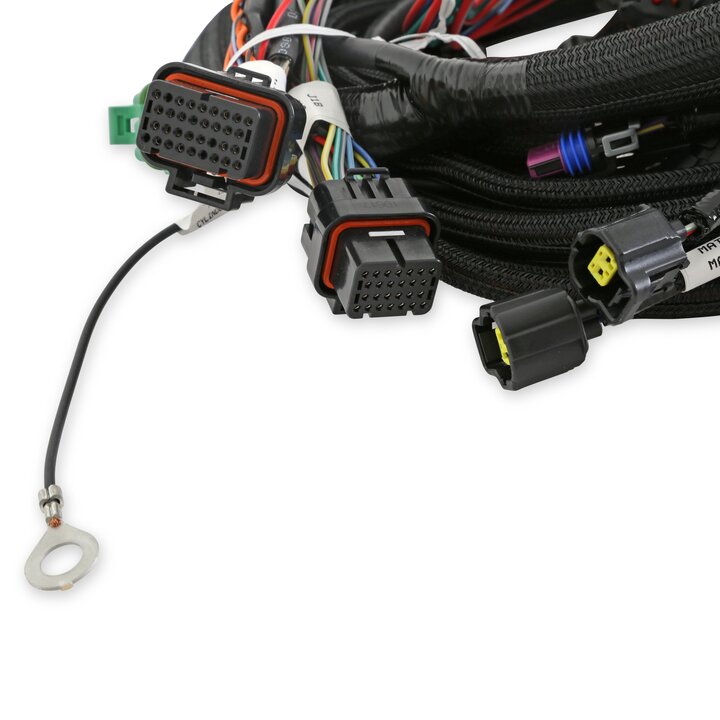

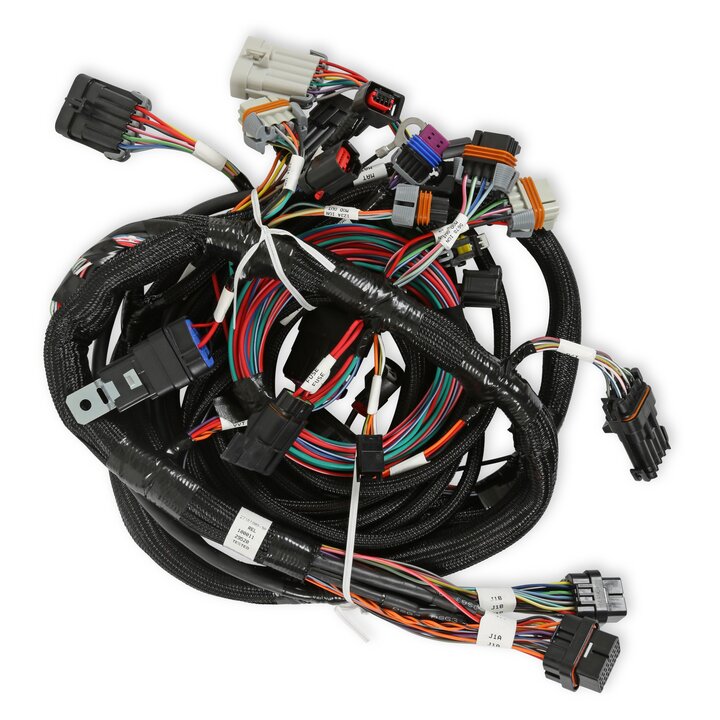

Holley EFI Ford Coyote Engine Main Harness w/ Ti-VCT and Stock Coils (2011-2017) - 558-110
2011-2017 Ti-VCT Coyote Engines
Regular price
$1,783.70 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley EFI Ford Coyote Engine Main Harness w/ Ti-VCT and Stock Coils (2011-2017) - 558-110
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
2011-2017 Ti-VCT Coyote Engines
Part Number: 558-110
Introducing Coyote Twin Independent Variable Cam Timing Control from Holley EFI! Do you have a coyote crate engine going in your dream car? Is your weekend road race warrior powered by a coyote junkyard engine with locked cams? Unlock the full potential of your high revving power plant with the Holley EFI Plug and Play Coyote Ti-VCT Control Module.
Features and Benefits
• Plug and Play Coyote Main Engine Harness
• Connectors are labeled for easy identification

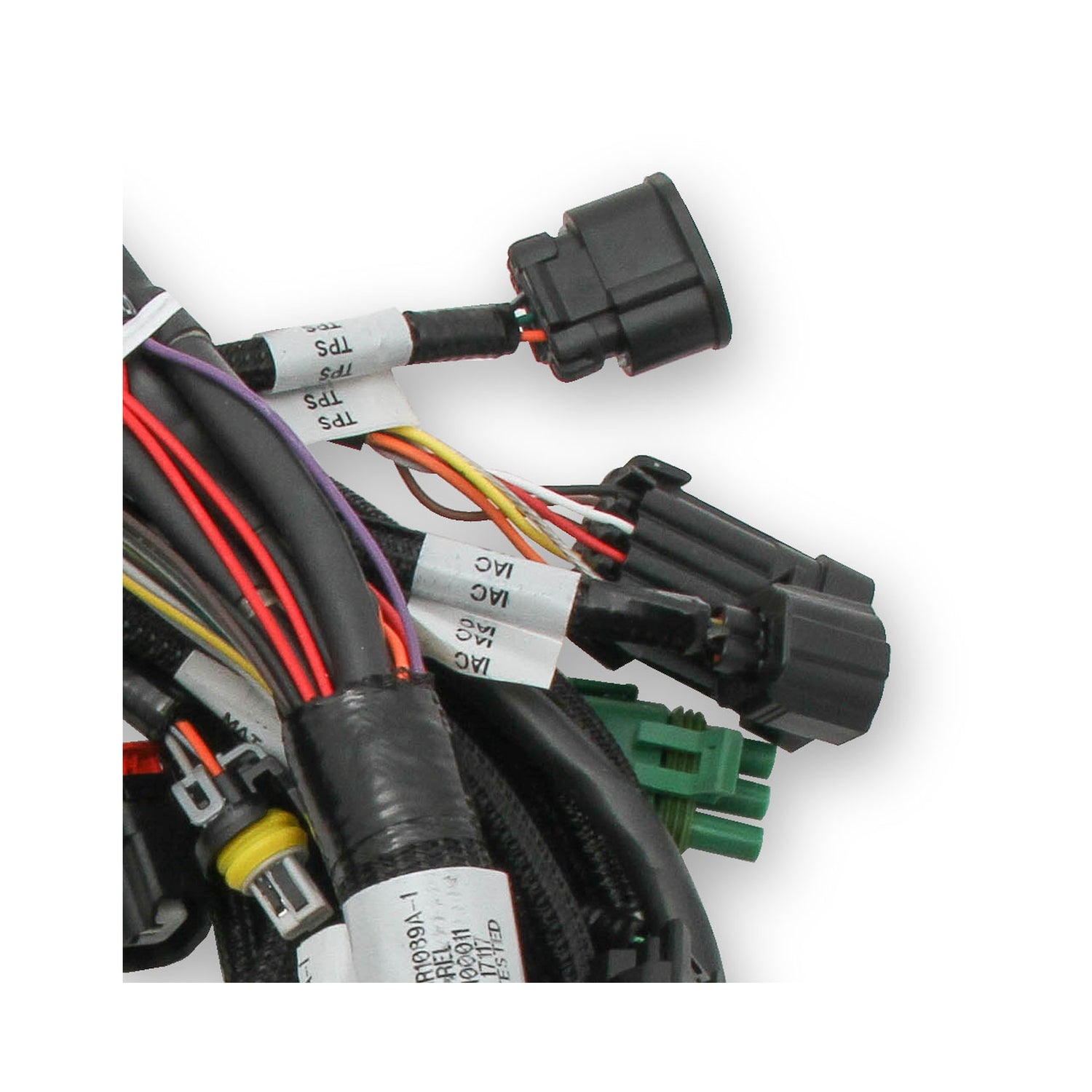

• Terminated with Ford TPS and IAC Connectors for DBW to Cable Driven Throttle Body Conversions (99-04 Style Connectors)

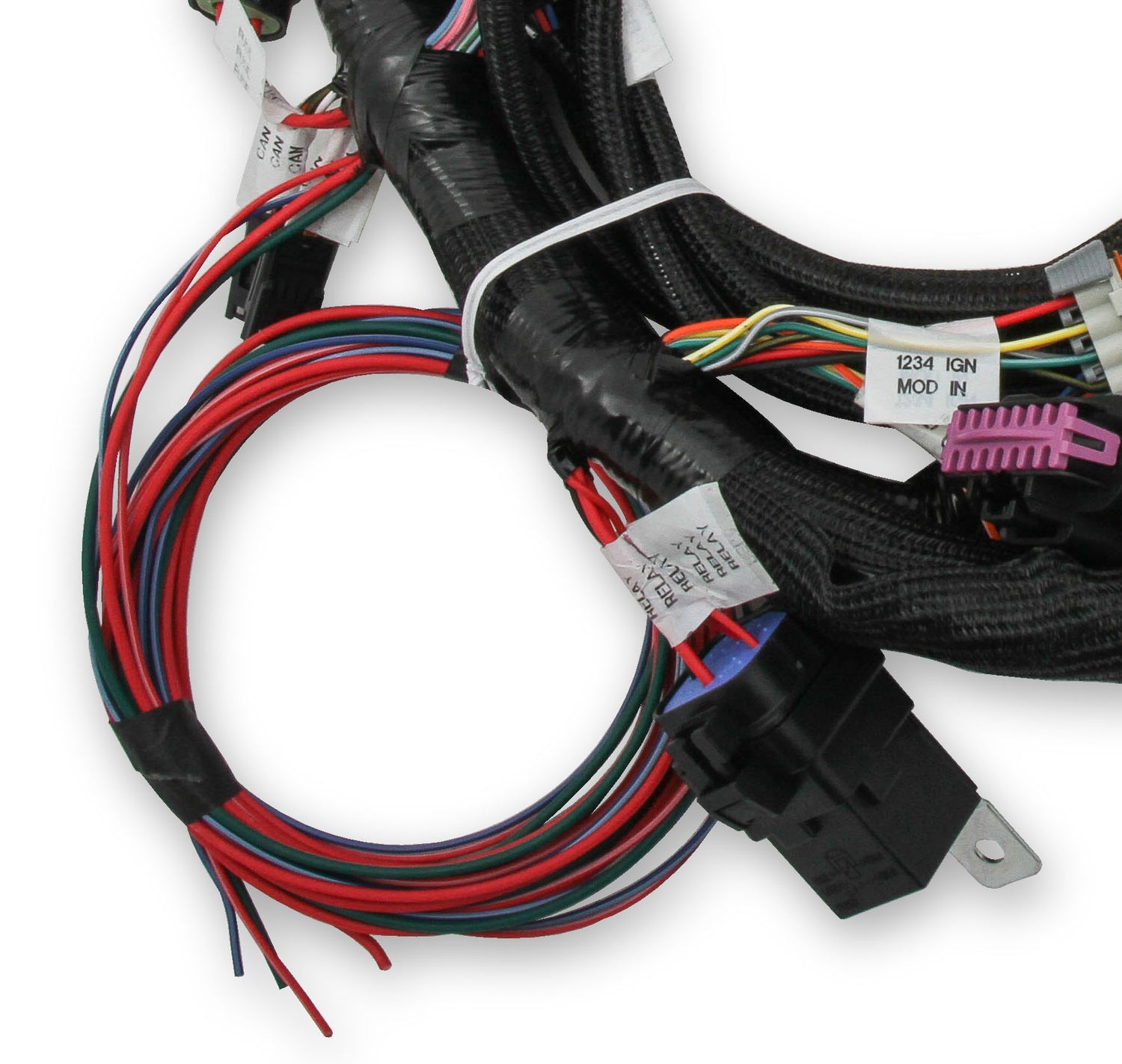

• Includes Power Tap Connector for additional powers and grounds for sensors or solenoids
• Single CAN connector for optional accessories, such as the Holley EFI Digital Dash (553-106)
• Optional Fuel and Oil Pressure transducer connectors pre-terminated for datalogging or gauge monitoring
Requires MAP Sensor P/N 538-24
When utilizing this Harness with Ti-VCT applications the following parts are required: 554-145 Coyote Ti-VCT Controller, and supporting Harnesses.
Part Number: 558-110
Introducing Coyote Twin Independent Variable Cam Timing Control from Holley EFI! Do you have a coyote crate engine going in your dream car? Is your weekend road race warrior powered by a coyote junkyard engine with locked cams? Unlock the full potential of your high revving power plant with the Holley EFI Plug and Play Coyote Ti-VCT Control Module.
Features and Benefits
• Plug and Play Coyote Main Engine Harness
• Connectors are labeled for easy identification
• Terminated with Ford TPS and IAC Connectors for DBW to Cable Driven Throttle Body Conversions (99-04 Style Connectors)
• Includes Power Tap Connector for additional powers and grounds for sensors or solenoids
• Single CAN connector for optional accessories, such as the Holley EFI Digital Dash (553-106)
• Optional Fuel and Oil Pressure transducer connectors pre-terminated for datalogging or gauge monitoring
Requires MAP Sensor P/N 538-24
When utilizing this Harness with Ti-VCT applications the following parts are required: 554-145 Coyote Ti-VCT Controller, and supporting Harnesses.
Specifications
Specifications
-
Specifications
Brand Holley EFI Category Engine Emission Code 4 Grade Type Performance Harness Application Ford Harness Type Main part type Engine Wiring Harness Product Type ECU Assembly Sub Category Wire, Cable and Related Components Warning California Proposition 65 -
