Holley EFI | SKU:
557-200

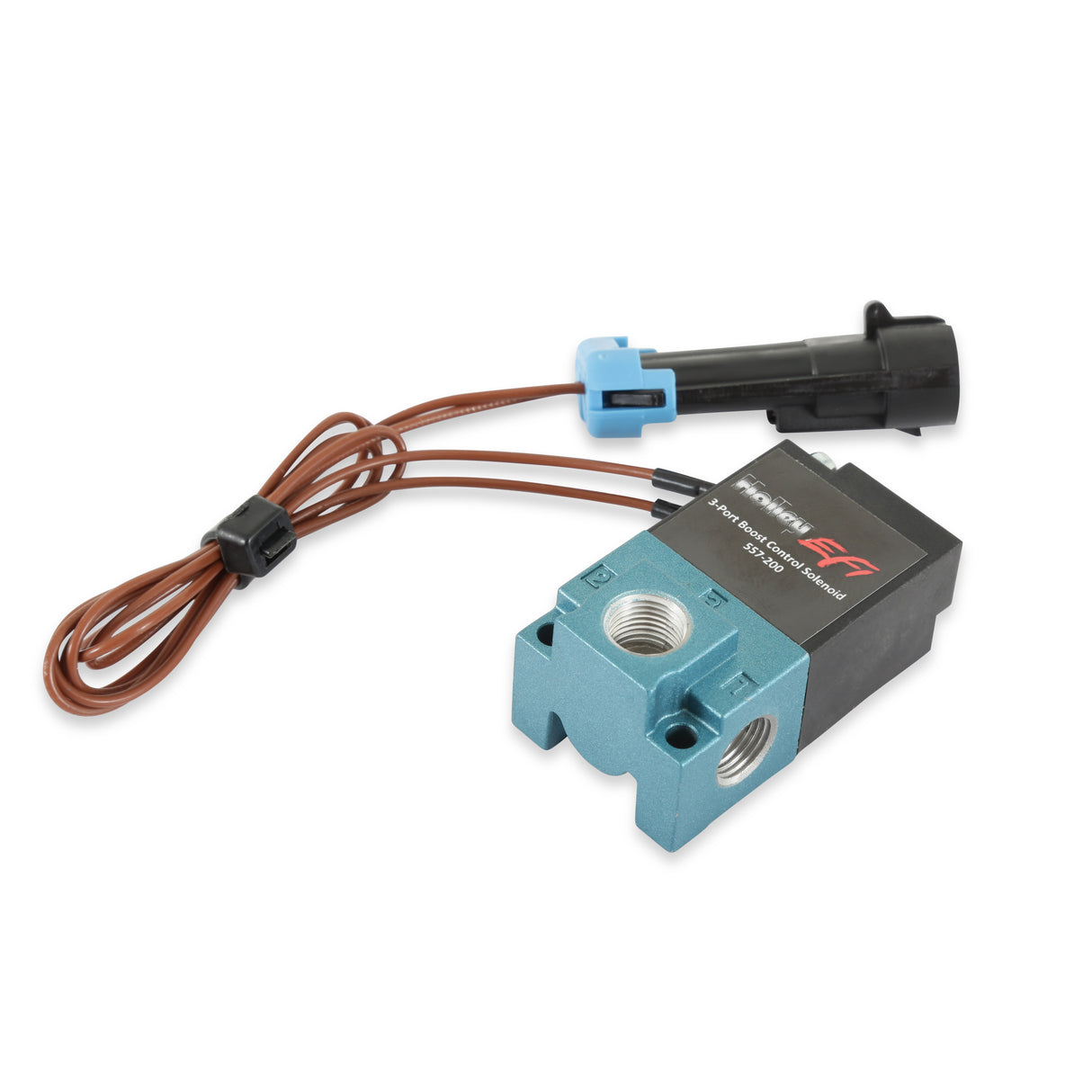

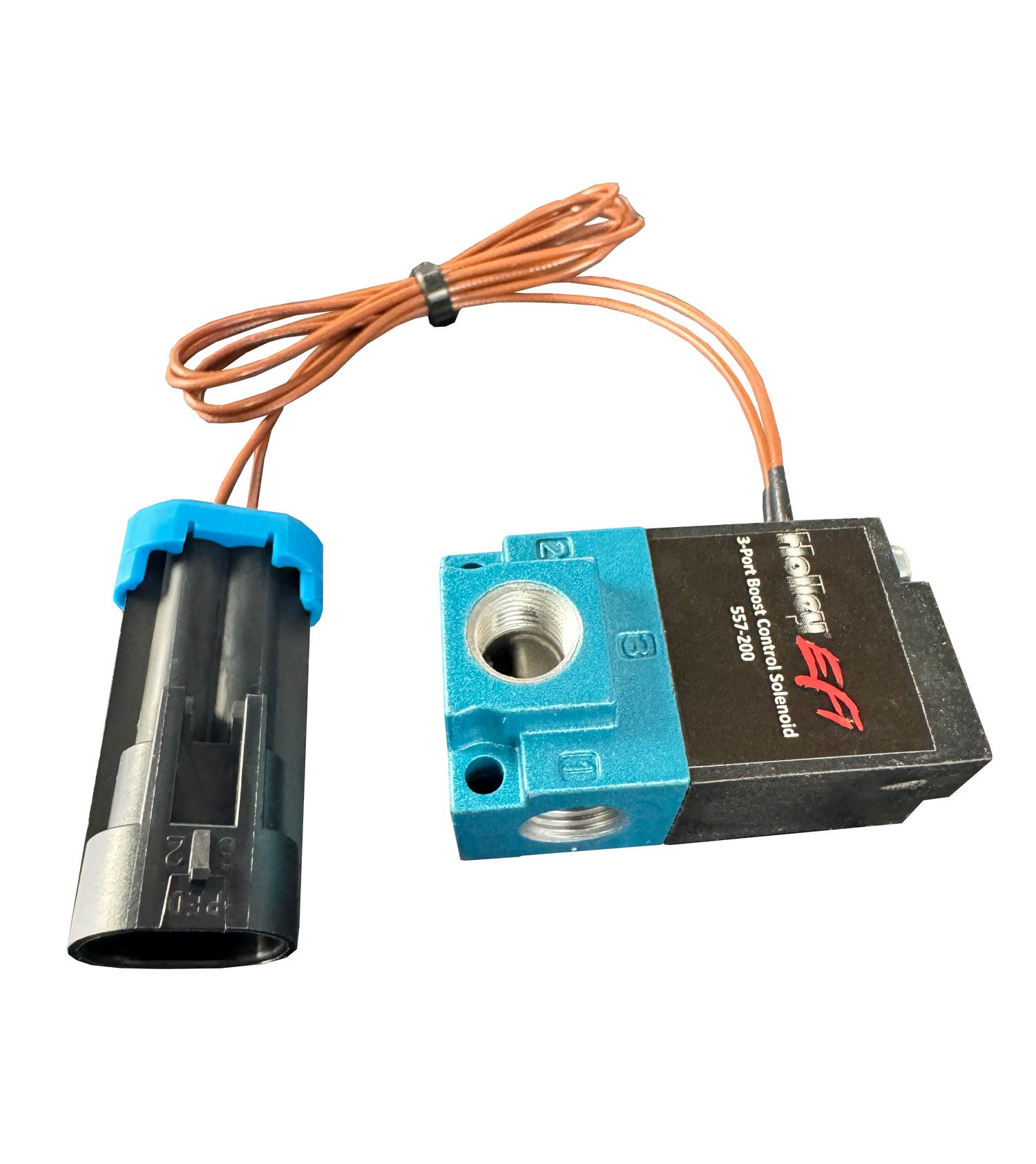

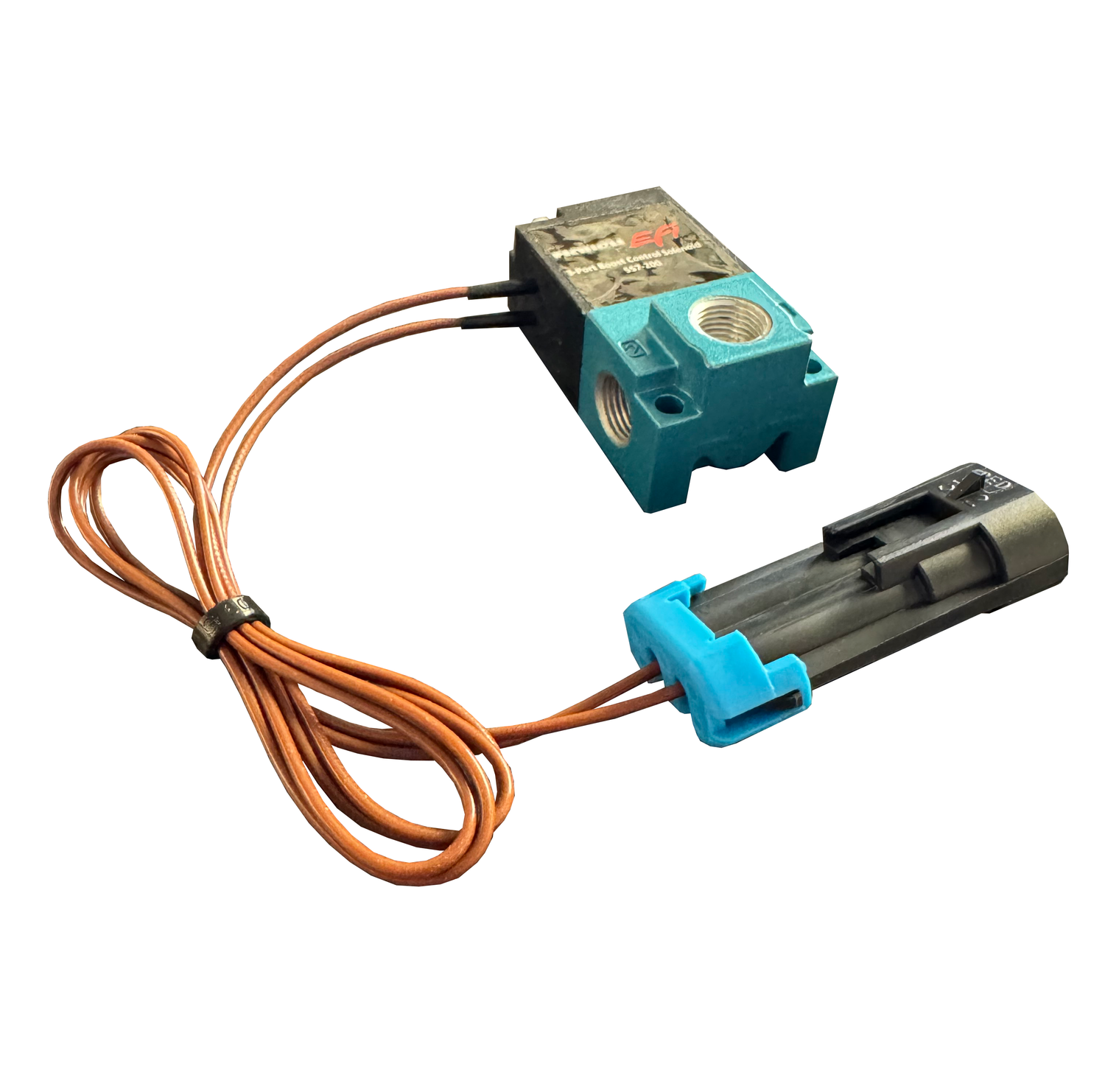

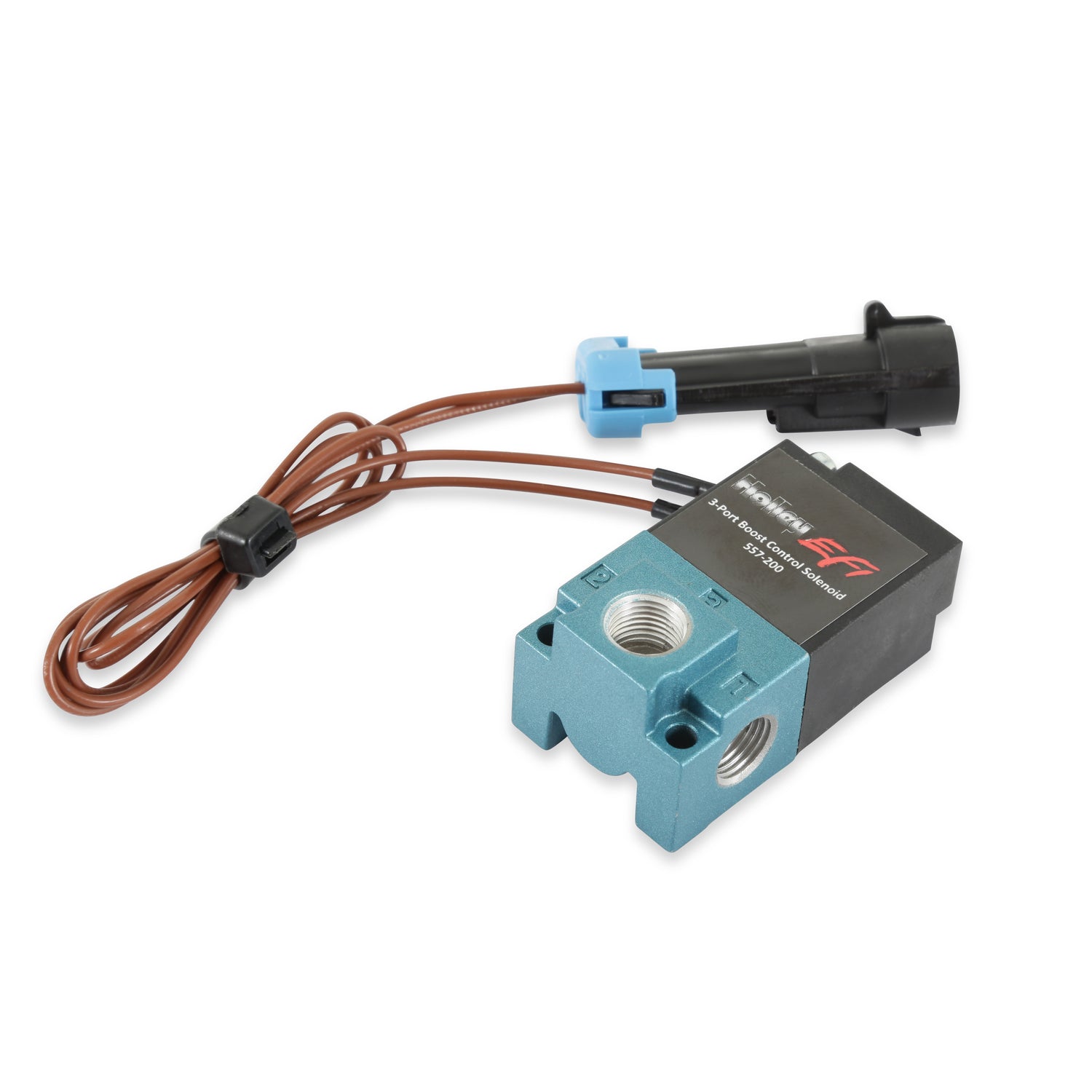

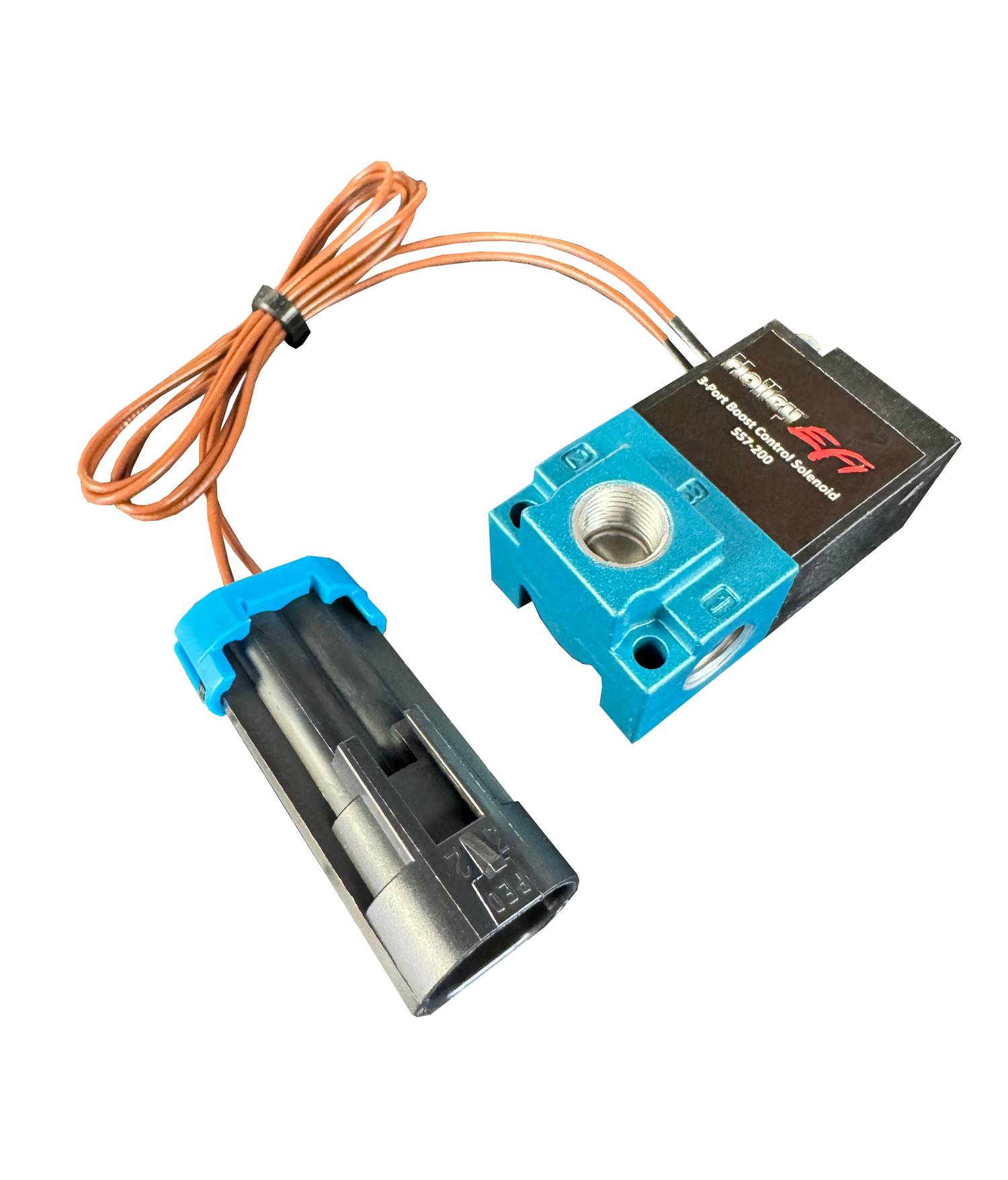

Holley 557-200 3 Port Boost Control Solenoid
For Boost Control
Regular price
$357.10 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 557-200 3 Port Boost Control Solenoid is not in stock at Fast Lane Spares and will ship direct from supplier
ā Special Order Item ā ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7ā20 days shipping.
Stock Status:
Description
Description
For Boost Control
Part Number: 557-200
Our 3 port boost control solenoid is designed for optimal performance when using the boost control function of Holley EFI. Some setups require two solenoids and some require one. The solenoid is driven by a Pulse Width Modulated (PWM) output of the ECU. It is advised not to use the PWM+ outputs on an HP ECU, but rather use the PWM- Outputs. If you have a Dominator ECU, either use the PWM- outputs, or use a PWM+ output on the J2B connector.
Features and Benefits
ā¢ 3 port
ā¢ For boost control
ā¢ Used with Dominator and HP

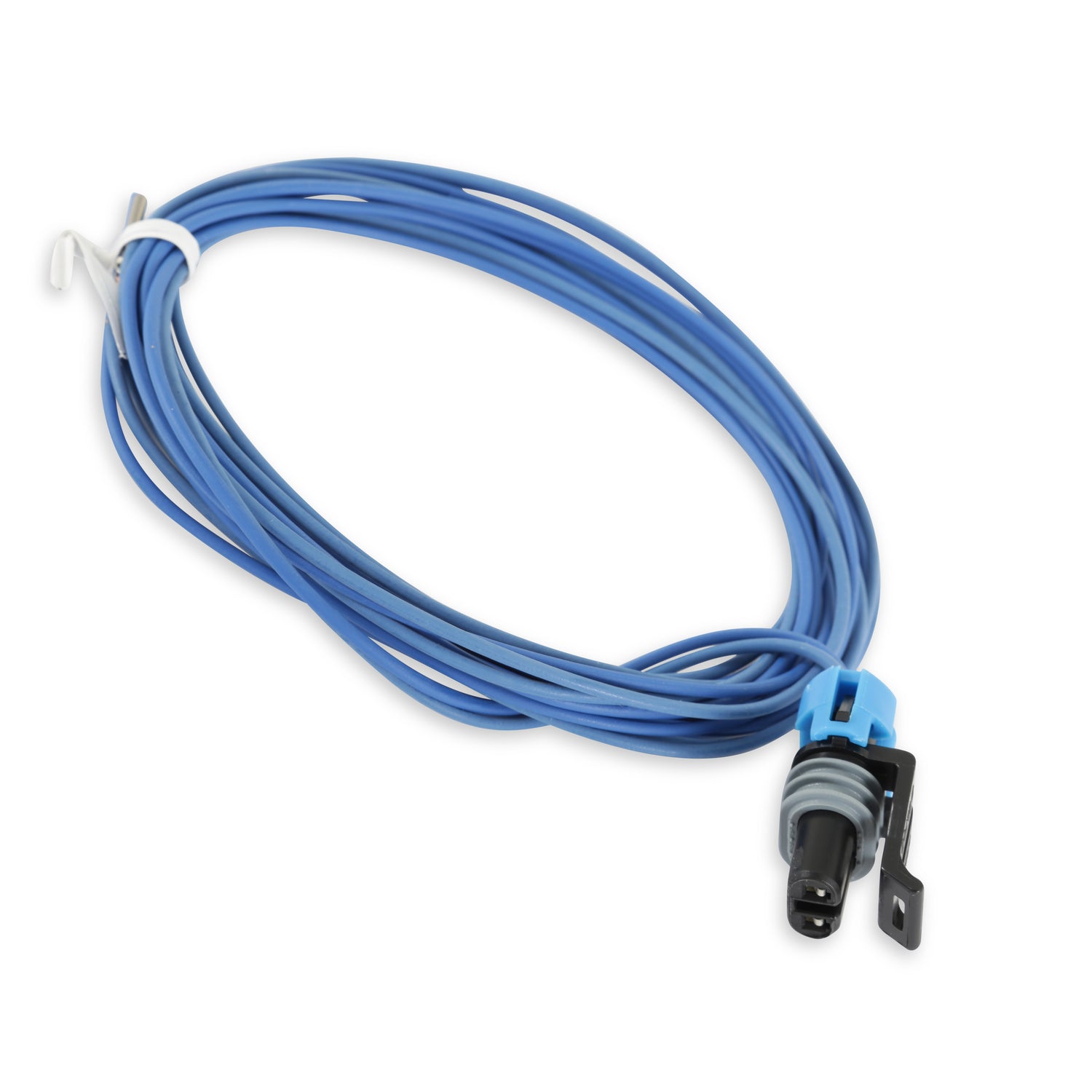

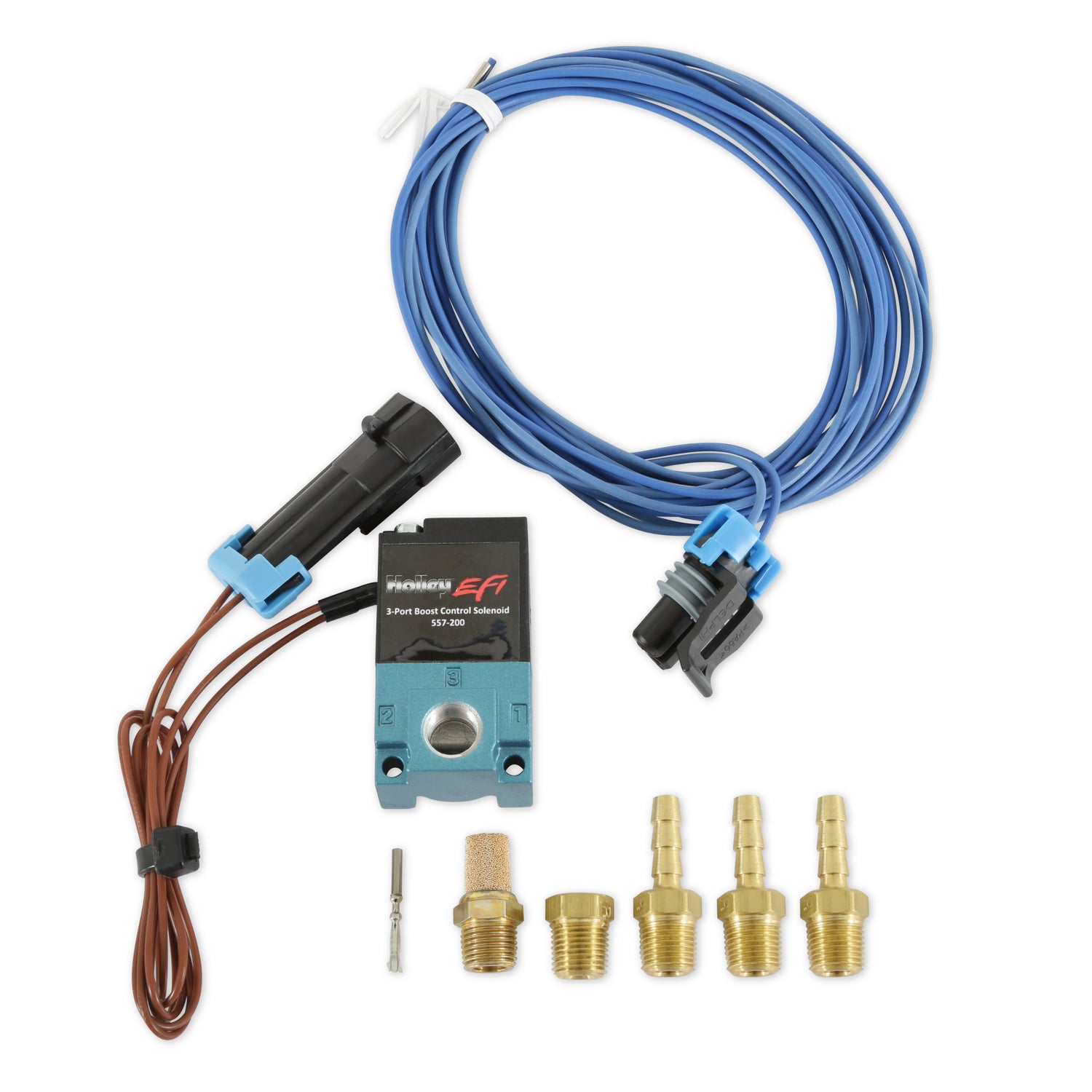

ā¢ Includes (1) solenoid, (1) ECU pigtail harness with factory crimped ECU pin, (3) 3/16" barb fittings, (1) 1/8" NPT plug, (1) sintered brass muffler. and (1) spare ECU pin for modified harness lengths
Solenoid is driven directly from a Pulse Width Modulated (PWM) ECU output.
Part Number: 557-200
Our 3 port boost control solenoid is designed for optimal performance when using the boost control function of Holley EFI. Some setups require two solenoids and some require one. The solenoid is driven by a Pulse Width Modulated (PWM) output of the ECU. It is advised not to use the PWM+ outputs on an HP ECU, but rather use the PWM- Outputs. If you have a Dominator ECU, either use the PWM- outputs, or use a PWM+ output on the J2B connector.
Features and Benefits
ā¢ 3 port
ā¢ For boost control
ā¢ Used with Dominator and HP
ā¢ Includes (1) solenoid, (1) ECU pigtail harness with factory crimped ECU pin, (3) 3/16" barb fittings, (1) 1/8" NPT plug, (1) sintered brass muffler. and (1) spare ECU pin for modified harness lengths
Solenoid is driven directly from a Pulse Width Modulated (PWM) ECU output.
Specifications
Specifications
-
Specifications
Brand Holley EFI Category Air and Fuel Delivery Connector Type 2 pin Metri-Pack 150 Depth .94" Emission Code 5 Grade Type Performance Height 1.97" Pig Tail Length 18" Port Size 1/8" NPT Product Type Boost Control Part Warning California Proposition 65 Width 1.10" -
