Holley EFI | SKU:
556-112

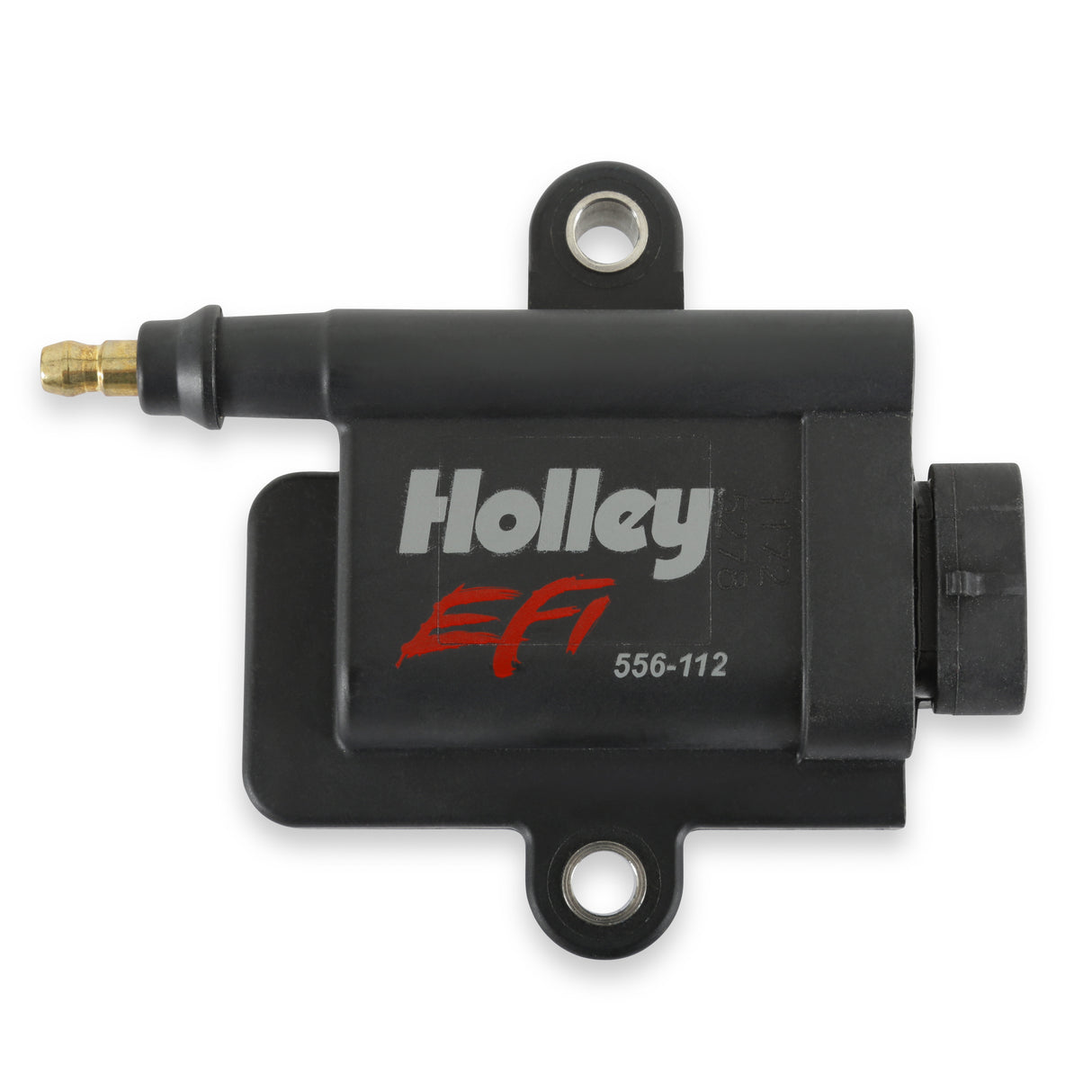

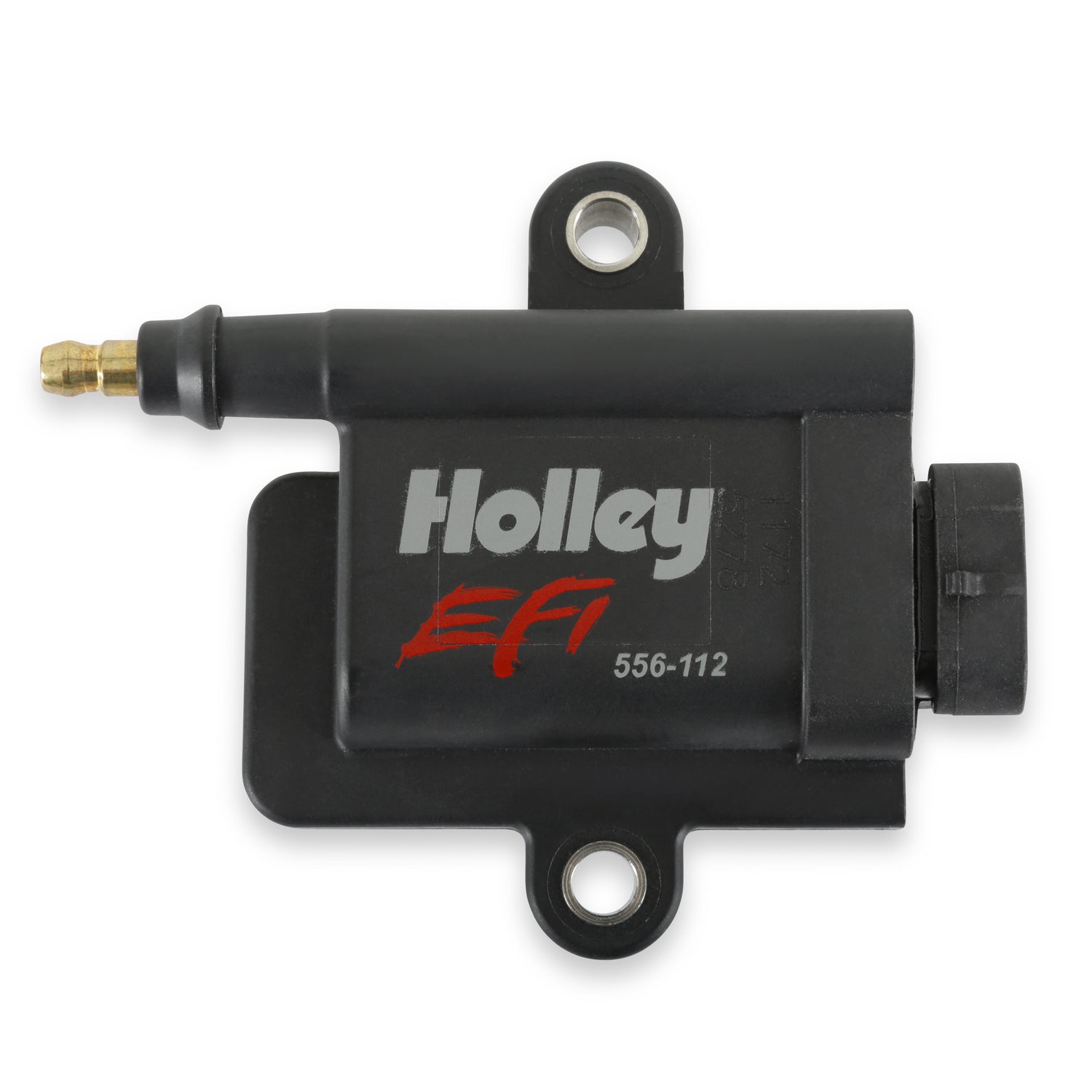

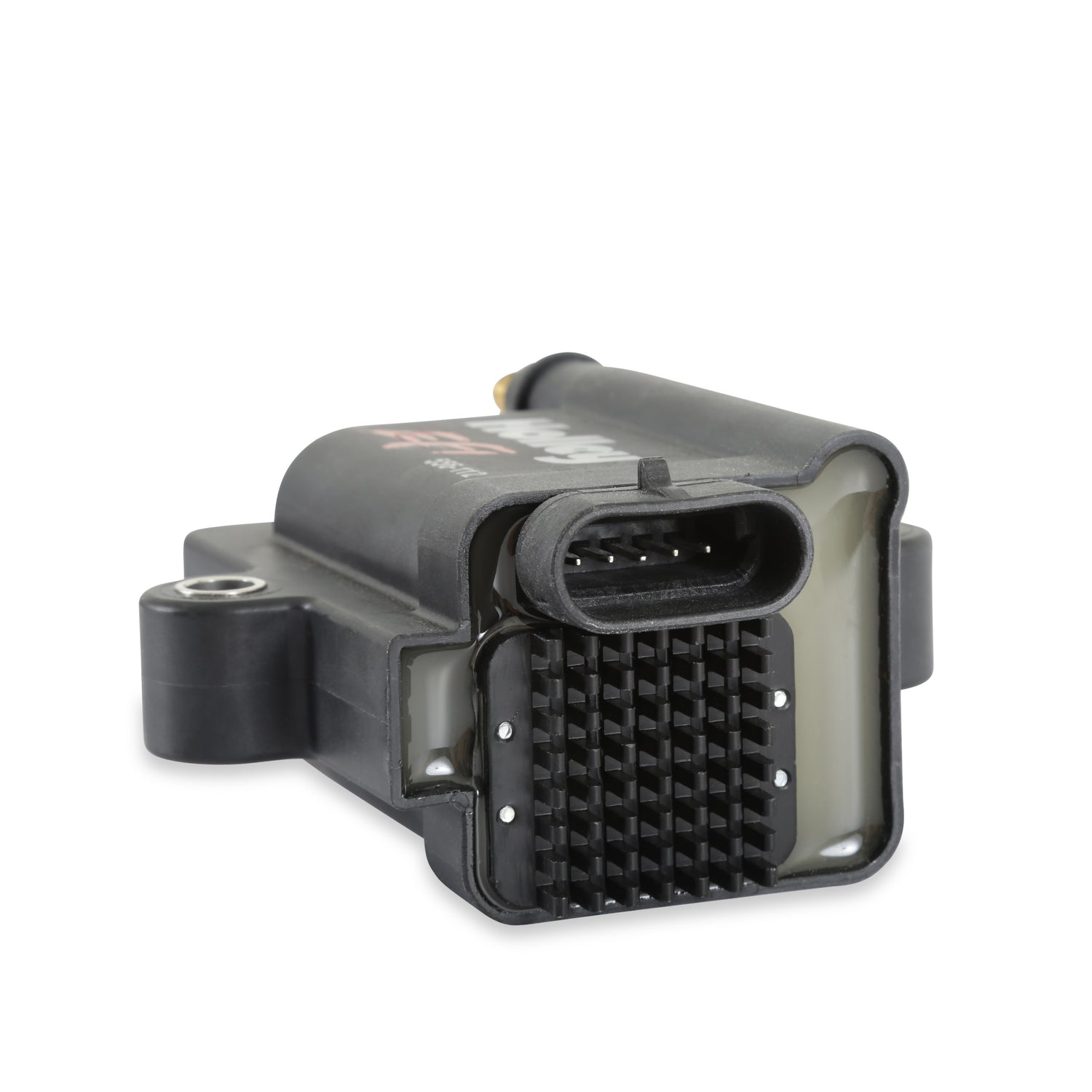

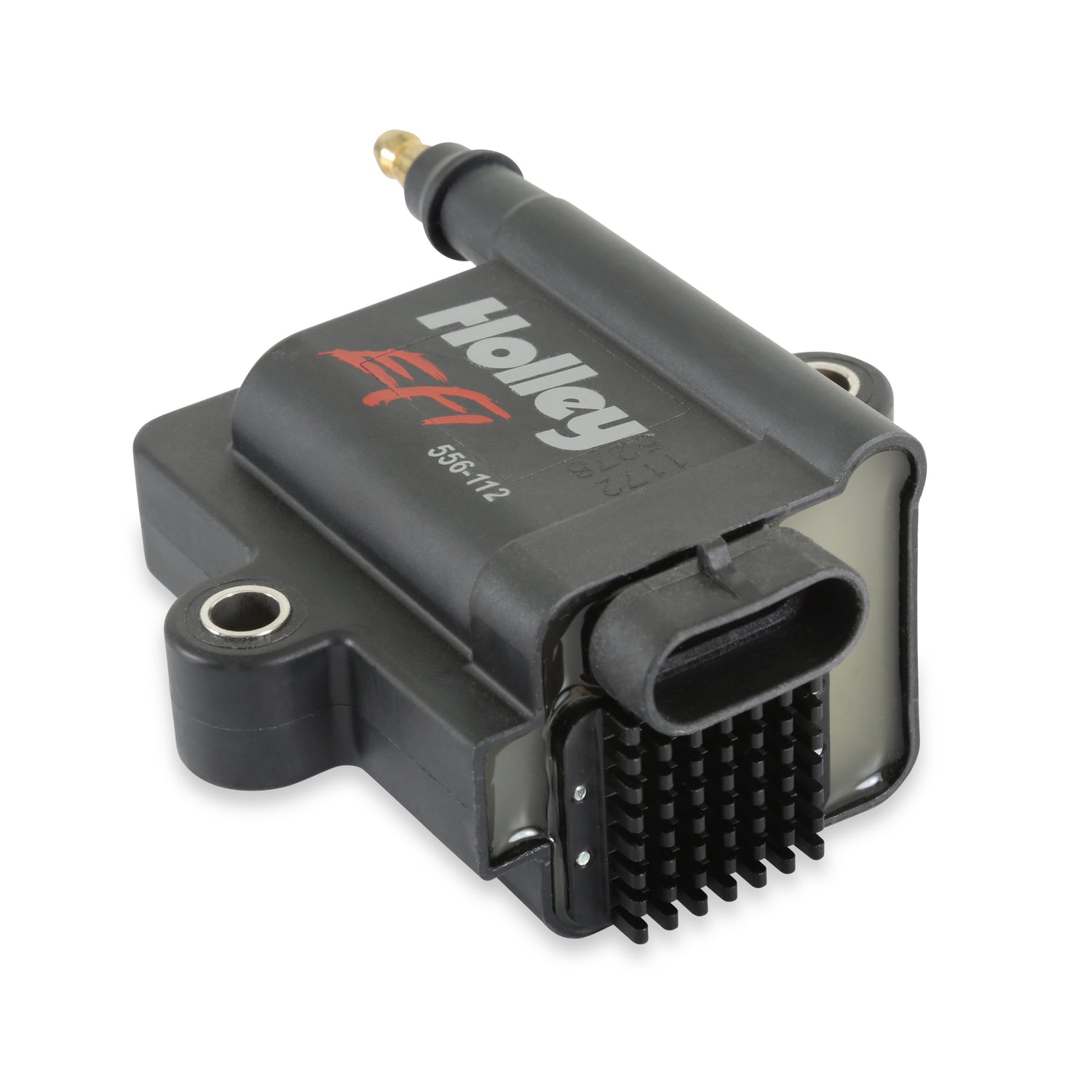

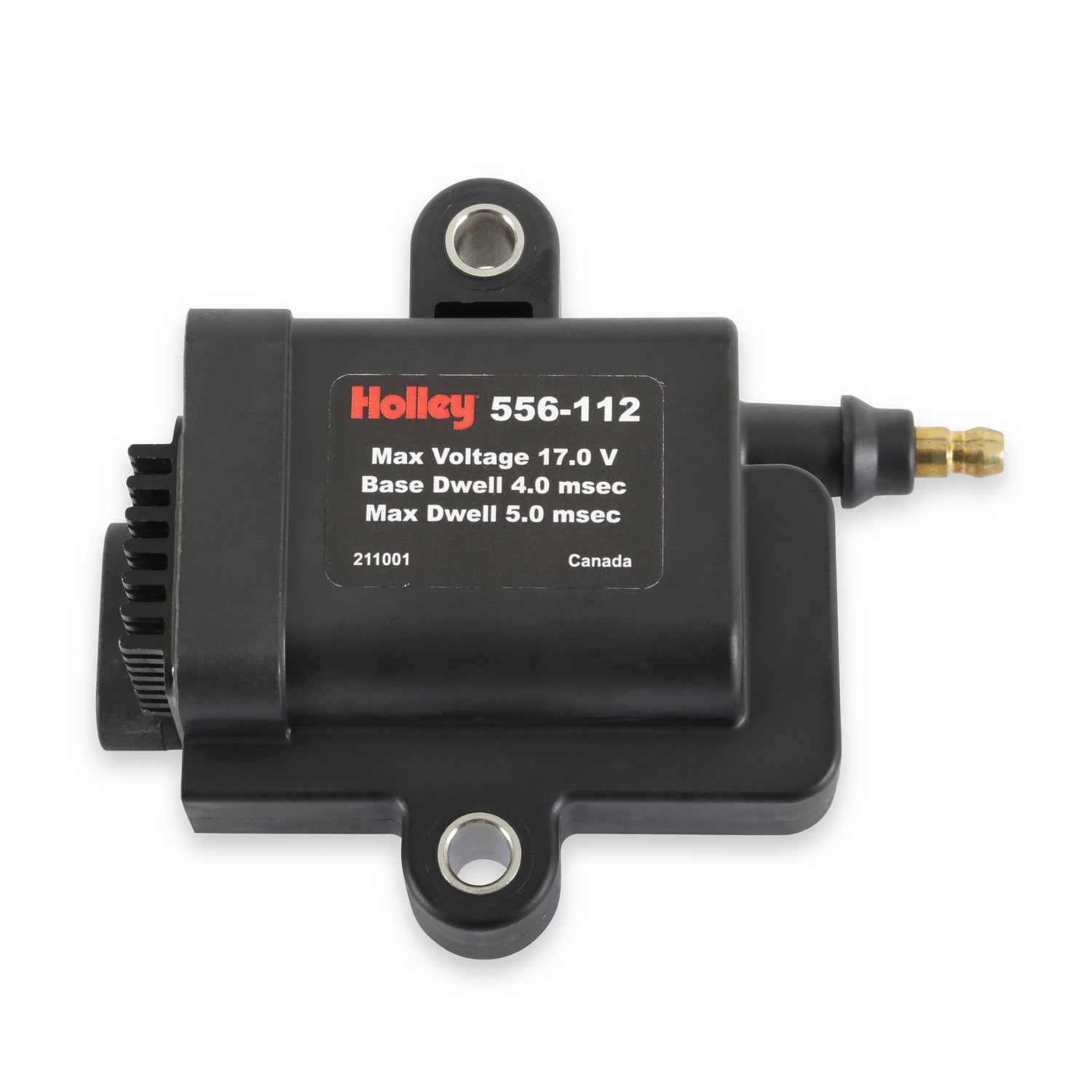

Holley 556-112 Coil-Near-Plug Smart Coil
For Dominator, HP ECU's, and other EFI systems
Regular price
$211.70 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 556-112 Coil-Near-Plug Smart Coil is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
For Dominator, HP ECU's, and other EFI systems
Part Number: 556-112
This coil is designed for use with Holley HP and Dominator ECU's, as well other EFI systems that can drive "smart" ignition coils. Although it is designed for high powered race applications, it can be used on street driven vehicles as well.
Features and Benefits
• Peak Voltage - 44,000V
• Peak Output - 102 Mj
• Maximum Battery Voltage - 17V

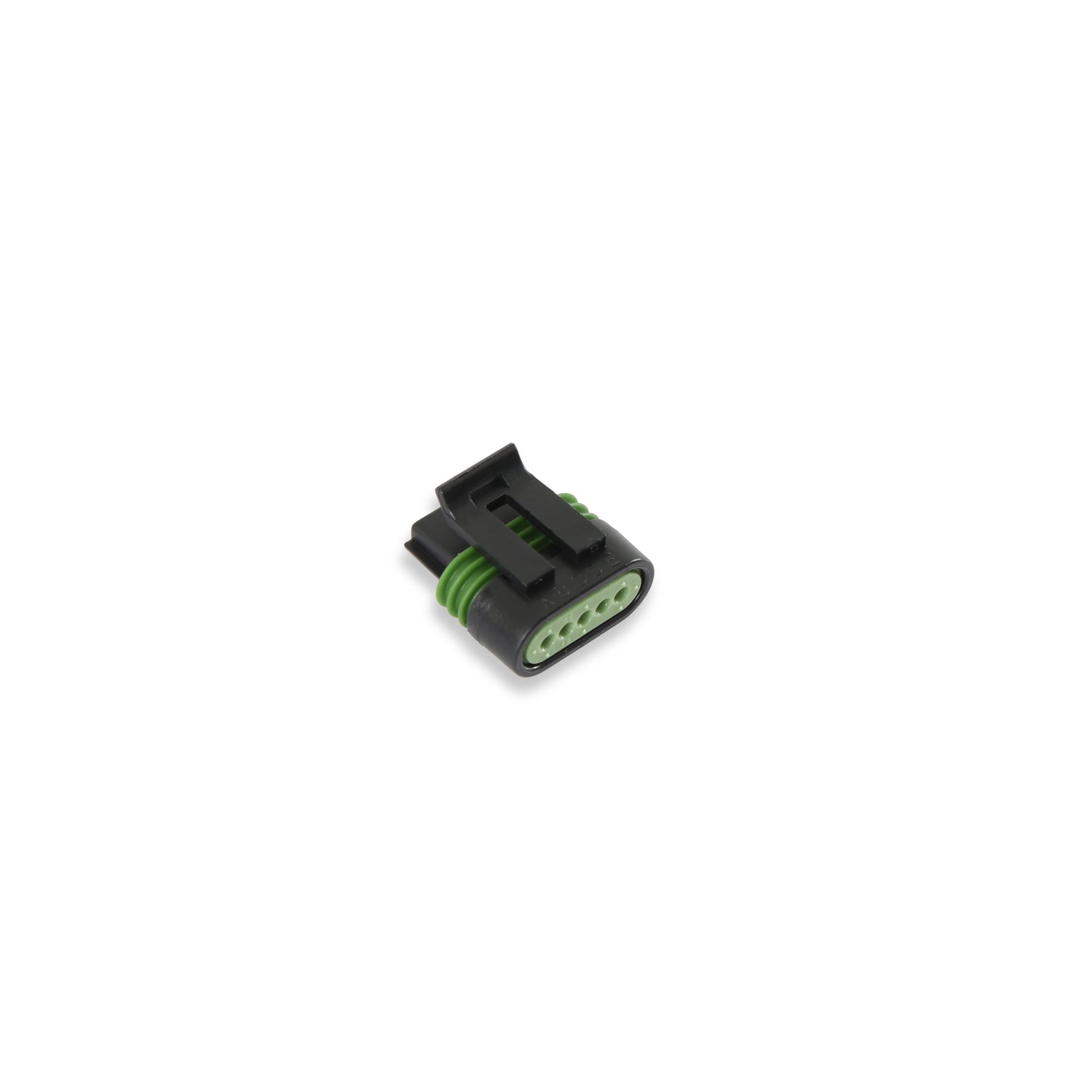

• Mating Connector - Delphi P/N 12162825 “Pull to Seat”
• Connector Pin - Delphi P/N 12124075 “Pull to Seat”
• Includes mating connector and pins
The wire must be fed through the back of the housing, out the front, and then the pin crimped. Pull the wire back in to seat it. Always use proper crimping tools to ensure a proper connection.
Part Number: 556-112
This coil is designed for use with Holley HP and Dominator ECU's, as well other EFI systems that can drive "smart" ignition coils. Although it is designed for high powered race applications, it can be used on street driven vehicles as well.
Features and Benefits
• Peak Voltage - 44,000V
• Peak Output - 102 Mj
• Maximum Battery Voltage - 17V
• Mating Connector - Delphi P/N 12162825 “Pull to Seat”
• Connector Pin - Delphi P/N 12124075 “Pull to Seat”
• Includes mating connector and pins
The wire must be fed through the back of the housing, out the front, and then the pin crimped. Pull the wire back in to seat it. Always use proper crimping tools to ensure a proper connection.
Specifications
Specifications
-
Specifications
Brand Holley EFI Category Ignition Coil Type Holley SmartCoil Coil Wire Included No Color Black Connector Gender Female Emission Code 4 Grade Type Performance Height 1.86" Ignition Wire Terminal Type HEI Style Tower Mounting Bolt Pattern 74mm Mounting Bracket Included No Mounting Hardware Included No Mounting Hole Quantity 2 Oil Filled No Overall Length 4.3" part type Direct Ignition Coil Product Type Distrutorless Ignition - DIS - smart coil Sub Category Ignition Coil Terminal Gender Male Warning California Proposition 65 Width 3.6" -
