Holley EFI | SKU:
554-134

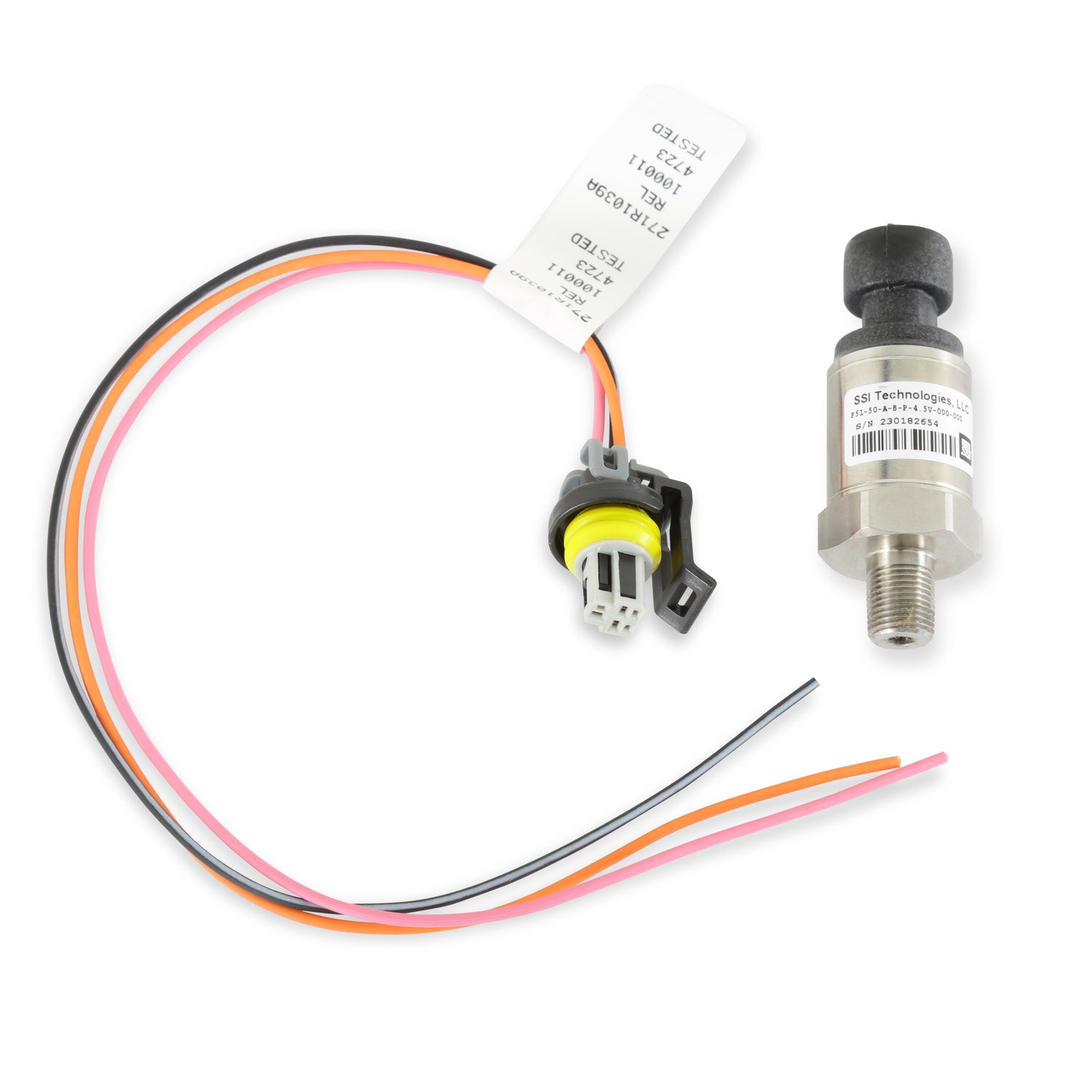

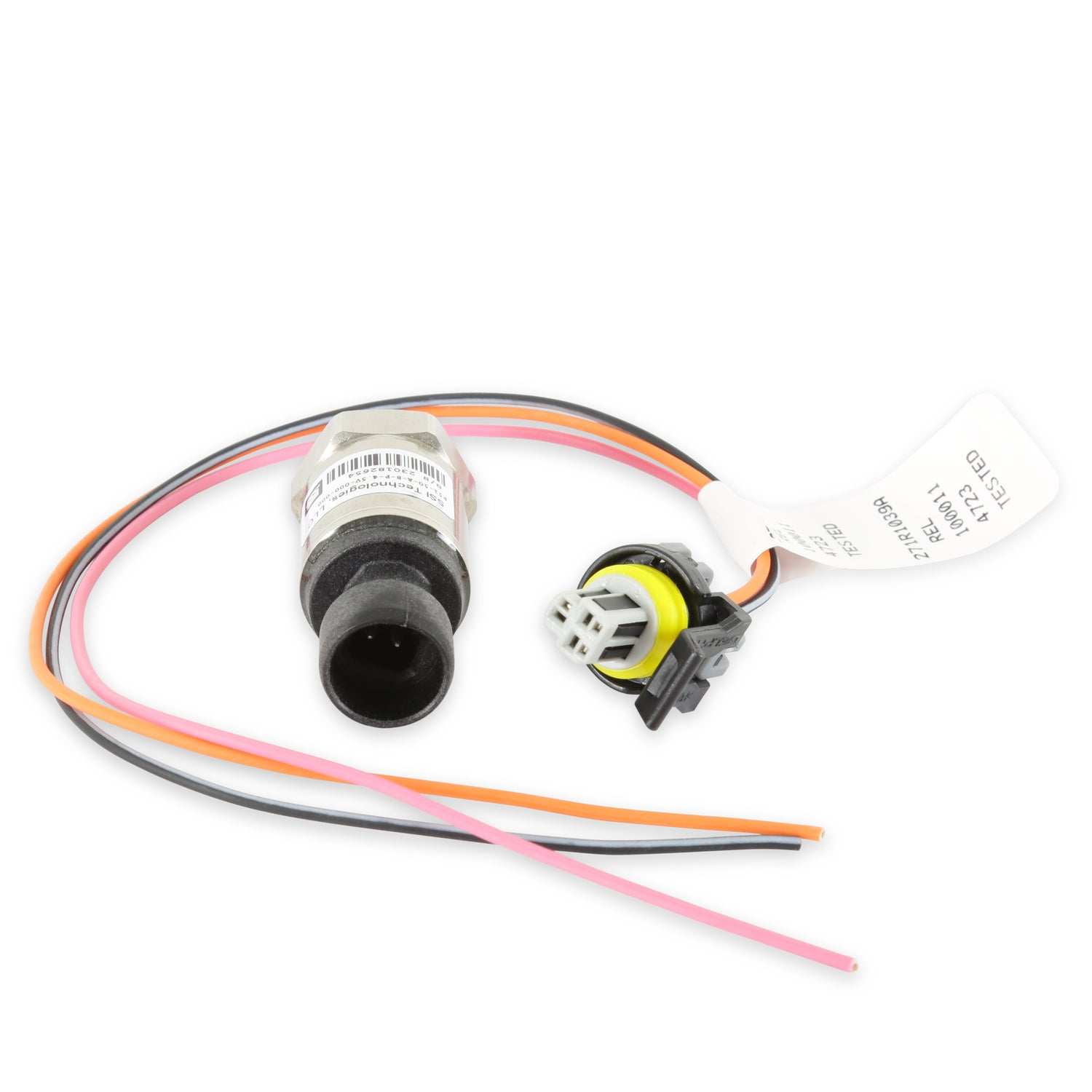

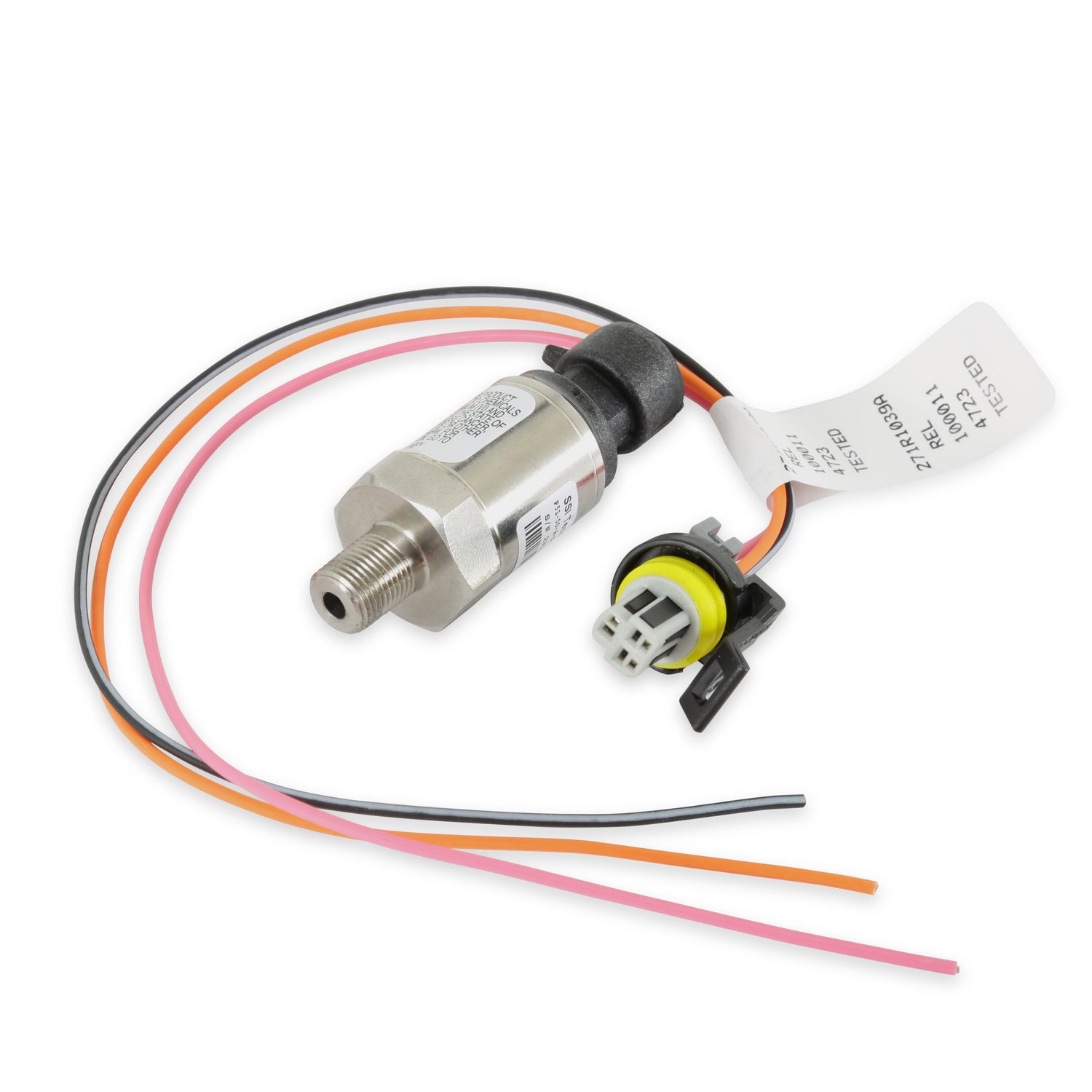

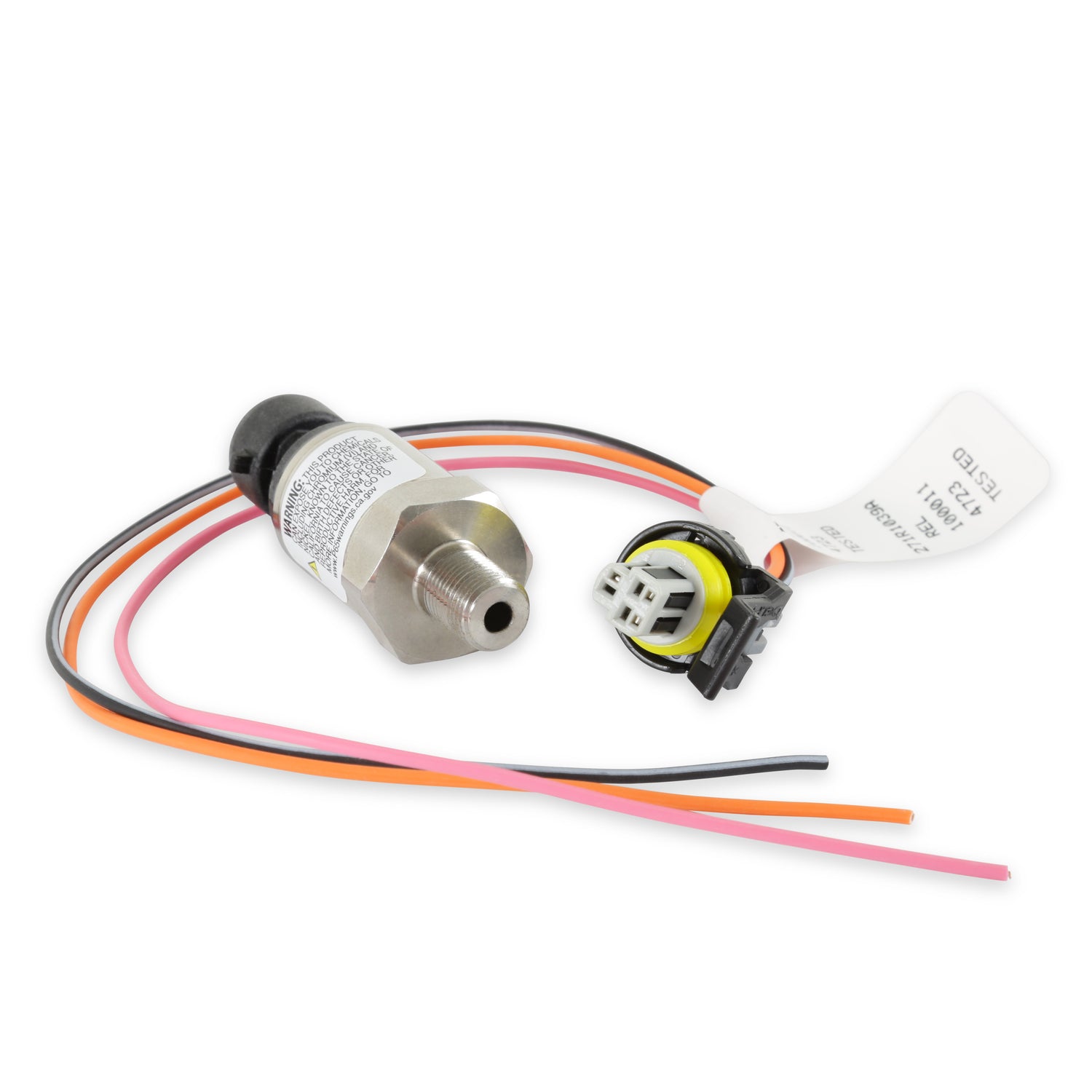

Holley 554-134 MAP Sensor - 3.5 Bar
0-345 kPa Range
Regular price
$359.00 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 554-134 MAP Sensor - 3.5 Bar is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
0-345 kPa Range
Part Number: 554-134
Preconfigured for Holley HP and Dominator systems, used in forced induction applications when a 2 or 3 Bar sensor is not sufficient for certain applications.
Features and Benefits
• Stainless steel construction
• 0-345 kPa
• 3.5 Bar
• 1/8" - 27 NPT
• Linear voltage output of 0.5V - 4.5V
• Includes a pigtail with the sensor
Not recommended to directly mount into the engine, recommended to remote mount the transducer. Extreme vibration can result in premature failure. Terminator systems monitor fuel pressure only. Use a small amount of PTFE thread sealer during installation.
Part Number: 554-134
Preconfigured for Holley HP and Dominator systems, used in forced induction applications when a 2 or 3 Bar sensor is not sufficient for certain applications.
Features and Benefits
• Stainless steel construction
• 0-345 kPa
• 3.5 Bar
• 1/8" - 27 NPT
• Linear voltage output of 0.5V - 4.5V
• Includes a pigtail with the sensor
Not recommended to directly mount into the engine, recommended to remote mount the transducer. Extreme vibration can result in premature failure. Terminator systems monitor fuel pressure only. Use a small amount of PTFE thread sealer during installation.
Specifications
Specifications
-
Specifications
Body Material Stainless Steel Brand Holley EFI Category Emission Control Color Black/Silver Connector Color Black Connector Gender Female Connector Quantity 1 Emission Code 5 Fitting Type NPT Grade Type Performance Housing Color Polished MAP Sensor 3.5 Maximum Pressure Reading 3.5 Bar Mount Type Screw-In part type Manifold Absolute Pressure Sensor Product Type MAP Sensor Sub Category Sensors Terminal Gender Male Type Electrical Warning California Proposition 65 Wiring Harness Included Yes -
